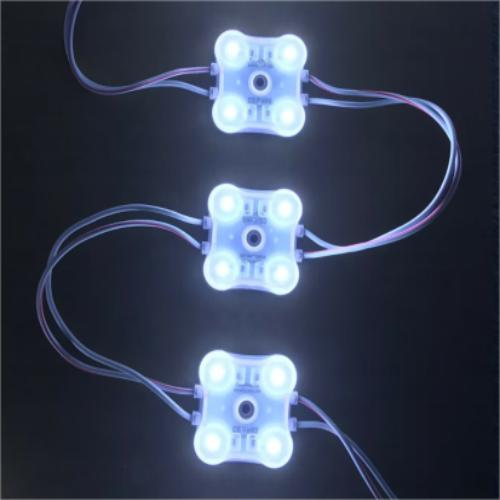

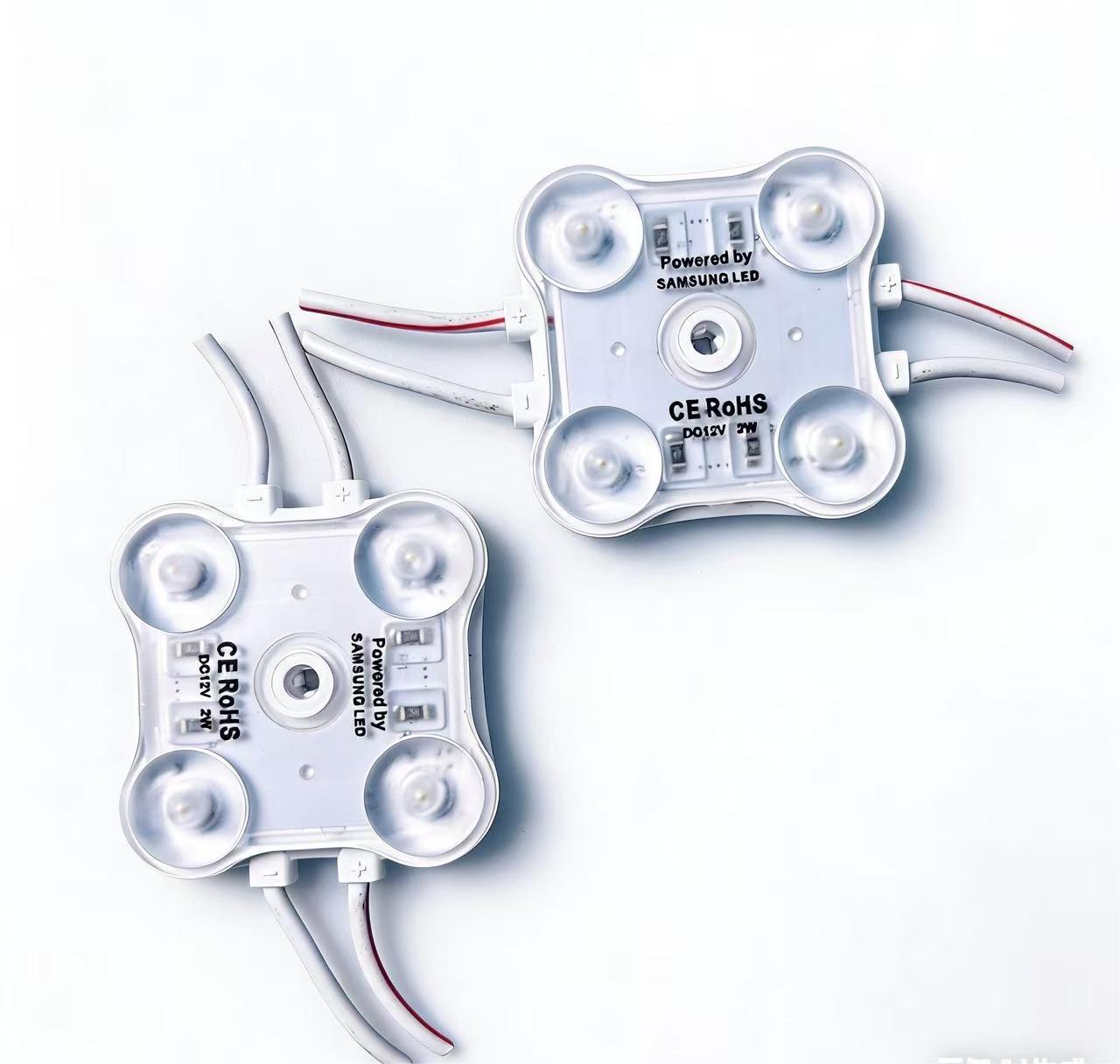

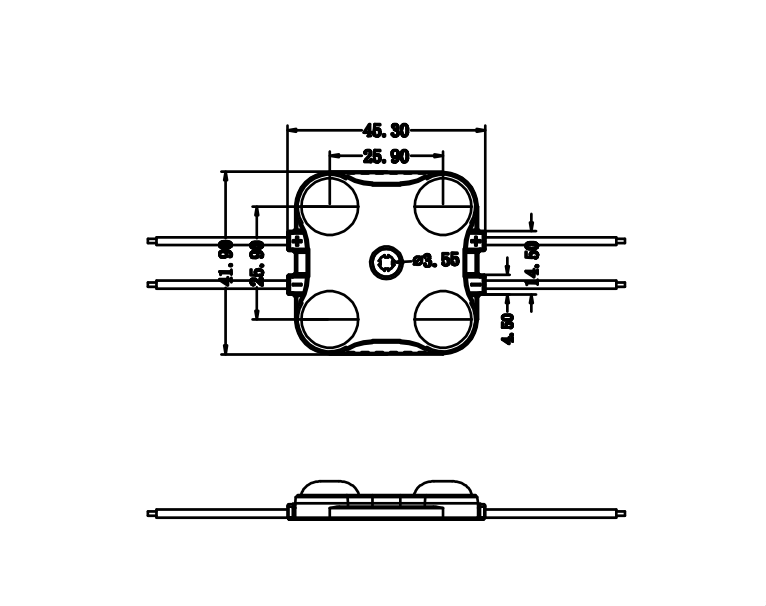

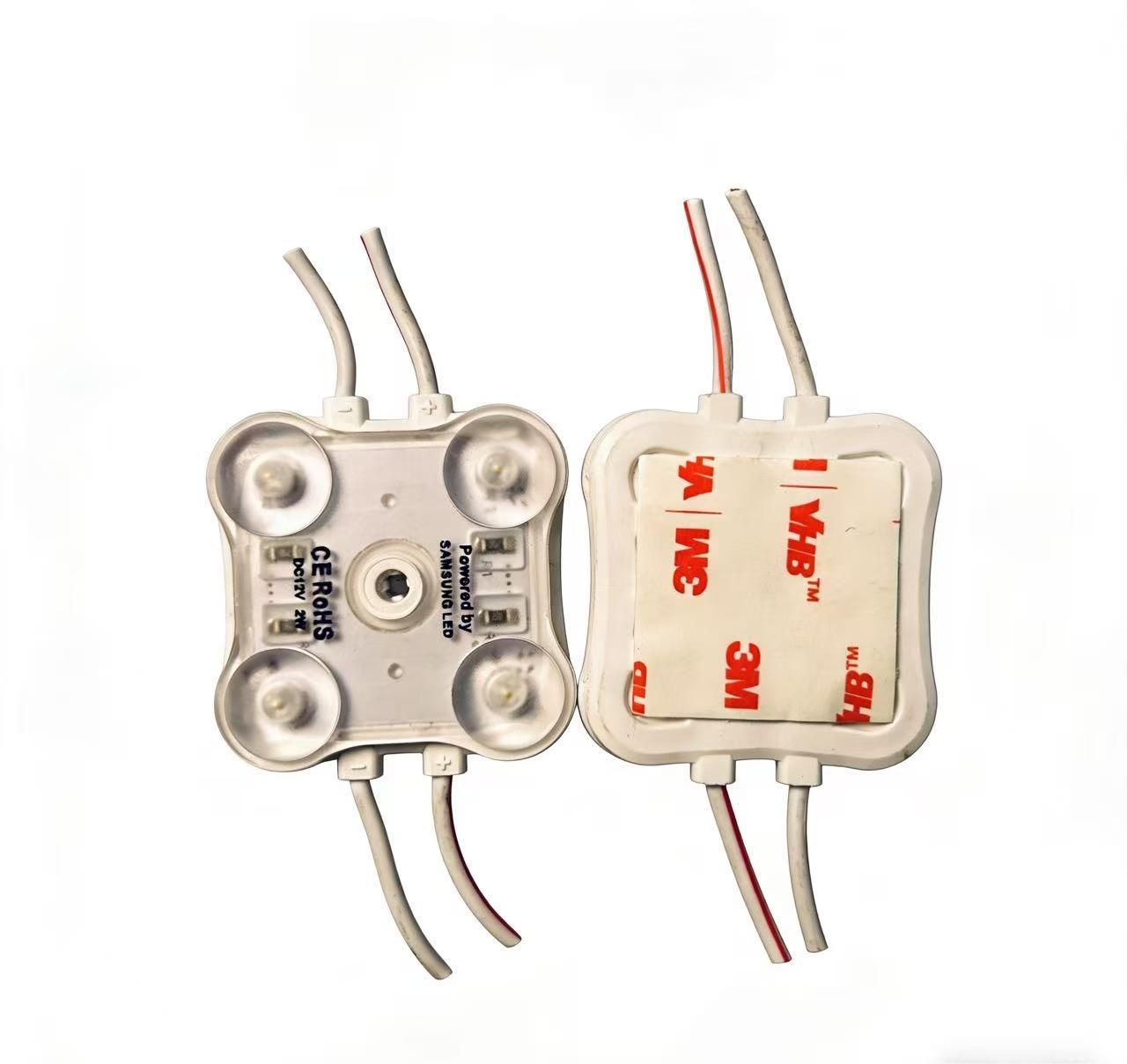

LED Image & Package
Same series LED module products (1, 2, 3 & 4 lamps module):

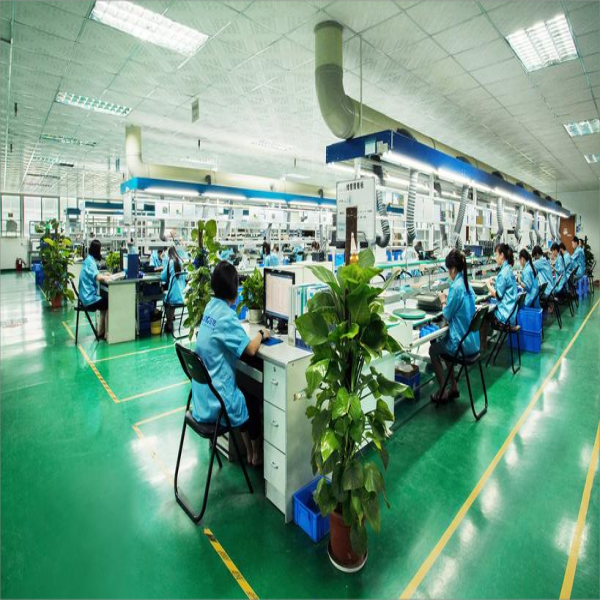

LED Module Factory Production Details Process:

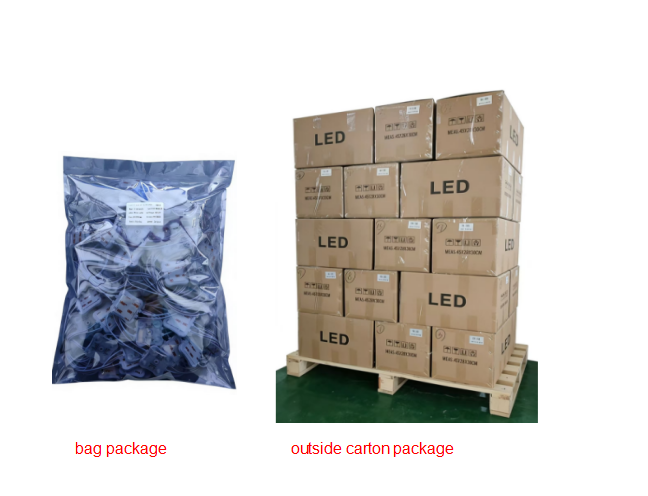

4 LED Module Standard Package and Shipping Methods:
| Qty/Bag |
Qty/Carton |
Carton/Pallet |
Weight/Carton |
Carton Size |
Shipping Way |
Logistics Partner |
Delivery Requirements |
| 100 pcs |
800 pcs |
48 cartons |
16.5 kg |
45*32*28 cm |
By sea / air |
DHL / UPS / FedEx |
Supports individual cartons or palletized goods |
Container Loading:
Installation Guide & Solutions
Common LED module signage installation issues and expert solutions shared for optimized performance.
Suggestions for Installing LED Modules Signage:
| Installation Step / Note |
Guidelines & Best Practices |
| Total Power Calculation |
Number of LED modules * Unit module power * 80% |
| Fixation Method |
Double-sided adhesive bonding, reinforced with glass glue and screws for fixation |
| Connecting Power Supply |
Connect using 0.75mm or 18AWG wire. Ensure the distance between power supply and modules is within 5 meters |
| Power Supply Protection |
Implement appropriate measures to prevent water intrusion |
| Wire Length Note |
Keep power cords as short as possible due to DC12V low voltage constraints |
| Polarity Alignment |
Ensure positive and negative poles are correctly matched |
| Connection Limitations |
Form multiple circuits and limit series connections to 40 groups maximum to prevent voltage drop |
| Waterproof Protection |
Take precautions against rainwater entry when installing inside plastic letters or lightboxes |
| Installation Depth |
Maintain a distance of 4 to 10 cm between the LED modules and the front surface of the box |
| Safety Precautions |
Prevent static electricity, avoid touching LEDs and glue with sharp objects, and keep away from corrosive acids/alkalis |
Frequently Asked Questions
Q1: What is the monthly production capacity for your LED modules?
Our factory has a stable supply capacity of more than 1,000,000 pieces of LED modules per month.
Q2: What is the standard delivery time for orders?
For orders under 10,000 pieces, delivery is within one week. For orders exceeding 10,000 pieces, the lead time is typically 10-15 working days.
Q3: How do I calculate the total power required for an LED module installation?
The total required power is calculated using the formula: Total Power = Number of Modules * Unit Module Power * 80%. This ensures a safe 20% power reserve.
Q4: What is the maximum recommended number of LED modules connected in a single series?
We recommend linking no more than 40 groups in a single series. Exceeding this limit can result in voltage drop issues that diminish brightness.
Q5: What are the main applications of these LED modules?
They are ideal for advertising signage, 3D channel letters, lightboxes, hotel/KTV facade lighting, and indoor accent lighting (wardrobes, cabinets, ceiling recesses, etc.).
Q6: What support do you offer if there is a defect with the product?
If there are quality issues inherent to the LED module itself, we will replace them for free. We also offer installation troubleshooting and technical support to analyze issues.
