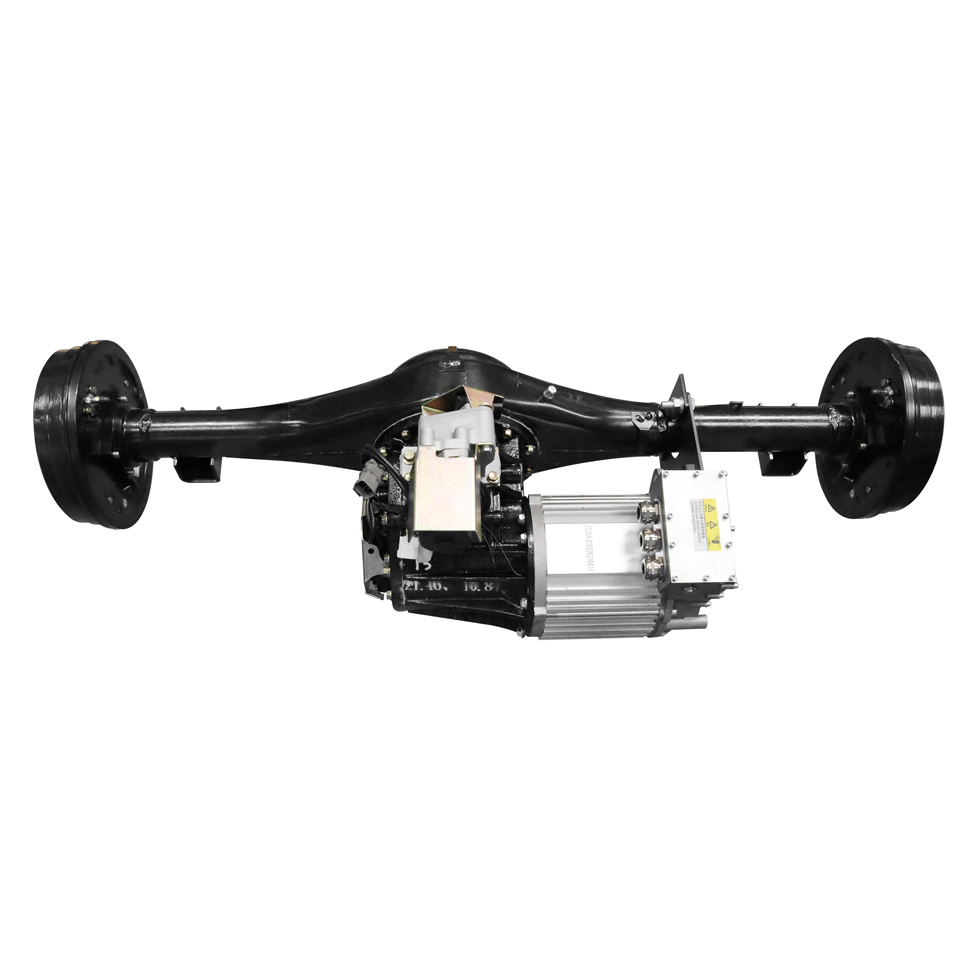

Integrated Electric Axle Kit for Light Commercial EVs

Product Description

Product Description
Product Description Detail
Product Parameters
Model: TZ180XS015-1
Product model TZ180XS015-1 Cooling method Water cooling
Rated voltage (VDC) 292 Back EMF (Vpeak) 503v@9700rpm
Rated power (kW) 22 Peak power (kW) 57
Rated torque (Nm) 70 Peak torque (Nm) 150
Rated speed (rpm) 3000 Maximum speed (rpm) 9700
Insulation class H Protection level IP67
Dimensions (mm) φ221*L277 Peak current (Arms) 230
Weight (kg) 34kg - -
Model: TZ180XS015-2
Product model TZ180XS015-2 Cooling method Water cooling
Rated voltage (VDC) 336 Back EMF (Vpeak) 540@1000rpm
Rated power (kW) 18 Peak power (kW) 60
Rated torque (Nm) 60 Peak torque (Nm) 145
Rated speed (rpm) 2850 Maximum speed (rpm) 9000
Insulation class H Protection level IP67
Dimensions (mm) φ210*L293 Peak current (Arms) 200
Weight (kg) 34kg - -
Certifications
Certification Showcase 1
Certification Showcase 2
Customer
Customer Presentation
Company Profile
Company Overview Image 1
Company Overview Image 2
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: A company integrated with factory and trade.
Q2: What about the shipping methods?
A2: For urgent order and light weight, you can choose the following express: UPS, FedEx, TNT, DHL, EMS. For heavy weight, you can choose to deliver the goods by air or by sea to save cost.
Q3: What about the payment methods?
A3: We accept T/T, L/C for big amount, and for small amount, you can pay us by PayPal, Western Union, and etc.
Q4: How much does it cost to ship to my country?
A4: It depends on seasons. Fee is different in different seasons. You can consult us at all times.
Q5: What’s your delivery time?
A5: Usually we produce within 25-60days after the payment confirmed. If you are urgent, we will urge the production department for you.
Q6: Do you support customized options for these models?
A6: Yes, we provide solutions tailored to your technical requirements. Please provide detailed parameters such as voltage, rated power, and speed to our team.
