| Item Specifications |
| Item Model |

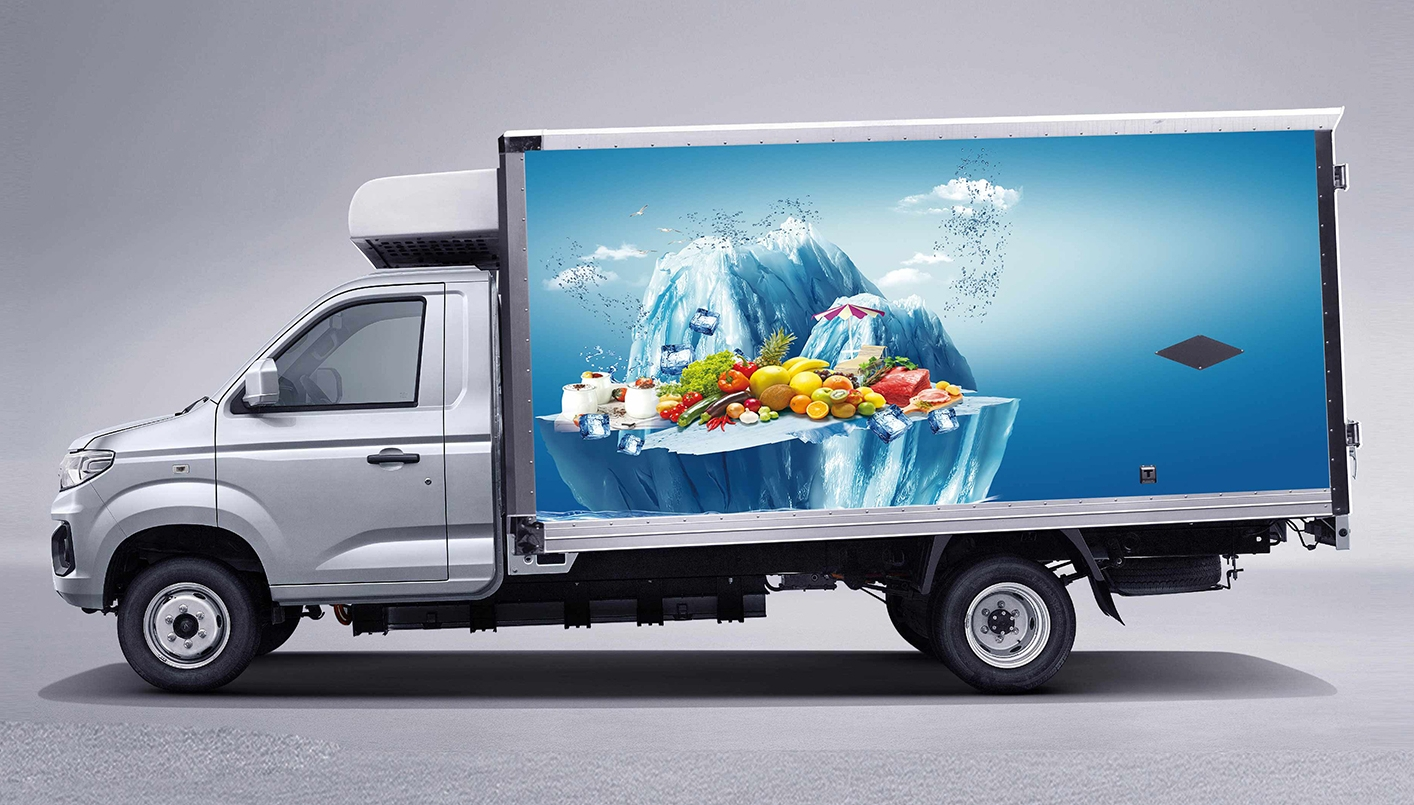

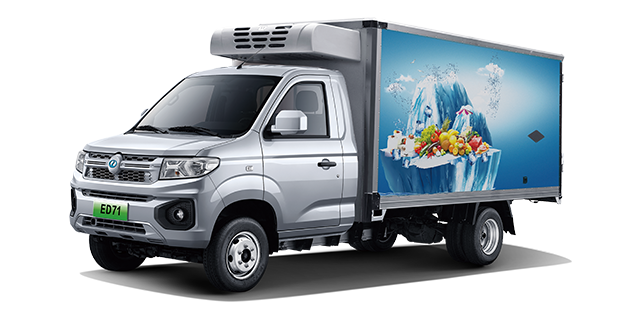

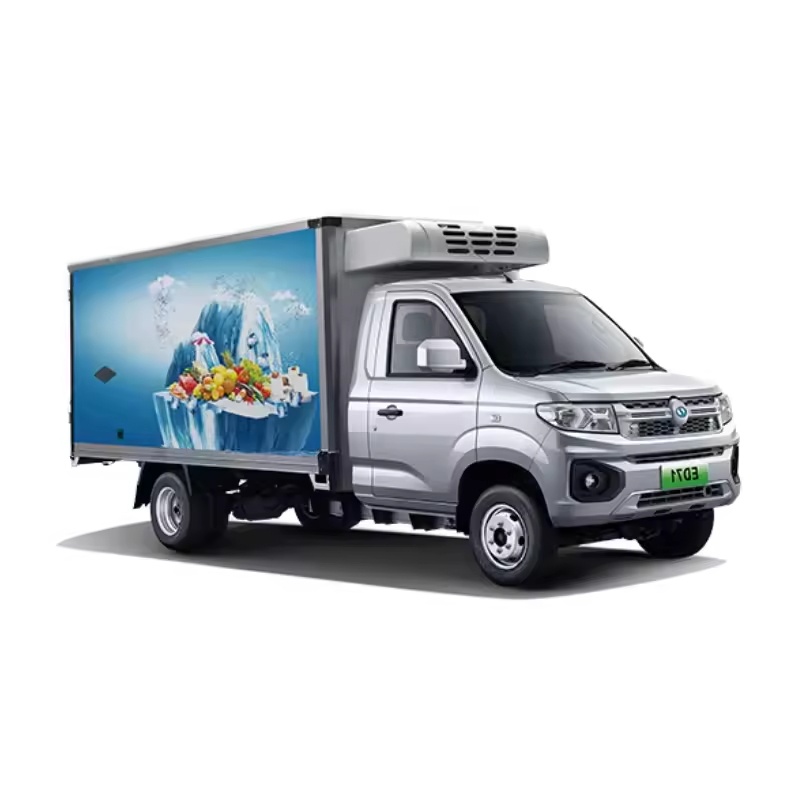

ED71 refrigeration / Standard Edition - Pioneer I |
| Basic Parameter |
| Length * Width * Height (mm) |
5995 x 2650 x 1890/1935 |
| Body structure |
Non-bearing body |
| Cooling temperature (℃) |
- 20 ~ 0 |
| Body Dimensions |
| Length (mm) |
5995 |
| Width (mm) |
1890/1935 |
| Height (mm) |
2650 |
| Wheelbase (mm) |
3700 |
| Front wheel base (mm) |
1490 |
| Rear wheel base (mm) |
1420 |
| Service weight (kg) |
2265 |
| Number of doors (each) |
2 |
| Number of seats (PCS) |
Two seats |
| Container size (mm) |
3615 * 1720 * 1600 |
| Cargo capacity (m³) |
9.9 |
| Rated load weight (kg) |
1100 |
| Maximum speed (km/h) |
80 |
| Approach Angle (°) |
34 |
| Departure Angle (°) |
19 |
| Power & Motor |
| Motor type |
Permanent magnet synchronous motor |
| Battery type |
Lithium iron phosphate |
| Total motor power (kW) |
90 |
| Total motor torque (N·m) |
270 |
| Number of driving motors |
one |
| Motor layout |
Hold horizontally |
| Operating range (CLTC) (km) |
246 |
| Battery capacity (kWh) |
56.67 |
| Battery pack warranty |
Eight years or 400,000 kilometers |
| Battery heating function |
● |
| Chassis Steering |
| Driving mode |
Rear-rear-drive |
| Front suspension type |
Longitudinal leaf spring non-independent suspension |
| Rear suspension type |
Longitudinal leaf spring non-independent suspension |
| Assist type |
Electronic Power Assist (EPS) |
| Wheel Braking |
| Front brake type |
Disc brake |
| Rear brake type |
Drum brake |
| Parking brake type |
mechanical |
| Front tire specification |
185R14LT 6PR |
| Rear tyre specification |
185R14LT 6PR |
| Safety Configuration |
| Passive pedestrian protection |
Safety belt |
| Seat belt is not fastened |
● |
| ABS anti-lock |
● |
| Braking force distribution (EBD/CBC, etc.) |
● |
| Astern radar |
● |
| External / Anti-theft Configuration |
| Car central control lock |
● |
| Front/rear power Windows |
before |
| Remote key |
● |
| Multimedia Configuration |
| Radio (with MP3) |
● |
| Central control color large screen |
○ |
| Astern image |
○ |
| Number of speakers |
2 |
| Lighting Arrangement |
| headlamp |
halogen |
| Headlight height adjustable |
● |
| Seat Configuration |
| Seat material |
Fabric |
| Main driver seat adjustment form |
Front and rear adjustment + backrest adjustment |
| Passenger seat adjustment form |
Backrest adjustment |
| Air Conditioner |
| Air conditioner temp control mode |
● Manual |
