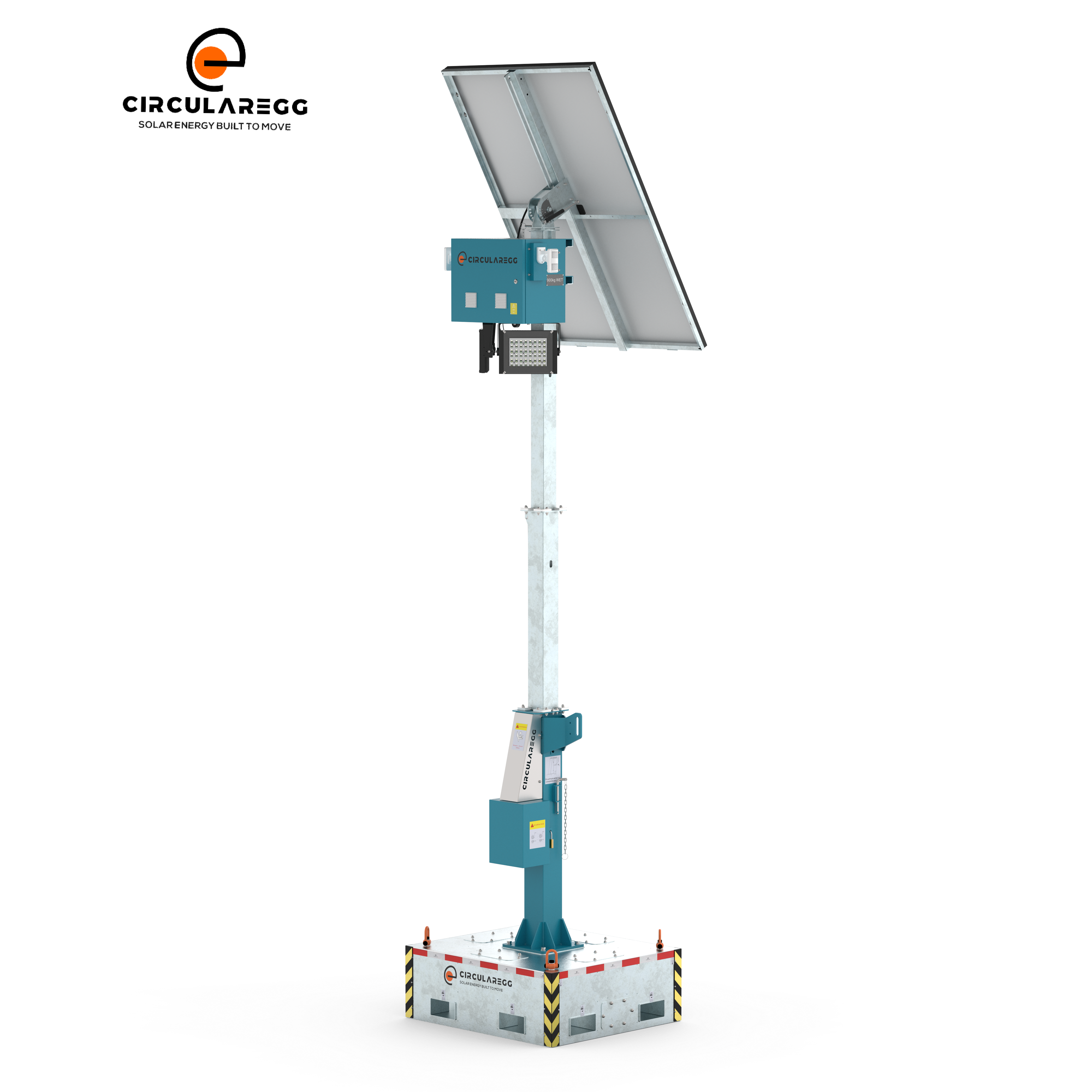

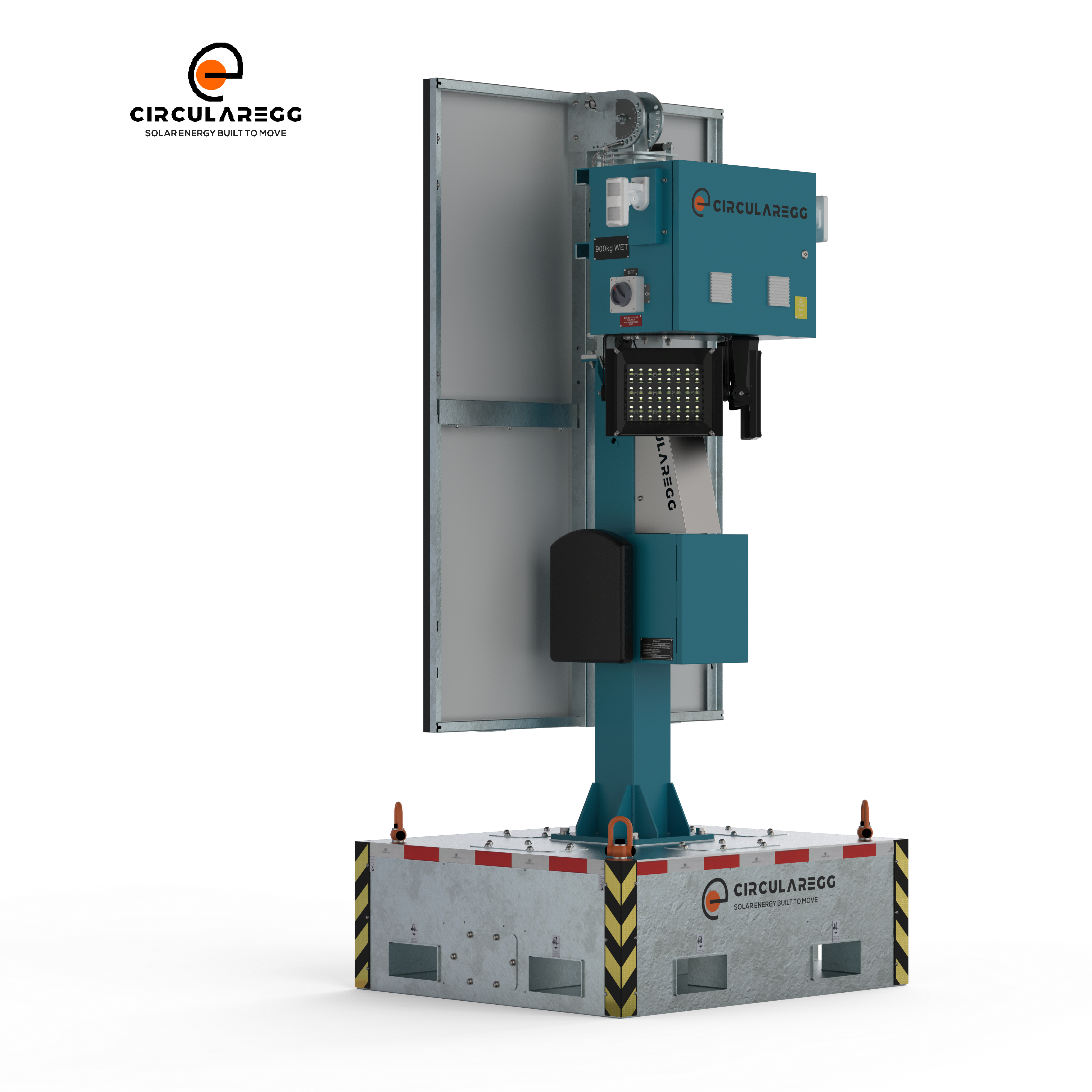

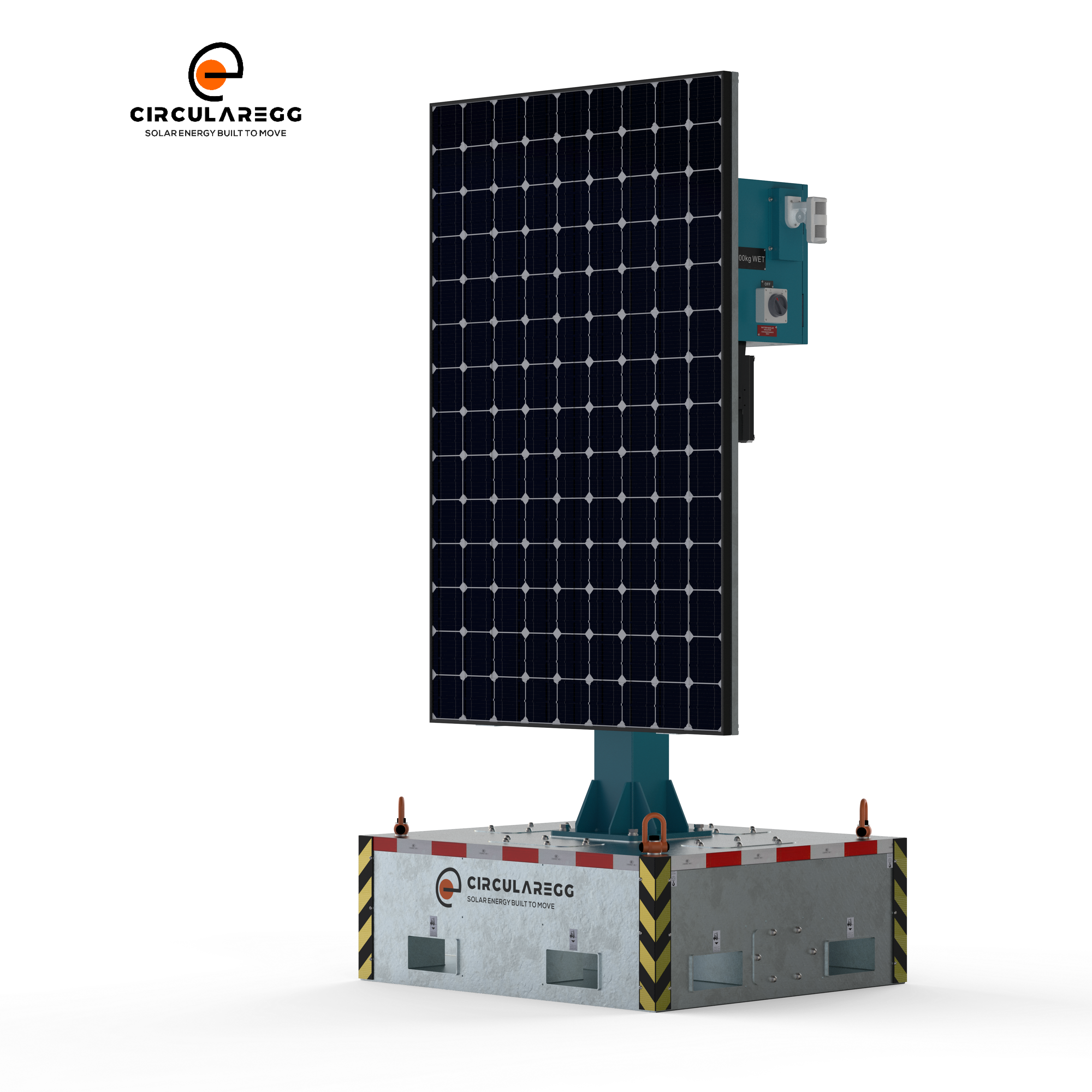

Ready To Ship Solar Powered LED Light Tower Telescopic Mast Trailer Mounted Solar For Road Construction

1 / 5

Ready To Ship Solar Powered LED Light Tower Telescopic Mast Trailer Mounted Solar For Road Construction

Send Inquiry

Product Description

Solar Lighting Camera Illumination Tower CCTV System Features

Solar Panel Configuration

1*230W Mono Solar Panel Panel Angle: Tilt 0°-90° Rotation Angle: 340°

LiFePO4 Battery

Capacity: 1*100Ah 25.6V (2.56KWh) System Voltage: 25.6V PV Controller: MPPT 30A

Telescopic Mast & Windproof

Steel & anti-corrosion (Hot Galvanising) Adjustable height: 4.5 Meters Lifting: Manual Winch Wind Resistance: 117 KM/H

System Performance

Charging time: 4.6 Hours (PV Panel) Running Time: 32 Hours Dimension: 915*915*2410mm Deployed: 2090*2090*5140mm Weight: 800 KGS Loading qty 40HQ: 20pcs

Technical Specifications

Parameter	Specification Value
Output Voltage (V)	110/240 V
Frequency	50/60 HZ
Battery Capacity	19 KWH / 28 KWH / 43 KWH
Solar Panel Type	Monocrystalline Silicon
Solar Panel Wattage	4550 W / 6550W / 8*550 W
PV Controller	MPPT 60A (95% efficiency) / MPPT 80A (95% efficiency)
Battery Type	Lead-acid
Battery Pack	8200 AH, DC 12V / 12200 AH, DC 12 V
Communication Interface	RS-485
Output Port	110A AC outlet + 24A AC outlets + 1*5V USB
Axle Qty	Single
Tyre and Rim	15 Inch
Support Leg	4pcs, Manual

Product Gallery

Frequently Asked Questions

What is the solar panel efficiency and tilt range on this solar CCTV tower?

The tower features a high-efficiency monocrystalline solar panel configuration. The solar panel angle allows a manual tilt adjustment of 0° to 90° and supports a full rotation angle of 340° to capture optimal sunlight throughout the day.

How long is the system runtime, and how long does it take to charge?

Under standard solar testing conditions, the battery can be charged to full in approximately 4.6 hours using the PV panels. Once fully charged, the energy storage system supports an operation runtime of up to 32 continuous hours.

What kind of mast configuration and stability does the mobile tower offer?

The telescopic mast is constructed from hot-galvanized anti-corrosion steel, adjustable up to a height of 4.5 meters via a manual winch. The base is supported by 4 manual outriggers, ensuring windproof stability up to wind speeds of 117 KM/H.

Can the system output power for extra equipment?

Yes, the design integrates multiple output options, including standard AC outlets (110/240 V options with 1*10A outlet + 2*4A outlets) alongside 5V USB output ports to accommodate cameras, lights, and communication interfaces.

What kind of battery options are compatible with the mobile trailer tower?

Depending on your selection, configurations support either advanced LiFePO4 batteries (2.56KWh standard system setup) or larger capacity lead-acid battery packs ranging from 19 KWH up to 43 KWH (e.g., 8*200 AH or 12*200 AH configurations).
