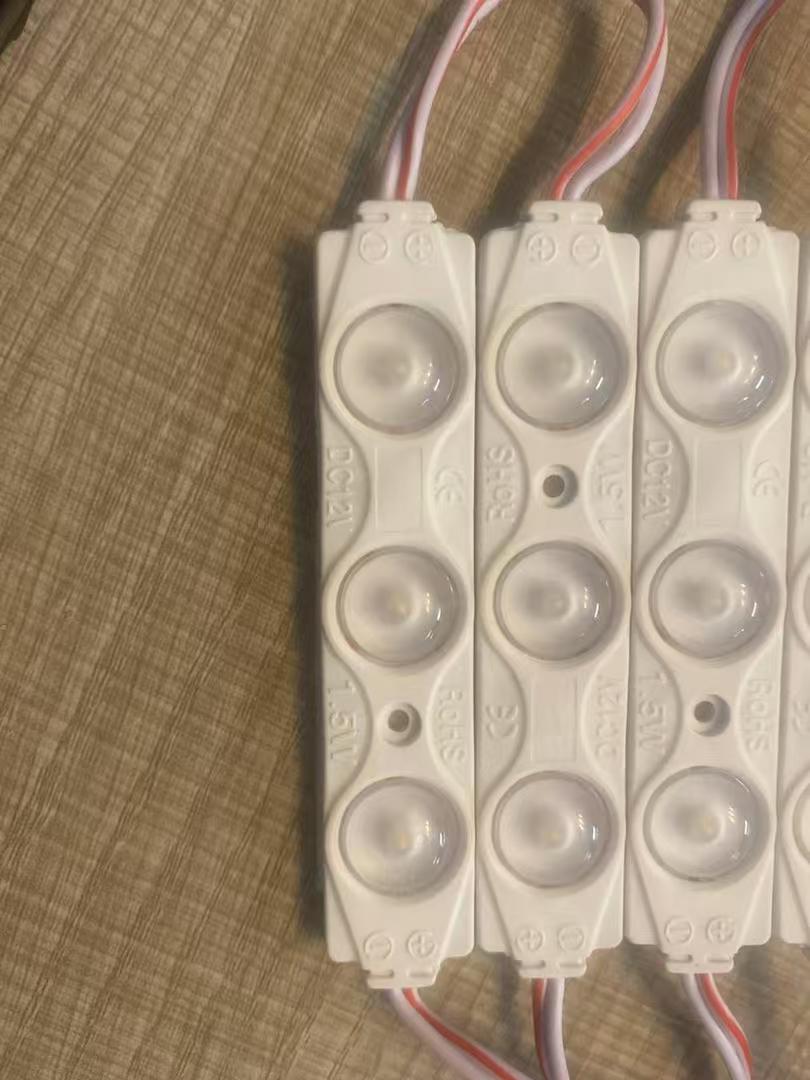

1.5W DC12V IP65 Waterproof 8cm 2835 SMD LED 3Pcs Fire Proof Module For Backlit Advertising Boards & Home Decorations
1 / 5

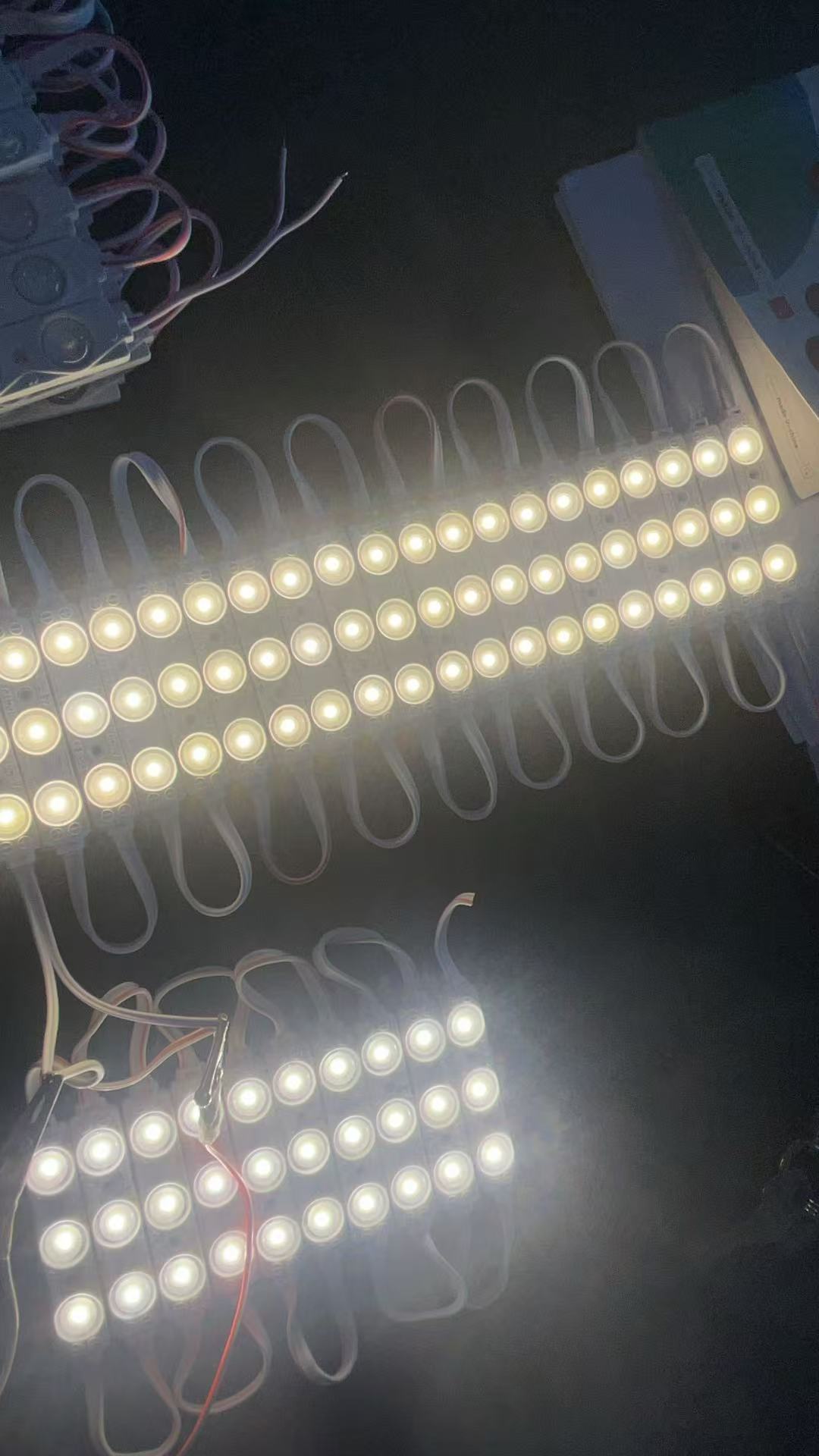

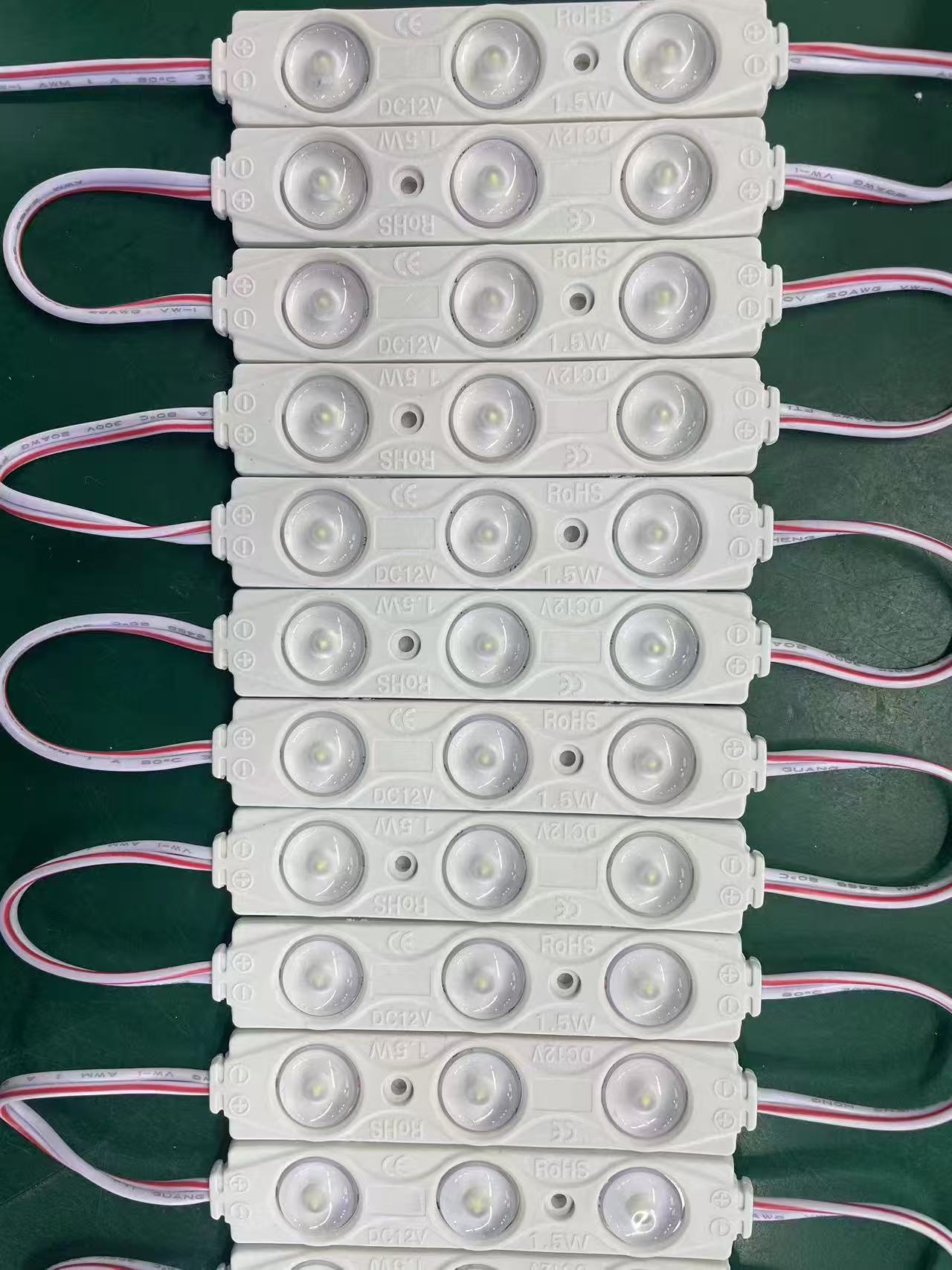

1.5W DC12V IP65 Waterproof 8cm 2835 SMD LED 3Pcs Fire Proof Module For Backlit Advertising Boards & Home Decorations
LED mounting machine, injection molding machine, wire welding machine, led test machine, led aging production line
LED Module Production Capacity
More than 1,000,000 pcs / month surely for your delivery time
Stable Delivery Time
Less than 10,000pcs within one week; more than 10,000pcs, 10-15 work days
After Sales Service
If problems of the LED itself occur, we will replace it for free, and provide solutions for the installation problem, or help clients analyze the cause of the problem.
Cooperation with Clients
Customized, OEM, ODM, also customized packages
Customer Base
LED advertising material wholesalers, LED advertising signage companies
MOQ
Flexible MOQ as you want
Sample Delivery Time
2-3 days to prepare and send
Technical & Installation Guides

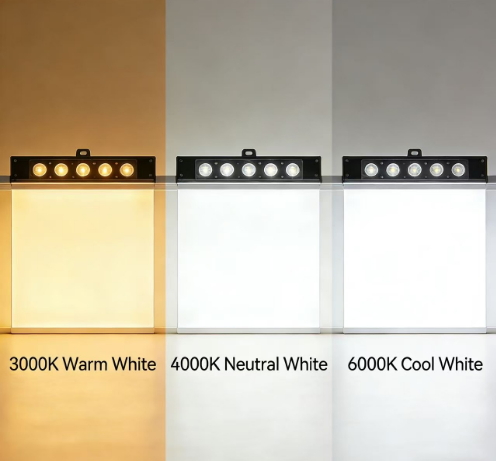

LED Module Color CT Choose

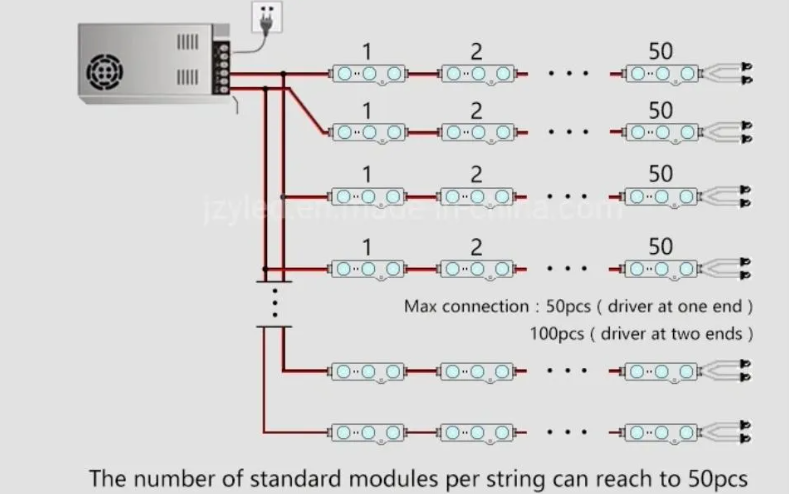

LED Module Install Guide

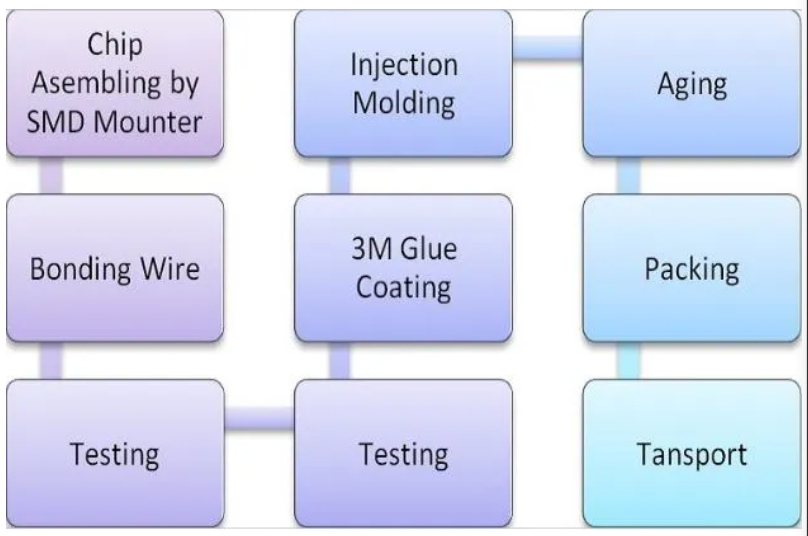

LED Module Production Steps

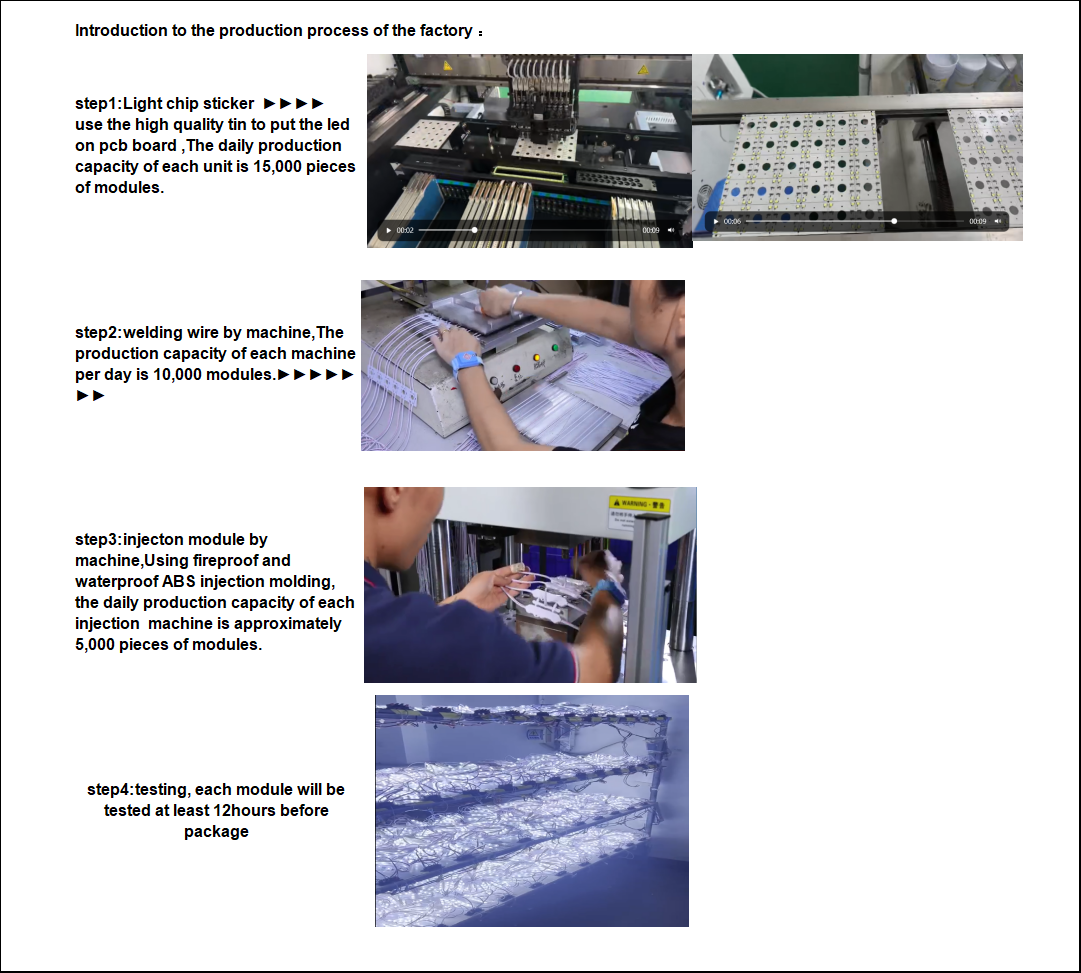

LED Module Factory Production Process (Reference Guide)
Packaging & Shipping Specifications

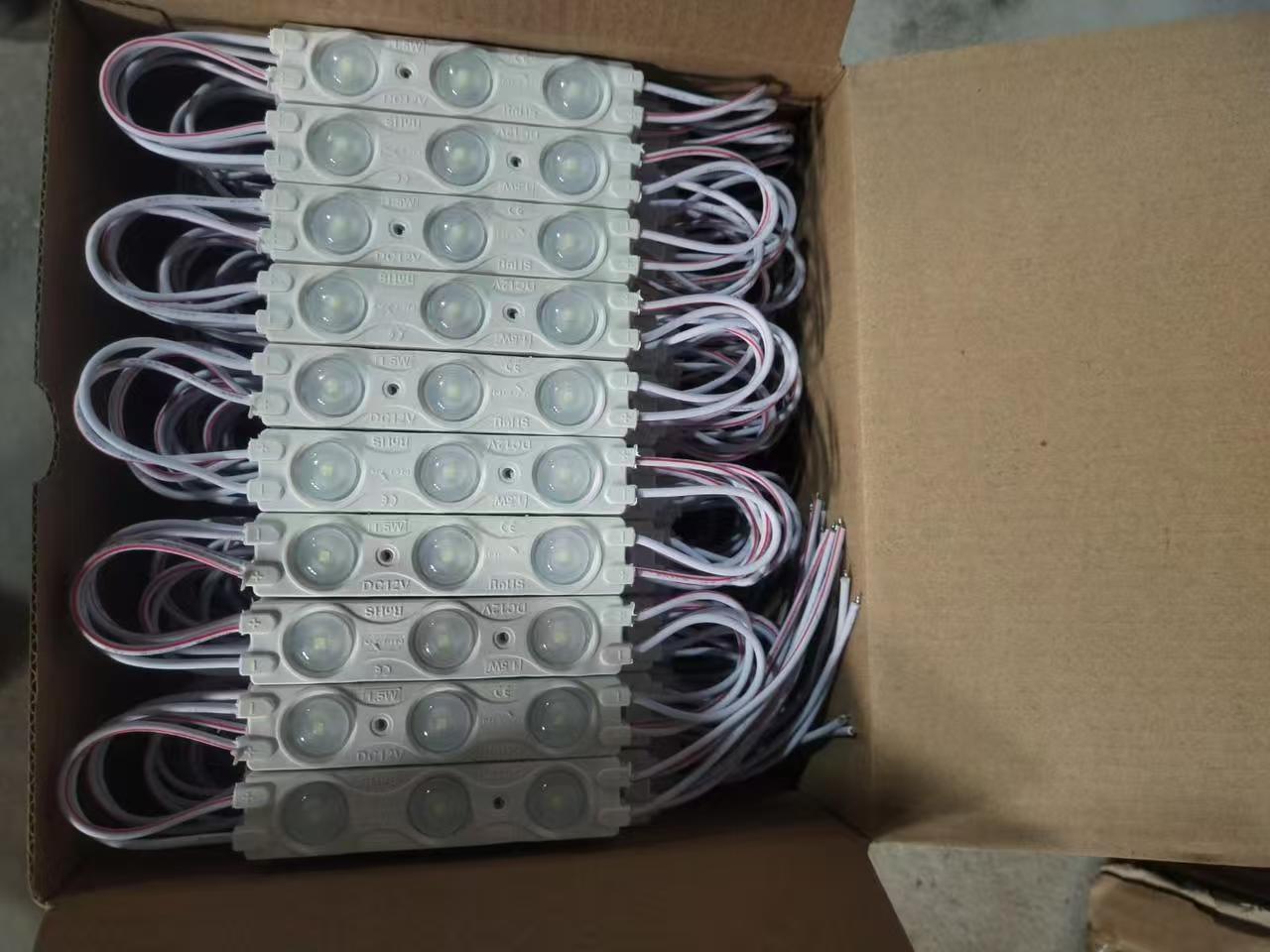

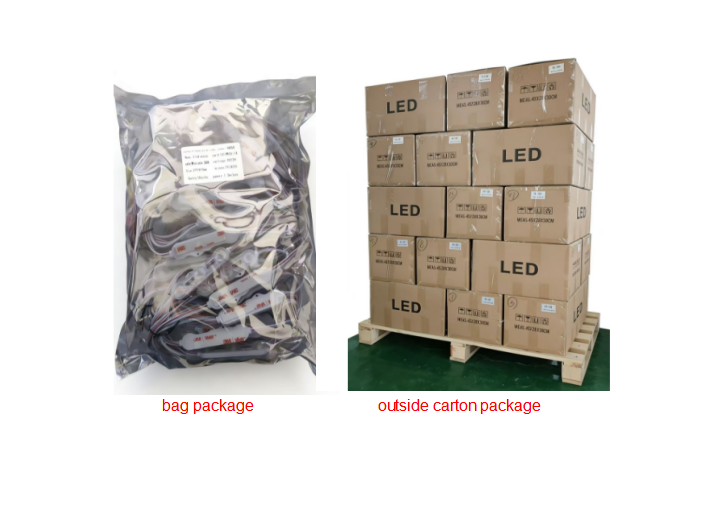

Backlit LED Module Standard Package and Shipping Methods
Qty/Bag
Qty/Carton
Carton No./Pallet
Weight/Carton
Carton Size
Shipping Way
Logistics Partner
Delivery Requirements
100pcs
1000pcs
48 cartons
13kg
45*32*28cm
By sea / air
DHL / UPS / FedEx
Supports single carton, bulk, or container loads
Installation Suggestions for LED Modules Signage
Task / Aspect
Guidelines & Requirements
Total Power Calculation
Total Power = Number of modules * Unit module power * 80%
Module Fixation Method
Double-sided adhesive bonding, supplemented with glass glue, and screws for final fixation
Power Supply Connection
Use 0.75mm² or 18AWG wire; keep the wire distance between power supply and modules within 5 meters
Power Supply Protection
Take proper measures to prevent water intrusion into the power supply unit
Wire Length Limit
Since the modules run on low voltage DC12V, the power cord should be as short as possible to prevent loss
Polarity Requirements
Ensure positive and negative poles are properly matched
Circuit Layout
Form as many circuits as possible. Keep modules in a series connection to a minimum, with a maximum of 40 groups to avoid voltage drops
Waterproof Protection
When installing inside plastic letters or lightboxes, ensure effective sealings against rainwater
Installation Depth
Control the depth between the module surface and the box surface, typically between 4 to 10cm
Safety Precautions
Prevent static electricity during installation. Do not touch LEDs or glue with sharp objects, and keep them away from corrosive chemical substances like strong acids or alkalis
LED Applications & Clients Feedback
LED Backlit Module Application Scope
No.
Application Details
1
Mini advertising signs, lighting signs, 3D illuminated characters, plastic letters
2
Hotel, KTV, and shopping mall exterior lighting letters, and related signage projects
3
Local decorative lighting for household items, shoe cabinets, wardrobes, ceiling recesses, showrooms, and more

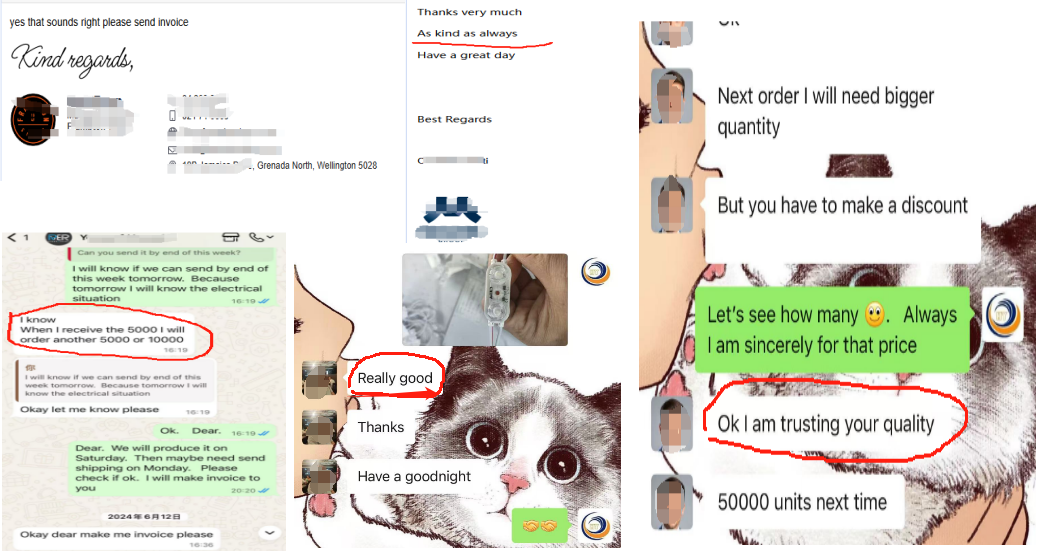

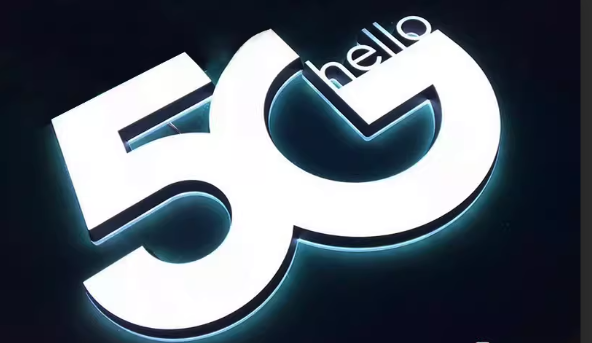

Clients Feedback & Project Review Images
Factory Environment & Certifications

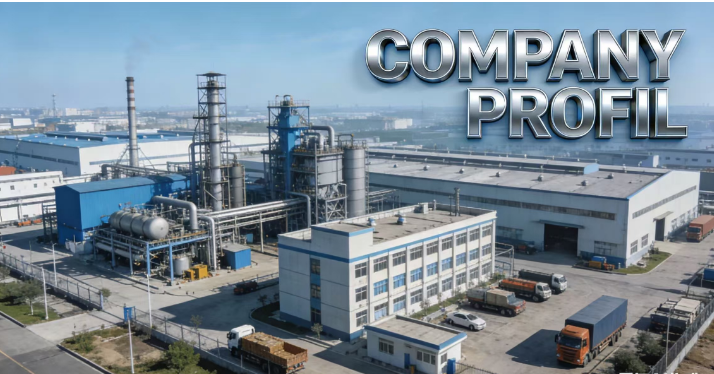

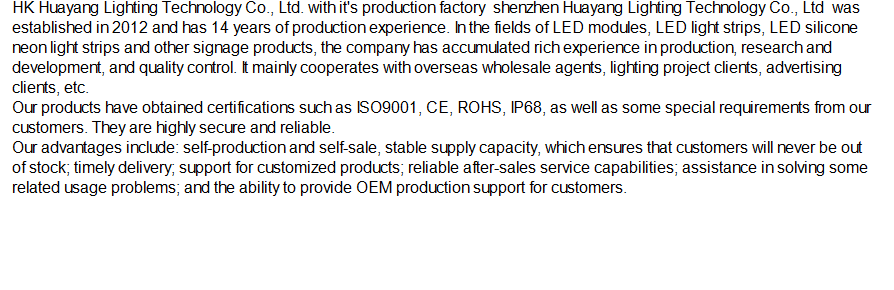

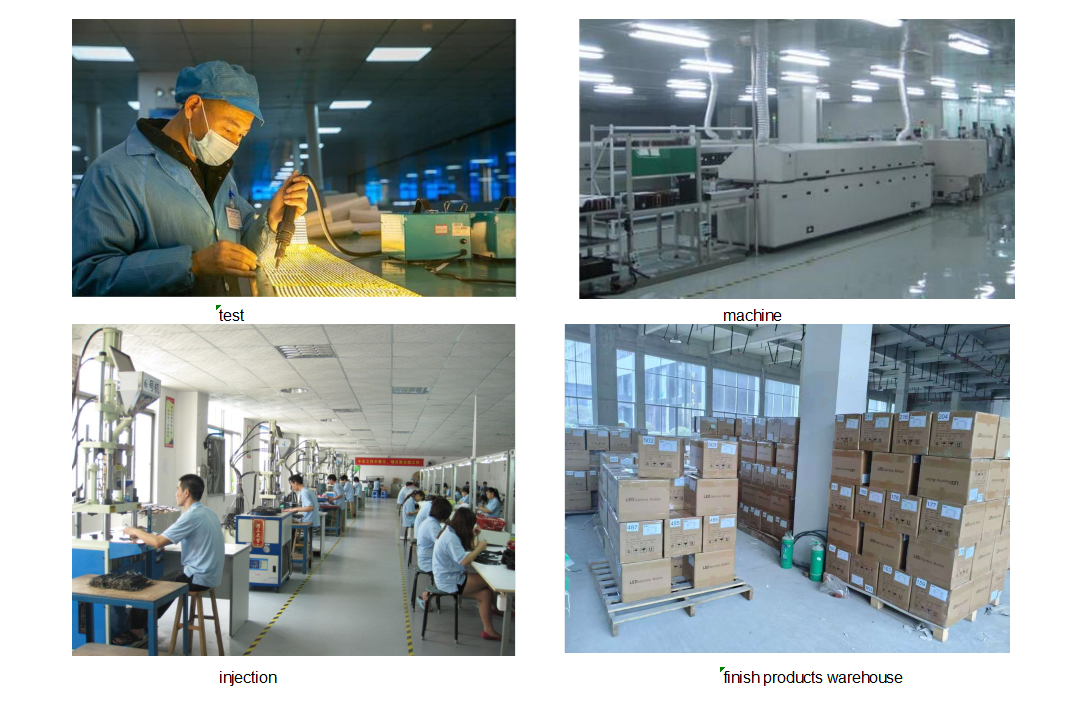

Factory Show

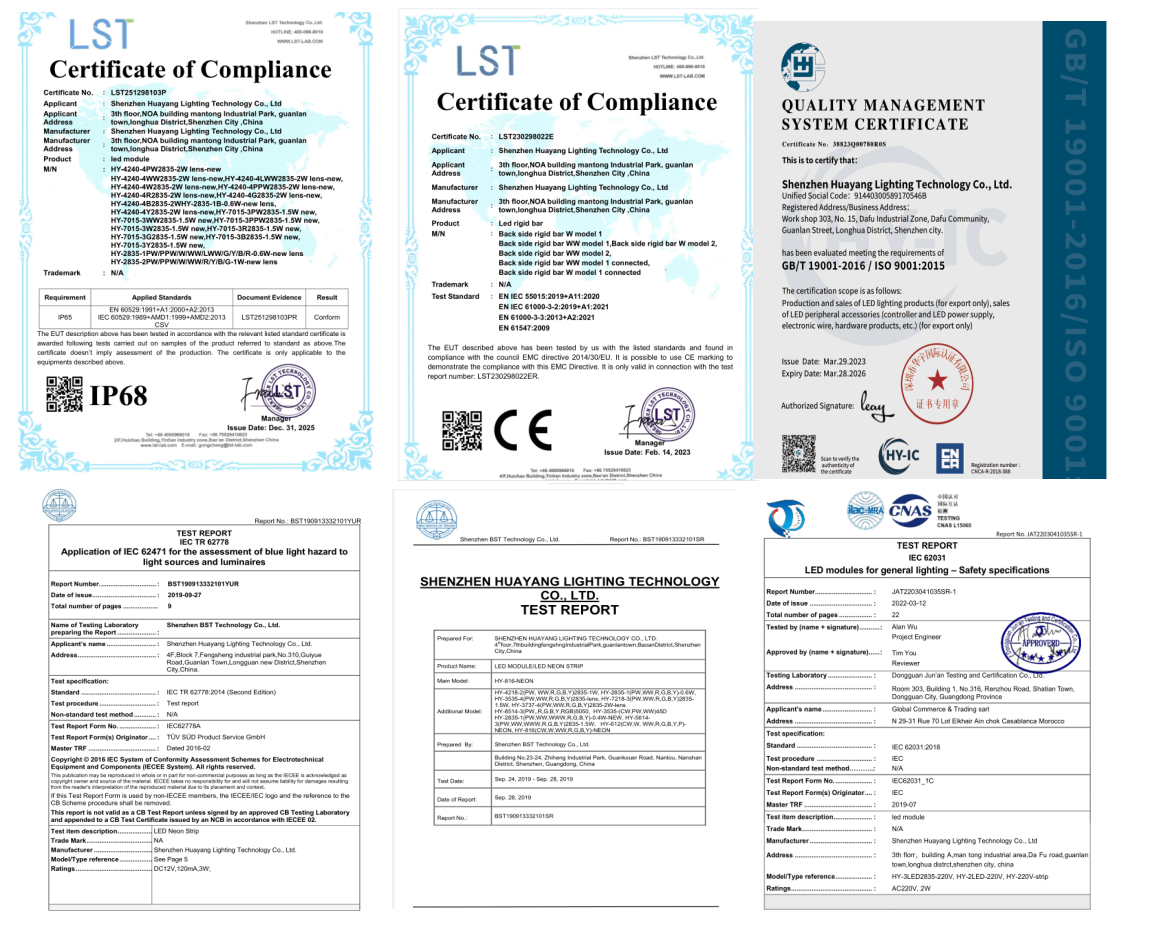

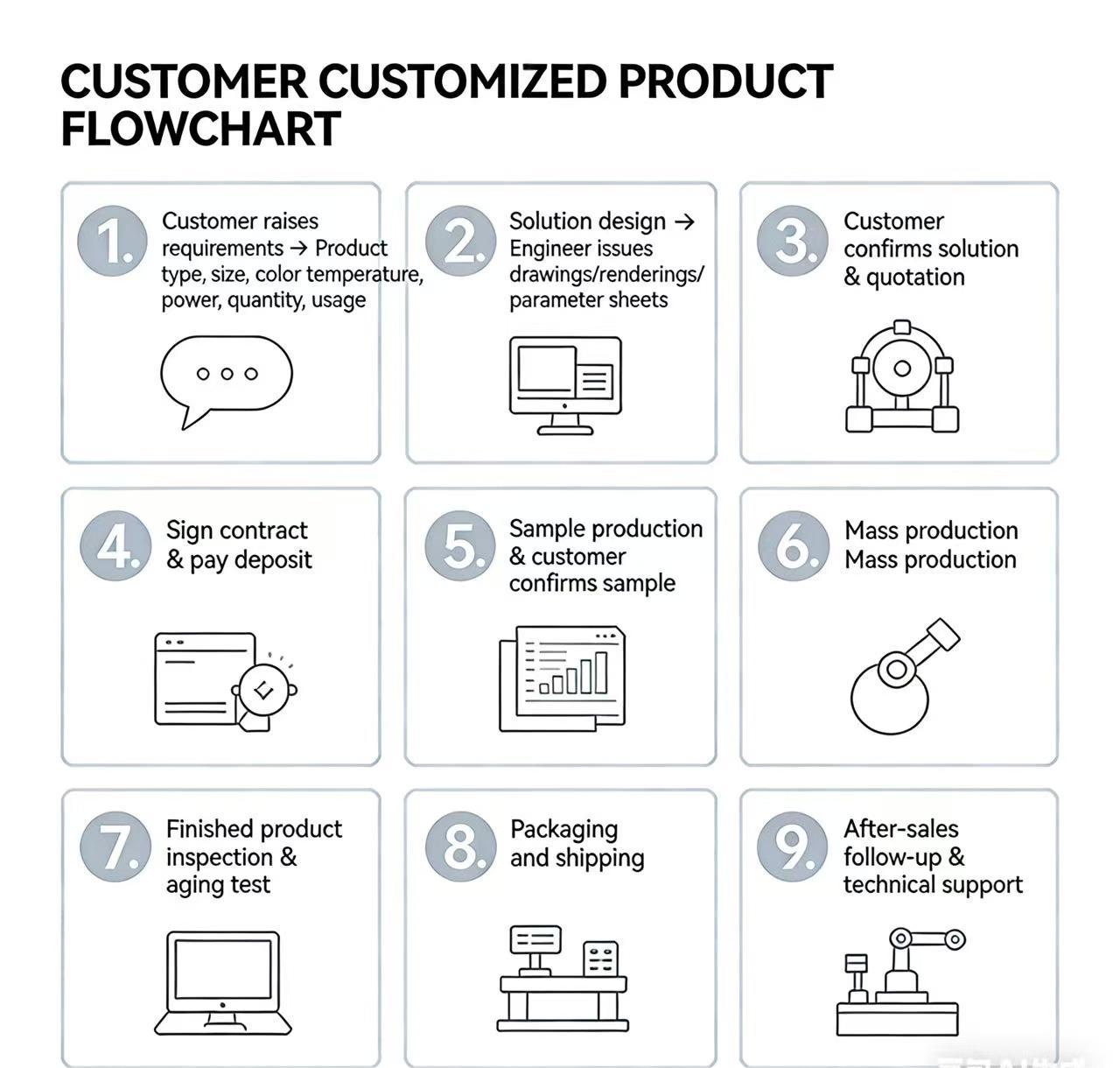

Factory Service & Certifications

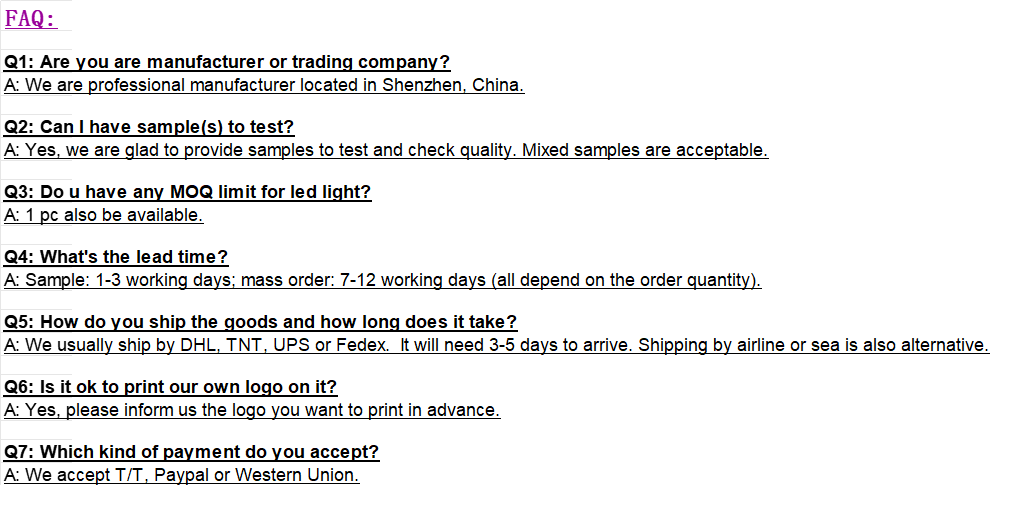

Frequently Asked Questions (FAQ)
What are the primary specifications of the 82*18mm LED module?
The module measures 82*18*10mm, operates on a DC12V system with a power consumption of 1.5 Watts, outputs a brightness of 140 lumens, features a wide 170-degree beam angle, and has an IP65 waterproof rating.
How do I calculate the total power needed for my LED module installation?
You can calculate it by using the formula: Total Power = Number of modules * Unit module power (1.5W) * 80% to ensure stable operation and prevent overloading your power source.
What is the maximum recommended series connection length?
To minimize voltage drop and maintain consistent brightness, keep the number of modules in a single series connection to a maximum of 40 groups. It is best to set up as many parallel circuits as possible.
What is the factory’s monthly production capacity and sample delivery lead time?
The factory has a monthly production capacity of over 1,000,000 pieces. Samples are typically prepared and shipped within 2 to 3 days.
Are these LED modules waterproof and suitable for outdoor advertising signs?
Yes, these LED modules have an IP65 waterproof rating, making them ideal for backlit advertising boards, 3D channel letters, exterior signs, and wet environment applications, provided rainwater protection methods are implemented on the housing box.
What kind of customization services and package options are supported?
We fully support customized solutions, OEM/ODM processes, and custom packaging designs to align with the specific needs of advertising signage companies and material wholesalers.
