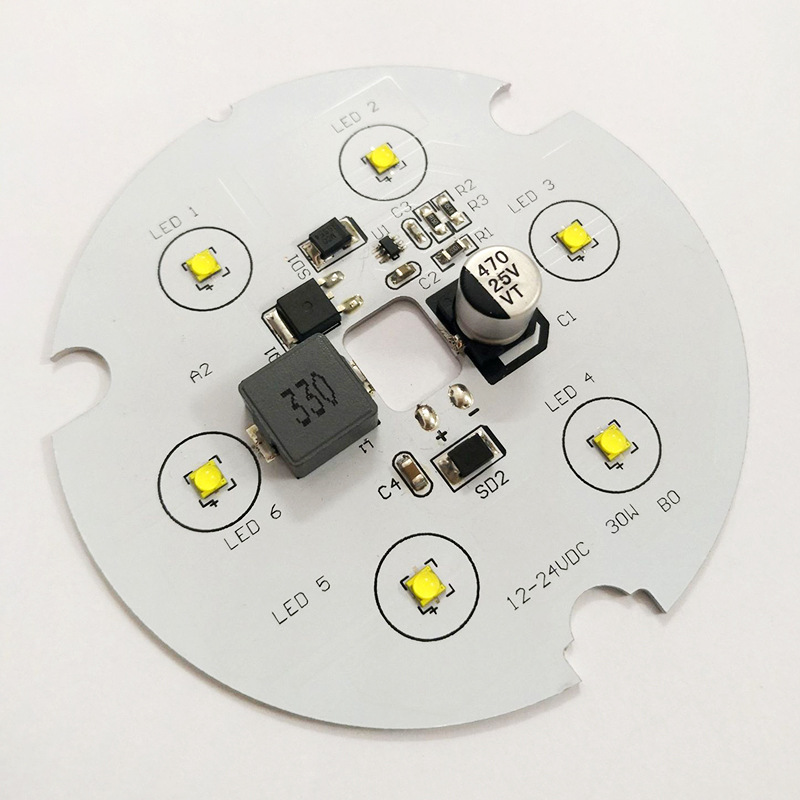

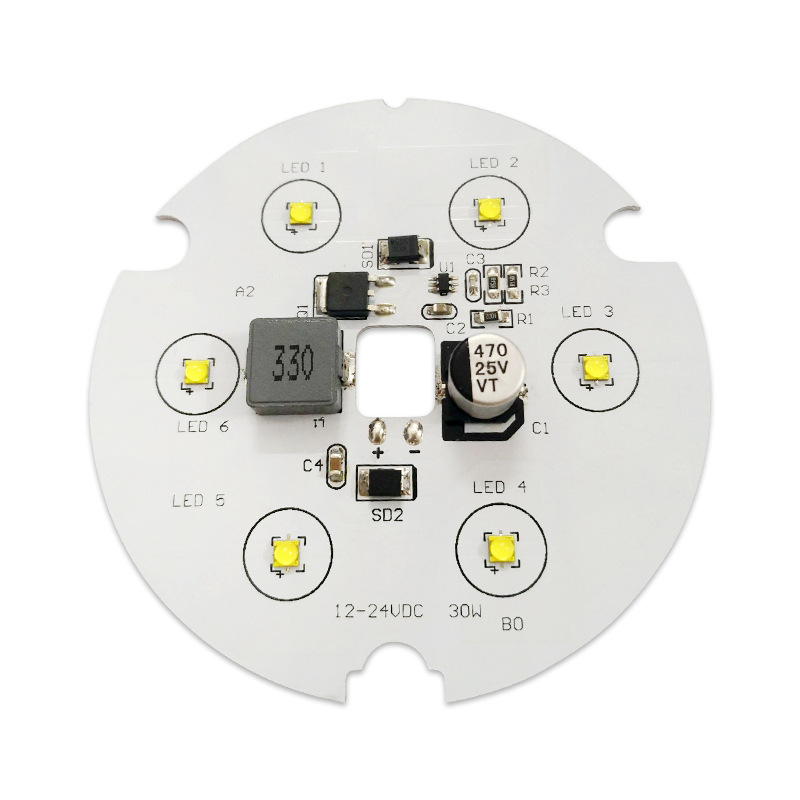

Automotive Lighting PCBA with High Power High Voltage High Temperature Resistance

Product Description

Production Banner

Technical Specifications

Overview of our PCB and PCBA manufacturing capabilities

Manufacture 1-10 Layers PCB and PCBA Production
Monthly Output PCB: 600,000SQM | SMD: 200KK
Material Aluminum/Copper/FR-4/CEM-3/CEM-1/Glass
Soldermask Color White/Green/Black/Blue/Red/etc.
Mounting Speed 84,000 units/H/Set, with 6 Sets of Panasonic NPM-D3
PCB Inspection AOI/E-testing/Voltage Testing/Flying Probe/Impedance Test
SMT Inspection X-ray/SPI Detector/2D & 3D AOI Before Reflow and After
PCBA Inspection ICT Tester/Functional Testing Fixture
Special Process BGA-POP (Package-on package)
Package Vacuum Packaging/Anti-static Bag/Bubble Bag
RD Capability Software/Hardware/Shell Assembly/Wire assembly
Production Facility 1
Production Facility 2

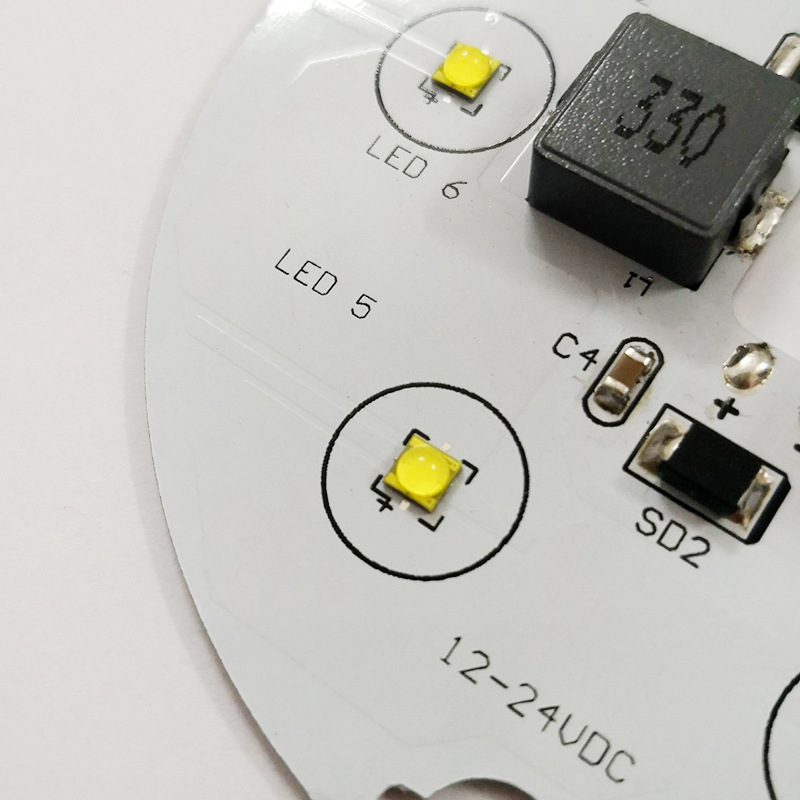

Production Facility 3
Production Facility 4
Workflow Process

Core Advantages

Why partners choose our manufacturing services

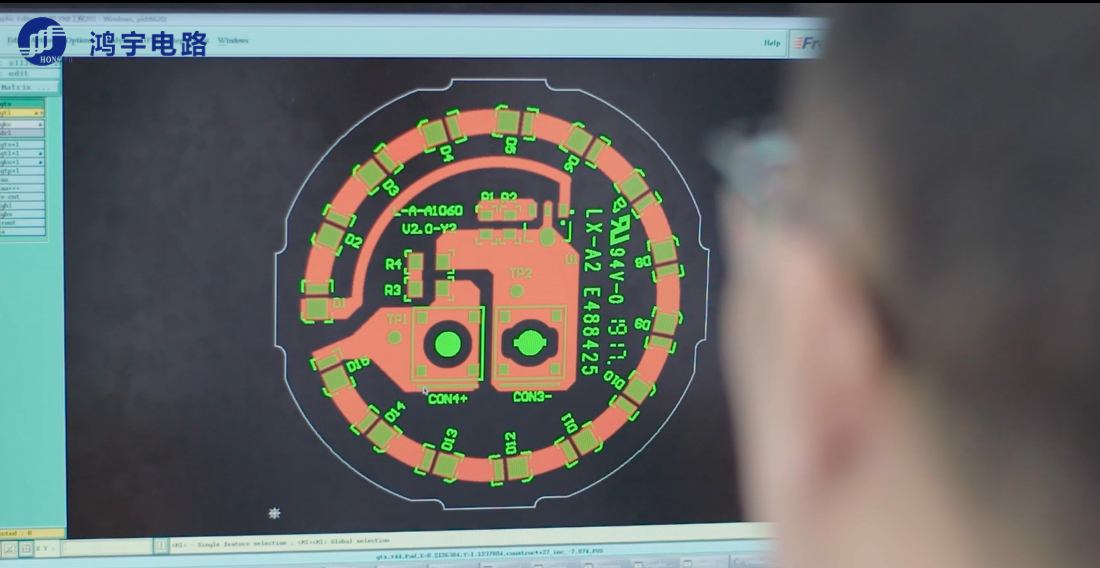

Core Technology
01

Core Technology

Having cutting-edge equipment and technology in the industry. Continuously invest in technological advancement to ensure technological leadership.

Efficient Supply Chain System
02

Efficient Supply Chain System

Integrate upstream and downstream core resources, achieve direct procurement of raw materials and intelligent production, shorten the cost to 60% of the industry average level, and maintain outstanding cost control capabilities.

Senior Team Support
03

Senior Team Support

Our core members have over 10 years of industry experience, covering the entire process of technology, operation, and market. They have led the implementation of multiple multi-million level projects with high decision-making and execution efficiency.

High Quality Customer Reputation
04

High Quality Customer Reputation

Serving over 500 top enterprises (including 80+ listed companies). Brand reputation is at the forefront of the industry.

Certificate and Quality Showcase

Founded in 2004, our high-tech enterprise specializes in PCB's R&D, production, and sales, with a monthly production capacity of up to 600,000 square meters. Focusing on developing cutting-edge products in the market, we leverage advanced technology and a professional team to help clients capture greater market share. Specializing in single, double-sided, multi-layer, FPC, and rigid-flex PCBs, along with one-stop SMT services. After years of development, we have established strategic partnerships with many listed companies, including leading automotive brands such as BYD, Geely Auto, and Li Auto. In recent years, we center on our market positioning "Emphasis on core and seize keypoints" and form our strategic pattern based on PCB as the core. Striving to be a leading brand in the industry and adhering to the ISO9001 standard in the spirit of persistence, we are always guided by customers' needs to provide high-quality products with cost-effective and outstanding service.

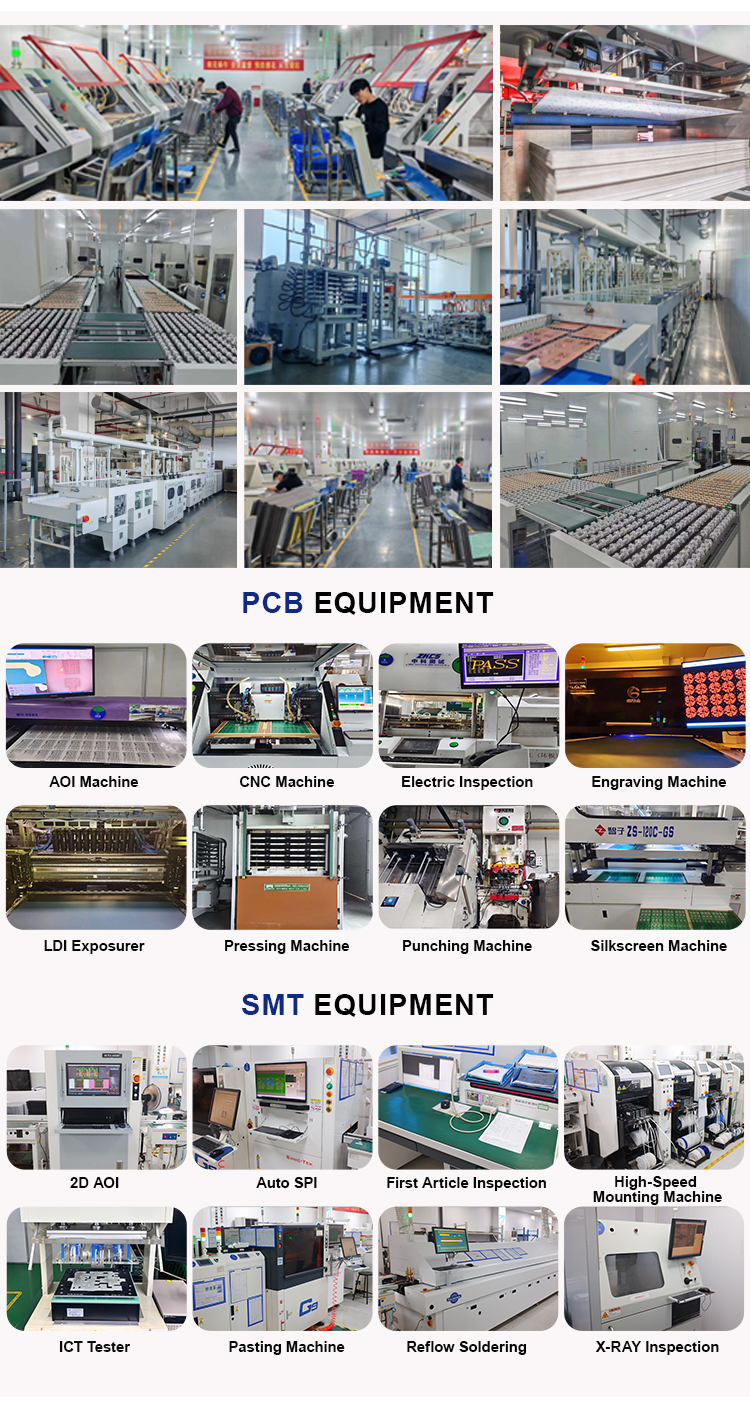

Production Gallery

A look inside our advanced manufacturing & QA facilities

Production Process Details 1
Production Process Details 2
Production Process Details 3
Production Process Details 4
Production Process Details 5
Production Process Details 6
Quality Standard Overview

Frequently Asked Questions

Find answers to common questions about our PCB & SMT services

1. What layer counts and PCB options do you offer?
We support production ranging from 1 to 10 layers. Our product lines include single-sided, double-sided, multi-layer, FPC (Flexible Printed Circuit), and rigid-flex PCBs.
2. What are your monthly production capabilities?
We achieve a robust capacity of 600,000 square meters per month for PCBs and 200KK per month for SMT/SMD components.
3. What raw materials do you support in your fabrication process?
We offer structural options utilizing Aluminum, Copper, FR-4, CEM-3, CEM-1, and Glass to meet the electrical, thermal, and weight criteria of your designs.
4. How is the quality of PCBs and PCBA assemblies verified?
We perform multi-tiered quality control checks. For PCBs, this includes AOI, E-testing, Voltage testing, Flying Probe, and Impedance tests. For SMT and PCBA, we employ X-ray inspection, SPI detectors, 2D/3D AOI (both pre- and post-reflow), ICT testing, and custom functional testing fixtures.
5. What kind of engineering or R&D services do you provide?
We provide end-to-end R&D assistance, covering custom software and hardware engineering, shell assembly, and wire harness integration alongside our main PCB/SMT operations.
