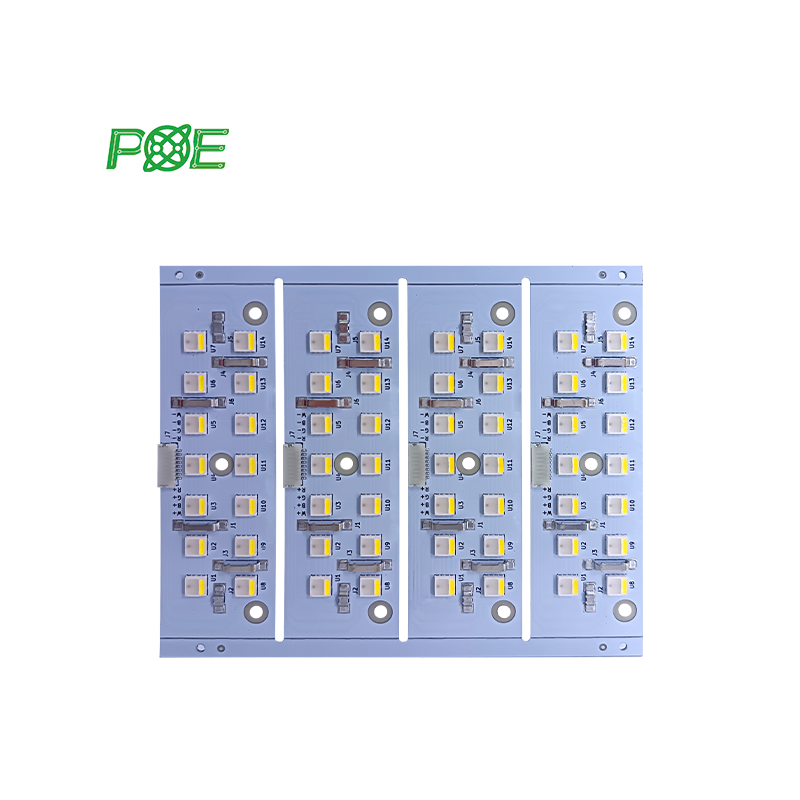

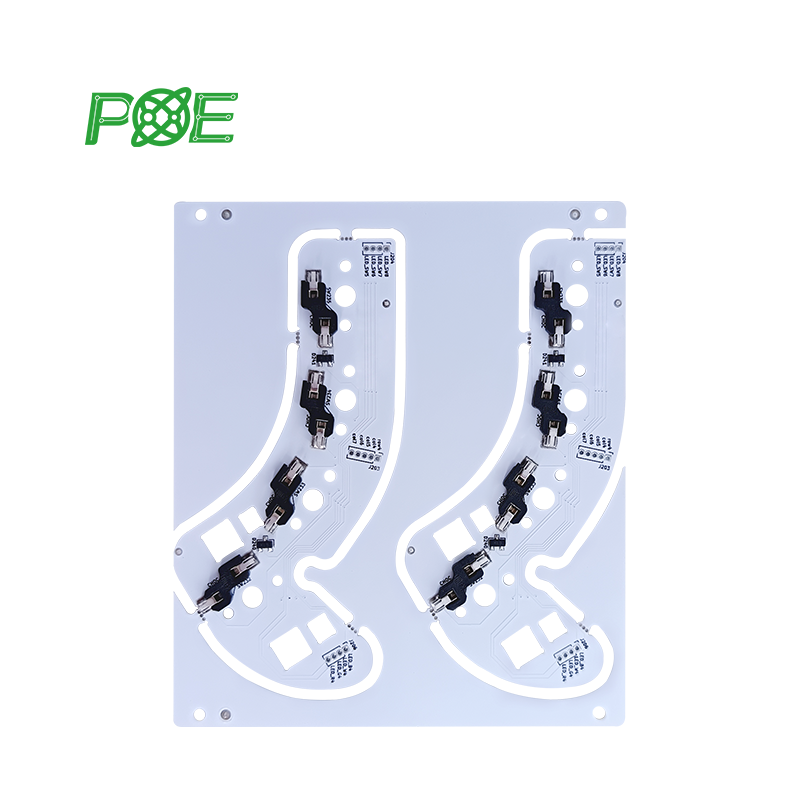

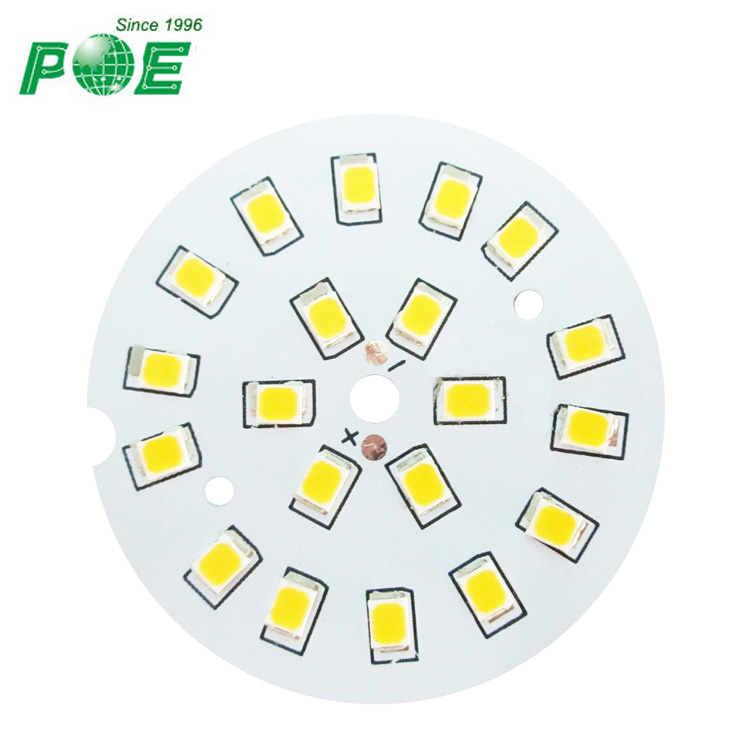

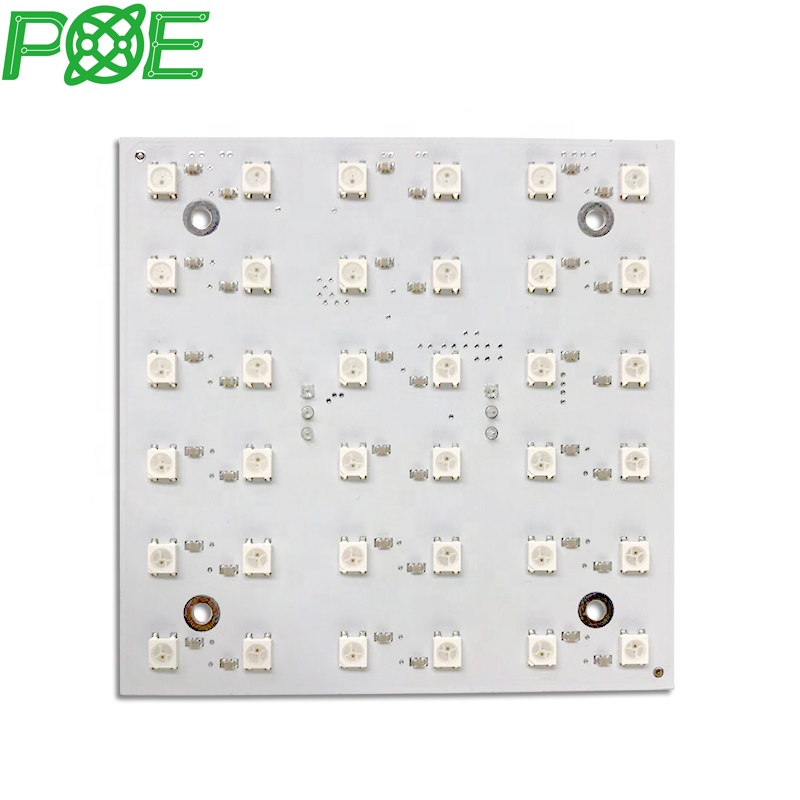

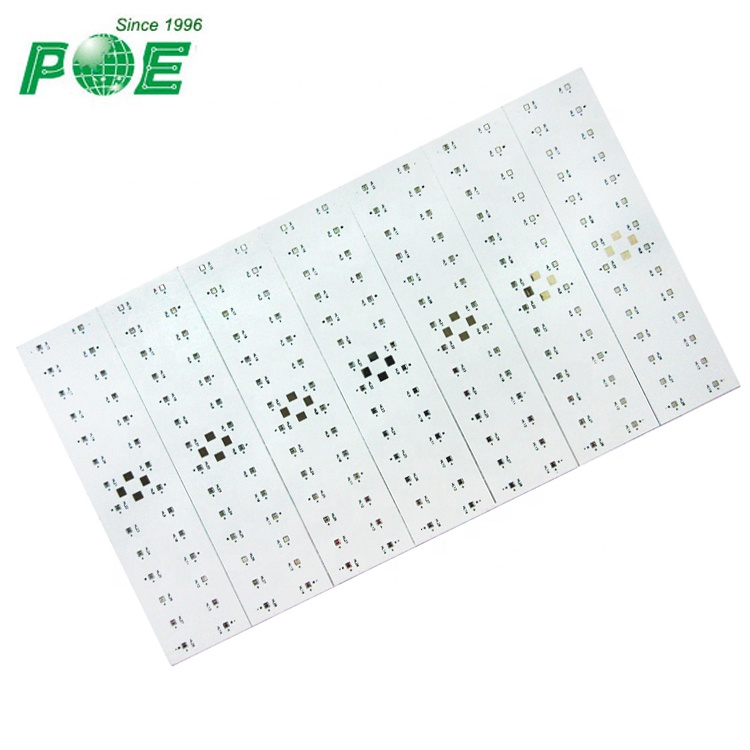

EV Light
1 / 5

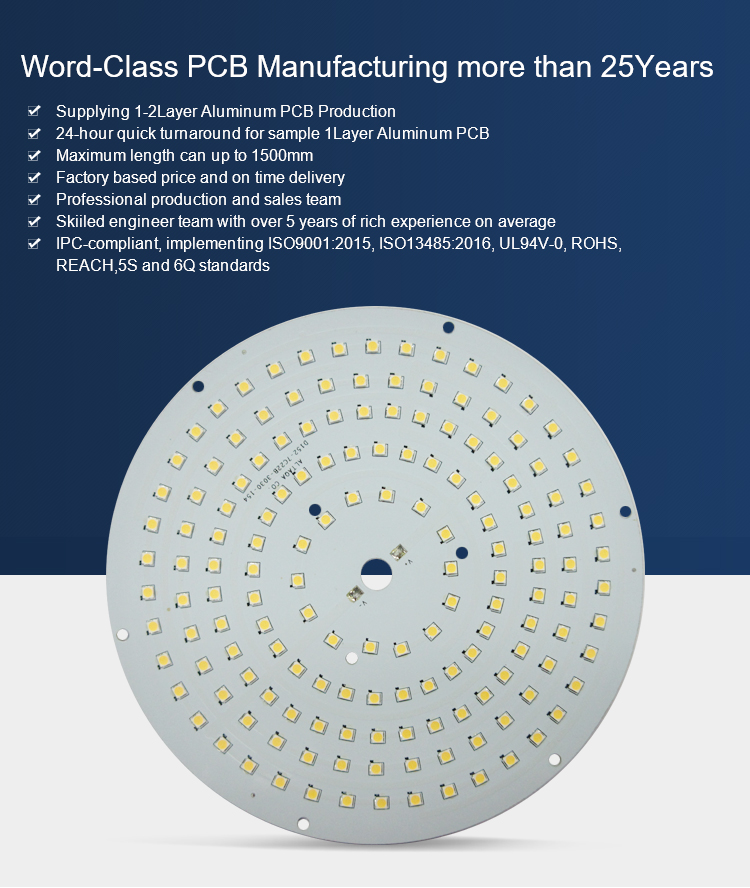

| Item | Aluminum Production Capability |
|---|---|
| Base Material | Aluminum |
| Layers | 1-2 |
| Finished inner/outer copper thickness | 1-2OZ |
| Finished board thickness | 0.2-3.0mm |
| Thermal Conductivity | 0.5/1/1.5/2W/m.K |
| Minimum Size | 1500mm 1Layer |
| Controlled Impedance | +/-5% |
| Outline profile | Rout/ V-cut/ Bridge/ Stamp hole |
| Surface treatment | HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP... |
| Specification of aluminum substrate plate: 1W/m.k | |||
|---|---|---|---|
| Item | Test Method | Units | Index |
| Insulation thickness | IPC-TM-650 2.2 18.1 | PM | 100 |
| Thermal Stress | IPC-TM-650 2.4 13.1 | S | 288℃ >120S |
| Peel Strength | IPC-TM-650 2.4 8.1 | N/mm | 1.5 |
| Withstand voltage | DC | KV | Grinding plate:1.2 Oxidation:1.5 |
| Break-down Voltage | AC | KV | 3 |
| CTI | GB/T 4207 | V | 575 |
| Glass Transition Temperature | IPC-TM-650 2.4 25 | ℃ | 130 |
| CTE(TMA) | IPC-TM-650 2.4 24 | %(50-260℃) | 0.5 |
| Surface Resistance | IPC-TM-650 2.6 17.1 | MΩ | 4.18×10³ |
| Volume Resistance | IPC-TM-650 2.6 17.1 | MΩcm | 3.27×10⁷ |
| Dielectric Constant 1 MHZ | IPC-TM-650 2.6 5.9 | / | / |
| Dissipation Factor 1 MHZ | IPC-TM-650 2.6 5.9 | / | / |
| Water Absorption | IPC-TM-650 2.6 2.1 | % | <0.5 |
| Thermal Conductivity | ASTM E 1464 | W/m-k | 1.3 |
| Heat Resistance | / | ℃/W | 0.7-0.9 |
| Flammability | UL 94 Vertical Law | S | t1:0,t2:0 |

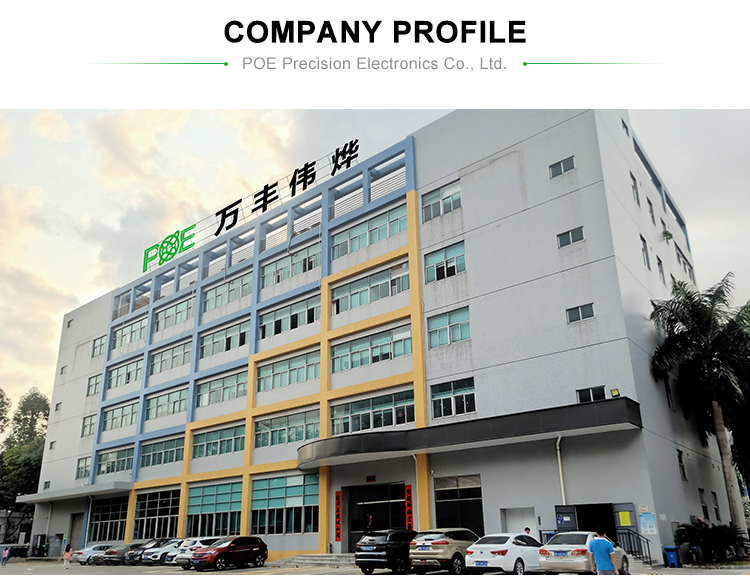

Since 1996, our company has established itself as a premier provider of PCB Fabrication, PCB Assembly, and Part Procurement services. Over the years, our customers have relied on us to deliver their time sensitive jobs with the highest level of quality. We have capability to produce FR4 PCBs, Aluminum PCBs, HDI PCBs, Multilayer PCBs (up to 40 layers), Gold Finger PCBs and Rogers PCBs.
We have been dedicated to the manufacture and supply of high quality printed circuit boards which are widely used in many industries such as communications, medical equipment, industrial, aerospace, computers, automotive, power and instrumental industries. Whether your need is for small volume prototypes, medium or high-volume production, we are driven to always delivery high quality goods and services, on time, and on budget.
Help you to check design and do engineering before production.
Rich experiences in PCB production industry to provide high quality and competitive price PCB.
Every problem you have will get our professional advice and solution.
Make us have the fast reaction of your requirement.
Inspected by the professional Inspection Institution.

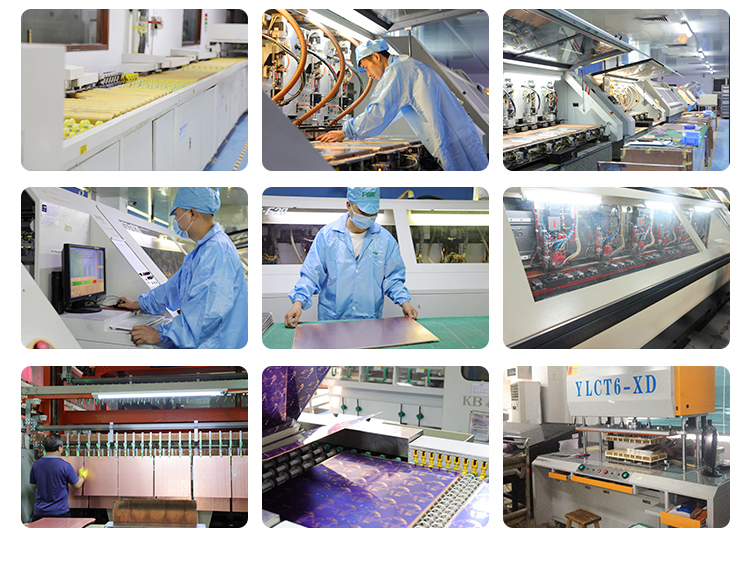

Our company has the capability to manufacture PCB ranging from basic single sided PCB boards up to 40 layer Multi-layer PCB, and provide one stop turnkey PCB services, including PCB manufacturing, PCB assembling, PCBA components sourcing and PCBA function testing.
We are not only trying to give customers a good product but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.
Kindly send your inquiry to us, we will reply you within 12 hours even faster :)
