EV Light
1 / 5
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=20mA | 2.8 | 3.6 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=20mA | 100 | 120 | mcd | |
| Spectrum Width Of Half Value | △λ | If=20mA | 20 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=20mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=20mA | 25 | 35 | mcd | |
| Spectrum Width Of Half Value | △λ | If=20mA | 20 | nm | ||
| Wavelength | Dλ | If=20mA | 625 | 635 | nm |
| Parameter | Symbol | Ratings | Unit |
|---|---|---|---|
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+120 | ºC |
| Storage Temperature Range | Tstg | -40~+120 | ºC |
| Solder Temperature(3 sec) | Th | 260 | ºC |

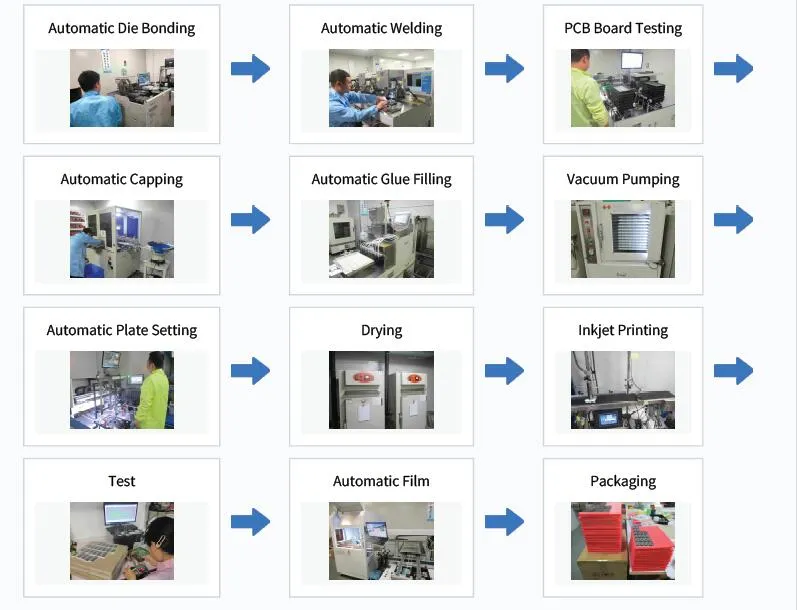

We are original manufacturer. We can do OEM/ODM business. We mainly produce Segment LED Displays.
Delivery time is about 15-20 days, according to order quantity.
T/T, Western Union, and Paypal with small amount.
Yes, we may consider discounts for multiple container load of mixed goods.
It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
Yes, we can provide 5-10pcs free samples in your delivery cost.
