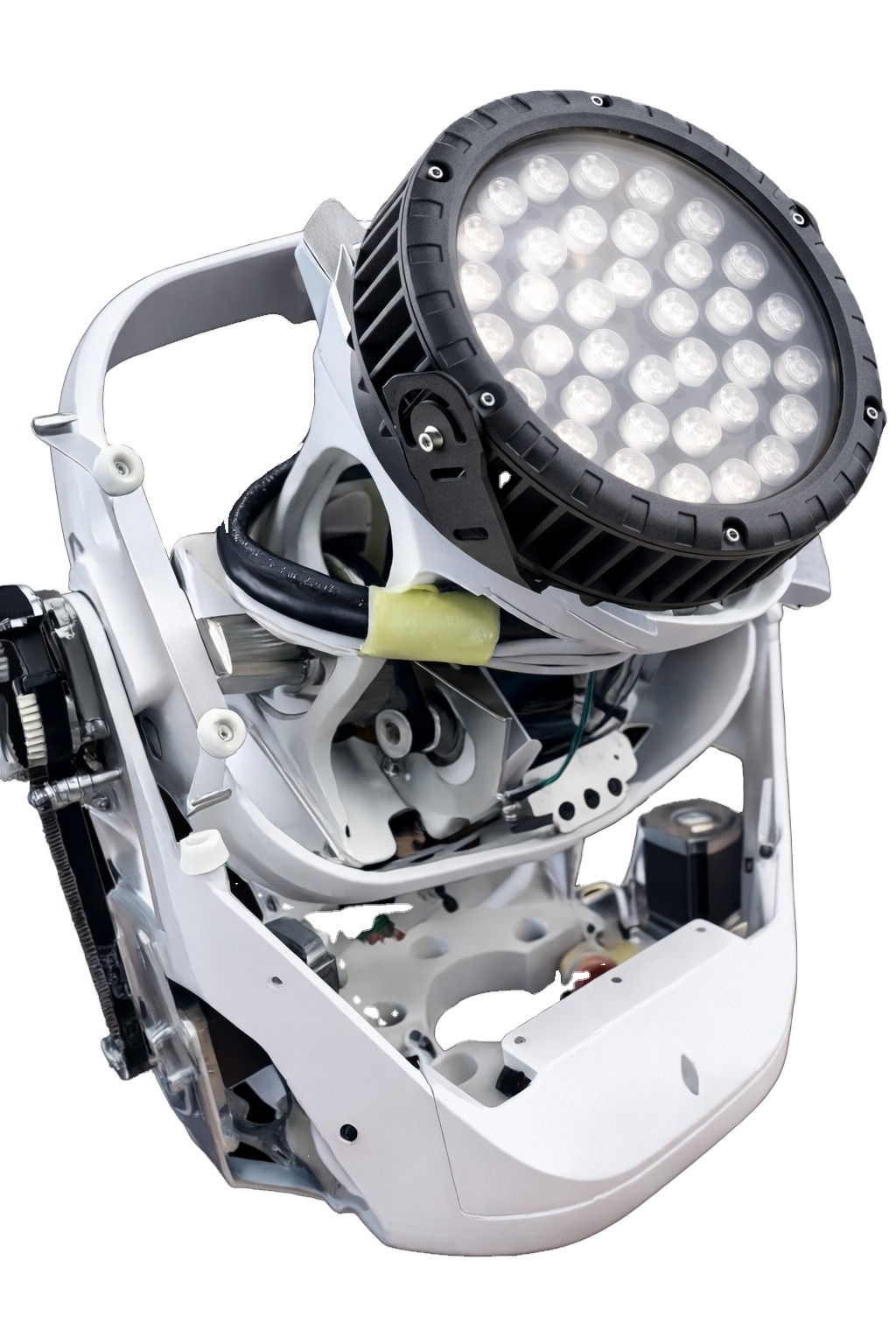

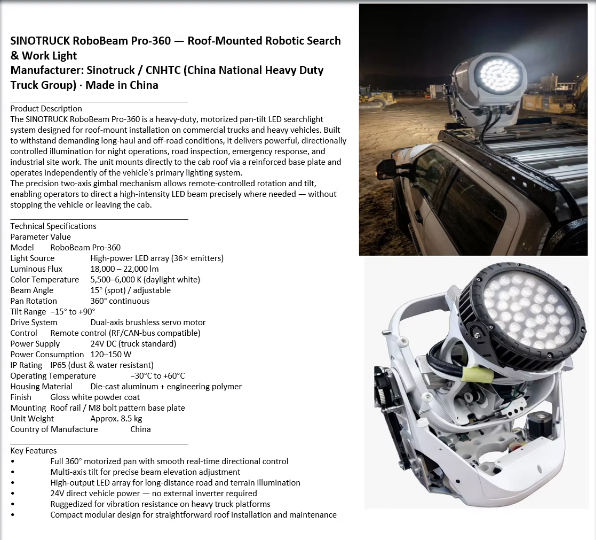

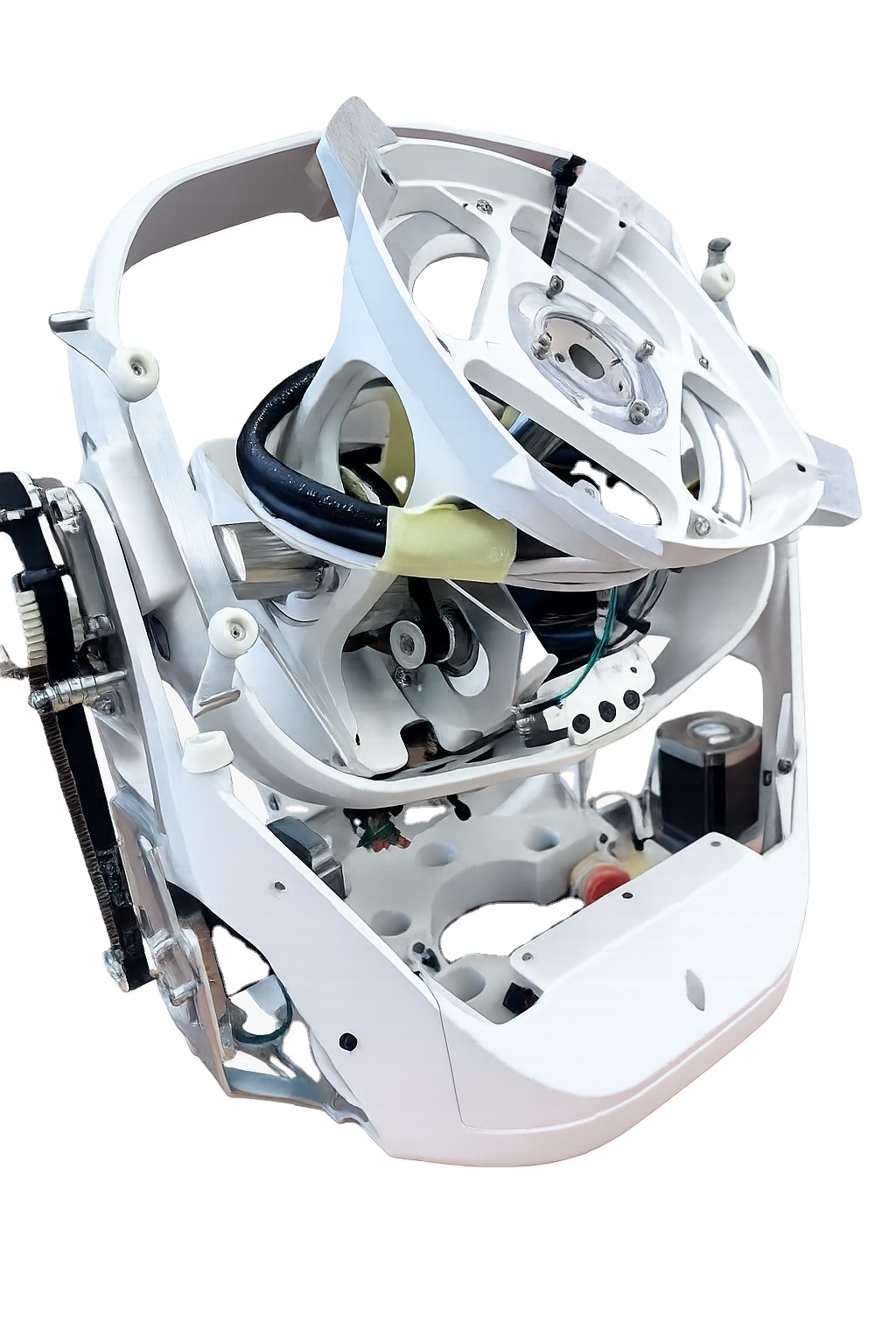

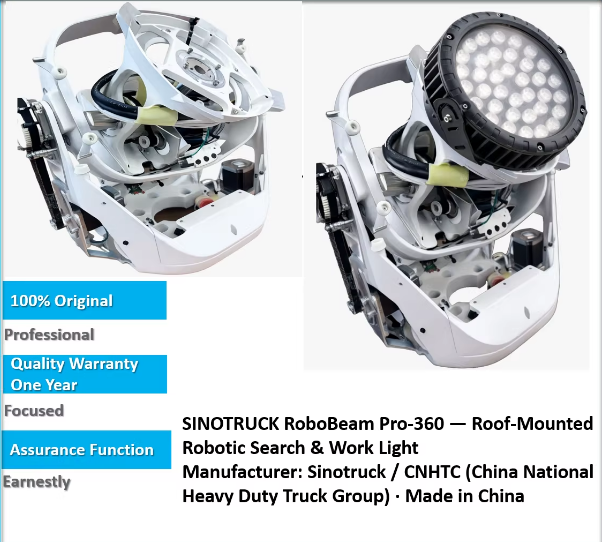

SINOTRUCK RoboBeam Pro-360 Roof-Mounted Robotic Search & Work Light

Product Description

Product Description
The RoboBeam Pro-360 is a heavy-duty, motorized pan-tilt LED searchlight system designed for roof-mount installation on commercial trucks and heavy vehicles. Built to withstand demanding long-haul and off-road conditions, it delivers powerful, directionally controlled illumination for night operations, road inspection, emergency response, and industrial site work. The unit mounts directly to the cab roof via a reinforced base plate and operates independently of the vehicle's primary lighting system. The precision two-axis gimbal mechanism allows remote-controlled rotation and tilt, enabling operators to direct a high-intensity LED beam precisely where needed — without stopping the vehicle or leaving the cab.
Technical Specifications
Parameter Value
Model RoboBeam Pro-360
Light Source High-power LED array (36× emitters)
Luminous Flux 18,000 – 22,000 lm
Color Temperature 5,500–6,000 K (daylight white)
Beam Angle 15° (spot) / adjustable
Pan Rotation 360° continuous
Tilt Range −15° to +90°
Drive System Dual-axis brushless servo motor
Control Remote control (RF/CAN-bus compatible)
Power Supply 24V DC (truck standard)
Power Consumption 120–150 W
IP Rating IP65 (dust & water resistant)
Operating Temperature −30°C to +60°C
Housing Material Die-cast aluminum + engineering polymer
Finish Gloss white powder coat
Mounting Roof rail / M8 bolt pattern base plate
Unit Weight Approx. 8.5 kg
Key Features
  • Full 360° motorized pan with smooth real-time directional control
  • Multi-axis tilt for precise beam elevation adjustment
  • High-output LED array for long-distance road and terrain illumination
  • 24V direct vehicle power — no external inverter required
  • Ruggedized for vibration resistance on heavy truck platforms
  • Compact modular design for straightforward roof installation and maintenance

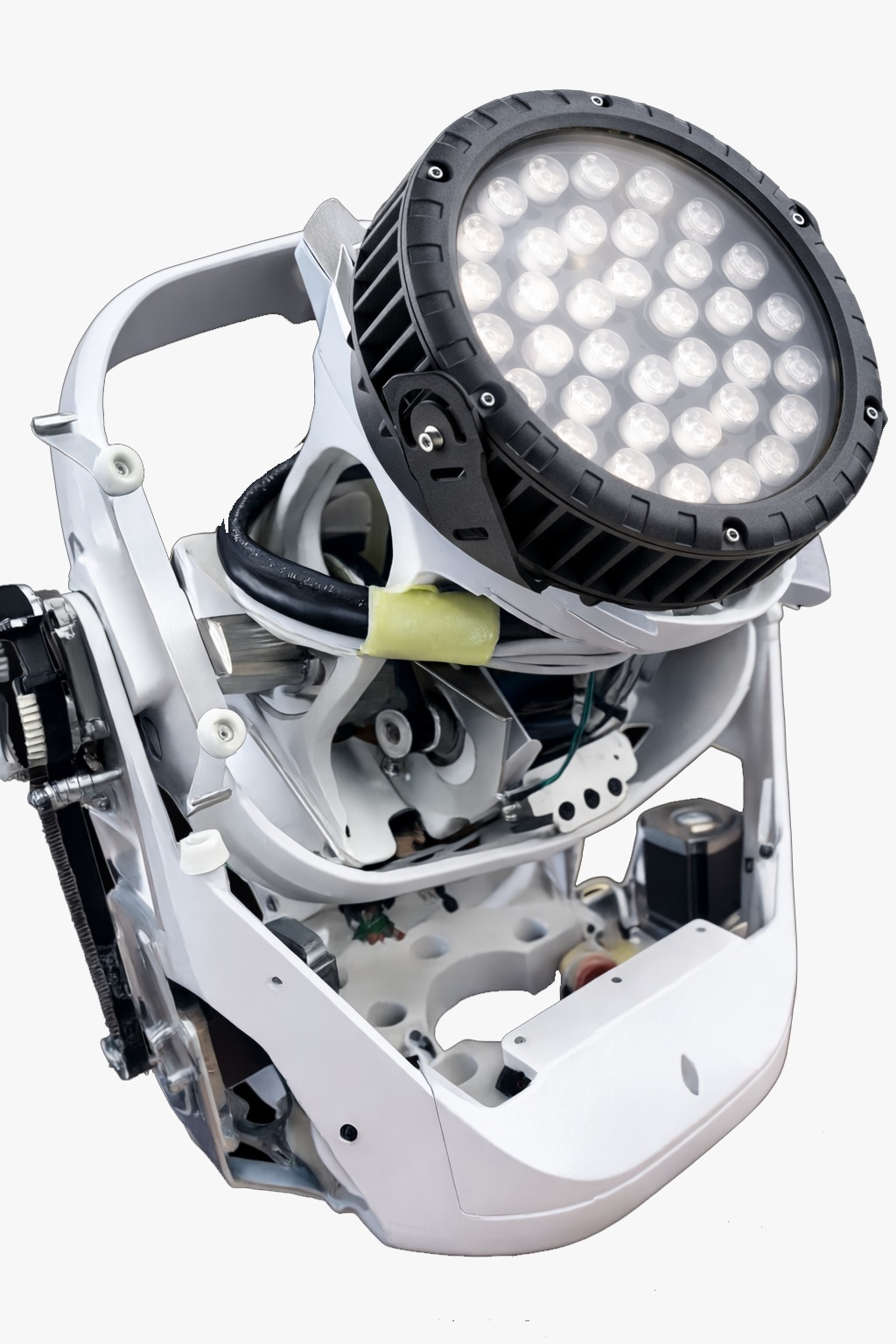

RoboBeam Pro-360 Product Detail 1

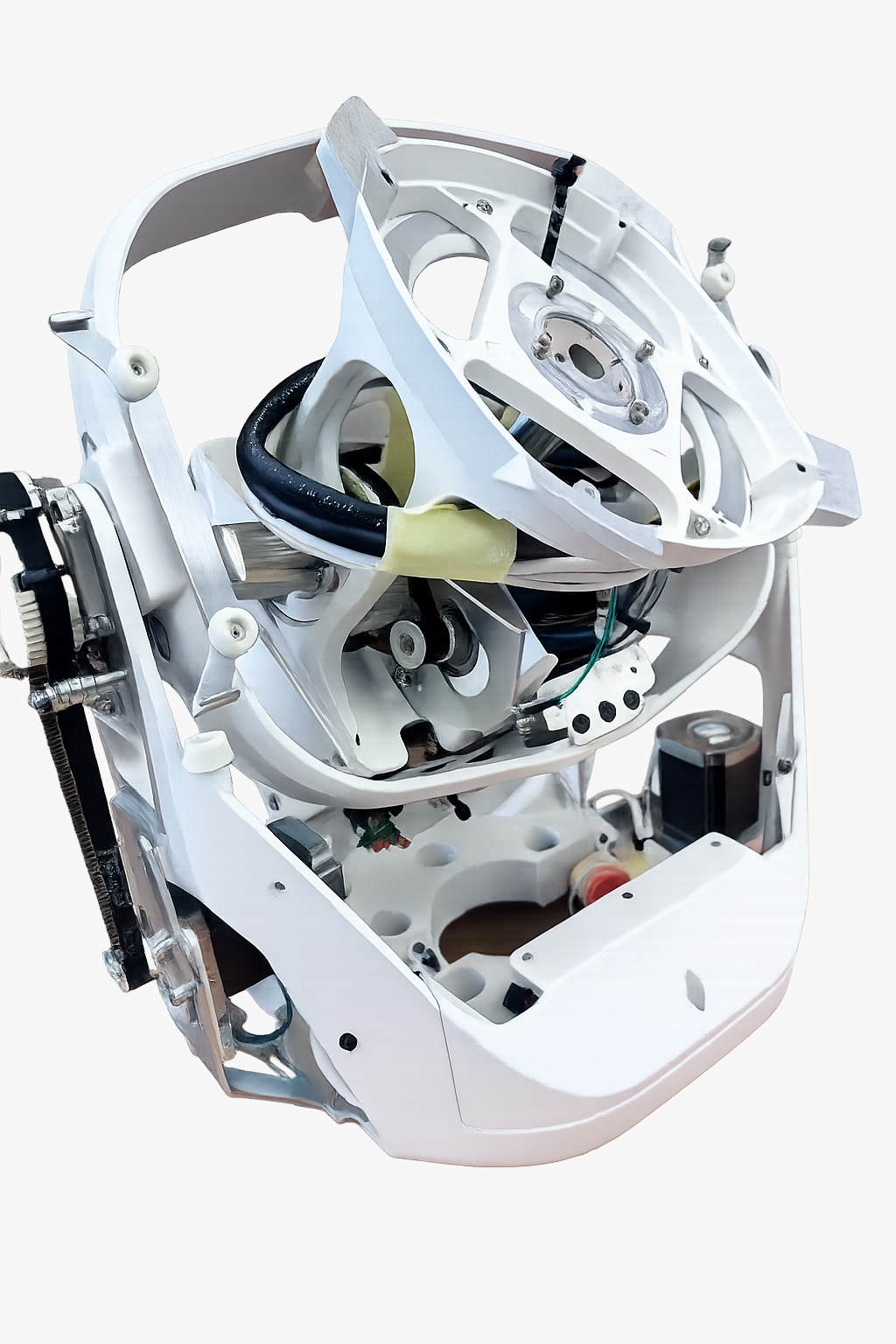

RoboBeam Pro-360 Product Detail 2
Customer Reviews
Customer Reviews Feedback
Equipment
Equipment Setup 1
Equipment Setup 2
Equipment Setup 3
Equipment Component 1
Equipment Component 2
Equipment Component 3
Equipment Testing 1
Equipment Testing 2
Equipment Testing 3
Equipment Diagram 1
Equipment Diagram 2
Application
RoboBeam Pro-360 Vehicle Application
Packaging & Shipping
Packaging details and standards
Frequently Asked Questions (FAQ)
Q1: How is the RoboBeam Pro-360 searchlight powered?
A1: The system runs directly on a standard 24V DC truck power supply, consuming between 120W and 150W. No external power inverter is required.
Q2: What are the rotation and tilt adjustment capabilities?
A2: The dual-axis brushless servo motor drive system provides a continuous 360° pan rotation and a vertical tilt range of −15° to +90° for precise direction control.
Q3: Is this light suitable for severe weather environments?
A3: Yes. It features an IP65 rating (dust and water-resistant), a rugged die-cast aluminum housing, and has an operating temperature range of −30°C to +60°C.
Q4: What are the beam characteristics and intensity?
A4: The searchlight features a high-power 36-emitter LED array delivering a total luminous flux of 18,000 to 22,000 lumens, with a daylight-white color temperature of 5,500–6,000 K and a 15° spot beam angle.
Q5: How is the searchlight controlled?
A5: It is operated remotely via a dedicated RF remote controller or can be integrated into the vehicle's system using CAN-bus compatible interfaces.
Q6: What is the mounting mechanism for installation?
A6: The unit is designed for secure cab roof installation, mounting via standard roof rails or an M8 bolt pattern base plate.
