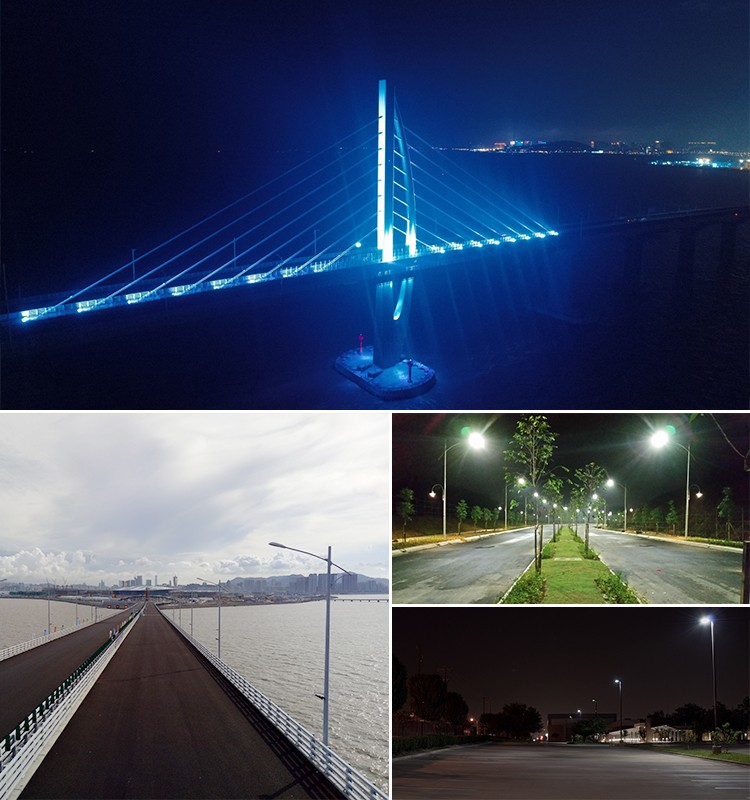

We have many successful solutions around the world for our high quantity and high efficacy. All street lights adopt our Patented Ceramic heat sink technology with better heat dissipation and less energy costing. We have a high-tech research team for your professional requirements.

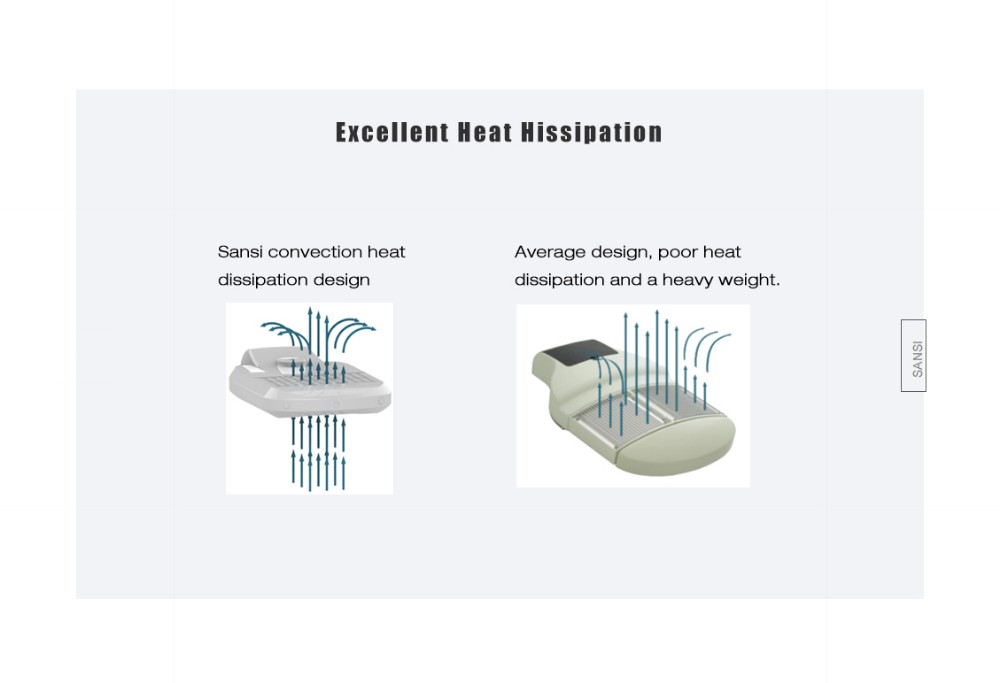

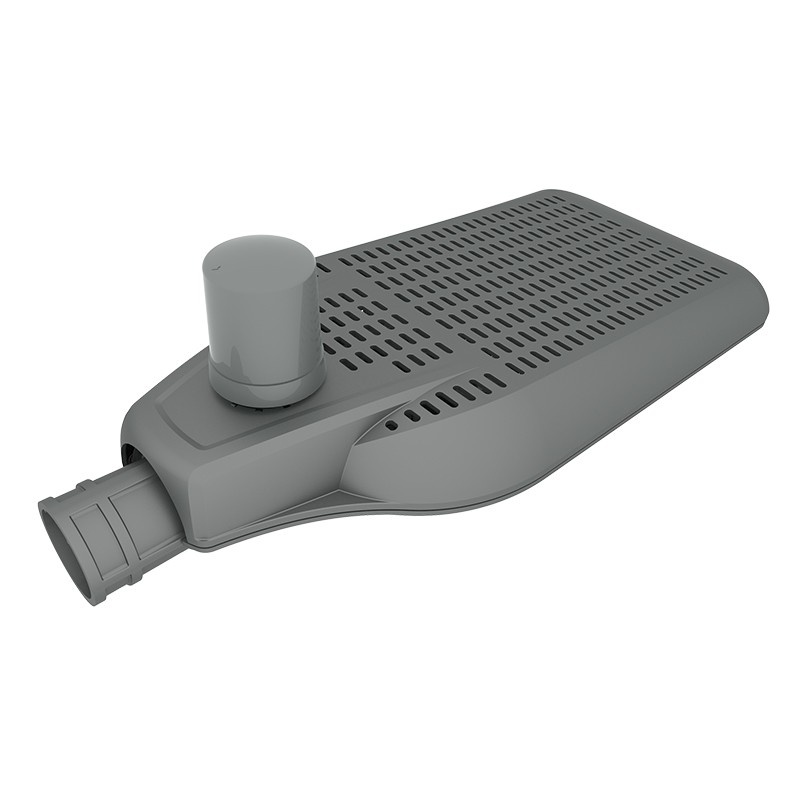

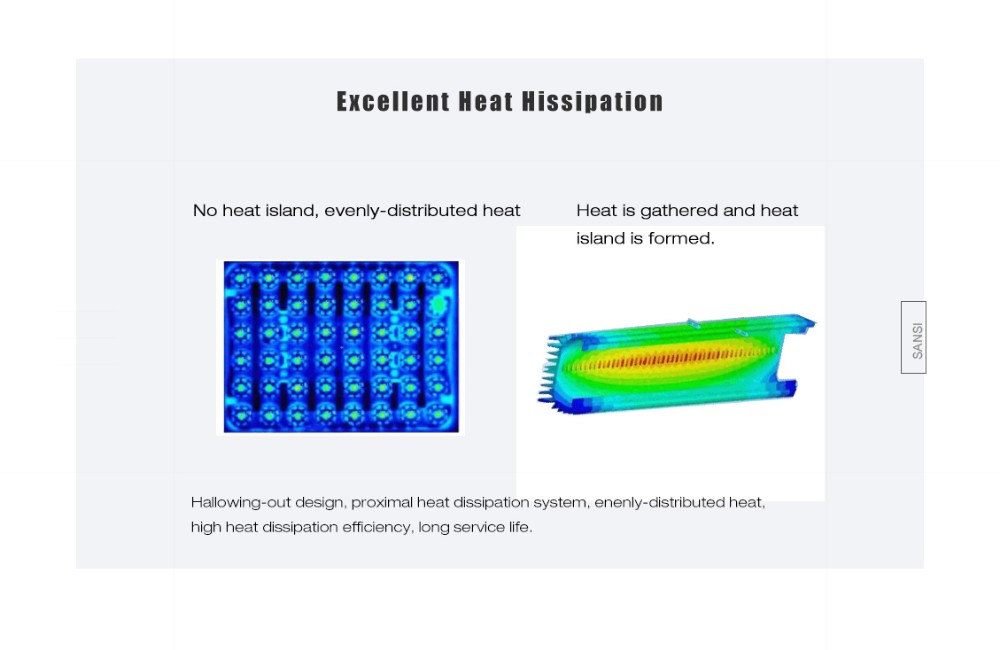

Patented proximal cooling ceramic heat sink technology. Hollow-out structure effectively reduces wind resistance, making it safer and more reliable.
| Wattage | 30-100W | 110-200W | 210-280W |
| Modular | 1 | 2 | 3 |
| Ceramic Heat Sink (PCS) | 21 | 42 | 63 |
| Input Voltage | 90-305VAC | ||
| CCT | 3000K / 4000K / 5000K | ||
| Efficacy | 130±5 lm/W | ||
| Mounting | φ50-60mm | ||
| PF | >0.95 | ||
| Control | PLC / 2.4G / RS485 / 0-10V / PWM | ||
Adopts high temperature sintering method. LED chip is directly attached to the ceramic surface, reducing thermal resistance and improving seismic performance.

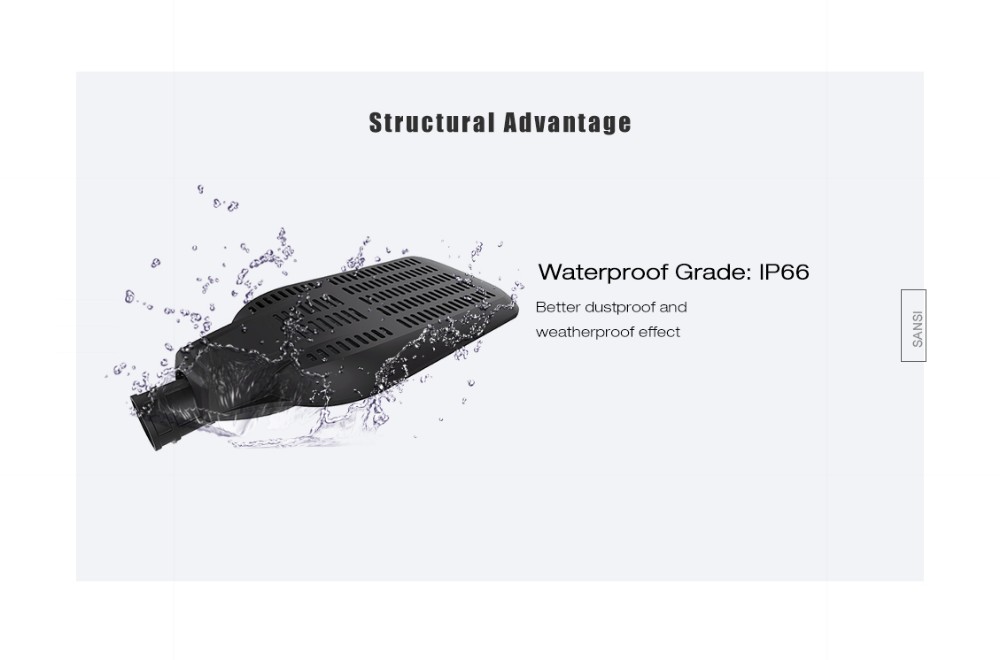

Ceramic Heat sink provides superior durability and resistance to environmental corrosion.
Intelligent dimming system allowing further energy conservation.

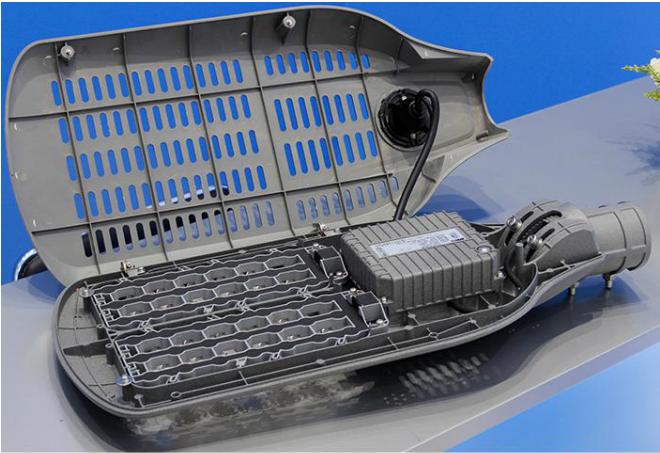

Customized Modular Design: Hot swapping power wire ensures quick maintenance and power replacement.

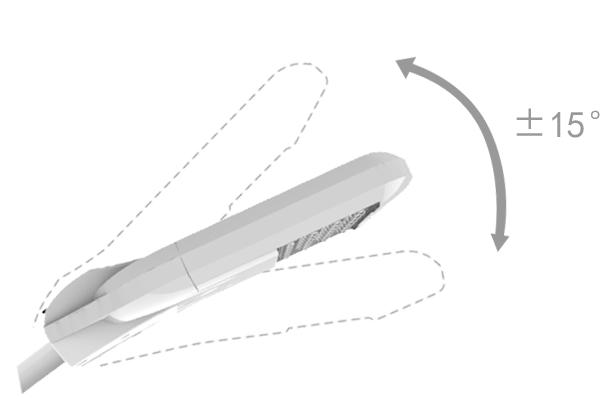

Multiple installation methods including:
• Vertical installation (0-15°)
• Horizontal installation (-15° to 15°)
