16mm General Electric Signal Light Multi Color LED Optional Waterproof and Seismic IP65

Basic Info.

Model NO.HBS1-AY-D/LED Voltage/B

IP RatingIP40, IP65

Color TemperatureWarm White

Lamp Body MaterialPC

CertificationCCC, CE, ISO

Protection GradeIP65

CertificateCE RoHS Reach

Production Time3-5 Working Days

Mounting Hole Size16mm

Head ShapeRound/Square/Rectangle

Terminal TypePin Terminal

Crust MaterialPlastic

Head ColorBlue

Battery TypeLED

MaterialPlastic

Emergency Time24 Hours

Installation ModePanel Mount

Operation ModeMaintained

UsageElectrify

Transport Package40PCS/Box

SpecificationCE, ROHS, ISO9001

HS Code8531809000

Production Capacity200000PCS/Month

Packaging & Delivery Info

Package Size21.00cm * 13.00cm * 6.00cm

Package Gross Weight0.100kg

Product Description

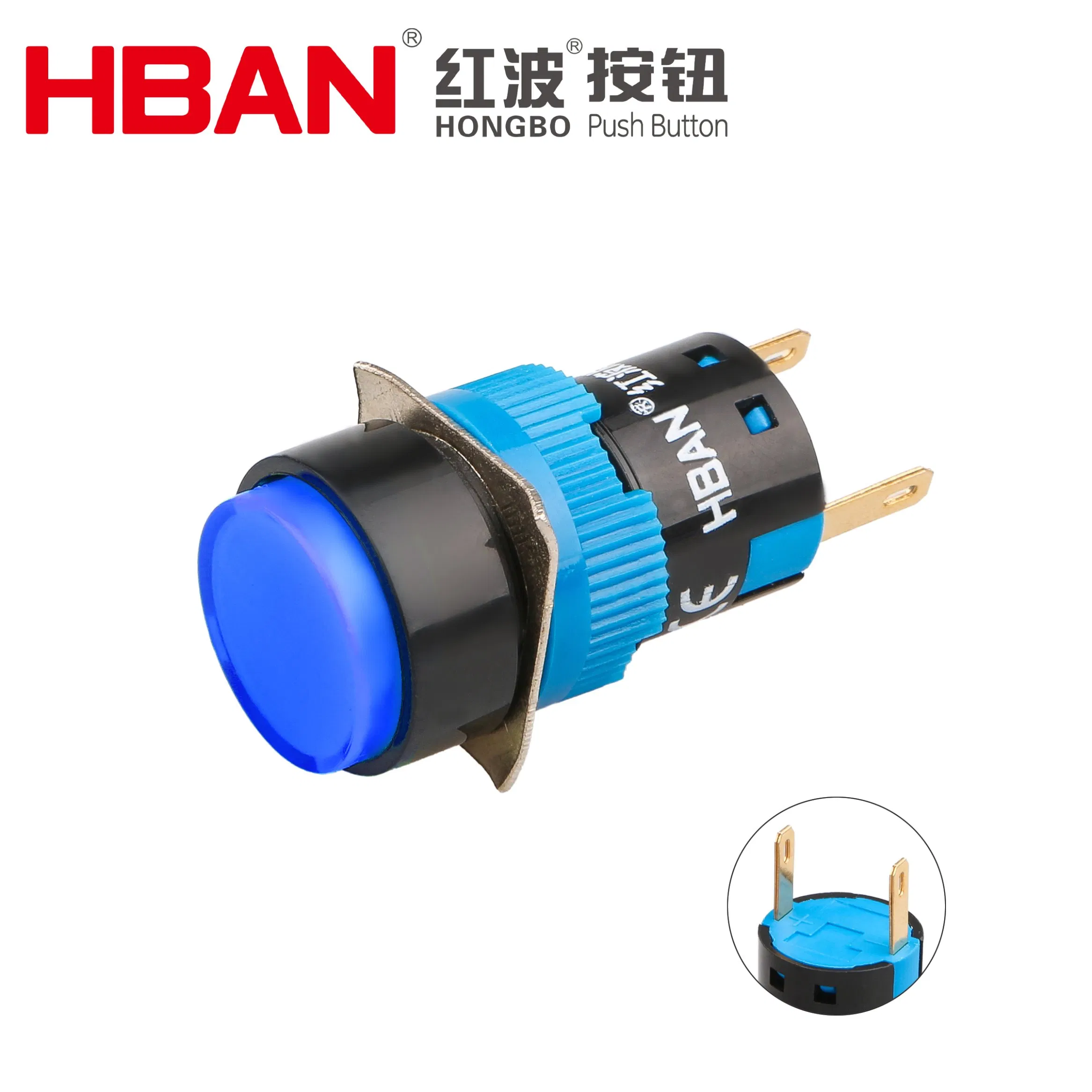

16mm General Electric Signal Light Multi Color LED Optional Waterproof and Seismic IP65

Material characteristics:

Plastic has a much lower density than metal, significantly reducing overall weight and making it easy to install, transport, or hang for use. Suitable for temporary engineering, traffic diversion, mobile devices and other scenarios that require frequent movement.

Chemical corrosion resistance:

Strong resistance to corrosive substances such as acid, alkali, salt, etc., suitable for chemical industry. Coastal high humidity environment.

Electric shock risk:

Plastic is non-conductive and safer in places with electric shock hazards such as power facilities and substations.

Low maintenance cost & Efficiency:

No need for rust prevention treatment, easy cleaning, high cost-effectiveness for long-term use. High quality engineering plastics have better impact resistance than glass, are less prone to breakage, and are more reliable in vibration or accidental collisions. Multiple LED lights are available, with high brightness to meet different styles and voltages. Plastic casing has lower heat dissipation requirements and can reduce energy consumption. Long term use can significantly reduce electricity costs, especially suitable for outdoor scenes powered by solar energy.

Supports making multi-color head:

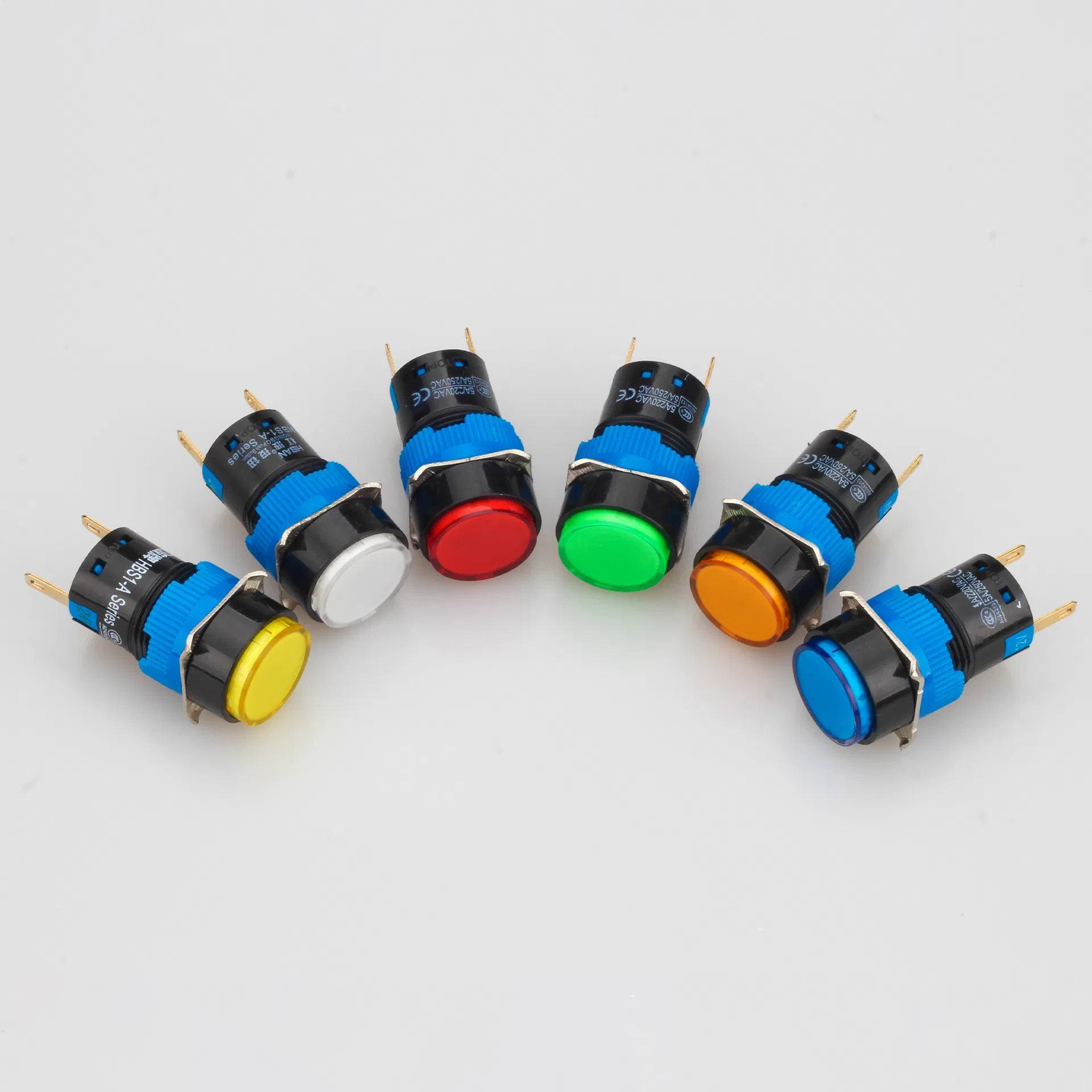

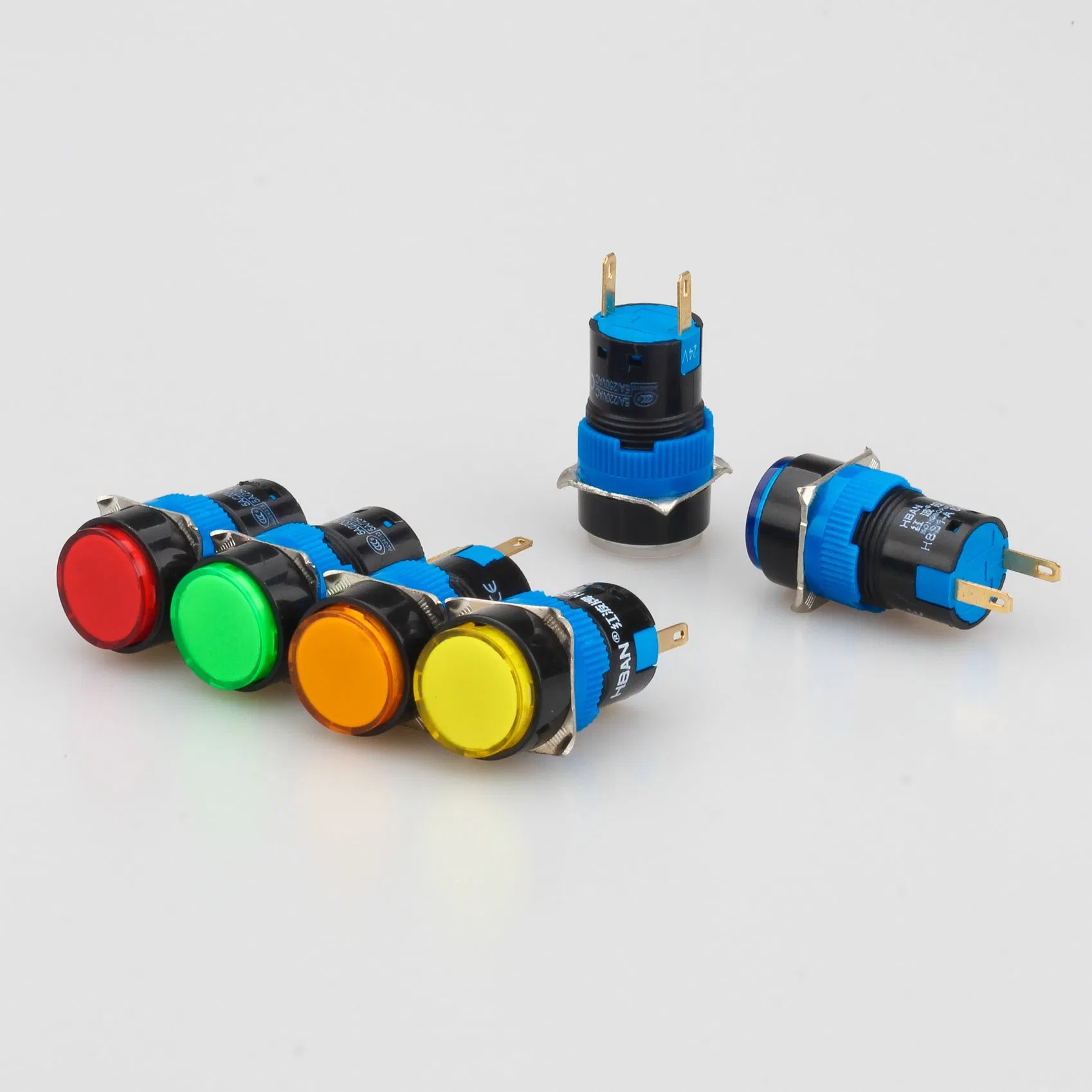

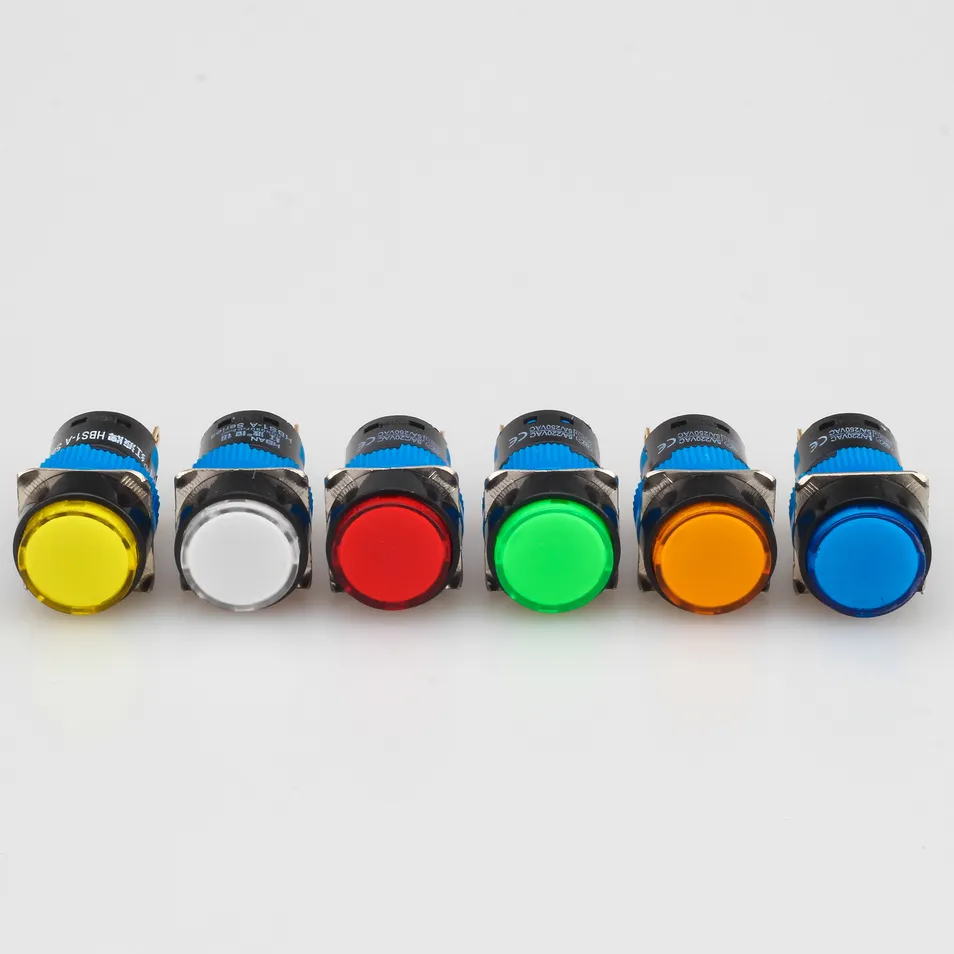

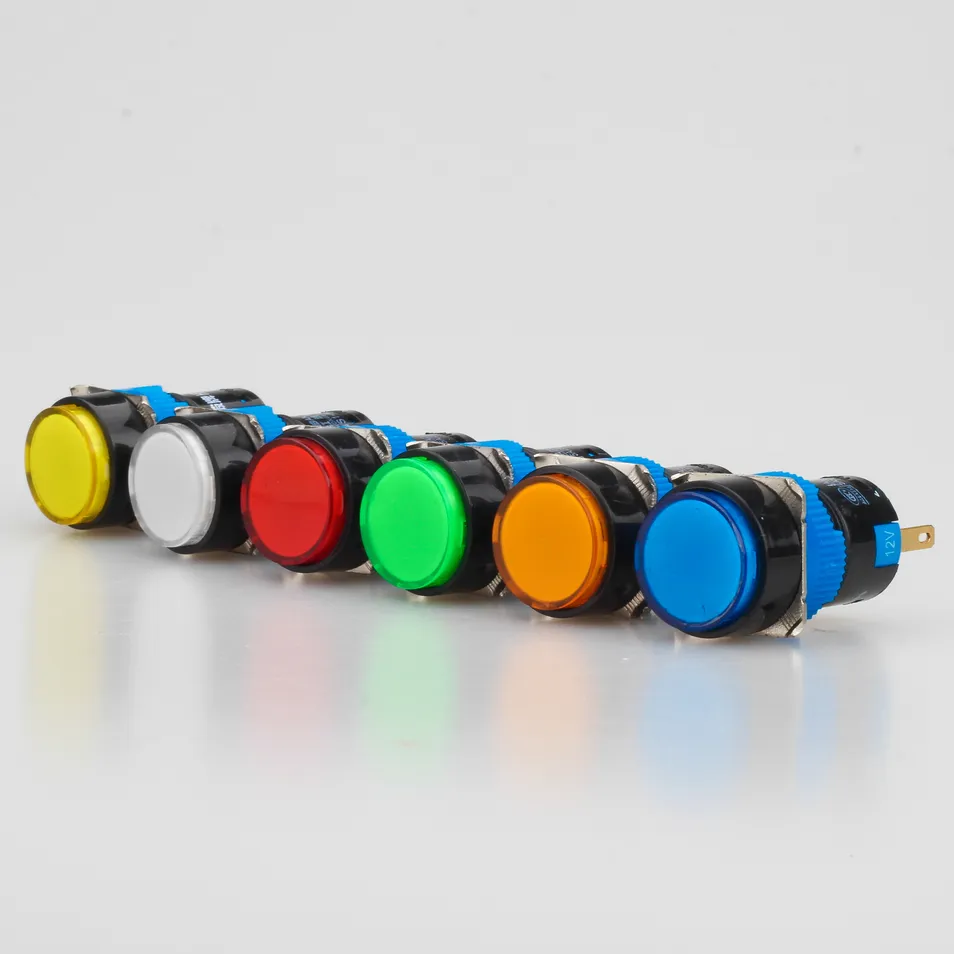

Head color selection: Red/Green/Blue/Yellow/White

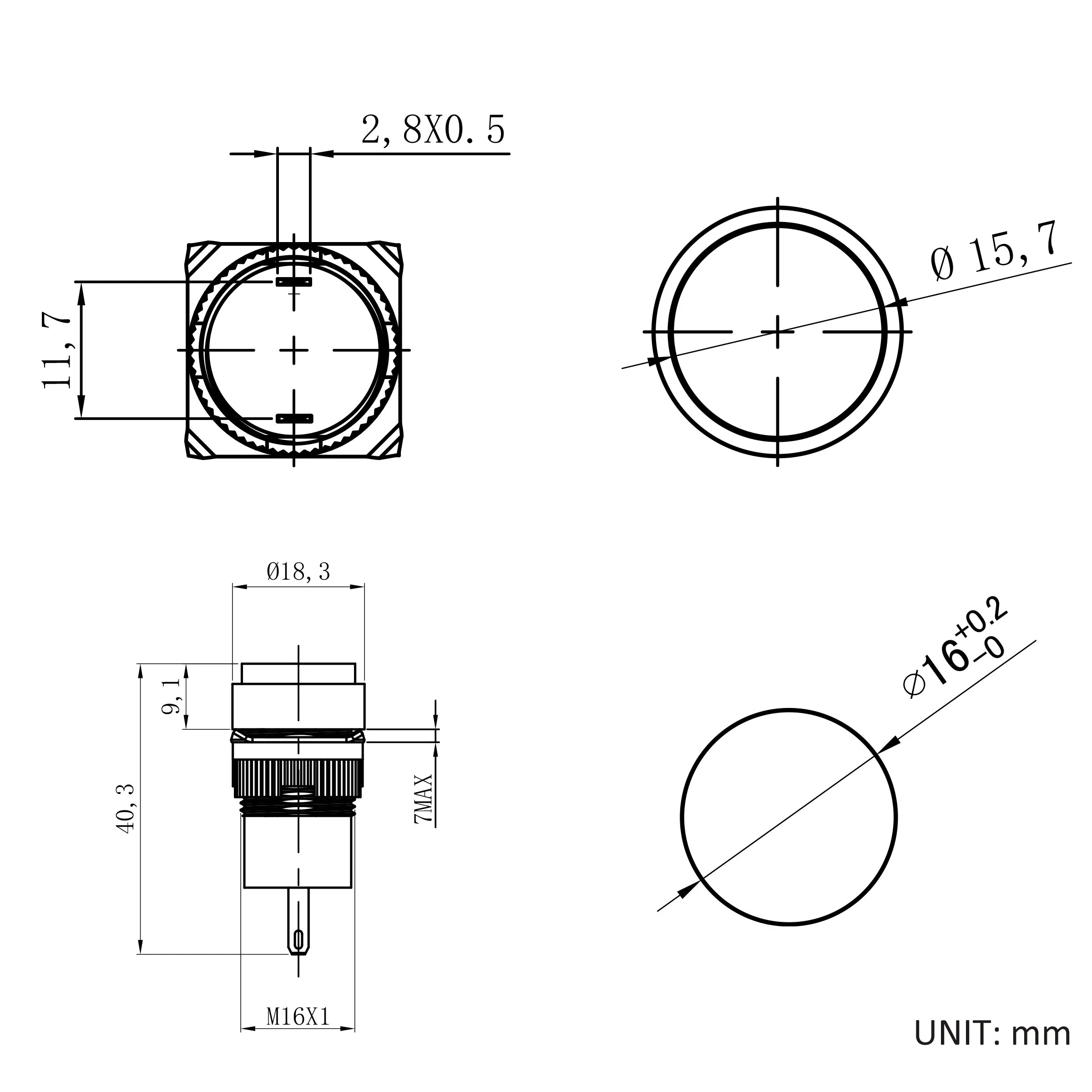

Installation:

Mounting hole size: 16mm/0.625in mounting hole size
Introduction to the structure: Matching O-ring + Nuts
Panel thickness: 7mm MAX
Tightening torque: About 0.4Nm

IP65 waterproof:

Rating: IP65, First Digit (Solids): 6 (Dust-tight), Second Digit (Liquids): 5 (Low-pressure water jets).
Protection Level: Protected against dust and water jets (6.3mm nozzle, 12.5L/min from any direction). No less than 3 minutes.

Long Work Life:

Rated voltage: 6V/12V/24V; 110V/220V
Rated current: ≤20mA
Lamp bead life: 50000 hours

Model Specification

Series Number: HB16 (This product is marked in green)
Neck Mounting Dimensions	8: Ø8mm 10: Ø10mm 12: Ø12mm 16: Ø16mm 22: Ø22mm 30: Ø30mm

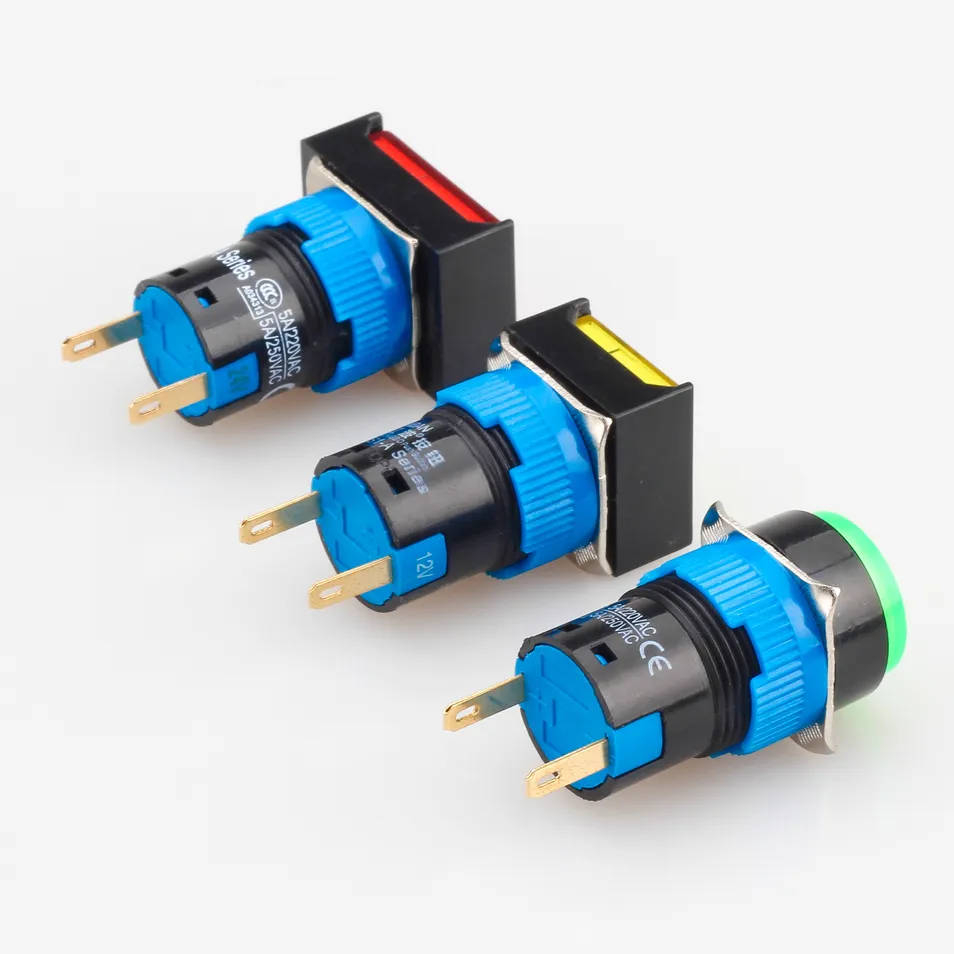

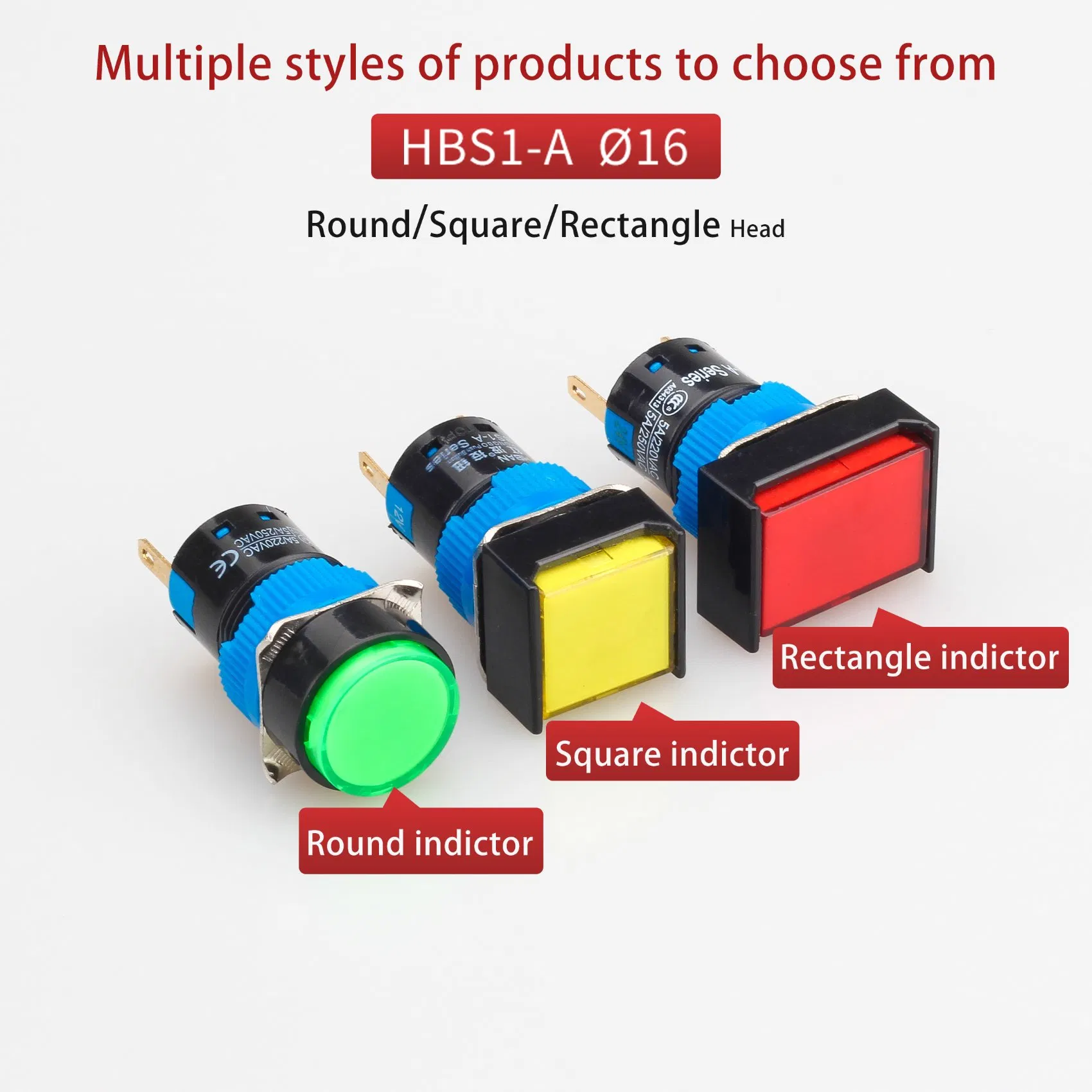

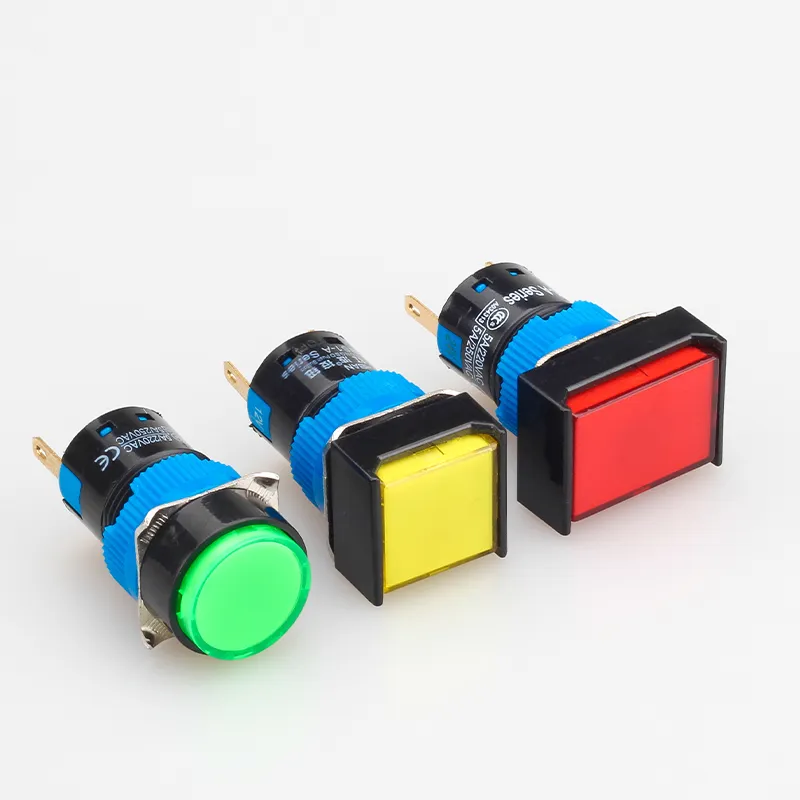

Head shape	Y: Round head F: Square head J: Rectangle head

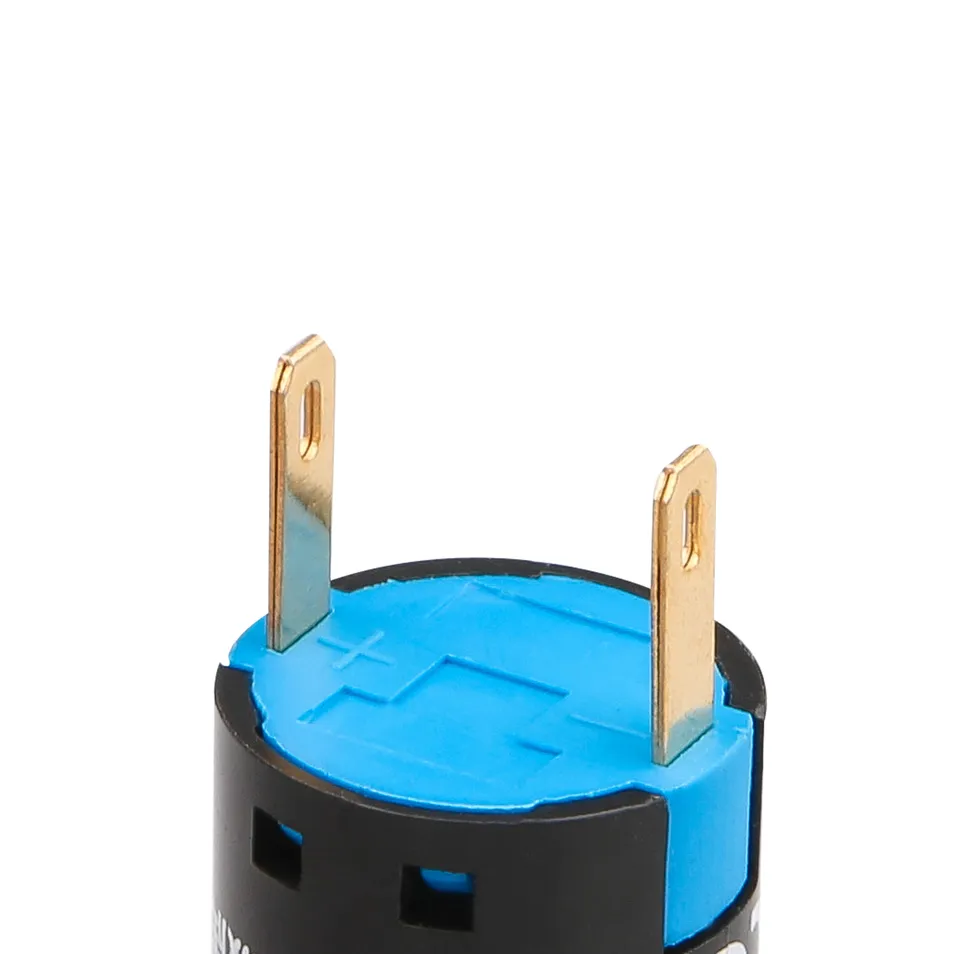

Terminal Type	A: Pin terminal D: Screw terminal
Form of Structure	No letters: Standard structure S: Ultra-short structure
LED Voltage	6V/12V/24V/36V; 110V/220V	Other voltages can be customized
LED Color	R: Red G: Green Y: Yellow O: Orange B: Blue W: White

Wiring Example

Facility

Application

Industrial Automation Equipment

New Energy EV Charging Stations

Marine & Offshore Engineering

Lab & Testing Equipment

Rail Transit Systems

Power Control Cabinets & Distribution Systems

Exhibition

Packing & Delivery

Packaging

Regarding packaging,
40pcs/box (Including 40pcs O-ring)

1 & 2: We will put the products into separate foam boxes to prevent collision.
3: Put the foam box into the packaging box and put in the black O-ring.

We use corrugated paper boxes for box packaging, and after packaging, we will use strapping tape for reinforcement.

Shipping

1. We ship to worldwide.
2. Generally, items will be shipped within 3-7 business days on payment received.
3. Delivery time depends on destination and other factors, it may take up to 3-8 business days.

Frequently Asked Questions

Q: Is the material eco-friendly?

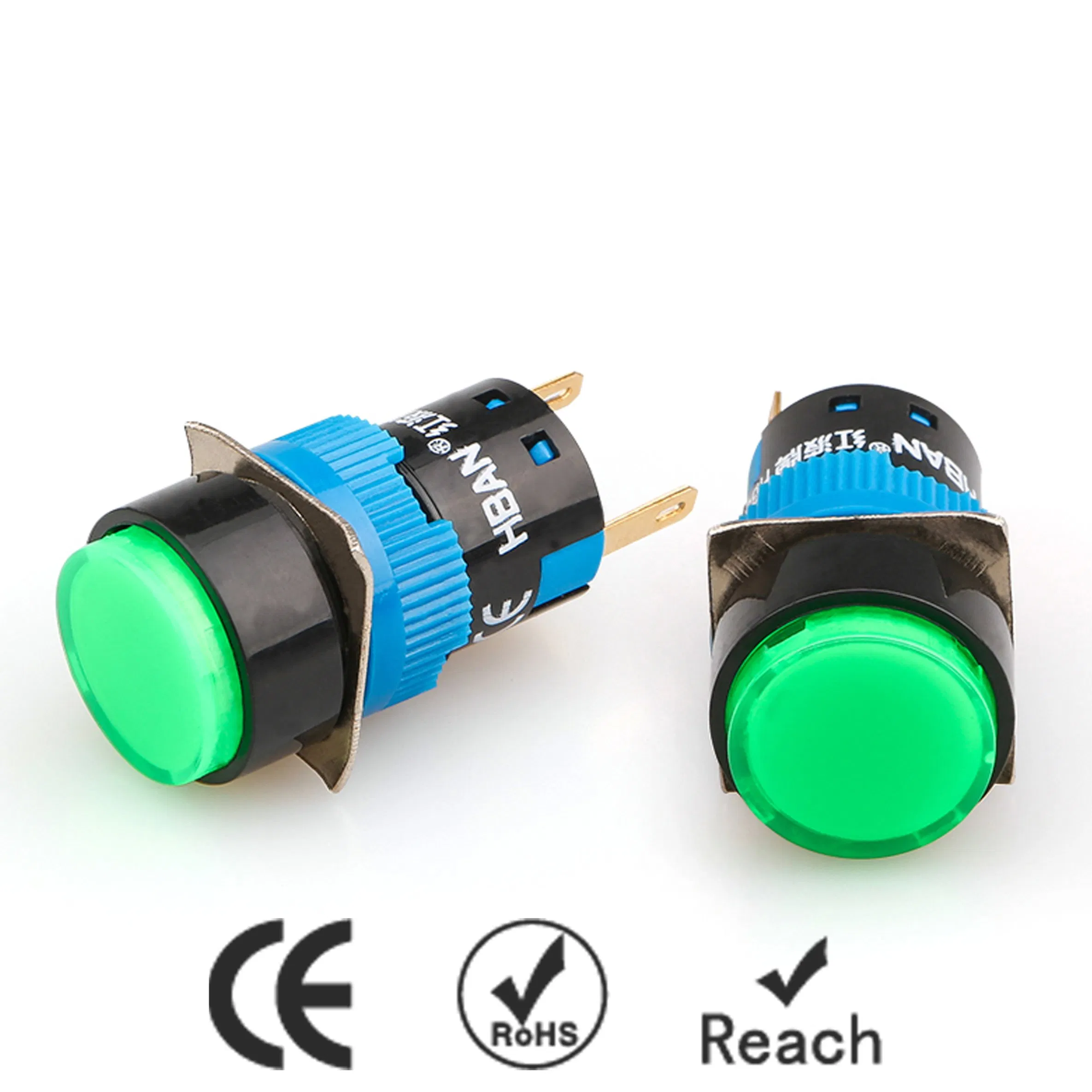

A: Yes, our products are made of environmentally friendly materials and have passed ROHS and REACH certifications.

Q: Can you provide wiring diagrams or CAD files?

A: Yes, contact our support team and they will provide the documents within 24 hours.

Q: Can you provide OEM/ODM services (custom logos/colors)?

A: Yes, we support OEM/ODM services. There is a minimum order quantity. Please contact our support team for details.

Q: What payment methods are supported?

A: We support T/T(Wire transfer), Credit card, Paypal. (Please ensure that the amount received is consistent with the pro forma invoice amount)

Q: How to ensure that the products are not damaged or defective during transportation?

A: The express delivery companies we cooperate with are: DHL, UPS, FedEx. (Support air and sea transportation). Regarding packaging, we will put the products into separate foam boxes to prevent collision, and then put the foam boxes into the boxes. We use corrugated paper boxes for box packaging, and after packaging, we will use strapping tape for reinforcement.

Q: Is there a warranty?

A: Warranty period: 1 year.
