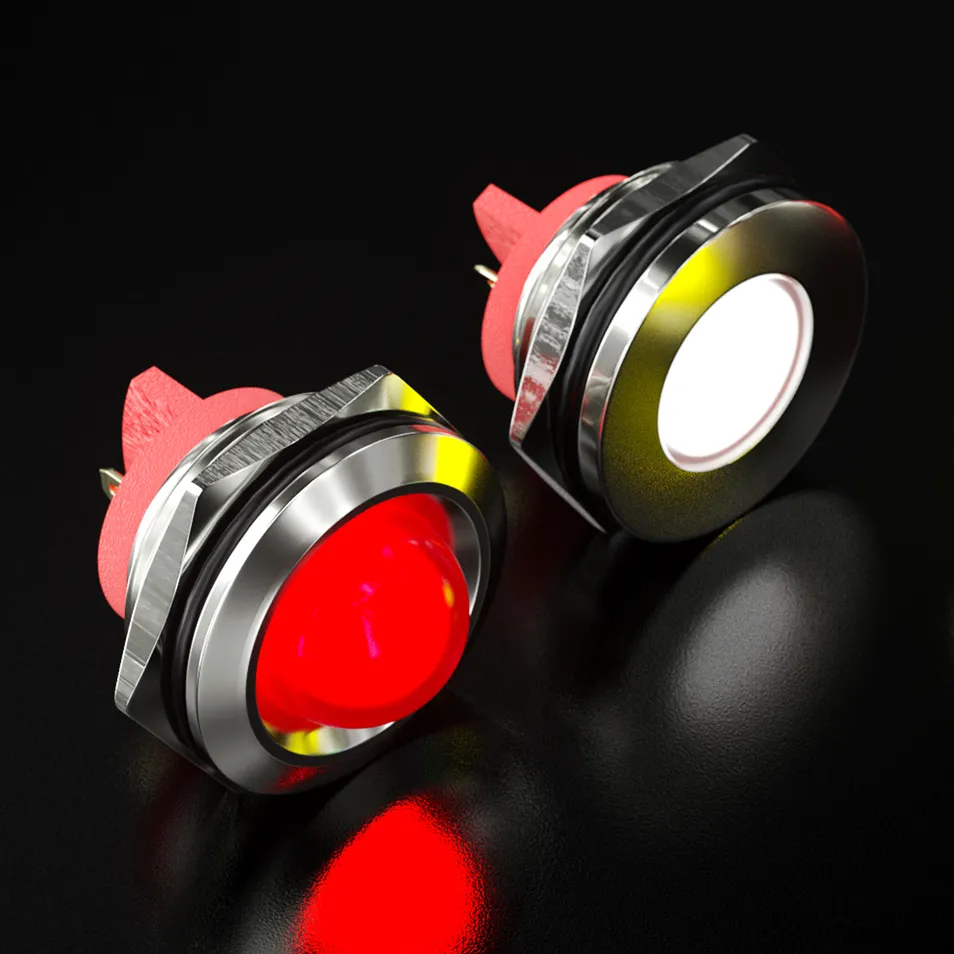

16mm IP67 Waterproof LED Signal Light Flat Head Design for Clean Panel Layout

1 / 5

16mm IP67 Waterproof LED Signal Light Flat Head Design for Clean Panel Layout

Send Inquiry

Product Description

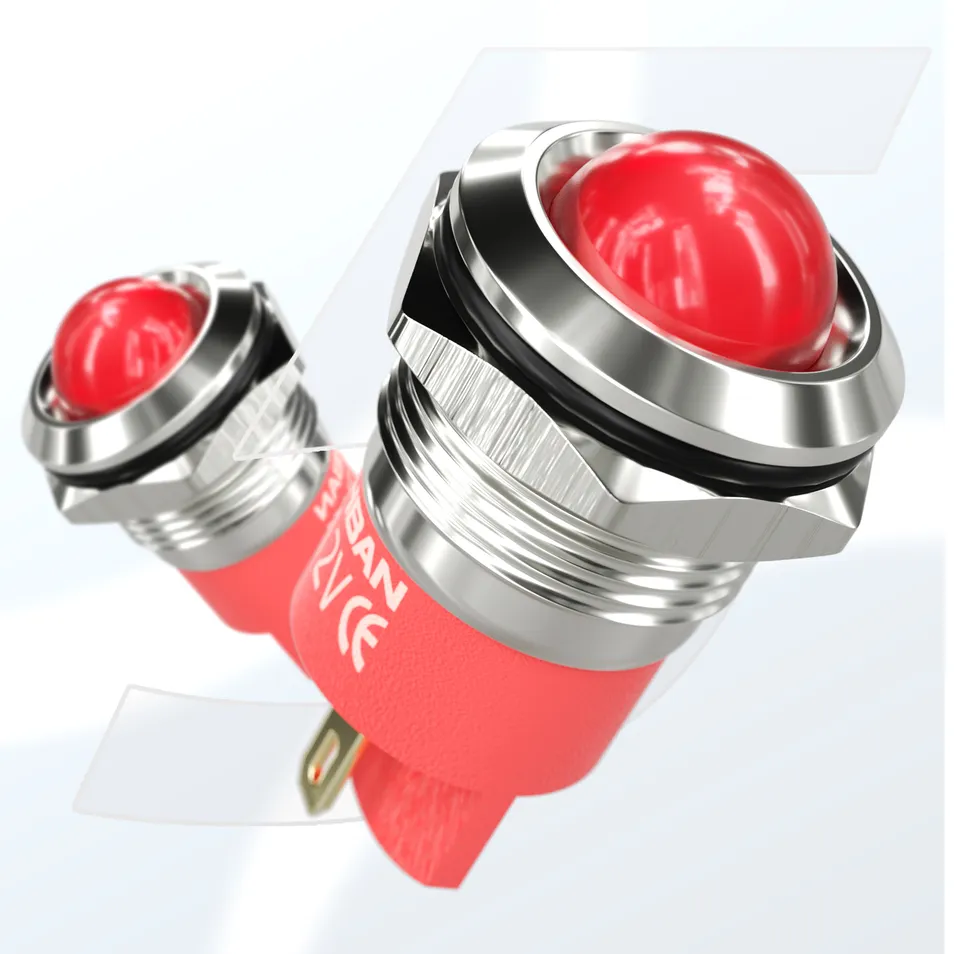

16mm IP67 Waterproof LED Signal Light Detail

"Our robust IP67 Metal Indicator Light is engineered for maximum durability and reliability in harsh environments. The sealed metal housing guarantees complete protection against dust, water, and corrosion. This high-intensity LED indicator light provides a clear, unmistakable signal, ensuring operational safety and efficient visual status monitoring for your machinery and control panels."

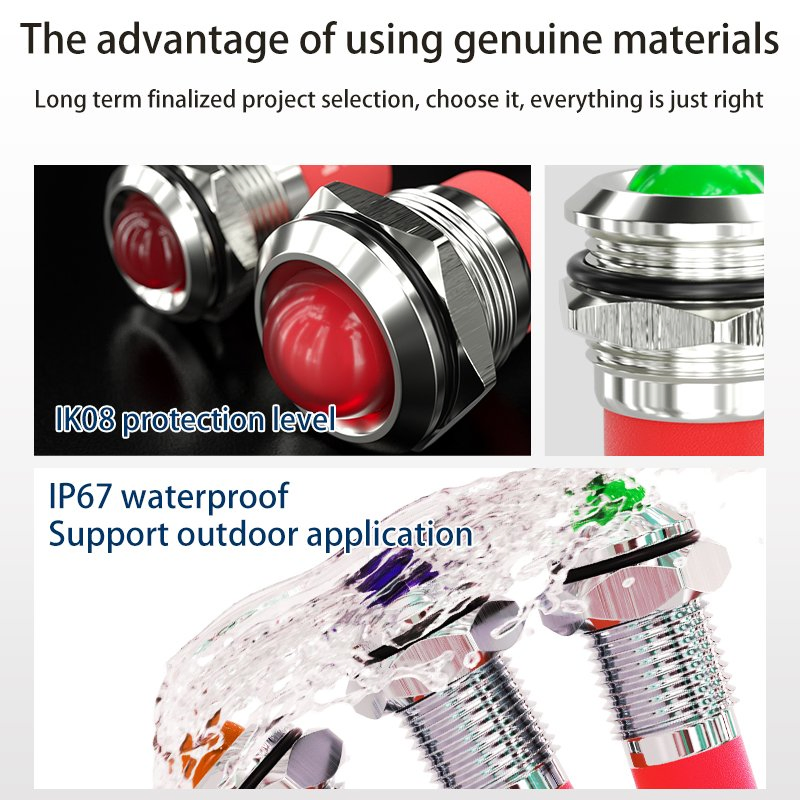

Impact Resistance and Wear Resistance

The metal housing can withstand accidental impacts, knocks, and friction during installation, use, and daily maintenance, effectively protecting the internal core LED and circuitry. Particularly suitable for applications with strong vibrations like mining machinery and heavy equipment.

Outstanding Temperature Resistance and Heat Dissipation

Metals (such as aluminum alloy, stainless steel) withstand higher ambient temperatures than engineering plastics without softening or aging. Metal acts as a natural heat sink, rapidly conducting and dissipating heat to extend the LED's service life and prevent light decay.

Product Specifications

Head & Installation Options

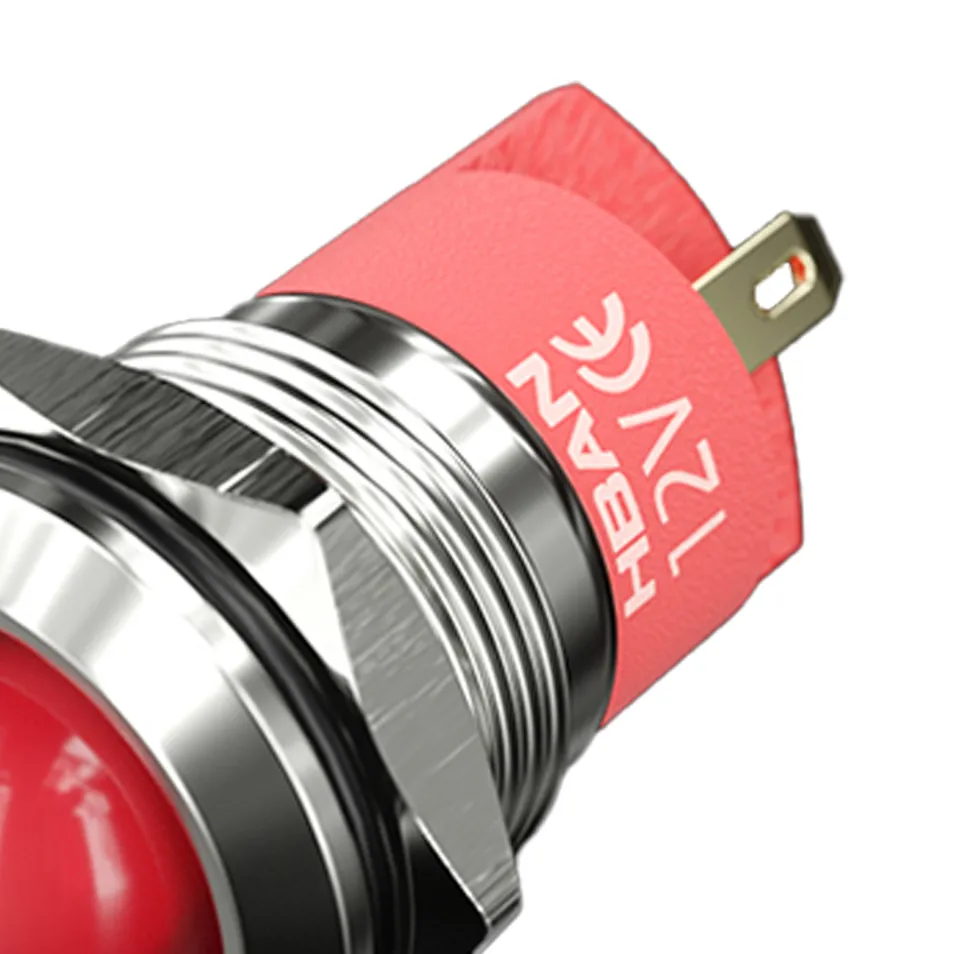

Head Shape OptionsT: Flat shape / G: Spherical shape

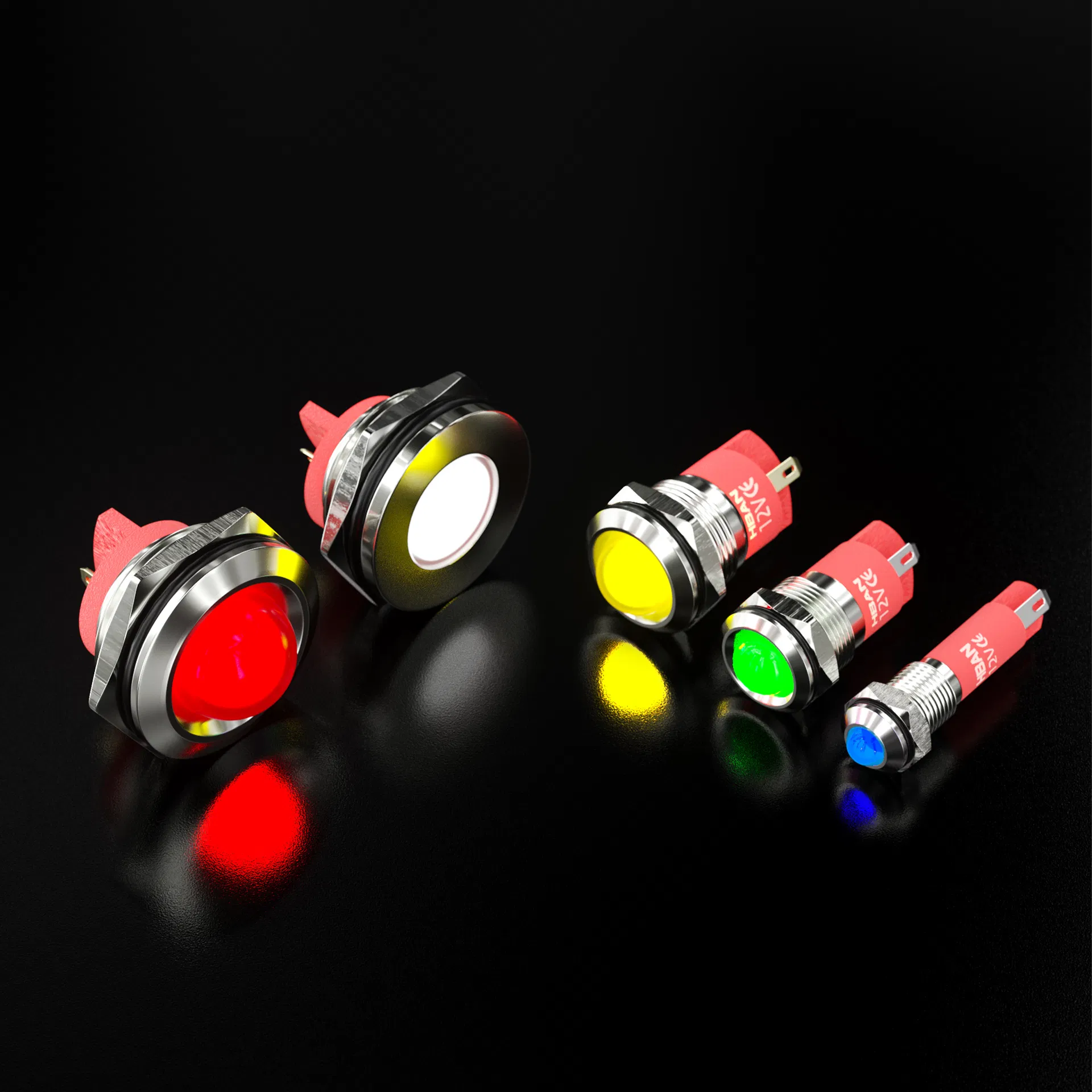

LED Color OptionsRed, Orange, Yellow, Green, Blue, White

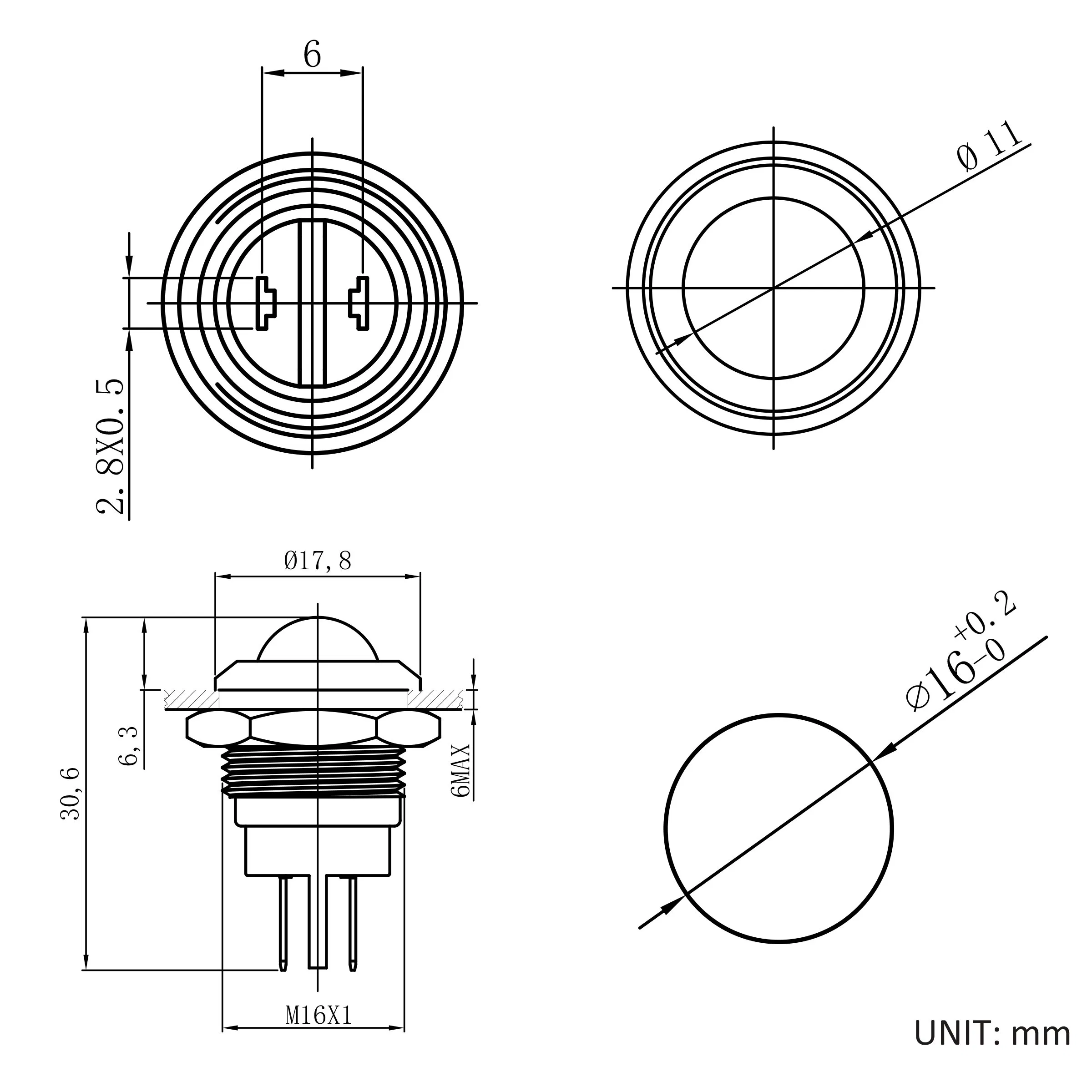

Mounting Hole Size16mm
Structure DesignMatching O-ring + Nuts
Max Panel Thickness6mm MAX

Durability & Ratings

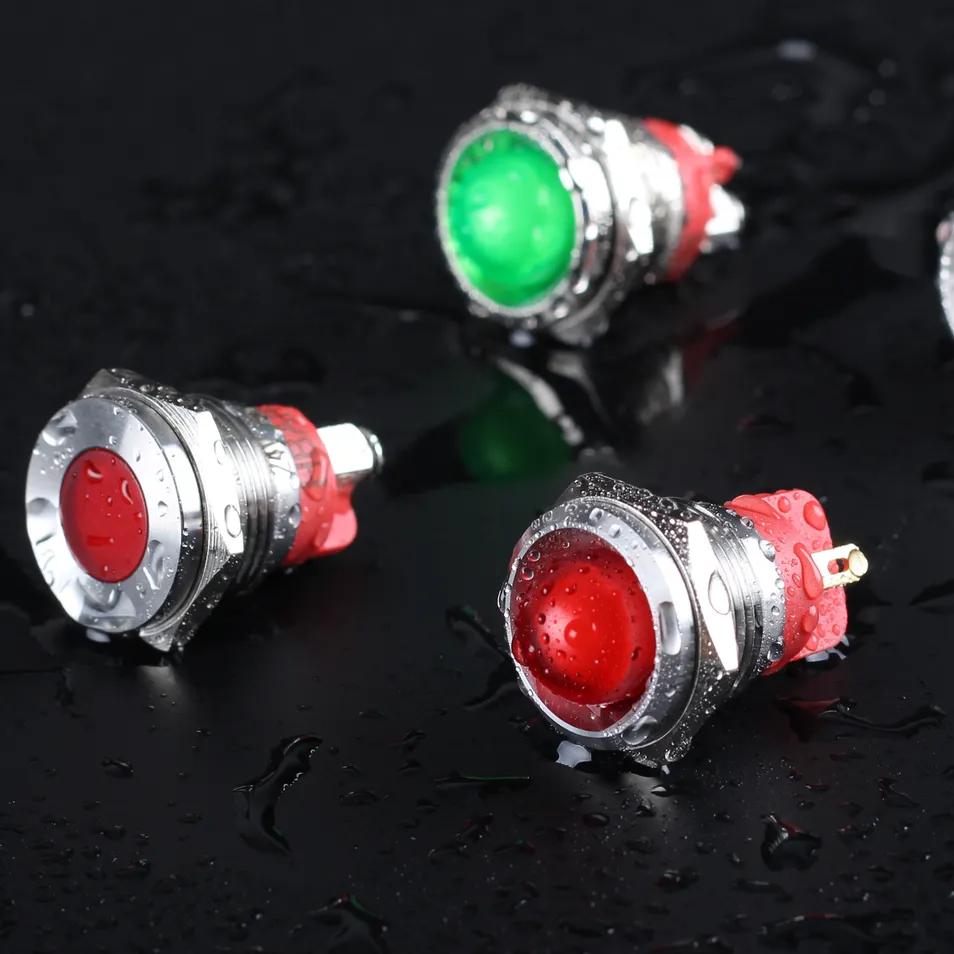

IP RatingIP67 (Dust-tight & Waterproof)
Protection LevelTemporary immersion up to 1m (30 mins)
Rated Current≤20mA
Rated Voltage Options3V/6V/12V/24V/36V; 110V/220V
Lamp Bead Lifespan50,000 Hours

Model Specification Selection

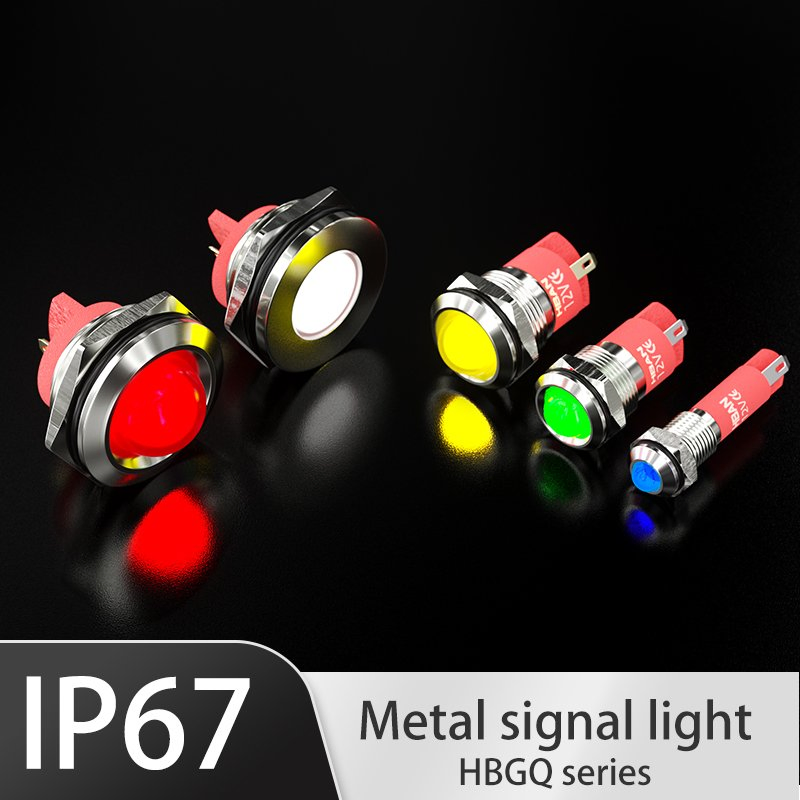

Series Number: HBGQ Standard Series Selection
Neck Mounting Dimensions	6: Ø6mm \| 8: Ø8mm \| 10: Ø10mm \| 12: Ø12mm \| 14: Ø14mm \| 16: Ø16mm \| 19: 19mm \| 22: Ø22mm \| 25: Ø25mm	Standard configurations

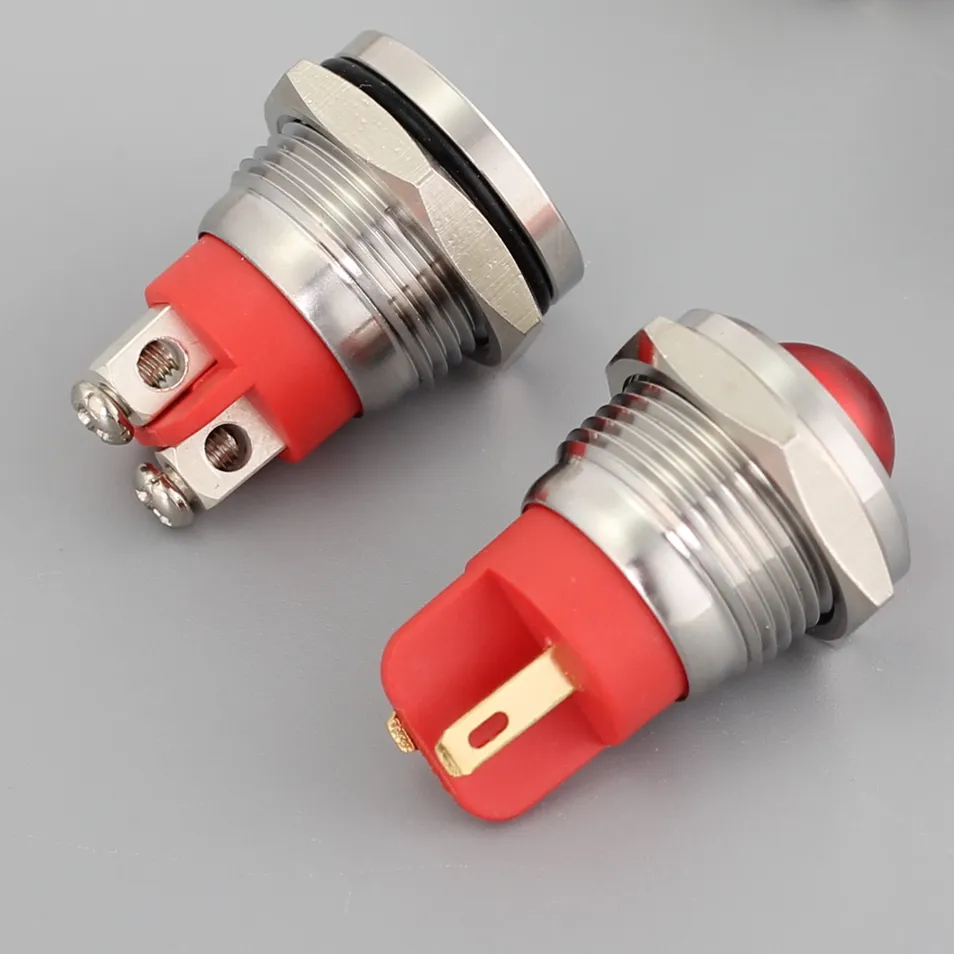

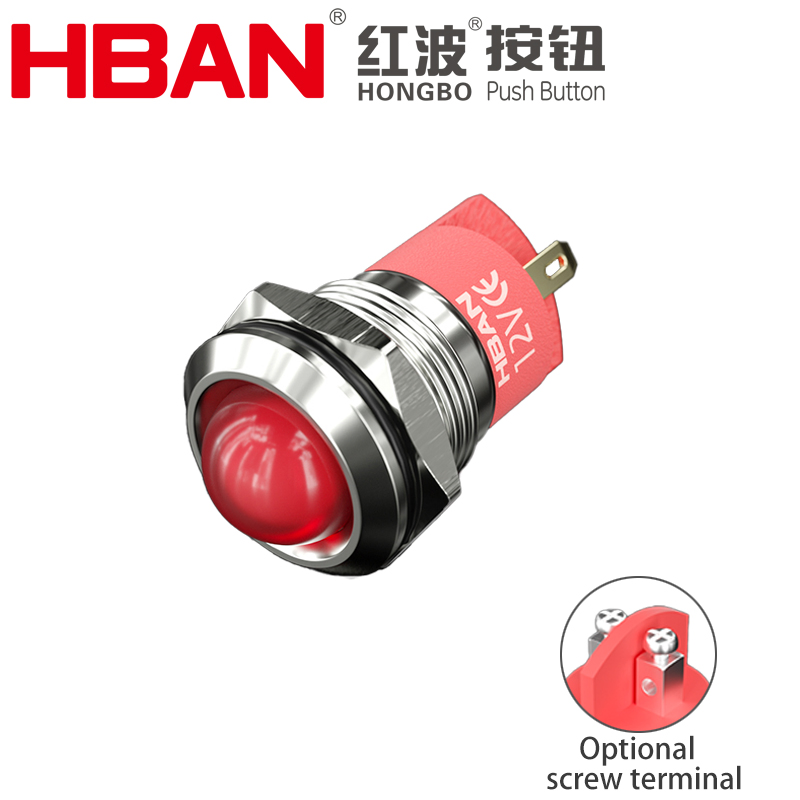

Terminal Type	J: Pin terminal \| L: Screw terminal \| Y: Lead wire	Connection options
Head Shape	T: Flat shape \| G: Spherical shape \| F: Flat circular shape \| DT: Large flat shape \| DG: Large spherical shape \| M: Flash signal light	Physical profile options
LED Voltage	6V / 12V / 24V / 36V; 110V / 220V	Other voltages can be customized
Lamp Type	D: Dot LED \| E: Ring LED \| P: Plastic cover \| SP: Spray painted plastic cover	Illumination design
Housing Material	N: Nickel plated brass \| S: Stainless steel \| T: Aluminum alloy	Enclosure build
LED Color	R: Red \| G: Green \| Y: Yellow \| O: Orange \| B: Blue \| W: White	Light color options

Wiring Diagram

Instruction Details

1. When powered on, it lights up without distinguishing between positive and negative poles, ensuring easy installation and configuration in various setups.

Manufacturing Facility

Industrial Applications

Industrial Automation Equipment

New Energy EV Charging Stations

Marine & Offshore Engineering

Lab & Testing Equipment

Rail Transit Systems

Power Control Cabinets & Distribution Systems

Packaging & Shipping

Packaging Details

Standard packing layout: 40pcs/box (Including 40pcs O-rings).

1. Products are secured into separate foam boxes to prevent collision during transit.
2. The foam box is set inside the secondary packaging box along with the sealing O-rings.
3. We utilize reinforced corrugated paper boxes secured with heavy-duty strapping tape for safe transport.

Shipping Options

1. Worldwide shipping configurations supported.
2. Standard orders are dispatched within 3-7 business days upon payment confirmation.
3. Transit and delivery times are dependent on target destination, averaging around 3-8 business days via major express carriers.

Frequently Asked Questions

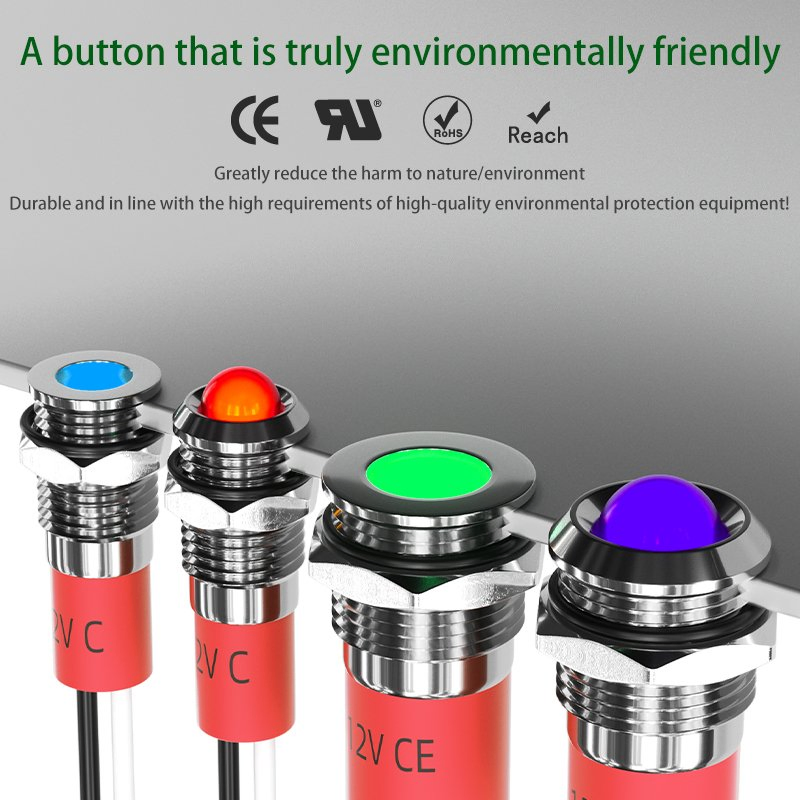

Is the material eco-friendly?

Yes, our products are made of environmentally friendly materials and have fully passed ROHS and REACH certifications.

Can you provide wiring diagrams or CAD files?

Yes, upon request, support documentation and files will be provided within 24 hours.

Can you provide OEM/ODM services (custom logos/colors)?

Yes, we support comprehensive OEM/ODM services. Minimum order quantities apply for custom designs. Please reach out with details to discuss customization requirements.

What payment methods are supported?

We support standard payment methods including T/T (Wire transfer), Credit card, and Paypal. (Please ensure that the amount sent matches the invoice details).

How do you ensure that the products are not damaged during transportation?

We partner with premier express logistics services including DHL, UPS, and FedEx, supporting both air and sea options. Products are placed into custom protective foam compartments and outer corrugated cartons reinforced with strapping tapes.

Is there a warranty?

Yes, our products come with a standard warranty period of 1 year.
