22mm Waterproof and Explosion-Proof High Brightness Signal Indicator Light for Traffic Signals

Basic Info

Model NO.

HB16-22DT/LED Voltage/G

Delivery

3-5 Working Days

The Crust Material

Plastic

Working Environment Temperature

-25ºC~+65ºC

Manufacturer

Yes

HS Code

8531801090

Production Capacity

500,000/Month

Package Size

21.00cm * 13.00cm * 6.00cm

Package Gross Weight

1.000kg

Product Description

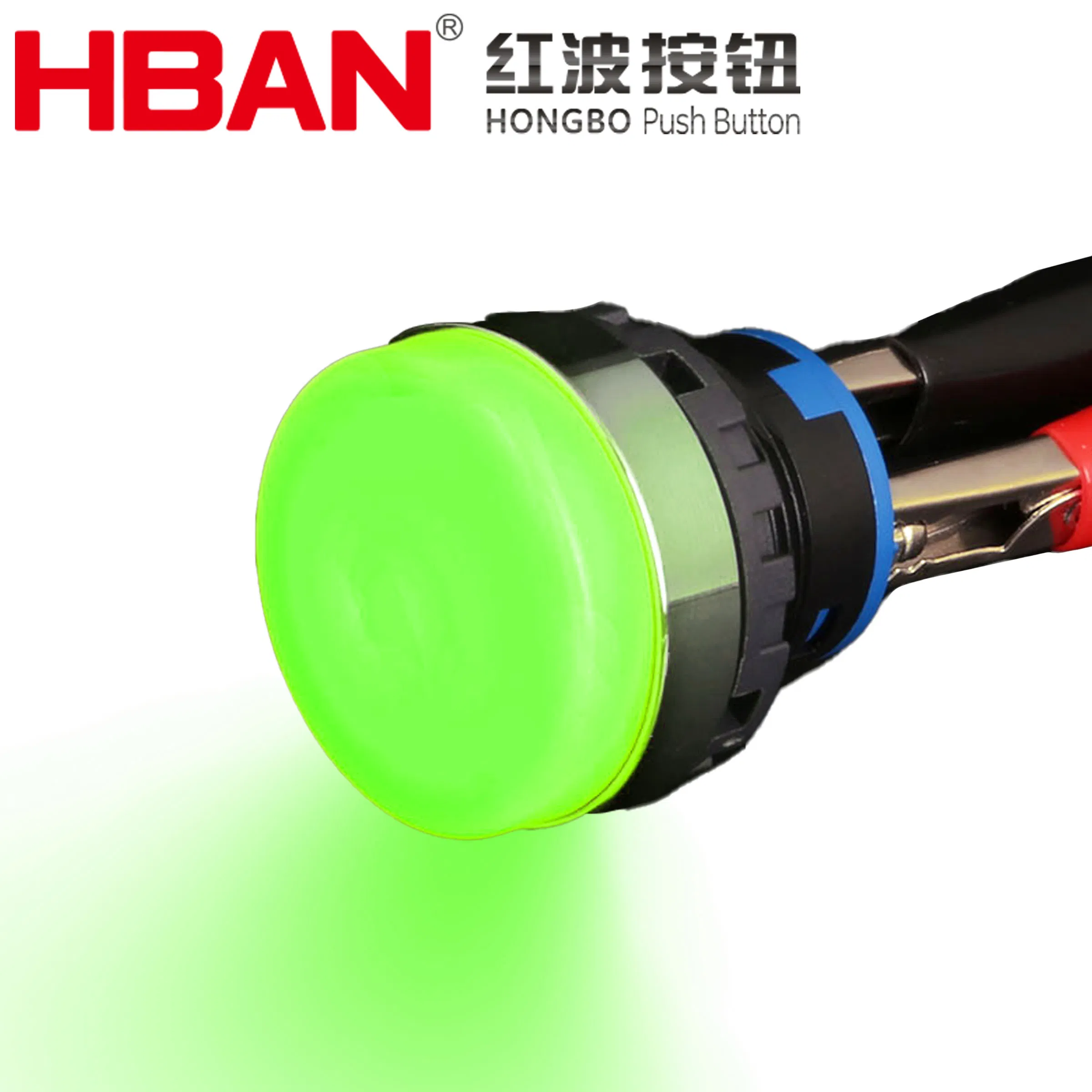

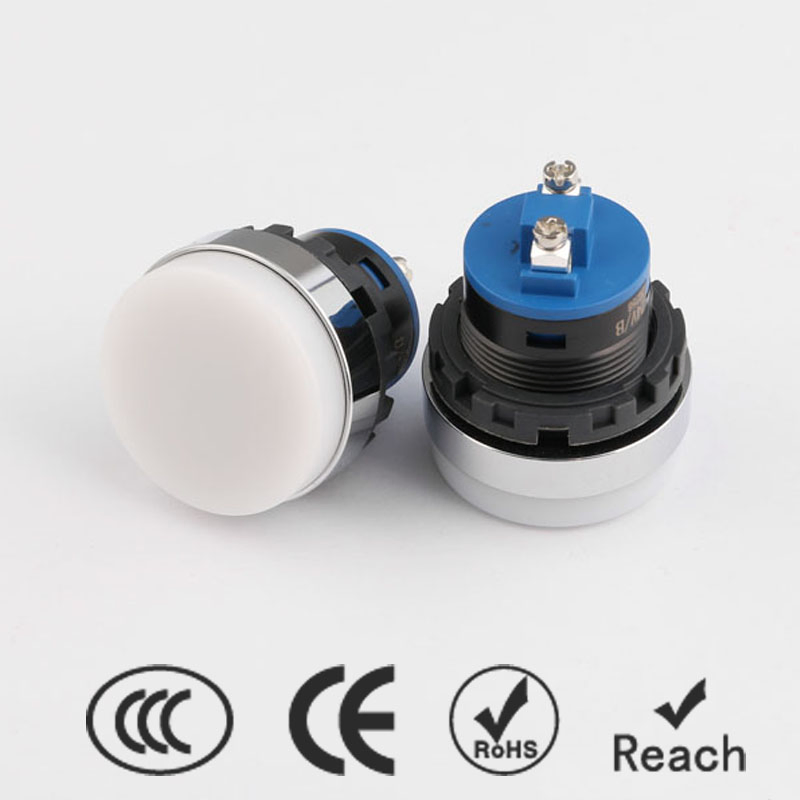

22mm Waterproof and Explosion-Proof High Brightness Signal Indicator Light for Traffic Signals

Key Features

Material & Performance Characteristics

Material characteristics: Plastic has a much lower density than metal, significantly reducing overall weight and making it easy to install, transport, or hang for use. Suitable for temporary engineering, traffic diversion, mobile devices and other scenarios that require frequent movement.

Chemical corrosion resistance: Strong resistance to corrosive substances such as acid, alkali, salt, etc., suitable for chemical industry or coastal high humidity environments.

Electric shock risk: Plastic is non-conductive and safer in places with electric shock hazards such as power facilities and substations.

Low maintenance cost: No need for rust prevention treatment, easy cleaning, high cost-effectiveness for long-term use. High quality engineering plastics have better impact resistance than glass, are less prone to breakage, and are more reliable in vibration or accidental collisions.

Multiple LED lights are available, with large ball heads and high brightness to meet different styles and voltages. Plastic casing has lower heat dissipation requirements and can reduce energy consumption. Long term use can significantly reduce electricity costs, especially suitable for outdoor scenes powered by solar energy.

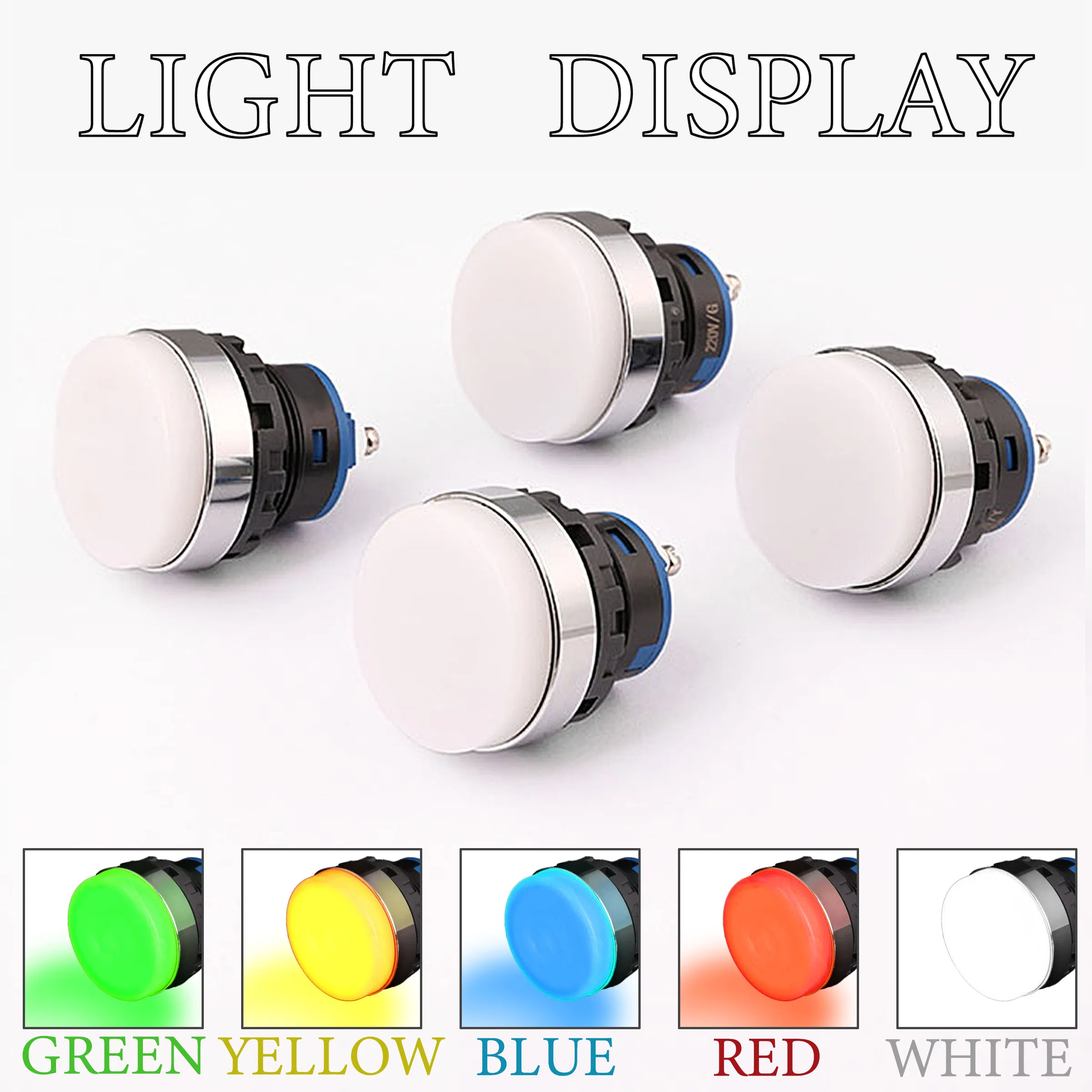

Color Configuration

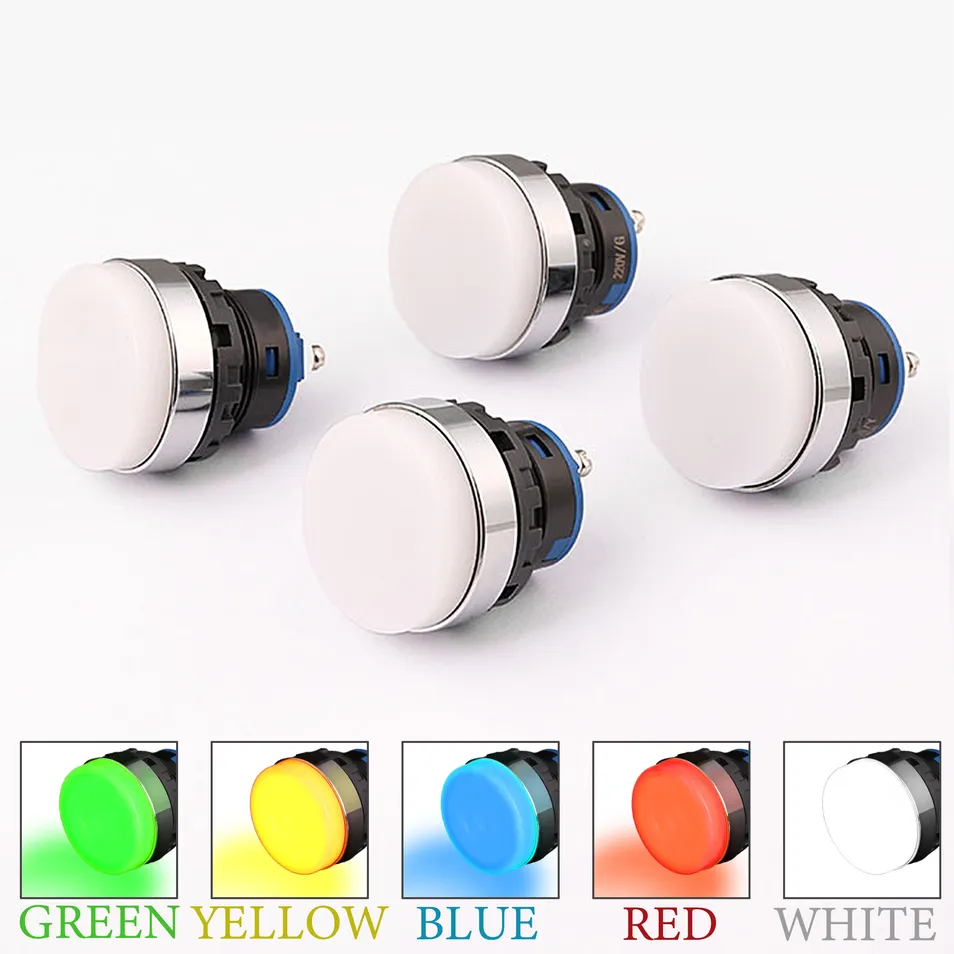

Supports multi-color head selection

Head color selection: Red / Green / Blue / Yellow / White

Installation Details

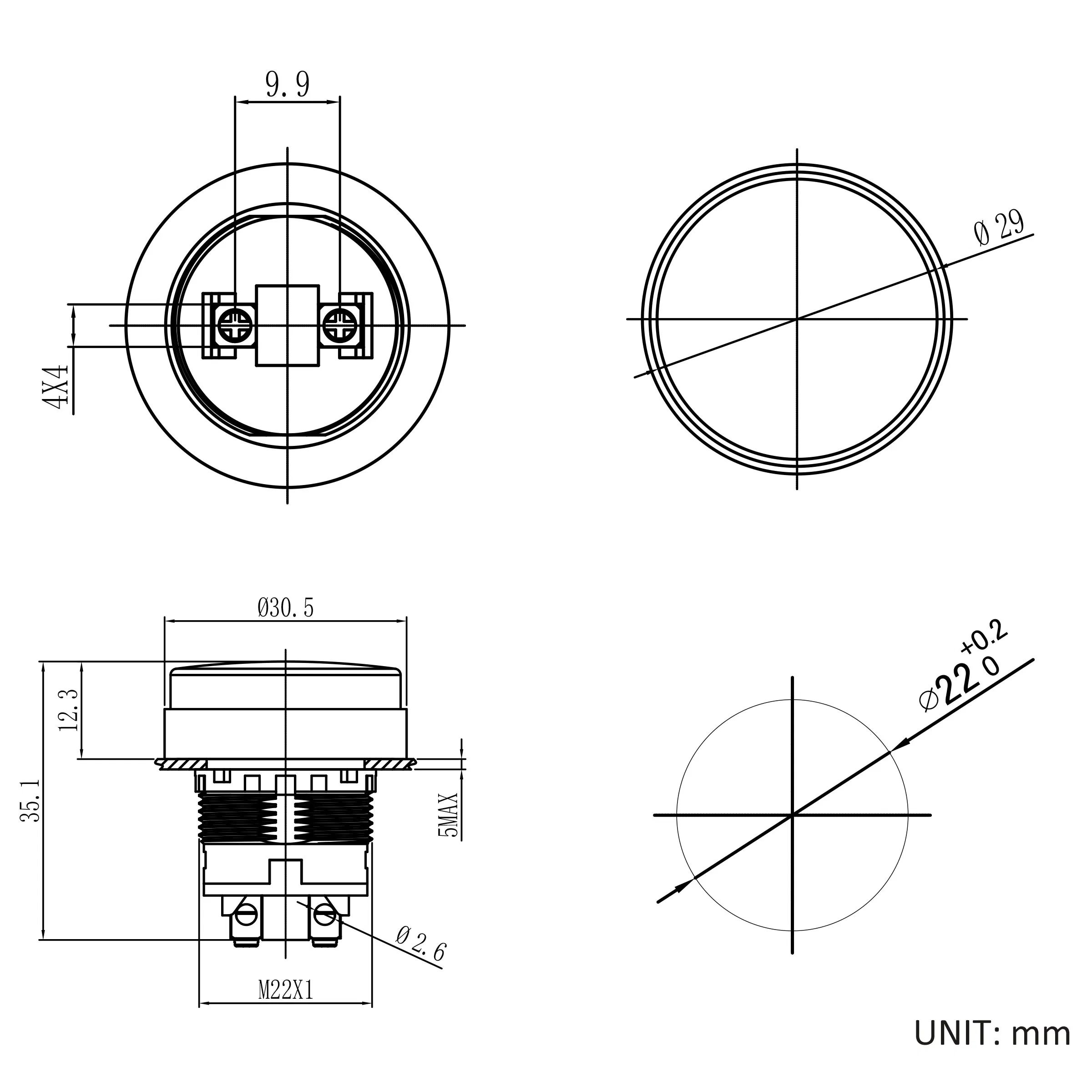

Mounting Specifications

Mounting hole size: 22mm / 0.866in mounting hole size

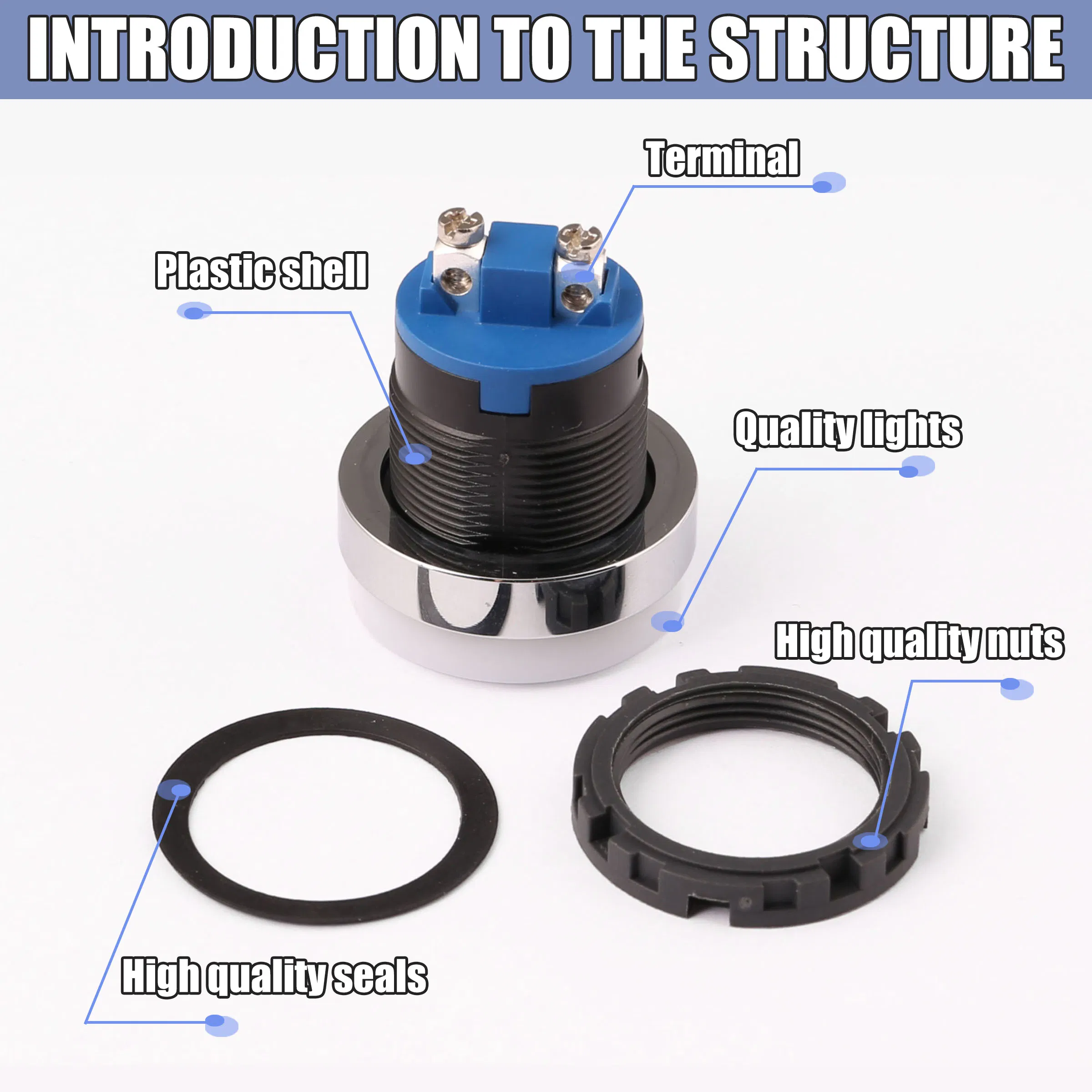

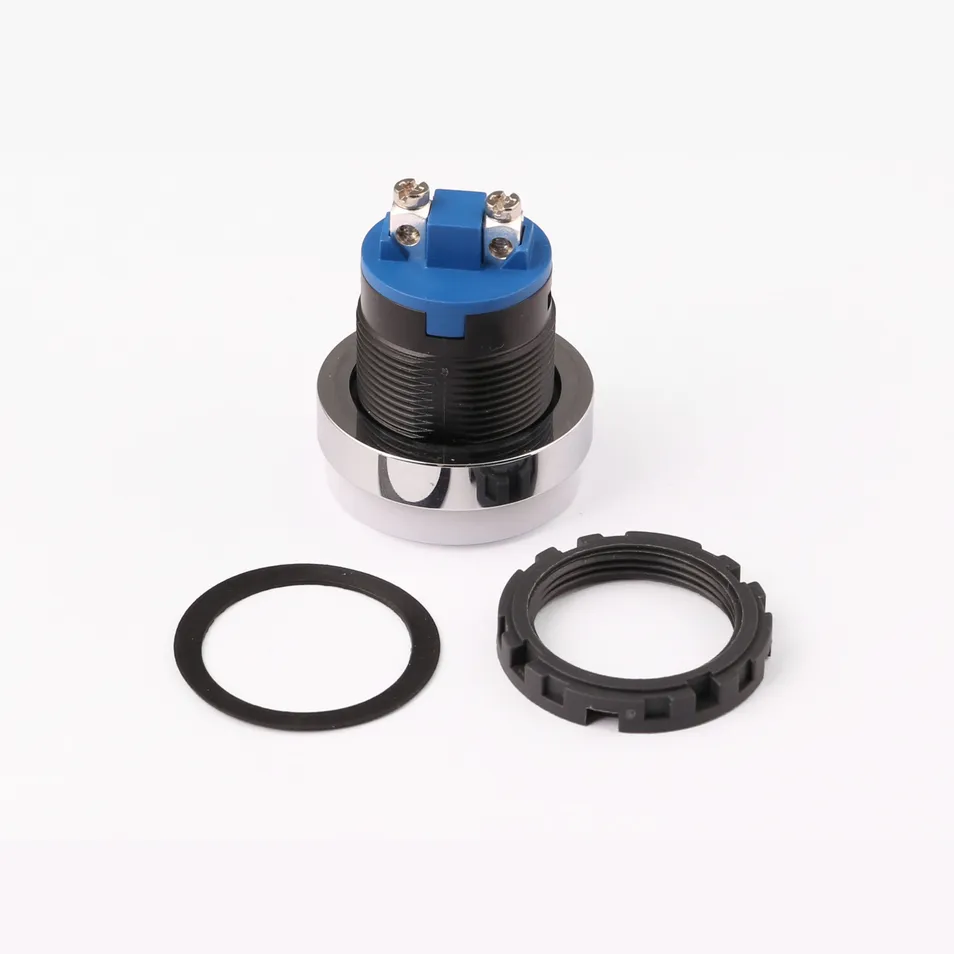

Structure introduction: Matching O-ring + Nuts

Panel thickness: 5mm MAX

Tightening torque: About 0.6mm

Protection Rating

IP65 Waterproof Rating

Rating: IP65, First Digit (Solids): 6 (Dust-tight), Second Digit (Liquids): 5 (Low-pressure water jets).

Protection Level: Protected against dust and water jets (6.3mm nozzle, 12.5L/min from any direction). No less than 3 minutes.

Lifespan & Power

Long Work Life

Rated voltage: 6V/12V/24V; 110V/220V

Rated current: ≤20mA

Lamp bead life: 50,000 hours

Model Specification

Series Number: HB16 (This product is marked in green)
Neck Mounting Dimensions	8: Ø8mm 10: Ø10mm 12: Ø12mm 16: Ø16mm 22: Ø22mm 30: Ø30mm	-

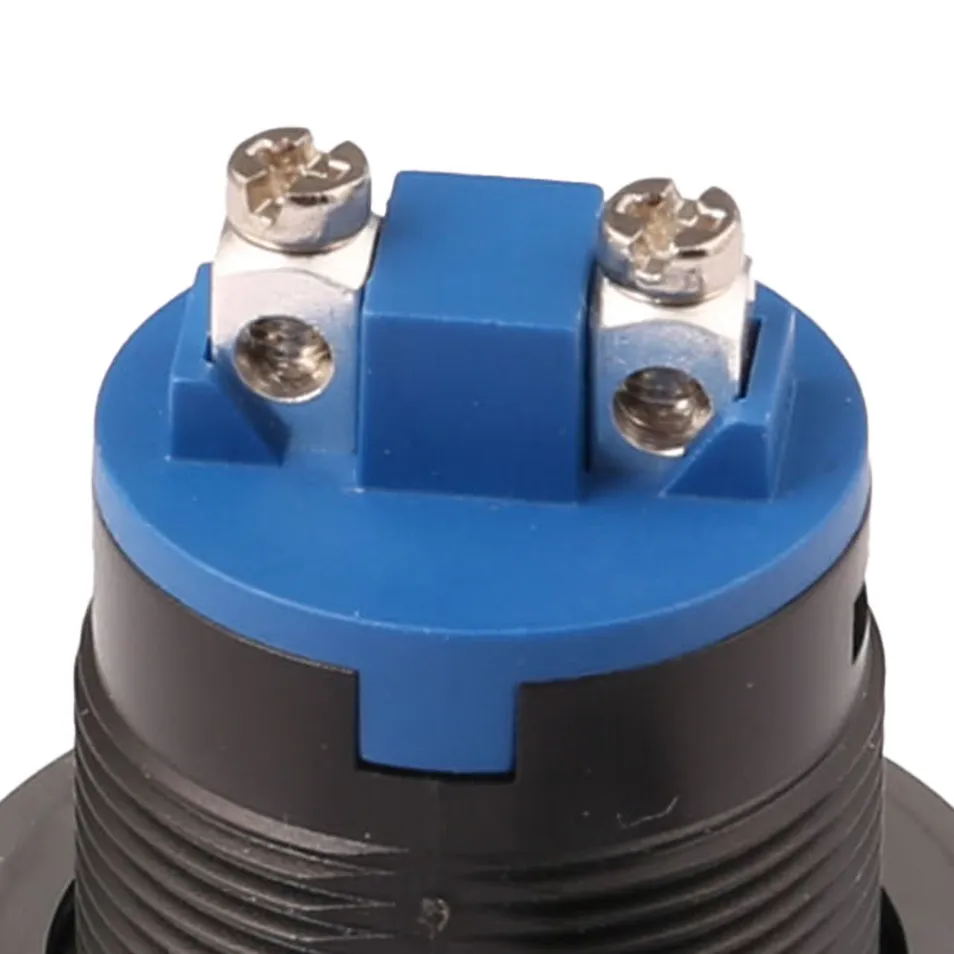

Auxiliary Code	A: Pin terminal D: Screw terminal DG: Big domed SM: Flashing indicator D/B: Bi-colour LED	-
Form of Structure	No letters: Standard structure S: Ultra-short structure	-
LED Voltage	6V/12V/24V/36V; 110V/220V	Other voltages can be customized
LED Color	R: Red G: Green Y: Yellow O: Orange B: Blue W: White	-

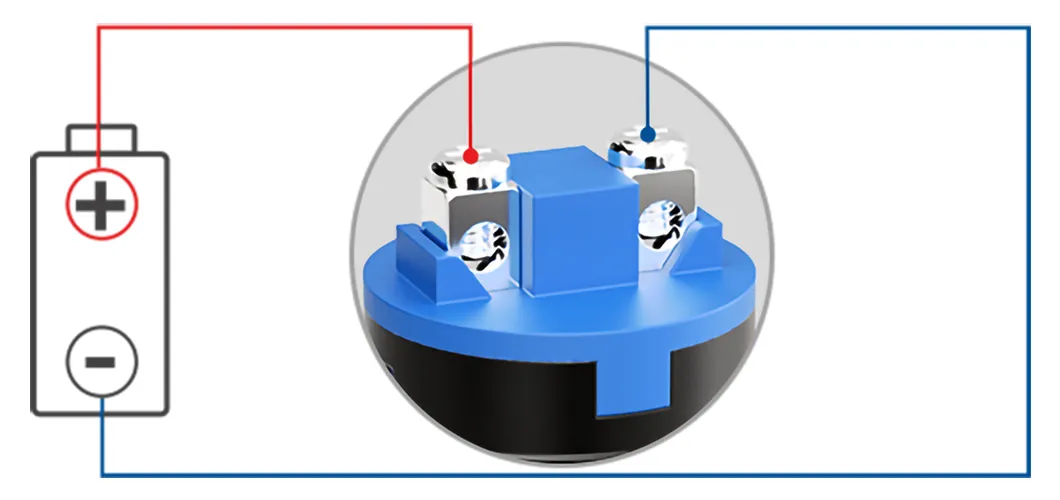

Wiring Example

Wiring Notice: 1. When powered on, it lights up without distinguishing between positive and negative poles.

Facility & Exhibition

Facility

Applications

Industrial Automation Equipment

New Energy EV Charging Stations

Marine & Offshore Engineering

Lab & Testing Equipment

Rail Transit Systems

Power Control Cabinets & Distribution Systems

Exhibition

Packaging & Shipping

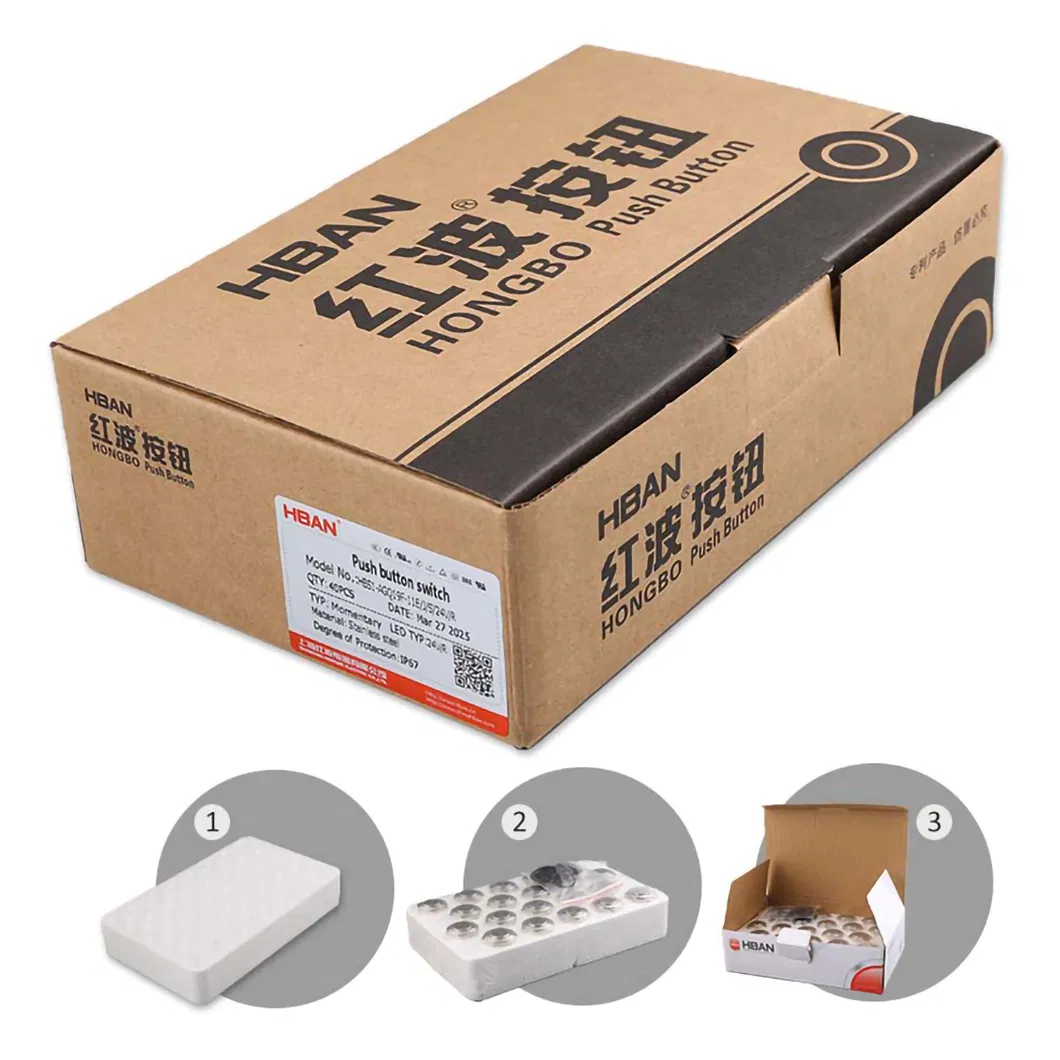

Packaging Details

Packaging Quantity: 20pcs/box (Including 20pcs O-ring)

Step 1 & 2: Products are put into separate foam boxes to prevent collision during transit.

Step 3: The foam box is placed into the packaging box along with the black O-rings.

Corrugated paper boxes are used for external packaging, secured with strapping tape for reinforcement.

Shipping Information

1. Shipping is supported worldwide.

2. Generally, items will be dispatched within 3-7 business days upon receipt of payment.

3. Delivery time depends on destination and external logistics factors, typically taking 3-8 business days.

Frequently Asked Questions

Are the materials eco-friendly?

Yes, our products are made of environmentally friendly materials and have passed ROHS and REACH certifications.

Can you provide wiring diagrams or CAD files?

Yes, please contact our customer service staff and they will provide the requested documents within 24 hours.

Can you provide OEM/ODM services (custom logos/colors)?

Yes, we support OEM/ODM services. Please note that there is a minimum order quantity requirement for custom orders. Contact our customer service staff for specific details.

What payment methods are supported?

We support T/T (Wire transfer), Credit card, and Paypal. (Please ensure that the amount received is consistent with the pro forma invoice amount).

How do you ensure that the products are not damaged during transportation?

We work with reliable express companies such as DHL, UPS, and FedEx, and support both air and sea transportation. For physical safety, we place the products inside separate foam boxes to prevent collision, which are then packed inside reinforced corrugated paper boxes reinforced with strapping tape.

Is there a product warranty?

Yes, the standard warranty period for our products is 1 year.
