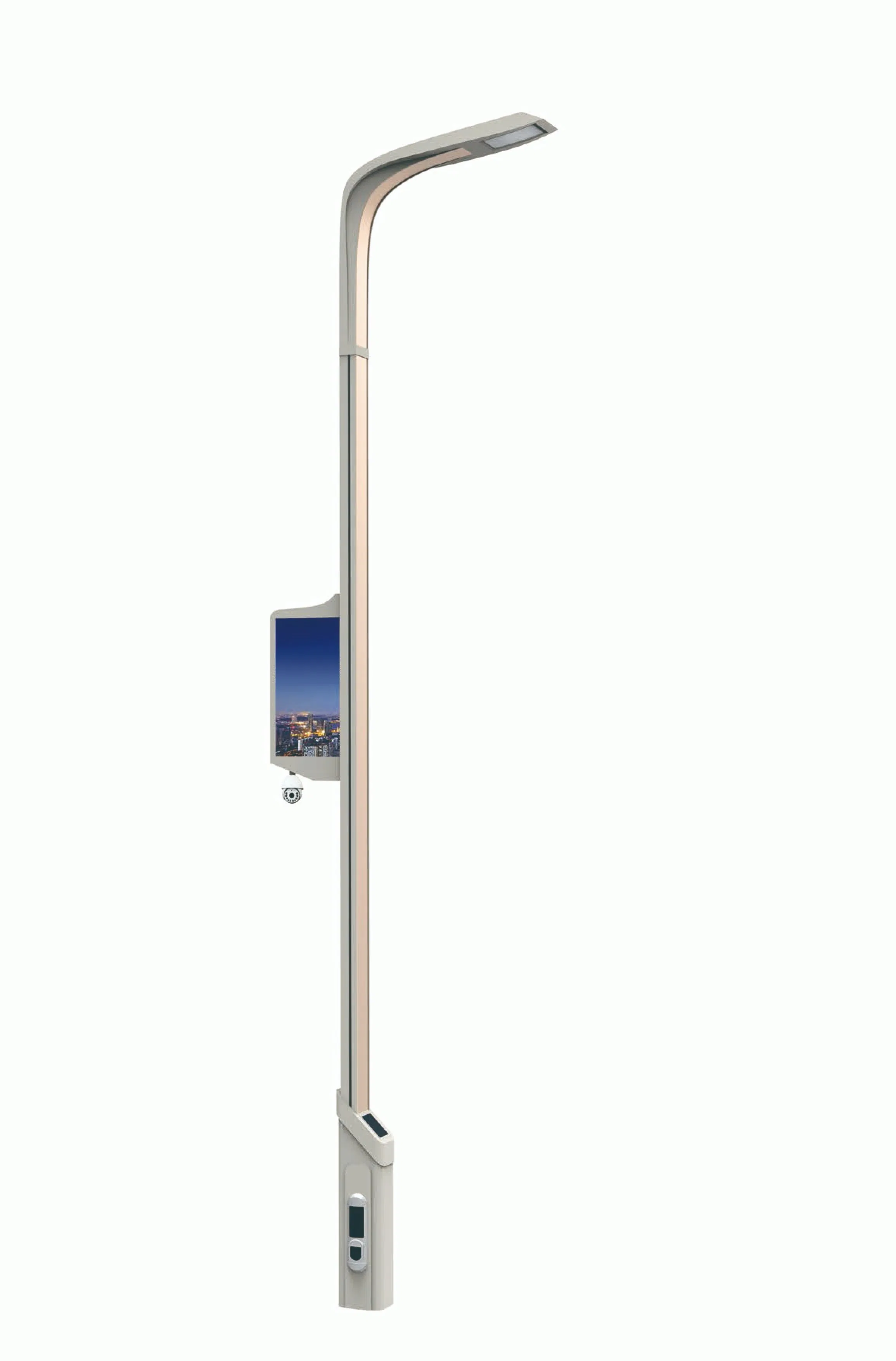

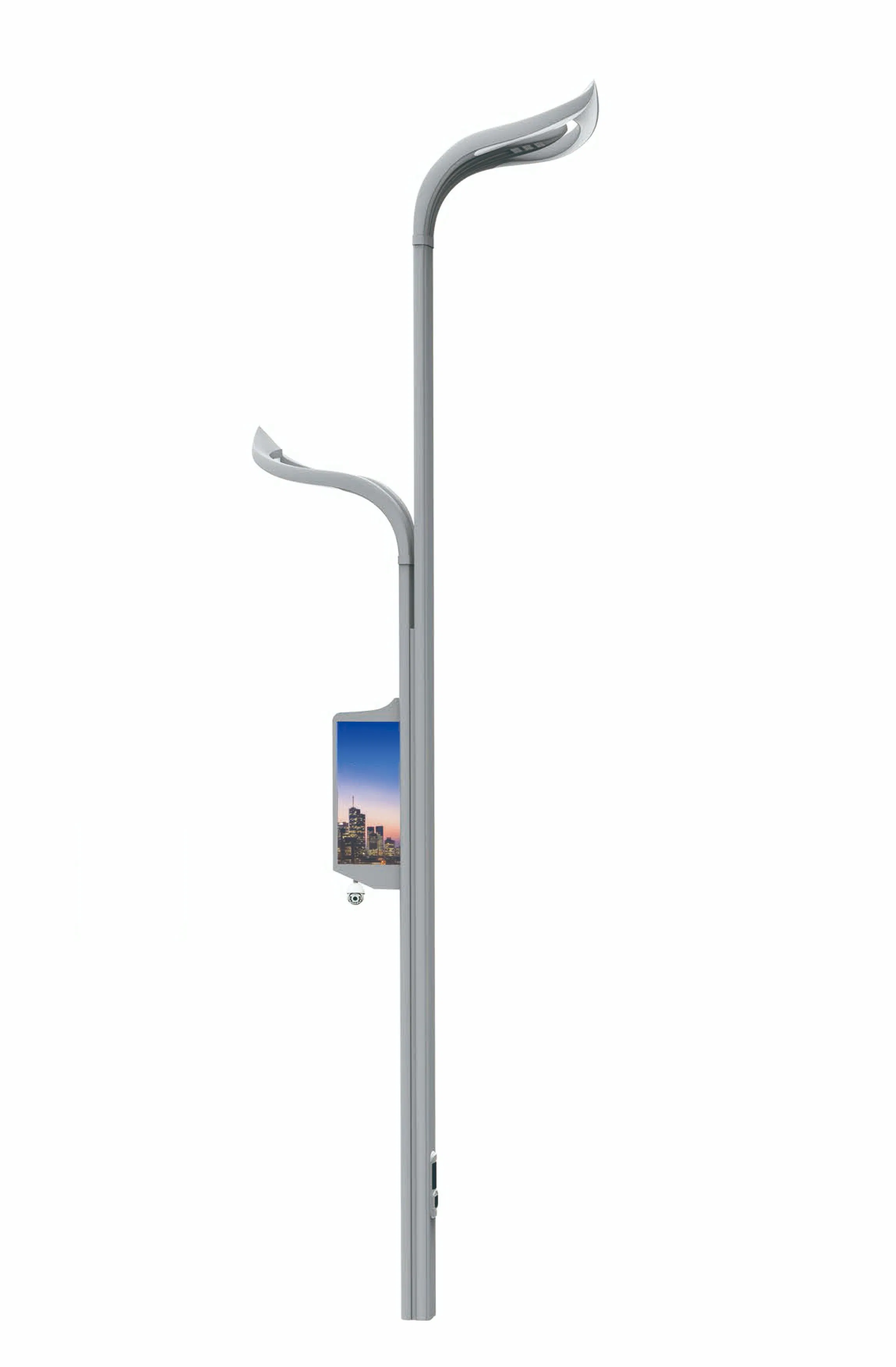

Advanced Smart LED Street Lighting for Industrial Use

Smart Street Light for Industrial Areas

Smart streetlights are public lighting fixtures equipped with sensors, wireless connectivity, and advanced technologies to interact intelligently with their surroundings, optimizing energy consumption, enhancing safety, and providing data for city management.

Key Features and Functionality

Sensors Integration

Motion sensors: Detect pedestrian and vehicle movement to adjust lighting levels accordingly.
Light-sensing photocells: Adjust lighting based on ambient light levels, turning lights on and off as needed.
Weather sensors: Monitor weather conditions to optimize lighting for visibility during rain, fog, or snow.
Air quality sensor: Monitor air quality and environmental factors.
Noise sensors: Detect real-time ambient noise levels.

Wireless Connectivity

Smart street lights are often integrated with the Internet of Things (IoT) to communicate with other devices and systems, allowing for remote monitoring and control.

Adaptive Lighting

Smart street lights can dynamically adjust their brightness and patterns based on real-time conditions, such as traffic flow, pedestrian activity, and weather.

Energy Efficiency

By optimizing lighting levels and using energy-efficient LED technology, smart streetlights can significantly reduce energy consumption and costs.

Data Collection

Smart streetlights can collect valuable data on traffic patterns, pedestrian activity, air quality, and other environmental factors, which can be used to improve city planning and management.

Remote Control & Monitoring

Smart streetlights can be remotely controlled and monitored, allowing administrators to quickly respond to issues and optimize lighting performance.

Detailed Specifications Layout

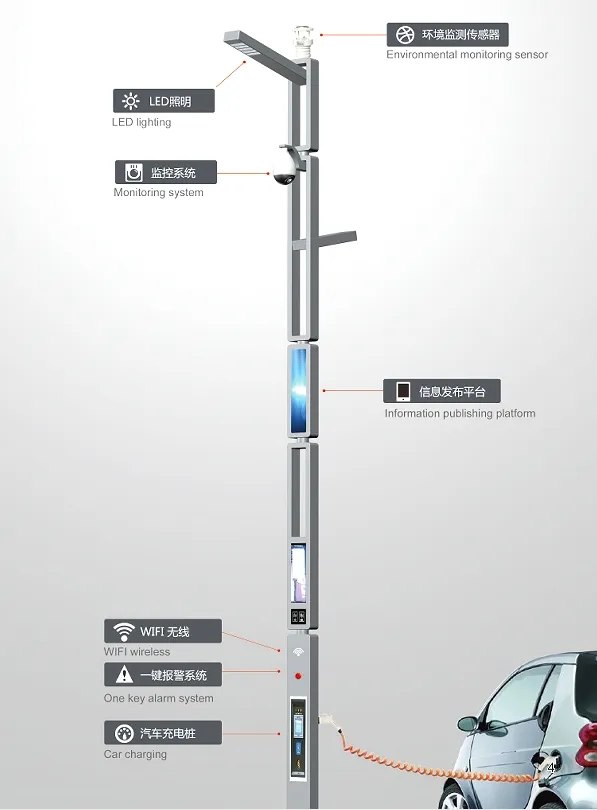

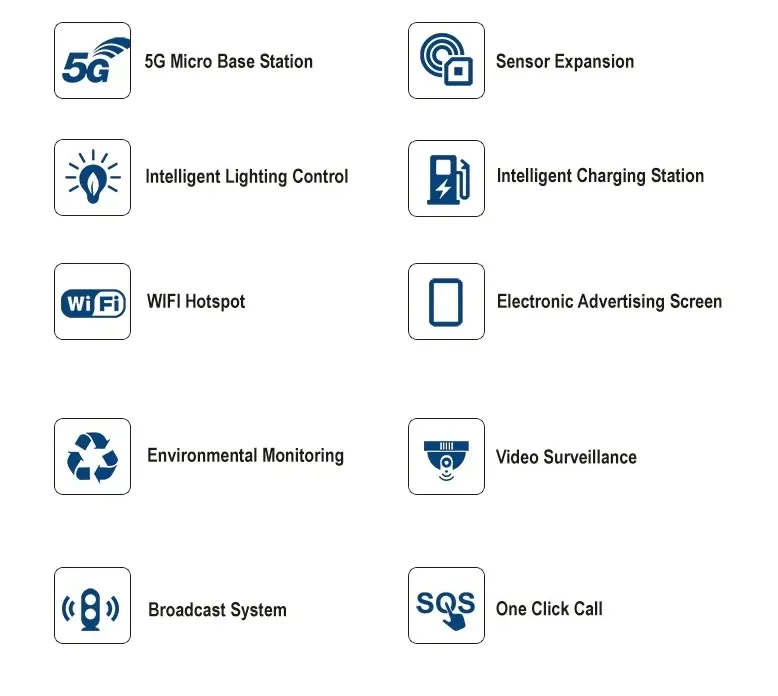

Advanced Smart LED Street Lighting Feature Map

Core Benefits and Advantages

Improved Safety

Dynamic lighting and enhanced visibility can improve safety for pedestrians and drivers alike in complex public environments.

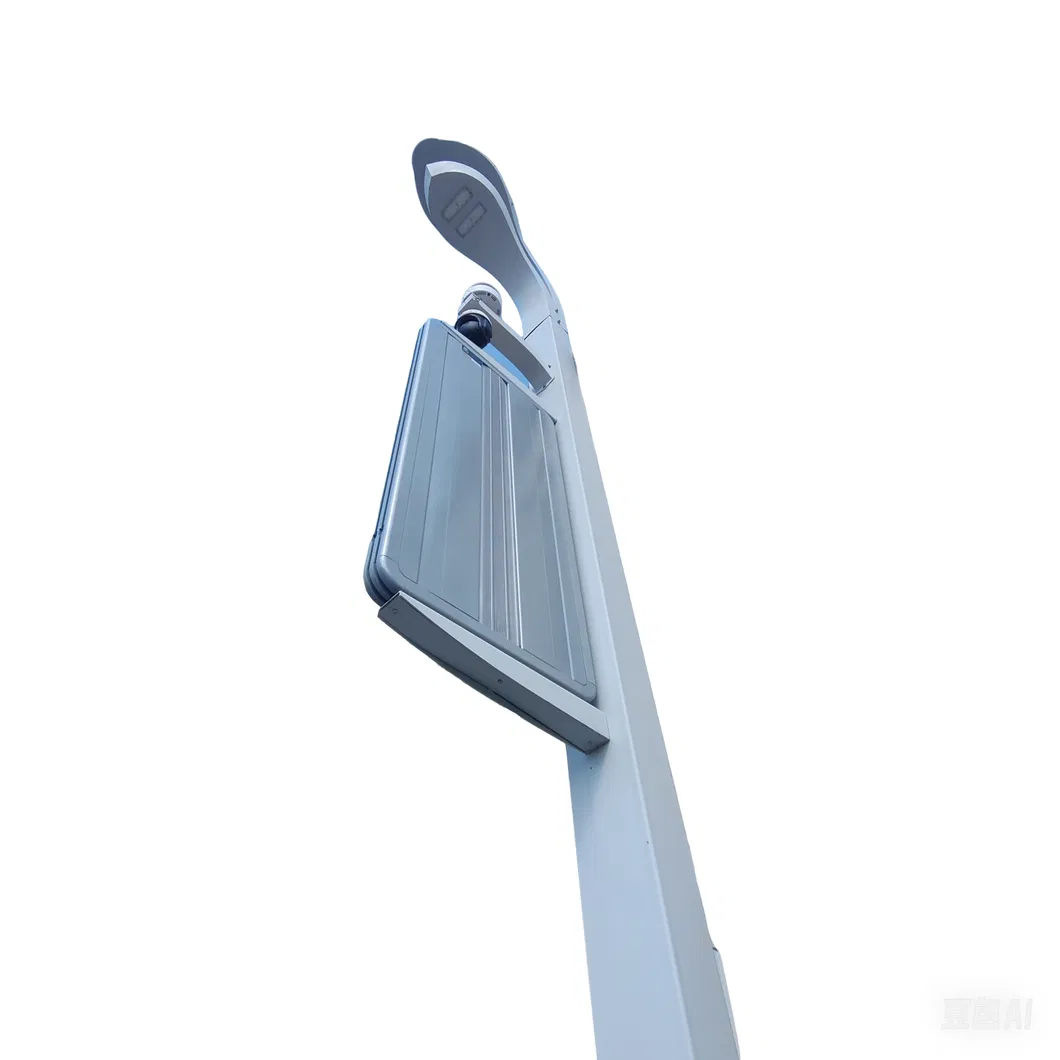

Reduced Energy Consumption

Optimized lighting and energy-efficient technology can significantly reduce energy costs and minimize carbon emissions.

Lower Maintenance Costs

Remote monitoring and control allow for rapid detection of malfunctions, lowering manual inspection needs and overall maintenance expenses.

Enhanced City Planning & Citizen Satisfaction

Data collected by smart streetlights can be used to improve urban planning, leading to more efficient, livable, and satisfactory conditions for residents.

Product Parameters

Model	SY-SSL-019
Application	ROAD/STREET/GARDEN/CAMPUS
Keyword	smart Street Light
Light Type	LED
Voltage	110-220V
Input Voltage(V)	24V
Lighting Source	50W*3 Modules Power: 0.95 Efficiency: 150 LM/W Lumen: 22500LM Surge protection: 4/4 Temperature Rating: -40ºC~+55ºC Protection: IP66 IK:08 CCT: 3000-6500k Working life: ≥ 50000 hours VF: A/C 190-305V 50/60HZ Driver: Moso/Meanwell DALI dimming, with five-core wires and terminal row, DALI dimming driver installed in the electrical box
Single LED Lamp Controller	0-10V, resistance dimming signal output; PWM dimming mode, supporting positive and negative logic dimming mode; TTL, RS232, 485 communication interface; Over-current protection, lamp condition detection, default lighting switch and dimming suitable for LED lamp, high voltage sodium lamp, metal halide lamp, and other lamps; Overload protection design; Operating temperature range: -40ºC ~ 85ºC
Centralized Control	Based on high performance 32-bit industrial ARM9 microcontroller; 10/100M Ethernet interface, RS485 interface, USB interface; Support three-phase voltage and current, statistics of active and reactive power, power statistics; High-speed 2.0USB-HUB2 circuit expansion, support USB disk upgrade; Communication protocols: such as proprietary protocol, MODBUS meter access: support intelligence Energy meter 485 port access, support 4-6 loop control, can expand the loop; Loop voltage and current acquisition.
Weather Monitoring	5 in 1: PM2.5, temperature, humidity, wind speed, wind direction
IP Network Active Audio/Broadcast	1. Integrated wall-mounted design, integrated network audio decoding, digital power amplifier and speaker; 2. Using high-speed industrial dual-core (ARM + DSP) chip, start-up time is less than 1 second. 3. Built-in high fidelity linear array loudspeaker and stereo class D power amplifier; 4. Built-in loop detection function, which can monitor the working state of loudspeaker remotely and maintain easily; 5. Terminal support service software remote control mode to adjust the volume; 6. Standard RJ45 network interface, supporting cross-segment and cross-routing. Power Supply: DC24V, <40W Network Communication Protocol: TCP, UDP, ARP, ICMP, IGMP Audio Coding: MP2/MP3/PCM/ADPCM Audio sampling, bit rate: 8 kHz-44.1 kHz, 16 bits, 8 kbps-320 kbps Signal to Noise Ratio: >90dB, Frequency Response: 50Hz-15KHz (+3dB) Delayed Broadcasting: < 30ms Built-in power amplifier: 2X30W
LED Display	Model: P4 Outdoor Full Color Module Single Side Display Screen; Host Synchronization Mapping + Master Control Card + DVI Display Card + Optical Fiber Transmission or RJ45 + DVI/HDMI; Interface Module size: 256128 (mm); Display Size: 896512

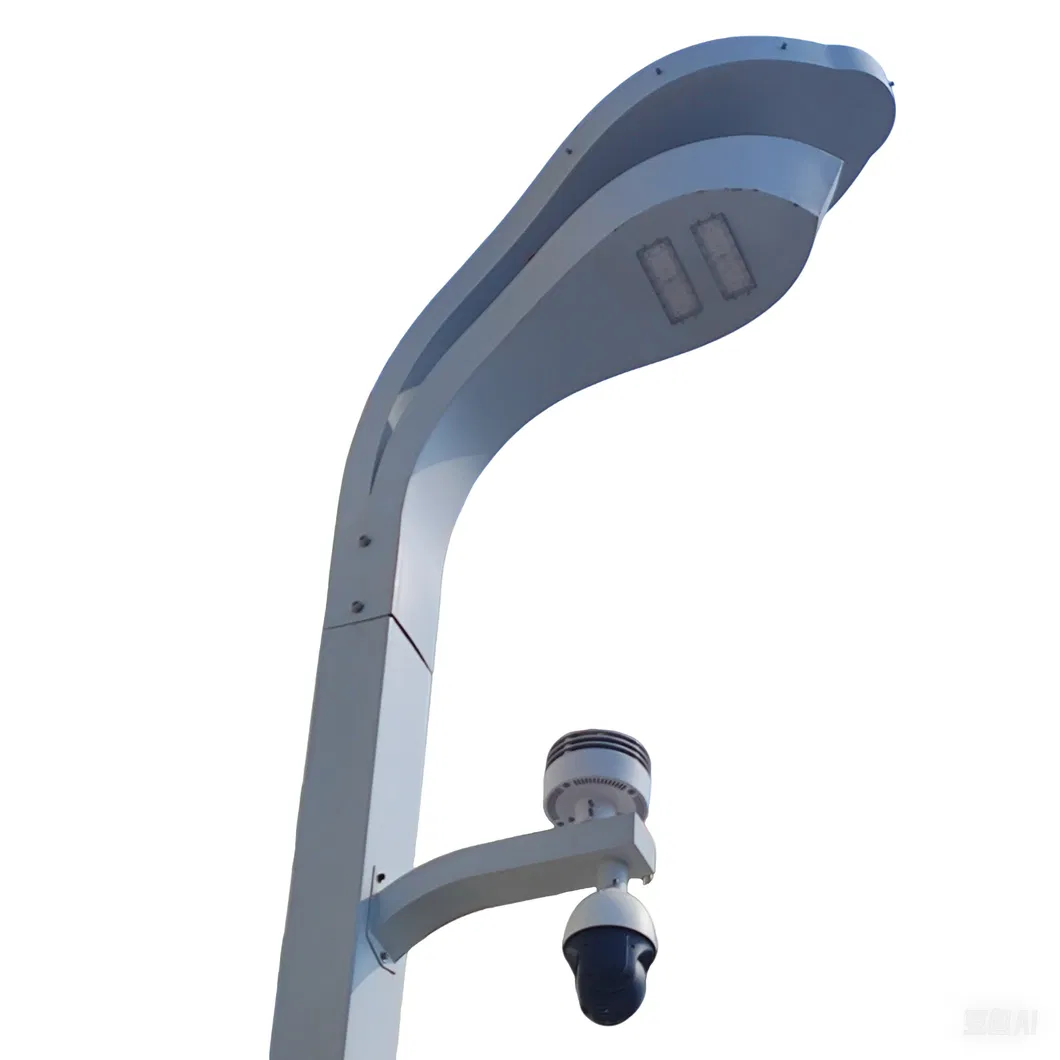

Intelligent Surveillance Camera	4 million pixels, infrared HD; Supporting maximum 2560x1440@30fps HD screen output; Supporting H.265 efficient compression algorithm; Supporting light storage function, automatically reducing frame rate and bit rate under non-moving scenes; 360° continuous rotation in horizontal direction, 15°-90° in vertical direction without blind area; Max speed of horizontal preset point can reach 80°/s; Supports 300 preset positions and power-off state memory function; IP66 protection, lightning protection, surge prevention.
WIFI Wireless Routing (AP)	Wireless working band: 2.4 GHz-2.483GHz; Wireless rate: 300 Mbps; Ports: 1 10/100 Mbps shielded RJ45 port (LAN0/POE), 1 10/100 Mbps shielded RJ45 port (LAN1); Antenna built-in 9dBi dual-polarized antenna; Coverage angle: 65 degrees vertical, 35 degrees horizontal; Power supply: 24VDC/1A Passive PoE
WIFI WSMC (AC)	Ports: 5 10/100/1000M RJ45 ports, 1 Console port; 64-bit MIPS network dedicated processor, single-core main frequency 800MHz; Memory: DDRII 256MB, FLASH 32MB; Dimensions: 294 (w) x 180 (D) x 44 (H) mm; Input power supply: 100-240V AC, 50/60Hz; Natural heat dissipation mode; Support WIFI certification
Lightning Protection Device	10KV 10KA IP68 External waterproof

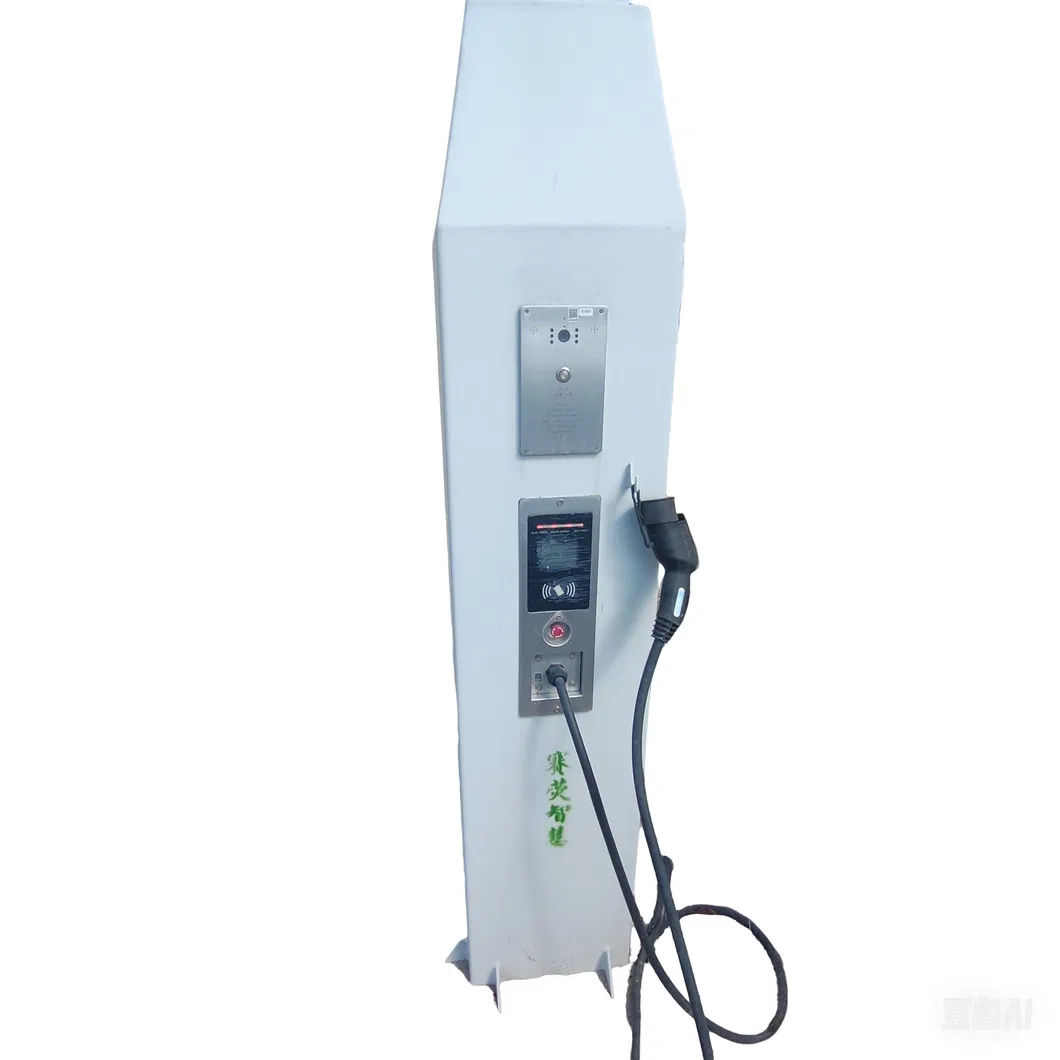

Car Charging Device	Installation form: Embedded installation; Working environment temperature: -30 ~ +50 ºC; Input voltage: AC220V±10%; Charging mode: Single charge total power 7kW; Efficiency > 99%; Startup mode: swipe card, APP scanner; Protection level > IP54
HS Code	9405429000

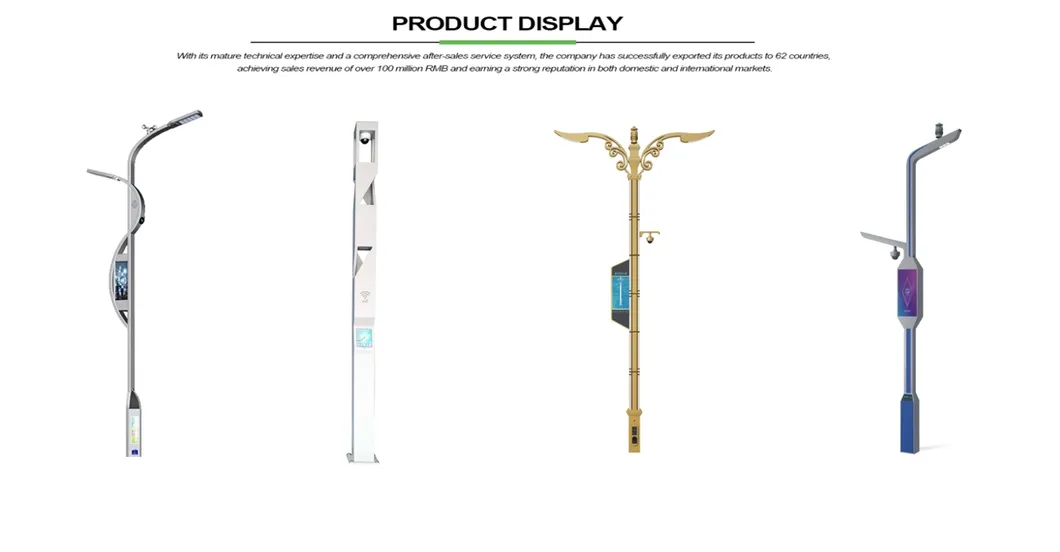

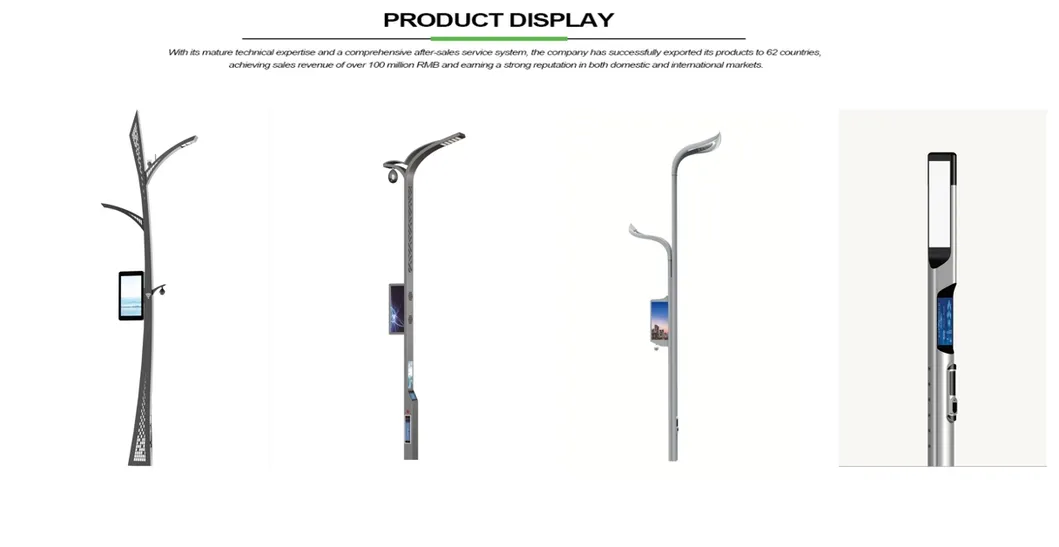

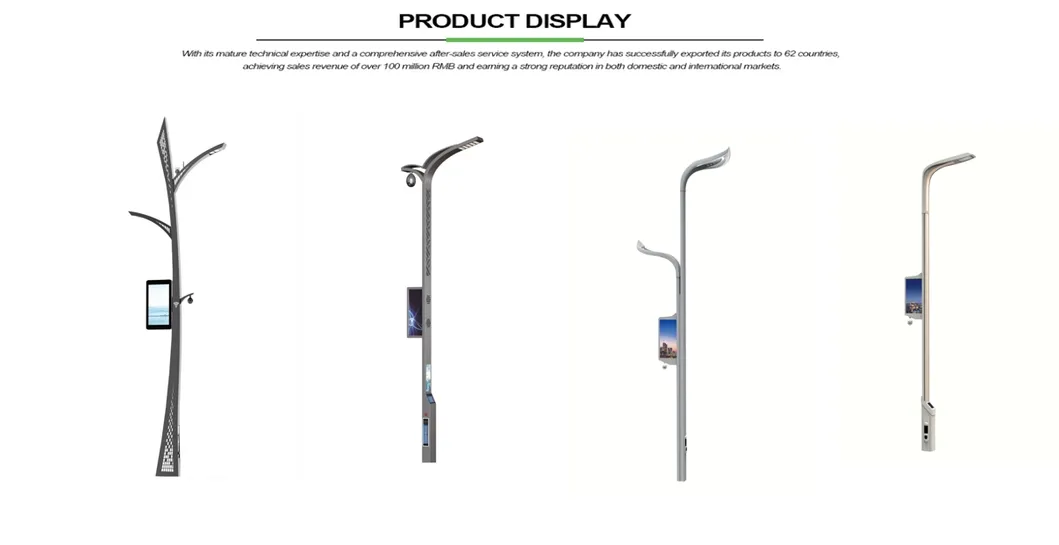

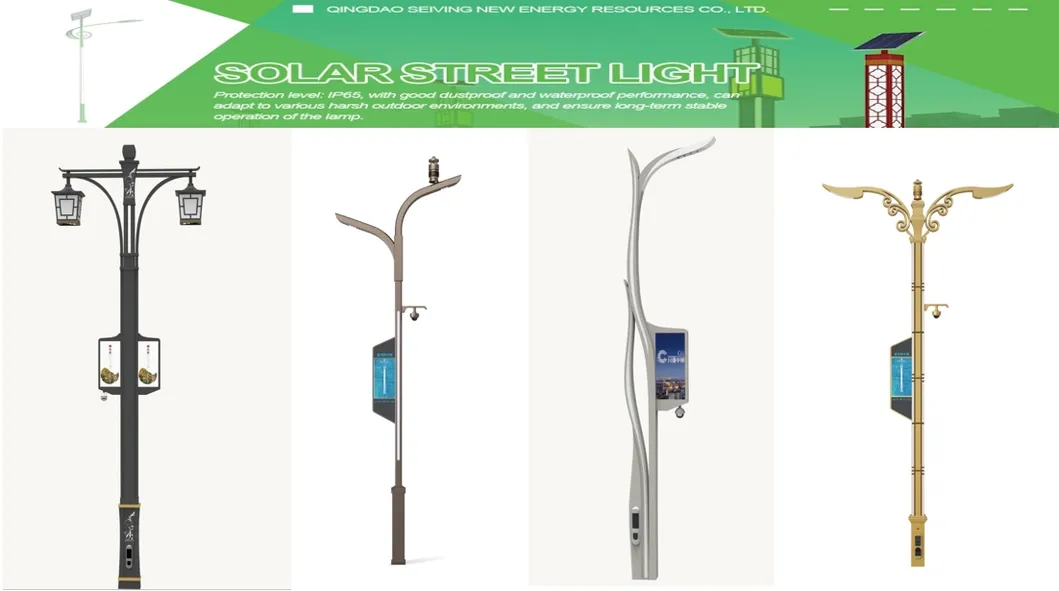

Structure and Technical Diagrams

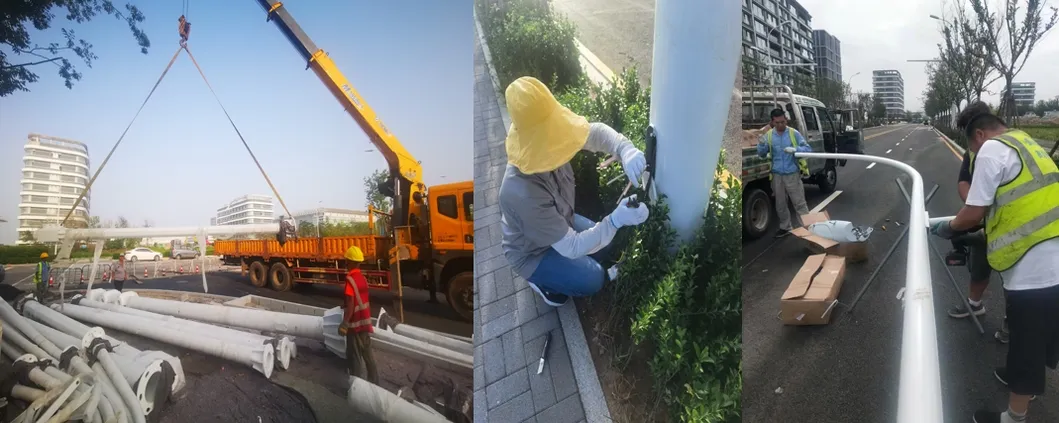

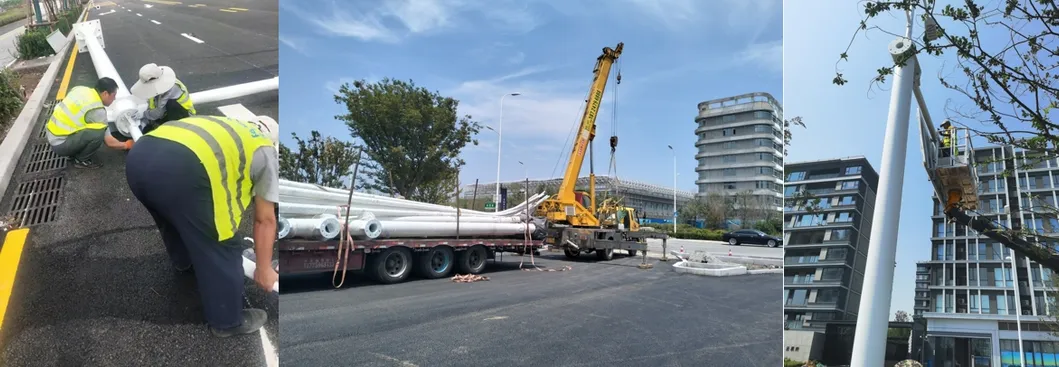

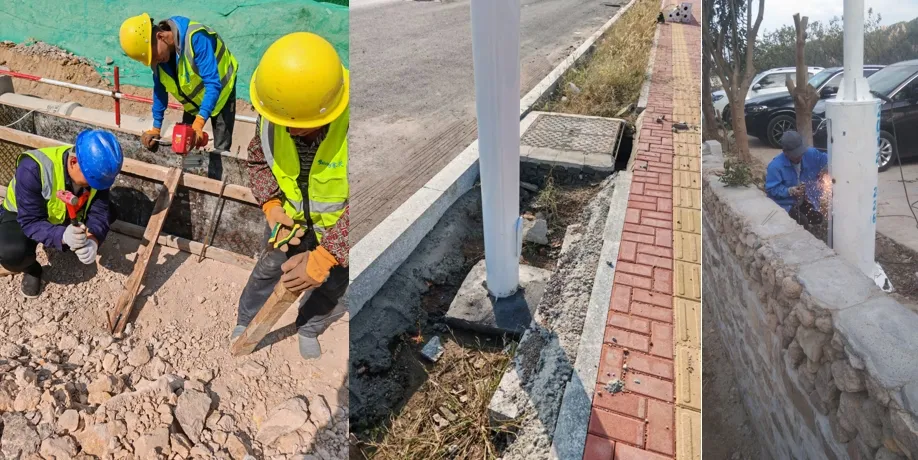

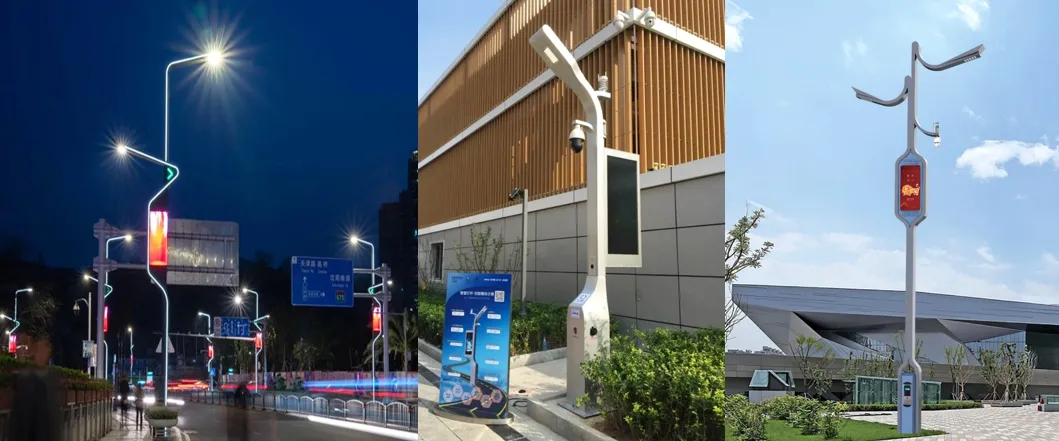

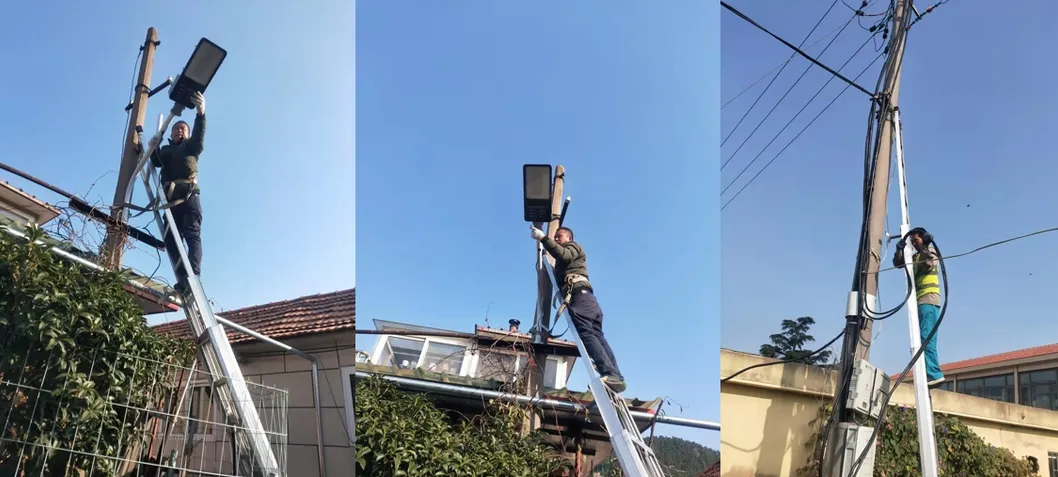

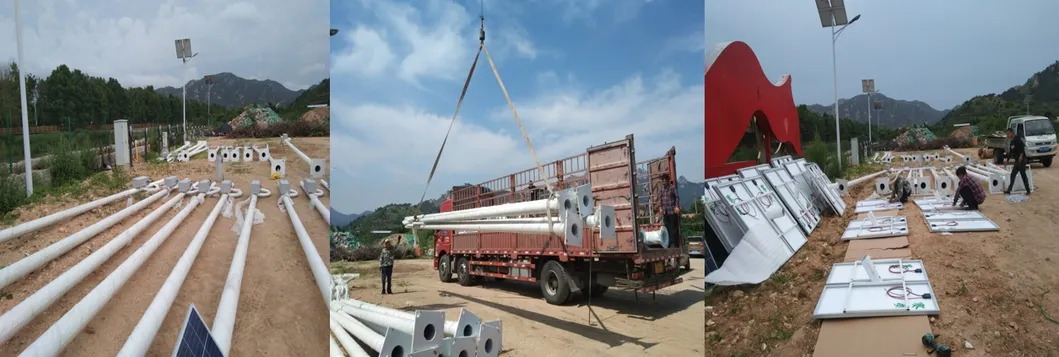

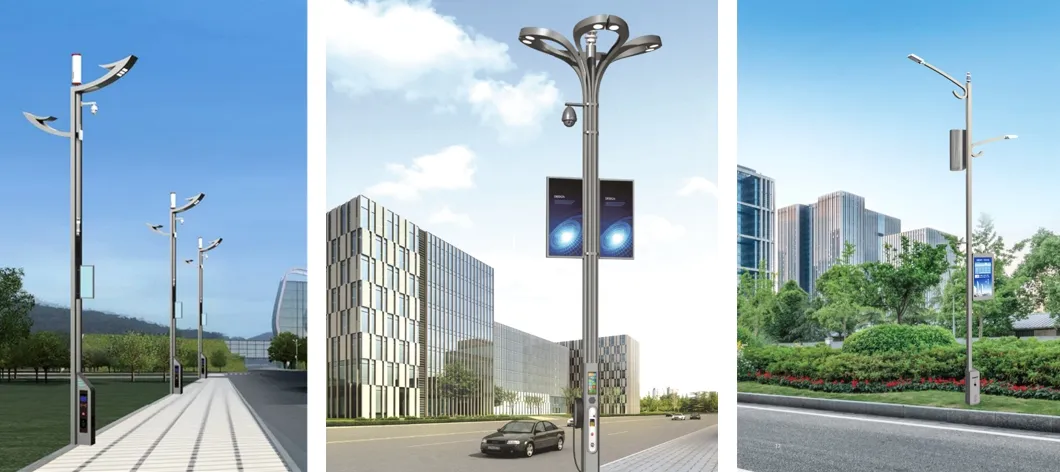

Project Cases

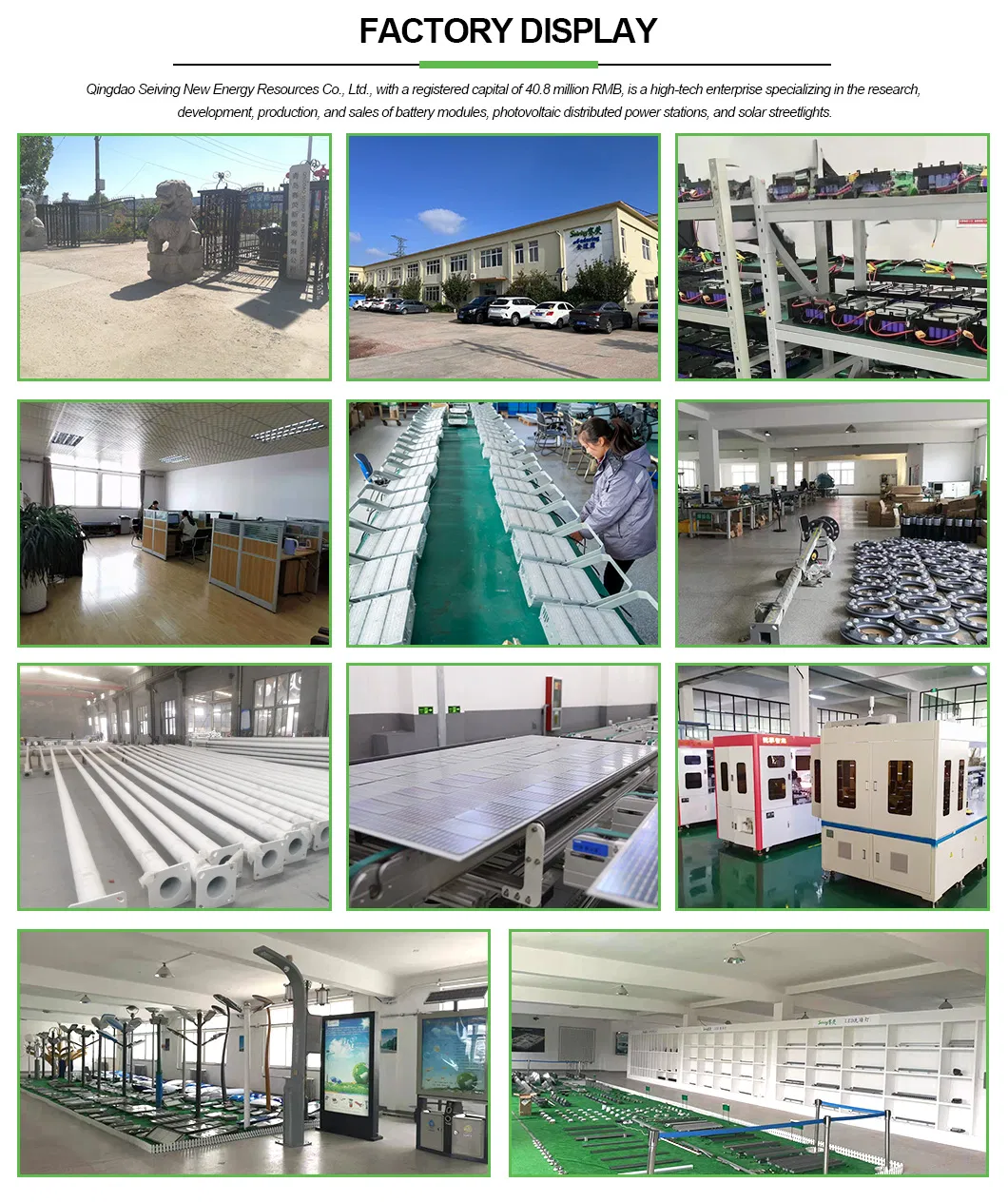

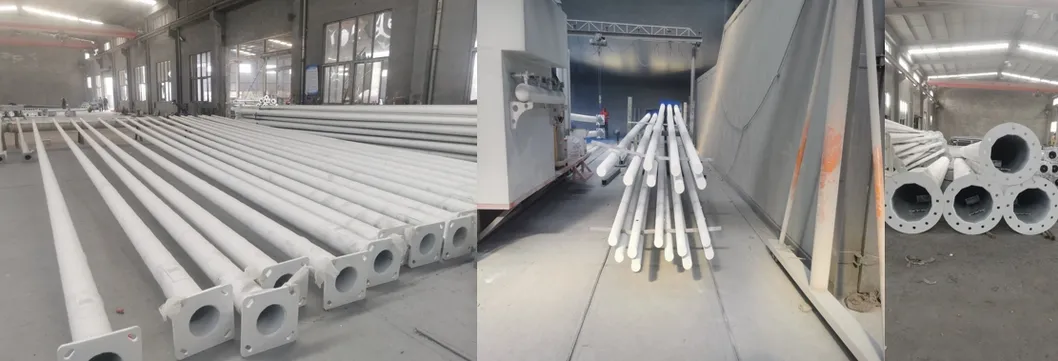

Profile and Development

As a premier high-tech enterprise specializing in the research, development, production, and sales of battery modules, photovoltaic distributed power stations, and solar streetlights, the company holds strong technical expertise and a comprehensive service system. The products have been successfully exported to 62 countries, earning a strong reputation in both domestic and international markets.

Possessing robust technological strength and significant brand influence, the enterprise is recognized as a National High-Tech Enterprise and rated AAA for Quality, Service, and Credibility. Winning awards such as the "Green Lighting Innovation Award" and the "Energy-Saving Product Social Contribution Award" at the Milan Expo, it has established itself as an industry benchmark and premium supplier for major infrastructure construction projects.

Collaborating with multiple international research institutions to drive technological innovation and upgrades, the enterprise currently holds exclusive patents for advanced solar streetlight controllers and payment-integrated street lighting systems. Integrating the advantages of Industry 4.0 and IoT technology, the brand continues to lead in the energy-saving innovation sector.

Quality Certifications

Frequently Asked Questions

How do Smart Street Lights Work?

A smart street light automatically regulates the light intensity of the connected street light based on a smart algorithm and inputs from external sensors. Such inputs include local sunset/sunrise times, daily light level schedule, pre-programmed light scene, human presence, traffic, and/or weather situation.

What is a Smart Street Light?

Smart street light refers to a network-connected street light. Each street light is equipped with an outdoor lamp controller, internet of things (IoT) device, and/or sensors.

What is the time of shipment?

It usually takes about 15-35 days, but the exact delivery time might differ for different orders or at different times.

Can I mix different items in one container?

Yes, different items can be mixed in one container, but the quantity of each item should not be less than the MOQ.

How does your factory control quality?

We perform 4 inspections by QC before shipping. The first is for raw materials, the second and third are for appearance and function, and the final is for packing.

What is your advantage?

We offer turnkey project services and complete after-sales service. We provide lighting solutions for customers worldwide, establishing a strong reputation in the global marketplace.
