in&Outdoor LED Display Screen Flexible Foldable LED Screen Full Color Rental LED Video Wall Waterproof Energy Saving

Customization:	Available
Tube Chip Color:	Full Color
Display Function:	Video Display, Image & Text Display, Market Display

Basic Info.

Model NO.Wind-3

Pixel Configuration1R,1G,1B

Scanning Mode1/16 Scan

ApplicationStage Performance, Advertising, Shopping Guide

IP RatingIP54

CertificationCE, RoHS

Module ResolutionP4,256X128

Input Volt.100-240V

Thickness7.0cm with Electronic Box

FlexibilityMin.Diameter 77cm Concave or Convex

Available ShapeCircle, Cylinder, M Shape, Concave, Convex, Curved

Available BrightnessHigh Brightness, Indoor Brightness

Shippingby Air, by Sea

ServiceTech Support, After-Sales Service

Installation WaySuspended, Stacked, Mounted

TypeLED Stage Backdrop Screen

SizeCustomized

PackingFlight Case, Plywood Case, Honeycomb Carton

Solution 1Concave, Convex, S Shape, M Shape LED Display

Solution 2Inner Cylinder, Outer Cylinder LED Display

Transport PackageFlight Case, Plywood Case, Honeycomb Carton

Specificationsize of flexible led display: 60x120cm

OriginChina

HS Code8528591090

Production Capacity500PCS/Month

Product Description

Flexible LED Curtain Display Wind Series

Introduction

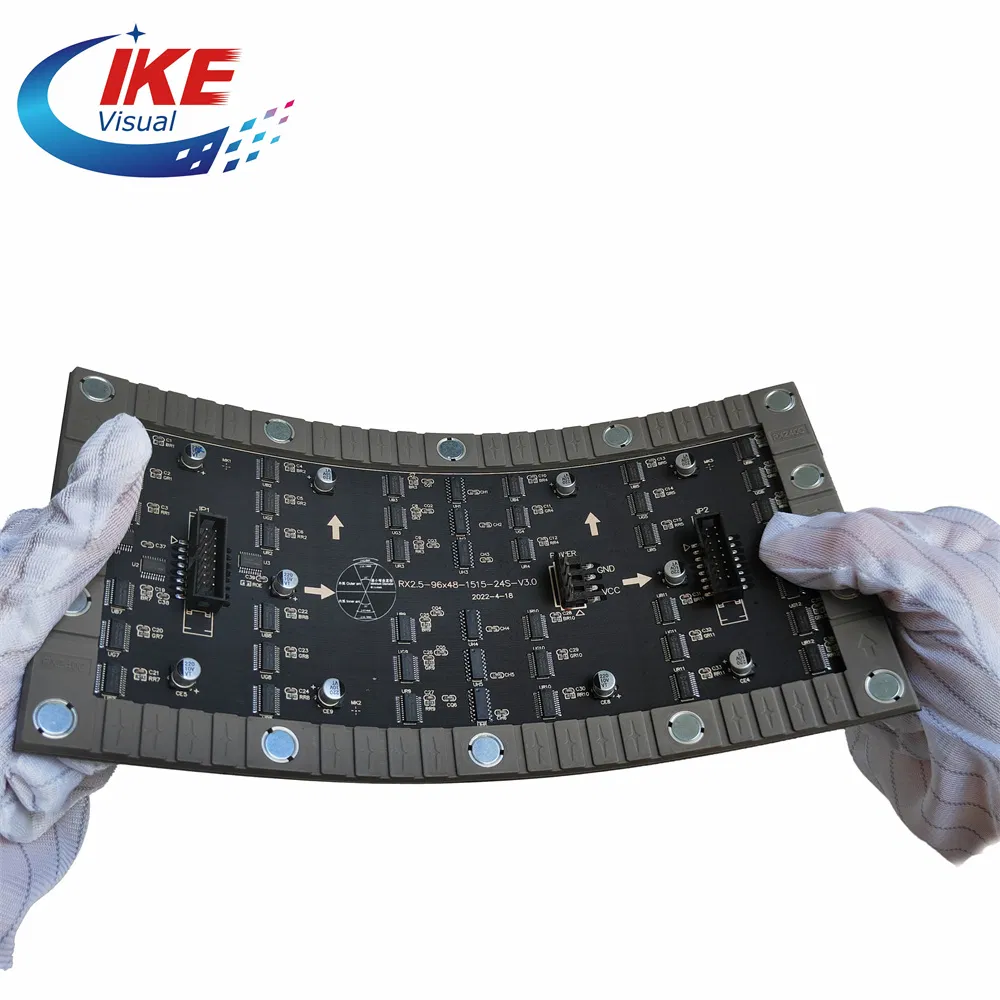

Wind Series offers outstanding performance with its real flexibility. The unique design contributes to the horizontal and vertical deformed bending installation, making it possible to achieve "S" shaped, round, concave, convex and curved screen. The special soft PCB board design allows Wind series being ever-changing. No matter if you want a concave shape in a concert today, a cylinder LED display in a supermall tomorrow, or even a touring show for a stage 2 days later, it will be easily done by the Wind Series. It is easy to assemble, solid, stable, and has indoor and outdoor versions for option. It becomes the best solution for your rental application and fixed-installation.

Product Name		P1.25	P1.568	P1.86	P2	P2.5	P3	P4
Technical Parameter	Pixel configuration	1R1G1B (Full Color)			1R1G1B (Full Color)
	Lamp bead packaging specifications	SMD1010	-		SMD1515	SMD1515	SMD1515	SMD2121
	Pixel density (dots/m2)	640000	406406	288906	250000	160000	105625	62500
	Module size (mm)	320x160x5.25 (LxHxT)			320x160x5.25 (LxHxT)
	Module Resolution	256x128	204x102	172x86	160x80	128x64	104x52	80x40
	Scanning method	1/64	1/51	1/43	1/40	1/32	45317	45311
	Refresh frequency (Hz)	≥3000-3840			≥3000-3840	≥1920	≥3000-3840
	Frame switching frequency (Hz)	50&60			50&60
	Grayscale level (bit)	12-16 adjustable			12-16 adjustable
	Signal interface mode	HUB75			HUB75
	Material of module bottom shell	Silicone soft bottom shell			Silicone soft bottom shell
	Module weight (kg/sheet)	0.334	0.325	0.316	0.315	0.269	0.252	0.23
	Box size	Customizable according to module size			Customizable according to module size
	Cabinet material	Sheet metal sandblasting iron box			Sheet metal sandblasting iron box
	Flatness of the box (mm)	≤ 0.3			≤ 0.3
	Protection level	IP45			IP45
	Installation/maintenance method	Support before and after installation and maintenance			Support before and after installation and maintenance
Optical Characteristics	Brightness (nits)	650-800cd			650-800cd
	Color temperature (K)	3000-10000 adjustable			3000-10000 adjustable
	Brightness uniformity	≥97%			≥97%
	Horizontal/vertical viewing angle	≥160°/≥140°			≥160°/≥140°
	contrast ratio	5000:01:00			5000:01:00
Electrical parameters	Module power supply voltage DC (V)	5	5	5	5	5	5	5
	Maximum current of module DC (A)	5	5	4.5	4.5	4.5	4.5	4.5
	Maximum power consumption of module (w/sheet)	25	25	22.5	22.5	22.5	22.5	22.5
	Working input voltage AC (V)	110-220 customizable			110-220 customizable
	Peak power consumption of module (w/m2)	490	490	440	440	440	440	440
	Average power consumption of module (w/m2)	165	165	150	150	150	150	150
Using parameters	Typical lifespan value (hours)	100,000			100,000
	Working temperature range (ºC)	-10-50			-10-50
	Storage temperature range (ºC)	-20-60			-20-60
	Working humidity range (RH)	20-85% (No condensation)			20-85% (No condensation)
	Storage humidity range (RH)	20-80% (No condensation)			20-80% (No condensation)
Unit Module (USD/PC)		61	37	25	23	17	14	12
Unit Square Meter (USD/M²)		1421	936	718	651	540	477	490

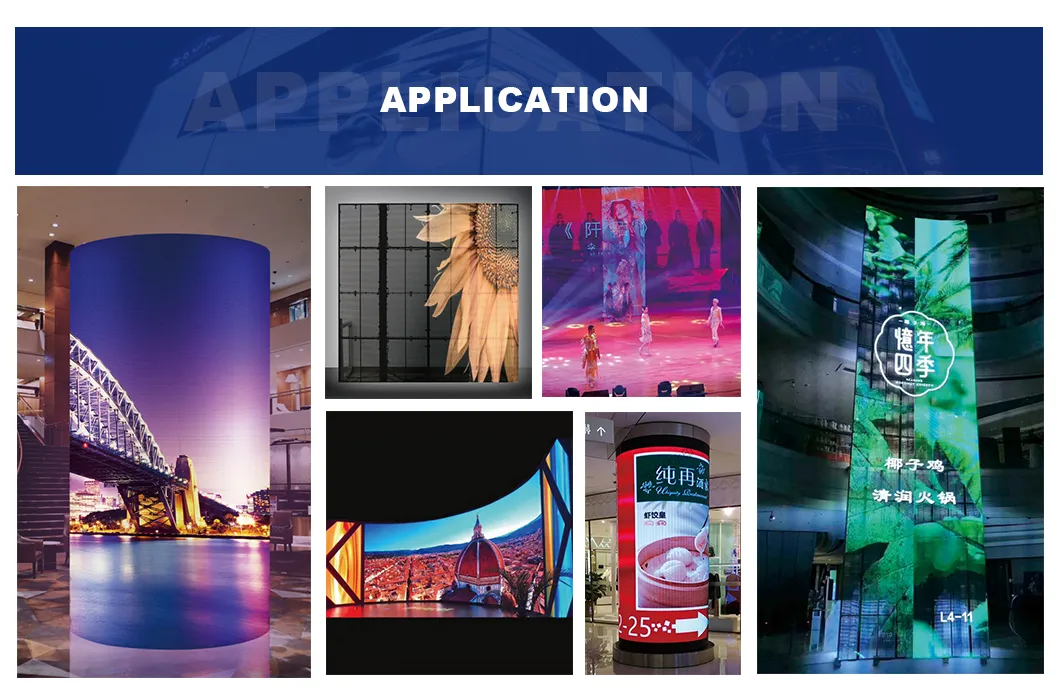

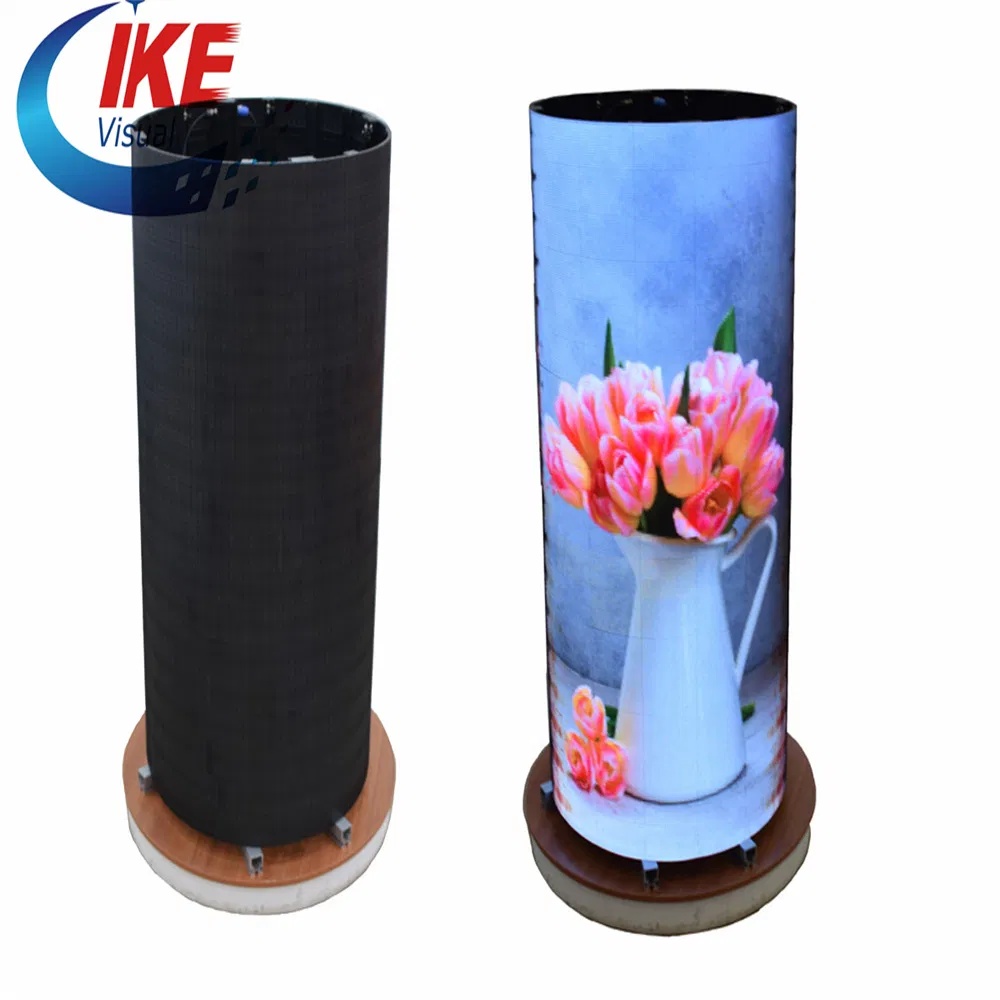

Indoor and Outdoor Flexible LED Screen Installation

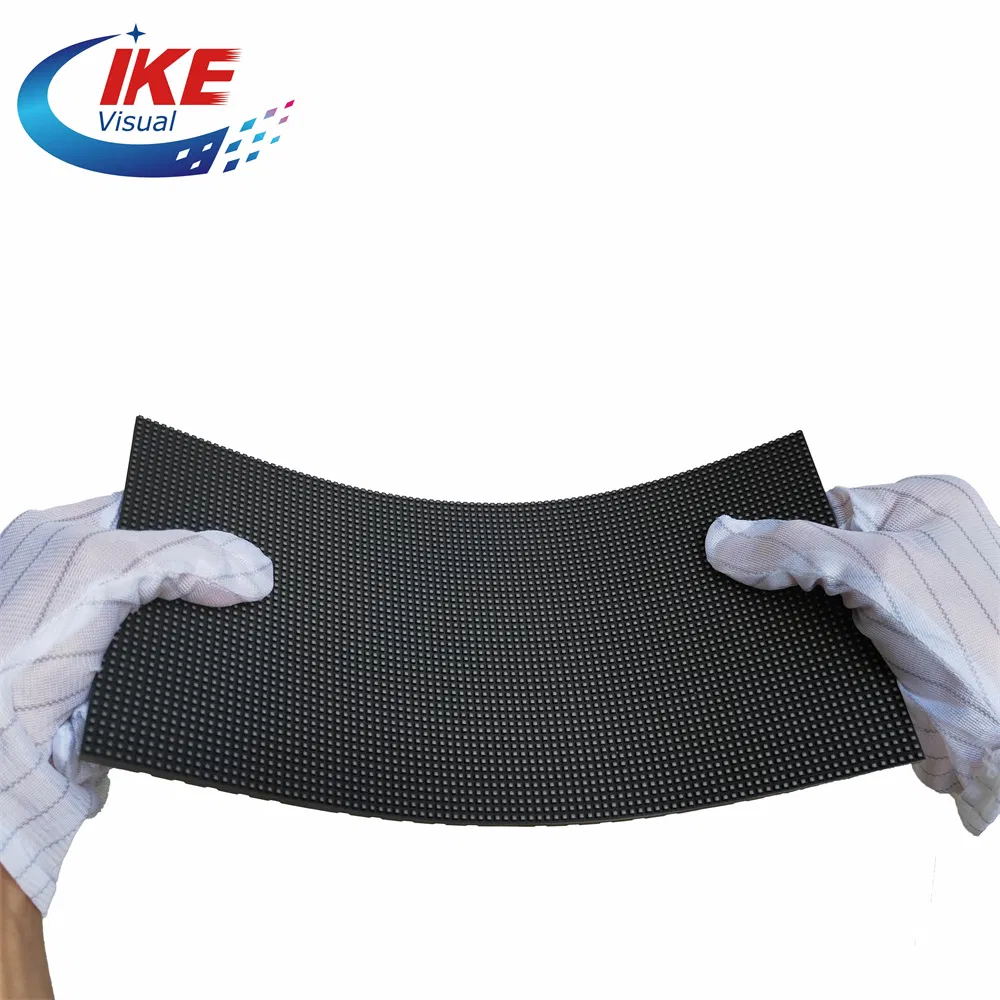

Waterproof Energy Saving LED Stage Background

Production Facility

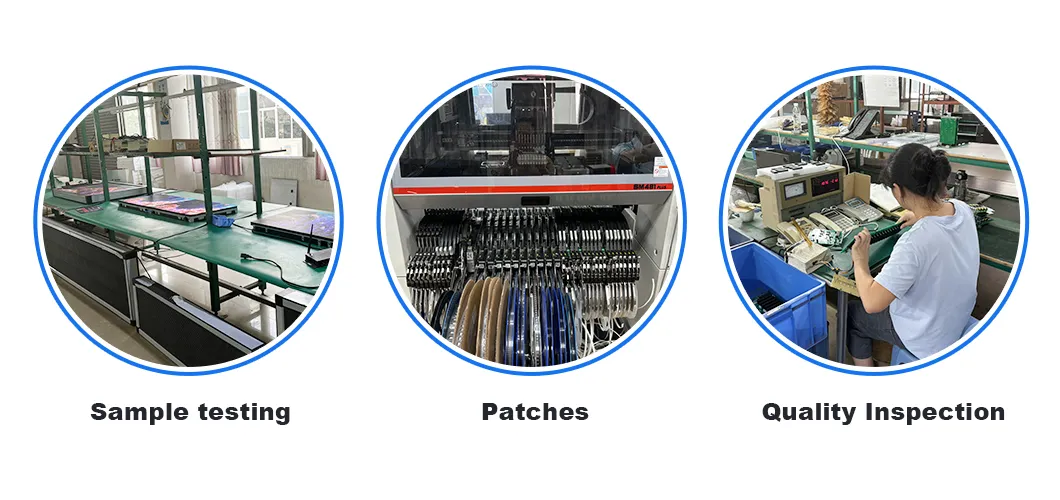

Factory Production Line and Quality Testing

Our Advantages

High Brightness LED Modules and Component Control

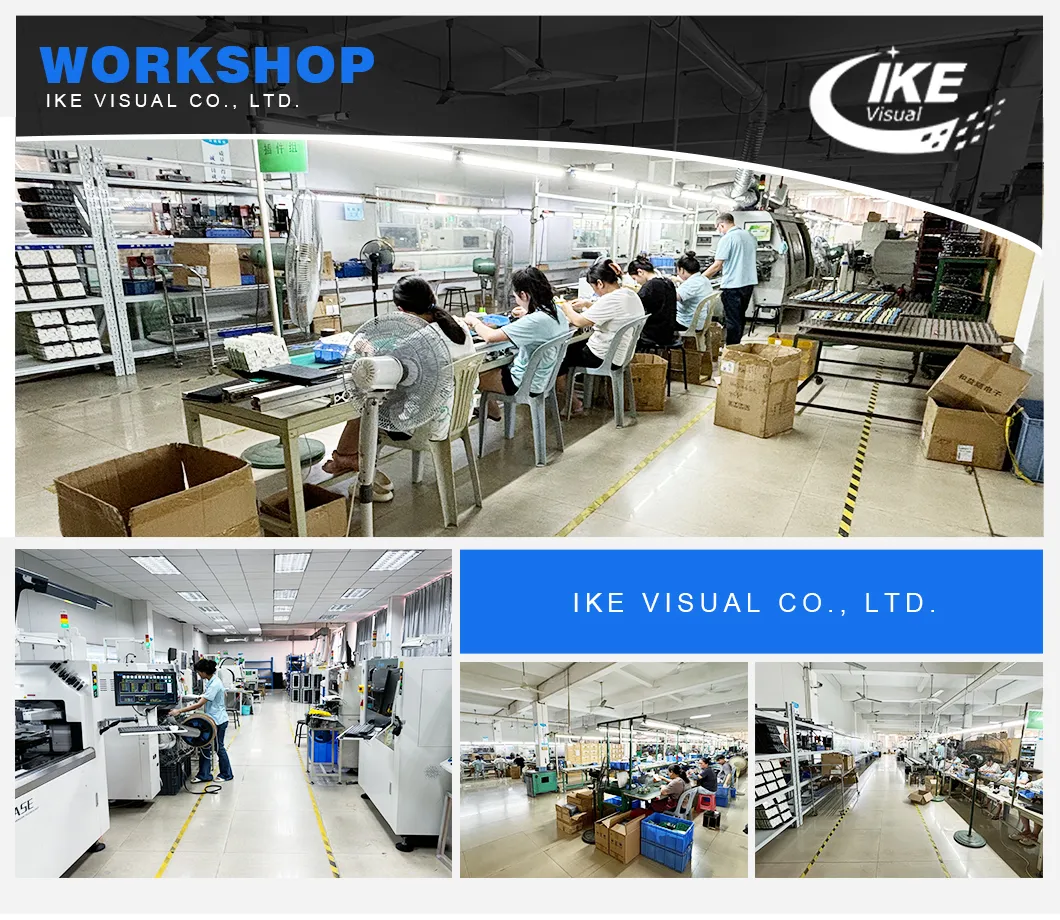

Precise Calibration and Uniformity Testing

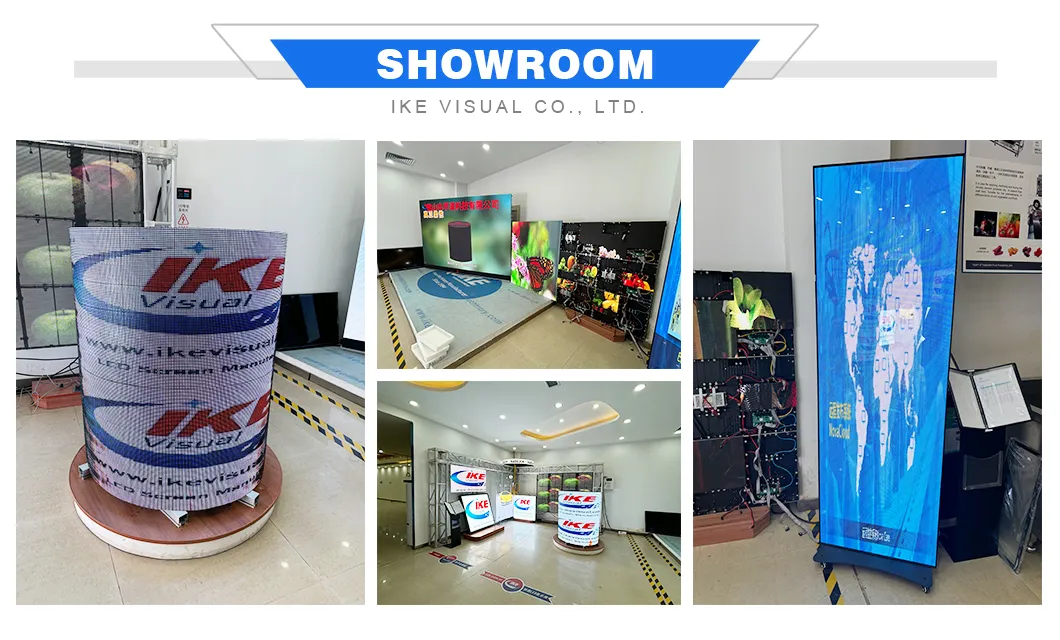

Custom LED Display Layouts and Solutions

Packaging & Shipping

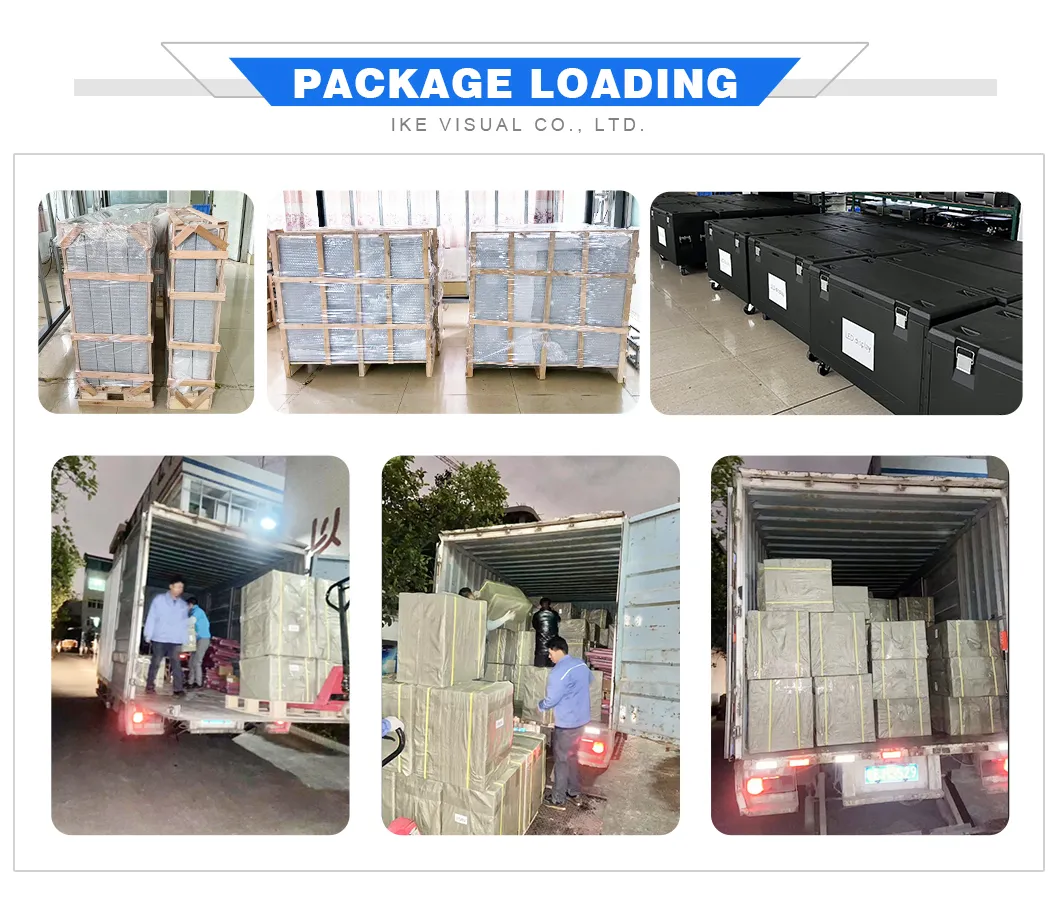

Secure Flight Case and Honeycomb Carton Packaging

Frequently Asked Questions

Q1: Are you a manufacturer or trading company?

A1: We are a Professional OEM/ODM manufacturer which has specialized in the LED display industry for 10 years.

Q2: How does your factory ensure product quality?

A2: Quality is priority. Our company always attaches great importance to quality control from the very beginning to the very end. We focus on every detail, and our factory has gained CE, RoHS, FCC, and IP65 certifications.

Q3: What is your Minimum Order Quantity (MOQ)?

A3: Any quantity is acceptable for your order. The price is negotiable for large quantities.

Q4: When will you make the delivery?

A4: Generally, we can make the delivery within 10 working days according to the size and quantities of your order.

Q5: What technical support can you offer?

A5: We provide all kinds of technology training for free, including the operation and maintenance training of the LED screens at our factory.

Q6: Do you provide free spare parts with orders?

A6: Yes, a certain amount of spare parts will be provided for free, including modules, power cables, signal cables, LED lamps, ICs, masks, power supplies, and receiving cards.
