Hban16mm Plastic Waterproof Rectangular LED Industrial Control Signal Light Blue Light Emitting IP65

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview

Basic Specifications

Model NO. HBS1-AJ-D/LED Voltage/B
IP Rating IP40, IP65
Color Temperature Warm White
Lamp Body Material PC
Certification CCC, CE, ISO
Protection Grade IP65

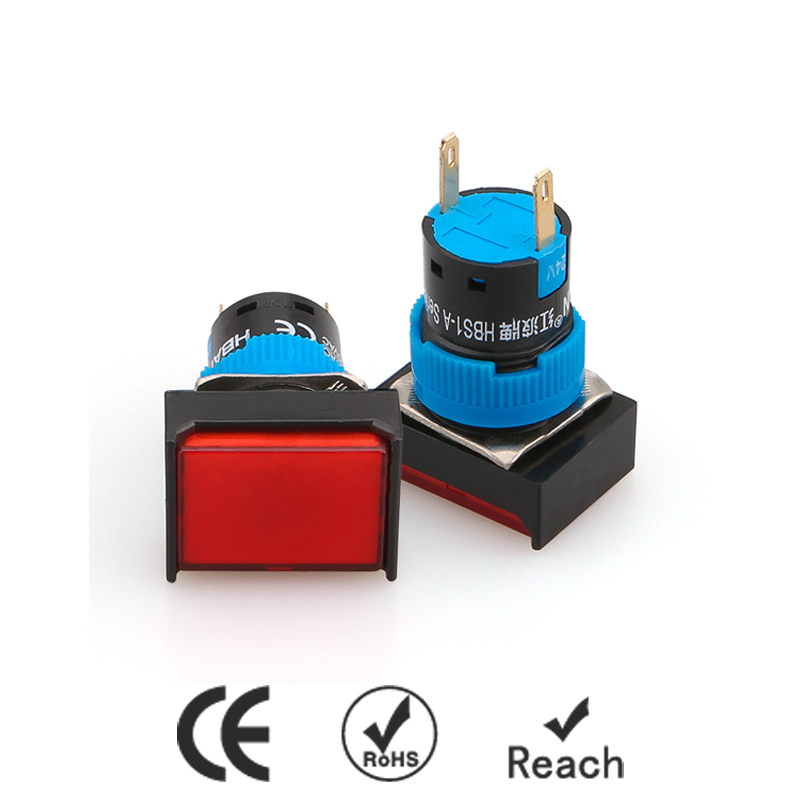

Certificate CE, RoHS, Reach
Production Time 3-5 Working Days
Mounting Hole Size 16mm

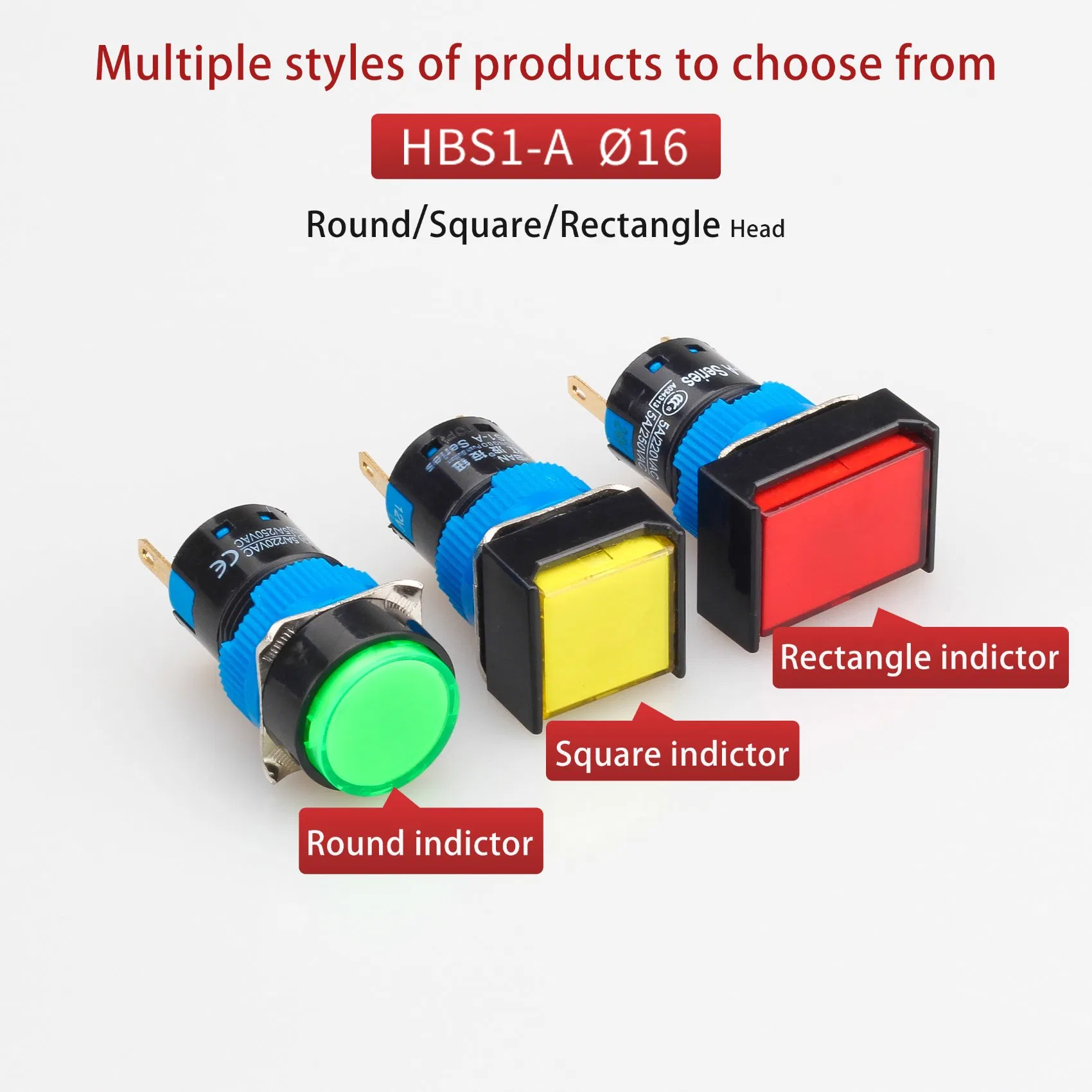

Head Shape Round / Square / Rectangle
Terminal Type Pin Terminal
Crust Material Plastic

Performance & Packaging

Head Color Blue
Battery Type LED
Material Plastic
Emergency Time 24 Hours
Installation Mode Panel Mount
Operation Mode Maintained
Usage Electrify
Transport Package 40PCS/Box
Specification CE, ROHS, ISO9001
Production Capacity 200,000 PCS/Month
Package Size 21.00cm * 13.00cm * 6.00cm
Package Gross Weight 0.100kg

Product Description

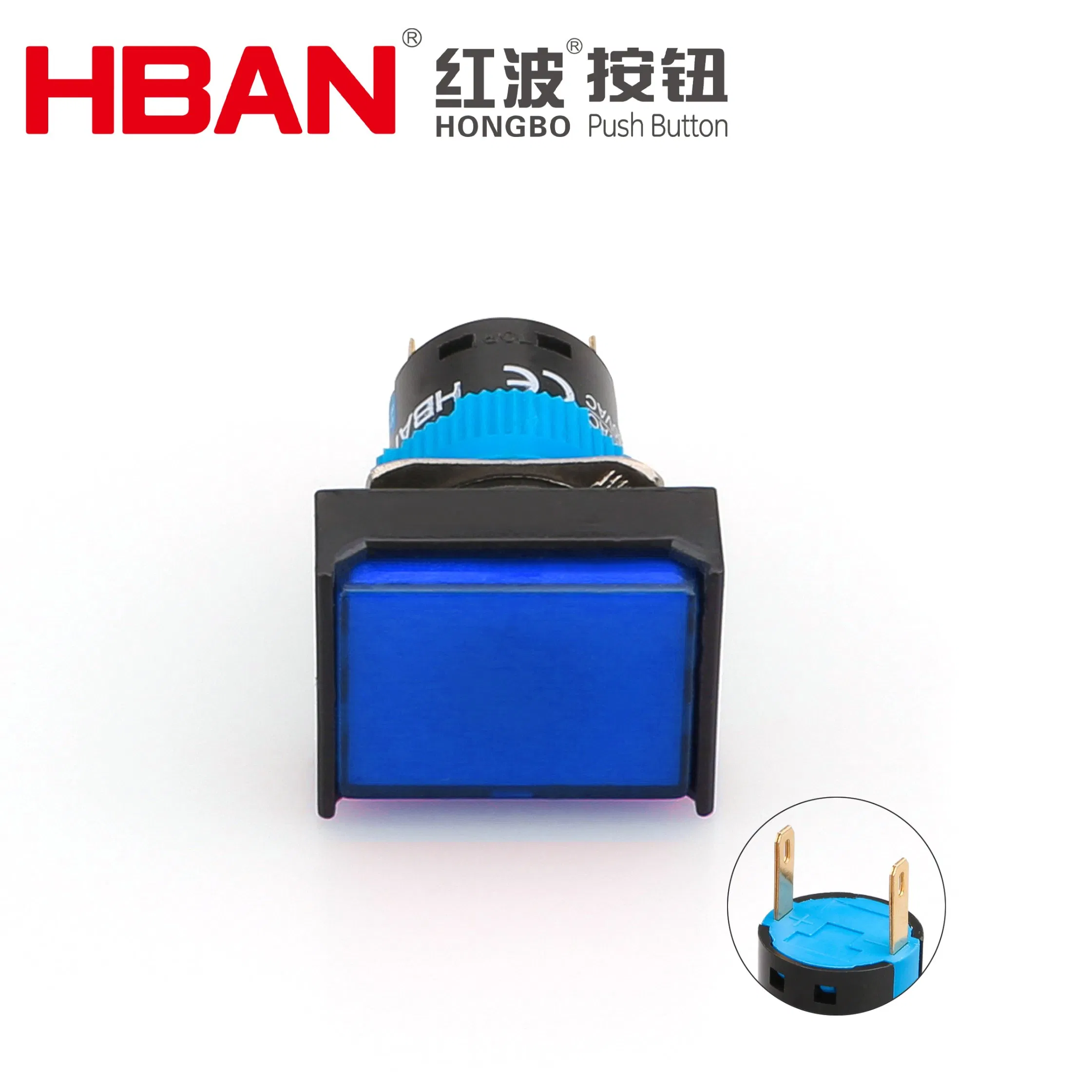

Plastic Waterproof Rectangular LED Industrial Control Signal Light Blue Light Emitting IP65

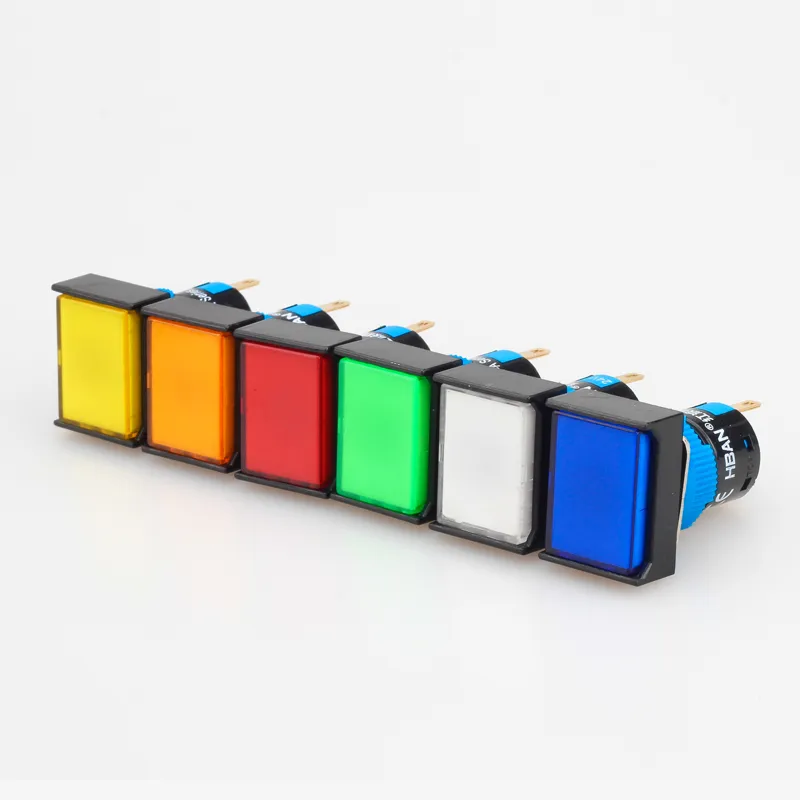

Plastic Waterproof Rectangular LED Signal Light

Key Features & Benefits

  • Material Characteristics: Plastic has a much lower density than metal, significantly reducing overall weight and making it easy to install, transport, or hang. Suitable for temporary engineering, traffic diversion, mobile devices, and scenarios requiring frequent movement.
  • Chemical Corrosion Resistance: Strong resistance to corrosive substances such as acid, alkali, salt, etc., suitable for the chemical industry and coastal high-humidity environments.
  • Electric Shock Safety: Plastic is non-conductive and safer in places with electric shock hazards such as power facilities and substations.
  • Low Maintenance Cost: No need for rust prevention treatment, easy cleaning, high cost-effectiveness for long-term use. High-quality engineering plastics have better impact resistance than glass, are less prone to breakage, and are more reliable in vibration or accidental collisions.
  • Efficient LED Lighting: Multiple LED lights are available, with high brightness to meet different styles and voltages. The plastic casing has lower heat dissipation requirements and reduces energy consumption. Long-term use significantly reduces electricity costs, especially for outdoor scenes powered by solar energy.

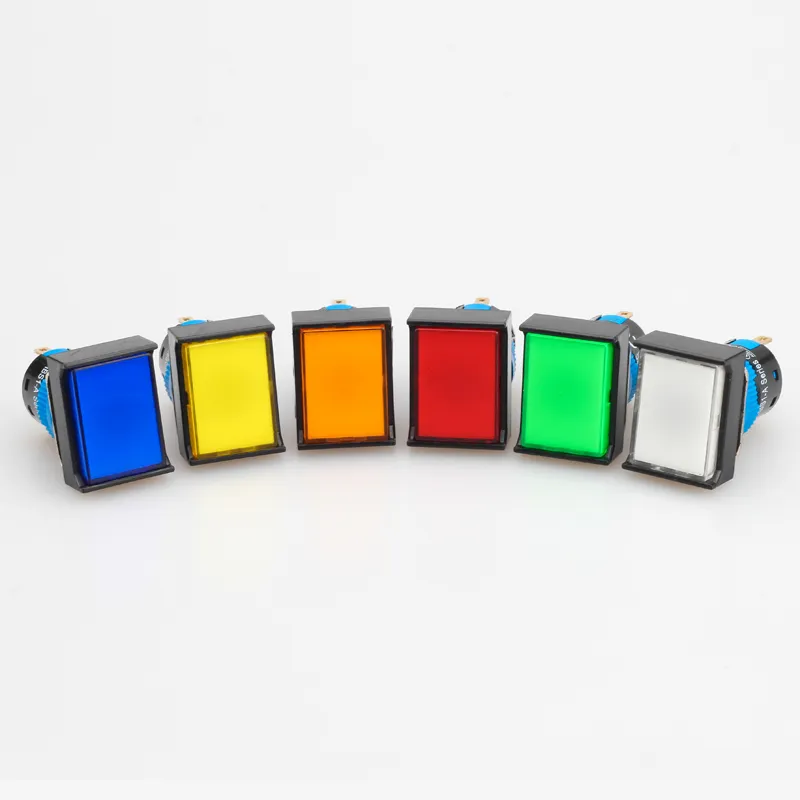

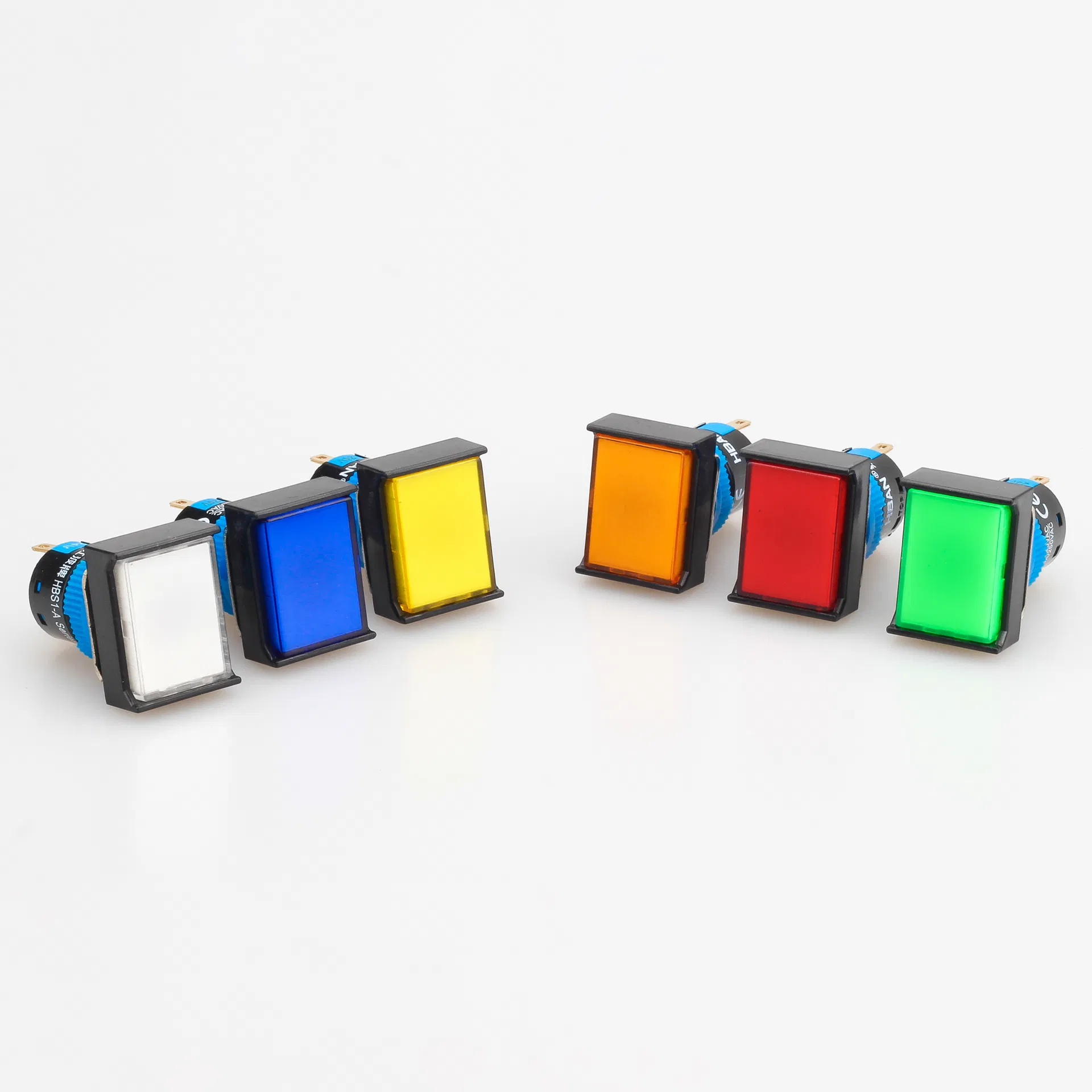

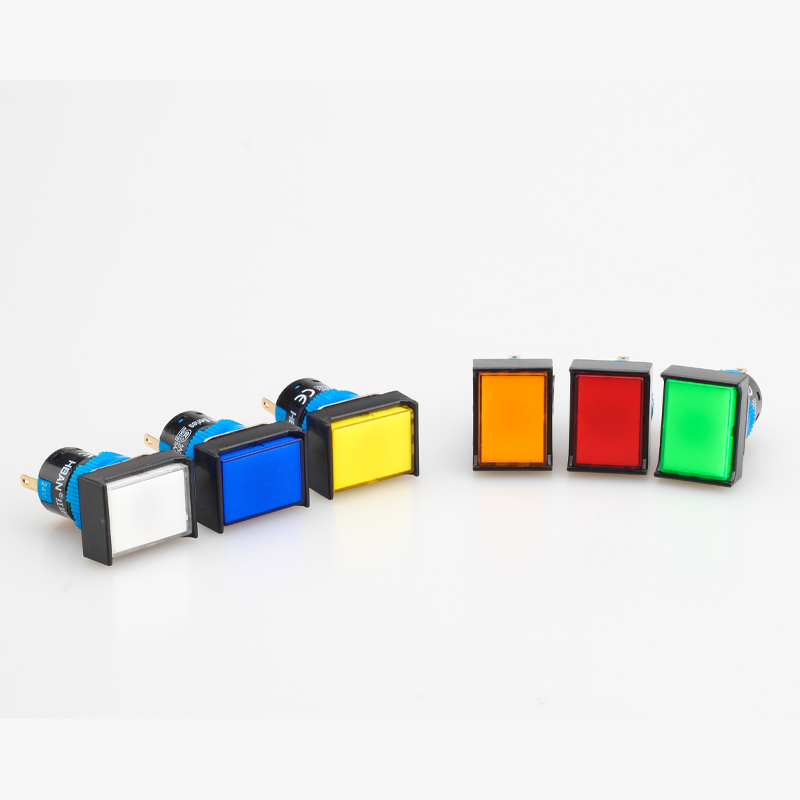

Multi-color Head Support
Supports Multi-Color Head:
Head Color Selection: Red/Green/Blue/Yellow/White

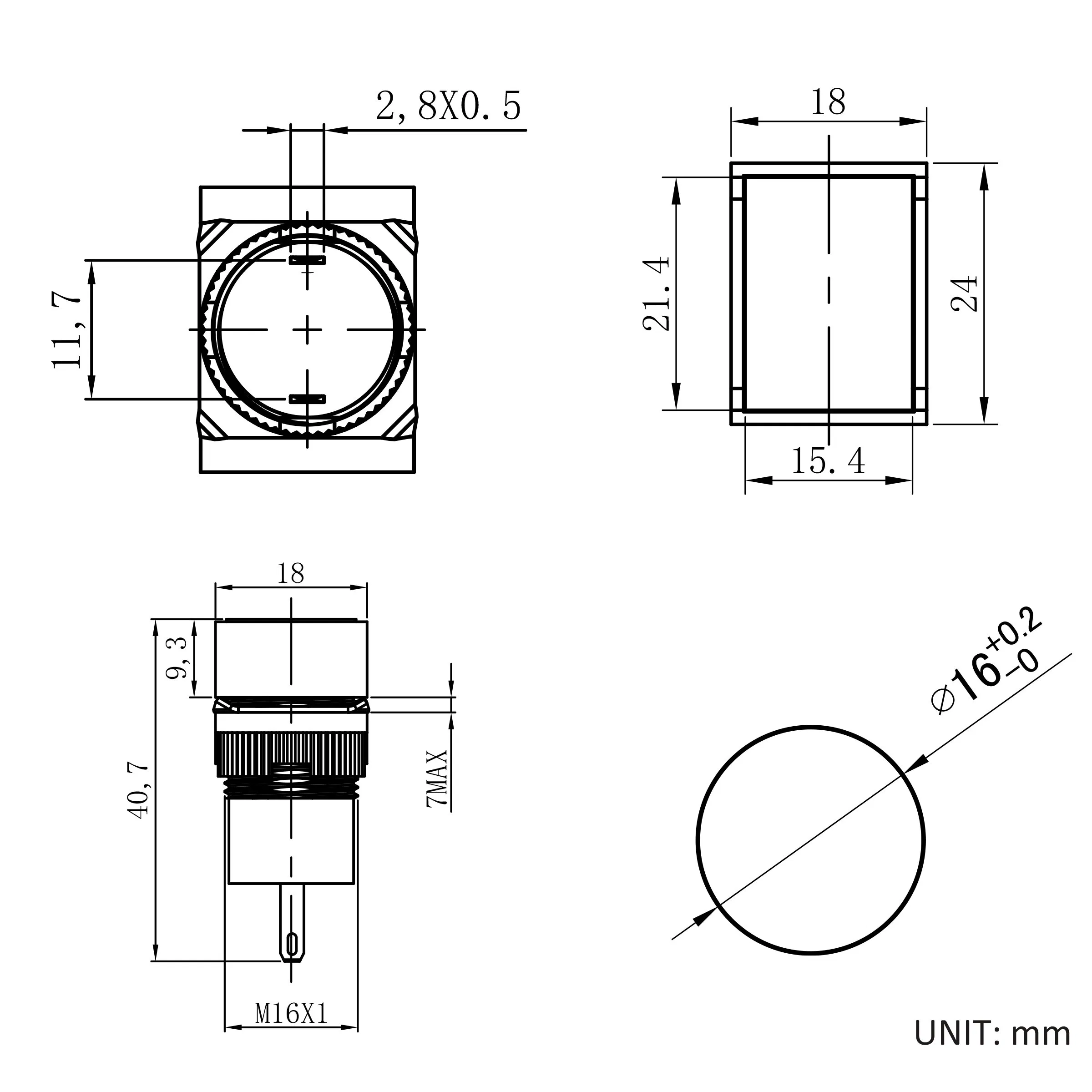

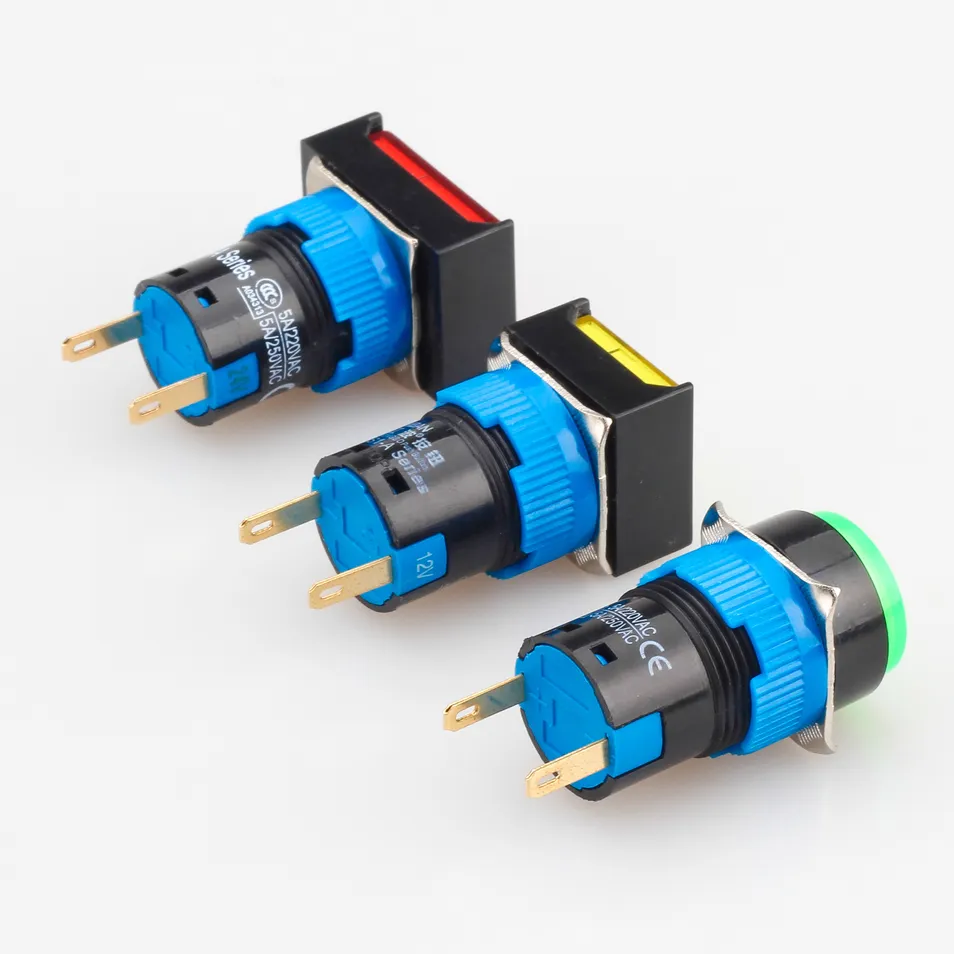

Installation Guide
Installation Specifications:
Mounting Hole Size: 16mm (0.625in)
Structure: Matching O-ring + Nuts
Panel Thickness: 7mm MAX
Tightening Torque: Approx. 0.4Nm

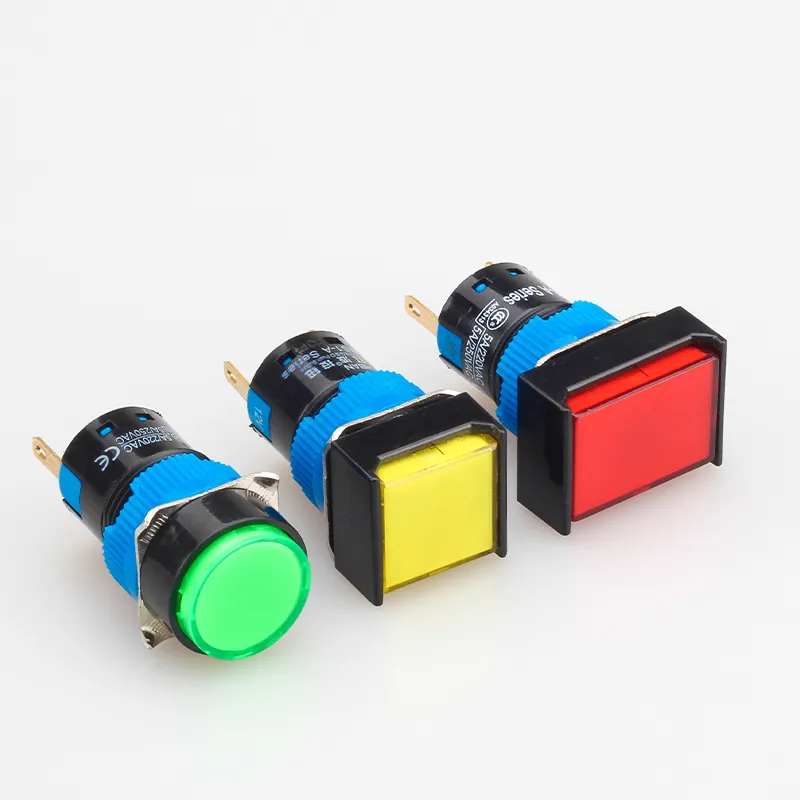

IP65 Waterproof
IP65 Waterproof Rating:
First Digit (Solids): 6 (Dust-tight)
Second Digit (Liquids): 5 (Low-pressure water jets)
Protected against dust and water jets (6.3mm nozzle, 12.5L/min from any direction for ≥ 3 mins).

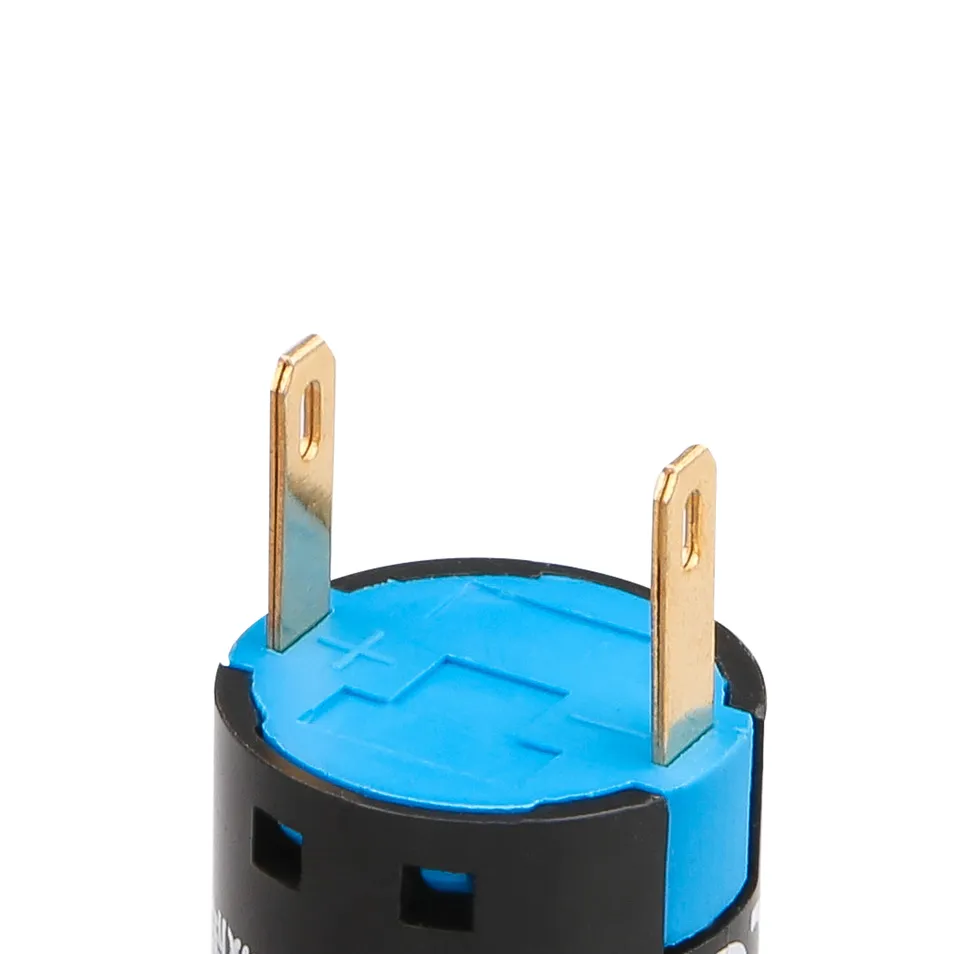

Long Work Life
Long Work Life:
Rated Voltage: 6V/12V/24V; 110V/220V
Rated Current: ≤20mA
Lamp Bead Life: 50,000 Hours

Model Specification

Series Number: HB16 (This product configuration is highlighted in green)
Neck Mounting Dimensions Ø8mm, Ø10mm, Ø12mm, Ø16mm, Ø22mm, Ø30mm -
Head shape Round head (Y), Square head (F), Rectangle head (J) -
Terminal Type Pin terminal (A), Screw terminal (D) -
Form of Structure Standard structure (No letters), Ultra-short structure (S) -
LED Voltage 6V / 12V / 24V / 36V; 110V / 220V Other voltages can be customized
LED Color Red (R), Green (G), Yellow (Y), Orange (O), Blue (B), White (W) -

Wiring Example

Wiring Example for Industrial Control Signal Light

Manufacturing Facility

Manufacturing Facility

Applications

Industrial Automation Equipment
Industrial Automation Equipment
New Energy EV Charging Stations
New Energy EV Charging Stations
Marine & Offshore Engineering
Marine & Offshore Engineering
Lab & Testing Equipment
Lab & Testing Equipment
Rail Transit Systems
Rail Transit Systems
Power Control Cabinets & Distribution Systems
Power Control Cabinets & Distribution Systems

Exhibitions & Industry Presence

Exhibition Presence

Specializing in the development and manufacturing of push button switches and indicators, adhering to the concept of "Customer First and Quality First". The manufacturing facilities produce high-quality metal waterproof push button switches, plastic push button switches, E-stop switches, micro travel switches, Piezoelectric switches, indicators, and buzzers.

Independently developed high-current push button switches and touch switches, as well as upgraded XB2 series push button switches, etc. Supported by professional engineers and an efficient sales team offering competitive prices to global clients.

Packing & Delivery

Packaging Details

Packaging Specifications

40pcs/box (Including 40pcs O-ring)

  • Products are placed in separate foam boxes to prevent collision.
  • Foam boxes are placed in the packaging box with the black O-ring.
  • Corrugated paper boxes are reinforced with strapping tape after packaging.
Shipping Details

Shipping Information

  • Worldwide shipping options available.
  • Items are generally shipped within 3-7 business days upon receipt of payment.
  • Delivery time depends on the destination and other factors, typically taking 3-8 business days.

Frequently Asked Questions

Is the material eco-friendly?
Yes, our products are made of environmentally friendly materials and have passed ROHS and REACH certifications.
Can you provide wiring diagrams or CAD files?
Yes, contact our customer service staff and they will provide the documents within 24 hours.
Can you provide OEM/ODM services (custom logos/colors)?
Yes, we support OEM/ODM services. There is a minimum order quantity. Please contact our customer service staff for details.
What payment methods are supported?
We support T/T (Wire transfer), Credit Card, and Paypal. (Please ensure that the amount received is consistent with the pro forma invoice amount).
How to ensure that the products are not damaged or defective during transportation?
The express delivery companies we cooperate with are: DHL, UPS, FedEx (supporting air and sea transportation). Regarding packaging, we place the products in separate foam boxes to prevent collision, and then put the foam boxes into the corrugated boxes, which are reinforced with strapping tape.
Is there a warranty?
Yes, the warranty period is 1 year.
