Hban 22mm Orange Plastic LED Lamp Signal Indicator Light for Industrial Alarms

Overview

Basic Info

Model NO. HB16-22DS/24V/O

Delivery at Least 3 Working Days

The Crust Material Plastic

Working Environment Temperature -25℃~+65℃

Manufacturer Yes

HS Code 8531801090

Production Capacity 500,000/Month

Packaging & Delivery

Package Size 21.00cm * 13.00cm * 6.00cm

Package Gross Weight 1.000kg

Product Description

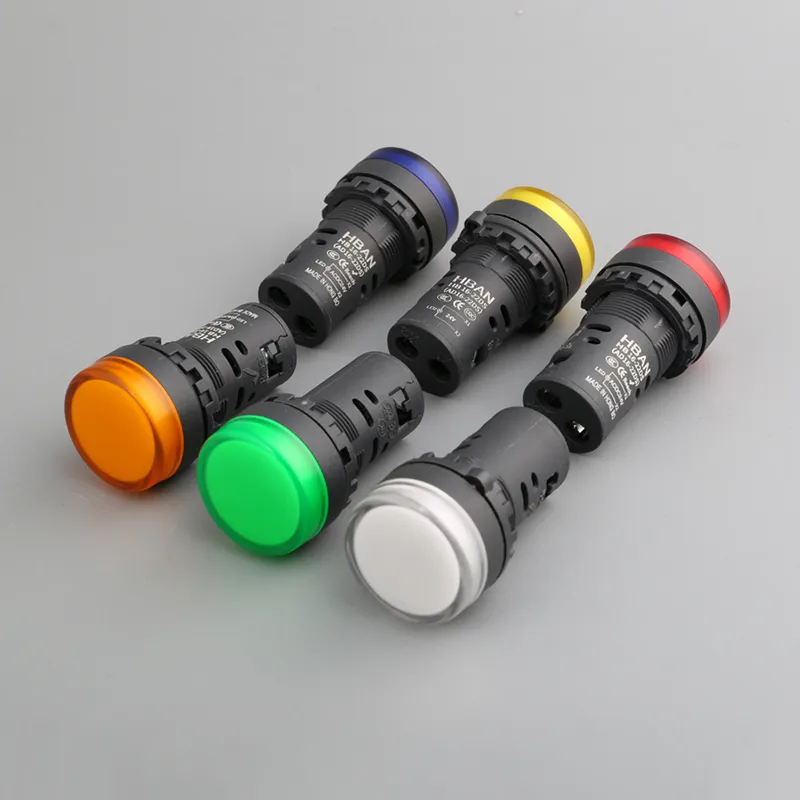

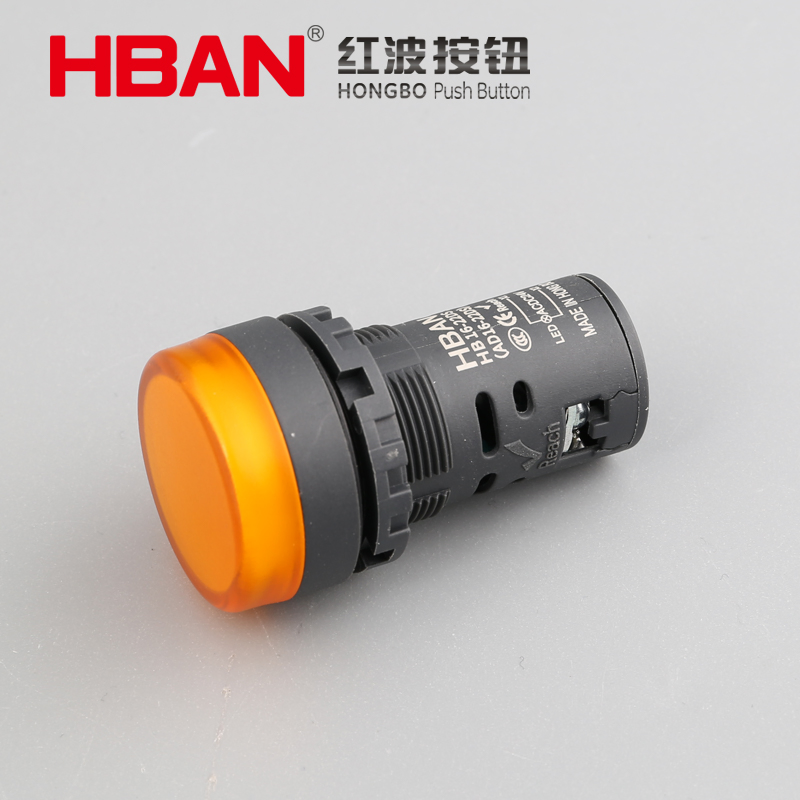

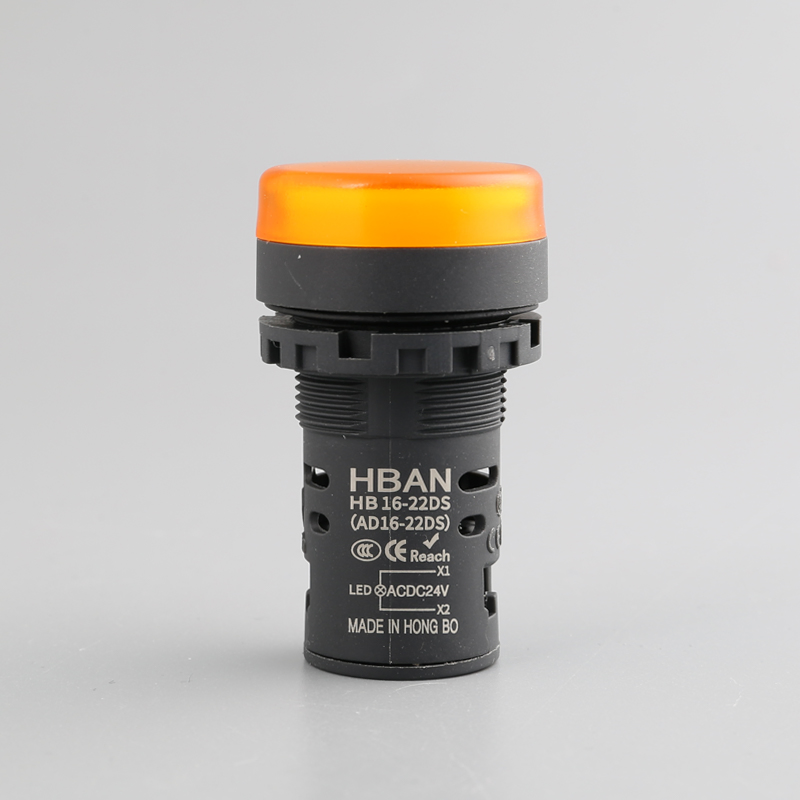

22mm Orange Plastic LED Lamp Signal Indicator Light for Industrial Alarms

Lightweight Design

Plastic material has low density and overall light weight, reducing the load-bearing pressure of the installation structure.

Electrical Safety

Belonging to insulating materials, there is no need to worry about the risk of electric leakage, reducing the risk of electric shock and complying with industrial safety standards.

Corrosion & Environmental Resistance

The signal light made of engineering plastic can resist the erosion of oil stains, weak acids and bases, and humid gases. It is not easy to age and crack in chemical workshops, food processing, and humid environments, and has a longer service life than metal shell products.

Energy Efficient

Plastic signal lights with LED light sources typically have a power consumption of ≤ 1W, which is more energy-efficient than traditional signal lights and generates less heat.

Wide Operating Temperature

High quality engineering plastics can maintain stable performance within the temperature range of -25 ℃ to+65 ℃, without low-temperature brittleness or high-temperature softening, meeting the equipment indication requirements of different regions.

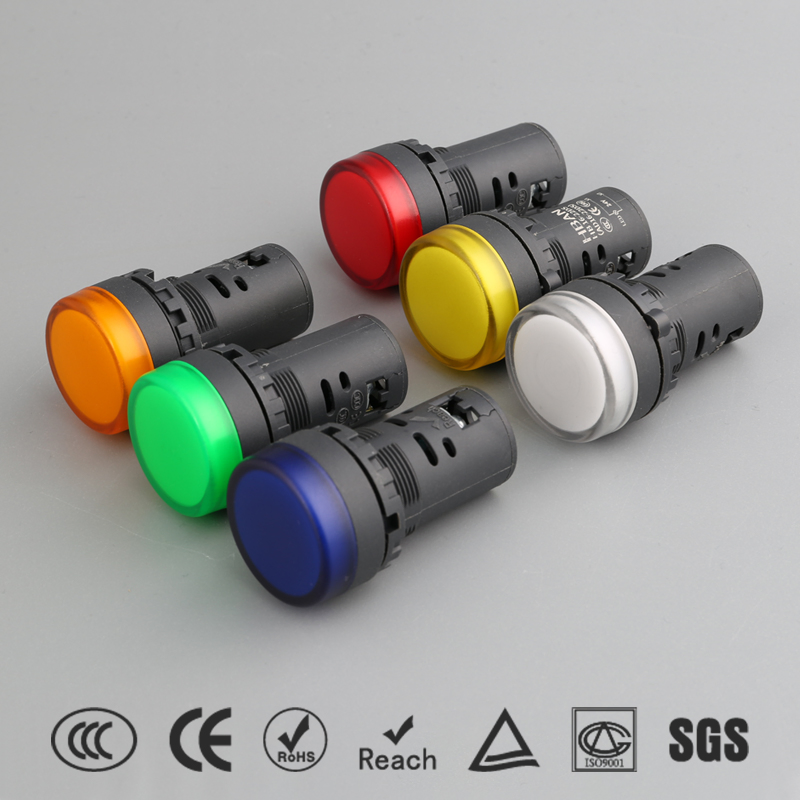

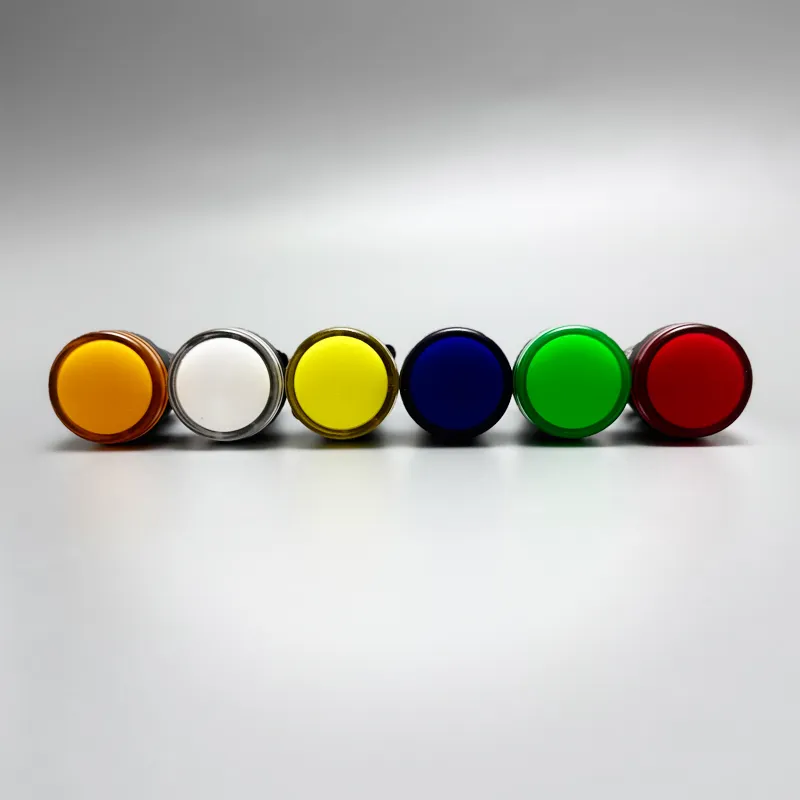

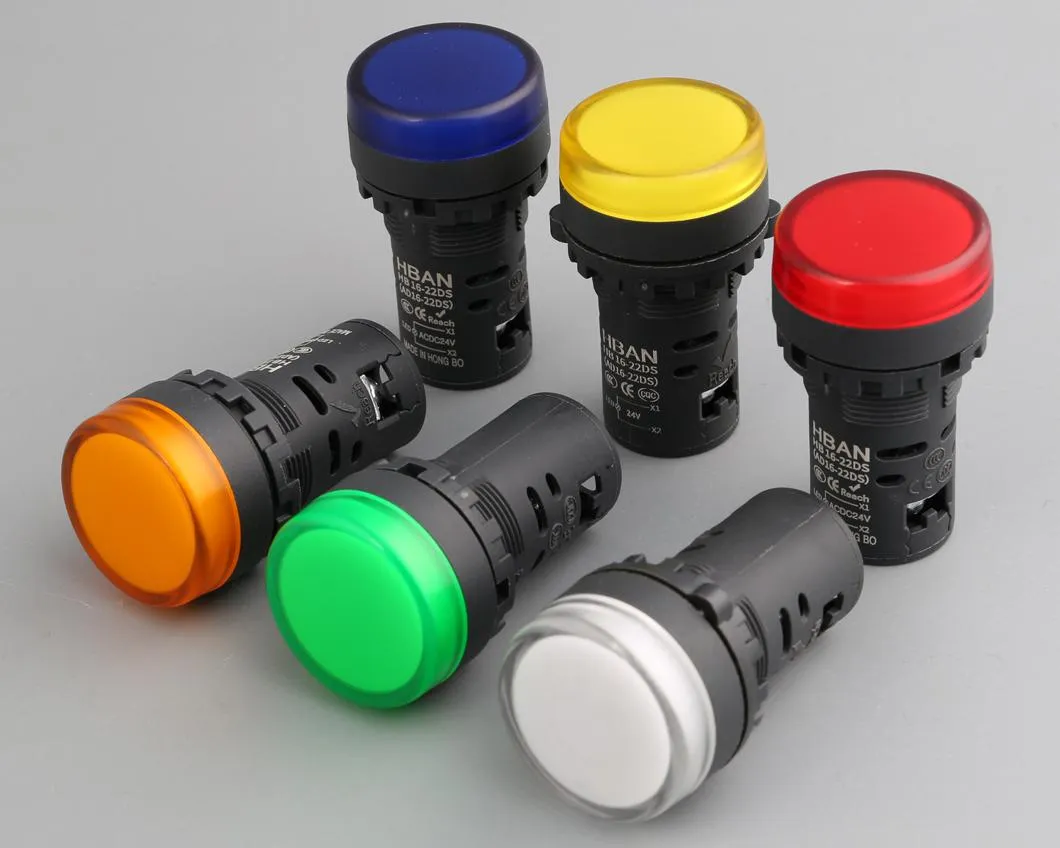

Supports Multi-Color Head

Head color selection: Red / Green / Blue / Yellow / White / Orange

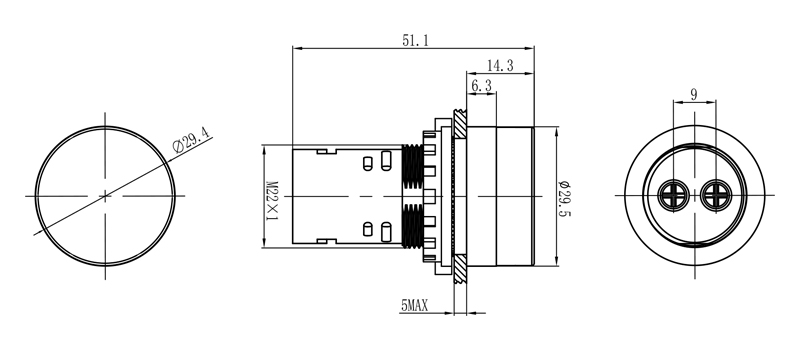

Installation Specifications

22mm / 0.866in mounting hole size

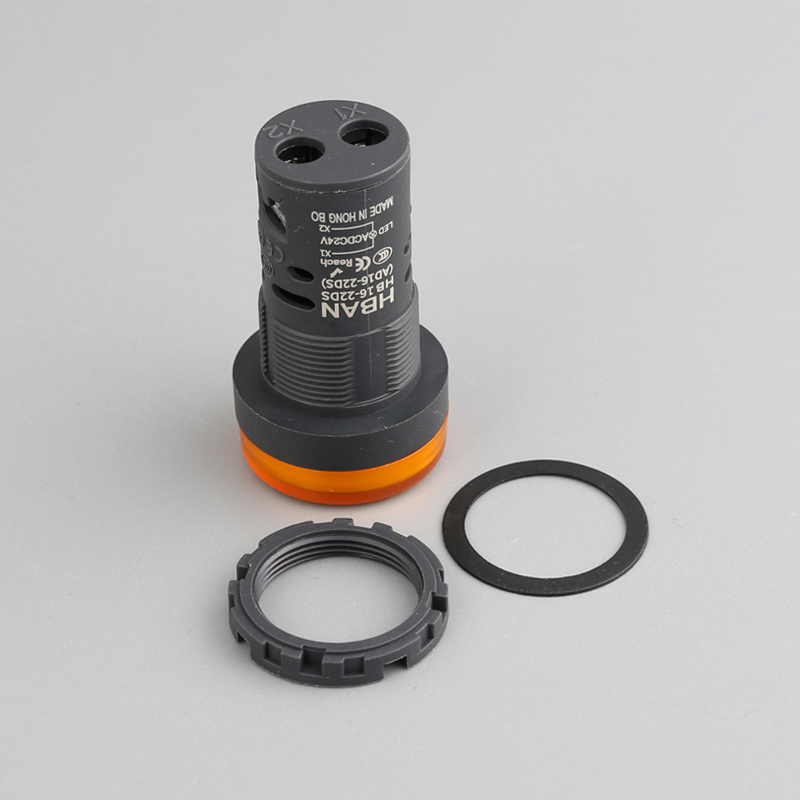

Matching O-ring + Nuts
Panel thickness: 3.5mm MAX
Tightening torque: About 0.6mm

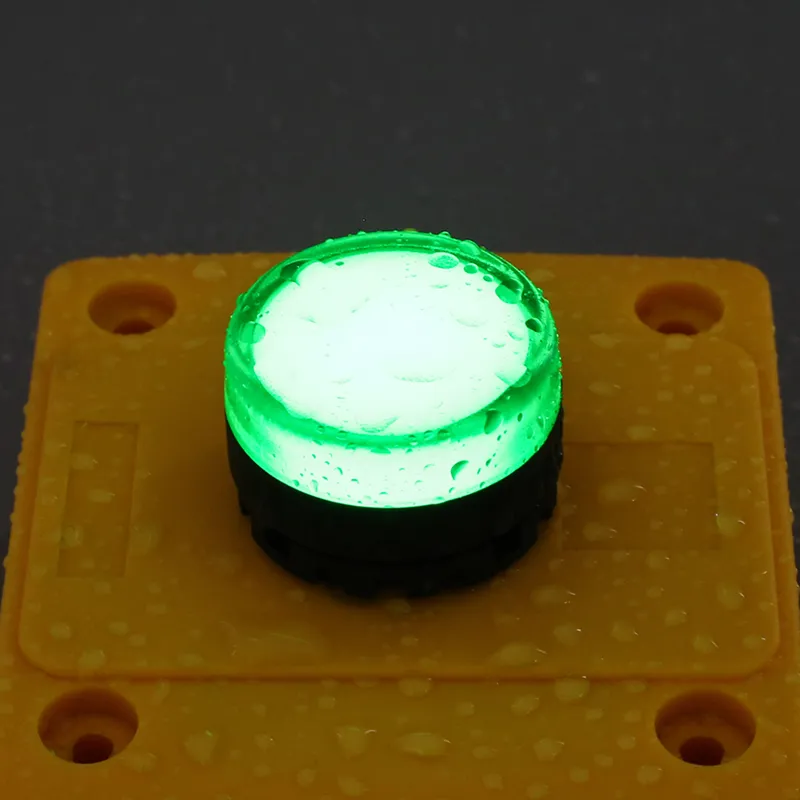

IP40 Waterproof Protection

Prevents solid foreign objects with a diameter greater than 1mm from entering the interior of the equipment. The head is effectively waterproof.

Long Work Life

Rated voltage: 6V/12V/24V; 110V/220V
Rated current: ≤20mA
Lamp bead life: 50,000 hours

Model Specification

Series Number: HB16 (This product is marked in highlight)
Neck Mounting Dimensions	8: Ø8mm 10: Ø10mm 12: Ø12mm 16: Ø16mm 22: Ø22mm 30: Ø30mm	-
Auxiliary Code	A: Pin terminal D: Screw terminal SM: Flashing indicator D/B: Bi-colour LED	-
Form of Structure	No letters: Standard structure S: Ultra-short structure	-
LED Voltage	6V/12V/24V/36V; 110V/220V	Other voltages can be customized
LED Color	R: Red G: Green Y: Yellow O: Orange B: Blue W: White	-

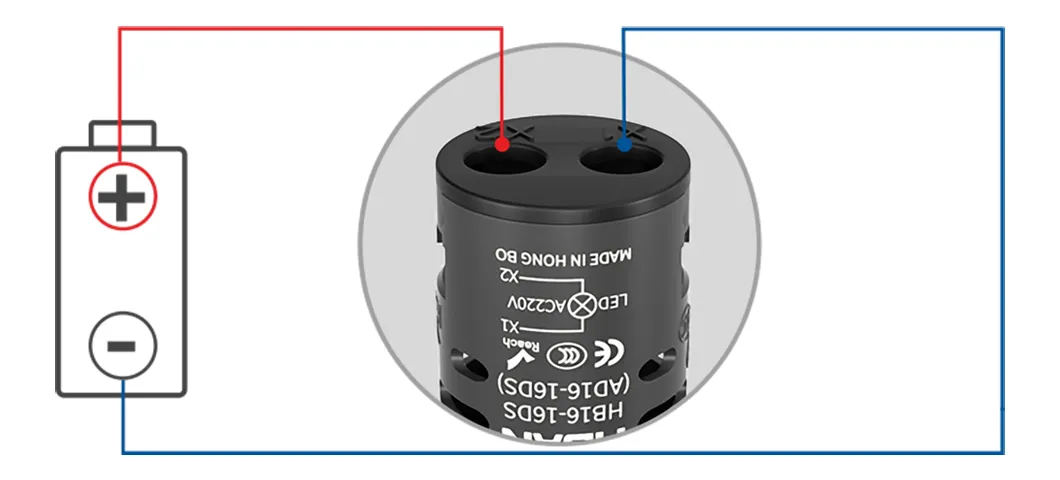

Wiring Example

Note: When powered on, it lights up without distinguishing between positive and negative poles.

Production Facility & Applications

Applications

Industrial Automation Equipment

New Energy EV Charging Stations

Marine & Offshore Engineering

Lab & Testing Equipment

Rail Transit Systems

Power Control Cabinets & Distribution Systems

Packaging & Shipping

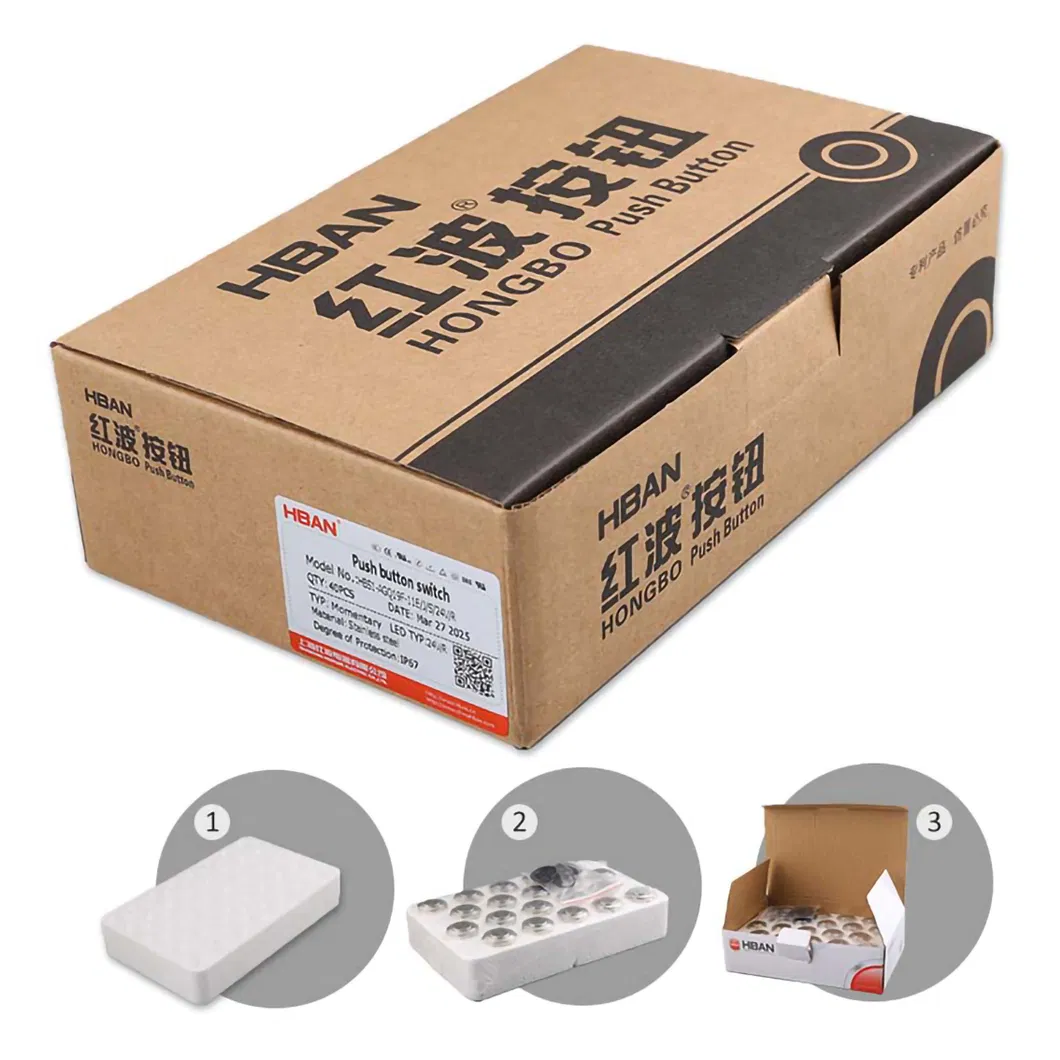

Packaging Specifications

Quantity: 20pcs/box (Including 20pcs O-ring)

Packaging Process:
1 & 2: Products are placed into separate foam boxes to prevent collision.
3: Foam boxes are placed into the main packaging box, and the black O-rings are included.

We use corrugated paper boxes for safety, reinforced with strapping tape after final packaging.

Shipping Information

We ship to destinations worldwide.
Generally, items will be shipped within 3-7 business days upon payment receipt.
Delivery time depends on the destination and other factors, taking approximately 3-8 business days.

Frequently Asked Questions

Is the material eco-friendly?

Yes, our products are made of environmentally friendly materials and have passed ROHS and REACH certifications.

Can you provide wiring diagrams or CAD files?

Yes, please contact our support team and they will provide the necessary documents within 24 hours.

Can you provide OEM/ODM services (custom logos/colors)?

Yes, we support OEM/ODM services. Please note there is a minimum order quantity requirement. Contact our support team for further details.

What payment methods are supported?

We support T/T (Wire transfer), Credit card, and PayPal. (Please ensure that the amount received is consistent with the pro forma invoice amount).

How to ensure that the products are not damaged during transportation?

Our shipping partners are DHL, UPS, and FedEx, supporting both air and sea shipping. For packaging, we place products into separate foam boxes to prevent collisions, which are then packed inside sturdy corrugated paper boxes reinforced with strapping tape.

Is there a warranty?

Yes, the product warranty period is 1 year.
