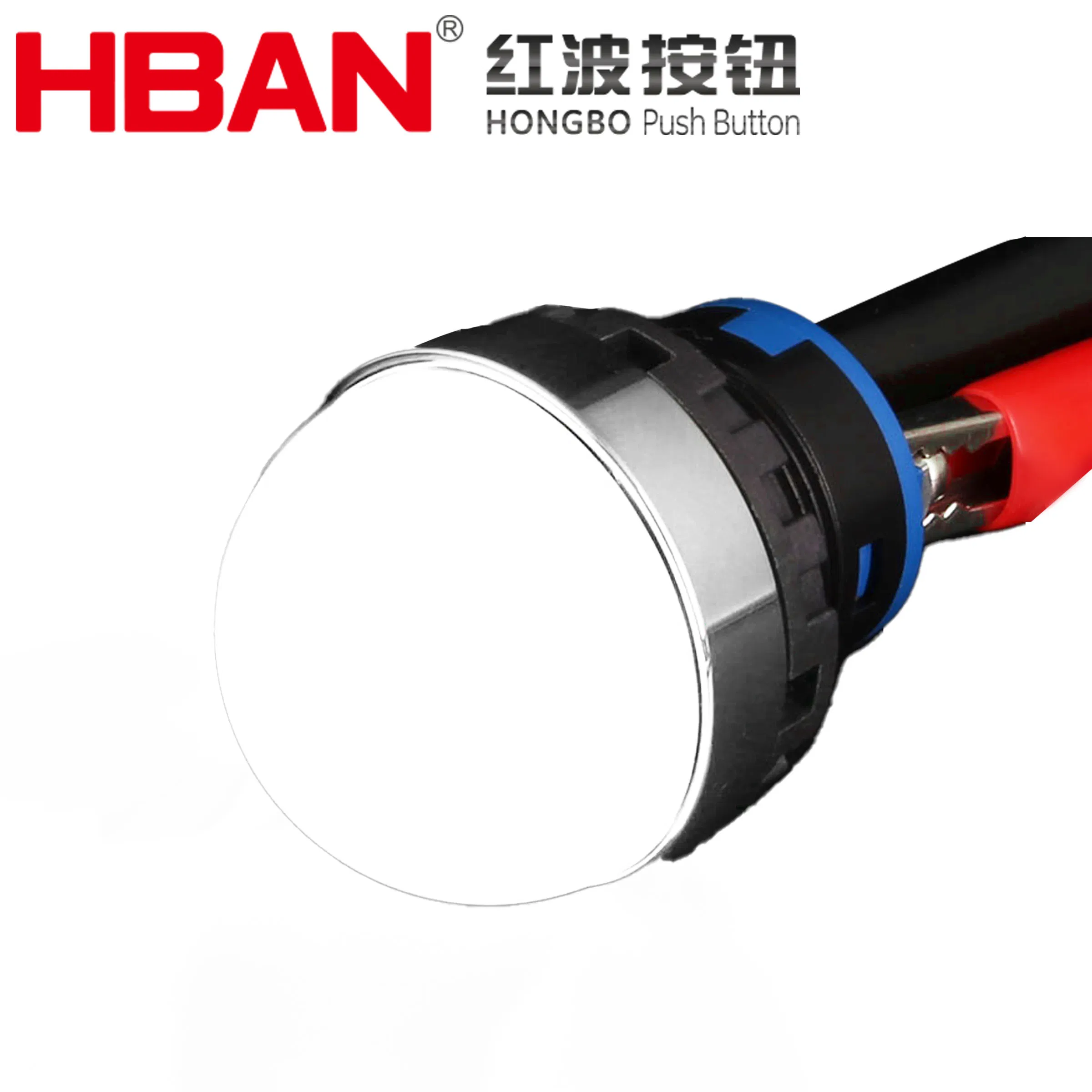

EV Light
1 / 5
| Model NO. | HB16-22DG/LED voltage/W |
| Delivery | 3 Working Days |
| The Crust Material | Plastic |
| Working Environment Temperature | -25℃~+65℃ |
| Manufacturer | Yes |
| HS Code | 8531801090 |
| Production Capacity | 500000/Month |
| Package Size | 21.00cm * 13.00cm * 6.00cm |
| Package Gross Weight | 1.000kg |

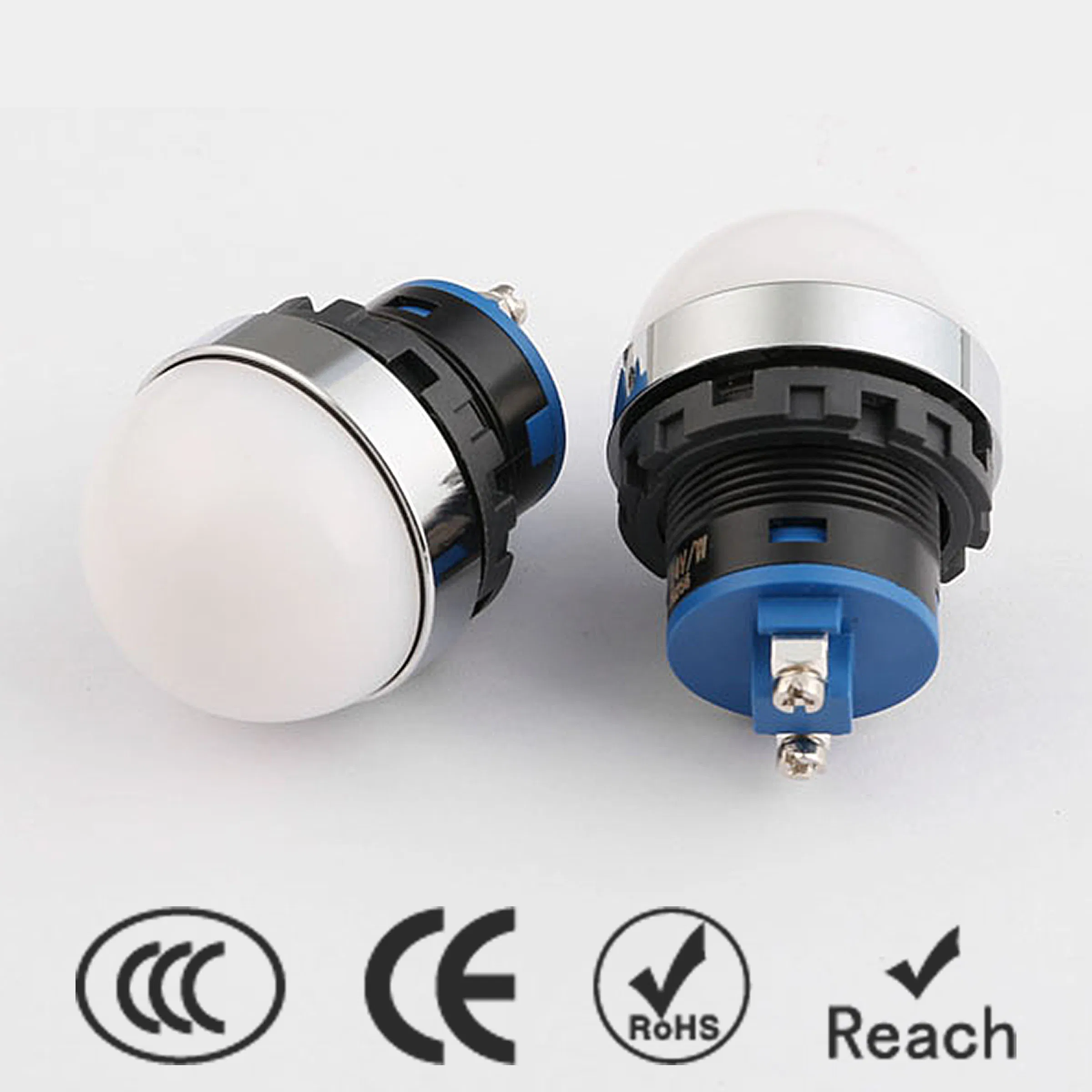

Plastic has a much lower density than metal, significantly reducing overall weight and making it easy to install, transport, or hang for use. Suitable for temporary engineering, traffic diversion, mobile devices and other scenarios that require frequent movement.
Strong resistance to corrosive substances such as acid, alkali, salt, etc., suitable for chemical industry and coastal high humidity environments.
Plastic is non-conductive and safer in places with electric shock hazards such as power facilities and substations.
Low Maintenance Cost: No need for rust prevention treatment, easy cleaning, high cost-effectiveness for long-term use. High quality engineering plastics have better impact resistance than glass, are less prone to breakage, and are more reliable in vibration or accidental collisions.
Energy Efficiency: Multiple LED lights are available, with large ball heads and high brightness to meet different styles and voltages. Plastic casing has lower heat dissipation requirements and can reduce energy consumption. Long term use can significantly reduce electricity costs, especially suitable for outdoor scenes powered by solar energy.

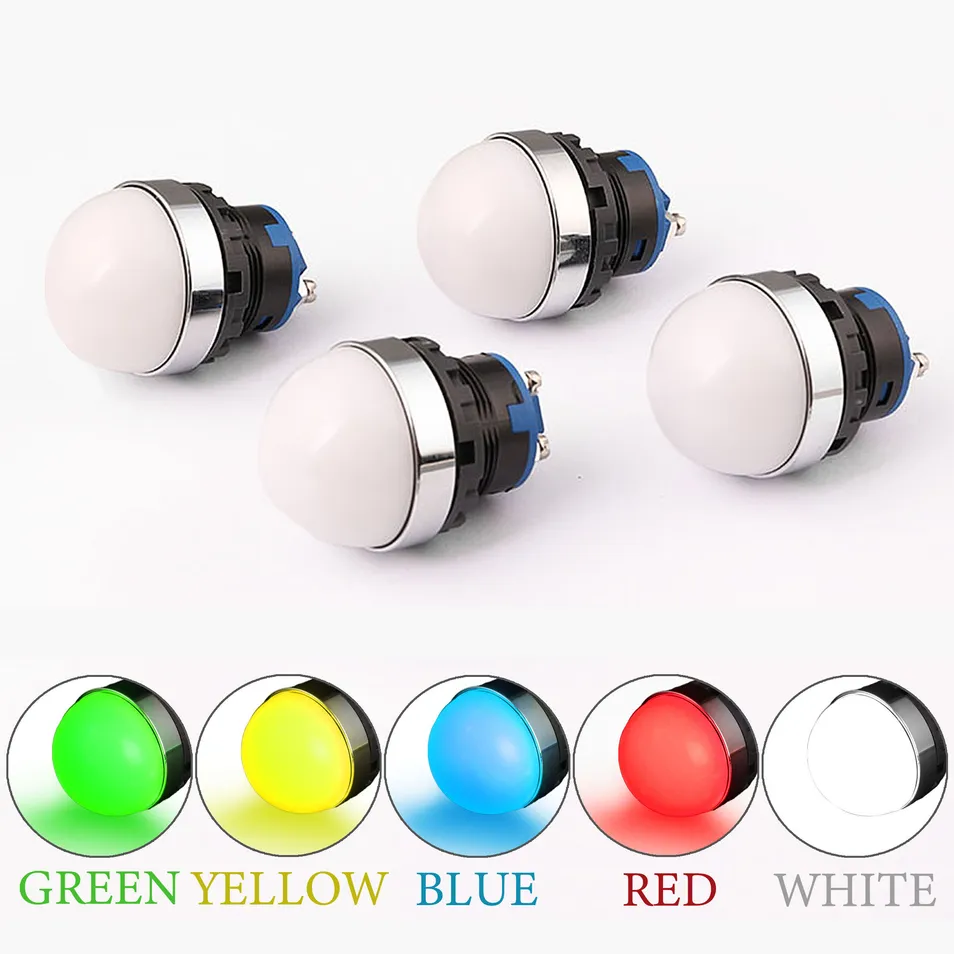

Supports making multi-color head

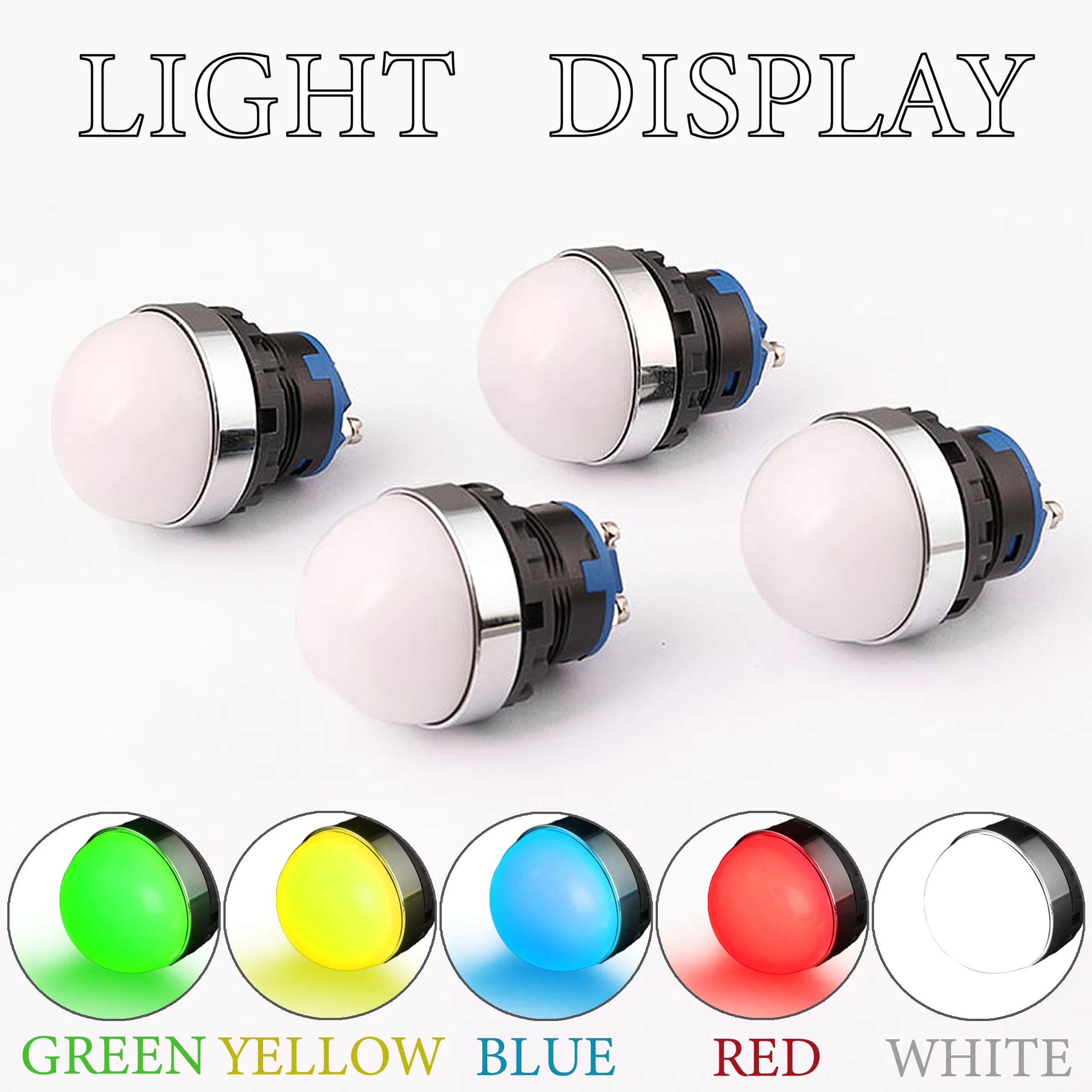

Head color selection: Red / Green / Blue / Yellow / White
Mounting hole size: 22mm / 0.866in mounting hole size

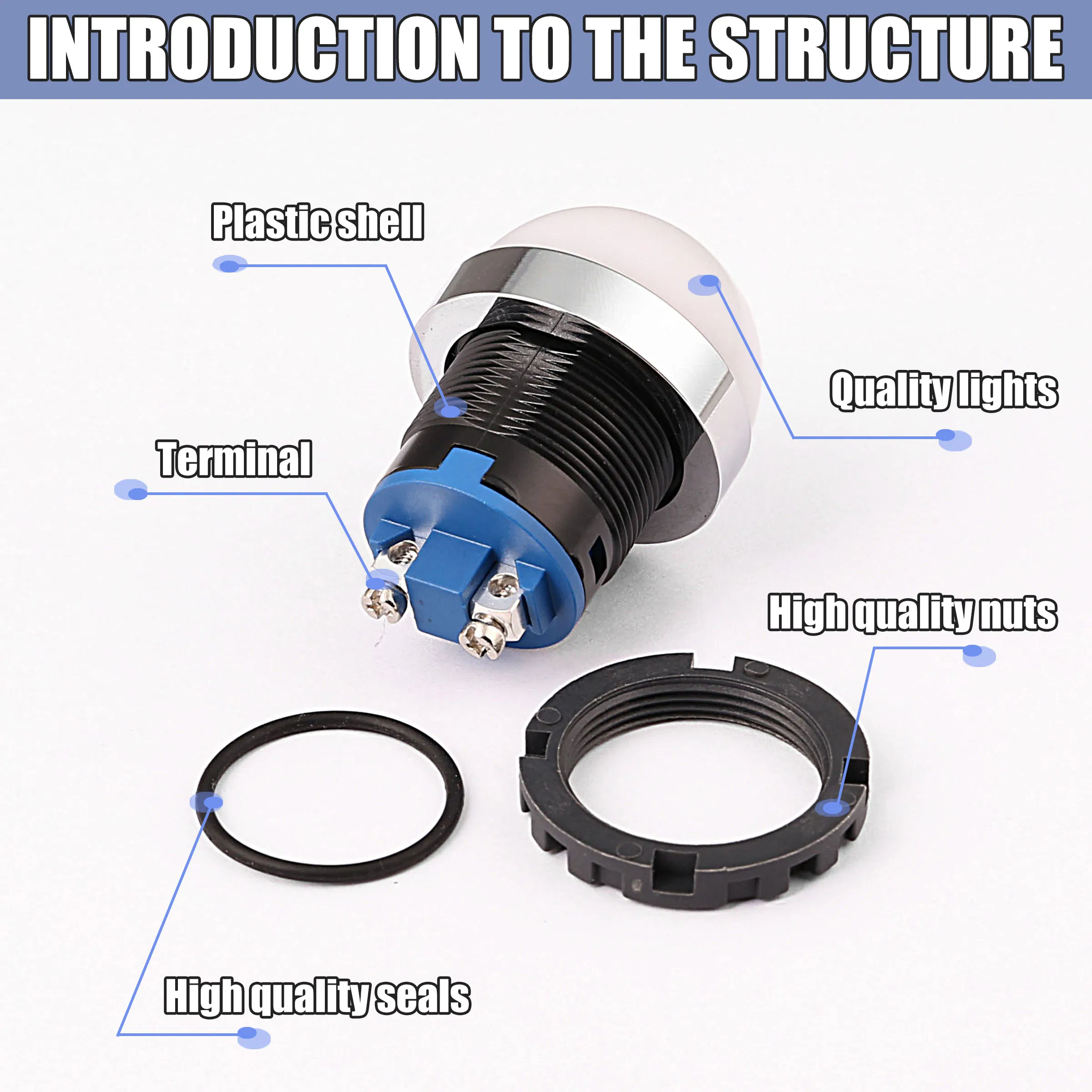

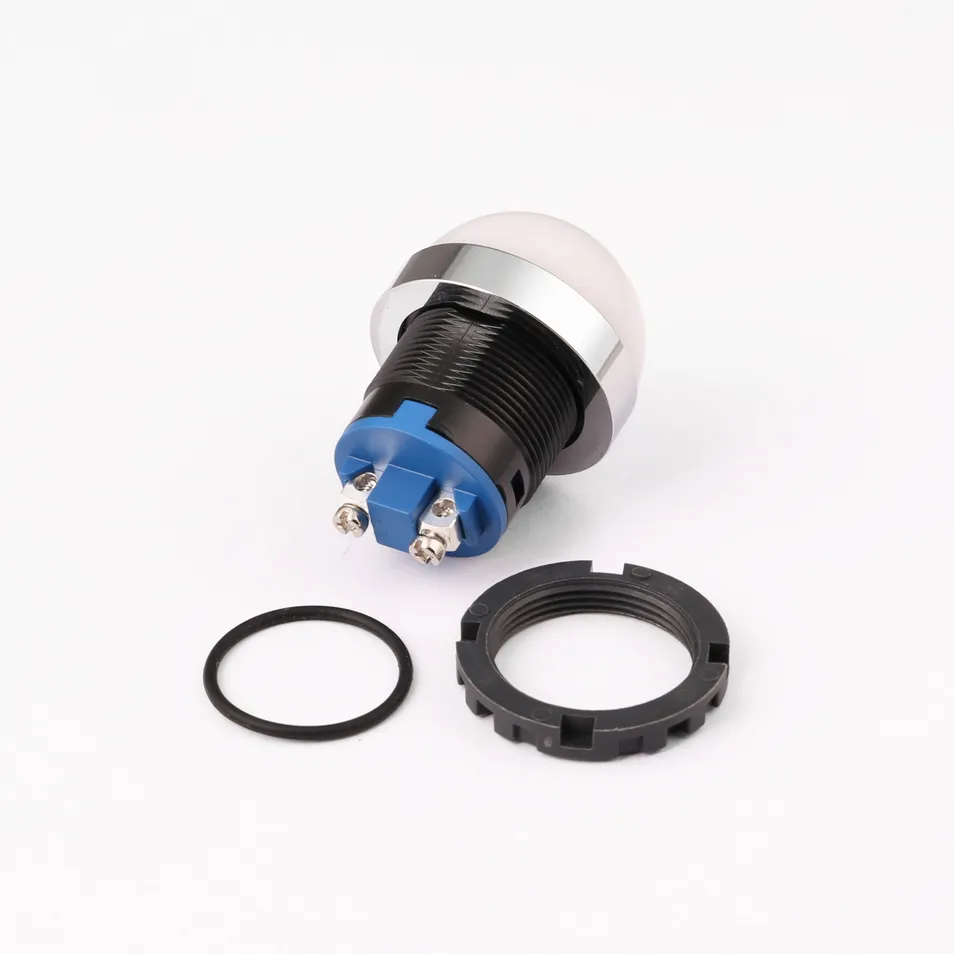

Structure: Matching O-ring + Nuts
Panel thickness: 5mm MAX
Tightening torque: About 0.6mm
Rating: IP65
First Digit (Solids): 6 (Dust-tight)
Second Digit (Liquids): 5 (Protected against low-pressure water jets from any direction with 6.3mm nozzle, 12.5L/min for no less than 3 minutes).
Rated voltage: 6V / 12V / 24V; 110V / 220V
Rated current: ≤20mA
Lamp bead life: 50,000 hours
| Series Number: HB16 (Standard Structure / Big Domed Options) | ||
|---|---|---|
| Neck Mounting Dimensions | Ø8mm, Ø10mm, Ø12mm, Ø16mm, Ø22mm, Ø30mm | Specific standard dimensions |
| Auxiliary Code |

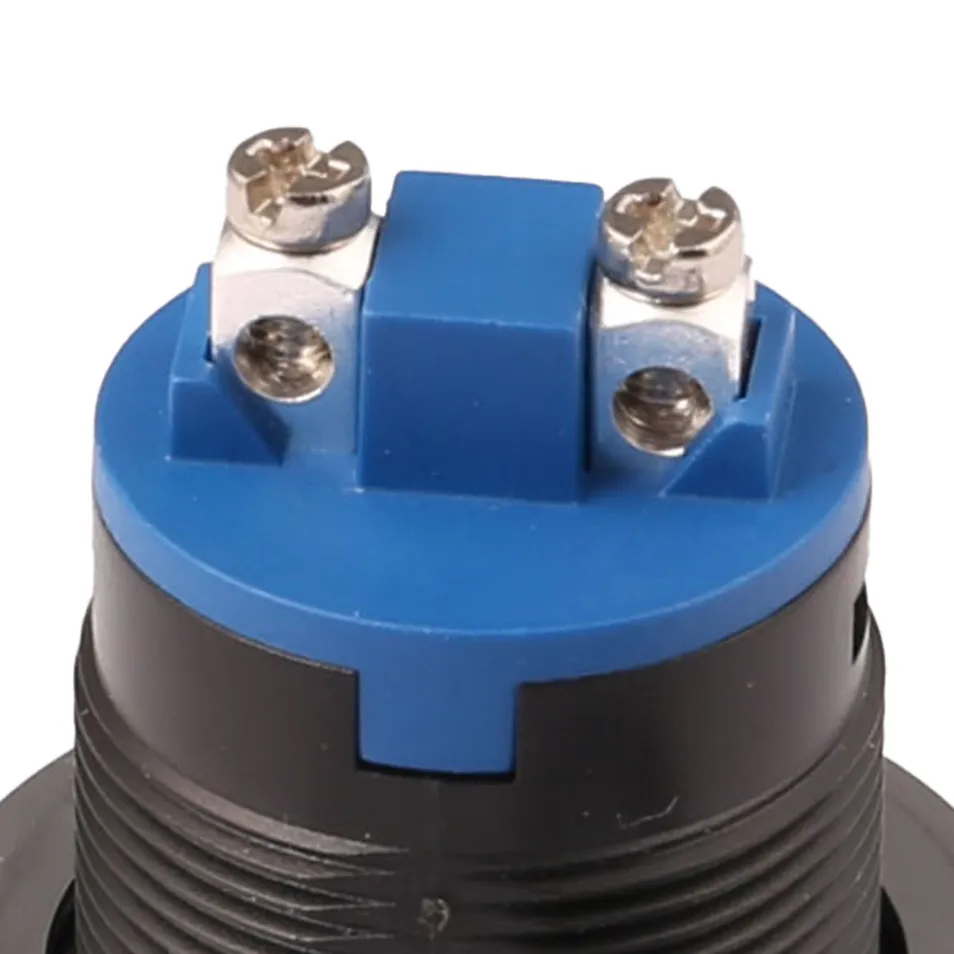

A: Pin terminal D: Screw terminal DG: Big domed SM: Flashing indicator D/B: Bi-colour LED |
Configuration types |
| Form of Structure |
No letters: Standard structure S: Ultra-short structure |

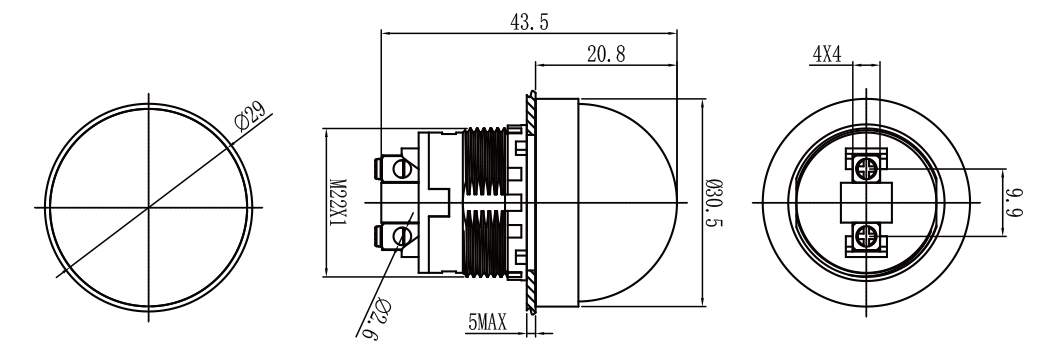

Physical dimensions |
| LED Voltage | 6V / 12V / 24V / 36V; 110V / 220V | Other voltages can be customized |
| LED Color |
R: Red G: Green Y: Yellow O: Orange B: Blue W: White |
Color options |

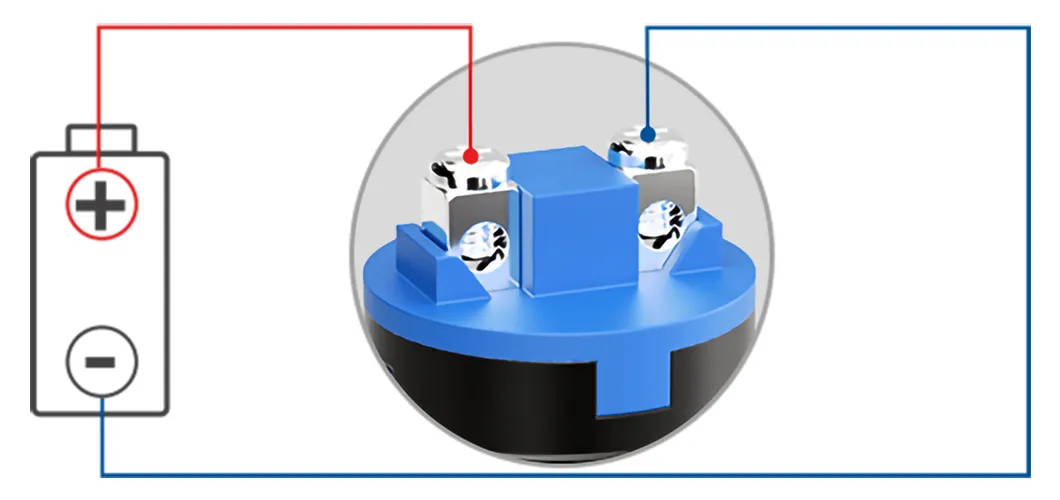

Instruction: When powered on, it lights up without distinguishing between positive and negative poles.

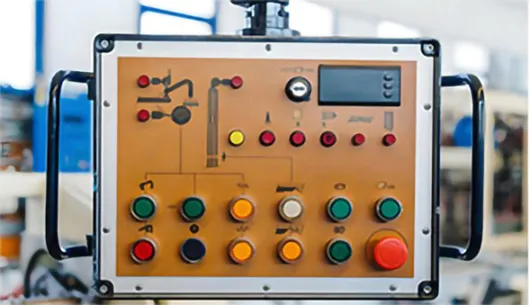

Industrial Automation Equipment

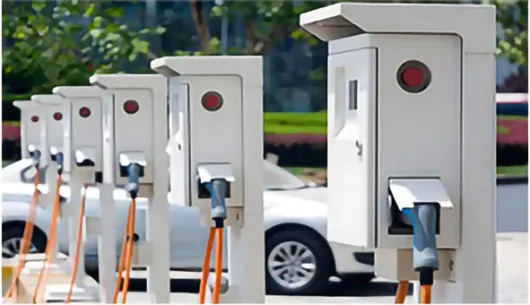

New Energy EV Charging Stations

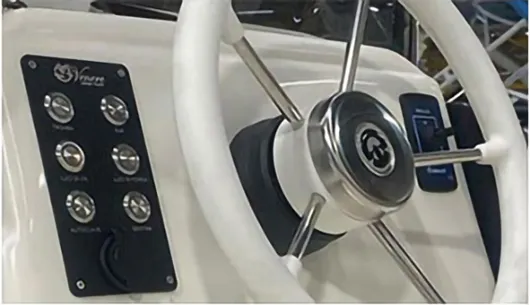

Marine & Offshore Engineering

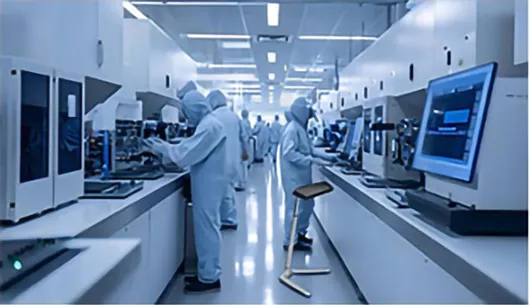

Lab & Testing Equipment

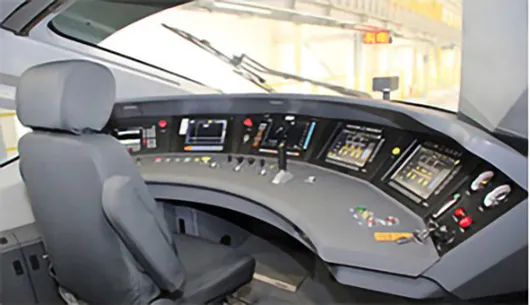

Rail Transit Systems

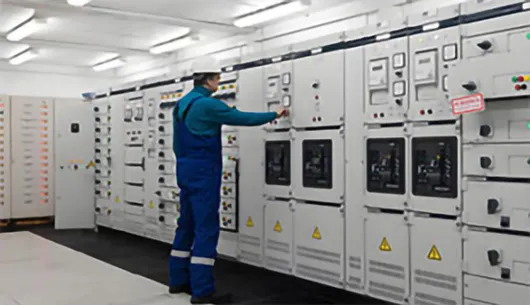

Power Control Cabinets & Distribution

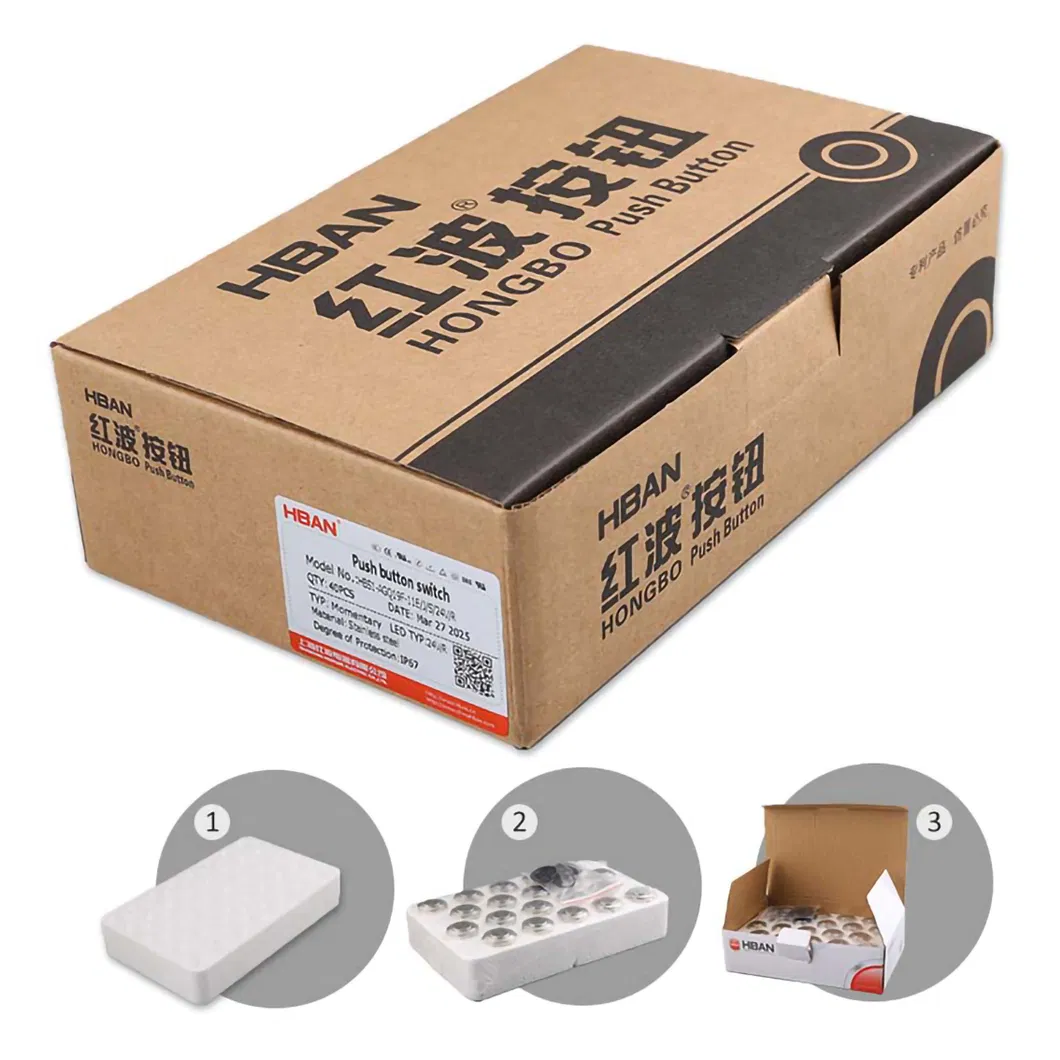

Package Quantity: 20pcs/box (Including 20pcs O-ring)
