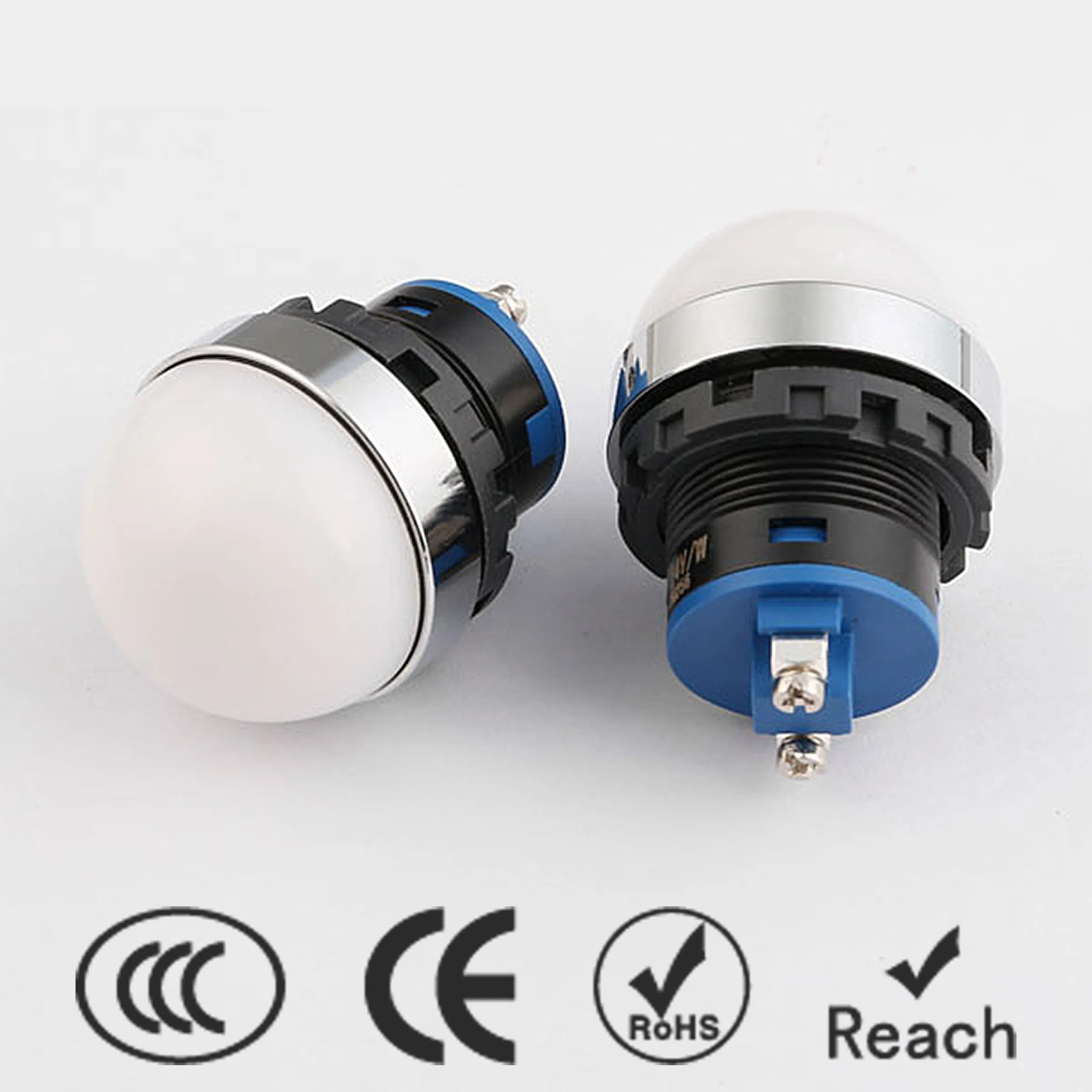

EV Light
1 / 5
| Basic Info | Specifications |
|---|---|
| Model NO. | HB16-22DG |
| The Crust Material | Plastic |
| Working Temperature | -25℃~+65℃ |
| HS Code | 8531801090 |
| Production Capacity | 500,000/Month |

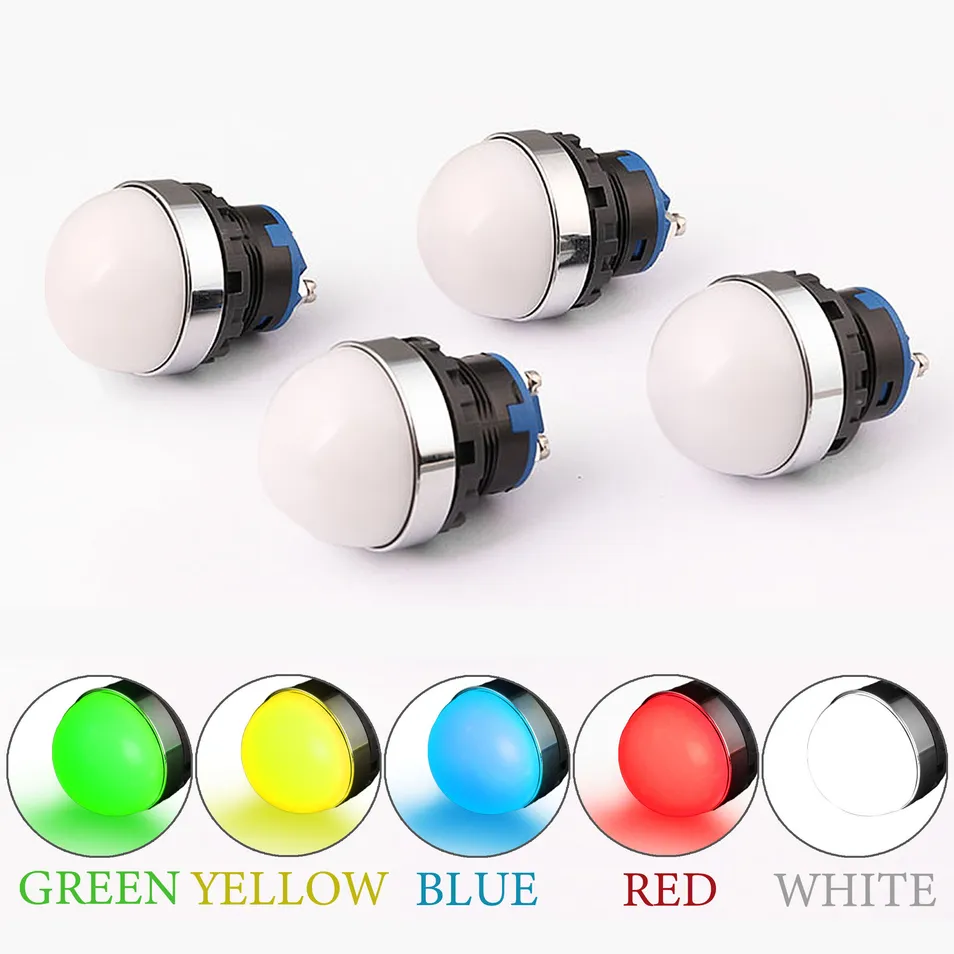

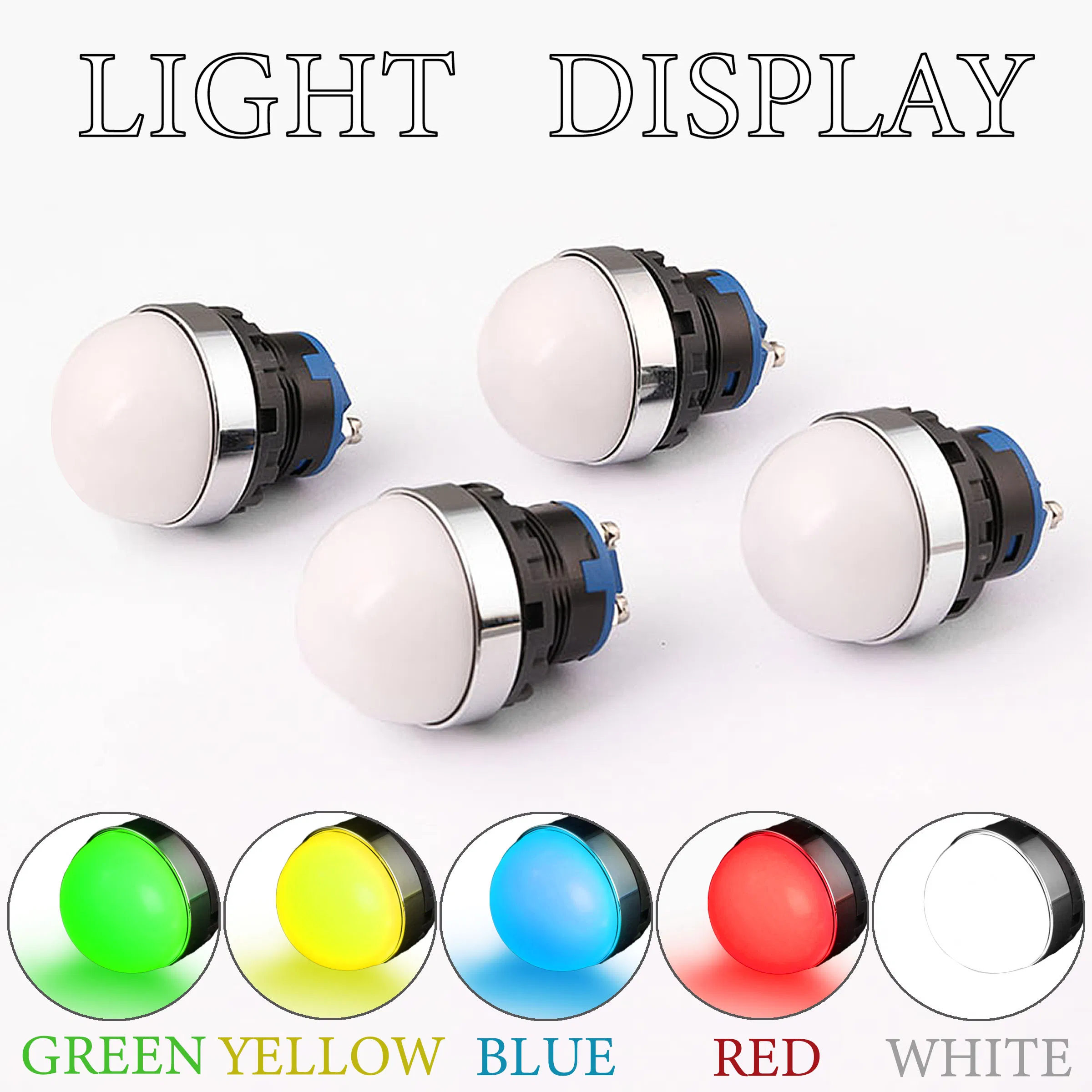

Color Selection:
Red / Green / Blue / Yellow / White (Supports multi-color head)

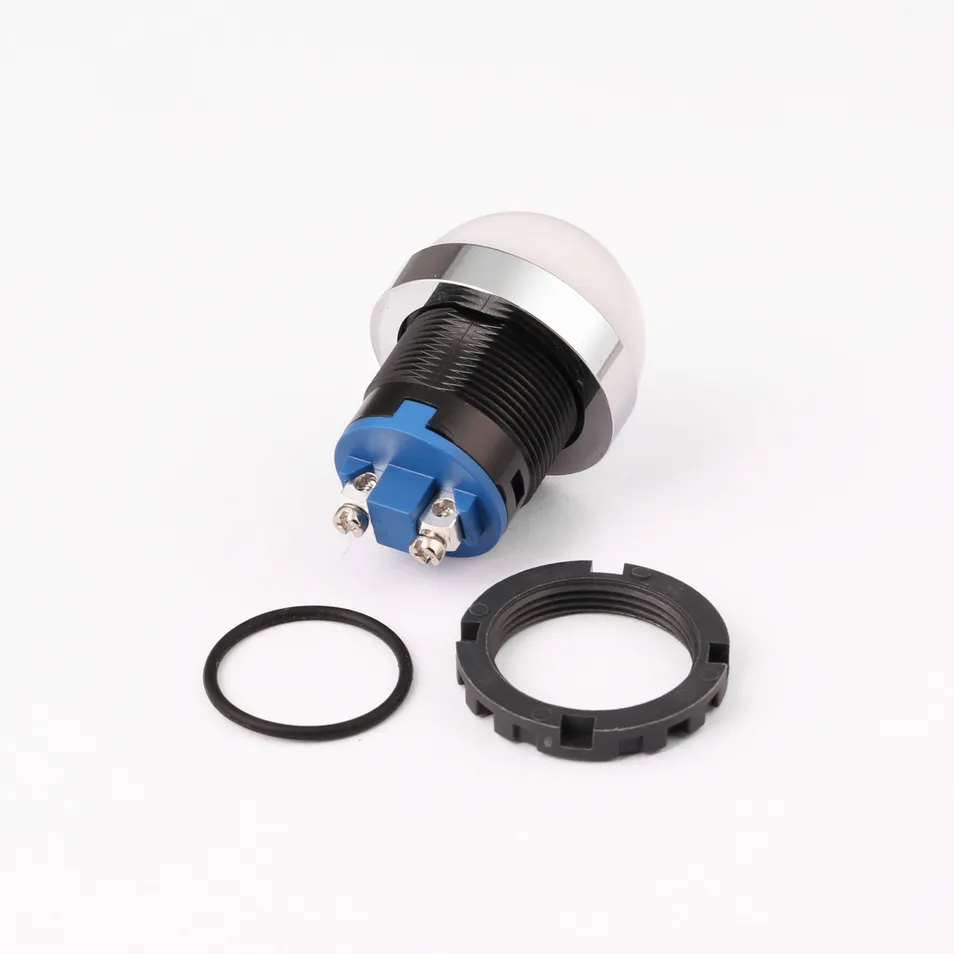

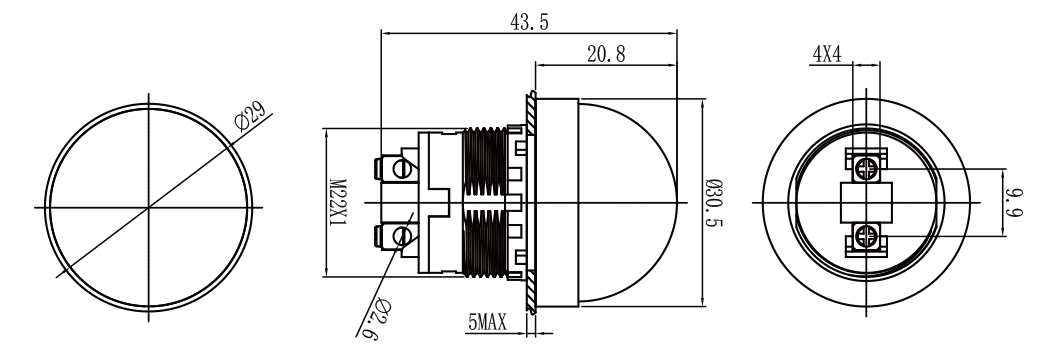

Installation:
Mounting hole size: 22mm / 0.866in
Panel thickness: 5mm MAX
Tightening torque: About 0.6mm
Performance:
IP Rating: IP65 (Dust-tight & Waterproof)
Rated Voltage: 6V/12V/24V; 110V/220V
Lamp Life: 50,000 hours
| Series | Neck Mounting | Auxiliary Code |
|---|---|---|
| HB16 | 8: Ø8mm, 10: Ø10mm, 12: Ø12mm, 16: Ø16mm, 22: Ø22mm, 30: Ø30mm | A: Pin, D: Screw, DG: Big domed, SM: Flashing, D/B: Bi-colour |

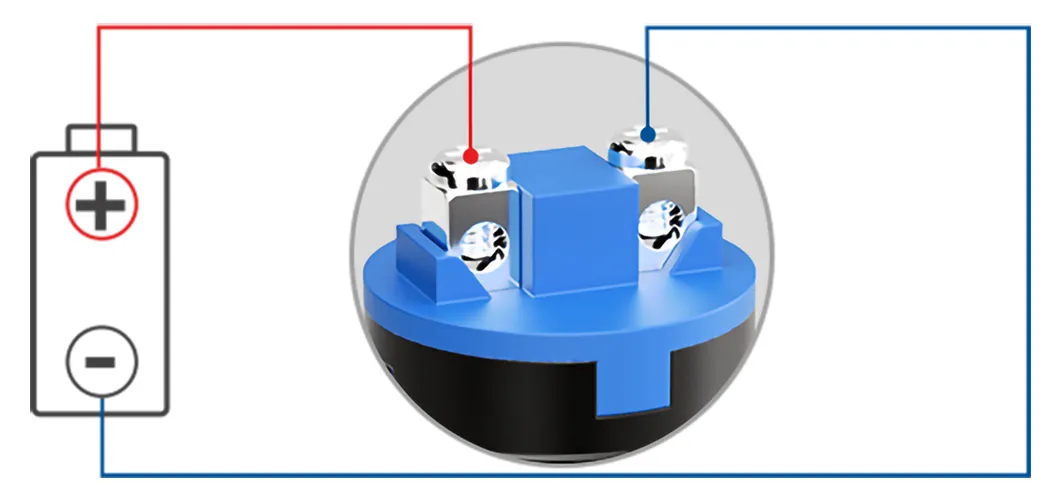

Note: When powered on, it lights up without distinguishing between positive and negative poles.

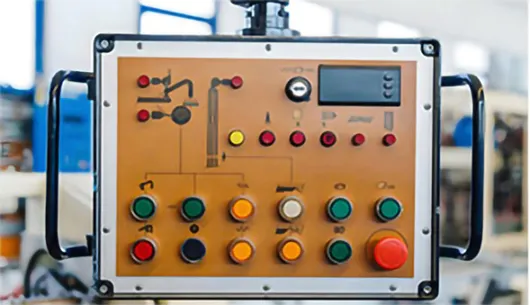

Industrial Automation

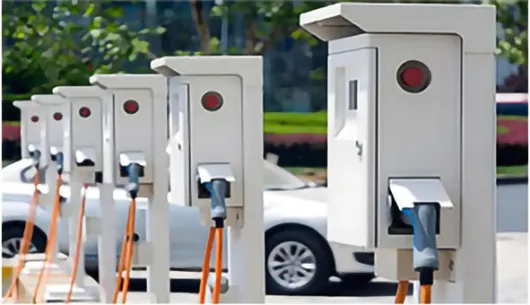

EV Charging Stations

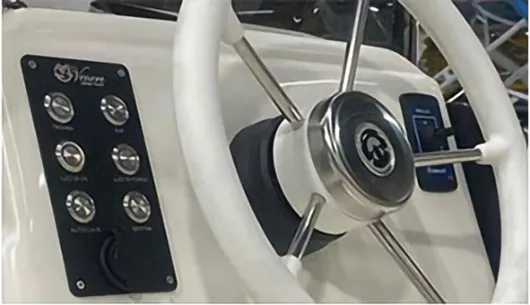

Marine Engineering
Lab & Testing Equipment

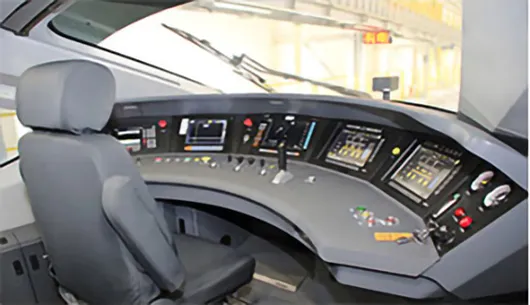

Rail Transit Systems

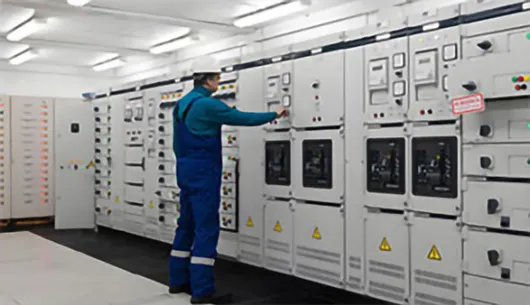

Power Distribution
Standard Packaging:
20pcs/box (Including 20pcs O-ring). Separate foam boxes are used to prevent collision during transport.
Shipping Details:
Global shipping available. Items are generally shipped within 3-7 business days upon receipt of payment.
