Model NO.
F10
Model
Hxyb-a
Multiple Voltage Options
48/60/72V
Operating Voltage
+/–25% of Nominal Voltage
Operating Temperature
–40°c to +85°c
Storage Temperature
–40°c to +85°c
Quality
Excellent
Model Type
Hour Meter
Transport Package
Carton/Pallet
HS Code
8714100090

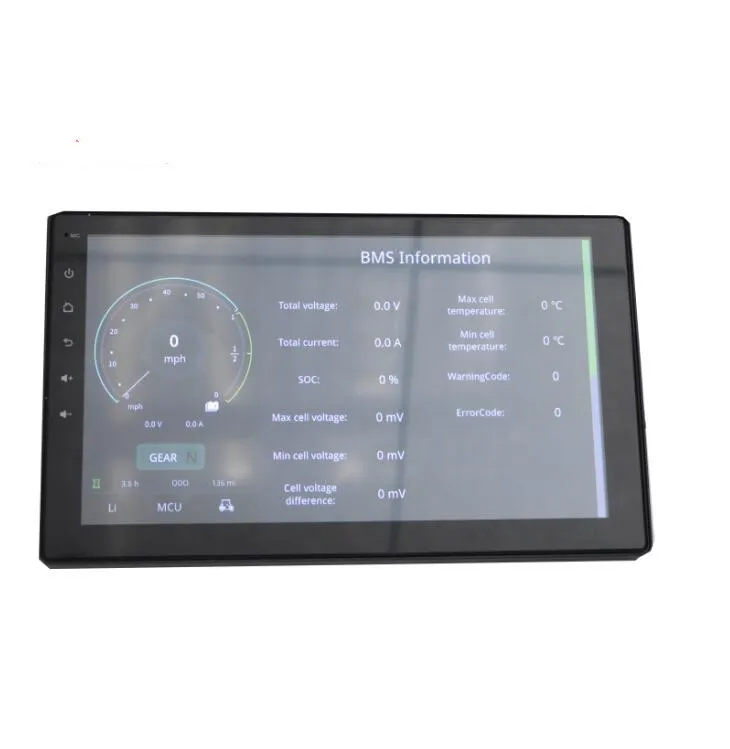

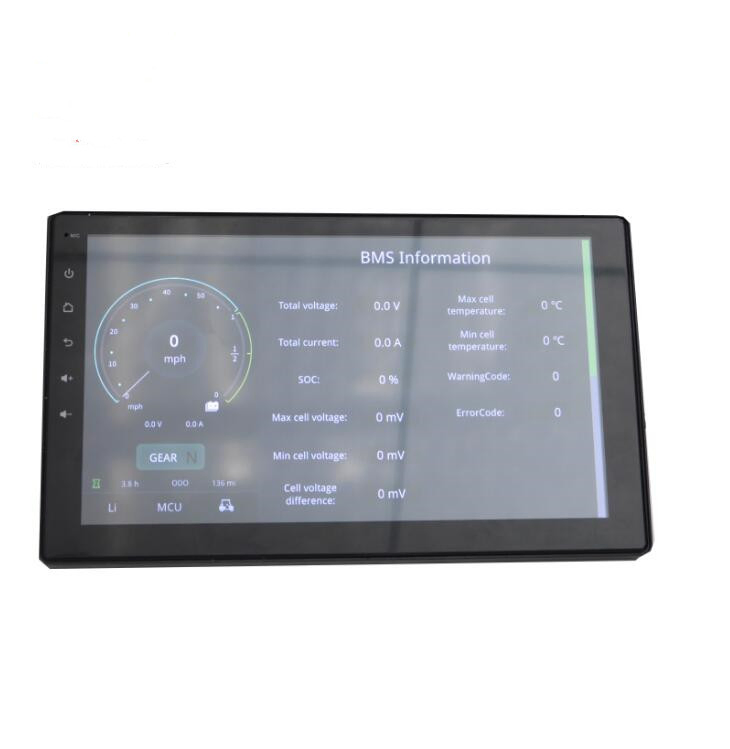

Overview
Not only do coulomb meter accurately displays the capacity of battery charge with the way of real-time detection, it also can be shown by LED on a scale of 1 to 10 in red as well.
It typically adopts booting test mode, showing the 10th unit bar from the left if battery power is full, otherwise it will displays the scales of last power-off state, and then it will successively indicate the 9th and 8th etc. from the left along with the battery power going down. During power indicator in critical alarm, it will fluctuate between 1st and 2nd unit bar, accompanied by the indicator shining back and forth. The indicator of panel alarm is able to flicker, while there is only one unit bar shining from the left.

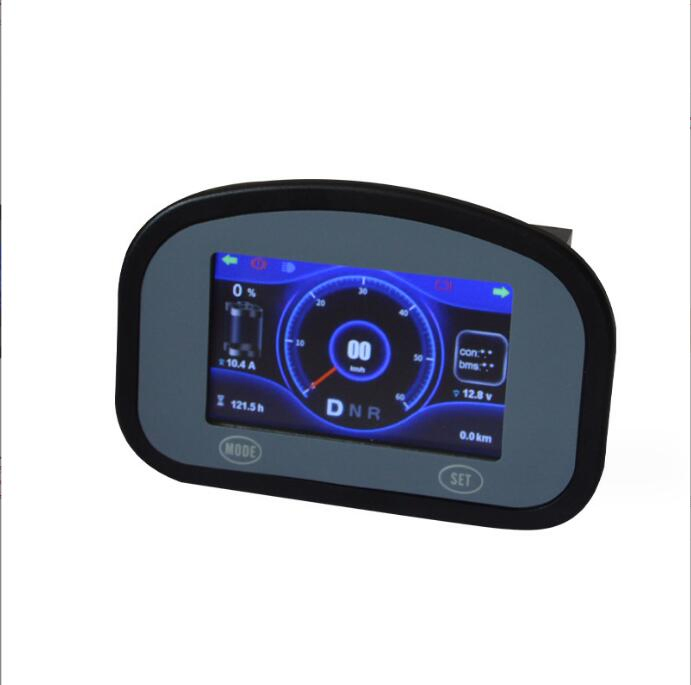

Hour Meter Function
Hour meter commence timing after power on, recorded as 0.1H for every 6 minute, along with function of accumulative memory. It is real-time display without shutdown and the maximum error is usually within 5 seconds. Besides, the maximum error of shutdown memory is actually controlled by within 1 minute.

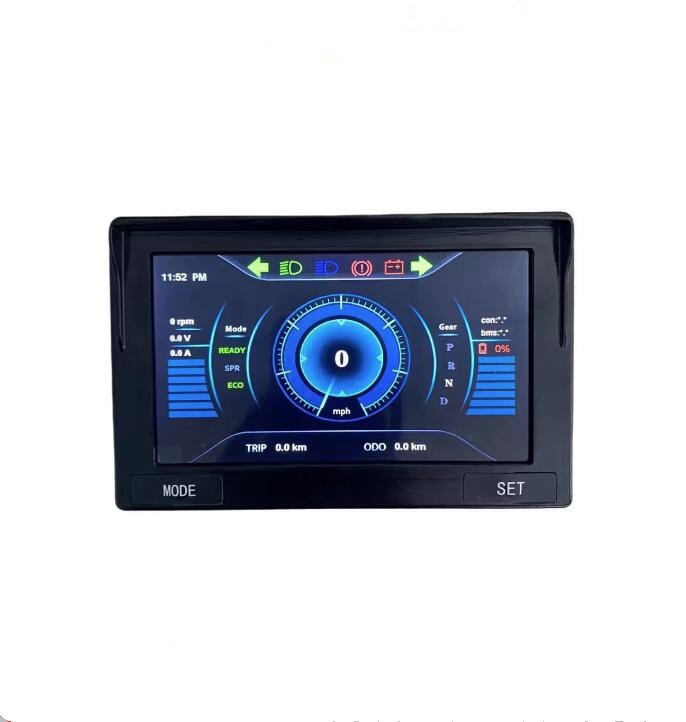

Signal Lamp Indicators
- Left-turn signal lamp (Green)
- Right-turn signal lamp (Green)
- Forward signal lamp (Green)
- Reversing signal lamp (Green)
- Brake signal lamp (Red)
- Power alarm indicator lamp (Red)
Amp Meter Specifications
AMP meter is displayed by LCD to show real-time load current.
- Indication range: 0 ~ 300 A
- Fluctuation range of Current: < 4A
- Measurement Error: < ±2A
- Connection: Positive signal of current diverter is connected to positive pole of dashboard, meanwhile linking both of their negative poles together.
Frequently Asked Questions
QWhat voltage configurations does the F10 model support?
The device features multiple voltage options, supporting 48V, 60V, and 72V configurations with an operating voltage range of +/-25% of the nominal voltage.
QHow does the critical power alarm system notify the operator?
During a critical power alarm, the LED indicator will fluctuate between the 1st and 2nd unit bars on the scale while shining back and forth. The panel alarm indicator will also flicker when only one unit bar remains lit.
QHow accurate is the built-in hour meter function?
The hour meter tracks timing in increments of 0.1H (every 6 minutes) with accumulative memory. The maximum error is within 5 seconds for real-time display and within 1 minute for shutdown memory retention.
QWhat visual signal indicators are integrated into the dashboard?
The dashboard features six integrated signal lamps: green indicators for Left-turn, Right-turn, Forward, and Reversing signals, alongside red indicators for the Brake and Power alarm systems.
QWhat is the operational limit for the integrated Amp meter?
The integrated LCD Amp meter has a measurement indication range of 0 to 300 A. It features a current fluctuation range of less than 4A and a measurement error of less than ±2A.
QWhat are the storage and operating temperature specifications?
This robust unit is designed to withstand harsh industrial environments, featuring both an operating temperature range and storage temperature range from –40°c to +85°c.
