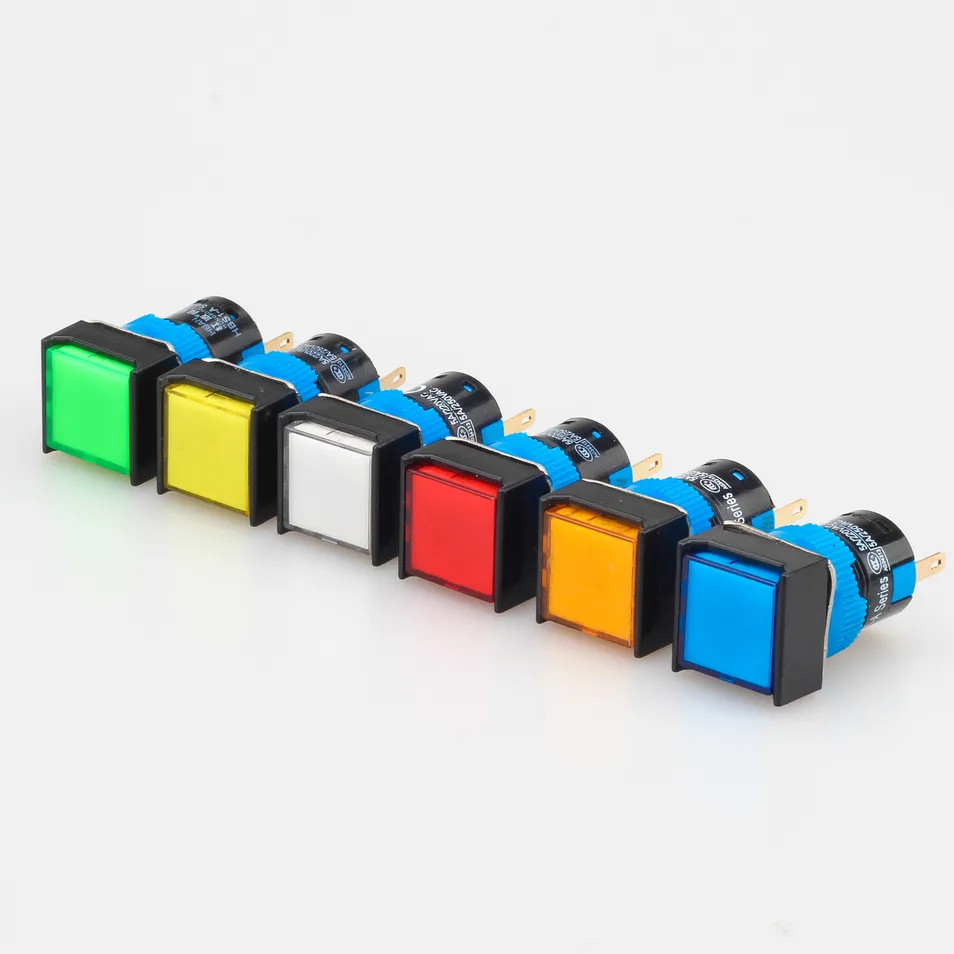

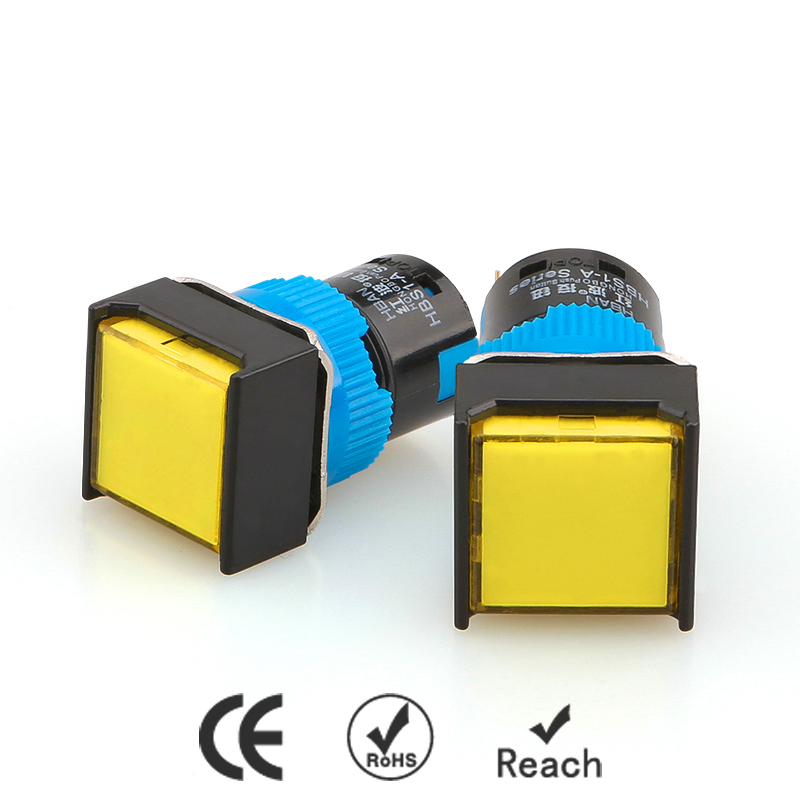

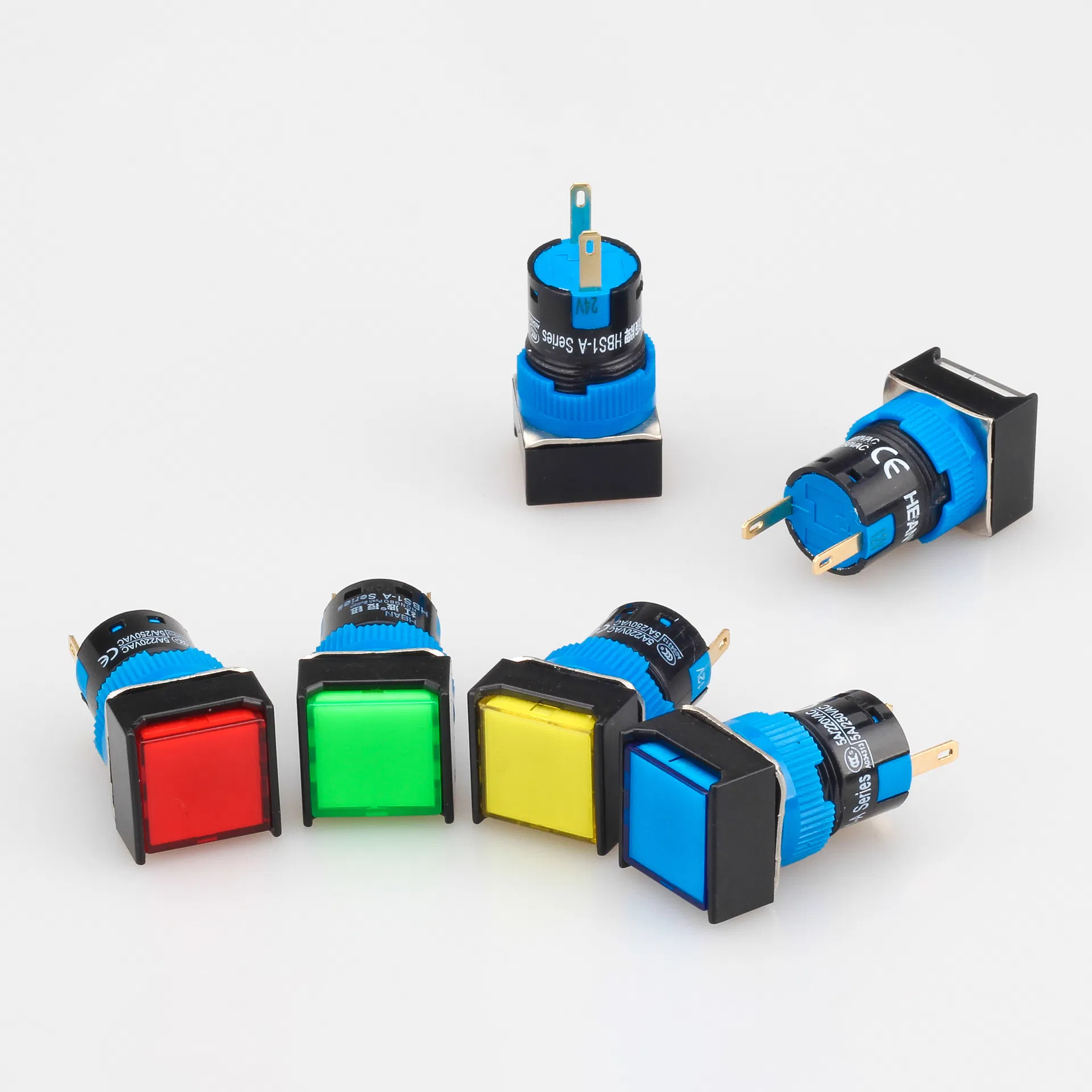

Supports Multi-Color Head Customization:
Available Head Colors: Red, Green, Blue, Yellow, White, Orange.

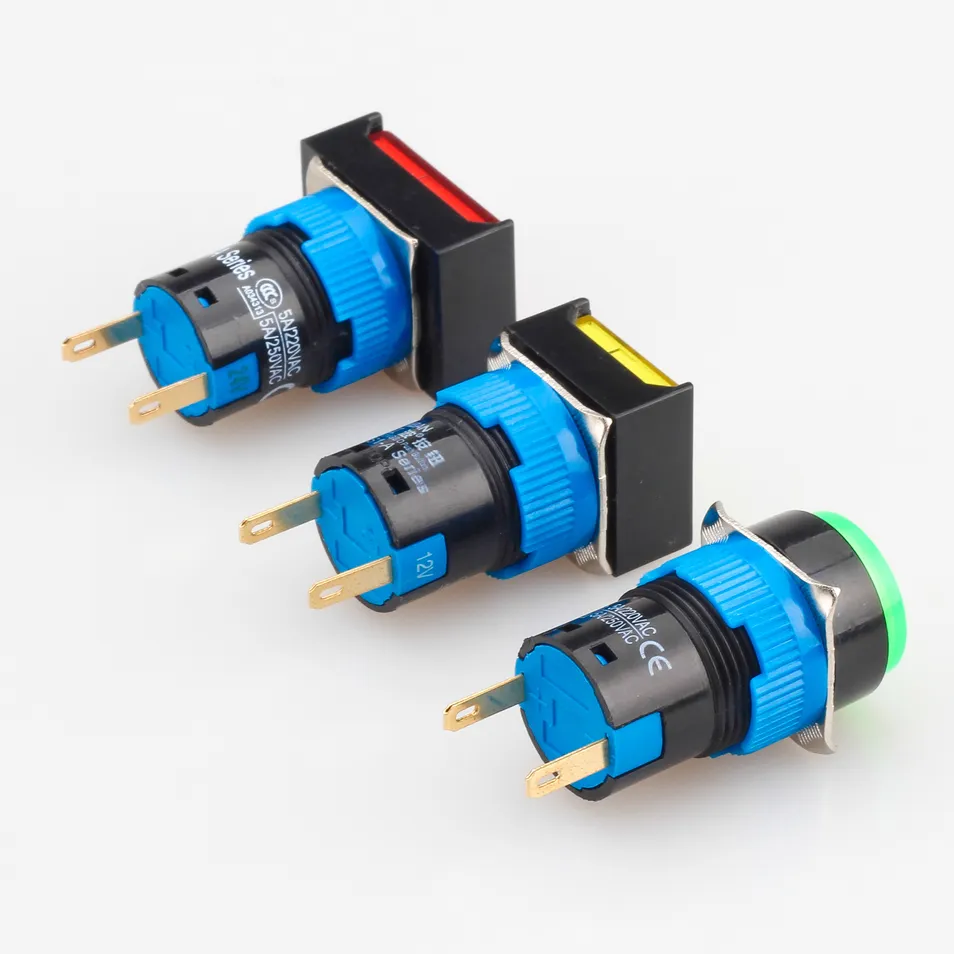

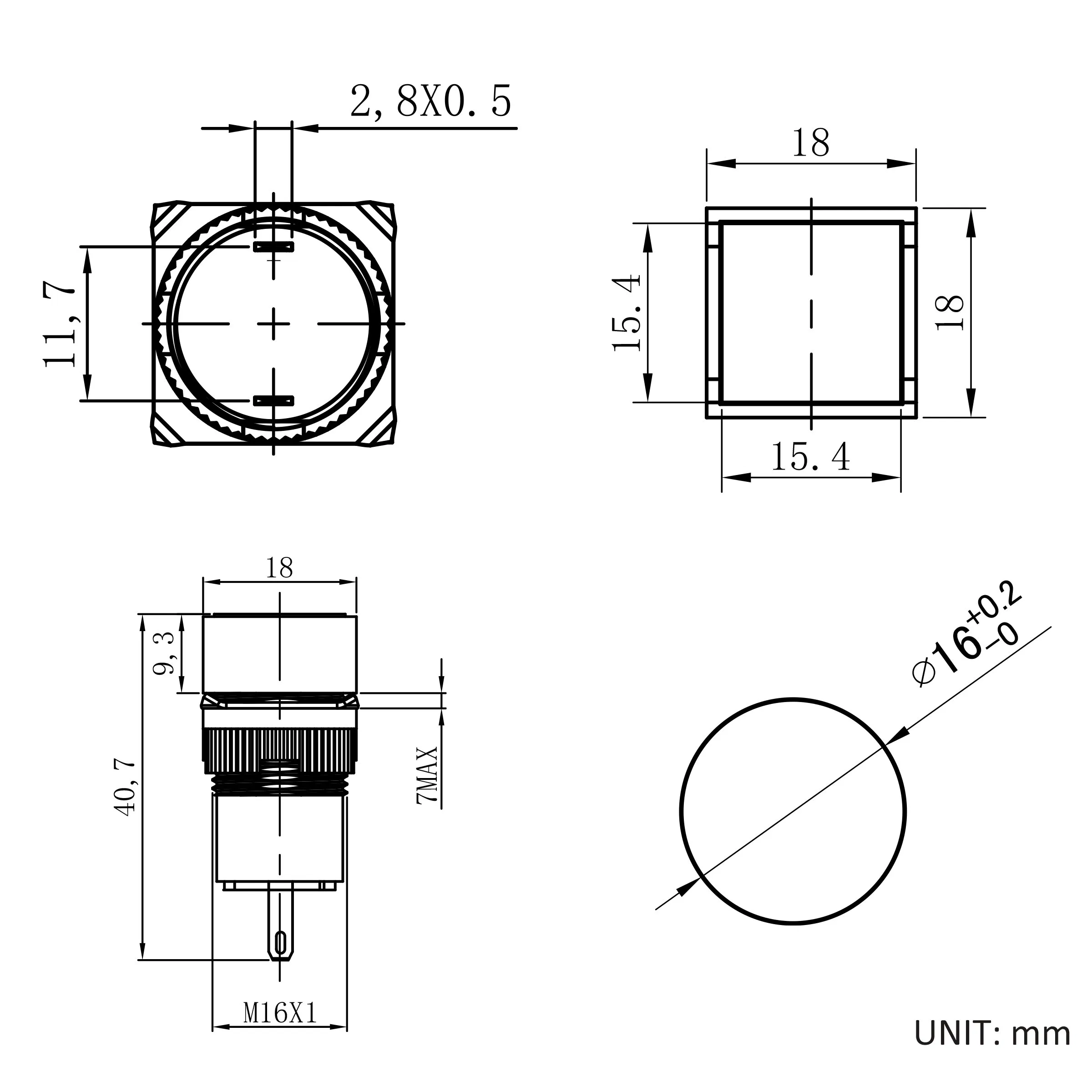

Structured Installation Details:
Mounting Hole Size: 16mm (0.625in)
Structure: Double sealing system including matching O-ring and tightening hex nut.
Panel Thickness Limit: 7mm MAX
Tightening Torque: ~ 0.4Nm

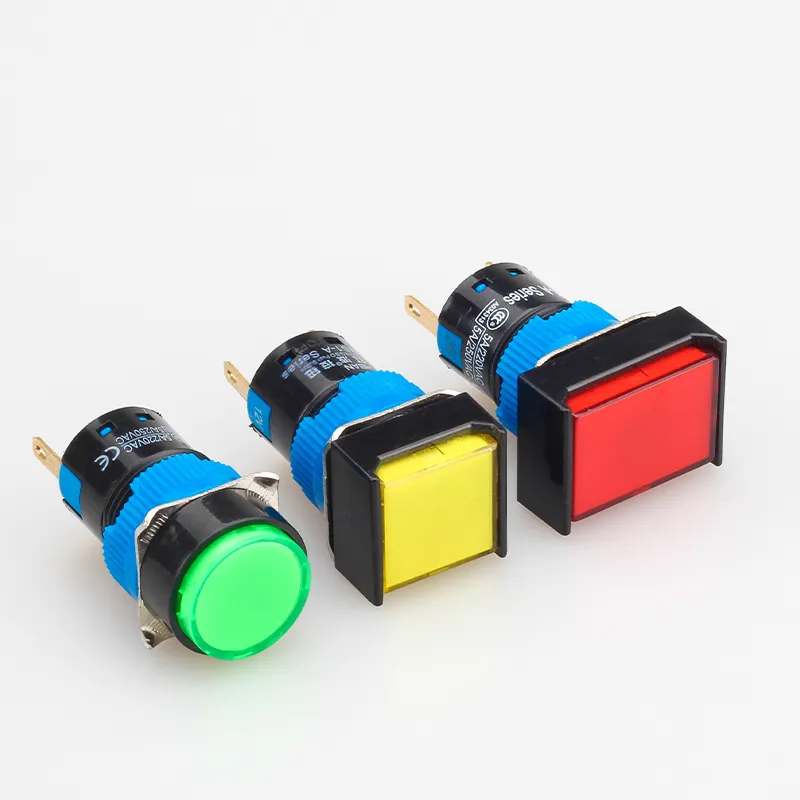

IP65 Dust & Water Jet Protection:
First digit (Solids): 6 (Fully dust-tight protection).
Second digit (Liquids): 5 (Resistant to low-pressure water streams).
Verification standard: Operates normally under continuous exposure to 6.3mm nozzle water spray at 12.5L/min from all directions for at least 3 minutes.
High Reliability and Efficiency:
Rated Operating Voltages: 6V, 12V, 24V, 110V, 220V
Rated Load Current: ≤ 20mA
Operational Lifespan: High performance LED lasts up to 50,000 operational hours.
| Series Identifier: HB16 (This product selection highlighted below) | ||
|---|---|---|
| Neck Mounting Dimensions | 8: Ø8mm | 10: Ø10mm | 12: Ø12mm | 16: Ø16mm | 22: Ø22mm | 30: Ø30mm | Standard configurations |

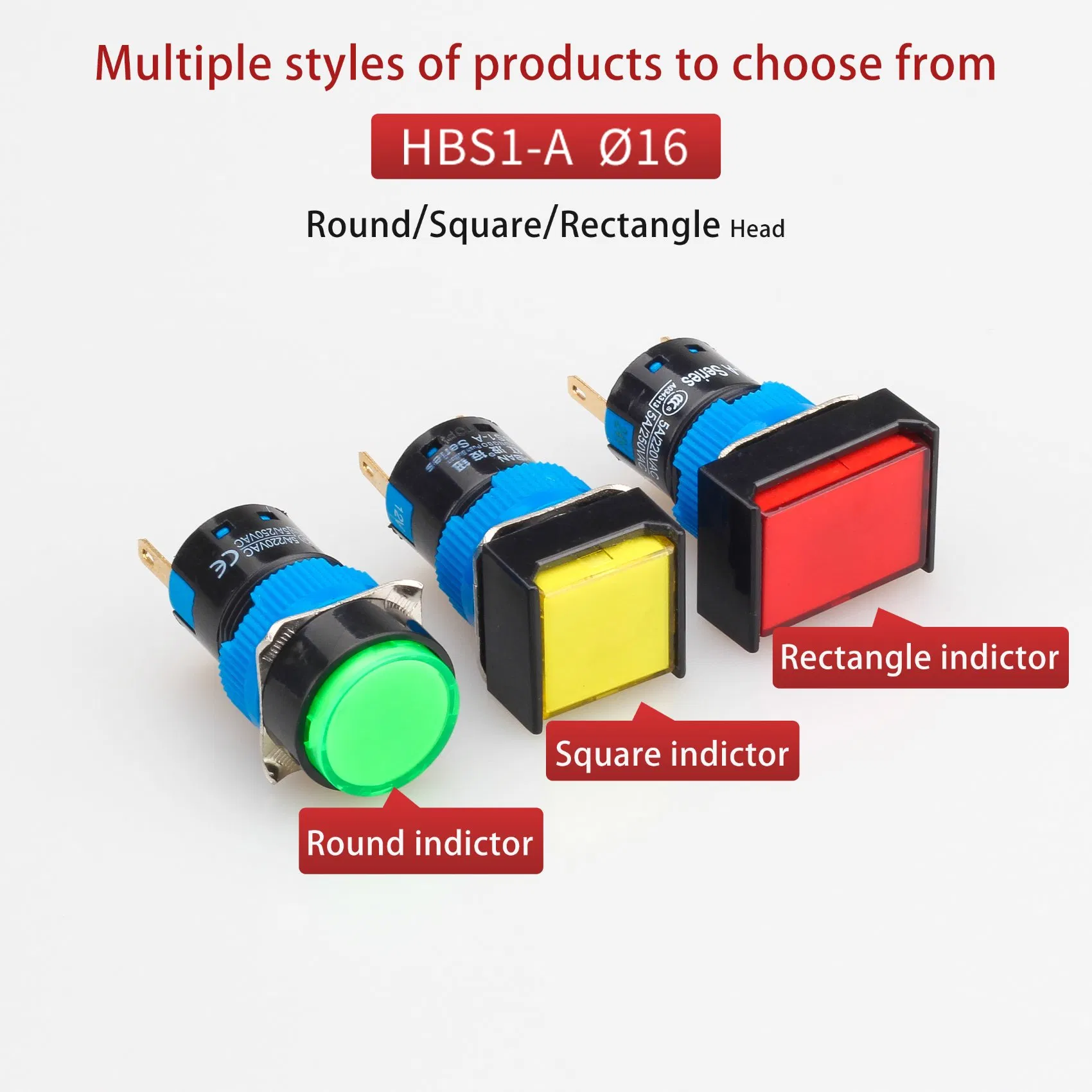

| Head Shape | Y: Round head | F: Square head | J: Rectangle head | Visual options |

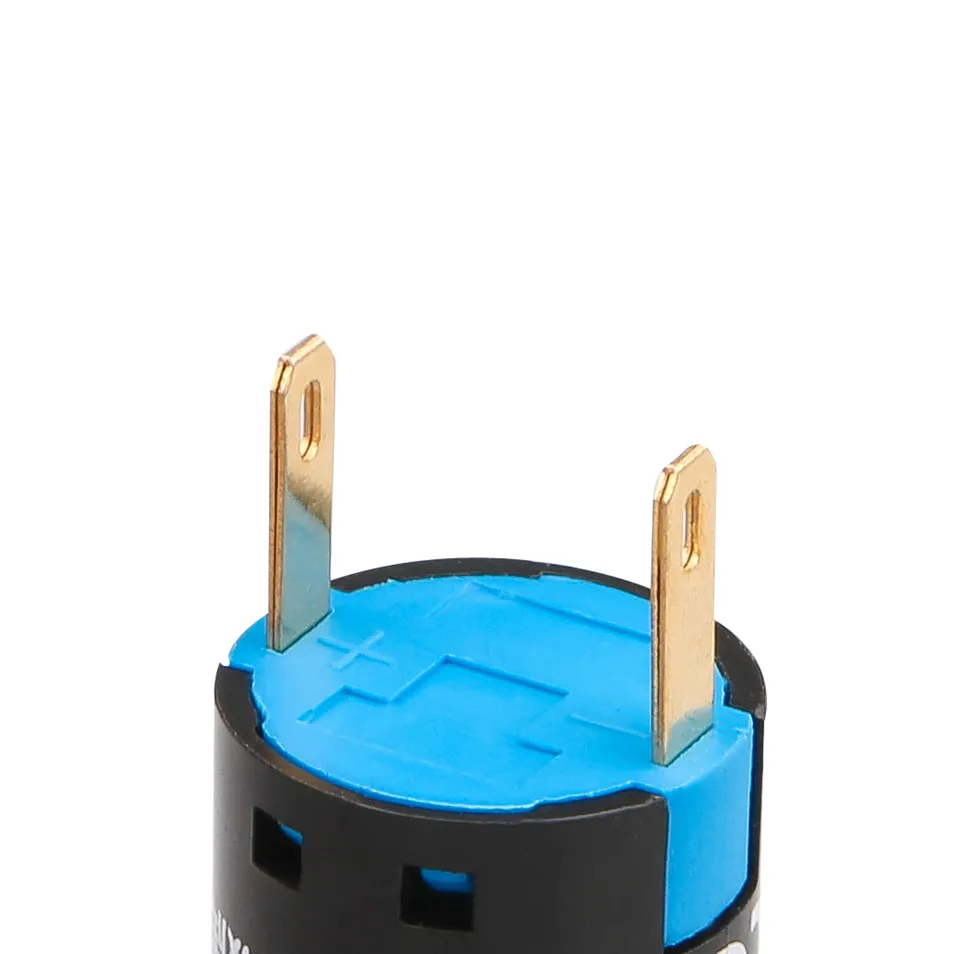

| Terminal Type | A: Pin terminal | D: Screw terminal | Wiring types |
| Structural Profile | No letters: Standard profile | S: Ultra-short profile | Chassis depths |
| LED Voltage | 6V / 12V / 24V / 36V / 110V / 220V | Custom voltages supported |
| LED Color Options | R: Red | G: Green | Y: Yellow | O: Orange | B: Blue | W: White | High visibility output |
Industrial Automation Equipment
New Energy EV Charging Stations
Marine & Offshore Engineering
Lab & Testing Equipment
Rail Transit Systems
Power Control Cabinets & Distribution
Protective Packaging Layout:
Quantity: 40 pcs per box (packaged with 40 matching O-rings).
1. Individual components are placed inside fitted foam compartments to restrict movement and prevent transport collision.
2. The protective foam block is seated inside the outer box.
3. Heavy-duty corrugated cardboard cartons are secured with reinforced strapping bands.
Shipping Terms:
1. Global distribution network capabilities.
2. Dispatch processing: typically shipped within 3 to 7 working days upon invoice payment clearance.
3. Air / Sea carriage transit time estimates: averages 3 to 8 working days depending on destination terminal.
Yes, all products use eco-friendly base materials compliant with international environmental directives, and hold standard RoHS and REACH certification status.
Yes. Detailed structural dimensional files, technical layouts, and CAD schematics can be requested and sent within 24 hours of notification.
Yes, we support comprehensive OEM/ODM custom specifications (including proprietary laser markings, custom enclosures, and lead wire extensions). Minimum order quantities (MOQ) apply based on specifications.
We process payments through T/T (Telegraphic Transfer/Wire Transfer), standard credit card, and PayPal. Payment sums must align exactly with the finalized pro forma invoice total.
Items are packaged within individual foam cutouts inside heavy-duty corrugated cartons secured with industrial strapping bands. Shipments are handled via DHL, UPS, and FedEx, supporting both express air freight and cargo sea freight options.
All standard component orders include a 1-year product warranty covering structural integrity and circuit operations.
