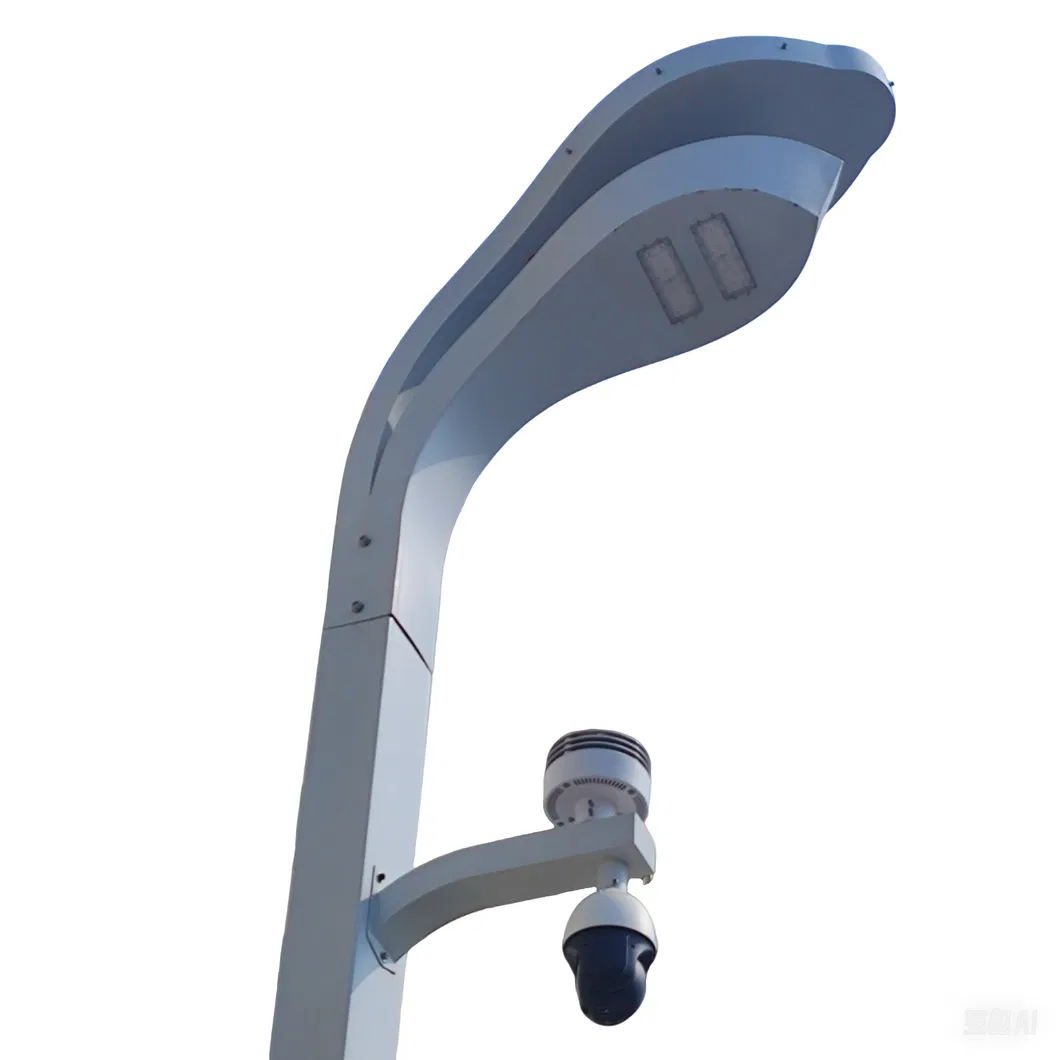

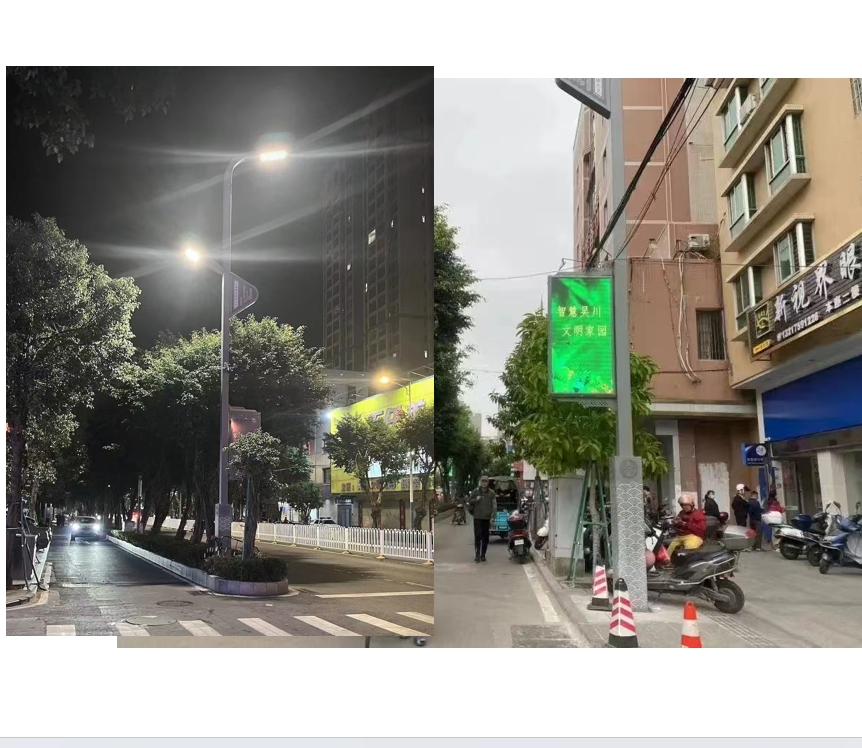

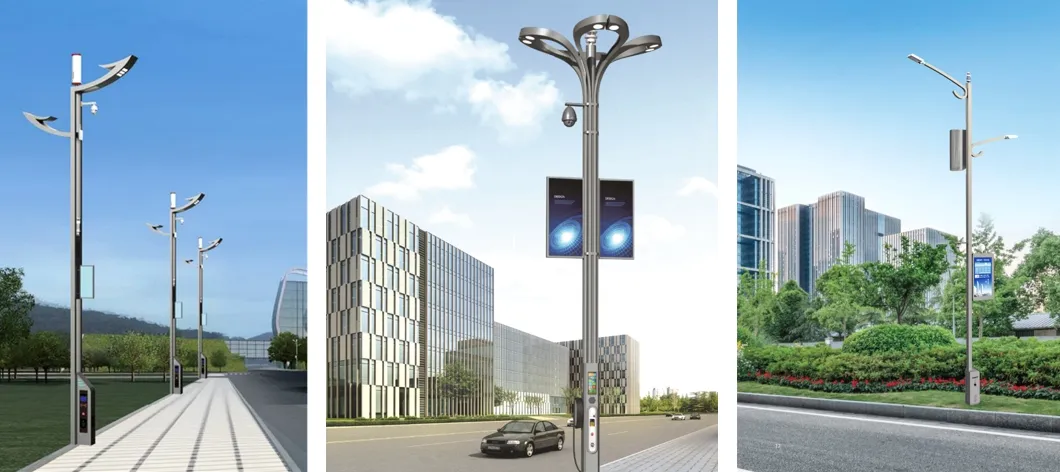

Smart streetlights are public lighting fixtures equipped with sensors, wireless connectivity, and advanced technologies to interact intelligently with their surroundings, optimizing energy consumption, enhancing safety, and providing data for city management.

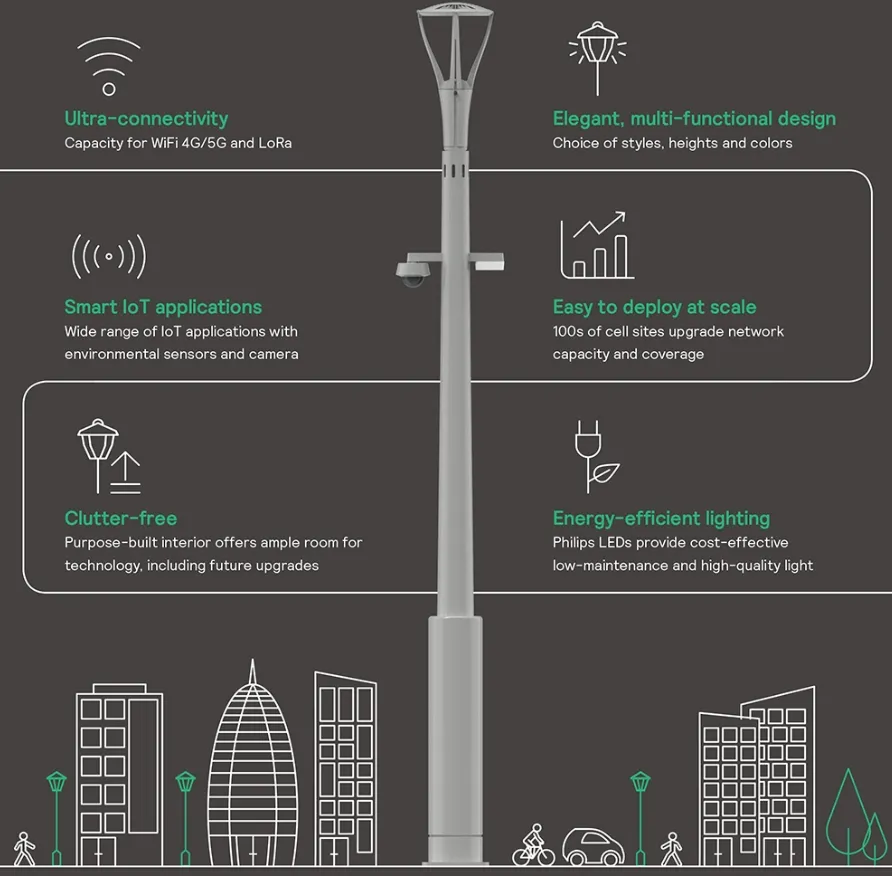

Smart street lights are often integrated with the Internet of Things (IoT) to communicate with other devices and systems, allowing for remote monitoring and control.
Smart street lights can dynamically adjust their brightness and patterns based on real-time conditions, such as traffic flow, pedestrian activity, and weather.
By optimizing lighting levels and using energy-efficient LED technology, smart streetlights can significantly reduce energy consumption and costs.

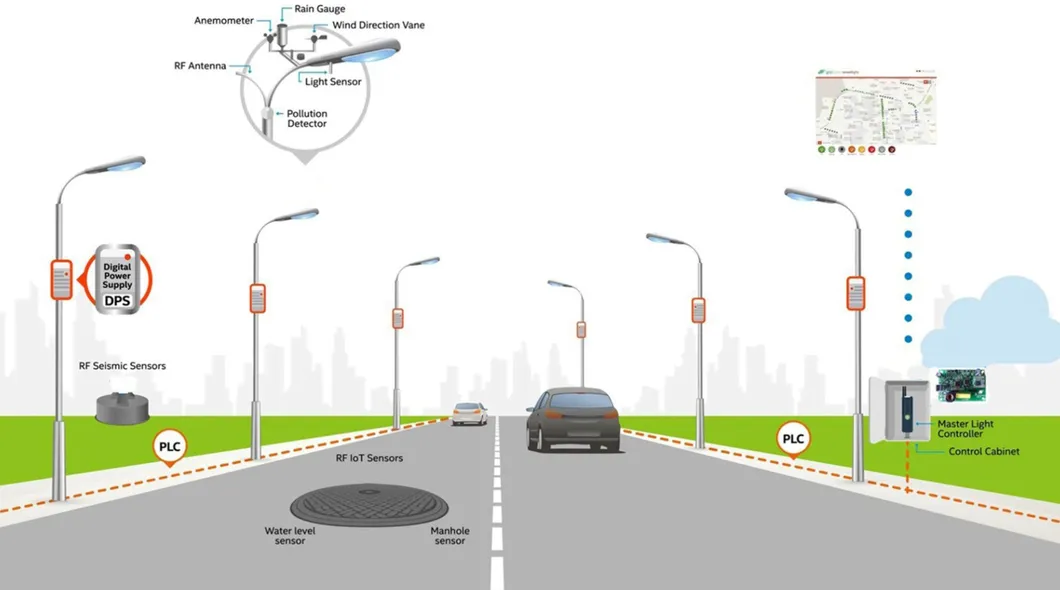

Smart streetlights can collect valuable data on traffic patterns, pedestrian activity, air quality, and other environmental factors, which can be used to improve city planning and management.
Smart streetlights can be remotely controlled and monitored, allowing city officials to quickly respond to issues and optimize lighting performance.
Dynamic lighting and enhanced visibility can improve safety for pedestrians and drivers.
Optimized lighting and energy-efficient technology can significantly reduce energy costs and carbon emissions.
Remote monitoring and control can help identify and address issues quickly, reducing maintenance costs.
Data collected by smart streetlights can be used to improve city planning and management, leading to more efficient and livable cities. By enhancing safety and reducing energy consumption, smart streetlights improve overall citizen satisfaction.

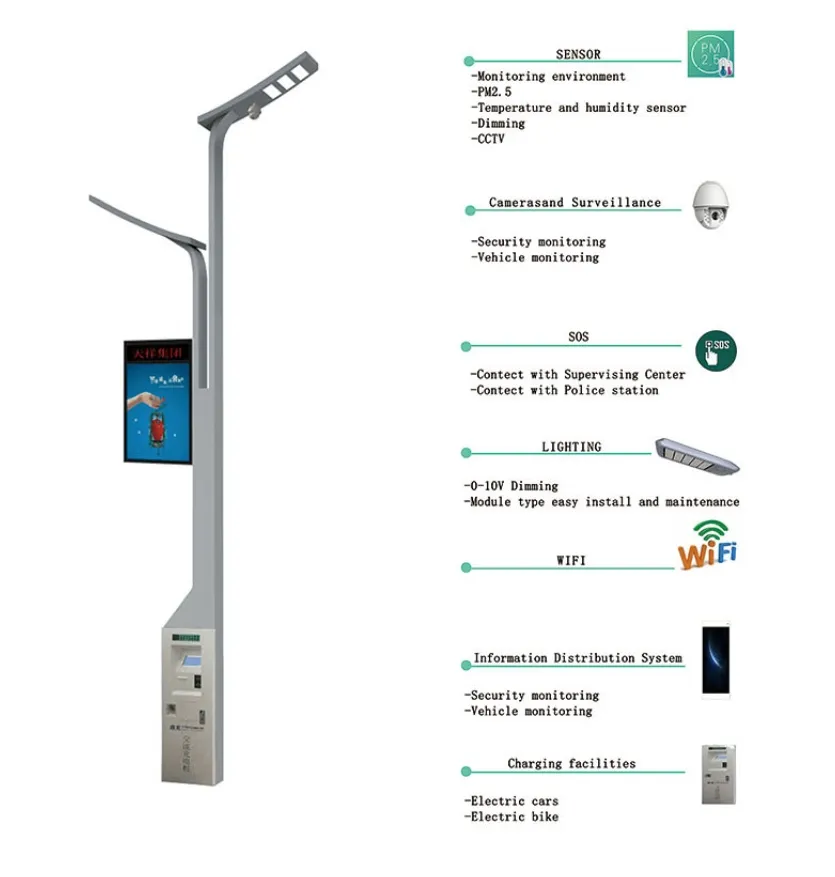

| Place of Origin | Shandong China |
| Application | ROAD/STREET/GARDEN/CAMPUS |
| Keyword | smart Street Light |
| Light Type | LED |
| Voltage | 110-220V |
| Input Voltage(V) | 24V |
| Lighting Source |
50W*3 Modules Power: 0.95 Efficiency: 150 LM/W Lumen: 22500LM Surge protection: 4/4 Temperature Rating: -40ºC~+55ºC Protection: IP66 IK:08 CCT: 3000-6500k Working life: ≥ 50000 hours VF: A/C 190-305V 50/60HZ Driver: Moso/Meanwell DALI dimming, with five-core wires and terminal row, DALI dimming driver installed in the electrical box |
| Single LED Lamp Controller |
0-10V, resistance dimming signal output PWM dimming mode, supporting positive and negative logic dimming mode TTL, RS232, 485 communication interface Over-current protection, lamp condition detection, default lighting Switch and dimming suitable for LED lamp, high voltage sodium lamp, metal halide lamp and other lamps Overload protection design Operating temperature range: -40ºC ~ 85ºC |
| Centralized Control |
Based on high performance 32-bit industrial ARM9 microcontroller 10/100M Ethernet interface, RS485 interface, USB interface Support three-phase voltage and current, statistics of active and reactive power, power statistics High-speed 2.0 USB-HUB2 circuit expansion, support USB disk upgrade Communication protocols: proprietary protocol, MODBUS meter access: support intelligence Energy meter 485 port access, support 4-6 loop control, can expand the loop Loop voltage and current acquisition |
| Weather Monitoring | 5 in 1: PM2.5, temperature, humidity, wind speed, wind direction |
| IP Network Active Audio/ Broadcast |
1. Integrated wall-mounted design, integrated network audio decoding, digital power amplifier and speaker; 2. Using high-speed industrial dual-core (ARM + DSP) chip, the start-up time is less than 1 second; 3. Built-in high fidelity linear array loudspeaker and stereo class D power amplifier; 4. Built-in loop detection function, which can monitor the working state of loudspeaker remotely and maintain easily; 5. Terminal support service software remote control mode to adjust the volume; 6. Standard RJ45 network interface, supporting cross-segment and cross-routing. Power Supply, Power Consumption: DC24V, <40W Network Communication Protocol: TCP, UDP, ARP, ICMP, IGMP Audio Coding: MP2/MP3/PCM/ADPCM Audio sampling, bit rate: 8 kHz-44.1 kHz, 16 bits, 8 kbps-320 kbps Signal to Noise Ratio, Frequency Response: (>90dB), 50Hz-15KHz (+3dB) Delayed Broadcasting Delay: < 30ms Built-in power amplifier: 2X30W |

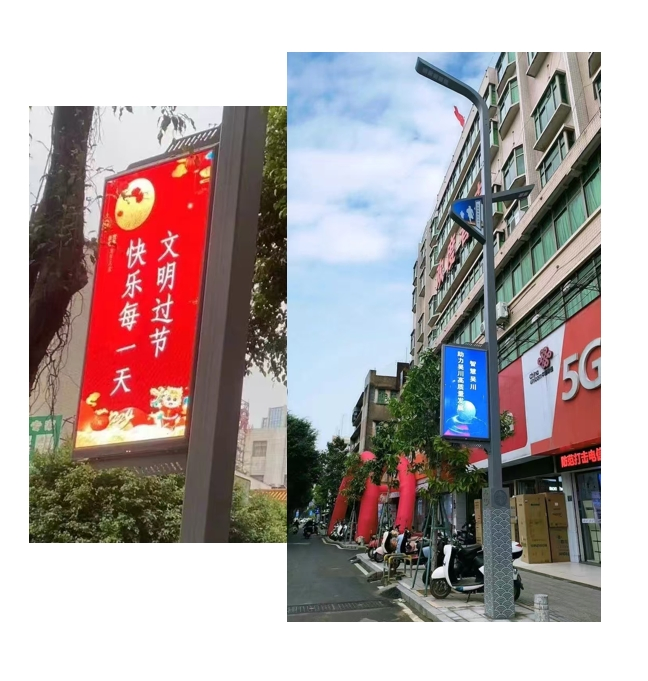

| LED Display |
Model: P4 Outdoor Full Color Module Single Side Display Screen Host Synchronization Mapping + Master Control Card + DVI Display Card + Optical Fiber Transmission or RJ45 + DVI/HDMI Interface Module size: 256*128 (mm) Display Size: 896*512 |
| Intelligent Surveillance Camera |
4 million pixels, infrared HD; Supporting maximum 2560x1440@30fps HD screen output; Supporting H.265 efficient compression algorithm; Supporting light storage function, the device can automatically reduce the frame rate and bit rate of the non-moving monitoring scene when storing video; 360° continuous rotation in horizontal direction, 15°-90° in vertical direction and no blind area for monitoring; The maximum speed of horizontal preset point can reach 80°/s, and the maximum speed of vertical preset point can reach 80°/s; Horizontal keying speed is 0.1-80°/s, vertical keying speed is 0.1-80°/s, supporting 300 preset positions; Supporting power-off state memory function, automatically returning to the cloud and lens state before power-off; Supporting lightning protection, surge prevention, breakout prevention, IP66 protection level. |
| WIFI Wireless Routing (AP) | Wireless working band: 2.4 GHz-2.483GHz, wireless rate: 300 Mbps port; 1 10/100 Mbps shielded RJ45 port (LAN0/POE); 1 10/100 Mbps shielded RJ45 port (LAN1); antenna built-in 9dBi dual-polarized antenna; antenna coverage angle: 65 degrees vertical direction: 35 degrees; indicator lamp PWR, LAN0, LAN1, FIT, FAT, RESET; Button 1 SET button (RESET and FAT/FIT mode switch multiplexing button); Power supply 24VDC/1A Passive PoE |
| WIFI WSMC/(AC) | Port 5 10/100/1000M RJ45 ports, 1 Console port; 64-bit MIPS network dedicated processor, single-core main frequency 800MHz; memory DRII 256MB FLASH 32MB; shape size 294 (w) x180 (D) x44 (H) mm; Input power supply 100-240V AC, 50/60Hz; Natural heat dissipation mode; Support WIFI certification |
| Lightning Protection Device | 10KV 10KA IP68 External waterproof |

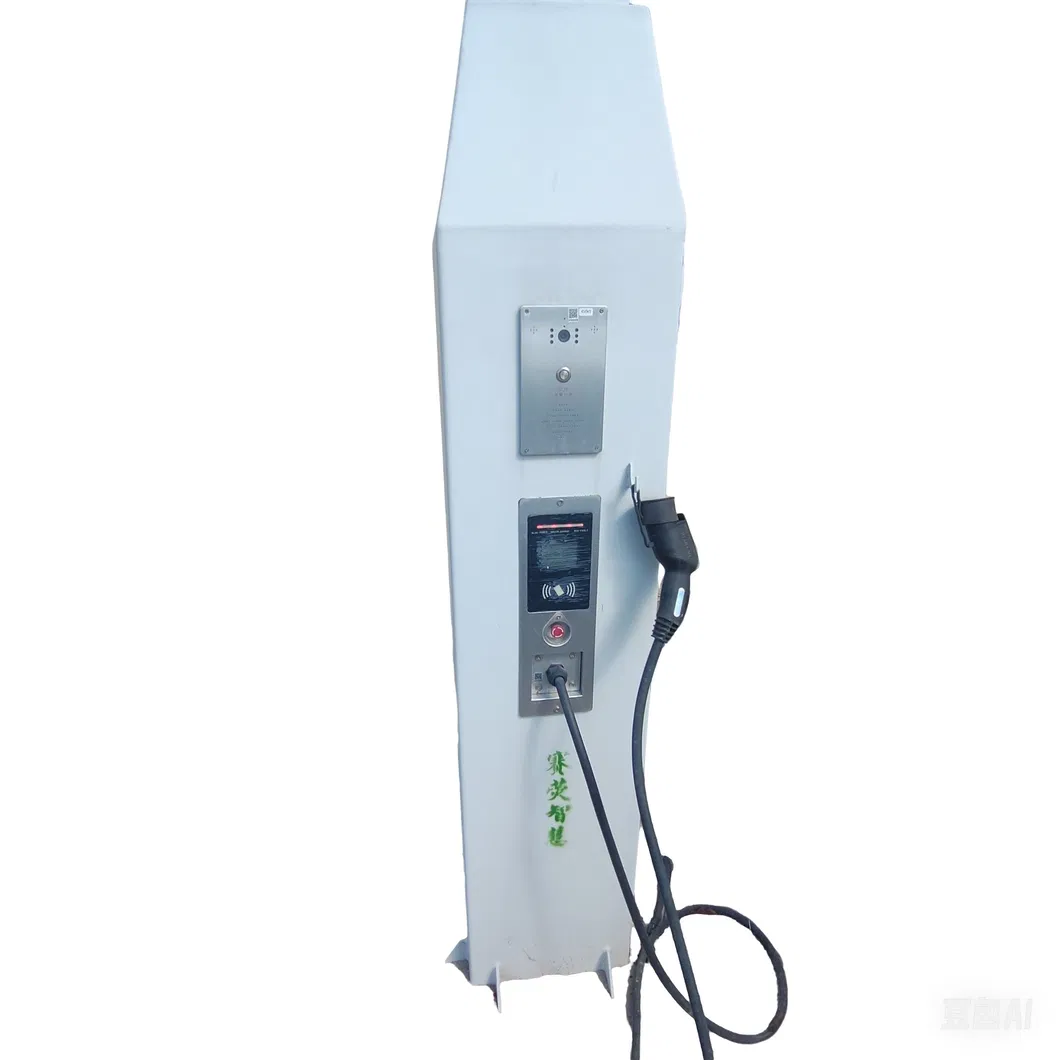

| Car Charging Device | Installation form: Embedded installation; Working environment temperature: -30 ~+50 ºC; input voltage: AC220V+10%; Charging mode: single charge total power: 7kW; Performance of the whole machine: Efficiency > 99%; startup mode: swipe card, APP scanner; protection level > IP54 |
| HS Code | 9405429000 |
QHow do Smart Street Lights Work?
A smart street light automatically regulates the light intensity of the connected street light based on a smart algorithm and inputs from external sensors. Such inputs include local sunset/ sunrise times, daily light level schedule, pre-programmed light scene, human presence, traffic, and/ or weather situation.
QWhat is a Smart Street Light?
Smart street light refers to a network-connected street light. Each street light is equipped with an outdoor lamp controller, internet of things device, and/ or sensors.
QWhat is the Time of shipment?
It usually takes about 15-35 days. But the exact delivery time might be different for different orders or at different times.
QCan I mix different items in one container?
Yes, different items can be mixed in one container, but the quantity of each item should not be less than MOQ.
QHow do your factory control quality?
We have 4 times inspection by QC before shipping. The first time is for raw material, the second and third times are for appearance and function, and the final is for packing.
QWhat is your Advantage?
We offer turnkey project service and After-sale service! We provide lighting solutions for our customers all over the world. That's why we won the good business reputation and that's why we will go further!
