Basic Specifications
Model NO.
10KW Li-10KWH
Nominal Voltage
AC220V
Discharge Rate
High Discharge Rate
Shape
Square Battery
Electrolyte
Li-ion
Installation
Packaged
Rechargeable
Chargeable
Product Name
Solar Panel System for Home
Power
10kw
Solar Panel Type
Half Cell Solar Panel
Battery Type
LiFePO4 Lithium Battery
Inverter
Pure Sine Wave Inverter
Controller
MPPT Solar Charge Controller
Solar Panel Bracket
Aluminum Alloy
Mounting Support
Pitched / Flat Roof / Ground
System Type
Off-Grid Solar Power System
Battery Cell
3.2V 100ah LiFePO4 Cell
Production Capacity
10000 pieces/Month
Product Description

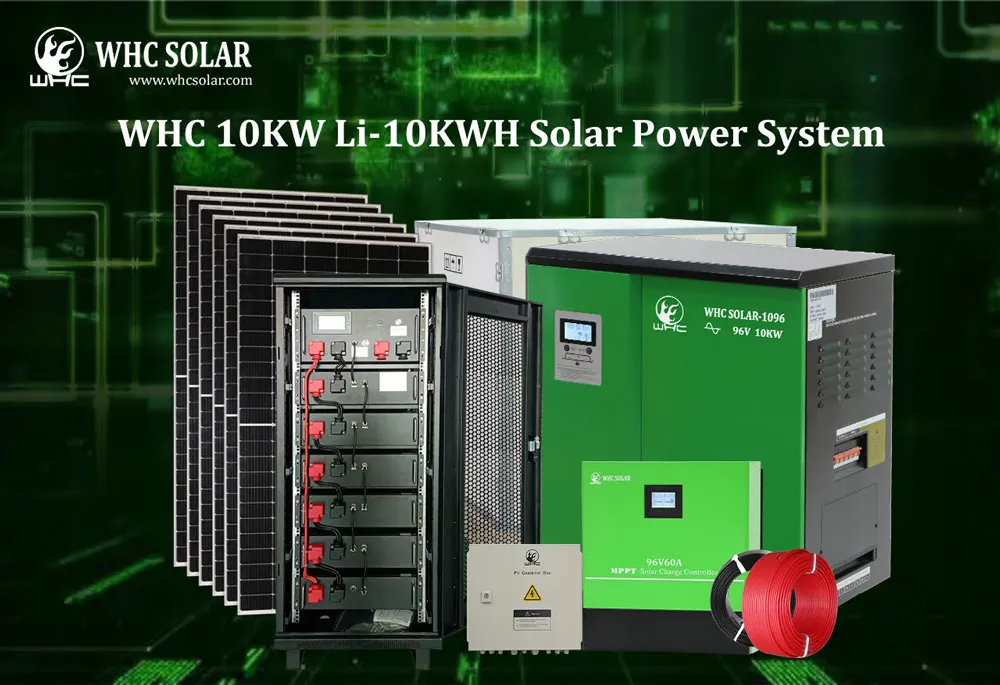

Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage
Model: 10KW-Li-10KWH
Product Name: Offgrid Solar Power System Home
Our Solar Power System, also known as an off-grid solar system, is one of the most cost-effective types of solar system. It is a complete solar setup that comes with highly efficient solar panels, an off-grid solar inverter, Grade A+ lithium iron phosphate battery, and other standard solar accessories. This system will not only provide you with continuous electricity but will also reduce your heavy electricity bills.

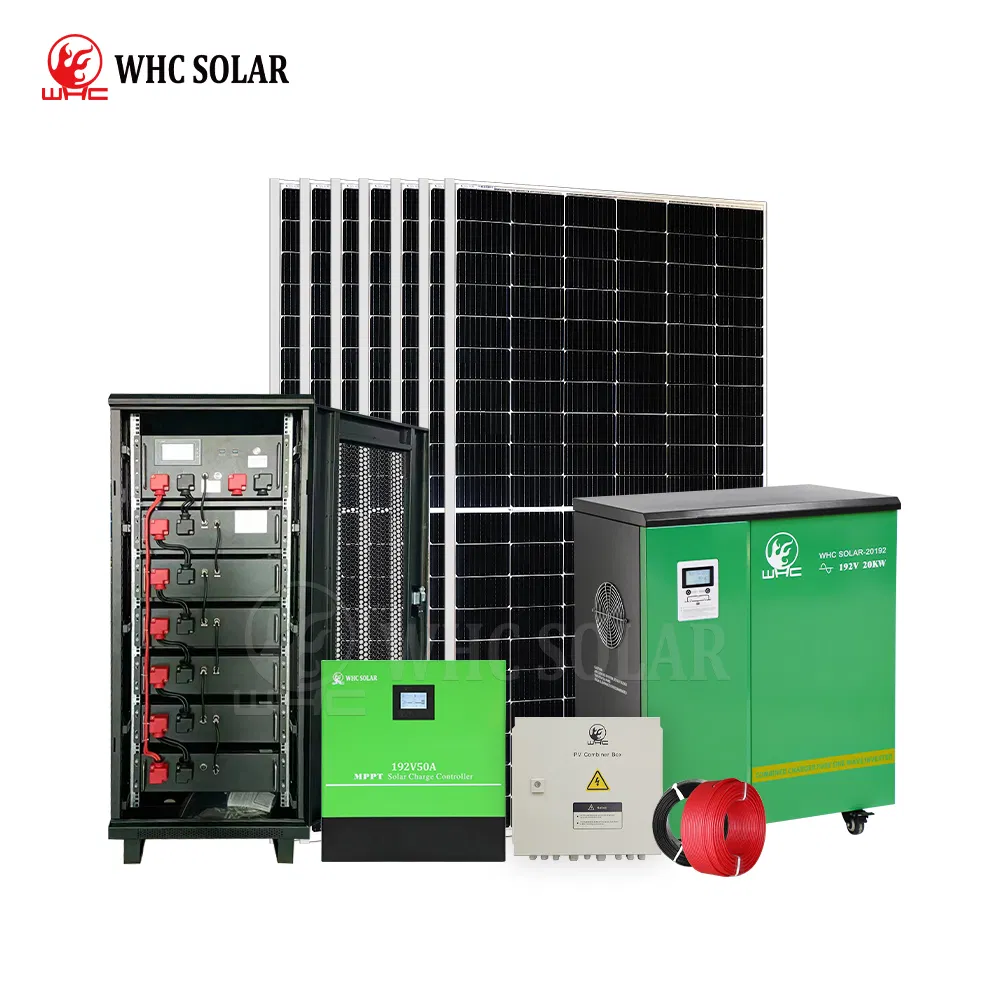

| 10KW-Li-10KWH System Configuration |
| Item |
Description |
Quantity |
| Solar Lithium Battery |
96V100AH LiFePO4 Lithium Battery |
1 Pieces |
| Solar Panel |
450W Solar Mono Panel |
8 Pieces |
| Solar Controller |
96V 60A MPPT Controller |
1 Pieces |
| Solar Inverter |
96V 10KW Solar Inverter |
1 Pieces |
| PV Combiner Box |
Six Input + Two Output |
1 Pieces |
| PV Cable |
Single-core 6mm² PV cable 100m |
2 Pieces |
| PV Mounting Support |
Hot Galvanizing Ground Mounting Support |
1 Set |
| Connector |
MC4 Connector |
16 Pieces |
Key Components Detail

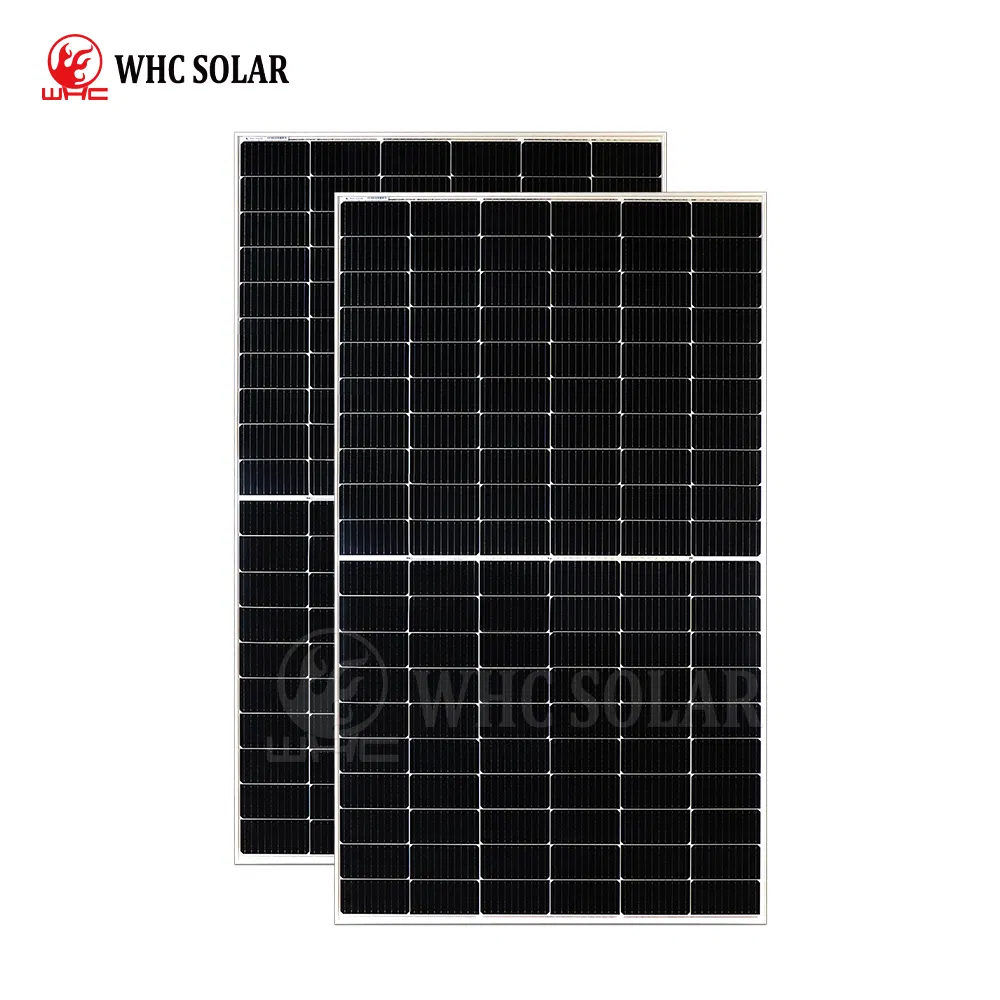

Mono Solar Panel
- Model: 450M-120
- Max Power Voltage: 34.67V
- Max Power Current: 12.98A
- Open Circuit Voltage: 41.25V
- Short Circuit Current: 13.89A
- Dimensions: 1909 * 1134 * 35mm

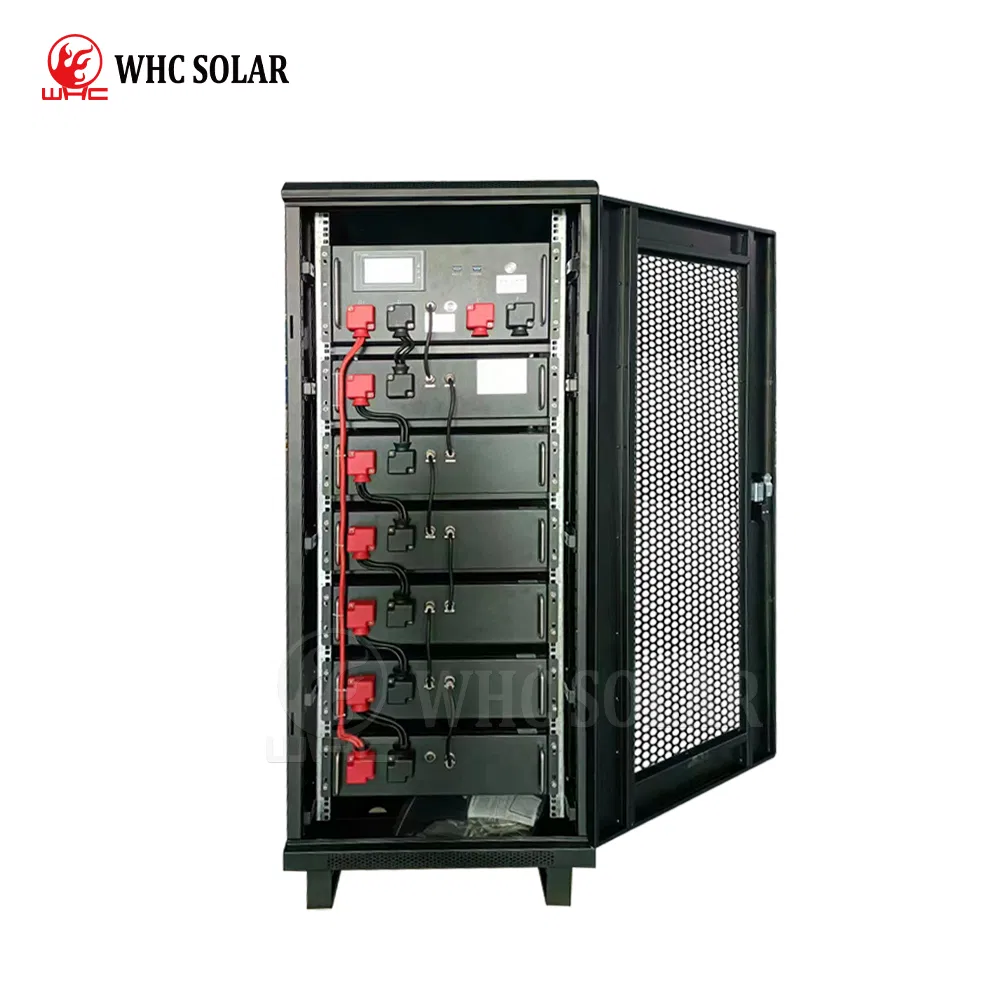

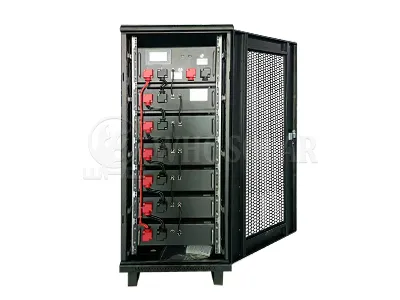

LiFePO4 Lithium Battery
- Model: 96V100AH
- Type: LiFePO4 Lithium Battery
- Nominal Voltage: 102.4V
- Capacity: 10240WH
- Lifespan: 10 Years
- BMS Max Discharging Current: 100A

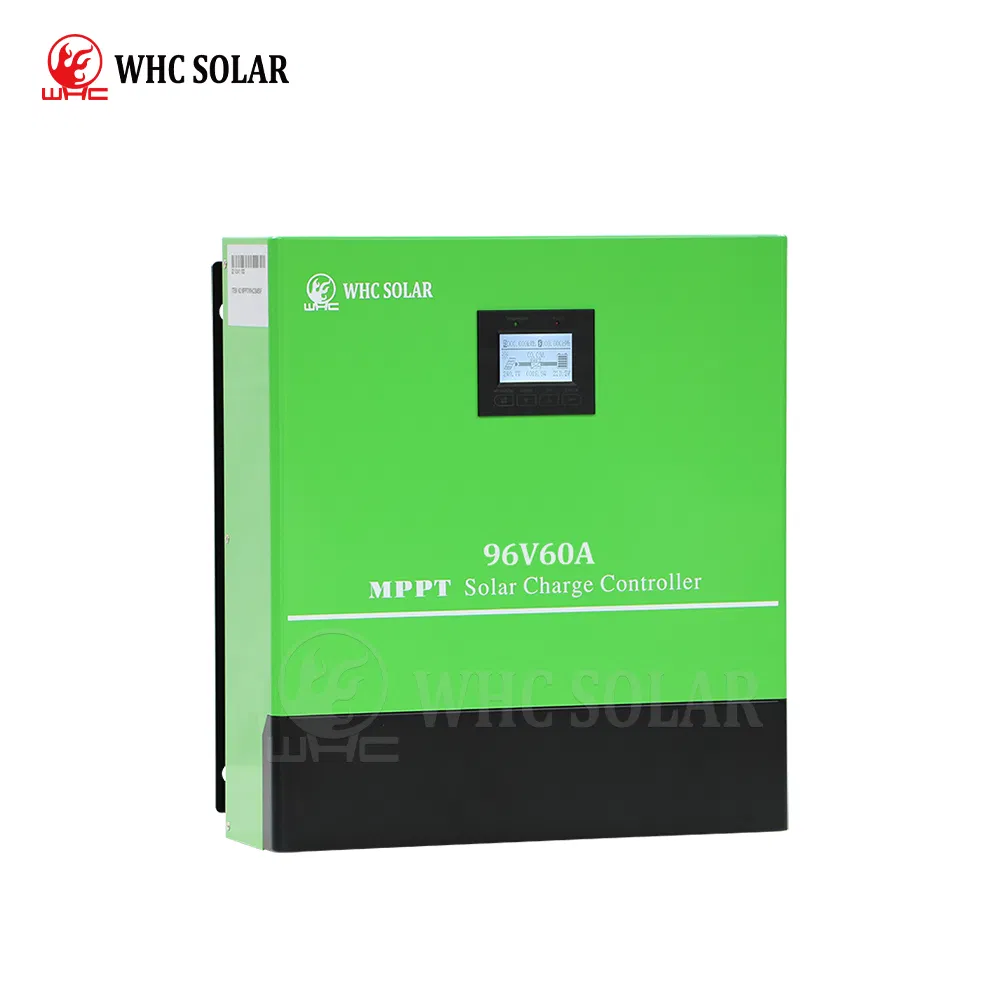

Solar Controller
- Model: MPPT/9960F
- Rating: 96V 60A MPPT
- PV Max Input Voltage (VOC): 230V
- Charging Efficiency: 99%
- Charging Mode: Intelligent Control
- Various Built-in Protection Functions
Solar Inverter
- Model: 96V 10KW Inverter
- Type: Low Frequency IGBT Pure Sine Wave Inverter with Big Transformer
- DC Input Voltage: 96V
- AC Input/Output Voltage: 220V 50/60HZ
- Recharging Current: 10A

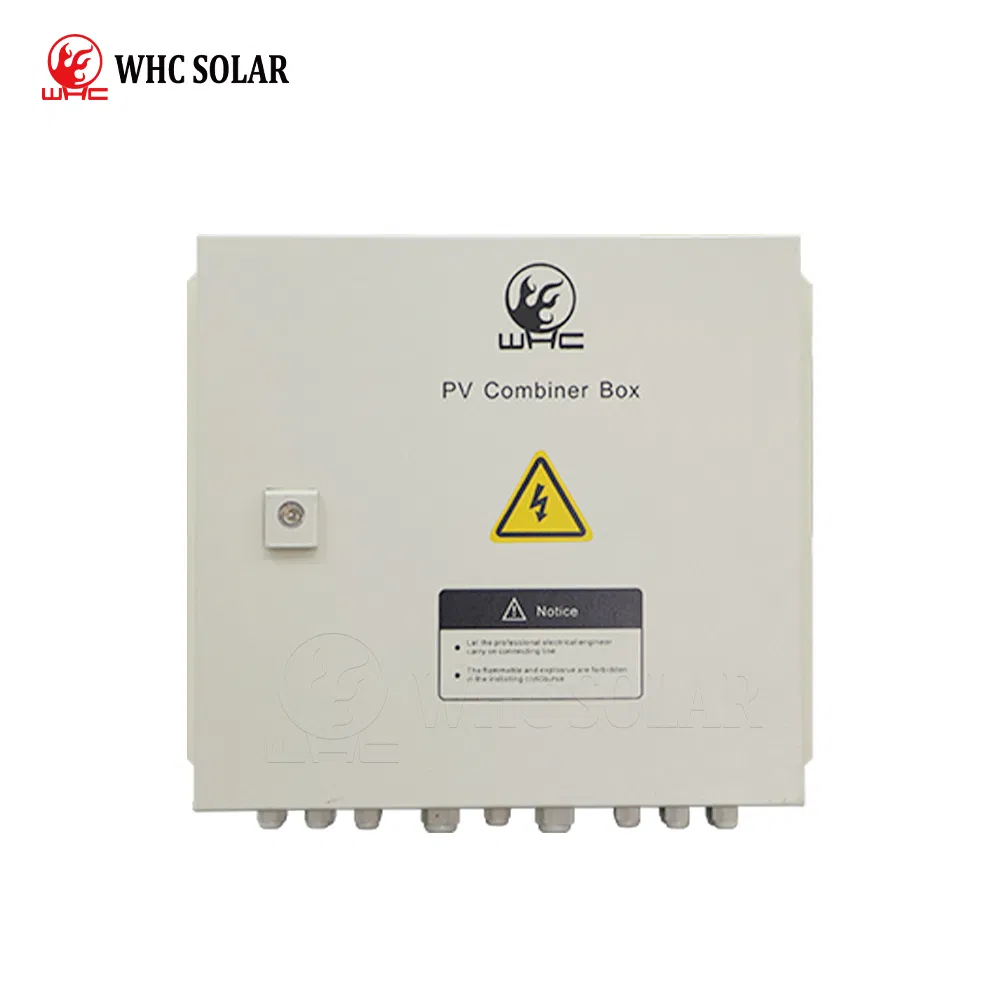

PV Combiner Box
- Combiner Box: N6 Plus
- Waterproof Rating: IP65
- Max Output Voltage: 1000V
- DC Output Circuit Breaker: Yes
- Lightning Protection: Yes
Mounting Support
- Structure Material: Anodized Aluminum & Stainless Steel
- Wind Load Tolerance: 55m/s
- Structure Angle: Adjustable
PV Cable
- Length: 100m Solar Cable
- Type: RVV 1*6 mm²
- Material: Pure Copper
- Temperature Rating: -40°C to 120°C (Lifespan: More than 25 Years)
MC4 Connector
- Type: MC4 Solar Connector
- Waterproof Rating: IP68
- Material: High Quality Copper Connection
- Safety Protection & Quick Installation
Factory & Certificate Display

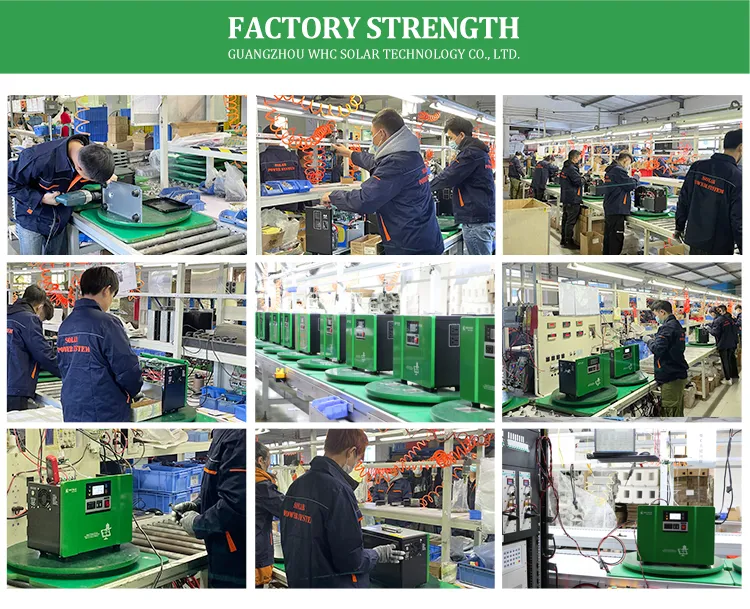

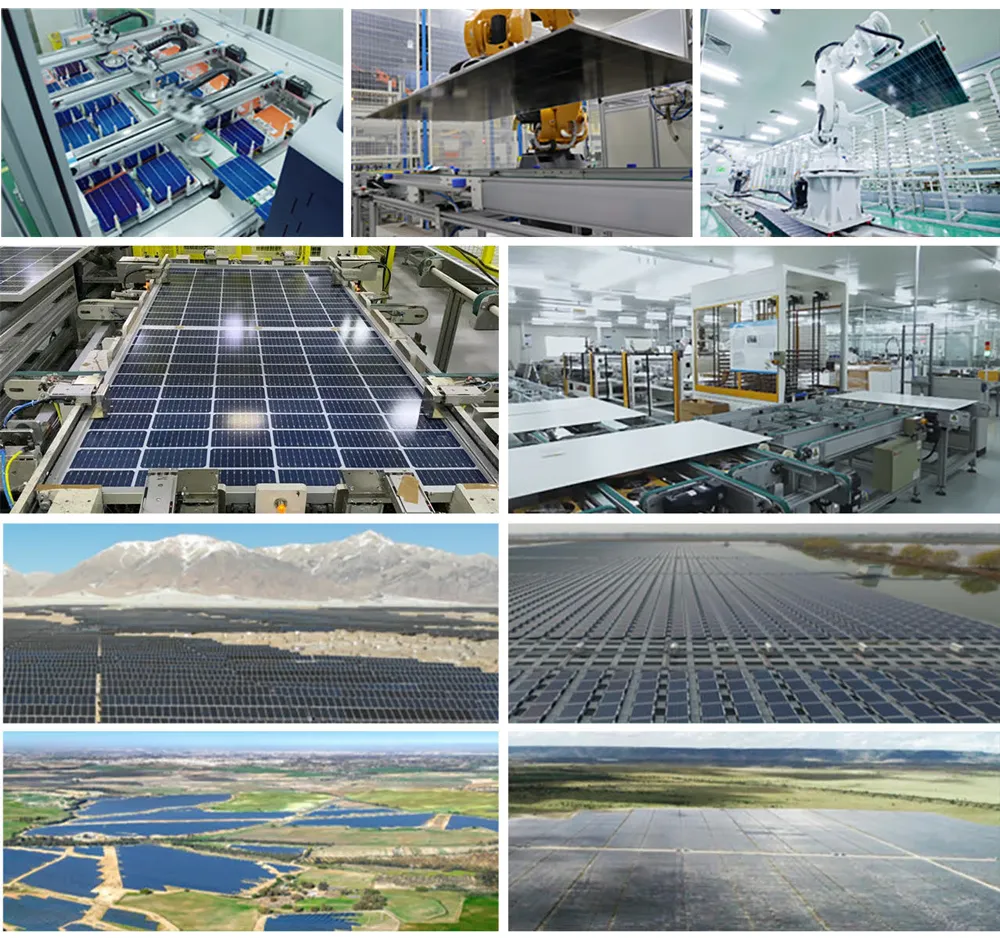

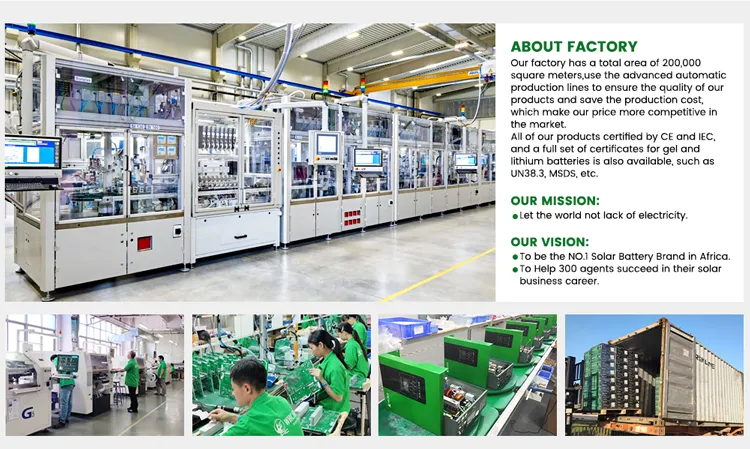

Factory Strength
Certificate Display
Packing & Delivery
Frequently Asked Questions
Q1. Are you a factory or a trading company?
We are a direct factory specializing in professional solar energy solutions and manufacturing.
Q2. Can you print my logo on the product cover?
Yes, OEM service is available. We can print your customized logo on the battery case or other system component enclosures upon receiving your design authorization.
Q3. What kind of certificates do you have?
Our products hold a number of design patents and have successfully passed CE, RoHS, and ISO9001:2008 quality management system certifications.
Q4. What is your standard delivery time?
Our usual delivery window is between 14 to 20 days. This timeline may vary slightly depending on the specific product configuration and quantity ordered.
Q5. Where are your main sales markets?
Our primary business markets span across Africa, South America, the Middle East, Europe/Occident, and other global regions.
Q6. What payment methods do you accept?
We accept standard payment methods including Western Union, T/T, MoneyGram, and other mutually convenient payment options.
