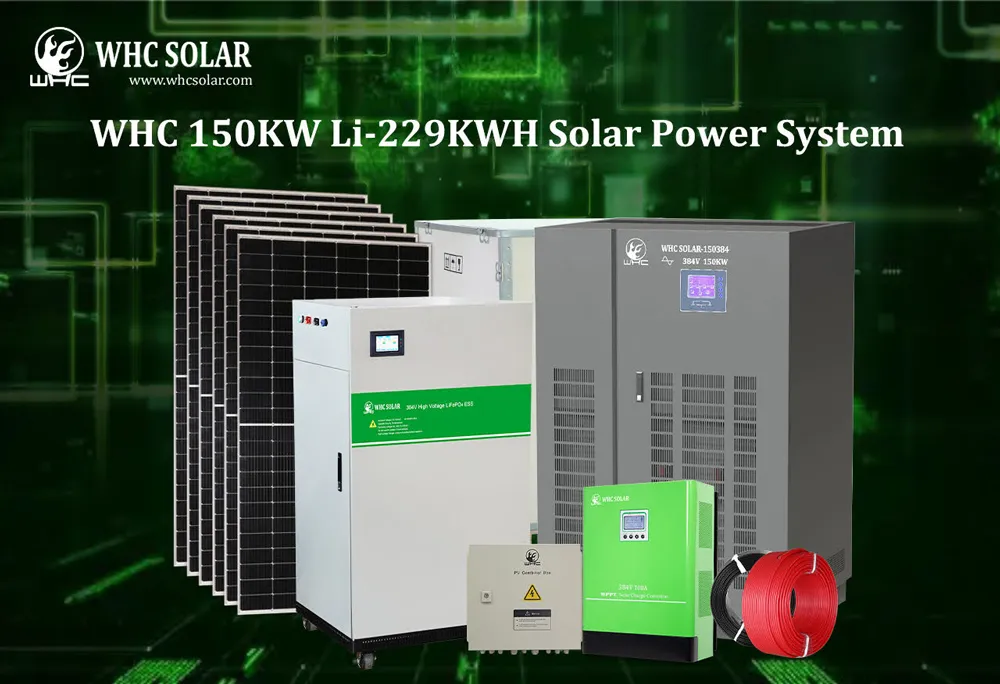

System Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage
Model: 150KW Li-229KWH

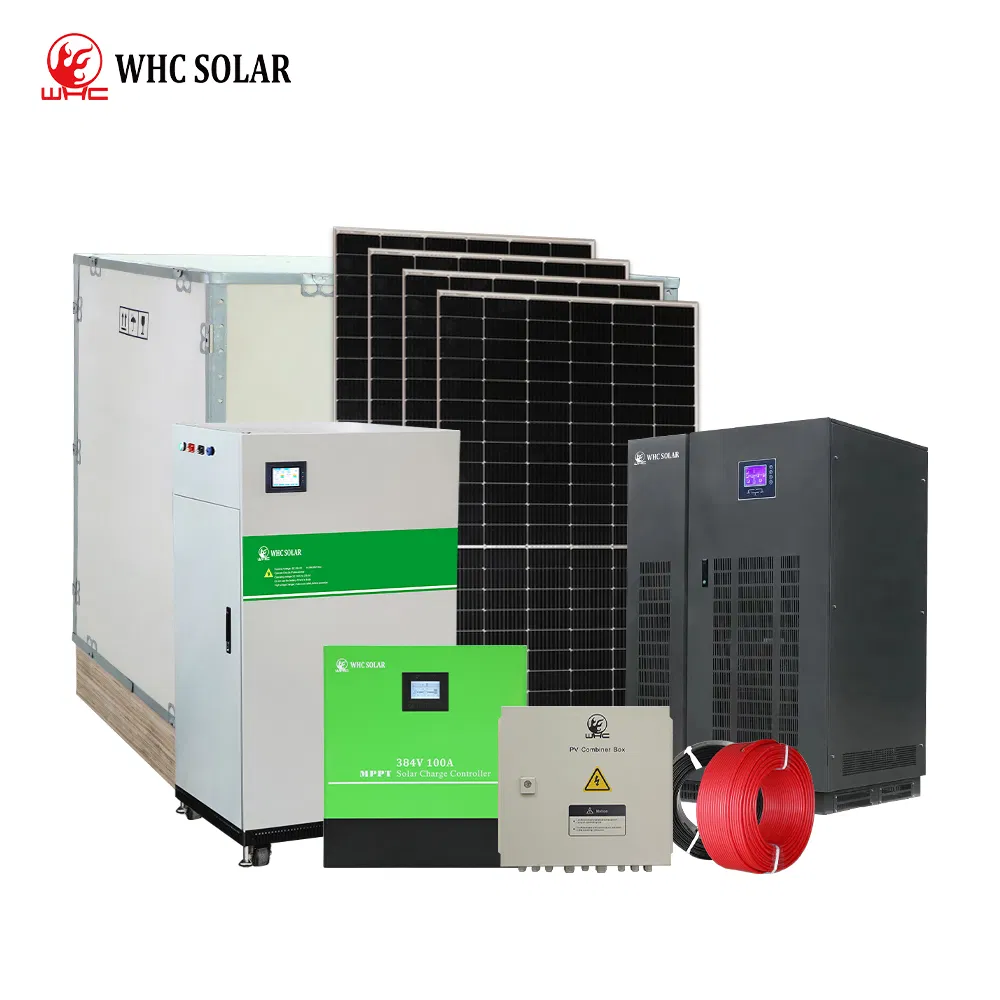

Product Name: Offgrid Solar Power System Home

Solar Power System also known as off-grid solar system is the most costeffective type for solar system. It is a complete solar setup that comes with highly efficient solar panels, off-grid solar inverter, Grade A+ lithium iron phosphate battery and other standard solar accessories. This system will not only provides you continuous electricity but will also reduce your heavy electricity bills.

Mono Solar Panel

• Model: 450M-120
• Max Power Voltage: 34.67V
• Max Power Current: 12.98A
• Open Circuit Voltage: 41.25V
• Short Circuit Current: 13.89A
• Dimensions: 1909*1134*35mm

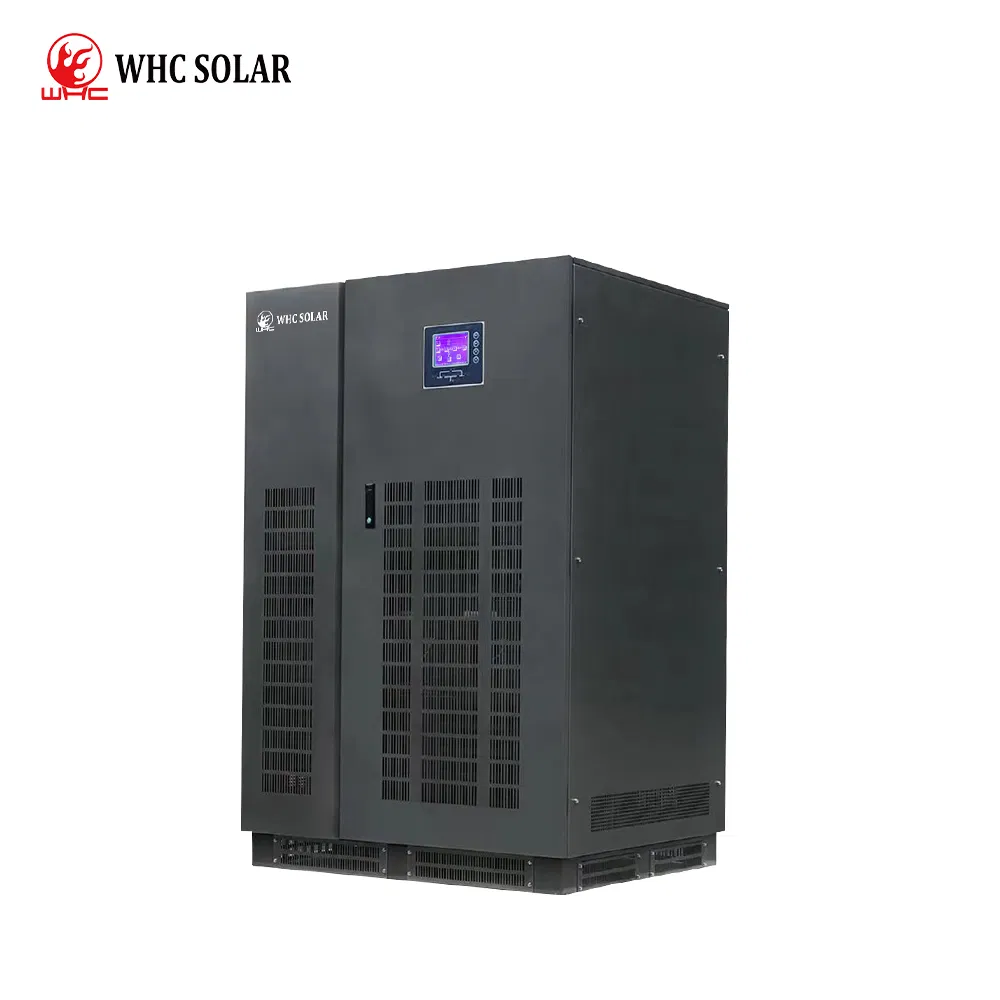

384V 150KW Inverter

• Type: Low Frequency IGBT
• Pure Sine Wave Inverter with Big Transformer
• DC Input Voltage: 384V
• AC Input Voltage: 380V/220V
• AC Output Voltage: 380V/220V
• Frequency: 50/60HZ

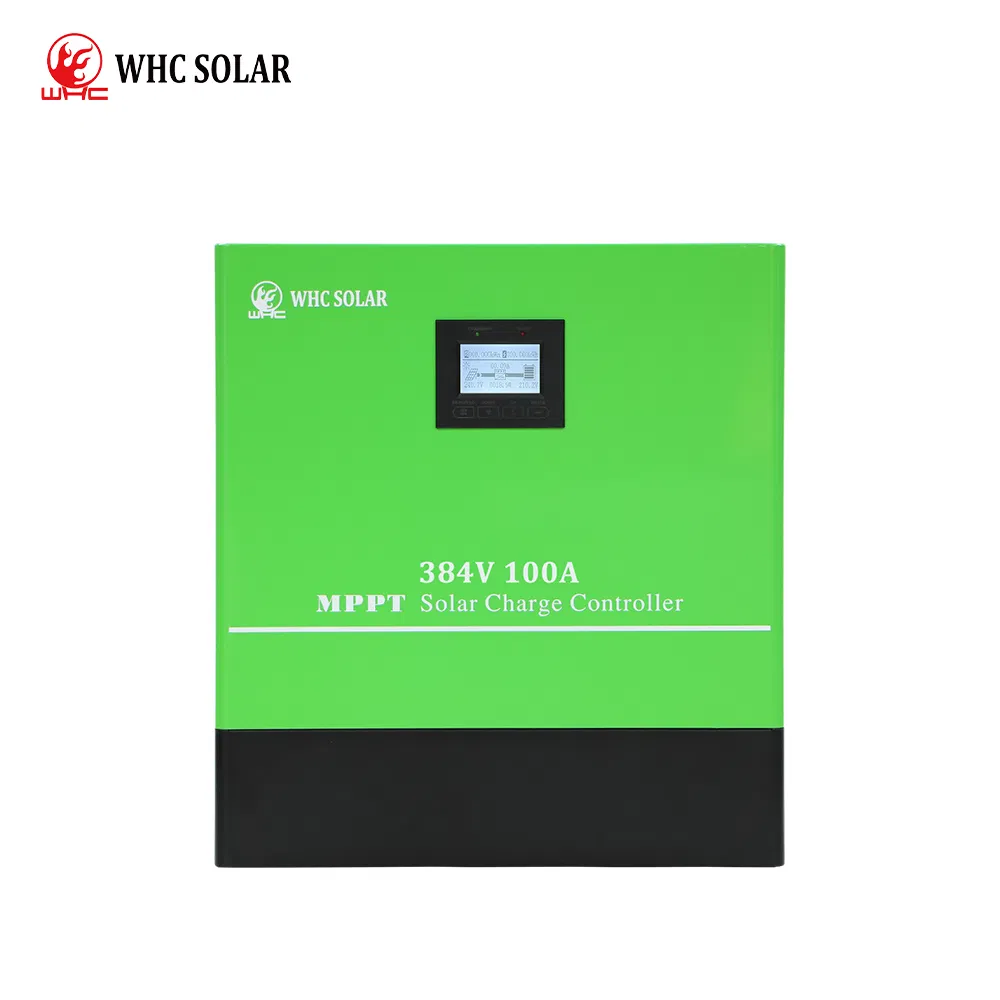

Solar Controller

• Model: 384V100A
• Type: Heatsink Cooling
• Max. Charging Current: 100A
• Max. PV Open Circuit Voltage: 800V
• DC Input Voltage: 384V
• MPPT Efficiency: 98%

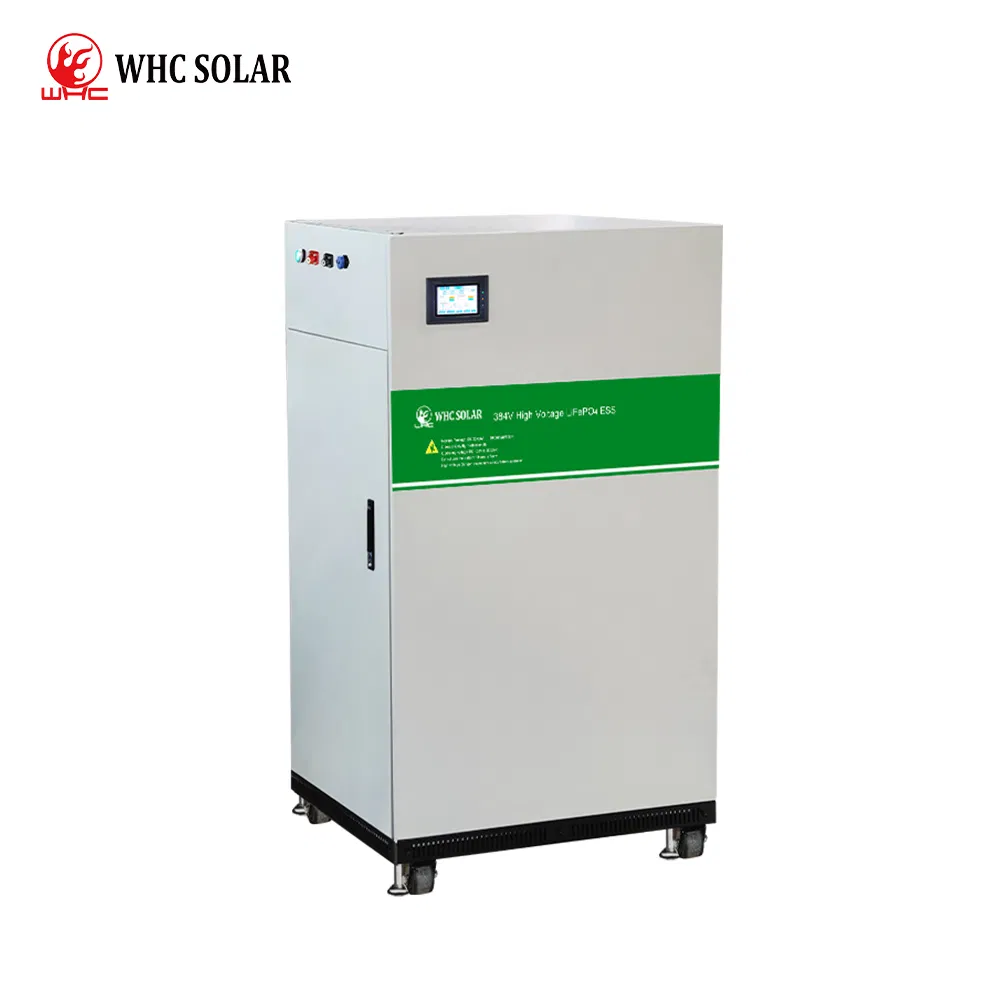

LiFePO4 Lithium Battery

• Model: 384V280Ah
• Nominal Voltage: 409.6V
• Capacity: 114688Wh
• Max Charging Voltage: 467.2V
• Lifespan: 10 Years
• BMS Max Discharging Current: 200A

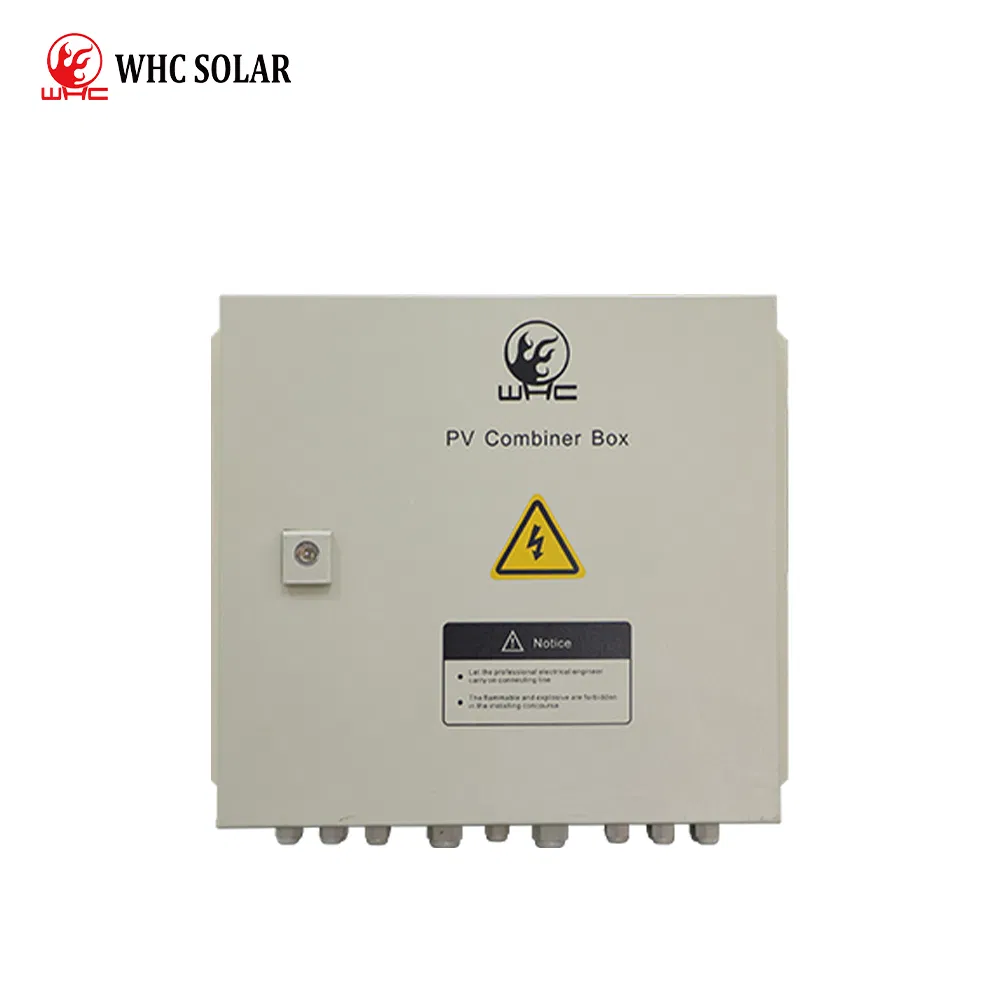

PV Combiner Box

• Combiner Box: N6 Plus
• Waterproof: IP65
• Max Output Voltage: 1000V
• DC Output Circuit Breaker: Yes
• Lightning Protection: Yes

Mounting Support

• Solar Panel Bracket
• Wind Load: 55m/s
• Structure: Anodized Aluminum / Stainless Steel
• Angle Adjustable

PV Cable

• Solar Cable: 100m
• Type: RVV 1*6 mm2
• Material: Pure Copper
• Temperature Rating: -40°C to 120°C (Lifespan: More than 25 Years)

MC4 Connector

• MC4 Solar Cable Connector
• Rated Current: 30A
• Rated Voltage: 1000VDC
• Waterproof Protection: IP67
