Basic Info.
Model NO.
10K HVM solar system
Discharge Rate
High Discharge Rate
Product Name
Solar Electric System
Solar Panel Type
Mono Solar Panel
Battery Type
LiFePO4 Lithium Battery
Inverter
Pure Sine Wave Inverter
Controller
MPPT Solar Charge Controller
Solar Panel Bracket
Aluminum Alloy
Mounting Support
Pitched / Flat Roof / Ground
System Type
off-Grid Solar Power System
Battery Cell
3.2V 100ah LiFePO4 Cell
Transport Package
Package in Carton or According to Your Requirement
Production Capacity
1000pieces/Month
Packaging & Delivery
Package Size
63.00cm * 48.00cm * 30.00cm
Package Gross Weight
58.850kg
Product Description
System Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage
Model: 10k | Product Name: Hybrid Solar System
Solar Power System also known as off-grid solar system is the most costeffective type for solar system. It is a complete solar setup that comes with highly efficient solar panels, off-grid solar inverter, Grade A+ lithium iron phosphate battery and other standard solar accessories. This system will not only provides you continuous electricity but will also reduce your heavy electricity bills.

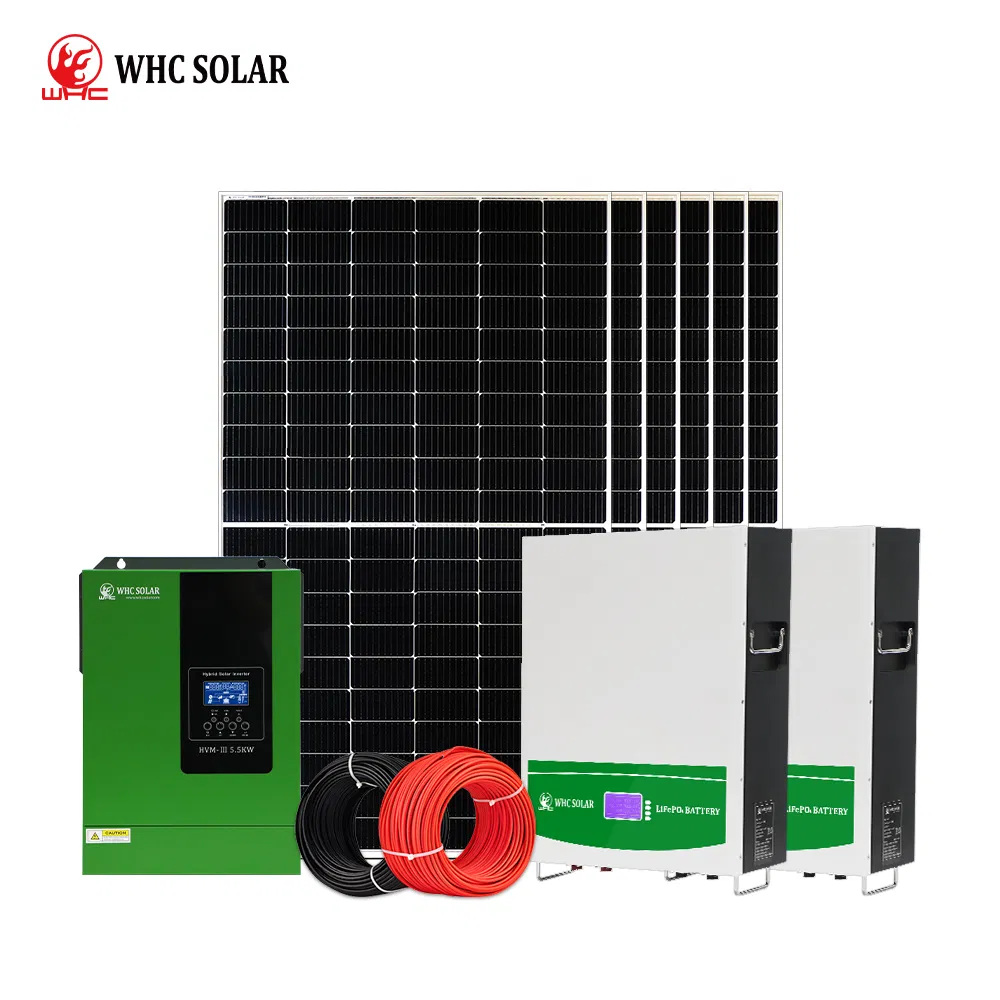

| 10k Solar System Configuration |
| Item |
Description |
Quantity |
| Solar Lithium Battery |
5120WH LiFePO4 Lithium Battery |
2 Pieces |
| Solar Panel |
34V450W Solar Mono Panel |
12 Pieces |
| Solar Inverter |
48V 5.5KW & MPPT 500V 100A Hybrid Solar Inverter |
2 Pieces |
| PV Cable |
Single-core 6mm2 PV cable 100m |
2 Pieces |
| PV Mounting Support |
Roof/Ground Mounting Support |
1 Set |
| Connector |
MC4 Connector |
8 Pieces |
| Battery Cable |
25 MM² |
2 Pieces |
| DATA Line |
Communication Cable |
1 Piece |

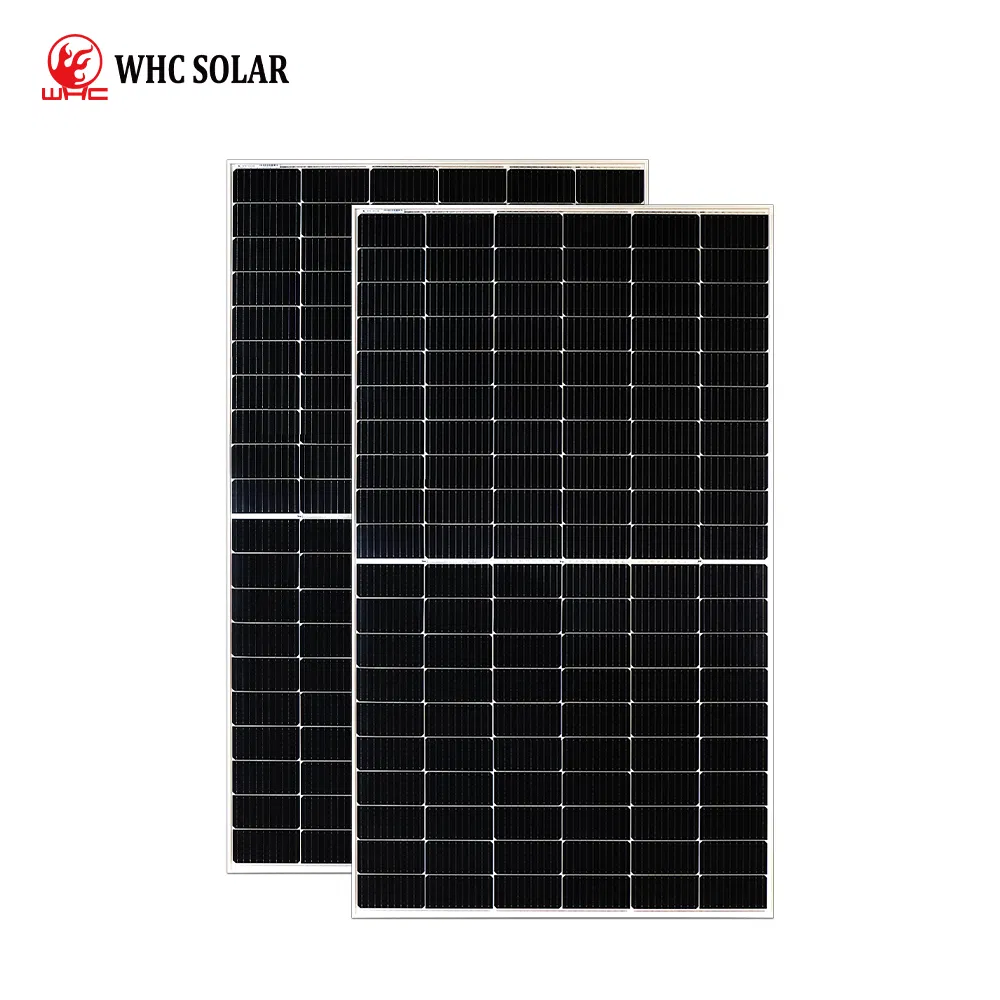

Mono Solar Panel
✦Model: 450M-120
✦Max Power Voltage: 34.67V
✦Max Power Current: 12.98A
✦Open Circuit Voltage: 41.25V
✦Short Circuit Current: 13.89A
✦Dimensions: 1909*1134*35mm

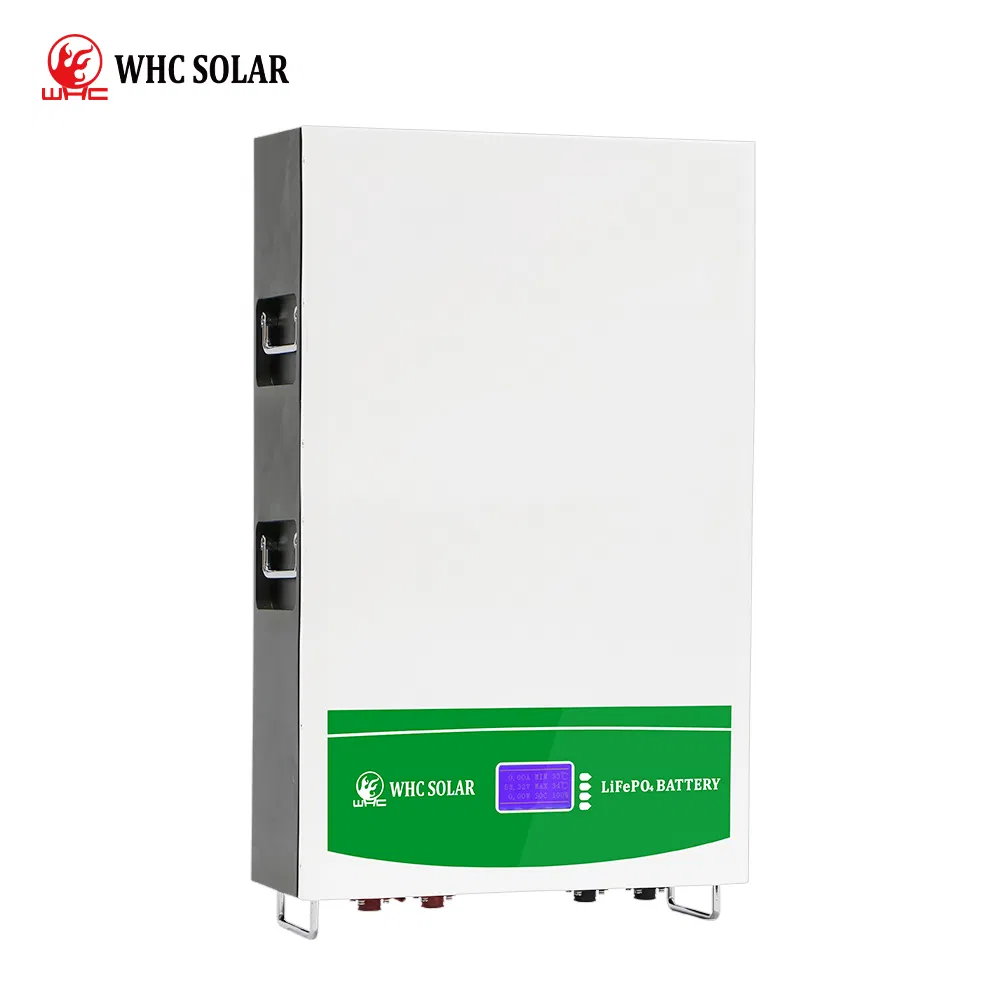

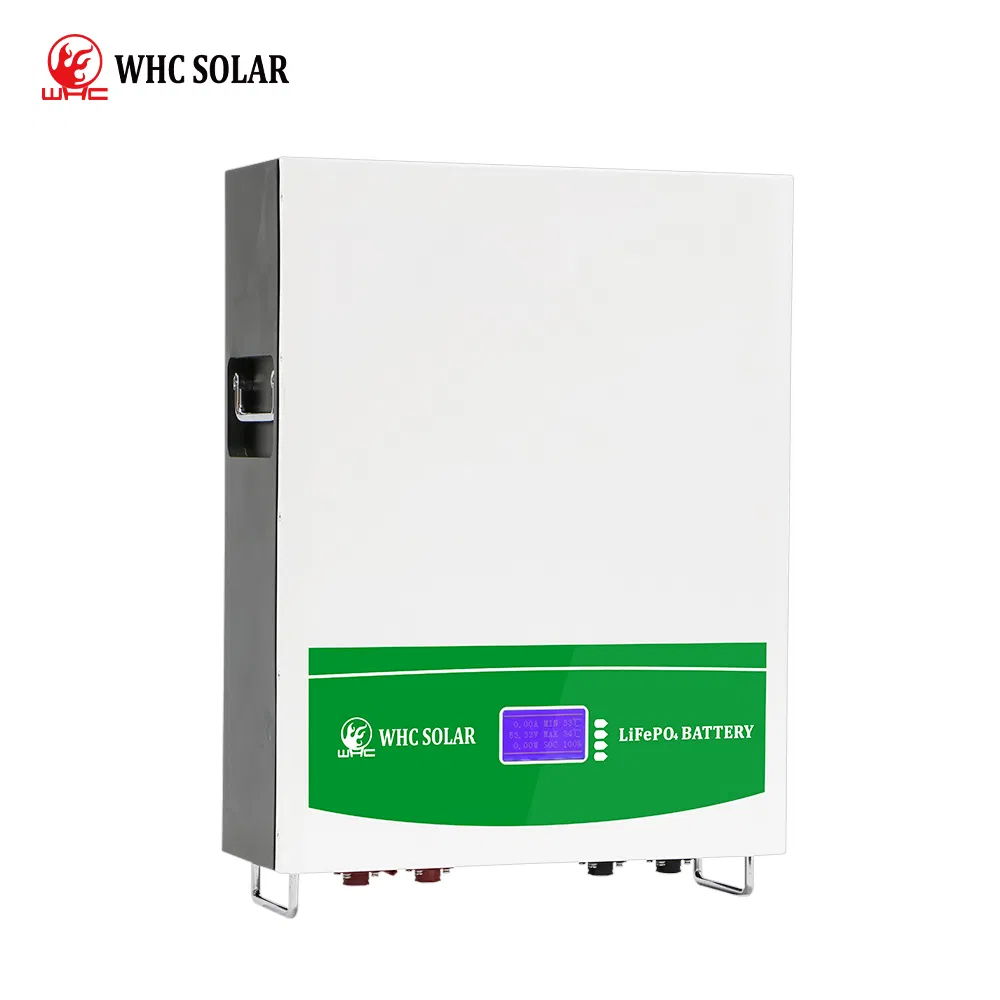

LiFePO4 Lithium Battery
✦51.2V 100AH
✦Type: LiFePO4 Lithium Battery
✦Nominal Voltage: 51.2V
✦Capacity: 5120H
✦Lifespan: 10 Years
✦BMS Max Discharging Current: 100A

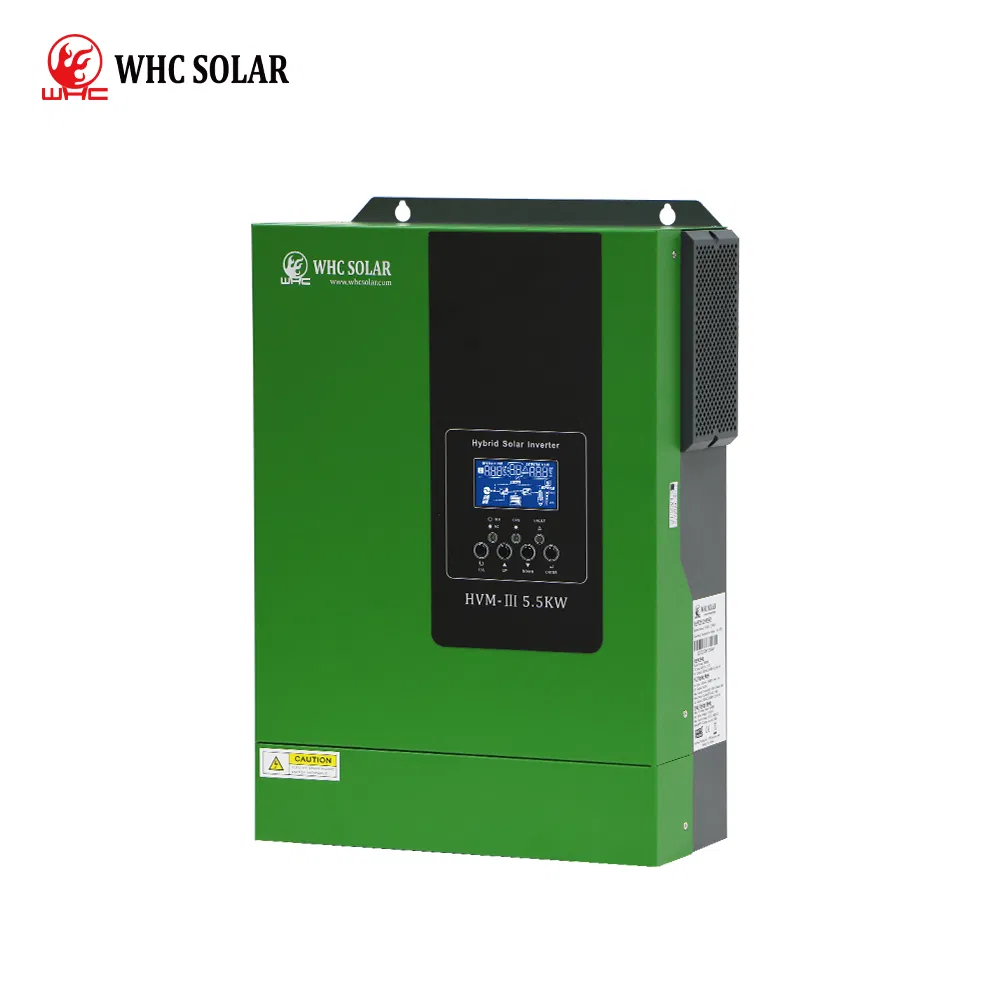

Solar Hybrid Inverter
✦48V 5.5KW Solar Inverter
✦Power Rating: 48V 5.5KW
✦PV Input: 500V 100A
✦Output: 220V 50Hz
✦Performance and Extended Lifecycle
✦High Efficiency Pure Sine Wave Inverter
Mounting Support
✦Solar Panel Bracket
✦Wind Load Resistance: 55m/s
✦Structure Material: Anodized Aluminum and Stainless Steel
✦Angle Adjustable Configuration

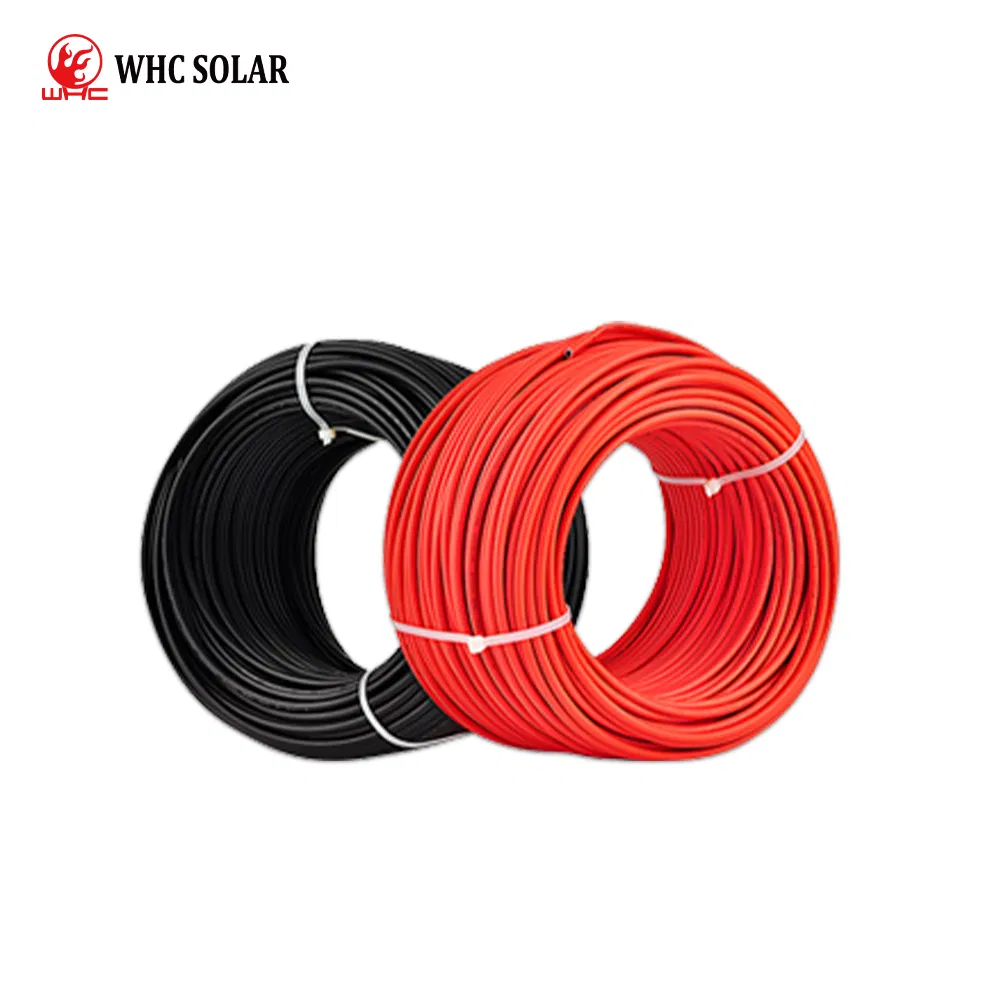

PV Cable
✦Solar Cable 100m
✦Type: RVV 1*6mm2
✦Material: Pure Copper
✦Temperature Rating: -40°C to 120°C (Lifespan Over 25 Years)
MC4 Connector
✦MC4 Solar Connector
✦IP68 Waterproof Grade
✦High Quality, Safe Protection, Quick Operation
✦Copper Core Connection
Q1. Are you a factory or trading company?
We are a factory.
Q2. Can you print my logo on the product cover?
Yes, OEM is available. We can print your logo on the battery case, and you can offer your logo.
Q3. What kind of certificate do you have?
We have won a number of national patents and passed CE, RoHS, ISO9001: 2008 quality management system certification.
Q4. What is your delivery time?
Usually 14-20 days. According to the product and quantity, delivery time will vary.
Q5. Where is your main market?
Our main markets are Africa, South America, Middle East, Occident, etc.
Q6. How to pay for product?
We accept Money Gram, Western Union, T/T, etc. If you have any other preferred payment method, we can also discuss.
