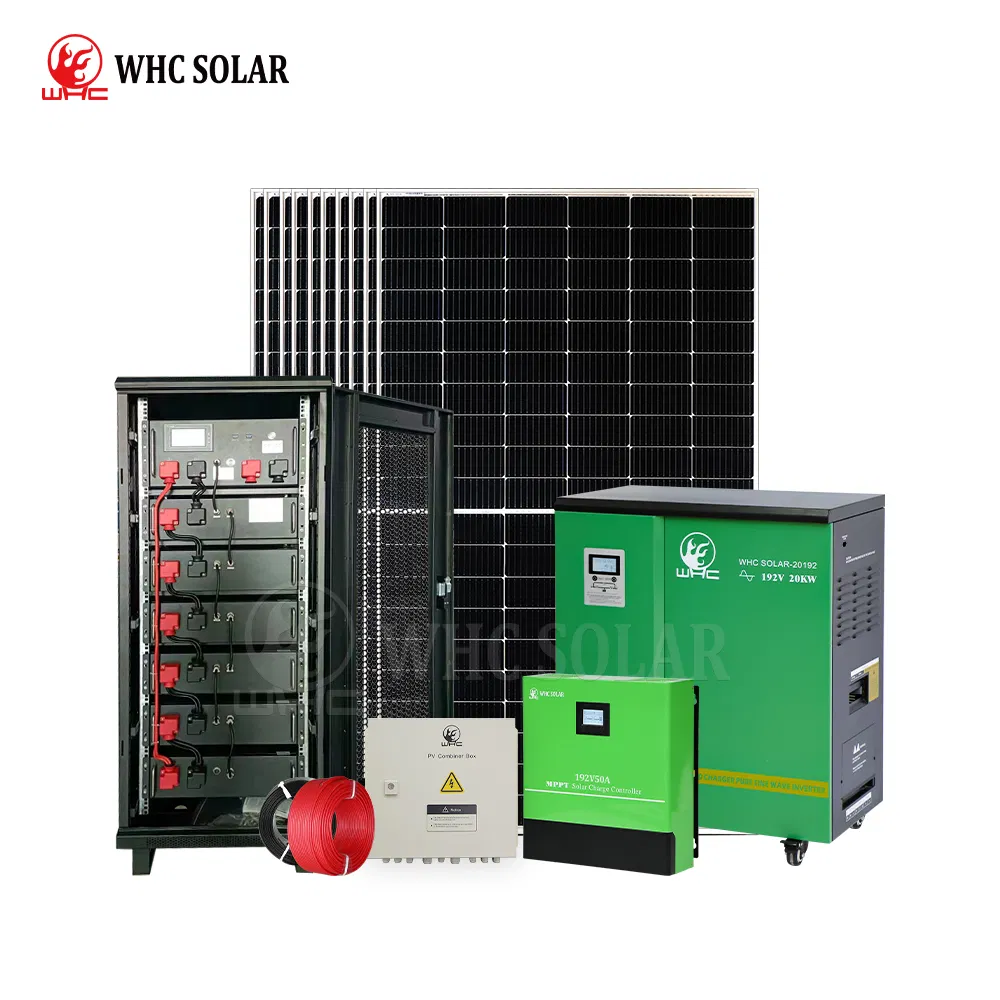

Whc China Standard Br Carton and Pallet Solar Power Station Panel System
Whc China Standard Br Carton and Pallet Solar Power Station Panel System
Whc China Standard Br Carton and Pallet Solar Power Station Panel System
Whc China Standard Br Carton and Pallet Solar Power Station Panel System
Whc China Standard Br Carton and Pallet Solar Power Station Panel System
1 / 5
Whc China Standard Br Carton and Pallet Solar Power Station Panel System
Whc China Standard Br Carton and Pallet Solar Power Station Panel System
Whc China Standard Br Carton and Pallet Solar Power Station Panel System
Whc China Standard Br Carton and Pallet Solar Power Station Panel System
Whc China Standard Br Carton and Pallet Solar Power Station Panel System

Whc China Standard Br Carton and Pallet Solar Power Station Panel System

Customization: Available
Type: Lithium-Ion Batteries
Usage: Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Home
Send Inquiry

Product Description

  • Overview
  • Company Profile
⚙️ Basic Info.
Model NO. 10KW Li-10KWH
Nominal Voltage AC220V
Discharge Rate High Discharge Rate
Shape Square Battery
Electrolyte Li-ion
Installation Packaged
Rechargeable Chargeable
Product Name Solar Panel System for Home
Model 10kw Li-10kwh
Power 10kw
Solar Panel Type Half Cell Solar Panel
Battery Type LiFePO4 Lithium Battery
Inverter Pure Sine Wave Inverter
Controller MPPT Solar Charge Controller
Solar Panel Bracket Aluminum Alloy
Mounting Support Pitched / Flat Roof / Ground
System Type Off-Grid Solar Power System
Battery Cell 3.2V 100ah LiFePO4 Cell
Transport Package Package in Carton / Requirements
Specification 10KW Li-10KWH
Production Capacity 10000pieces/Month
📦 Product Description

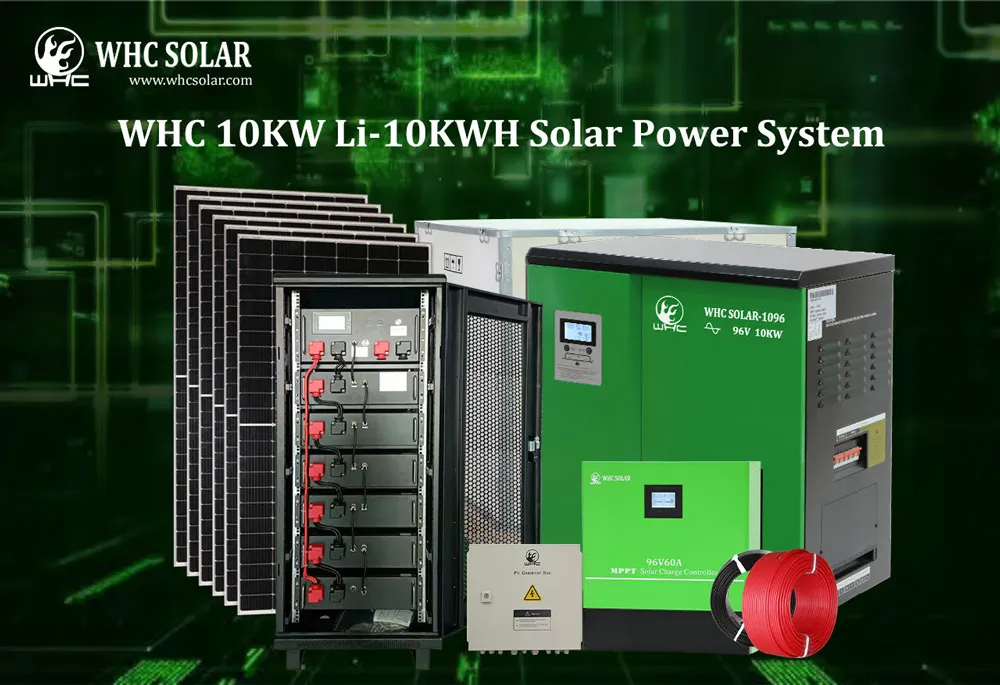

Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage

Model: 10KW-Li-10KWH

Product Name: Offgrid Solar Power System Home

Standard Carton and Pallet Solar Power Station Panel System
Standard Carton and Pallet Solar Power Station Panel System
Standard Carton and Pallet Solar Power Station Panel System
Standard Carton and Pallet Solar Power Station Panel System
Standard Carton and Pallet Solar Power Station Panel System
Solar Power System also known as off-grid solar system is the most costeffective type for solar system. It is a complete solar setup that comes with highly efficient solar panels, off-grid solar inverter, Grade A+ lithium iron phosphate battery and other standard solar accessories. This system will not only provides you continuous electricity but will also reduce your heavy electricity bills.
10KW-Li-10KWH System Configuration
Item Description Quantity
Solar Lithium Battery 96V100AH LiFePO4 Lithium Battery 1 Pieces
Solar Panel 450W Solar Mono Panel 8 Pieces
Solar Controller 96V 60A MPPT Controller 1 Pieces
Solar Inverter 96V 10KW Solar Inverter 1 Pieces
PV Combiner Box Six Input + Two Output 1 Pieces
PV Cable Single-core 6mm2 PV cable 100m 2 Pieces
PV Mounting Support Hot Galvanizing Ground Mounting Support 1 Set
Connector MC4 Connector 16 Pieces

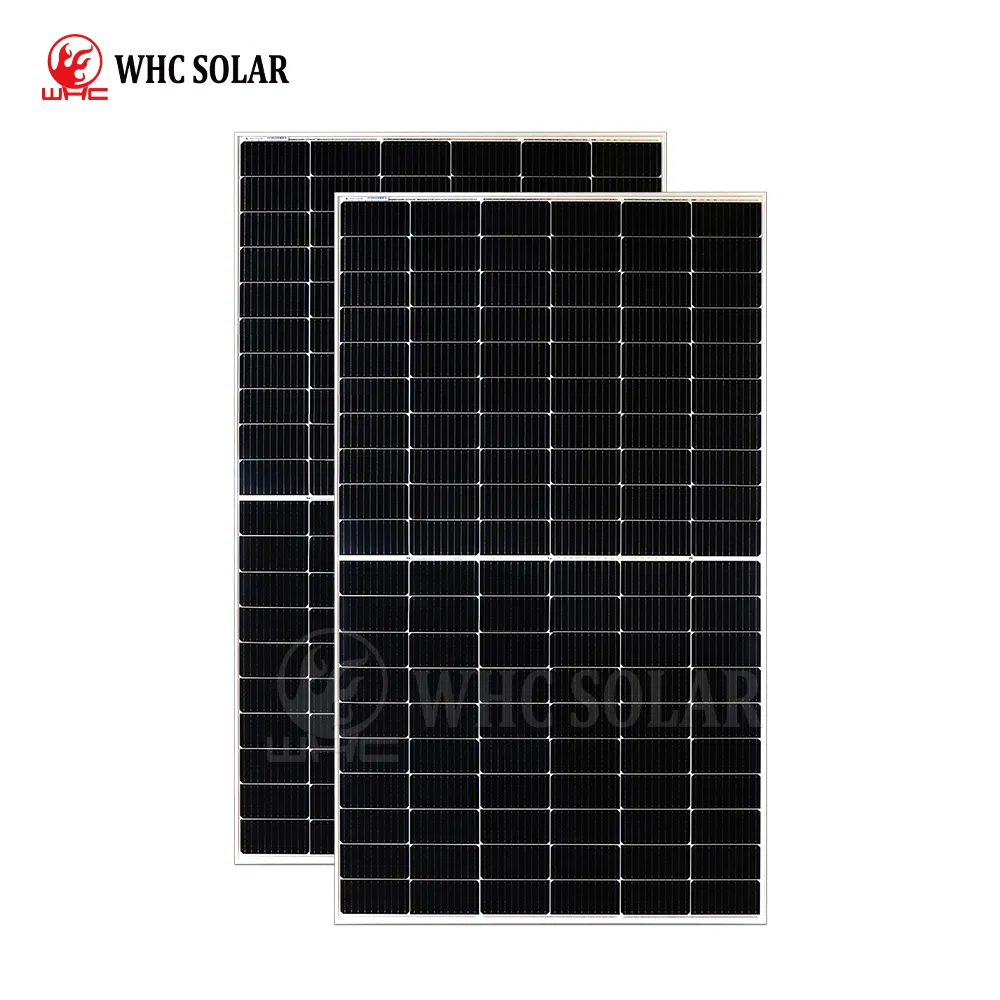

☀️ Mono Solar Panel

  • Model: 450M-120
  • Max Power Voltage: 34.67V
  • Max Power Current: 12.98A
  • Open Circuit Voltage: 41.25V
  • Short Circuit Current: 13.89A
  • Dimensions: 1909*1134*35mm
Mono Solar Panel

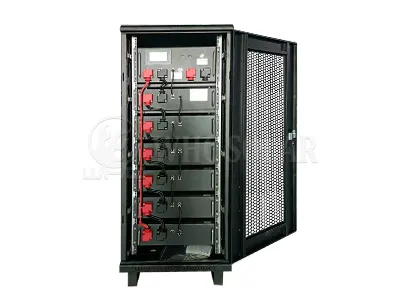

🔋 LiFePO4 Lithium Battery

  • Model: 96V100AH
  • Type: LiFePO4 Lithium Battery
  • Nominal Voltage: 102.4V
  • Capacity: 10240WH
  • Lifespan: 10 Years
  • BMS Max discharging Current: 100A
LiFePO4 Lithium Battery

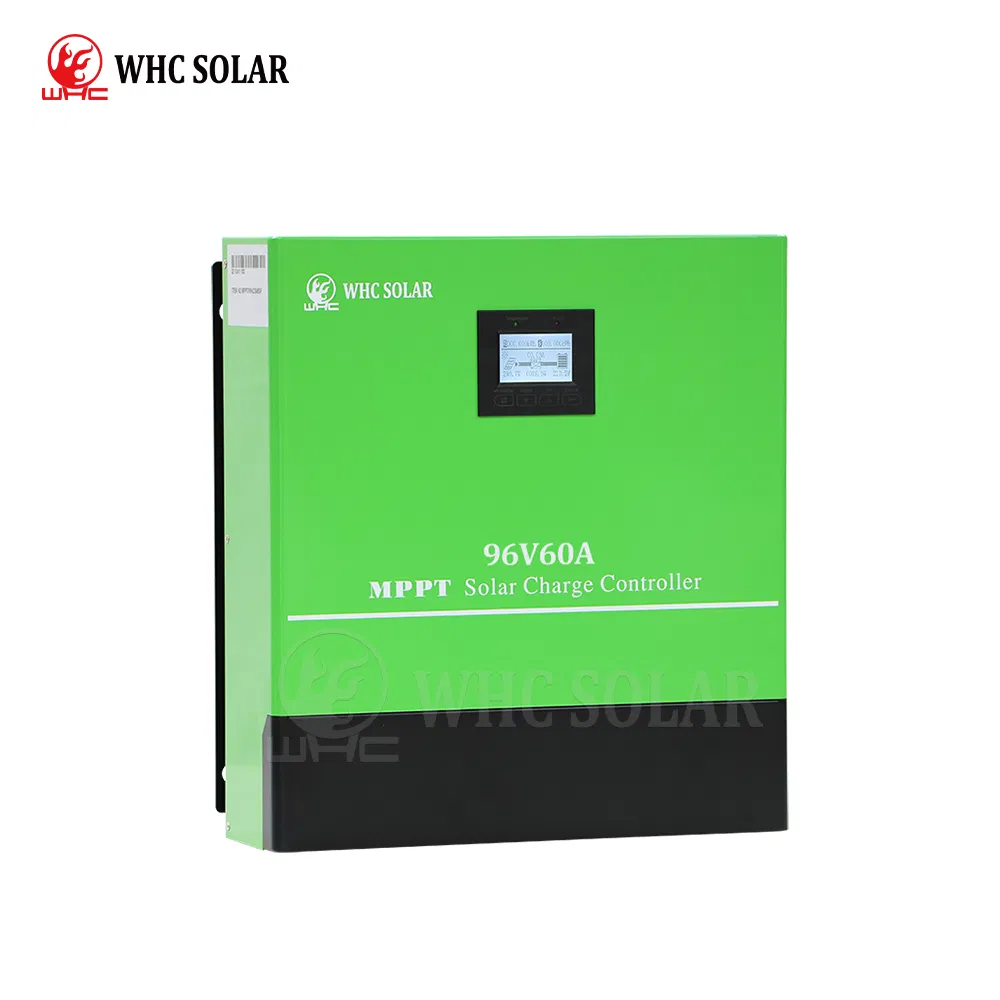

🕹️ Solar Controller

  • Model: MPPT/9960F
  • Rating: 96V60A MPPT
  • PV(VOC): 230V
  • Charging efficiency: 99%
  • Charging Mode: Intelligent Control
  • Safety: Various Protection Functions
Solar Controller

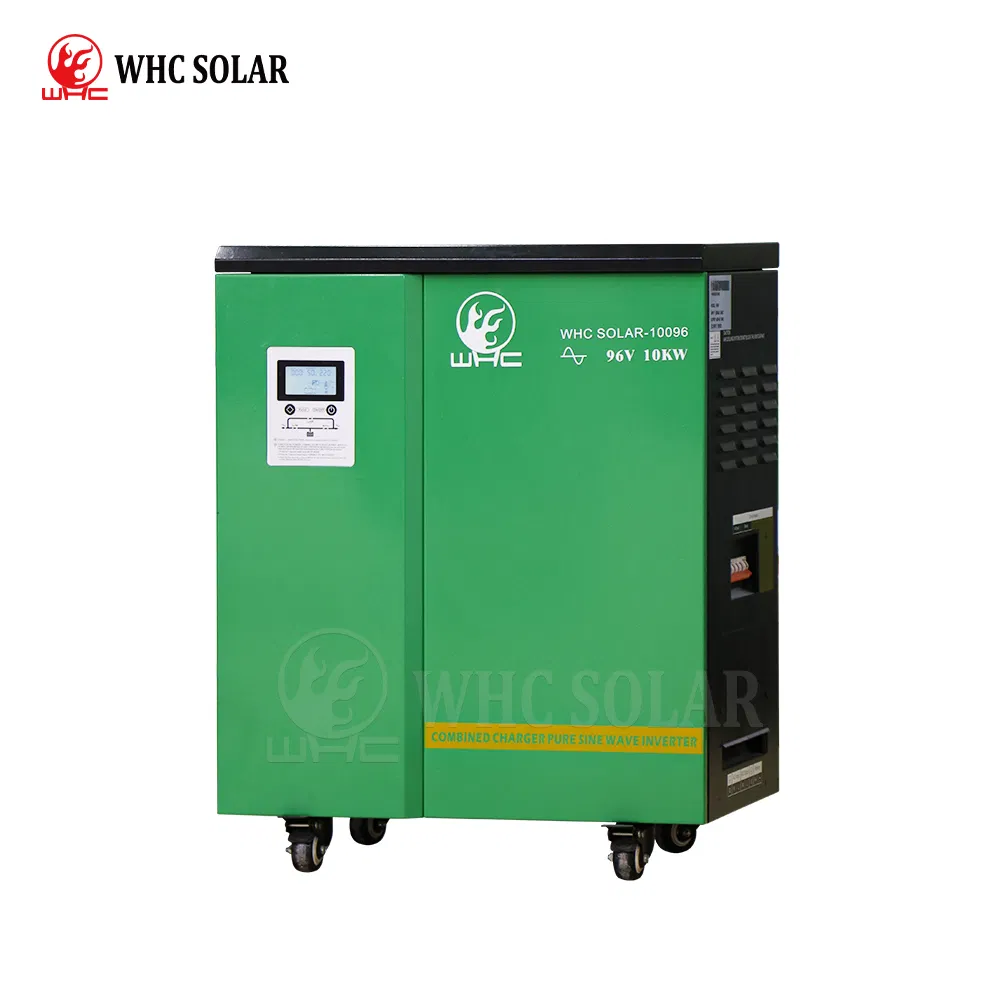

🔌 Solar Inverter

  • Model: 96V10KW Inverter
  • Type: Low Frequency IGBT Pure Sine Wave Inverter with Big Transformer
  • DC Input Voltage: 96V
  • AC Input Voltage: 220V 50/60HZ
  • Recharging current: 10A
  • AC Output Voltage: 220V 50/60HZ
Solar Inverter

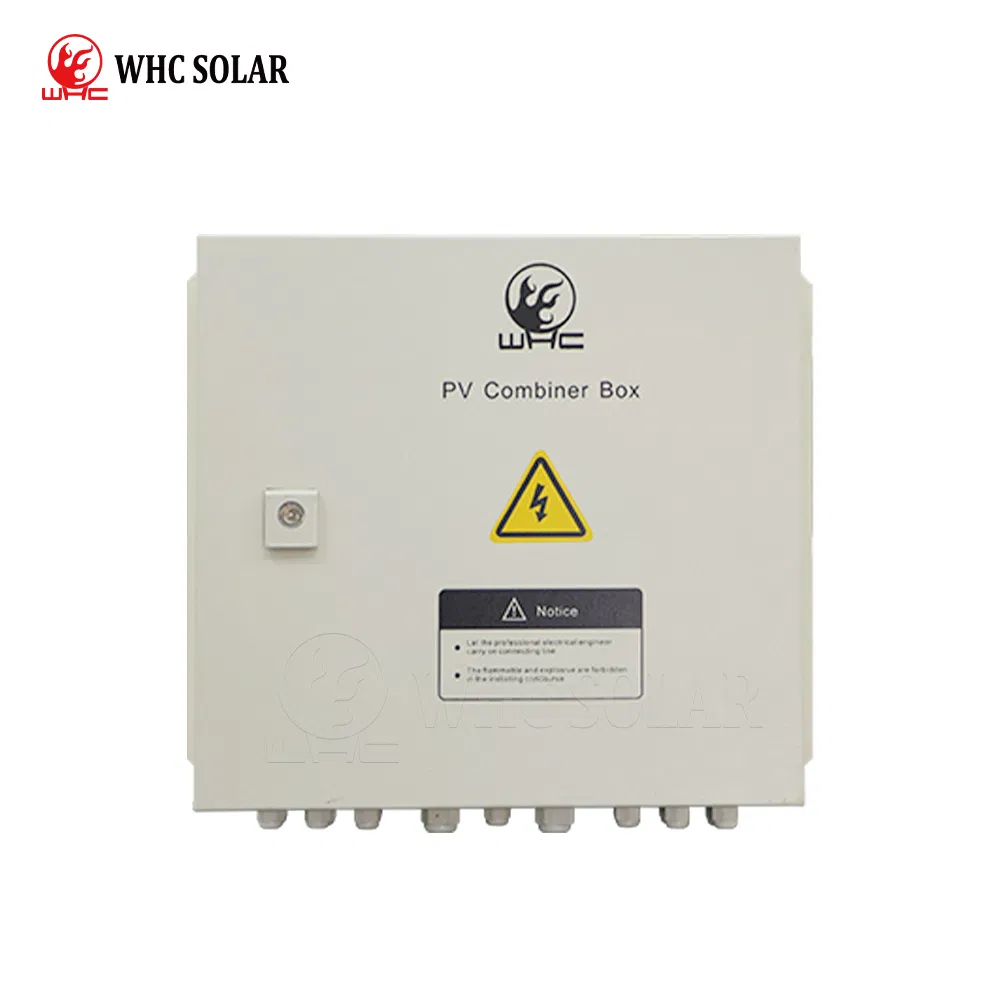

⚡ PV Combiner Box

  • Combiner Box: N6 Plus
  • Waterproof Grade: IP65
  • Max Output Voltage: 1000V
  • DC Output Circuit Breaker: Yes
  • Lightning Protection: Yes
PV Combiner Box

🔧 Mounting Support

  • Application: Solar Panel Bracket
  • Wind load: 55m/s
  • Structure: Anodized Aluminum Stainless Steel
  • Angle: Adjustable
Mounting Support

🧶 PV Cable

  • Length: Solar Cable 100m
  • Type: RVV1*6mm2
  • Material: Pure Copper
  • Temperature Rating: -40°C to 120°C (Lifespan More than 25 Years)
PV Cable

🔗 MC4 Connector

  • Type: MC4 Solar Connector
  • Waterproof Grade: IP68
  • Protection: High Quality, Safe Protection, Quick Operation
  • Material: Copper MC4 Connector
MC4 Connector

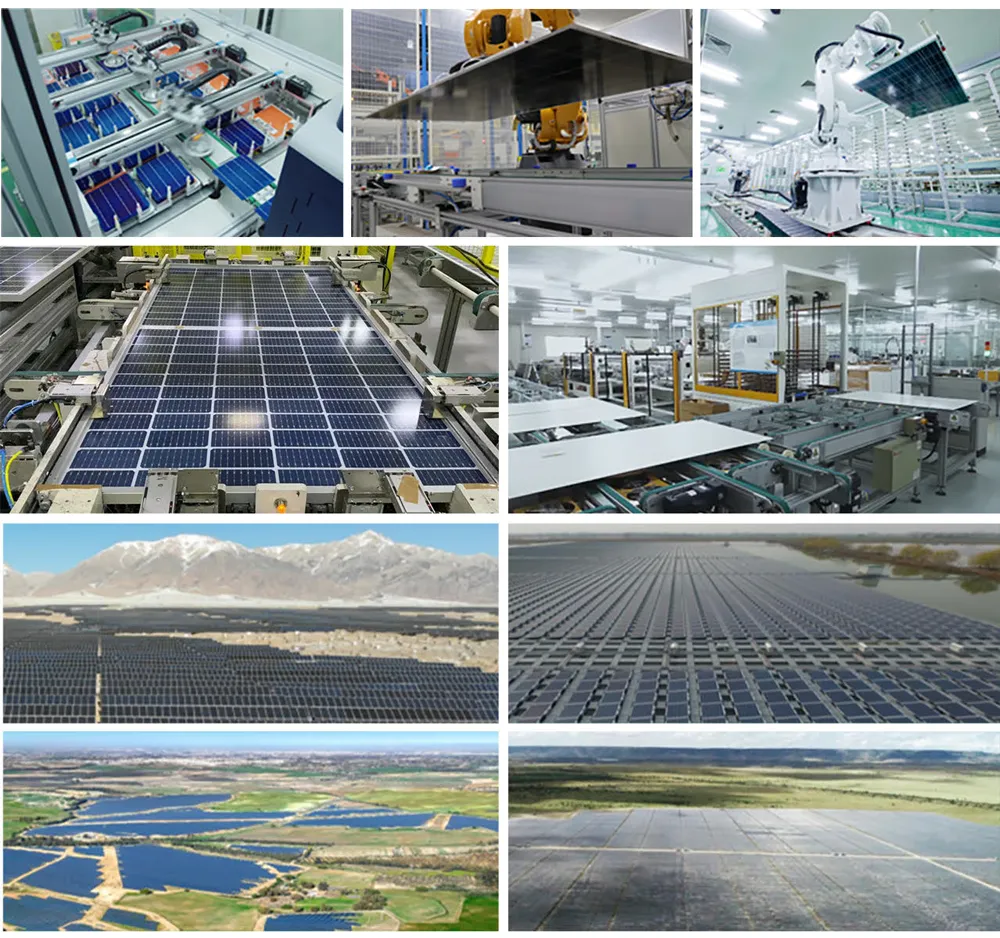

Solar Power Station Panel System Complete View
🏢 Company Profile

Company Profile Overview

Company Profile Details

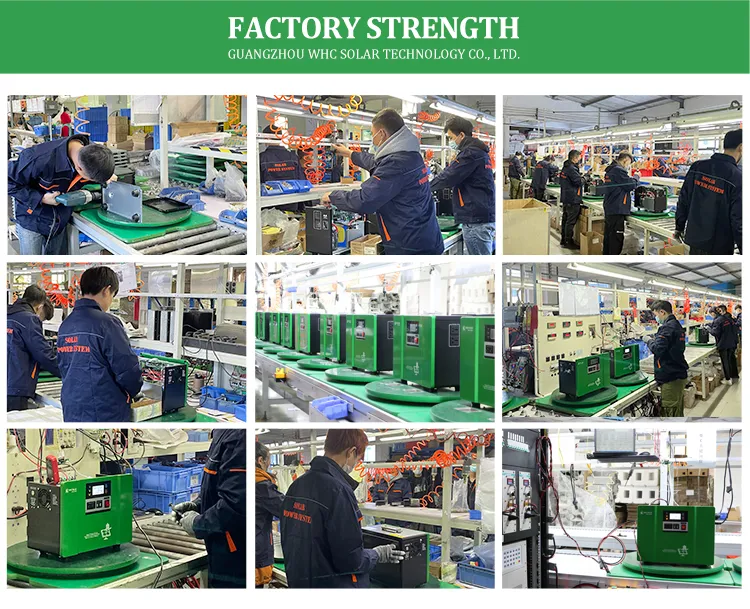

Factory Strength

Factory Strength Details

Certificate Display

Certificate Display Grid

Packing & Delivery

Packing and Delivery Details
❓ Frequently Asked Questions

Q1: Are you a factory or trading company?

We are a factory specializing in solar power solutions and battery manufacturing.

Q2: Can you print my logo on the product cover?

Yes, OEM service is available. We can print your logo on the battery case or product enclosure upon authorization.

Q3: What kind of certificates do you have?

Our products have successfully passed CE, RoHS, and ISO9001: 2008 quality management system certifications.

Q4: What is your delivery time?

Usually, standard delivery takes 14-20 days. The delivery time varies depending on the specific product type and order quantity.

Q5: Where is your main market?

Our main markets include Africa, South America, the Middle East, and Occident regions.

Q6: How to pay for the product?

We accept Western Union, Money Gram, T/T, and other mutually agreeable payment options.
