Product Description

Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage

Model: 15KW-Li-20KWH | Product Name: Offgrid Solar Power System Home

Home Use Monocrystalline off-Grid Solar Storage Powered Energy PV Panel System

The Solar Power System, also known as an off-grid solar system, is the most cost-effective type of solar system. It is a complete solar setup that comes with highly efficient solar panels, an off-grid solar inverter, a Grade A+ lithium iron phosphate battery, and other standard solar accessories. This system will not only provide you with continuous electricity but will also reduce your heavy electricity bills.

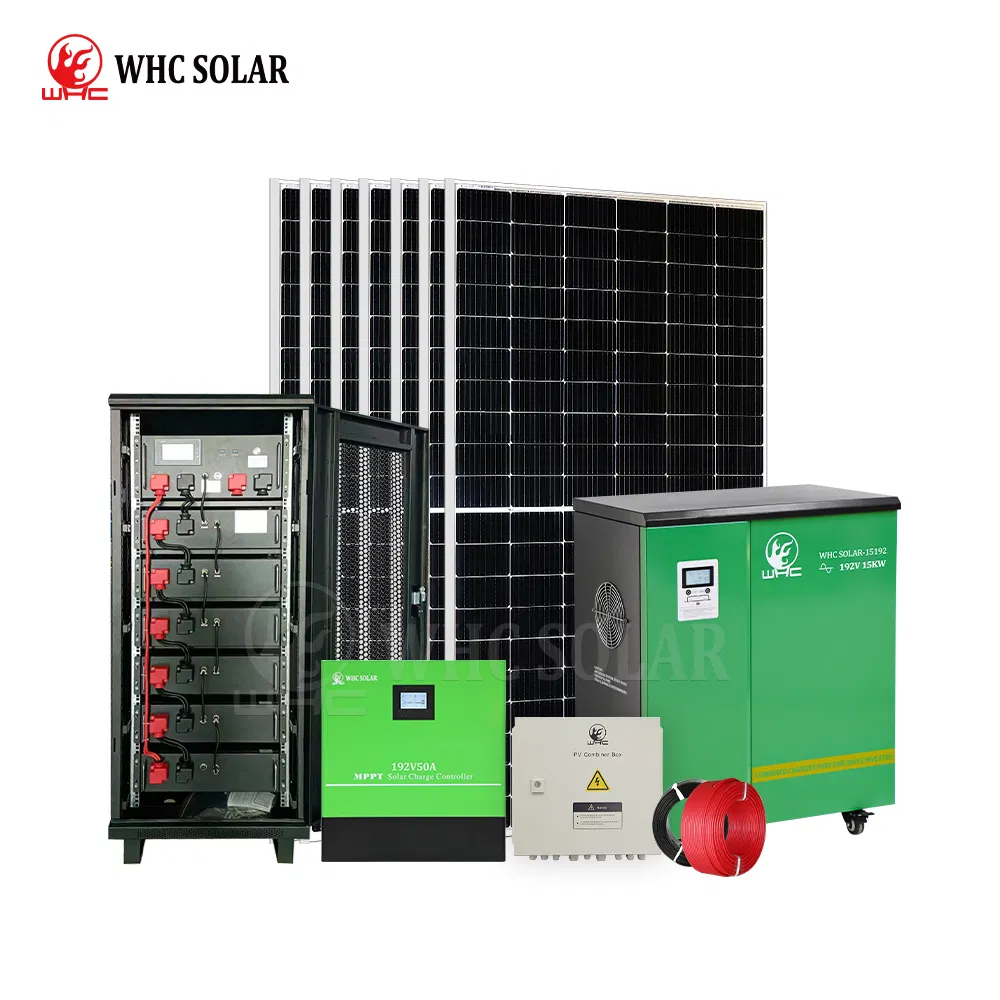

System Configurations

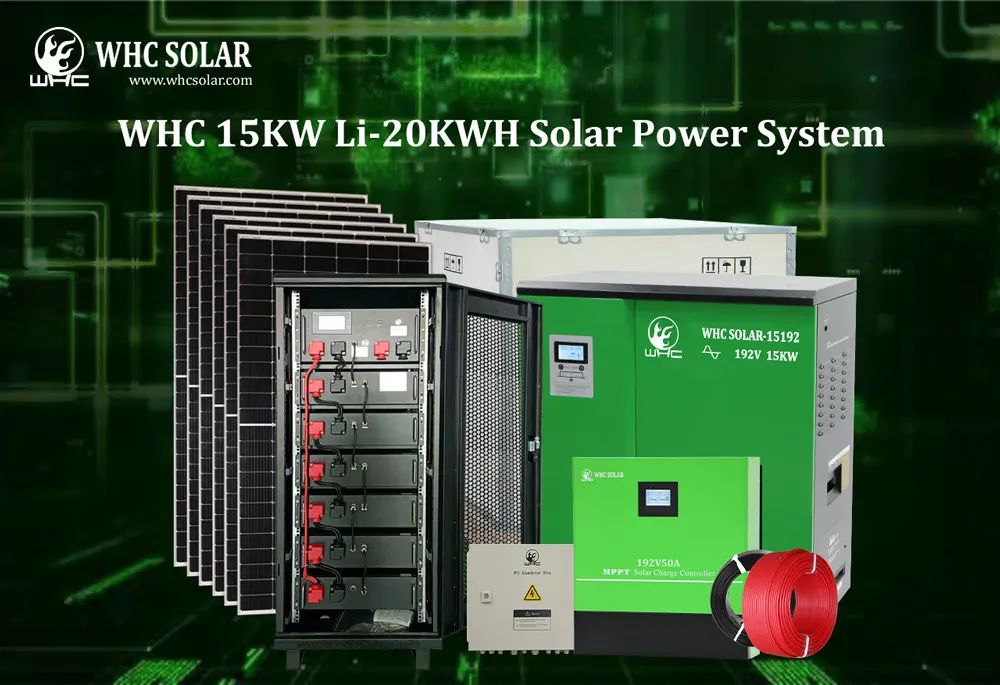

System Package: 15KW-Li-20KWH
Item	Description Details	Quantity
Solar Lithium Battery	192V100AH LiFePO4 Lithium Battery	1 Piece
Solar Panel	450W Solar Mono Panel	18 Pieces
Solar Controller	192V 50A MPPT Controller	1 Piece
Solar Inverter	192V 15KW Solar Inverter	1 Piece
PV Combiner Box	Six Input + Two Output	1 Piece
PV Cable	Single-core 6mm² PV cable 100m	2 Pieces
PV Mounting Support	Hot Galvanizing Ground Mounting Support	1 Set
Connector	MC4 Connector	30 Pieces

Component Details

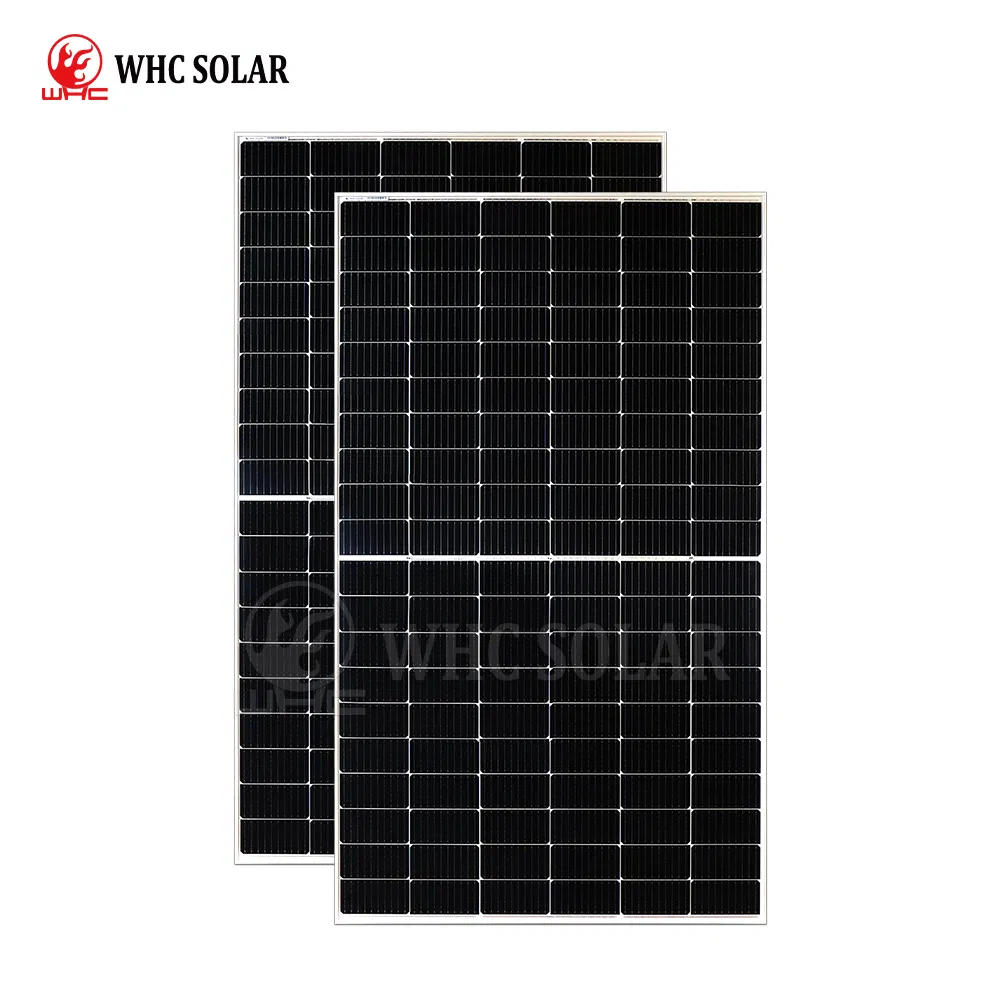

Mono Solar Panel

Model: 450M-120
Max Power Voltage: 34.67V
Max Power Current: 12.98A
Open Circuit Voltage: 41.25V
Short Circuit Current: 13.89A
Dimensions: 1909*1134*35mm

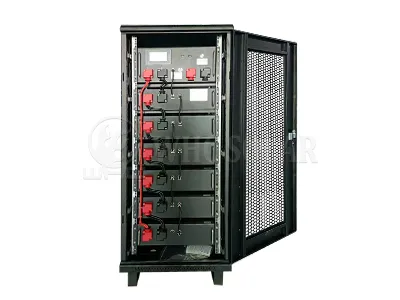

LiFePO4 Lithium Battery

Model: 192V100AH
Type: LiFePO4 Lithium Battery
Nominal Voltage: 204.8V
Capacity: 20480WH
Lifespan: 10 Years
BMS Max Discharging Current: 100A

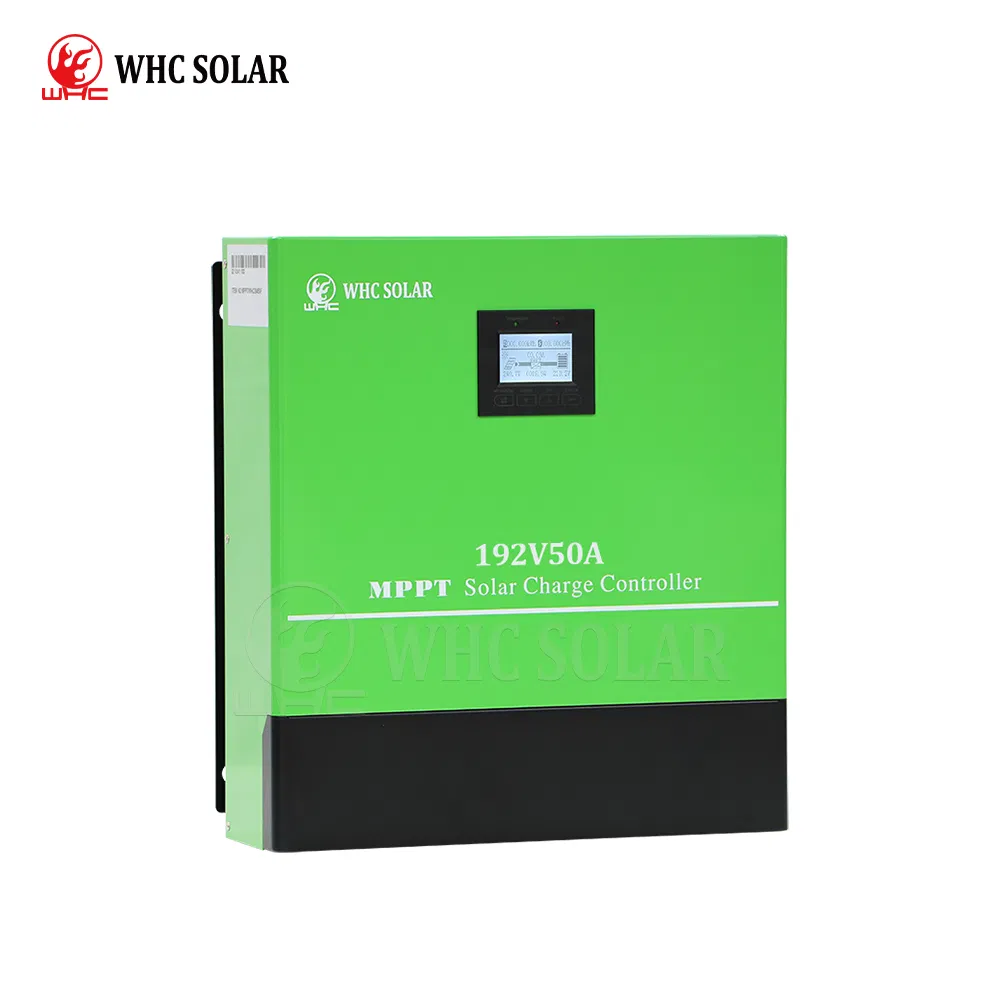

Solar Controller

Model: MPPT/19250F
Cooling Type: Heatsink Cooling
Max. Charging Current: 50A
Max. PV Open Circuit Voltage: 430V
DC Input Voltage: 192V
MPPT Efficiency: 99%

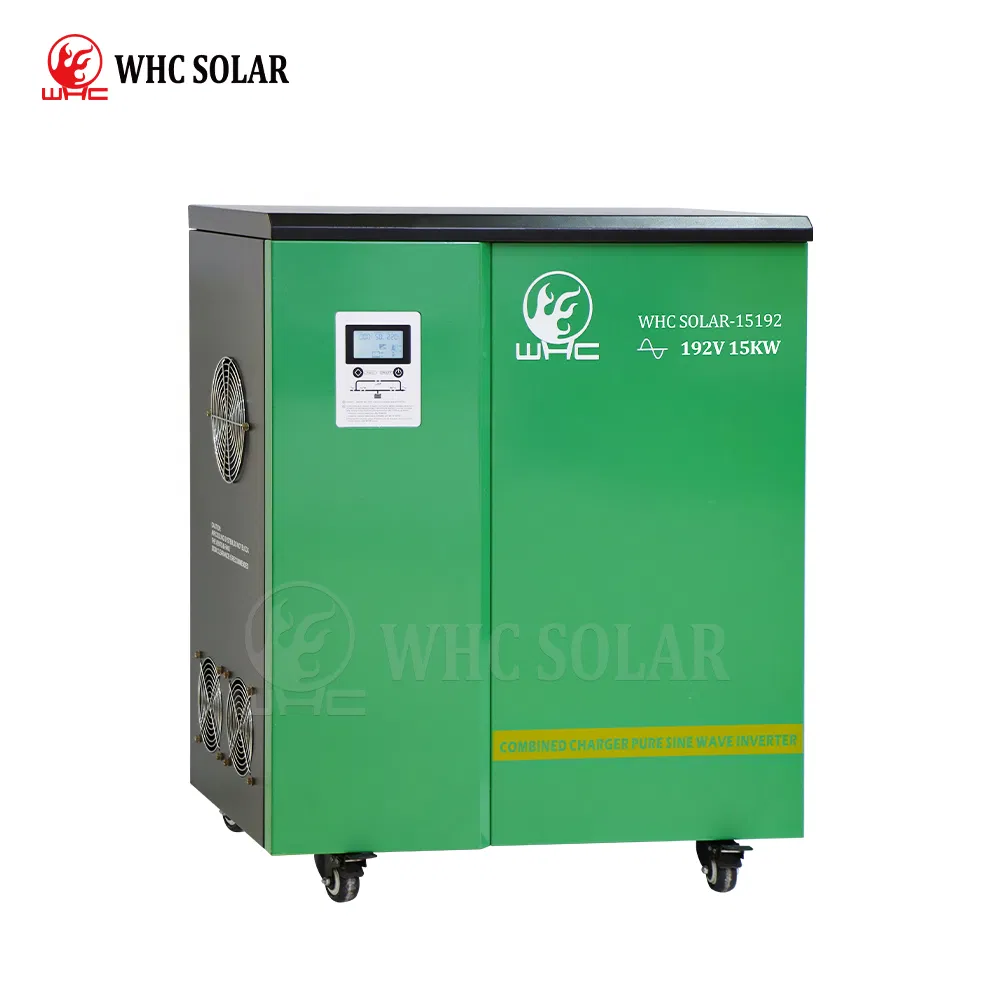

Solar Inverter

Model: 192V 15KW Inverter
Type: Low Frequency IGBT Pure Sine Wave with Big Transformer
DC Input Voltage: 192V
AC Input Voltage: 220V 50/60HZ
Recharging Current: 10A
AC Output Voltage: 220V 50/60HZ

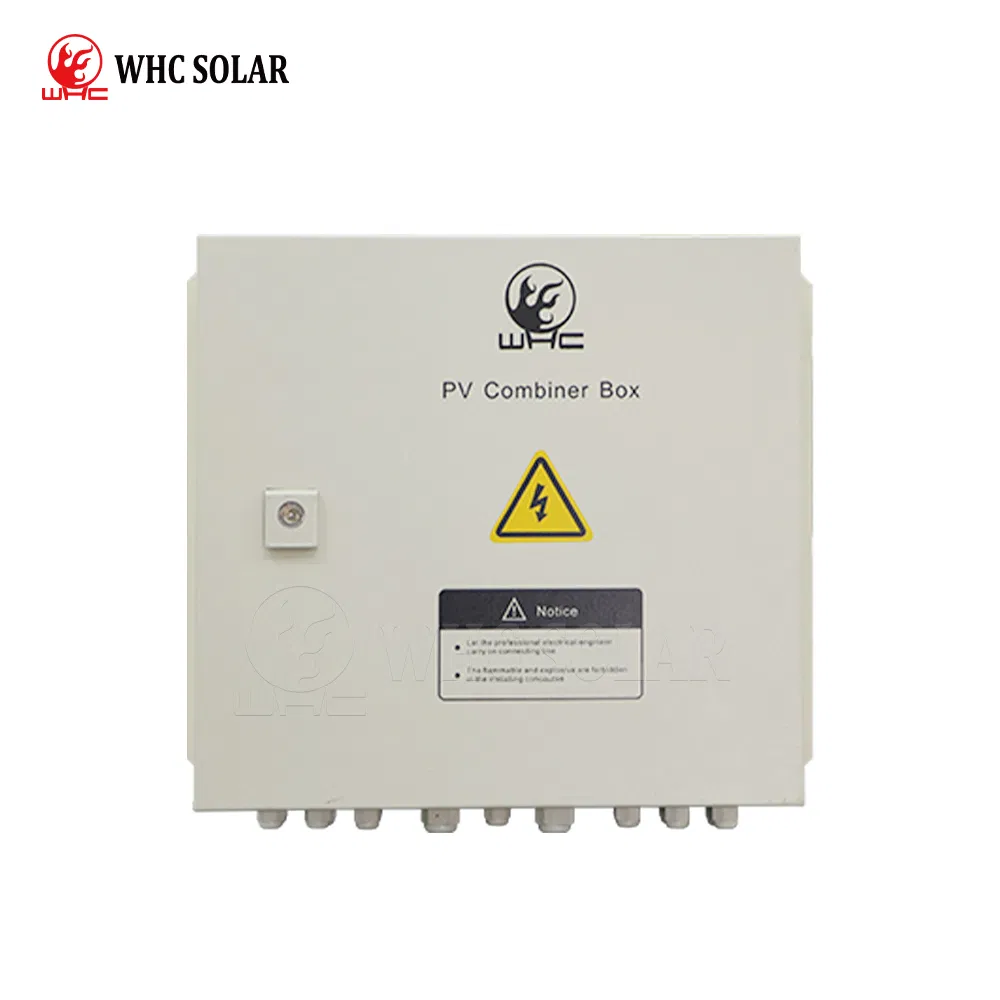

PV Combiner Box

Model: N6 Plus
Protection Class: Waterproof IP65
Max Output Voltage: 1000V
DC Output Circuit Breaker: Yes
Lightning Protection: Yes

Mounting Support

Type: Solar Panel Bracket
Wind Load Resistance: 55m/s
Structure Material: Anodized Aluminum & Stainless Steel
Adjustability: Angle Adjustable

PV Cable

Type: Solar Cable 100m
Specification: RVV 1*6mm²
Material: Pure Copper
Temperature Rating: -40°C to 120°C (Lifespan more than 25 Years)

MC4 Connector

Type: MC4 Solar Connector
Waterproof Level: IP68 Waterproof
Quality Features: High Quality, Safe Protection, Quick Operation
Material: Copper MC4 Connector

Manufacturing & Quality Control

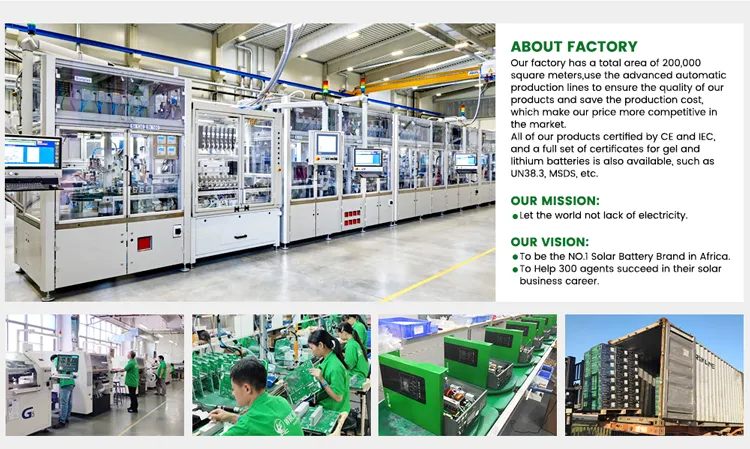

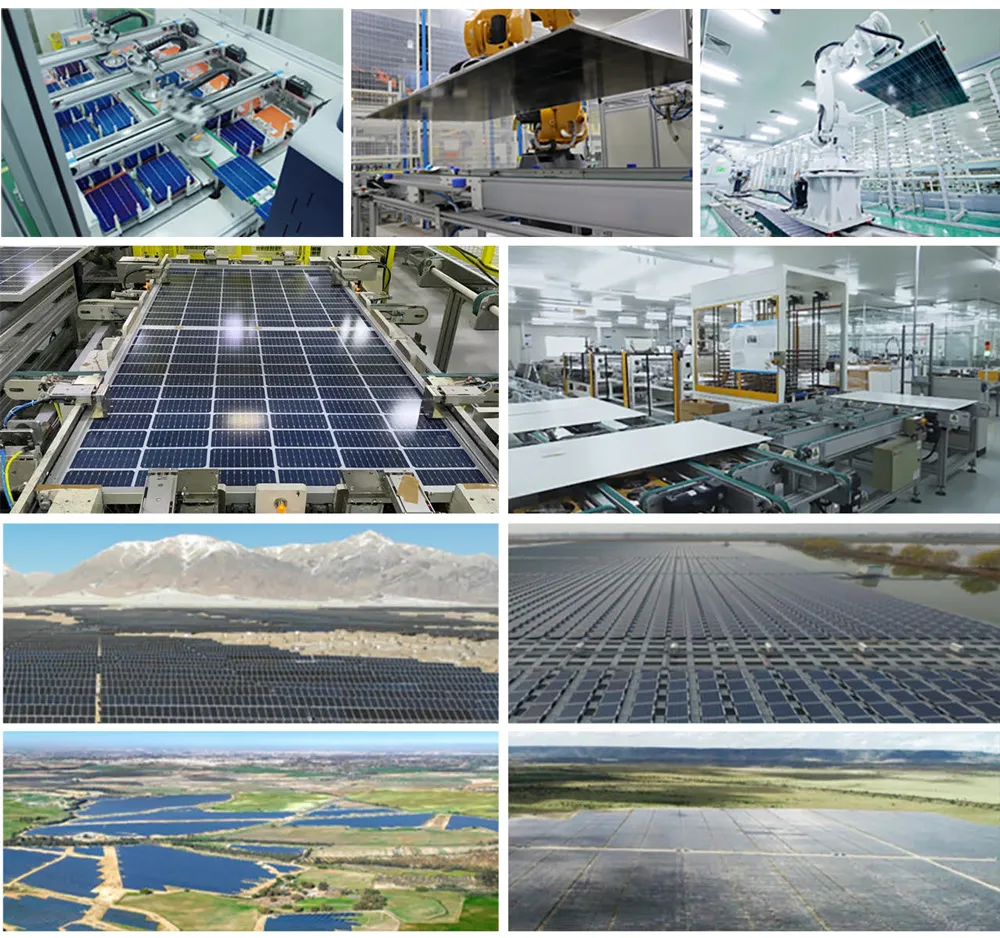

Production Facility

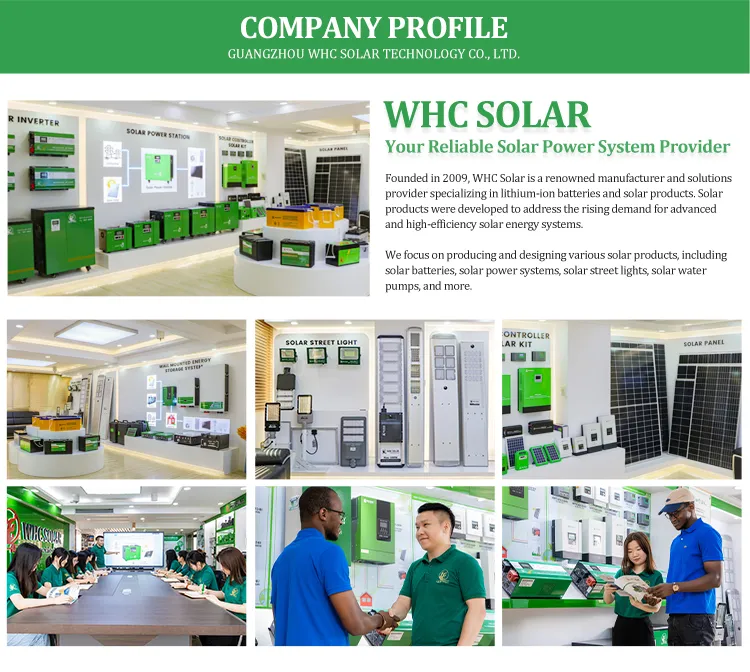

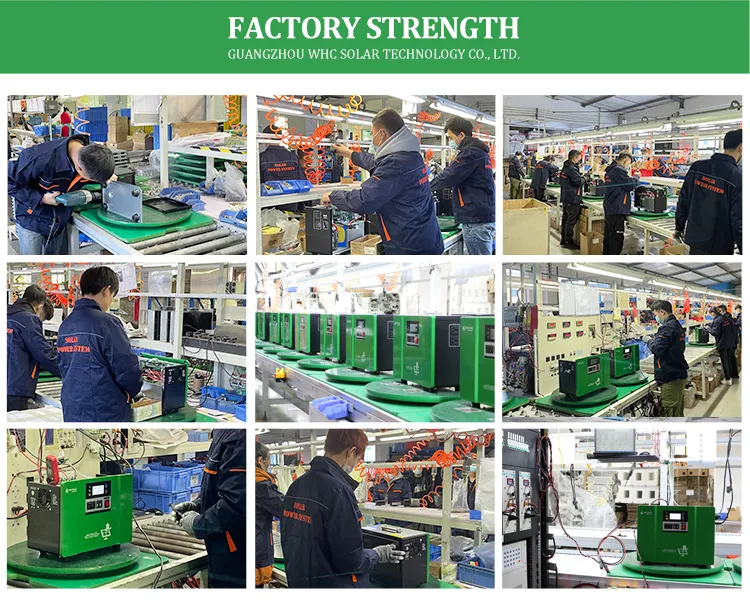

Factory Strength

Product Certifications

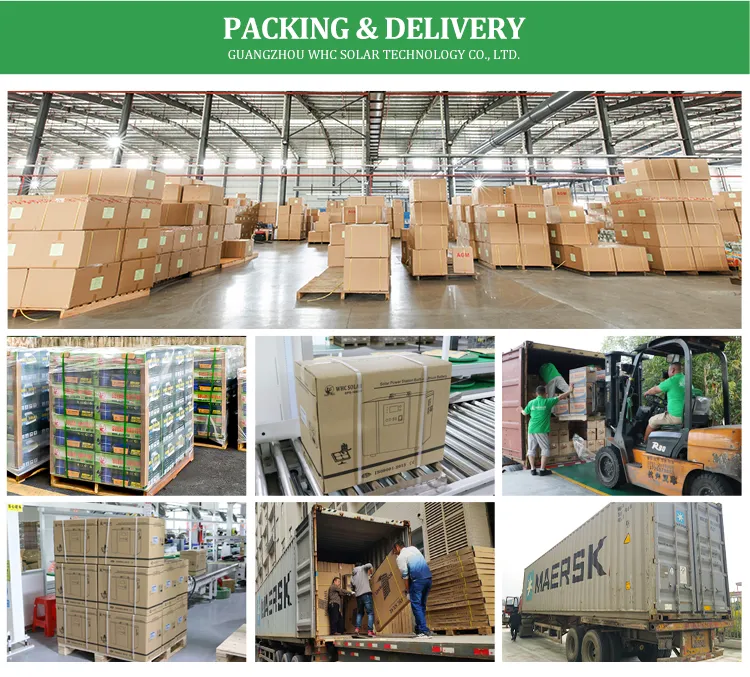

Packing & Delivery

Frequently Asked Questions

Q1 Are you a factory or a trading company?

We are a dedicated manufacturing factory specializing in advanced solar systems, lithium batteries, and related components.

Q2 Can you print my logo on the product cover?

Yes, OEM service is fully available. We can print your logo on the battery case or other components based on your authorization and requirements.

Q3 What kind of certificates do your products hold?

Our products have won a number of national patents and passed CE, RoHS, and ISO9001 quality management system certifications to guarantee high reliability.

Q4 What is the typical delivery timeframe?

The standard lead time is usually between 14 to 20 days. The specific delivery time will vary depending on the particular products and order quantity.

Q5 Where are your main distribution markets located?

Our primary global distribution markets span across Africa, South America, the Middle East, Occident, and other regions worldwide.

Q6 What payment methods are accepted for transactions?

We accept Western Union, T/T, MoneyGram, and other convenient payment systems to facilitate secure business operations.
