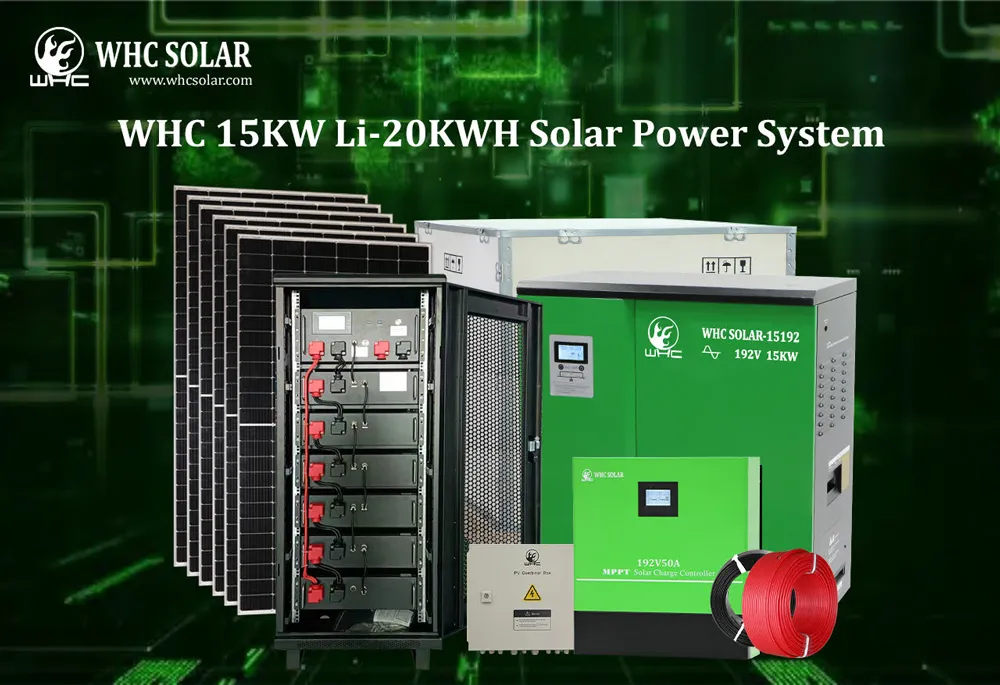

Solar System Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage
Model: 15KW-Li-20KWH
Product Name: Offgrid Solar Power System Home
Solar Power System also known as off-grid solar system is the most costeffective type for solar system. It is a complete solar setup that comes with highly efficient solar panels, off-grid solar inverter, Grade A+ lithium iron phosphate battery and other standard solar accessories. This system will not only provides you continuous electricity but will also reduce your heavy electricity bills.
System Specifications

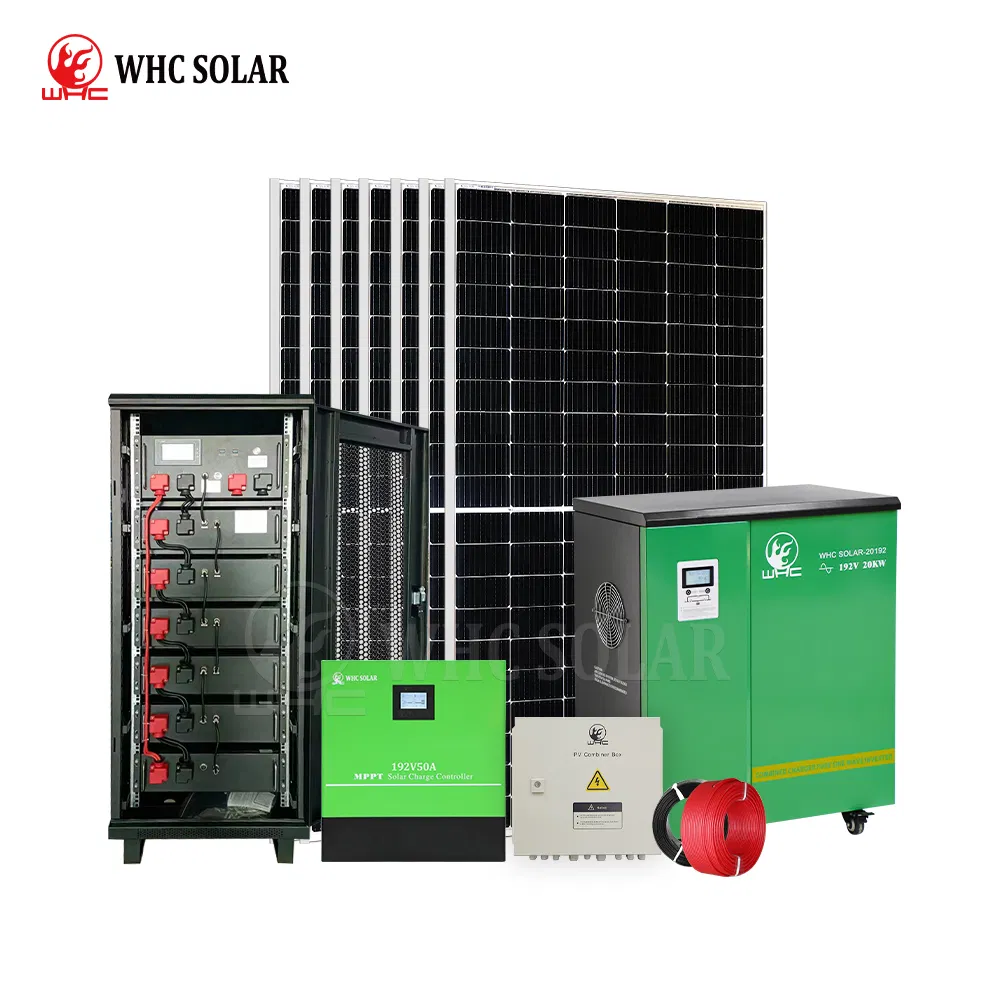

| 15KW-Li-20KWH System Configuration |
| Item |
Description |
Quantity |
| Solar Lithium Battery |
192V100AH LiFePO4 Lithium Battery |
1 Piece |
| Solar Panel |
450W Solar Mono Panel |
18 Pieces |
| Solar Controller |
192V 50A MPPT Controller |
1 Piece |
| Solar Inverter |
192V 15KW Solar Inverter |
1 Piece |
| PV Combiner Box |
Six Input + Two Output |
1 Piece |
| PV Cable |
Single-core 6mm² PV cable 100m |
2 Pieces |
| PV Mounting Support |
Hot Galvanizing Ground Mounting Support |
1 Set |
| Connector |
MC4 Connector |
30 Pieces |
Key Components Detail
Mono Solar Panel
- ✓ Model: 450M-120
- ✓ Max Power Voltage: 34.67V
- ✓ Max Power Current: 12.98A
- ✓ Open Circuit Voltage: 41.25V
- ✓ Short Circuit Current: 13.89A
- ✓ Dimensions: 1909*1134*35mm

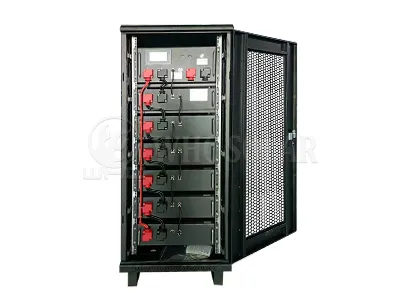

LiFePO4 Lithium Battery
- ✓ Model: 192V100AH
- ✓ Type: LiFePO4 Lithium Battery
- ✓ Nominal Voltage: 204.8V
- ✓ Capacity: 20480WH
- ✓ Lifespan: 10 Years
- ✓ BMS Max Discharging Current: 100A
Solar Controller
- ✓ Model: MPPT/19250F
- ✓ Type: Heatsink Cooling
- ✓ Max. Charging Current: 50A
- ✓ Max. PV Open Circuit Voltage: 430V
- ✓ DC Input Voltage: 192V
- ✓ MPPT Efficiency: 99%
Solar Inverter
- ✓ Model: 192V 15KW Inverter
- ✓ Type: Low Frequency IGBT Pure Sine Wave Inverter with Big Transformer
- ✓ DC Input Voltage: 192V
- ✓ AC Input Voltage: 220V 50/60HZ
- ✓ Recharging Current: 10A
- ✓ AC Output Voltage: 220V 50/60HZ

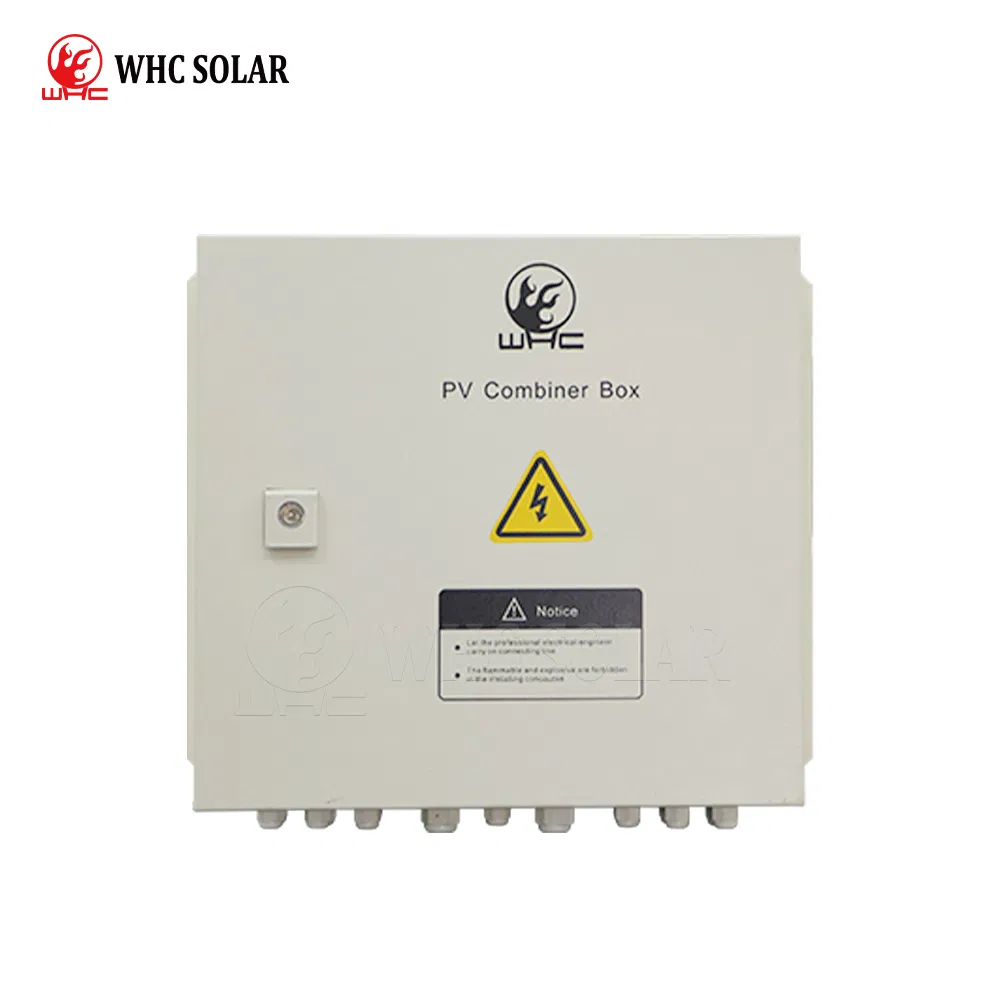

PV Combiner Box
- ✓ Combiner Box: N6 Plus
- ✓ Waterproof Level: IP65
- ✓ Max Output Voltage: 1000V
- ✓ DC Output Circuit Breaker: Yes
- ✓ Lightning Protection: Yes

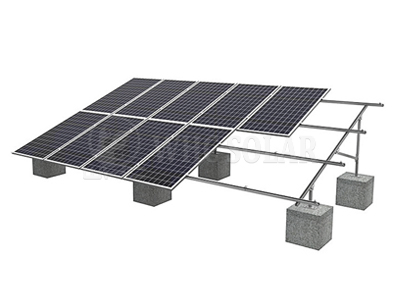

Mounting Support
- ✓ Type: Solar Panel Bracket
- ✓ Wind Load: 55m/s
- ✓ Structure Material: Anodized Aluminum Stainless Steel
- ✓ Adjustment: Angle Adjustable
PV Cable
- ✓ Specifications: Solar Cable 100m
- ✓ Type: RVV 1*6mm²
- ✓ Material: Pure Copper
- ✓ Temperature Rating: -40°C to 120°C (Lifespan more than 25 Years)

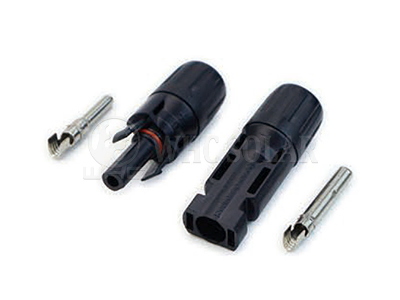

MC4 Connector
- ✓ Type: MC4 Solar Connector
- ✓ Waterproof Level: IP68
- ✓ Quality: High Quality Safe Protection
- ✓ Features: Quick Operation, Copper Core

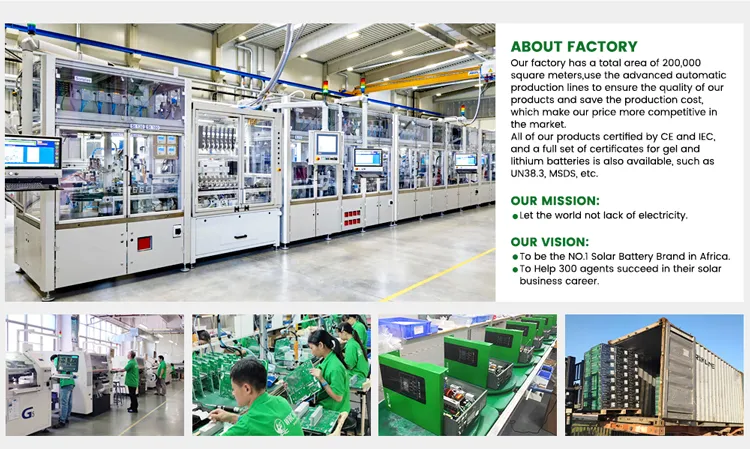

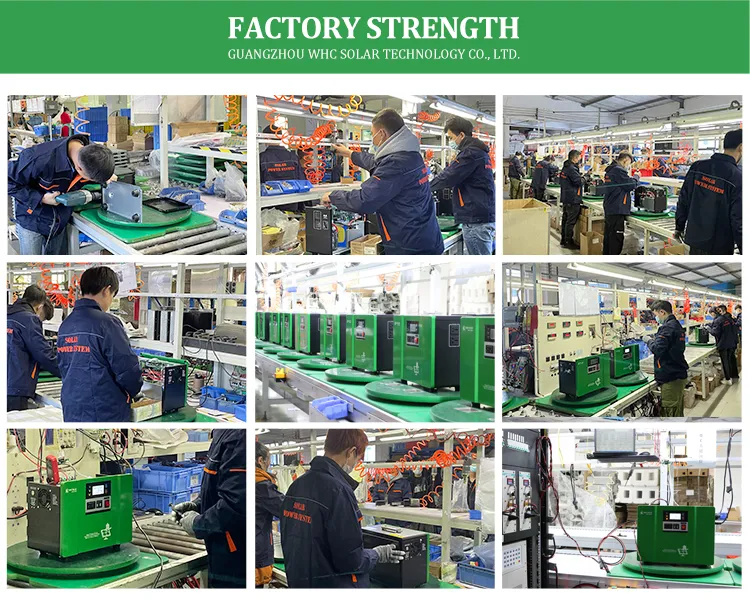

Production & Quality Control
Certifications & Shipping
Frequently Asked Questions
Are you a factory or trading company?
We are a factory with professional manufacturing capabilities.
Can you print my logo on the product cover?
Yes, OEM service is available. We can print your logo on the battery case when you offer your logo details.
What kind of certifications do you have?
We hold a number of national patents and have passed CE, RoHS, and ISO9001: 2008 quality management system certifications.
What is your delivery time?
Usually 14-20 days. The delivery time varies depending on the specific product and order quantity.
Where is your main market?
Our main markets include Africa, South America, the Middle East, Occident, and other global regions.
How to pay for the product?
We accept Money Gram, Western Union, T/T, and other convenient payment methods upon discussion.
