48V 350ah Lithium Motive Battery Systems with BMS

Basic Info

Model NO.

24V/36V/48V/72V/80V/96V

Rechargeable

Yes

Size

Medium

Usage

Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat, Forklift/Golf Cart/Battery Bank/Skateboard/RV

Nominal Voltage

48V

Discharge Rate

High Discharge Rate

Electrolyte

Li-ion

Certificate

CE Un38.3 IEC62133 RoHS MSDS

Cycle Life (80% DOD)

>3000 Times

Self-Discharge

≤3% (Month)

Weight (Approx.)

200kgs

Dimensions

900X400X574mm(Lxwxh)

Transport Package

Wooden Case

Specification

Customized designs available

Origin

China

HS Code

8507600090

Production Capacity

10 pieces/Day

Preface

At present, it is not only in the automotive world that there are signs of a change to electromobility. The material handling equipment industry has long been a pioneer in this field. For some time now, there has been increasing demand for electric forklifts instead of IC engine-powered trucks. The challenge: to ensure the same high vehicle availability as with trucks powered by internal combustion engines. This is where Li-ION technology comes into play. It has proven its worth in everyday use - in smartphones, for example - and offers a whole series of advantages over lead-acid batteries in forklifts:

Product Description

1. SHORT AND QUICK RELOADING

Battery can be recharged even during short breaks, meaning costly and time-consuming battery changes are no longer necessary.

2. HIGHER ENERGY EFFICIENCY

Up to 30 percent more energy thanks to higher energy density and high overall system efficiency.

3. POWERFUL SYSTEM

No loss of performance even with decreasing battery charge.

4. USER-FRIENDLY SOLUTION

No leaking of hazardous battery gases and acids. Maintenance-free and easy to clean.

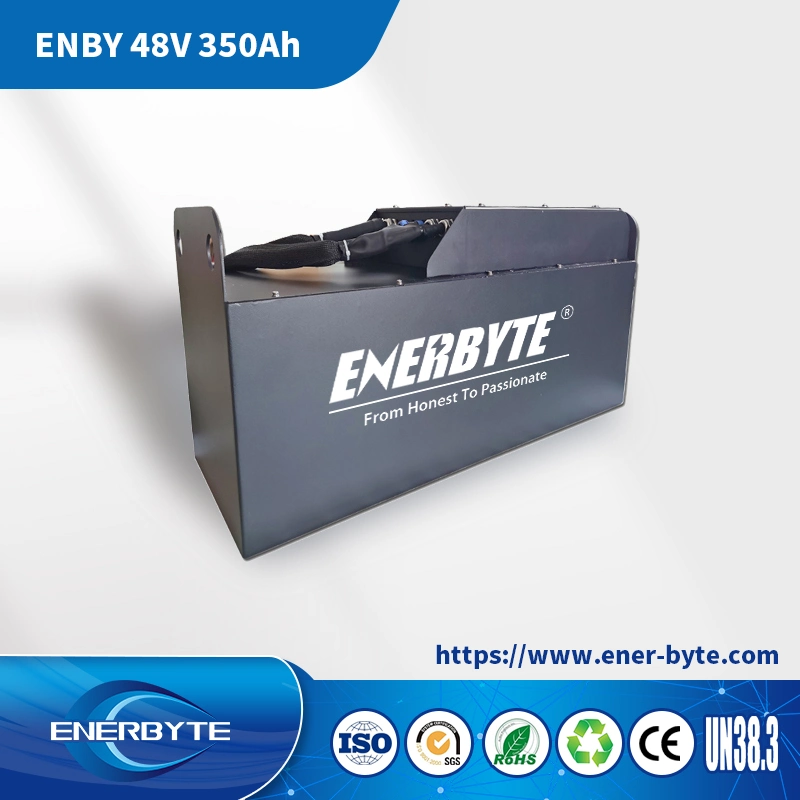

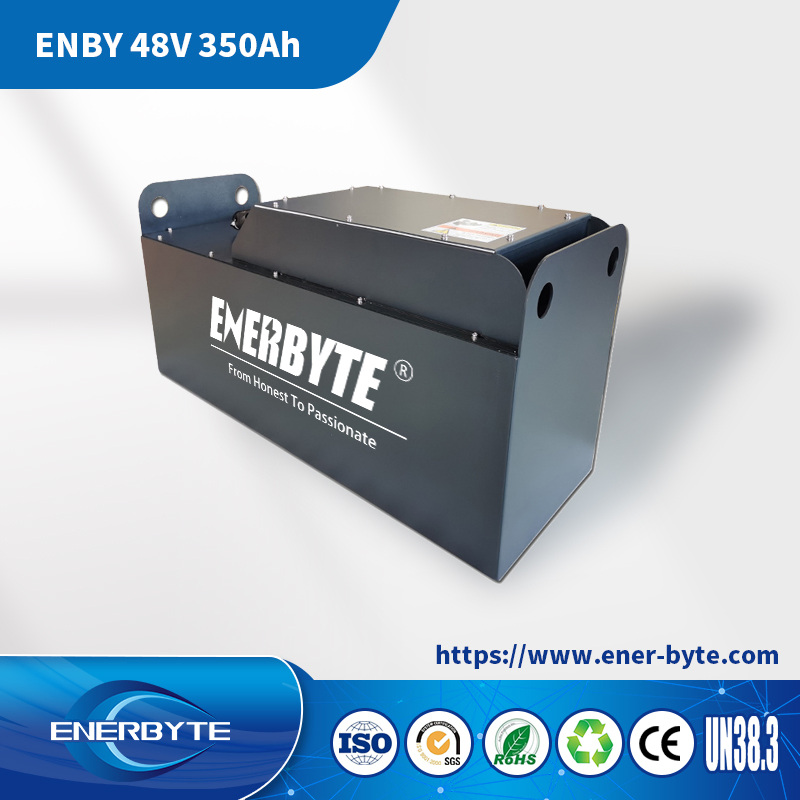

48V 350ah Lithium Motive Battery Systems with BMS

LiFePO4 Battery 48V 350ah Lithium Ion Battery for E-Pallet Truck Battery/Forklift Battery/ Bt/ Lpe200 Battery

Parameter Specifications		Details
Model		ENBY-48V-350Ah
Capacity (0.2C5A)		350Ah
Nominal Voltage		48V
Max. Charge Voltage		58.4V
Discharge Cut-off Voltage		40V (recommended)
Charging Voltage		58.4V±0.03V
Continuous Discharge current		300A
Peak Discharge current		1000A within 5 Seconds
Weight (Approx.)		200Kgs
Battery Dimensions		900400574mm(LXWXH)
Impedance (Max, at 1000Hz)		(Single cell 25Ah) ≤3mΩ
Cycle Life (80% DOD)		>3000 Times
Self-discharge Rate		≤3%(month)
Charger		150A(2hrs)
Operating Temperature	Charge	0ºC~60ºC; 32ºF~140ºF
	Discharge	-20ºC~80ºC; -4ºF~176ºF
	Storage	-20ºC~60ºC; -4ºF~140ºF

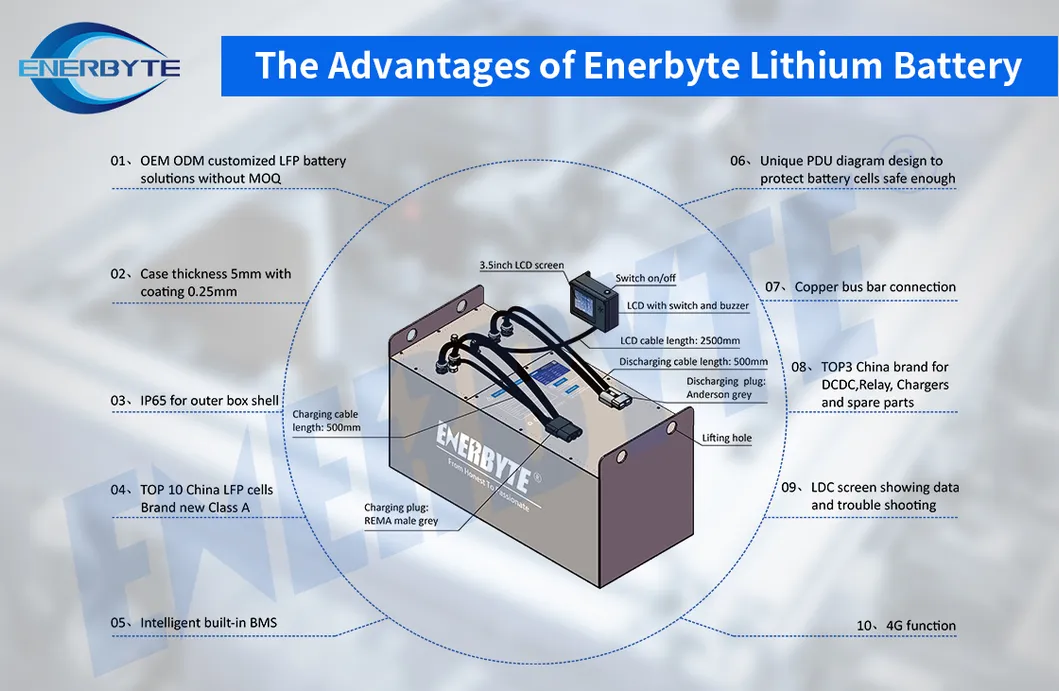

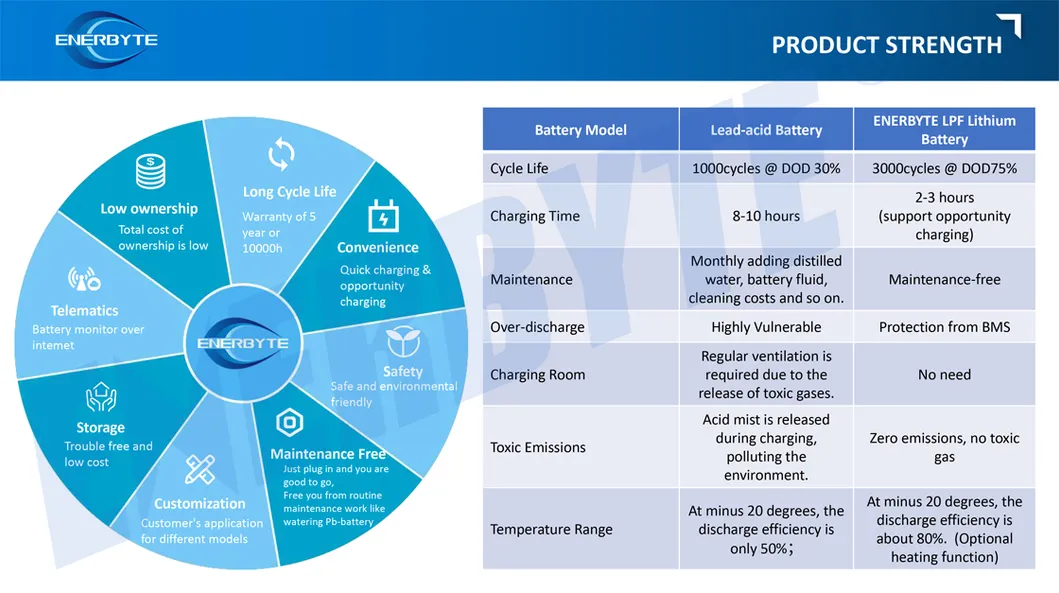

Product Strength

Advantages of our lithium battery:

Safety: Safest Li-Ion battery, CE approved, built-in BMS, no fire, no explosive.
Clean & Green Energy: No toxic materials contained.
Long Life Cycle: > 500 times deep cycle with 80% capacity left, 4 times the lifespan of lead-acid batteries.
No Memory Effect: Highly efficient charging anytime, no reduction of capacity.
Temperature Performance: Excellent performance and resistance at high temperatures.
Low Self-Discharge Rate: Less than 3% monthly.

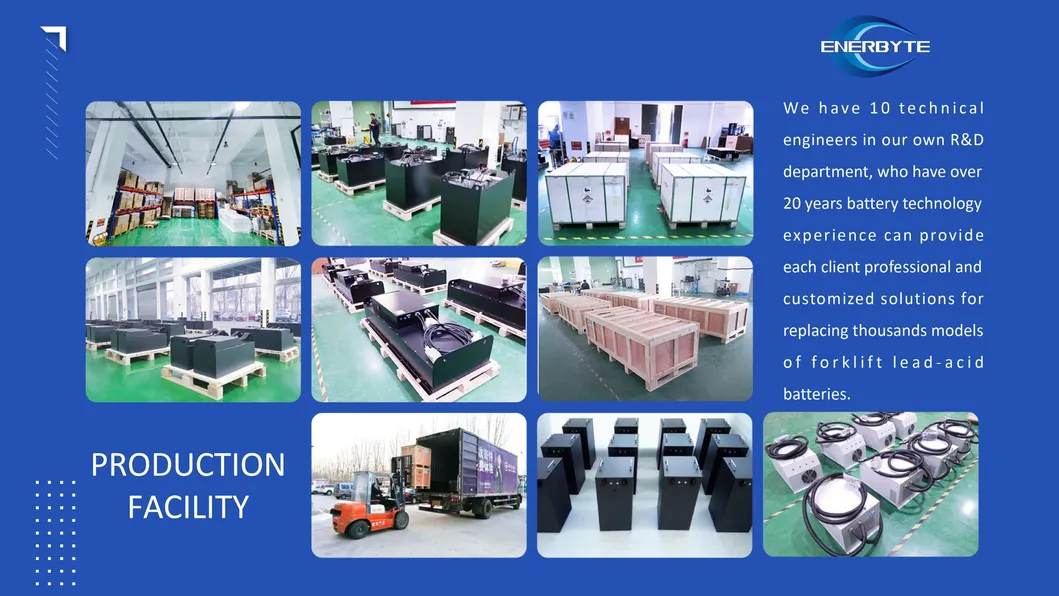

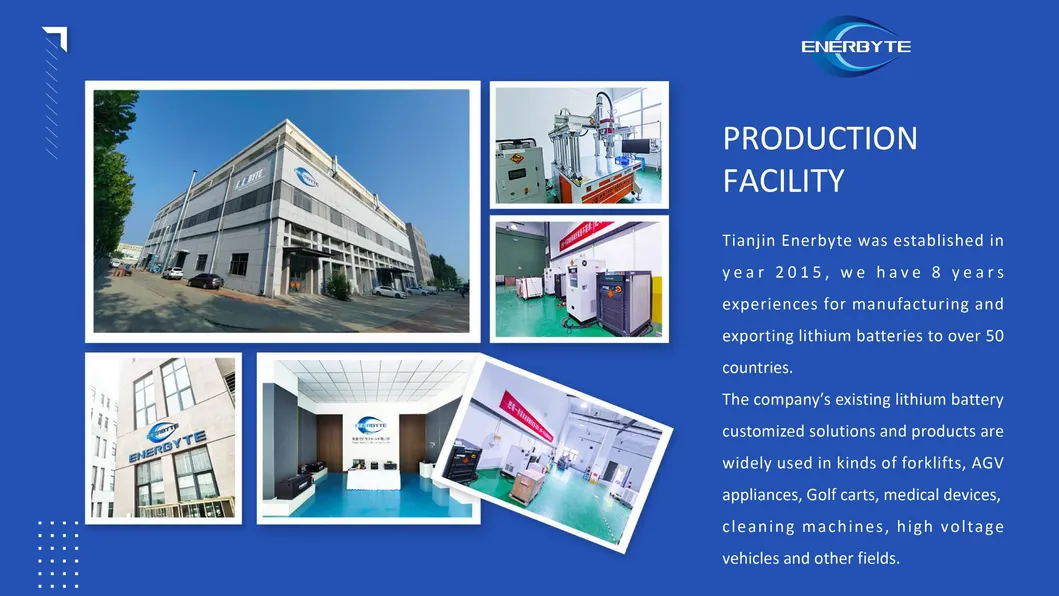

Factory Gallery

Frequently Asked Questions

What payment terms do you accept?

We accept T/T, L/C, and West Union.

What is your Warranty Policy?

We offer a 5-year warranty for our products. They can be replaced with new ones for free if there are quality issues. We use Lithium iron phosphate batteries, which offer high safety performance, a long cycle life, and a service life of more than 10 years.

How do I choose the right battery?

Please tell us your specific requirements, and our team will recommend a suitable battery for your needs.

How do you solve technical problems?

We offer 24-hour after-service consultations to resolve your technical issues easily.

What is your Minimum Order Quantity (MOQ)?

We have no MOQ; a single sample order is acceptable. However, larger orders offer the best cost performance.

Can you accept OEM and ODM Service?

Yes, we provide OEM and ODM services based on client requirements.

Precautions

Do not use other types of chargers to charge the lithium battery; you must use a special charger designed for lithium batteries.
The output voltage and current of the lithium battery charger must meet the charging parameters specified for the battery pack.
Do not store the battery in humid or high-temperature environments.
Do not put the battery in fire to avoid explosions.
Do not short-circuit the battery terminals or reverse charge the battery.
Do not disassemble the battery casing.
Do not touch the battery with wet hands.
Do not squeeze or hit the battery.
Prohibit overcharging, overdischarging, and short-circuiting of positive and negative poles.
Avoid charging in direct sunlight.
Do not soak the battery in water, and the wading depth shall not be higher than 1/3 of the cabinet.
Do not disassemble or modify the battery arbitrarily.
When the battery is not in use, it should be fully charged and stored in a dry, cool, and well-insulated place, away from children. Recharge fully every 3 months.
If any damage is found after unpacking, please contact the distributor or manufacturer immediately.

Product Detail

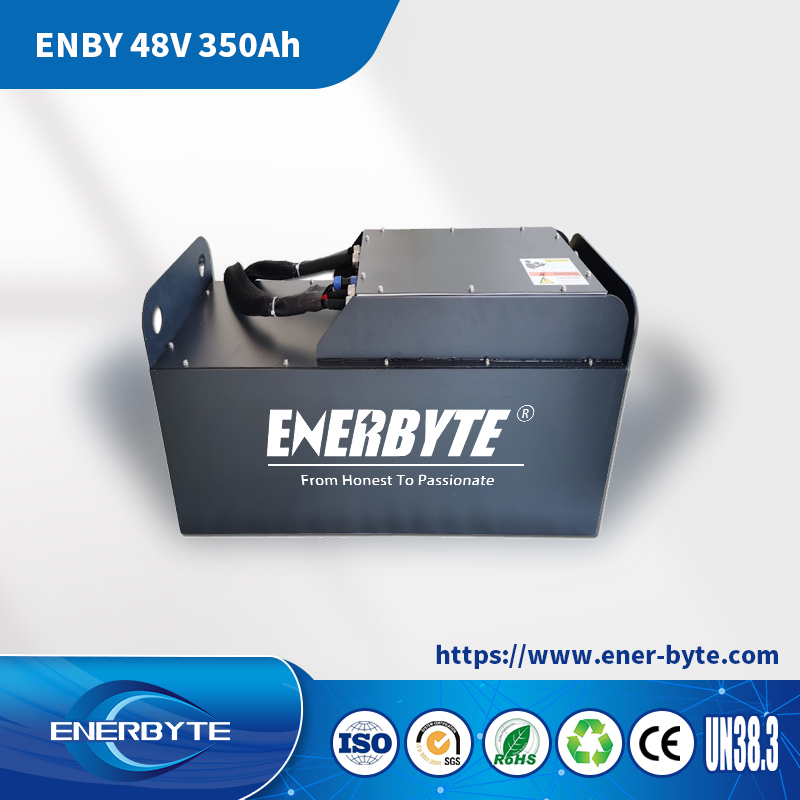

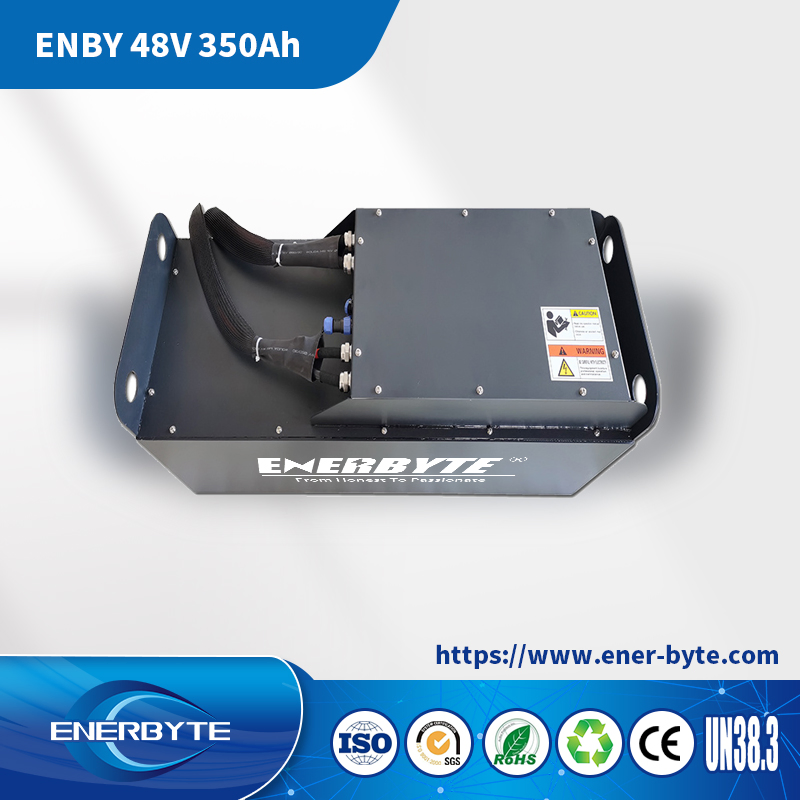

48V 350ah Lithium Motive Battery Systems with BMS
