Product Description

System Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage
Model: 1K/1.5K/3K/5K/10K

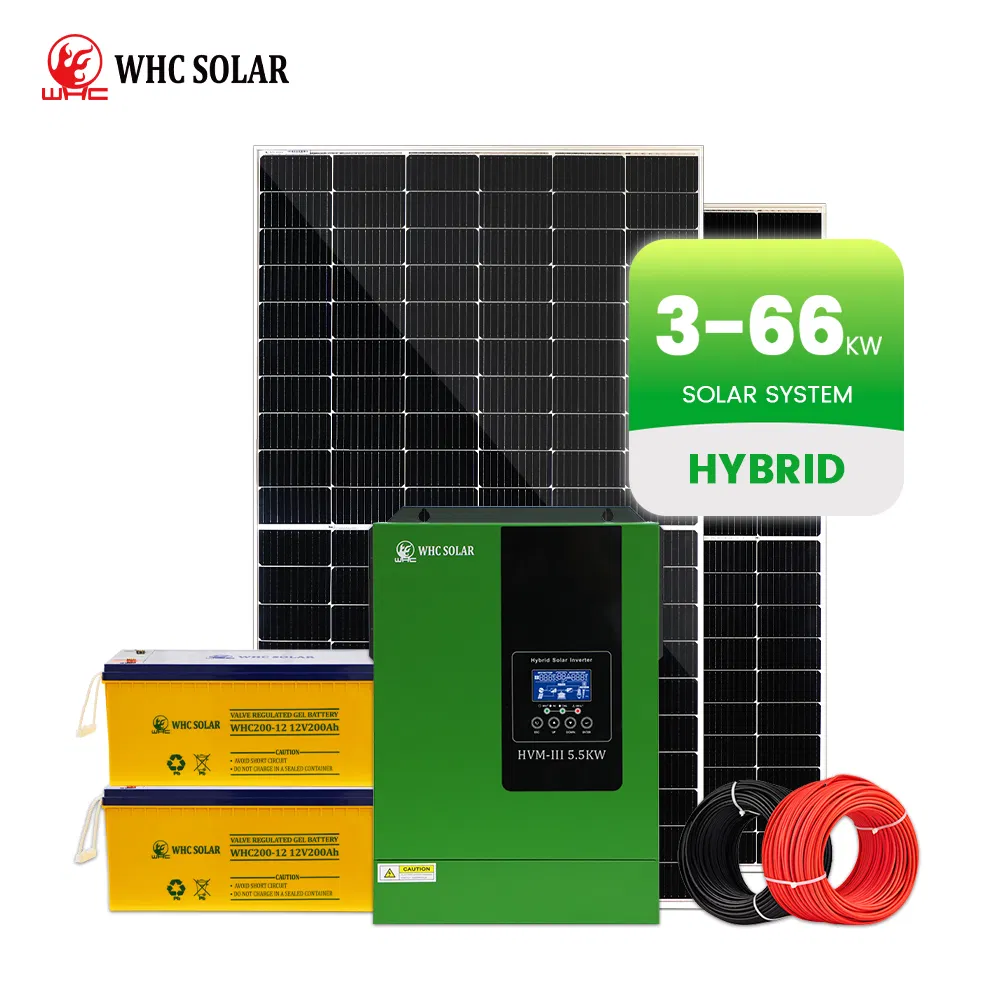

Product Name: Solar energy system

Solar Power System, also known as off-grid solar system, is the most cost-effective type for solar system. It is a complete solar setup that comes with highly efficient solar panels, off-grid solar inverter, Grade A+ lithium iron phosphate battery and other standard solar accessories. This system will not only provide you with continuous electricity but will also reduce your heavy electricity bills.

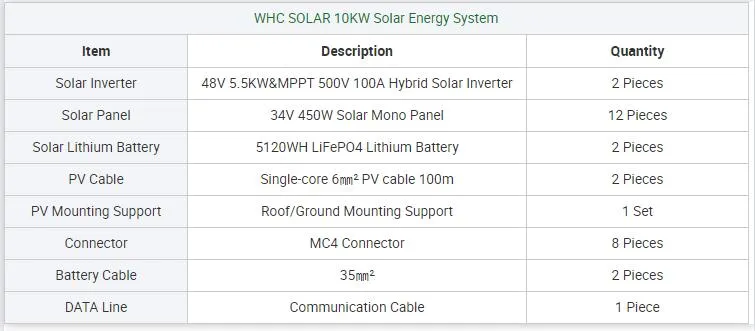

System Components

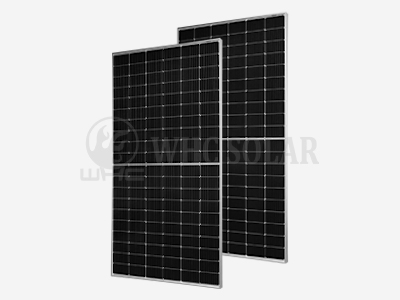

Mono Solar Panel

• Model: 450M-120
• Max Power Voltage: 34.67V
• Max Power Current: 12.98A
• Open Circuit Voltage: 41.25V
• Short Circuit Current: 13.89A
• Dimensions: 1909*1134*35mm

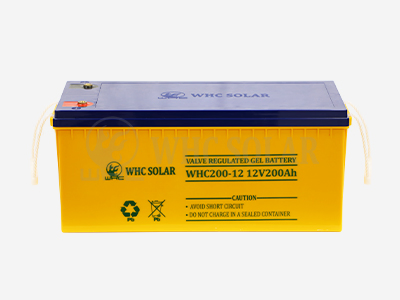

Solar Gel Battery

• 12V200AH Gel Battery
• Nominal Voltage: 12V
• Capacity: 200AH
• Internal Resistance (Fully Charged, 25°C): Approx. 3mΩ
• Float Charging Voltage: 13.5 to 13.8V
• Sizes: 522*238*224mm

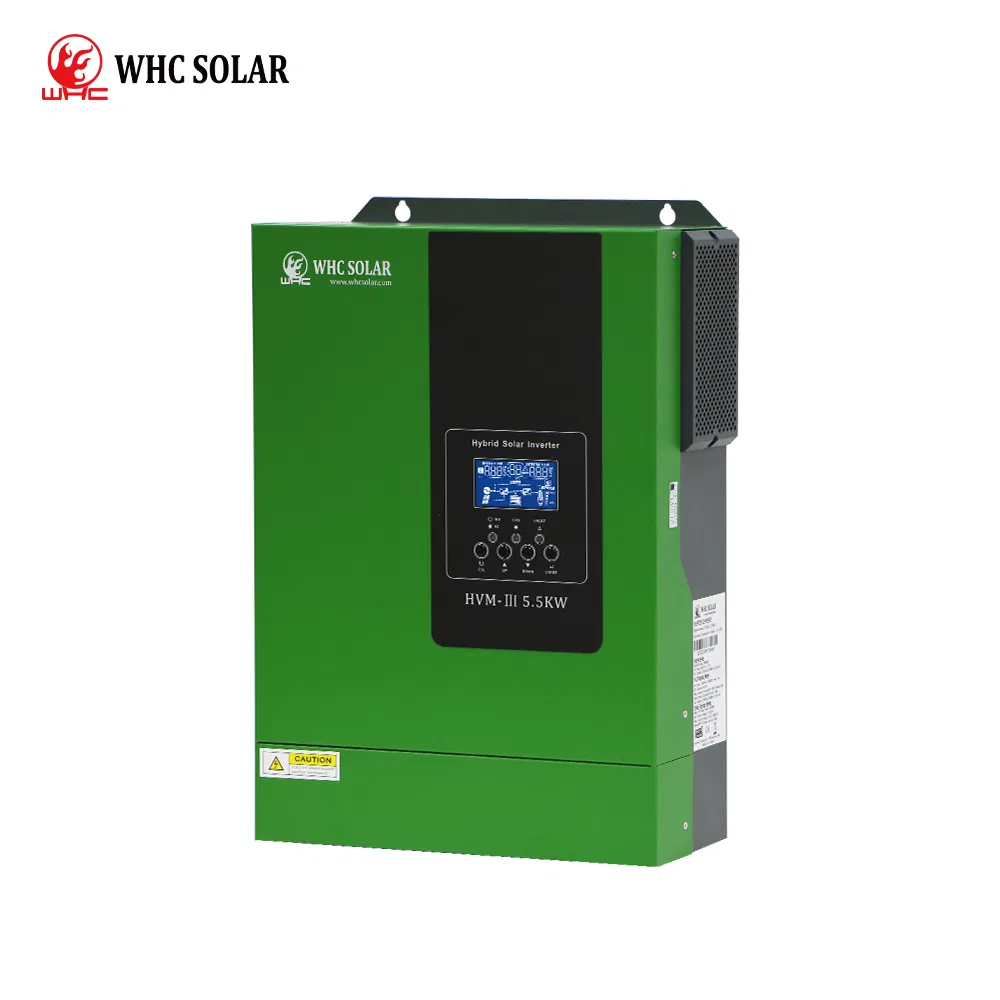

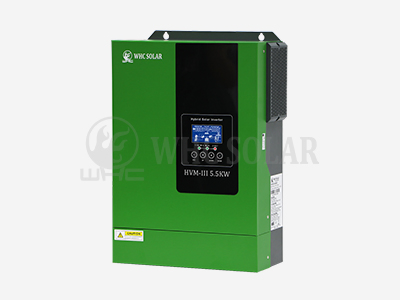

Solar Hybrid Inverter

• 48V 5.5KW Solar Inverter
• Power Capacity: 48V 5.5KW
• PV Input: 500V 100A
• Output: 220V 50Hz
• Optimized Performance & Extended Lifecycle
• High Efficiency Pure Sine Wave Inverter

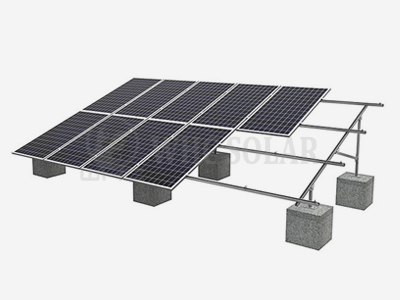

Mounting Support

• Solar Panel Bracket
• Wind Load Limit: 55m/s
• Structure Material: Anodized Aluminum
• Stainless Steel, Adjustable Angle

PV Cable

• Solar Cable 100m
• Type: RVV 1*6mm²
• Material: Pure Copper
• Temperature Rating: -40°C to 120°C (Lifespan > 25 Years)

MC4 Connector

• MC4 Solar Connector
• IP68 Waterproof Grade
• High Quality Safe Protection & Quick Operation
• Copper MC4 Connector

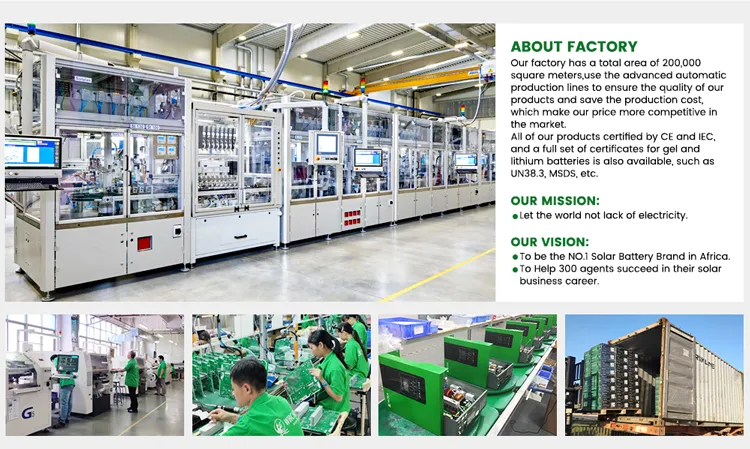

System Integration & Production
