Basic Info.
Discharge Rate
High Discharge Rate
Product Name
Offgrid Solar Power System Home
Solar Panel Type
Half Cell Solar Panel
Battery Type
LiFePO4 Lithium Battery
Inverter
Pure Sine Wave Inverter
Controller
MPPT Solar Charge Controller
Solar Panel Bracket
Aluminum Alloy
Mounting Support
Pitched / Flat Roof / Ground
System Type
off-Grid Solar Power System
Battery Cell
3.2V 100ah LiFePO4 Cell
Transport Package
Package in Carton or According to Your Requirement
Specification
20KW Li-20KWH
Production Capacity
10000pieces/Month
Product Description
System Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage

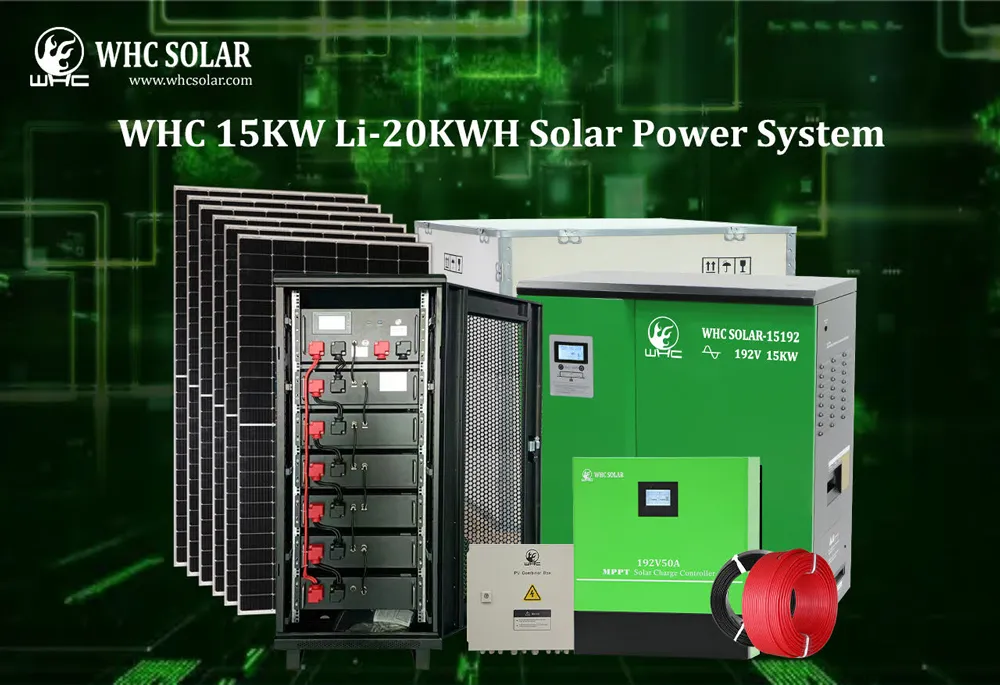

Model: 15KW-Li-20KWH
Product Name: Offgrid Solar Power System Home
Solar Power System also known as off-grid solar system is the most costeffective type for solar system. It is a complete solar setup that comes with highly efficient solar panels, off-grid solar inverter, Grade A+ lithium iron phosphate battery and other standard solar accessories. This system will not only provides you continuous electricity but will also reduce your heavy electricity bills.

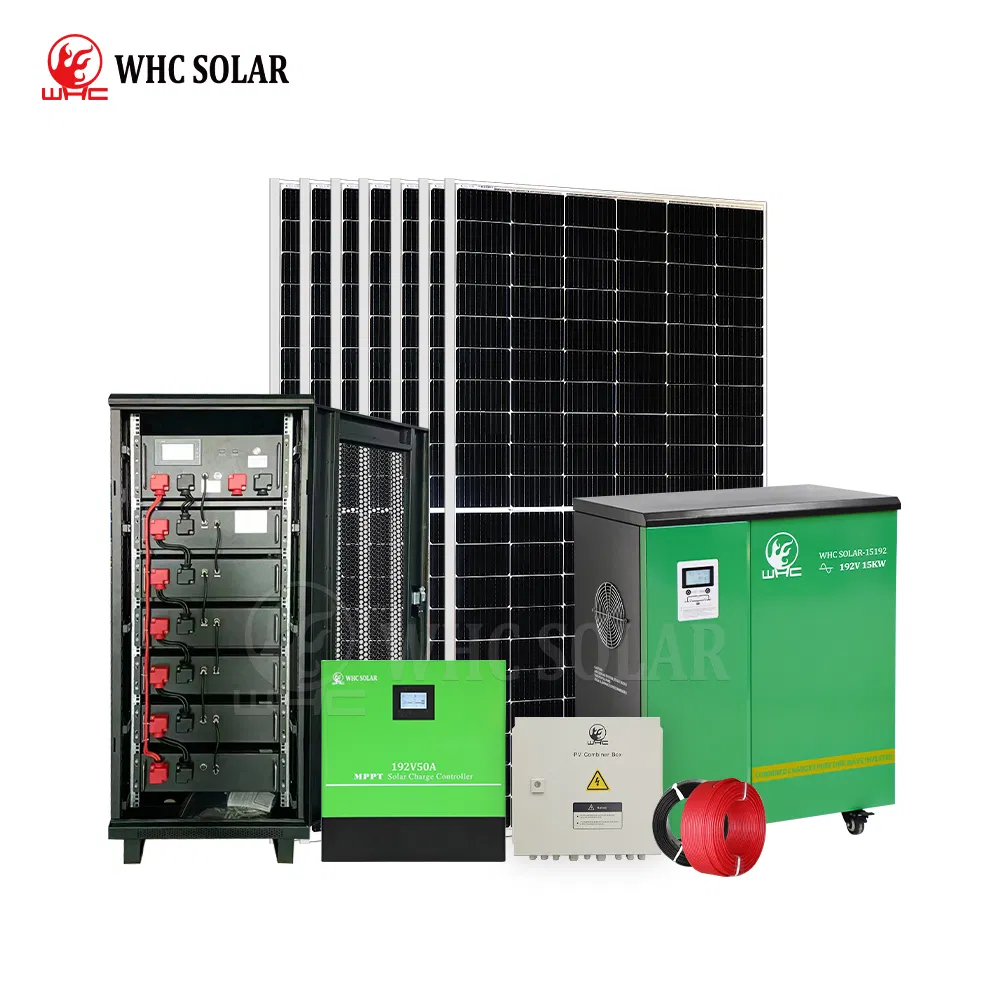

System Parameters & Package Details
| 15KW-Li-20KWH System Configuration |
| Item |
Description |
Quantity |
| Solar Lithium Battery |
192V100AH LiFePO4 Lithium Battery |
1 Piece |
| Solar Panel |
450W Solar Mono Panel |
18 Pieces |
| Solar Controller |
192V 50A MPPT Controller |
1 Piece |
| Solar Inverter |
192V 15KW Solar Inverter |
1 Piece |
| PV Combiner Box |
Six Input + Two Output |
1 Piece |
| PV Cable |
Single-core 6mm² PV cable 100m |
2 Pieces |
| PV Mounting Support |
Hot Galvanizing Ground Mounting Support |
1 Set |
| Connector |
MC4 Connector |
30 Pieces |
System Components
Mono Solar Panel
- Model: 450M-120
- Max Power Voltage: 34.67V
- Max Power Current: 12.98A
- Open Circuit Voltage: 41.25V
- Short Circuit Current: 13.89A
- Dimensions: 1909*1134*35mm

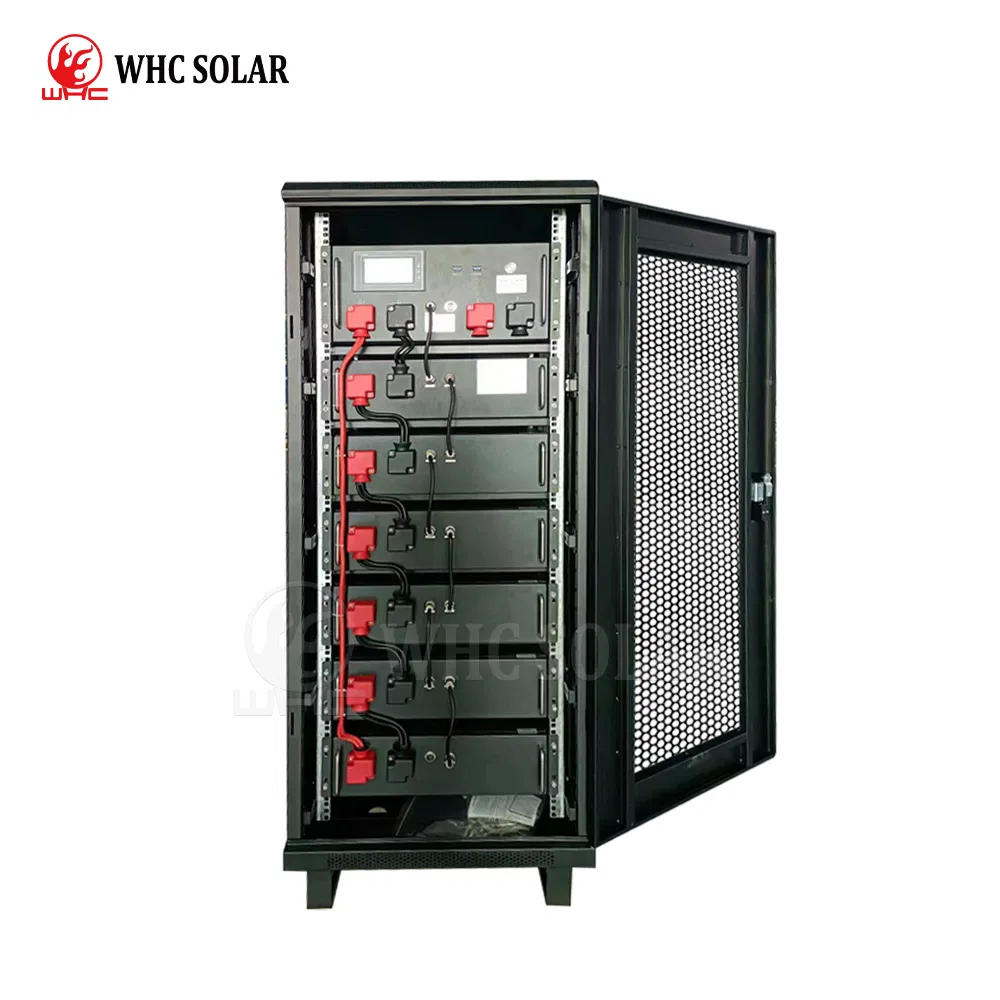

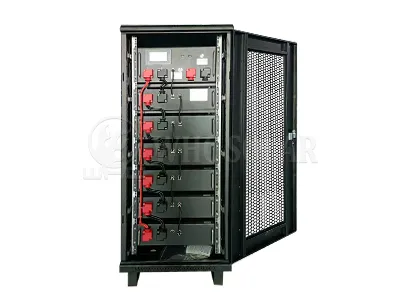

LiFePO4 Lithium Battery
- Model: 192V100AH
- Type: LiFePO4 Lithium Battery
- Nominal Voltage: 204.8V
- Capacity: 20480WH
- Lifespan: 10 Years
- BMS Max Discharging Current: 100A

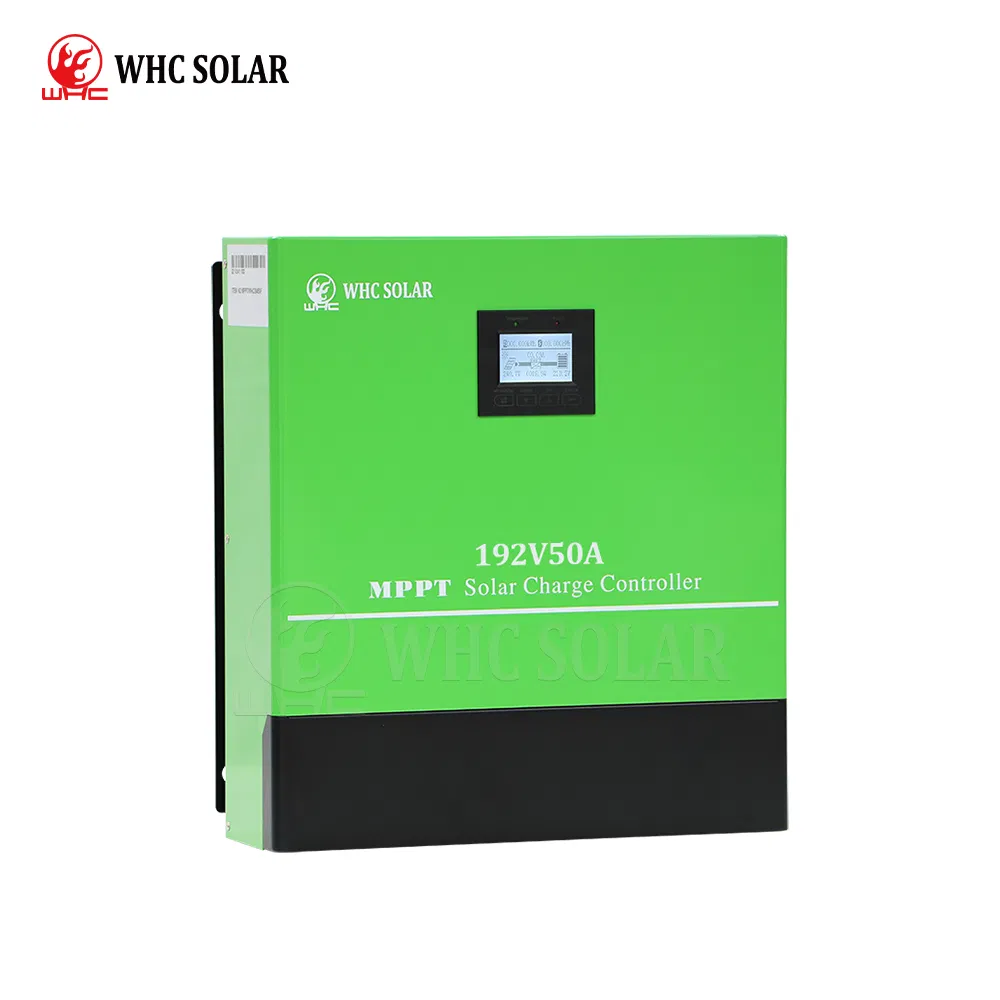

Solar Controller
- Model: MPPT/19250F
- Type: Heatsink Cooling
- Max. Charging Current: 50A
- Max. PV Open Circuit Voltage: 430V
- DC Input Voltage: 192V
- MPPT Efficiency: 99%

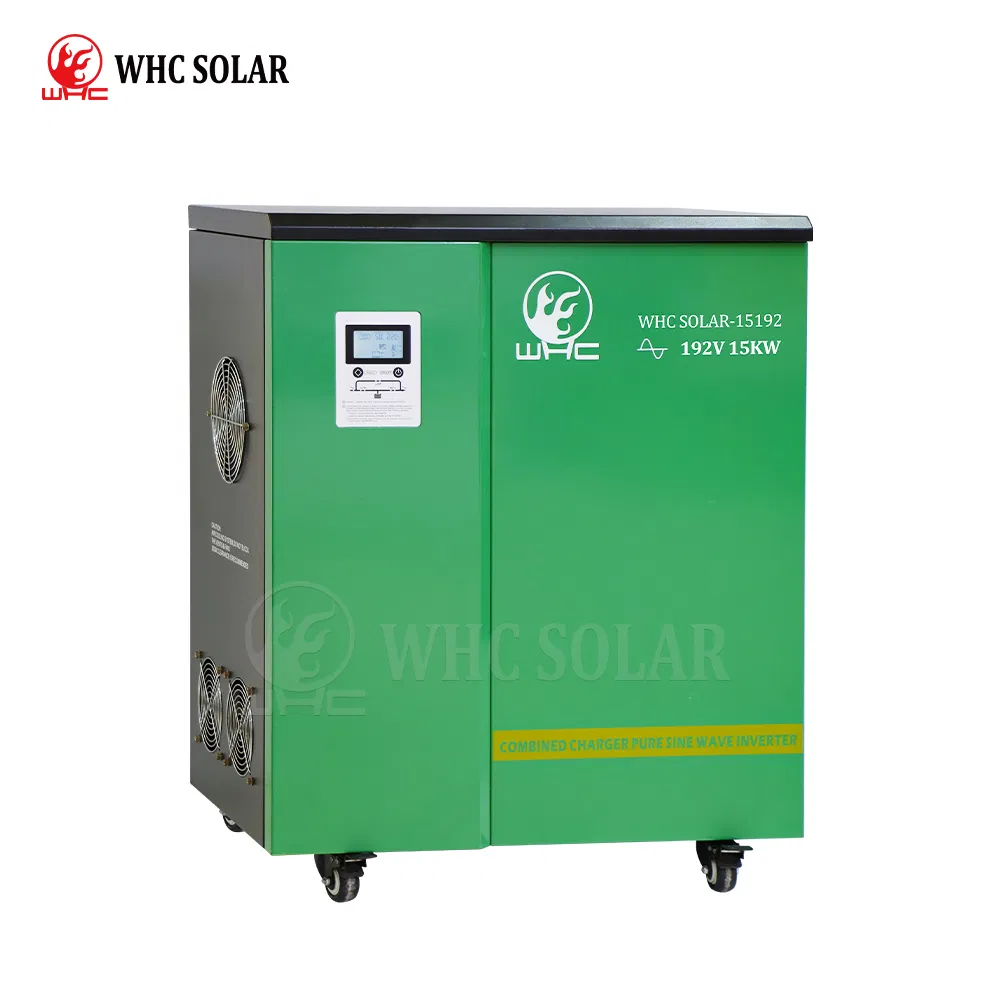

Solar Inverter
- Model: 192V 15KW Inverter
- Type: Low Frequency IGBT Pure Sine Wave Inverter with Big Transformer
- DC Input Voltage: 192V
- AC Input Voltage: 220V 50/60HZ
- Recharging Current: 10A
- AC Output Voltage: 220V 50/60HZ

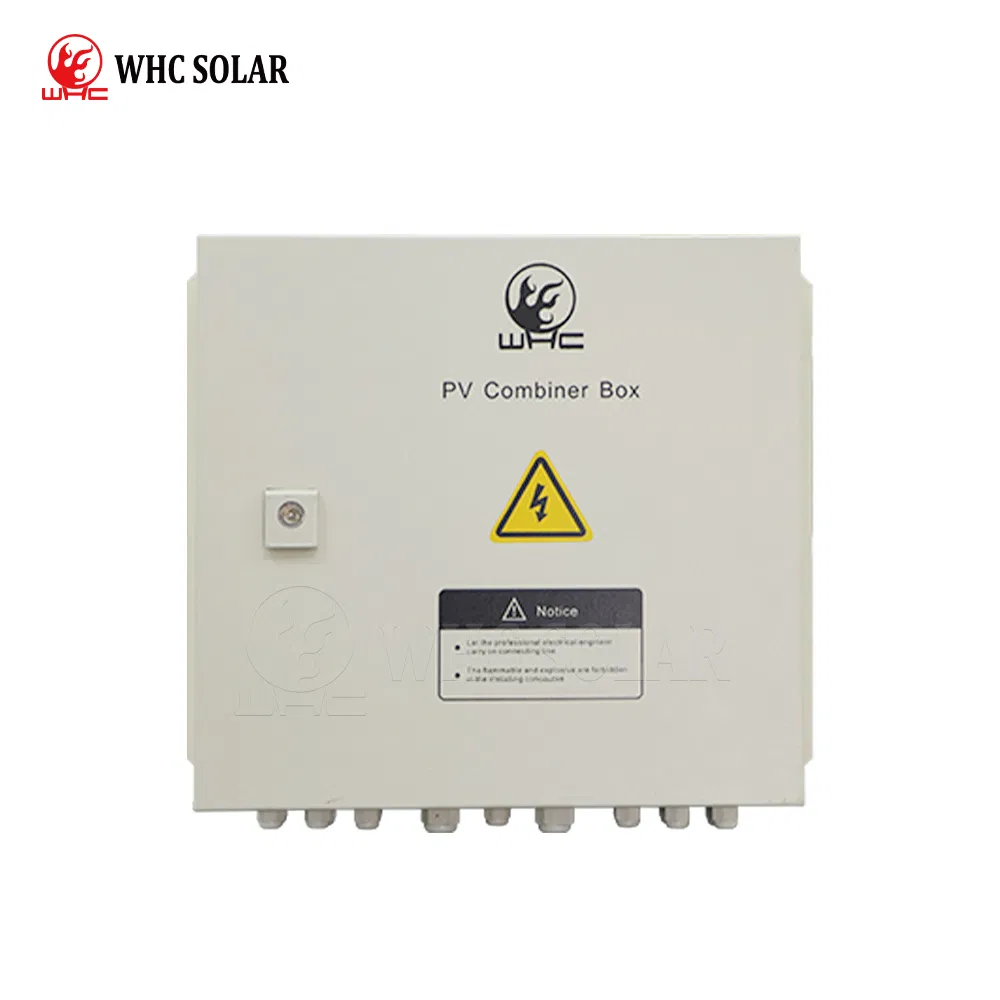

PV Combiner Box
- Model: Combiner Box N6 Plus
- Waterproof Level: IP65
- Max Output Voltage: 1000V
- DC Output Circuit Breaker: Yes
- Lightning Protection: Yes
Mounting Support
- Type: Solar Panel Bracket
- Wind Load Resistance: 55m/s
- Material Structure: Anodized Aluminum Stainless Steel
- Adjustment: Angle Adjustable
PV Cable
- Length: Solar Cable 100m
- Type: RVV 1*6mm²
- Material: Pure Copper
- Temperature Rating: -40°C to 120°C (Lifespan >25 Years)
MC4 Connector
- Type: MC4 Solar Connector
- Waterproof Level: IP68
- Safety: High Quality Safe Protection
- Design: Quick Operation Copper MC4 Connector
Company Profile & Gallery
Overview

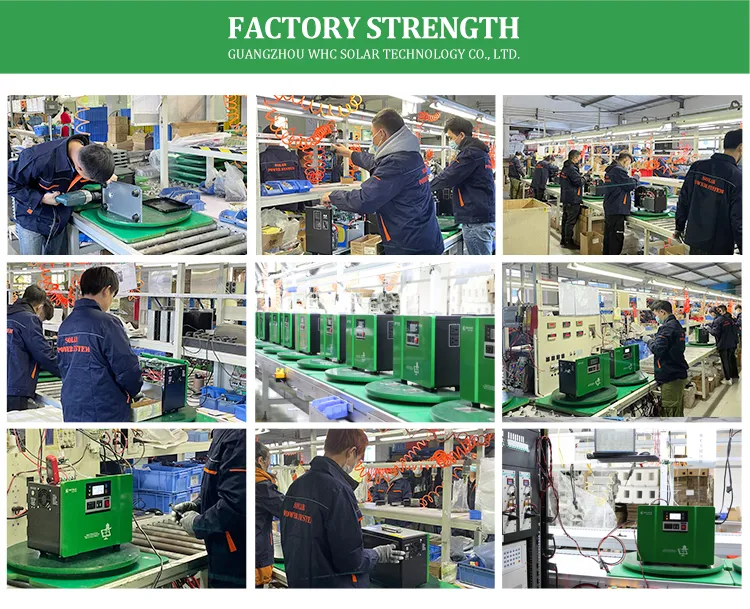

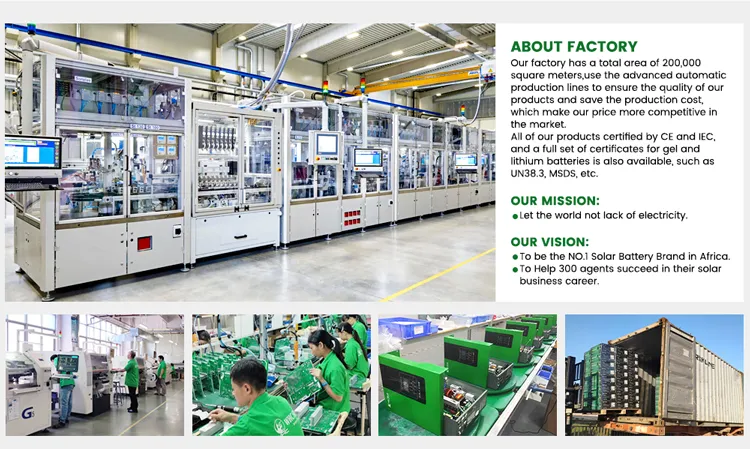

Factory Strength
Certificates & Quality Display
Packing & Delivery
Frequently Asked Questions (FAQ)
Are you a factory or trading company?
We are a factory.
Can you print my logo on the product cover?
Yes, OEM service is available. We can print your logo on the battery case when you provide your logo layout.
What kind of certificates do you have?
Our products have won a number of national patents and passed CE, RoHS, and ISO9001: 2008 quality management system certifications.
What is your delivery time?
Usually 14-20 days. The delivery time varies depending on the specific product type and order quantity.
Where is your main market?
Our main markets include Africa, South America, the Middle East, Occident, and other regions.
How can I pay for the products?
We accept Money Gram, Western Union, T/T, and other standard payment methods. If you prefer another standard payment method, we can evaluate and accept it as well.
