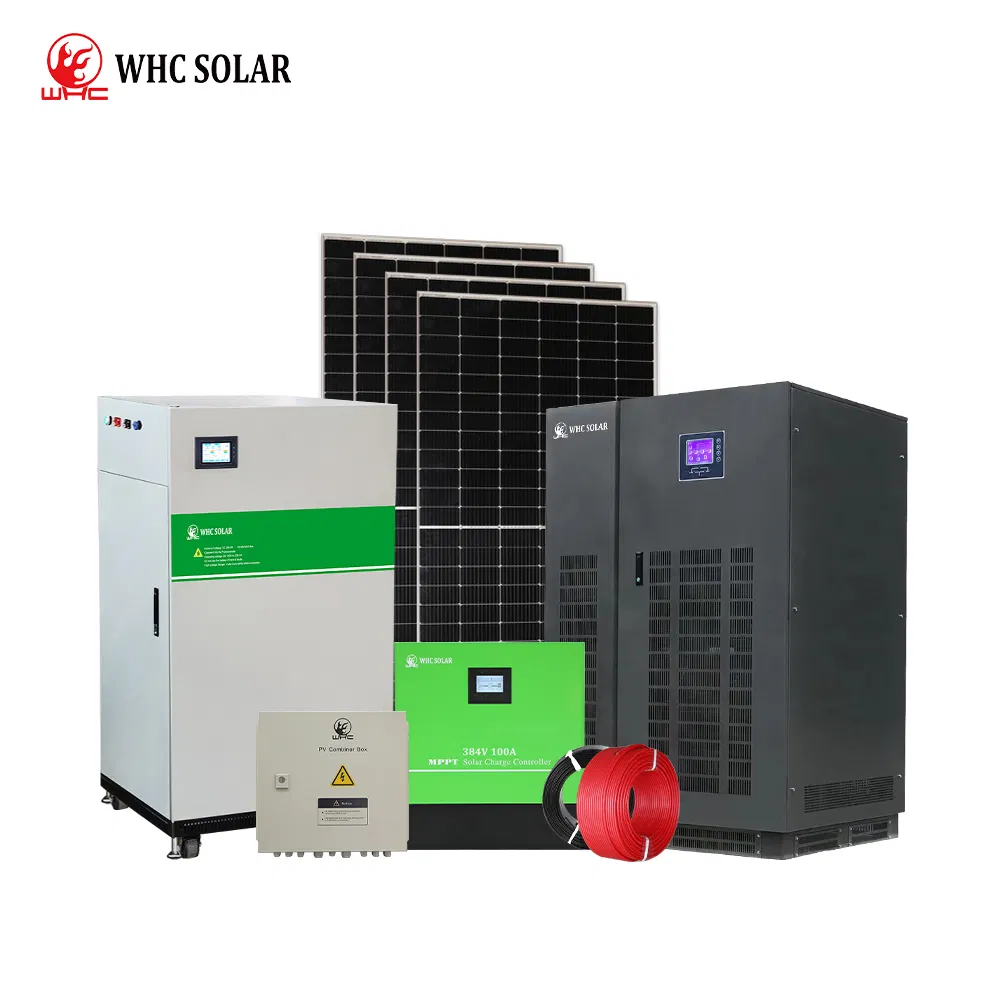

Whc High Quality 150kw/200kw/250kw Home Use Solar Energy PV System Solar Power System

1 / 5

Whc High Quality 150kw/200kw/250kw Home Use Solar Energy PV System Solar Power System

Customization:	Available
Type:	Lithium-Ion Batteries
Usage:	Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Home

Send Inquiry

Product Description

Basic Specifications

System Performance

Model NO.	150KW Li-229KWH Solar Power System
Nominal Voltage	384V
Discharge Rate	High Discharge Rate
Shape	Square Battery
Electrolyte	Li-ion
Installation	Packaged
Rechargeable	Chargeable
Product Name	Offgrid Solar Power System Home

Component Specs

Model / Power	150kw Li-229kwh
Solar Panel Type	Half Cell Solar Panel
Battery Type	LiFePO4 Lithium Battery
Inverter	Pure Sine Wave Inverter
Controller	MPPT Solar Charge Controller
Mounting Support	Pitched / Flat Roof / Ground (Aluminum Alloy)
System Type	Off-Grid Solar Power System
Battery Cell	3.2V 100ah LiFePO4 Cell

Packaging & Delivery

Production Capacity	Package Size	Package Gross Weight	Transport Package
10000 pieces/Month	113.80cm * 79.50cm * 172.50cm	1320.000kg	Package in Carton or According to Your Requirement

Product Description

Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage

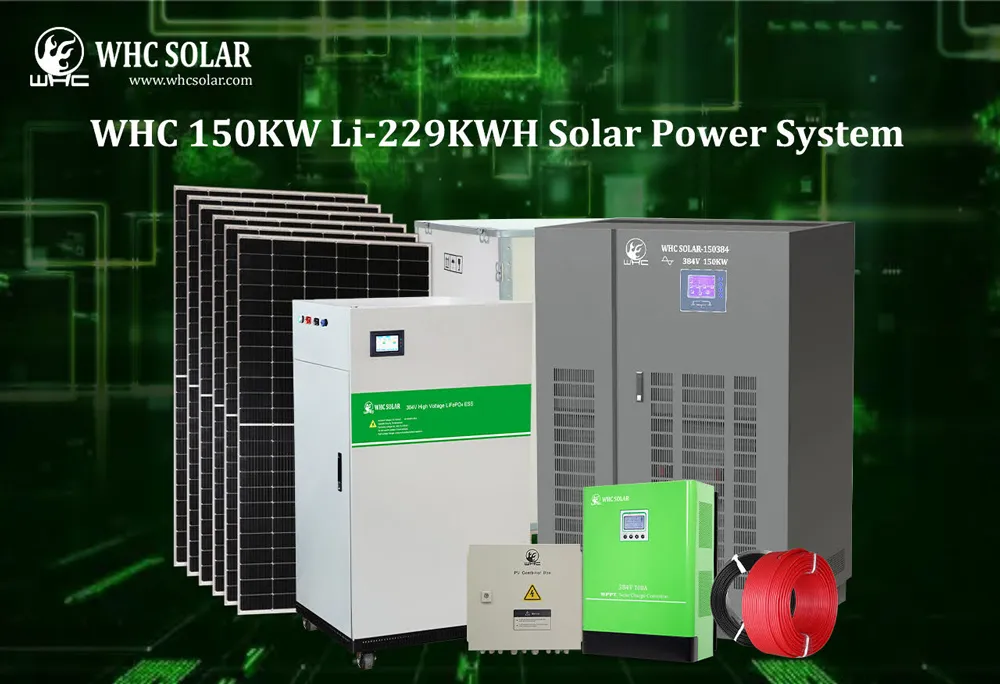

Model: 150KW Li-229KWH | Product Name: Offgrid Solar Power System Home

This off-grid solar system is a highly cost-effective type for solar energy setup. It is a complete solar installation equipped with highly efficient solar panels, an off-grid solar inverter, Grade A+ lithium iron phosphate battery storage, and other standard solar accessories. This system provides continuous electricity and reduces heavy electricity bills.

Home Use Solar Energy PV System Solar Power System

System Components List

Item	Description	Quantity
Solar Lithium Battery	192V100AH LiFePO4 Lithium Battery	2 Pieces
Solar Panel	450W Solar Mono Panel	450W Solar Mono Panel
Solar Controller	192V 50A MPPT Controller	2 Pieces
Solar Inverter	192V 20KW Solar Inverter	1 Pieces
PV Combiner Box	Six Input + Two Output	2 Pieces
PV Cable	Single-core 6mm² PV cable 100m	4 Pieces
PV Mounting Support	Hot Galvanizing Ground Mounting Support	1 Set
Connector	MC4 Connector	30 Pieces

Component Details

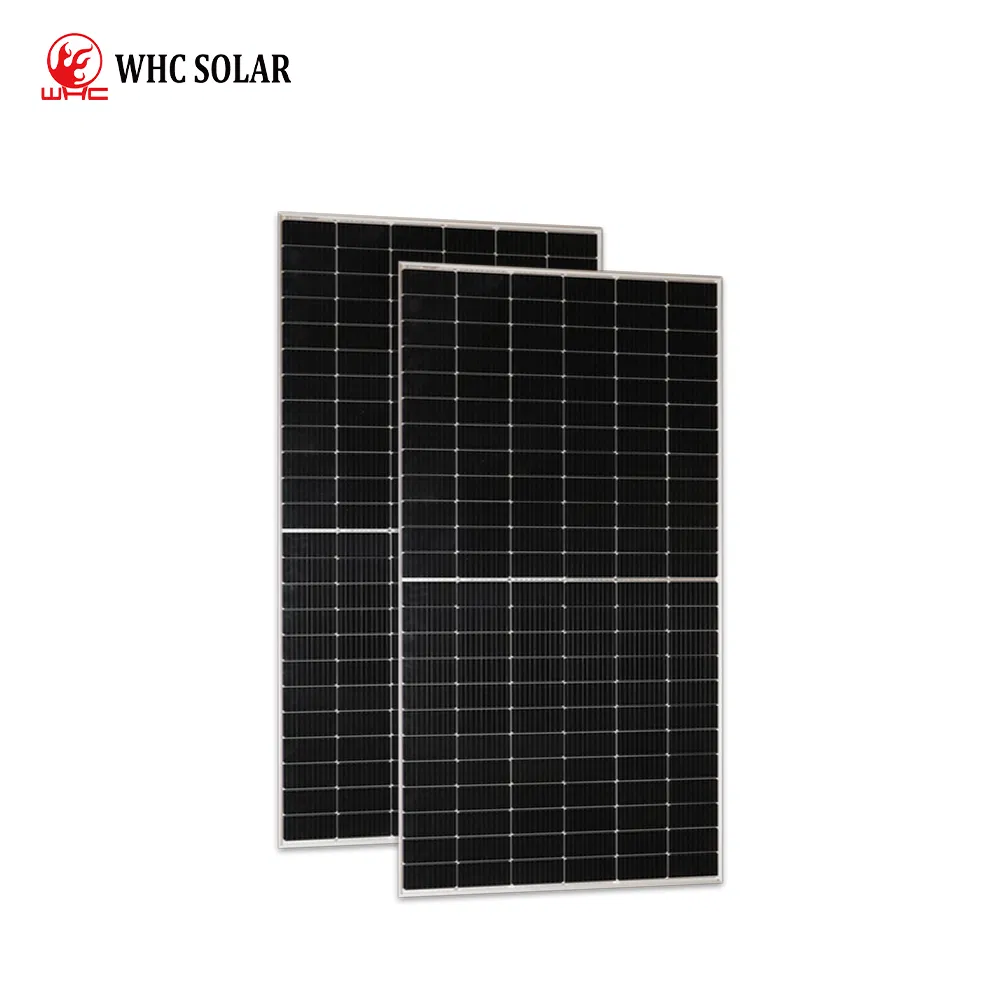

Mono Solar Panel

Model: 450M-120
Max Power Voltage: 34.67V
Max Power Current: 12.98A
Open Circuit Voltage: 41.25V
Short Circuit Current: 13.89A
Dimensions: 1909*1134*35mm

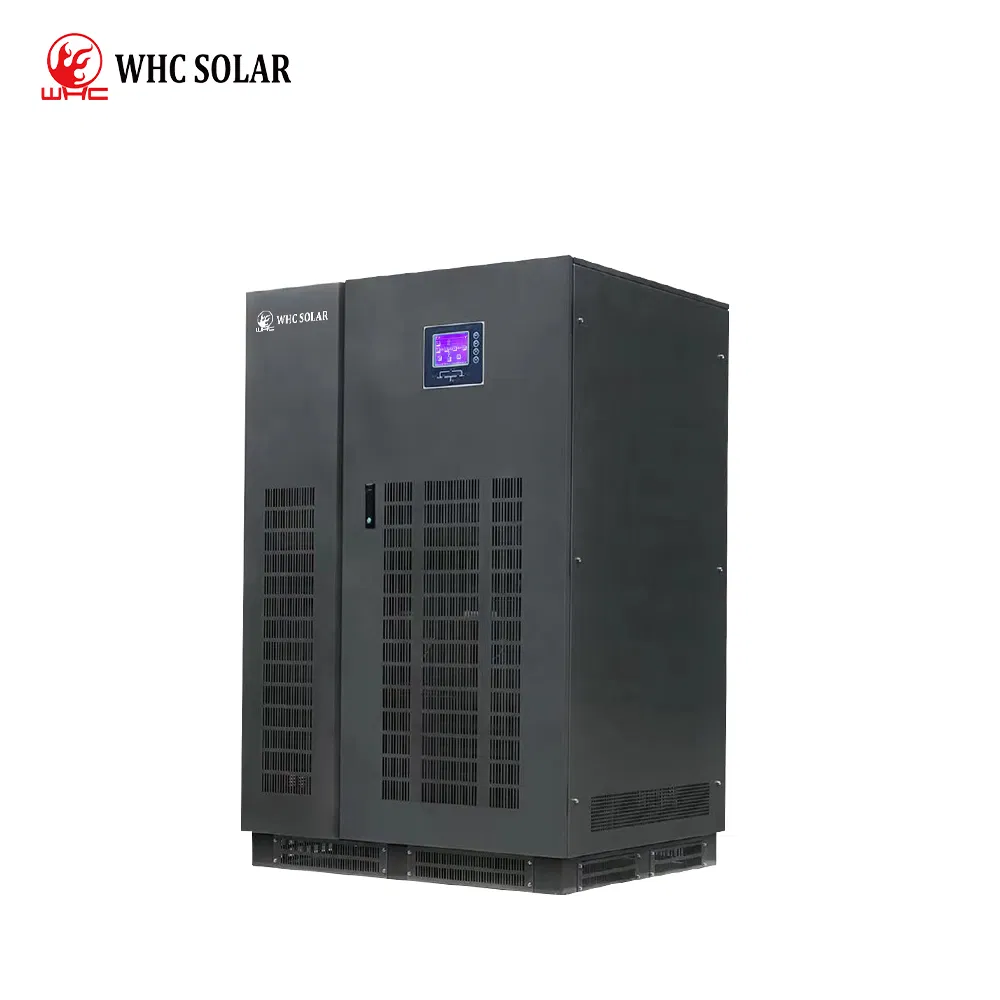

384V 150KW Inverter

Type: Low Frequency IGBT
Pure Sine Wave Inverter with Big Transformer
DC Input Voltage: 384V
AC Input Voltage: 380V/220V
AC Output Voltage: 380V/220V
Frequency: 50/60HZ

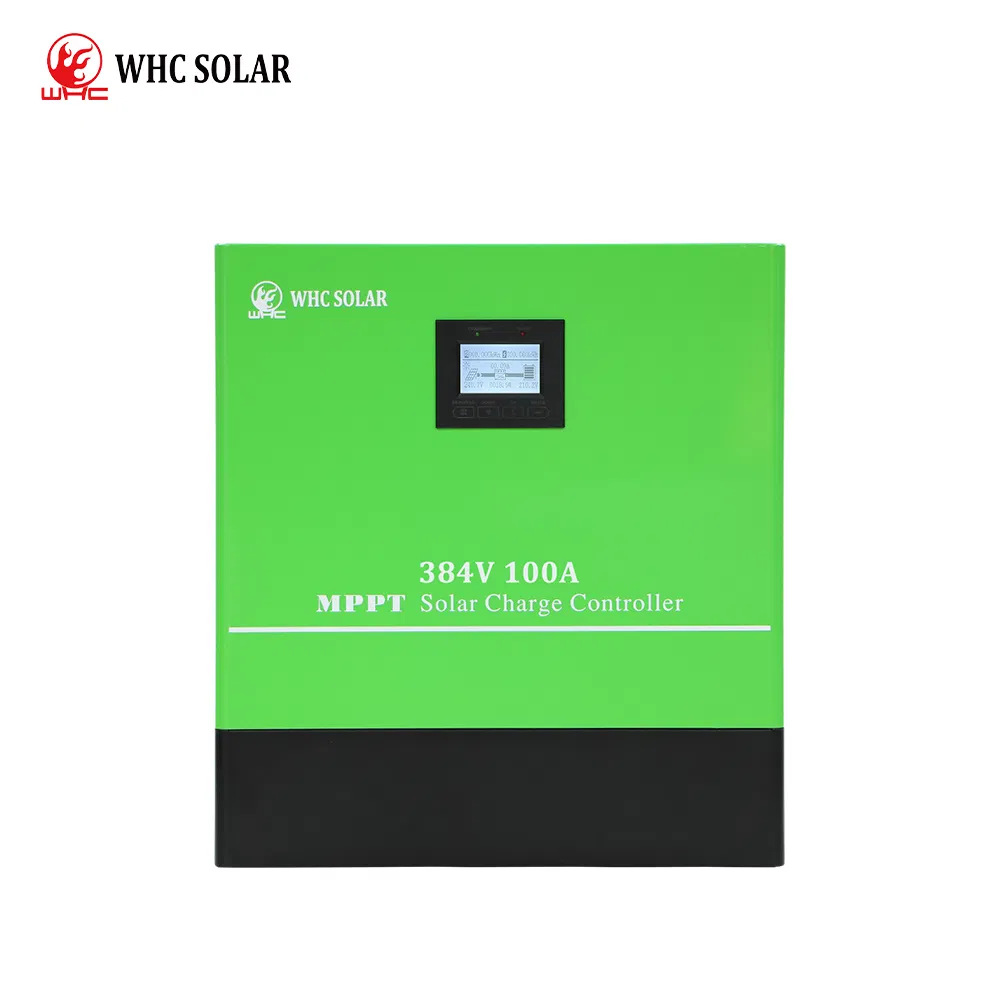

Solar Controller

Model: 384V 100A
Type: Heatsink Cooling
Max. Charging Current: 100A
Max. PV Open Circuit Voltage: 800V
DC Input Voltage: 384V
MPPT Efficiency: 98%

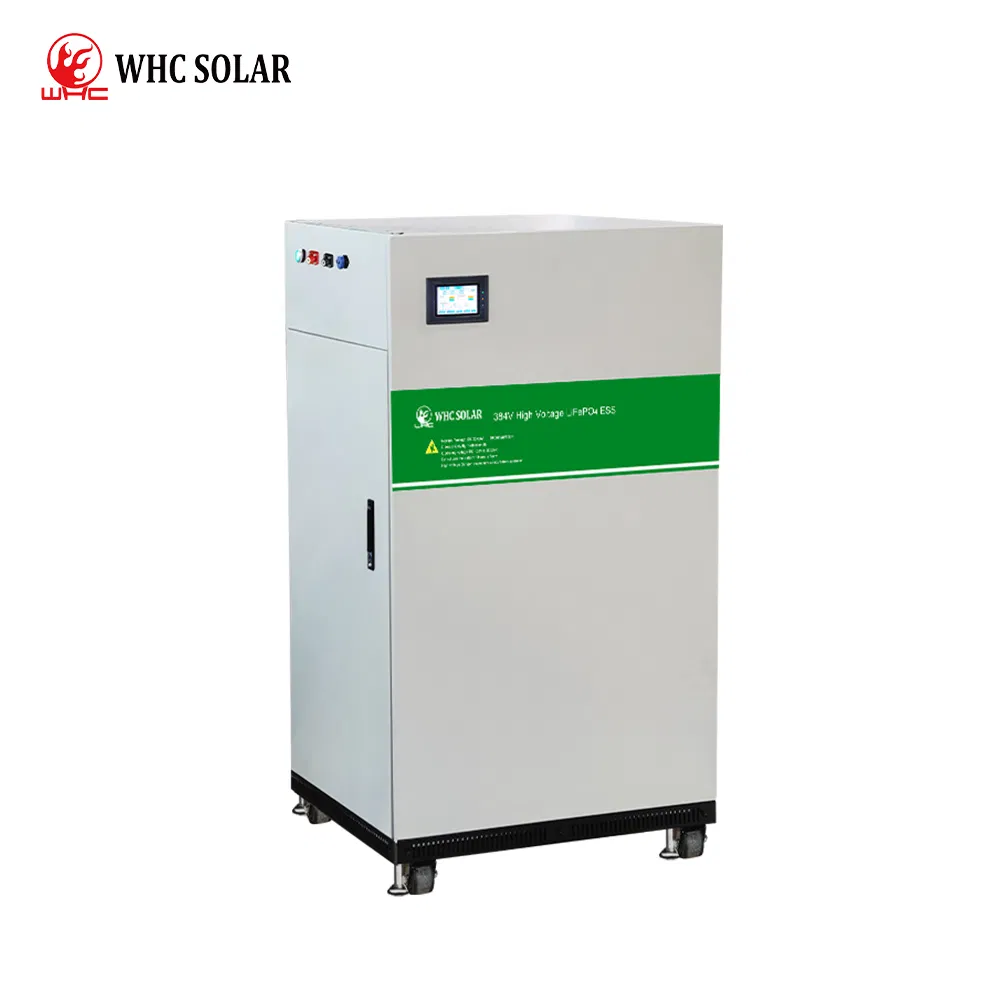

LiFePO4 Lithium Battery

Model: 384V 280Ah
Nominal Voltage: 409.6V
Capacity: 114688Wh
Max Charging Voltage: 467.2V
Lifespan: 10 Years
BMS Max Discharging Current: 200A

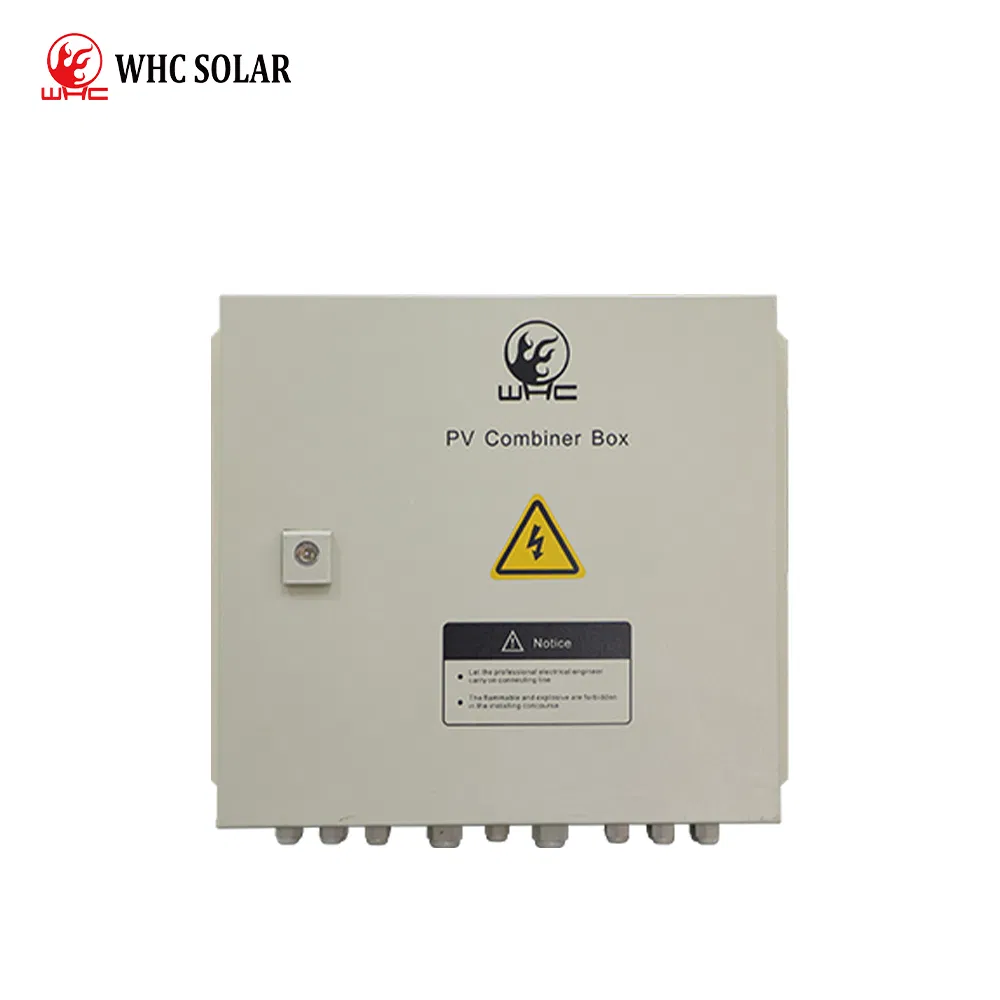

PV Combiner Box

Model: N6 Plus
Protection: Waterproof IP65
Max Output Voltage: 1000V
DC Output Circuit Breaker: Yes
Lightning Protection: Yes

Mounting Support

Adjustable Solar Panel Bracket
Wind Load: 55m/s
Structure: Anodized Aluminum / Stainless Steel
Adjustability: Angle Adjustable

PV Cable

Length: 100m Solar Cable
Type: RVV 1*6mm²
Material: Pure Copper
Temperature Rating: -40°C to 120°C (Lifespan > 25 Years)

MC4 Connector

Standard MC4 Solar Cable Connector
Rated Current: 30A
Rated Voltage: 1000VDC
Waterproof Protection: IP67

System Setup & Diagram

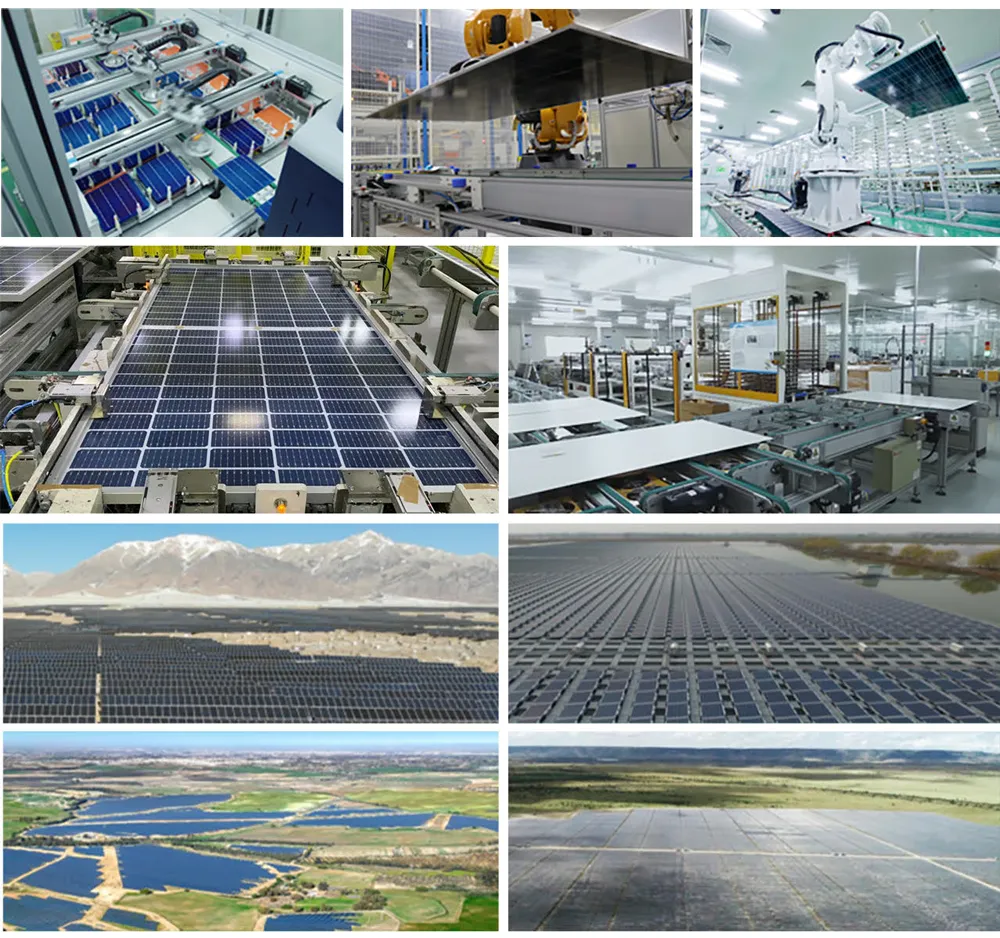

Production Showcase

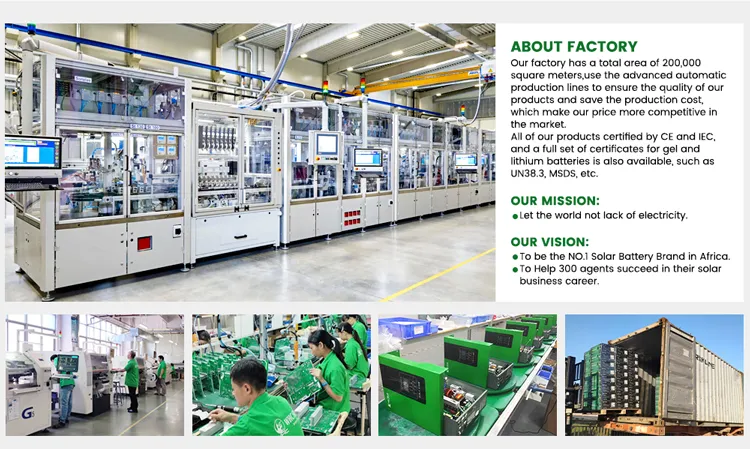

Facility Overview

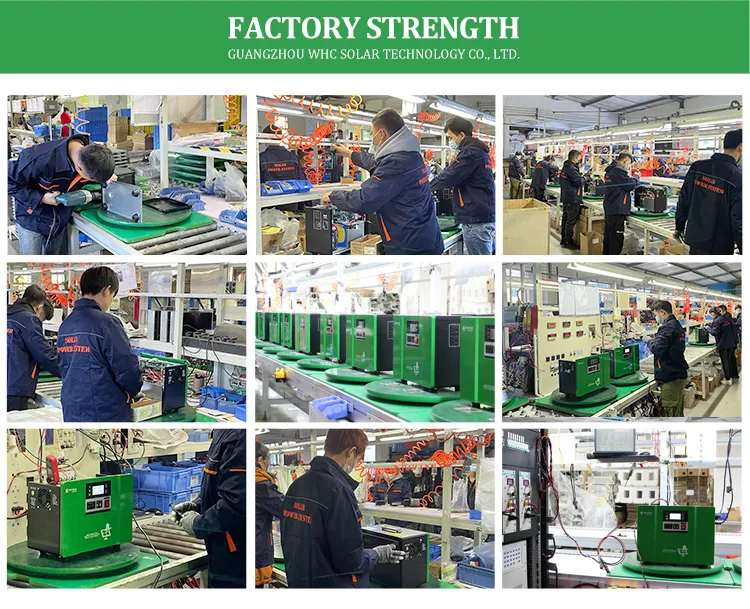

Factory Strength

Certificate Display

Packing & Delivery Process

Frequently Asked Questions

Q1. Are you a factory or a trading company?

We are a direct factory, specializing in off-grid solar power systems, battery storage, and accessories.

Q2. Can you print my logo on the product cover?

Yes, OEM service is available. We can custom print your logo on the battery casing and system enclosures.

Q3. What kind of certificates do you have?

Our products have passed CE, RoHS, and ISO9001:2008 quality management system certifications, alongside numerous national patents.

Q4. What is your delivery time?

Usually, the lead time is 14-20 days. The delivery time varies depending on the specific product model and order quantity.

Q5. Where is your main market?

Our primary markets span Africa, South America, the Middle East, Occident, and other global regions.

Q6. What payment methods do you accept?

We accept Money Gram, Western Union, T/T, and other mutually agreeable payment options.
