Whc Htonetech Solar Panel Mono 475 Watt Wholesalers 12000mAh Solar System Electricity Energy China Hybrid Solar Wind Energy System with 500 Watt Wind Generator

Customization:	Available
Type:	Lithium-Ion Batteries
Usage:	Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Home

Send Inquiry

Product Description

Basic Info.

Model NO. 10KW Li-10KWH

Nominal Voltage AC220V

Discharge Rate High Discharge Rate

Shape Square Battery

Electrolyte Li-ion

Installation Packaged

Rechargeable Chargeable

Product Name Solar Panel System for Home

Model 10kw Li-10kwh

Power 10kw

Solar Panel Type Half Cell Solar Panel

Battery Type LiFePO4 Lithium Battery

Inverter Pure Sine Wave Inverter

Controller MPPT Solar Charge Controller

Solar Panel Bracket Aluminum Alloy

Mounting Support Pitched / Flat Roof / Ground

System Type off-Grid Solar Power System

Battery Cell 3.2V 100ah LiFePO4 Cell

Transport Package Package in Carton

Specification 10KW Li-10KWH

Origin Guangdong, China (Mainland)

Production Capacity 10000pieces/Month

Product Description

Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage
Model: 10KW-Li-10KWH
Product Name: Offgrid Solar Power System Home

This Off-Grid Solar Power System is one of the most cost-effective types of solar systems. It is a complete solar setup that comes with highly efficient solar panels, an off-grid solar inverter, Grade A+ lithium iron phosphate battery storage, and standard solar accessories. This system not only provides continuous electricity but will also significantly reduce heavy electricity bills.

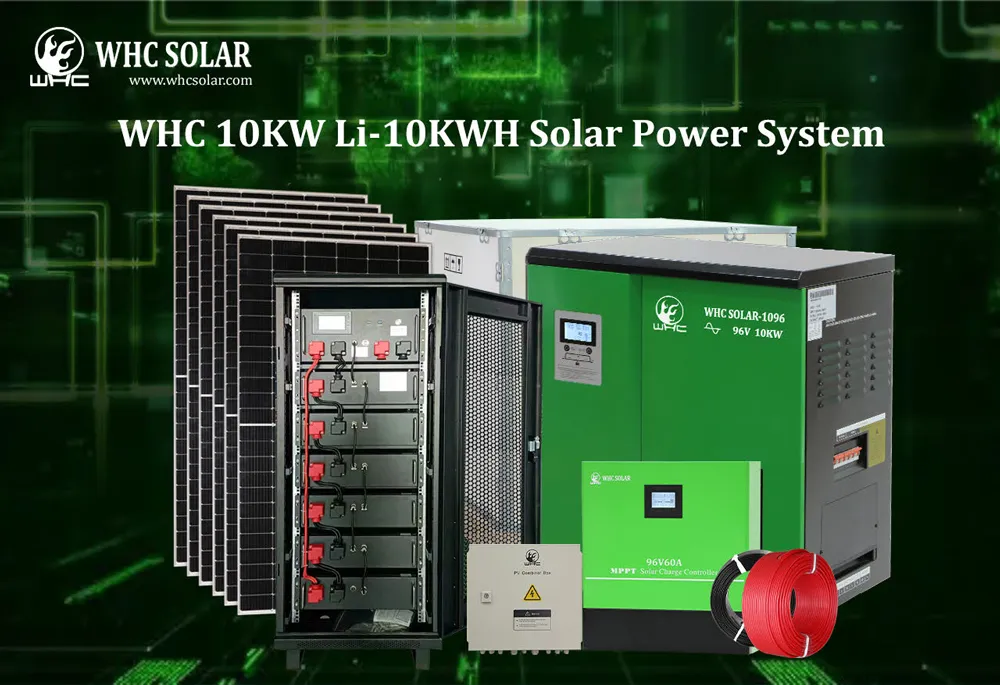

10KW-Li-10KWH System Configuration
Item	Description	Quantity
Solar Lithium Battery	96V100AH LiFePO4 Lithium Battery	1 Piece
Solar Panel	450W Solar Mono Panel	8 Pieces
Solar Controller	96V 60A MPPT Controller	1 Piece
Solar Inverter	96V 10KW Solar Inverter	1 Piece
PV Combiner Box	Six Input + Two Output	1 Piece
PV Cable	Single-core 6mm² PV Cable 100m	2 Pieces
PV Mounting Support	Hot Galvanizing Ground Mounting Support	1 Set
Connector	MC4 Connector	16 Pieces

System Component Details

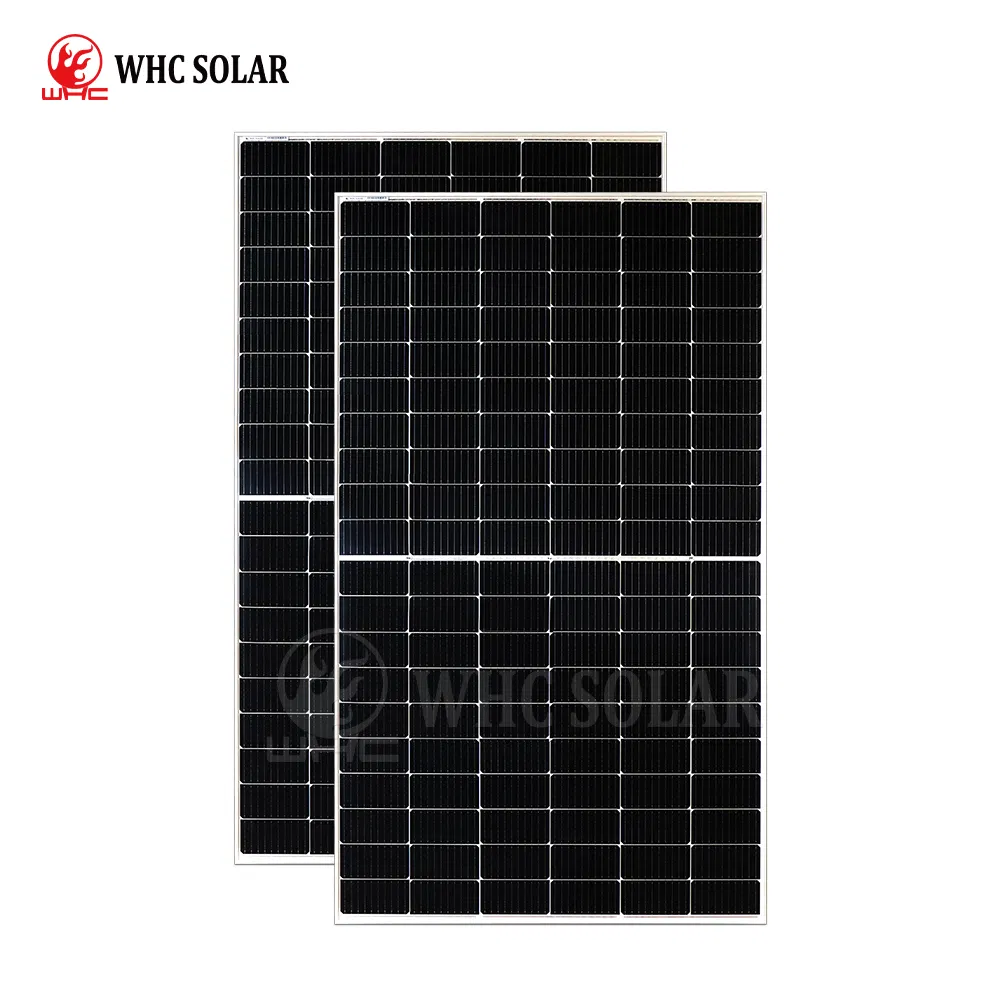

Mono Solar Panel

Model: 450M-120
Max Power Voltage: 34.67V
Max Power Current: 12.98A
Open Circuit Voltage: 41.25V
Short Circuit Current: 13.89A
Dimensions: 1909 * 1134 * 35mm

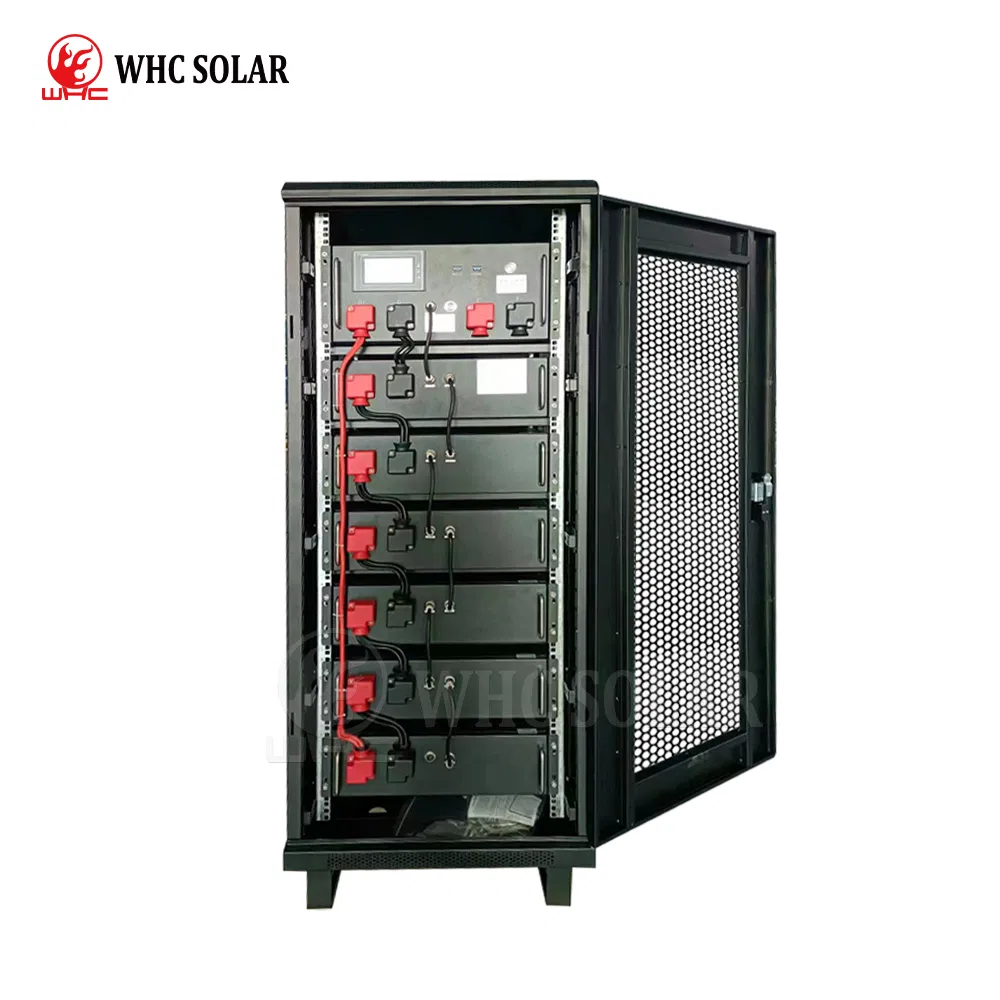

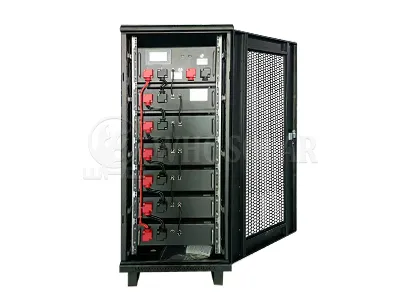

LiFePO4 Lithium Battery

Model: 96V100AH
Type: LiFePO4 Lithium Battery
Nominal Voltage: 102.4V
Capacity: 10240WH
Lifespan: 10 Years
BMS Max Discharging Current: 100A

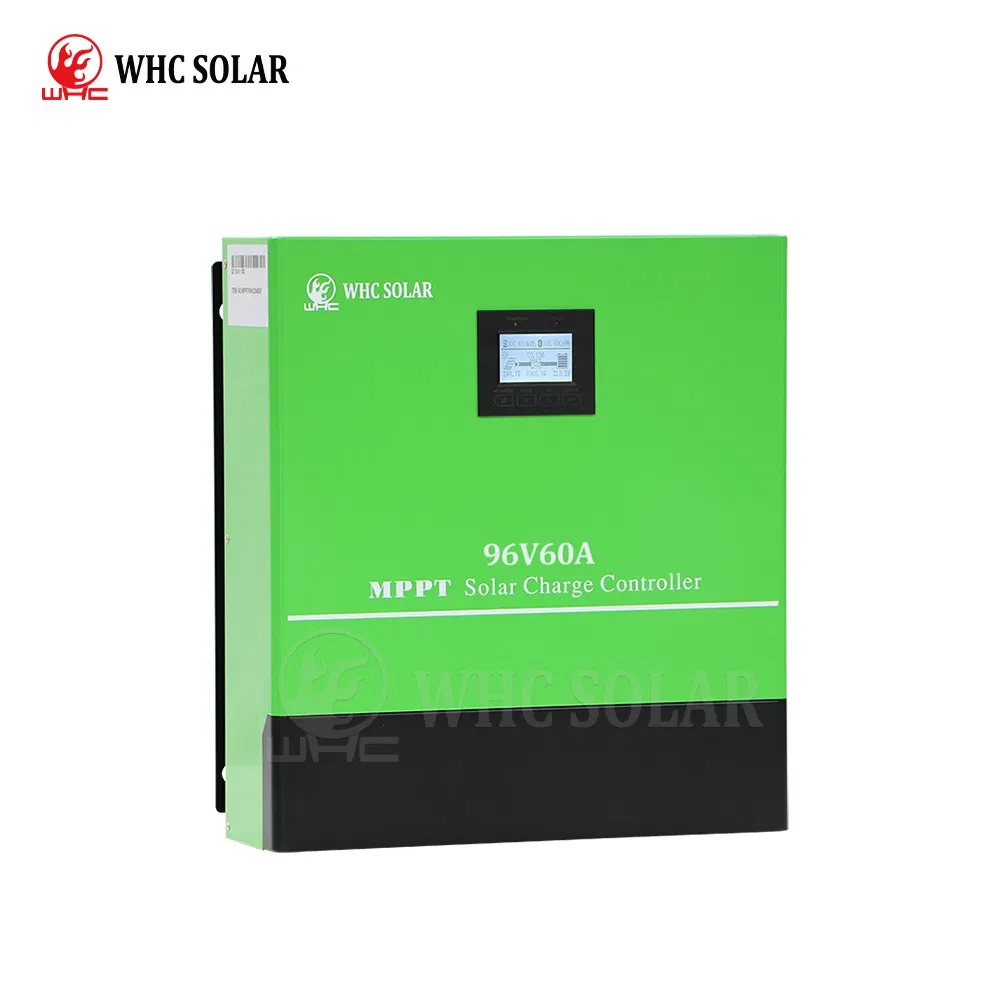

Solar Controller

Model: MPPT/9960F
Spec: 96V60A MPPT
PV (VOC): 230V
Charging Efficiency: 99%
Charging Mode: Intelligent Control
Various Protection Functions Built-in

Solar Inverter

Model: 96V10KW Inverter
Type: Low Frequency IGBT Pure Sine Wave Inverter with Big Transformer
DC Input Voltage: 96V
AC Input Voltage: 220V 50/60HZ
Recharging Current: 10A
AC Output Voltage: 220V 50/60HZ

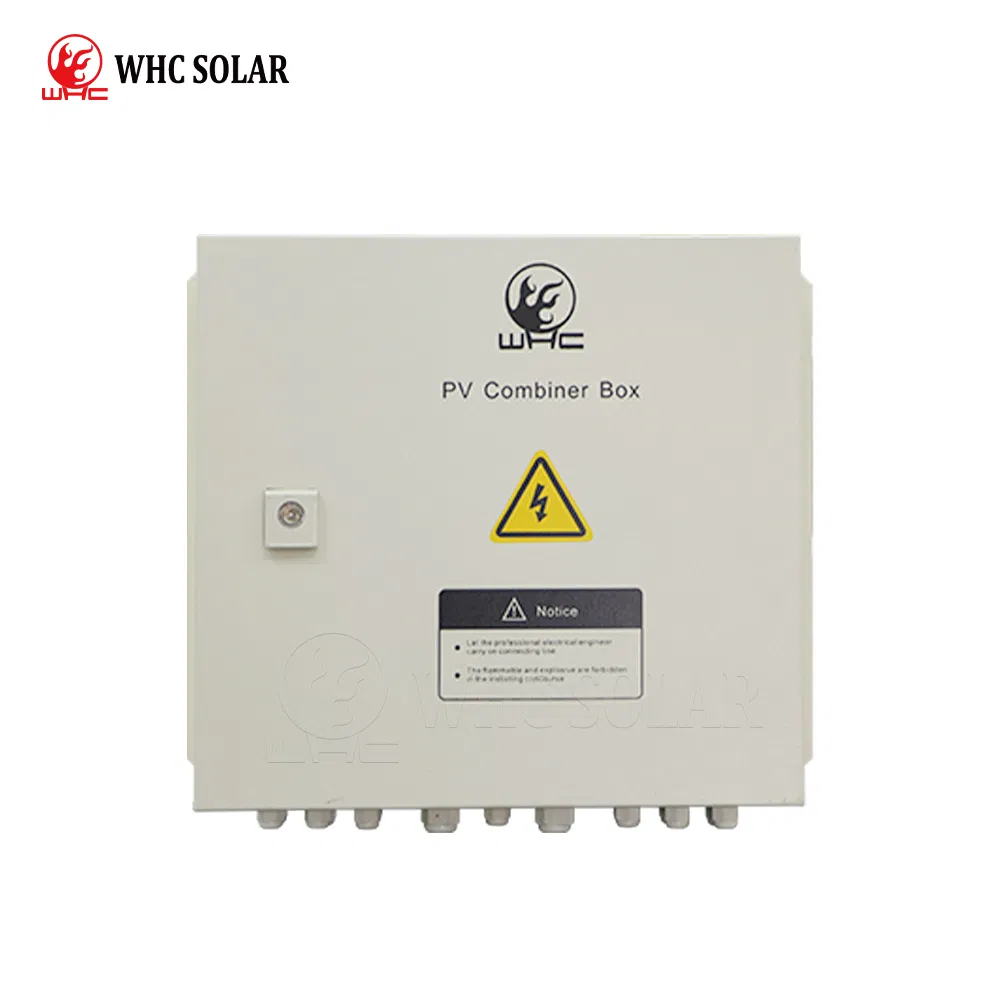

PV Combiner Box

Model: N6 Plus
Waterproof Rating: IP65
Max Output Voltage: 1000V
DC Output Circuit Breaker: Yes
Lightning Protection: Yes

Mounting Support

Type: Solar Panel Bracket
Wind Load Capacity: 55m/s
Structure Material: Anodized Aluminum
Fasteners: Stainless Steel
Angle Adjustable Design

PV Cable

Specification: Solar Cable 100m
Type: RVV 1*6mm²
Material: Pure Copper
Temperature Rating: -40°C to 120°C (Lifespan > 25 Years)

MC4 Connector

Type: MC4 Solar Connector
Waterproof Rating: IP68
Quality: High Quality with Safe Protection
Operation: Quick Connection, Copper Material

Manufacturing Profile

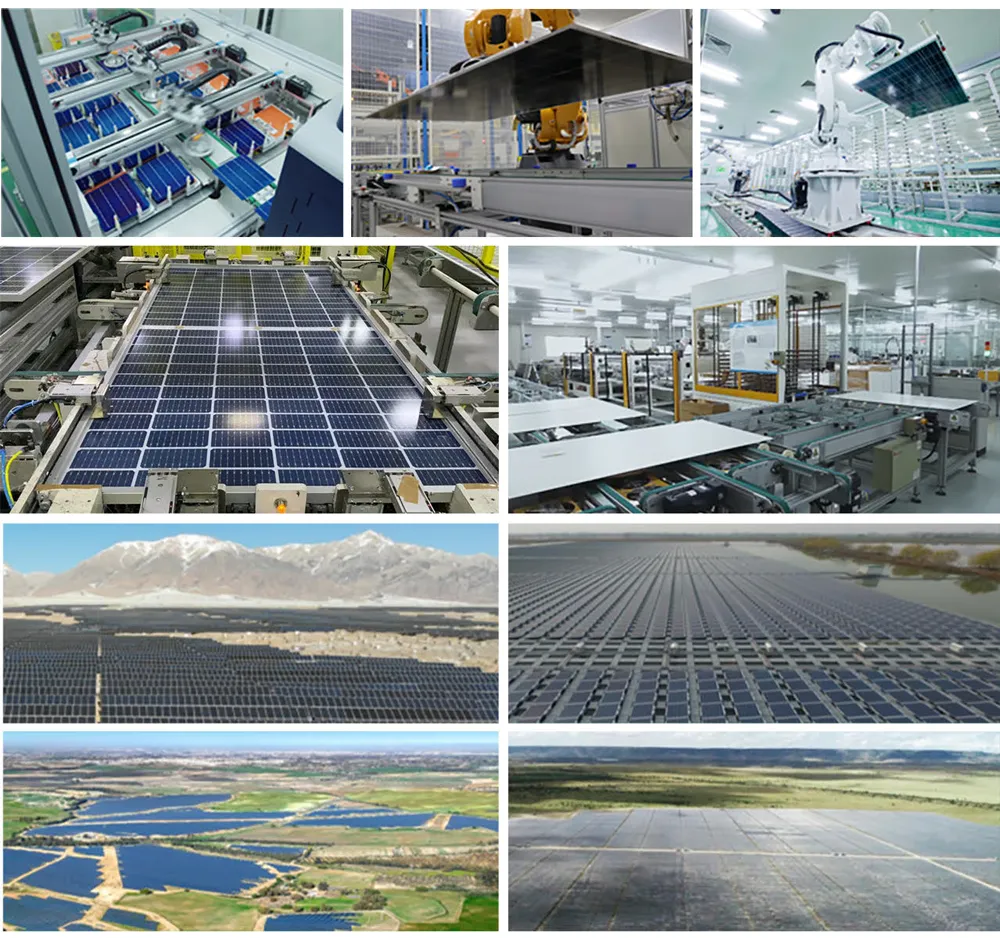

Facility Overview

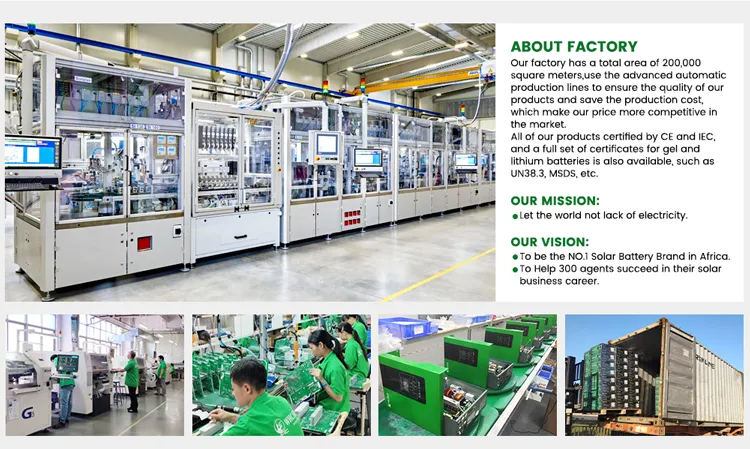

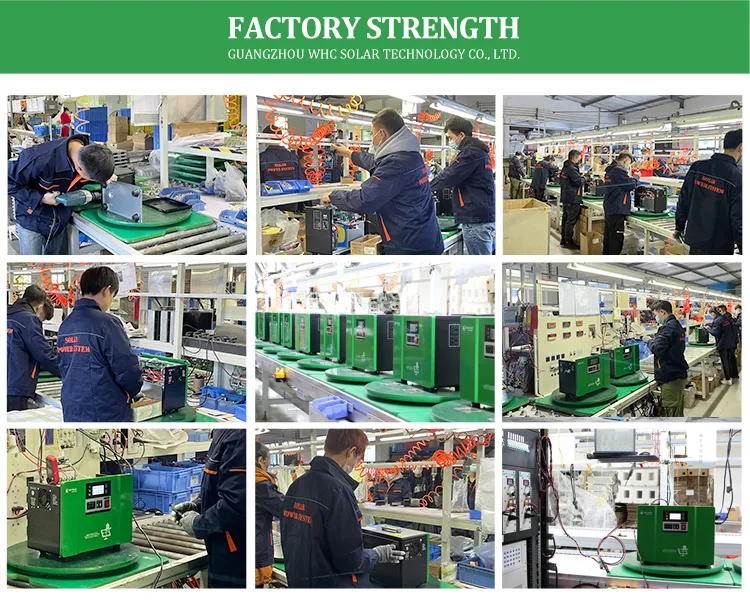

Factory Strength

Product Certificates

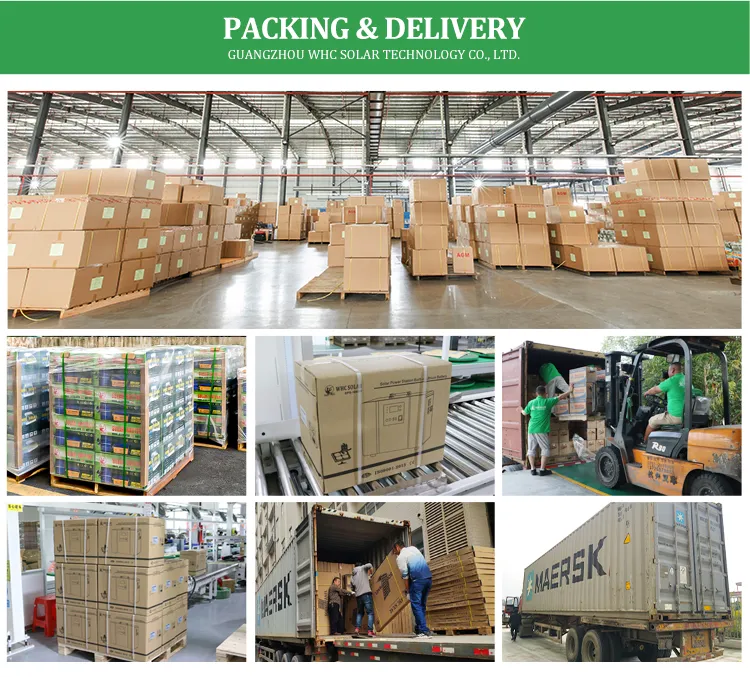

Packing & Delivery

Frequently Asked Questions

Q1 Are you a factory or a trading company?

We are a dedicated manufacturing factory specializing in premium solar system components and battery production.

Q2 Can you print my custom logo on the product cover?

Yes, OEM services are fully supported. We can print your authorized logo on the battery case or product casing upon request.

Q3 What kind of certification do your products have?

Our products have secured multiple national patents and conform to strict international standards including CE, RoHS, and ISO9001:2008 quality management system certifications.

Q4 What is the typical delivery timeframe?

Usually, the delivery time is between 14 to 20 days. However, exact delivery timelines depend on the specific product specifications and ordering volume.

Q5 Where are your primary export markets located?

Our major distribution markets span across Africa, South America, the Middle East, Western countries, and other global regions.

Q6 What are the accepted payment methods?

We accept multiple payment methods including T/T (Telegraphic Transfer), Western Union, MoneyGram, and other standard trade terms.
