Whc Monocrystalline Silicon Normal Panel Battery Lighting Tracker Home Hybrid Solar System Factory

Customization: Available
Type: Lithium-Ion Batteries
Usage: Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Home

Product Description

Basic Info.
Model NO.
WHC-10K HVM solar system
Nominal Voltage
AC220V
Discharge Rate
High Discharge Rate
Shape
Square Battery
Electrolyte
Li-ion
Installation
Packaged
Rechargeable
Chargeable
Product Name
Solar Electric System
Model
Whc10K
Power
5kw/10kw/20kw
Solar Panel Type
Mono Solar Panel
Battery Type
LiFePO4 Lithium Battery
Inverter
Pure Sine Wave Inverter
Controller
MPPT Solar Charge Controller
Solar Panel Bracket
Aluminum Alloy
Mounting Support
Pitched / Flat Roof / Ground
System Type
off-Grid Solar Power System
Battery Cell
3.2V 100ah LiFePO4 Cell
Transport Package
Package in Carton or According to Your Requirement
Specification
WHC10K
Production Capacity
1000pieces/Month
Packaging & Delivery
Package Size
63.00cm * 48.00cm * 30.00cm
Package Gross Weight
58.850kg
Product Description
WHC SOLAR System Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage
Model: WHC10k
Product Name: Hybrid Solar System
WHC Solar Power System also known as off-grid solar system is the most costeffective typefor solar system.It is a complete solar setup that comes with highly efficientsolar panels.off-grid solar inverter, Grade A+ lithium iron phosphate battery and other standard solaraccessories.This system willnot only provides you continious electricity but will alsoreduce your heavy electricity bills.

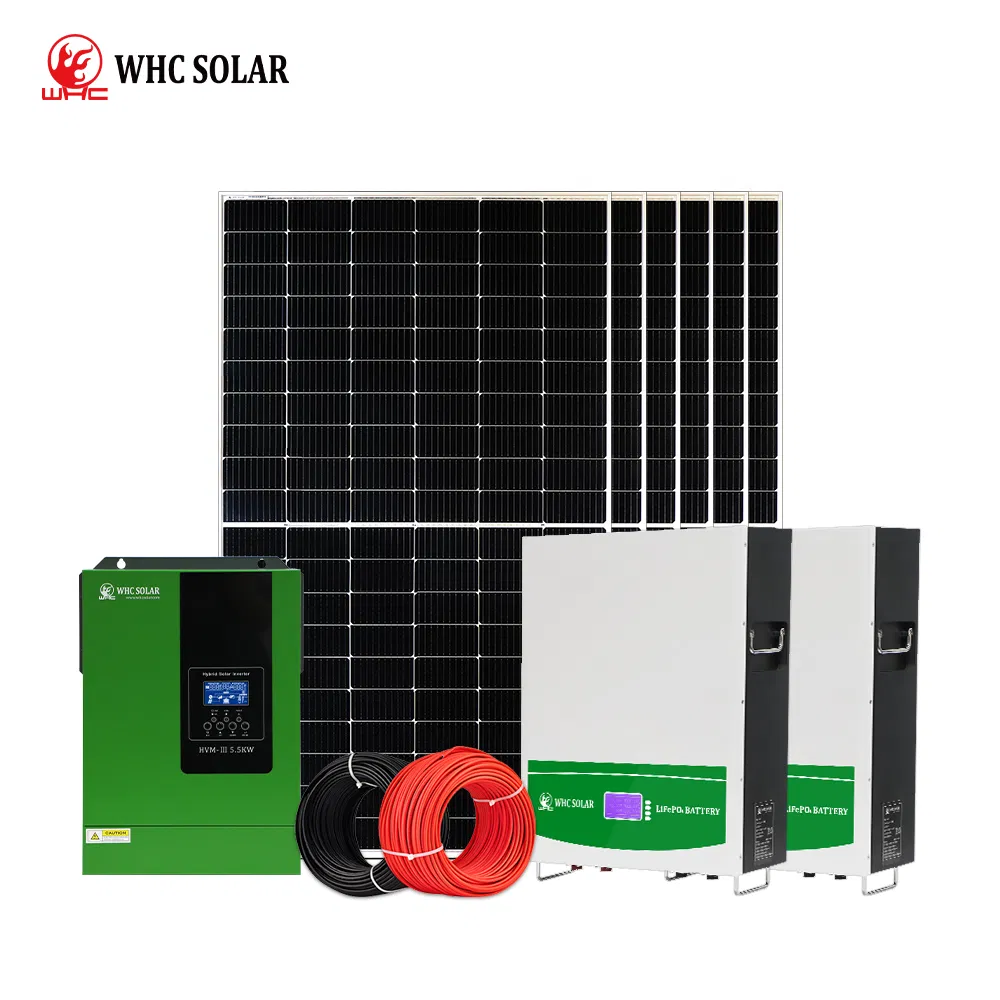

WHC10k System Specifications
Item Description Quantity
Solar Lithium Battery 5120WH LiFePO4 Lithium Battery 2 Pieces
Solar Panel 34V450W Solar Mono Panel 12 Pieces
Solar Inverter 48V 5.5KW&MPPT 500V 100A Hybrid Solar Inverter 2 Pieces
PV Cable Single-core 6mm2 PV cable 100m 2 Pieces
PV Mounting Support Roof/Ground Mounting Support 1 Set
Connector MC4 Connector 8 Pieces
Battery Cable 25 MM² 2 Pieces
DATA Line Communication Cable 1 Piece
System Components Detail

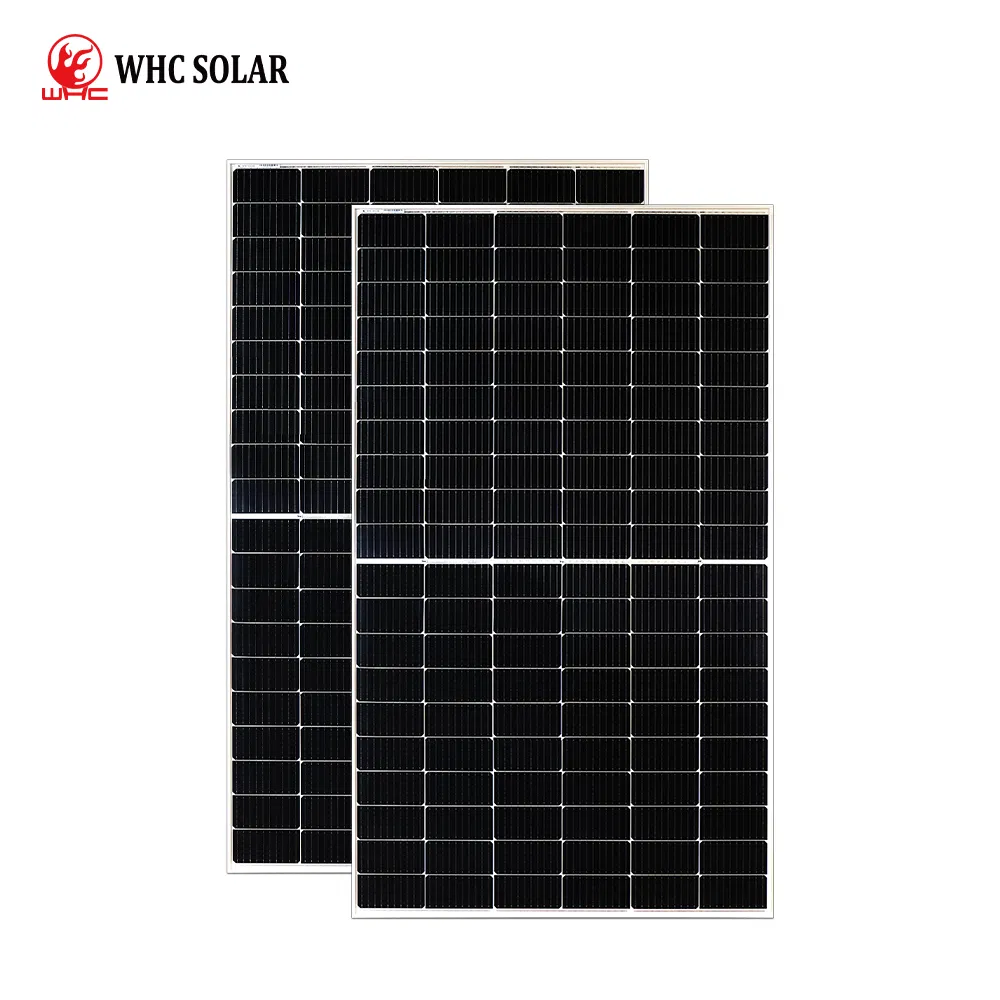

Mono Solar Panel
Mono Solar Panel
  • Model: WHC-450M-120
  • Max Power Voltage: 34.67V
  • Max Power Current: 12.98A
  • Open Circuit Voltage: 41.25V
  • Short Circuit Current: 13.89A
  • Dimensions: 1909*1134*35mm

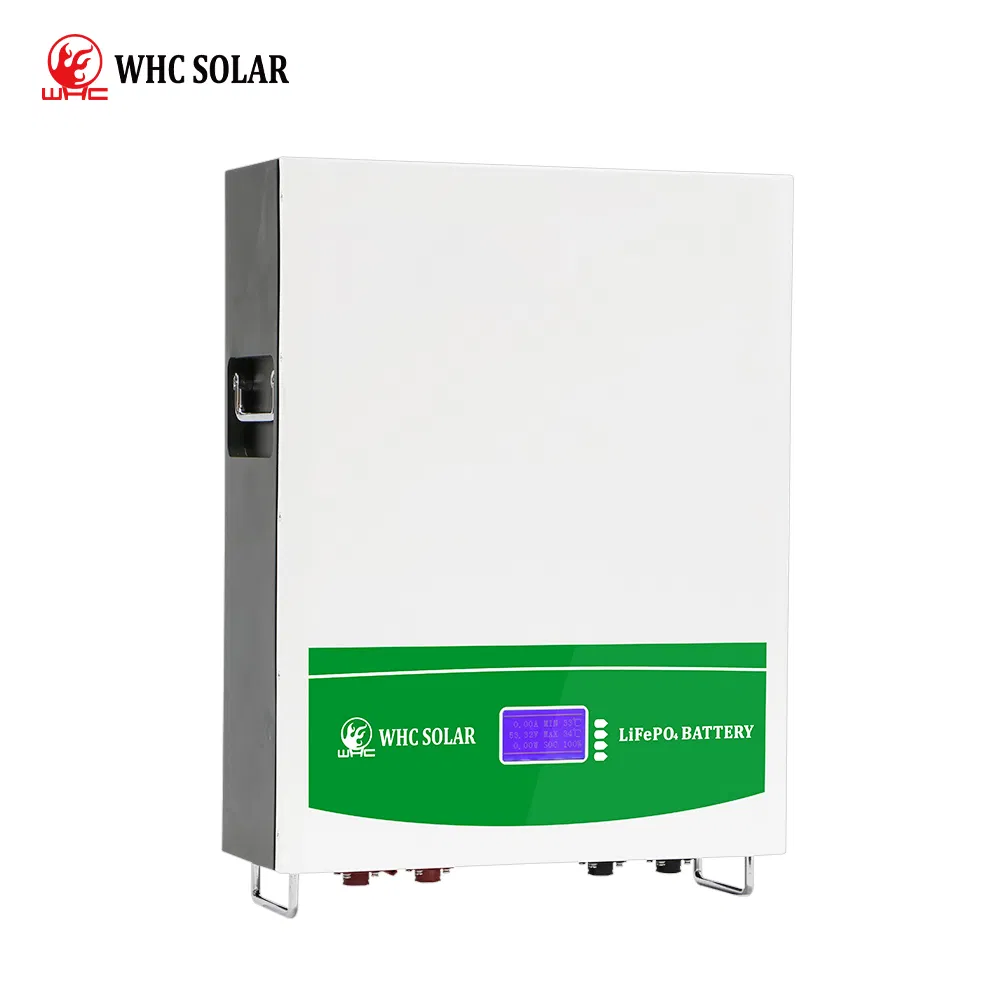

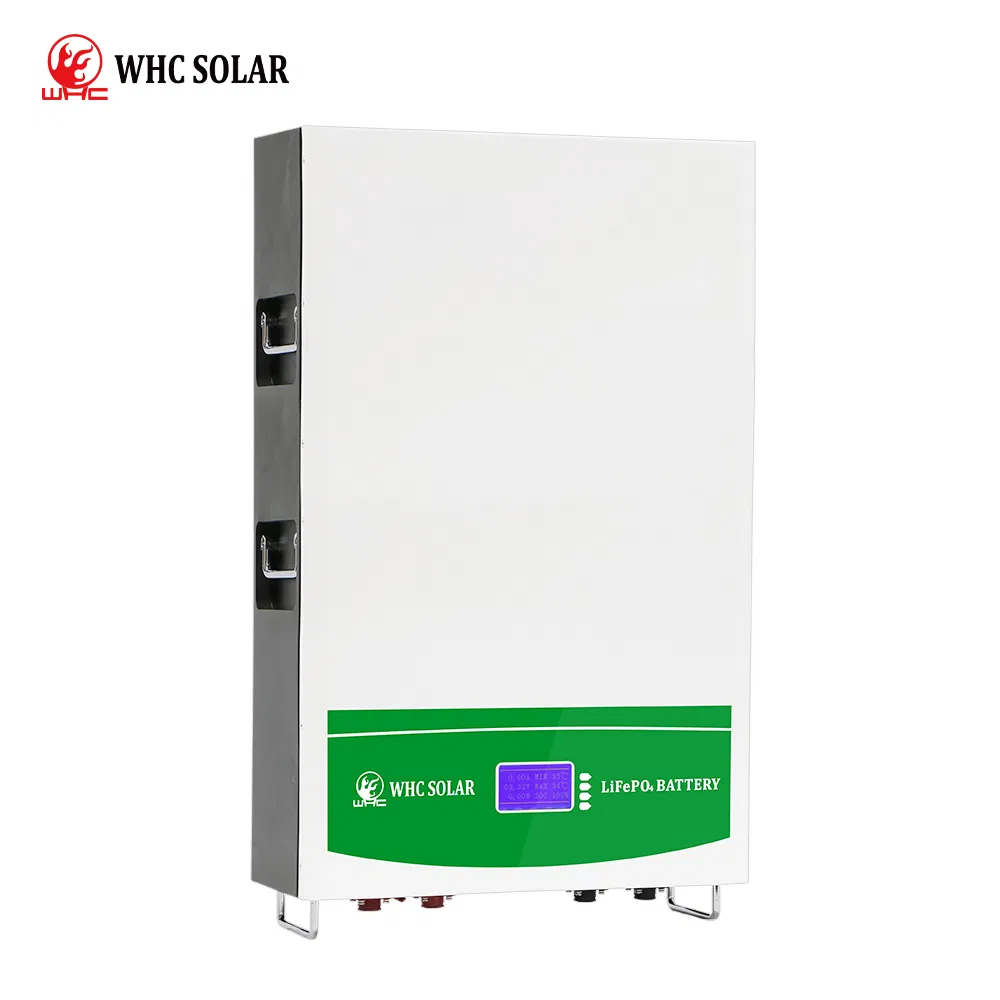

LiFePO4 Lithium Battery
LiFePO4 Lithium Battery
  • Model: WHC 51.2V 100AH
  • Type: LiFePO4 Lithium Battery
  • Nominal Voltage: 51.2V
  • Capacity: 5120WH
  • Lifespan: 10 Years
  • BMS Max discharging Current: 100A

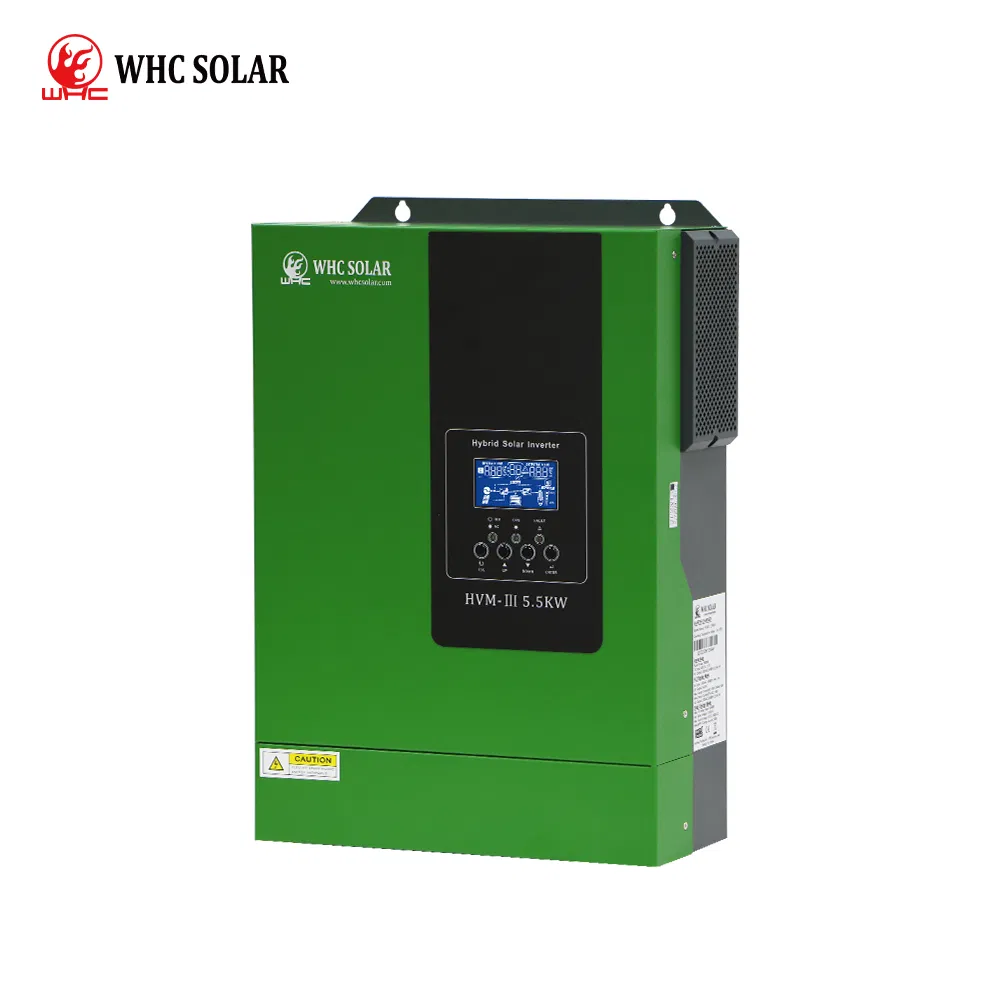

Solar Hybrid Inverter
Solar Hybrid Inverter
  • Model: WHC 48V 5.5KW Solar Inverter
  • Rating: 48V 5.5KW
  • PV Input: 500V 100A
  • Output: 220V 50Hz
  • Performance: Optimised to Extend Lifecycle
  • Type: High Efficiency Pure Sine Wave Inverter
Mounting Support
Mounting Support
  • Type: Solar Panel Bracket
  • Wind load tolerance: 55m/s
  • Structure: Anodized Aluminum, Stainless Steel
  • Design: Angle Adjustable

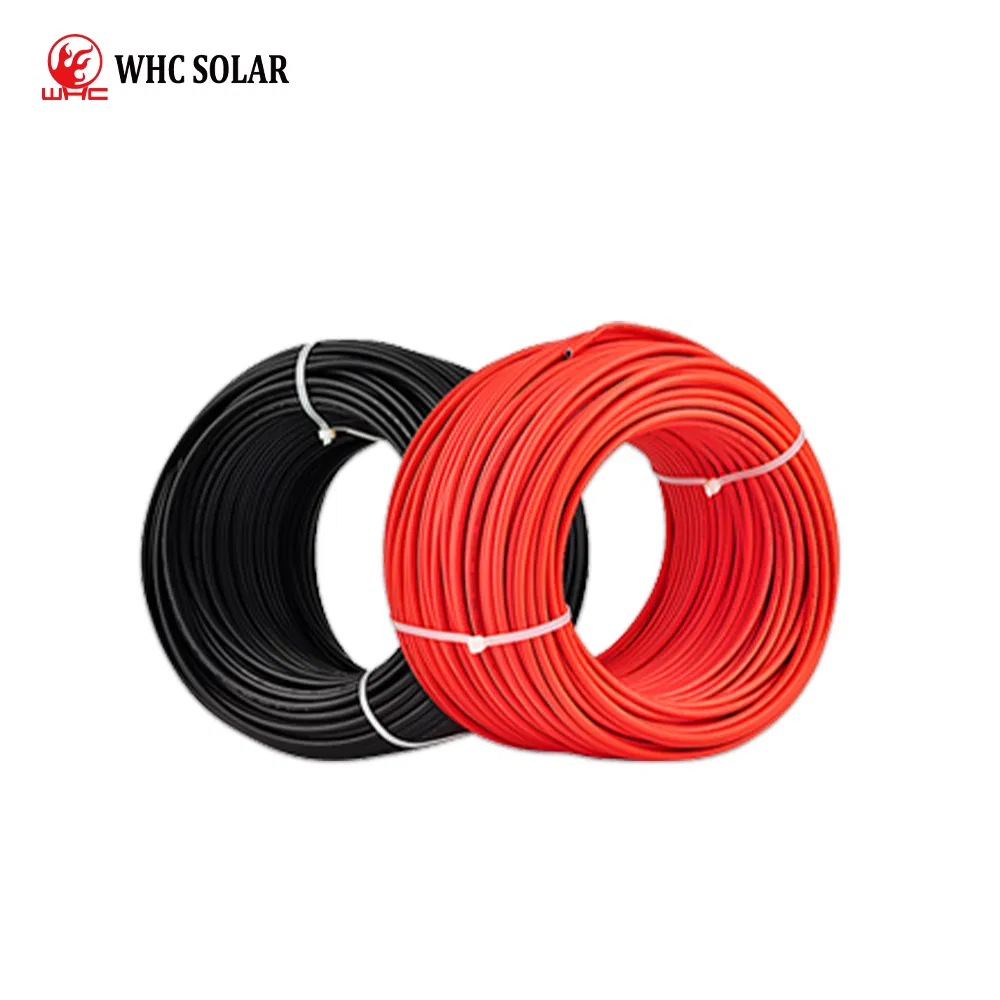

PV cable
PV Cable
  • Length: Solar Cable 100m
  • Type: RVV 1*6mm²
  • Material: Pure Copper
  • Temperature Rating: -40°C to 120°C (Lifespan: More than 25 Years)
MC4 Connector
MC4 Connector
  • Type: MC4 Solar Connector
  • Protection: IP68 Waterproof
  • Standard: High Quality, Safe Protection, Quick Operation
  • Material: Copper MC4 Connector
Product Diagnostics & Manufacturing Standards
Frequently Asked Questions (FAQ)

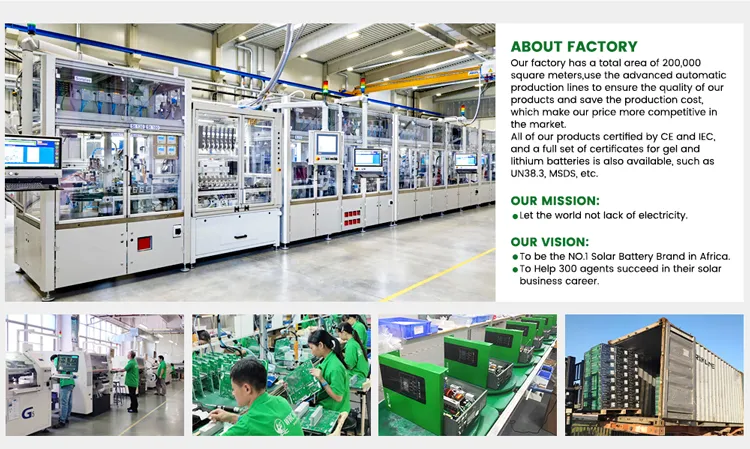

Are you a factory or a trading company?
We are a direct factory specializing in the production of solar systems, lithium batteries, and inverters.
Can you print my custom logo on the product?
Yes, OEM support is available. We can custom print your logo on the product outer casing upon request.
What certifications do your solar products hold?
Our products are highly certified, holding multiple national patents and passing CE, RoHS, and ISO9001: 2008 quality management system certifications.
What is the standard delivery timeframe?
Delivery typically takes 14 to 20 days. The timeline may vary slightly depending on the specific product specifications and ordering volume.
Where are your primary export markets located?
Our primary distribution networks span across Africa, South America, the Middle East, Western Europe, and various other international regions.
What payment methods do you support?
We accept reliable payment options including T/T (Bank Transfer), Western Union, MoneyGram, and other negotiated terms suitable for both parties.
