Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System
Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System
Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System
Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System
Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System
1 / 5
Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System
Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System
Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System
Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System
Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System

Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System

Customization: Available
Type: Lithium-Ion Batteries
Usage: Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Home
Send Inquiry

Product Description

Basic Information
Model NO.
WHC15KW-Li-20KWH
Nominal Voltage
AC220V
Discharge Rate
High Discharge Rate
Shape
Square Battery
Electrolyte
Li-ion
Installation
Packaged
Rechargeable
Chargeable
Product Name
Offgrid Solar Power System Home
Model
Whc15kw-Li-20kwh
Power
15kw
Solar Panel Type
Half Cell Solar Panel
Battery Type
LiFePO4 Lithium Battery
Inverter
Pure Sine Wave Inverter
Controller
MPPT Solar Charge Controller
Solar Panel Bracket
Aluminum Alloy
Mounting Support
Pitched / Flat Roof / Ground
System Type
off-Grid Solar Power System
Battery Cell
3.2V 100ah LiFePO4 Cell
Brand Name
Whc / Whc Solar
Transport Package
Package in Carton or According to Your Requirement
Specification
WHC20KW Li-20KWH
Trademark
WHC / WHC SOLAR
Origin
Guangdong, China (Mainland)
Production Capacity
10000pieces/Month
Product Description

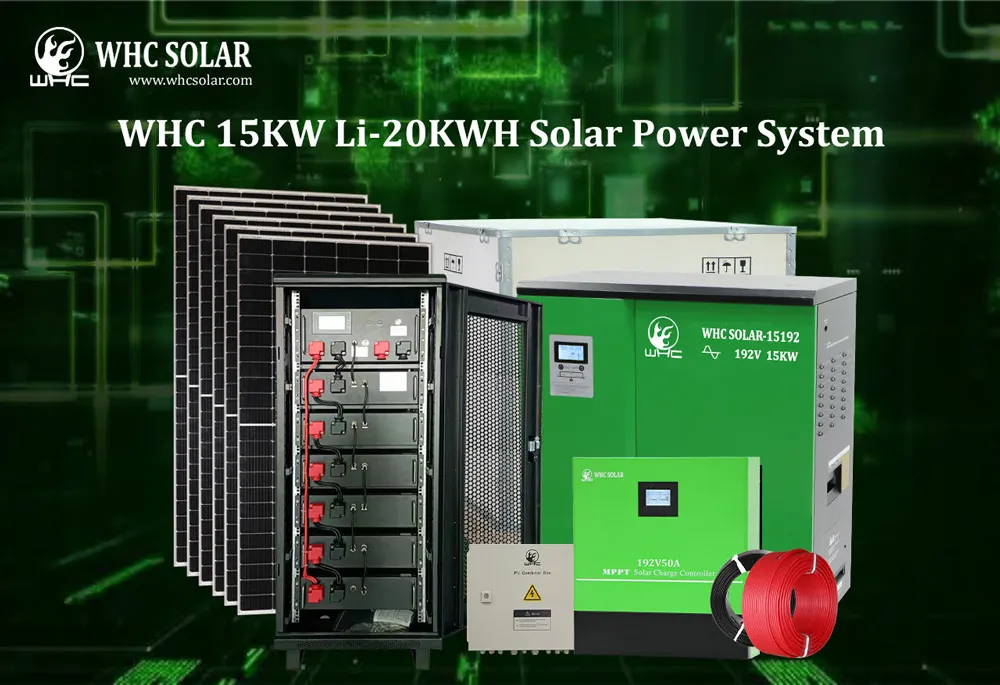

WHC SOLAR System Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage

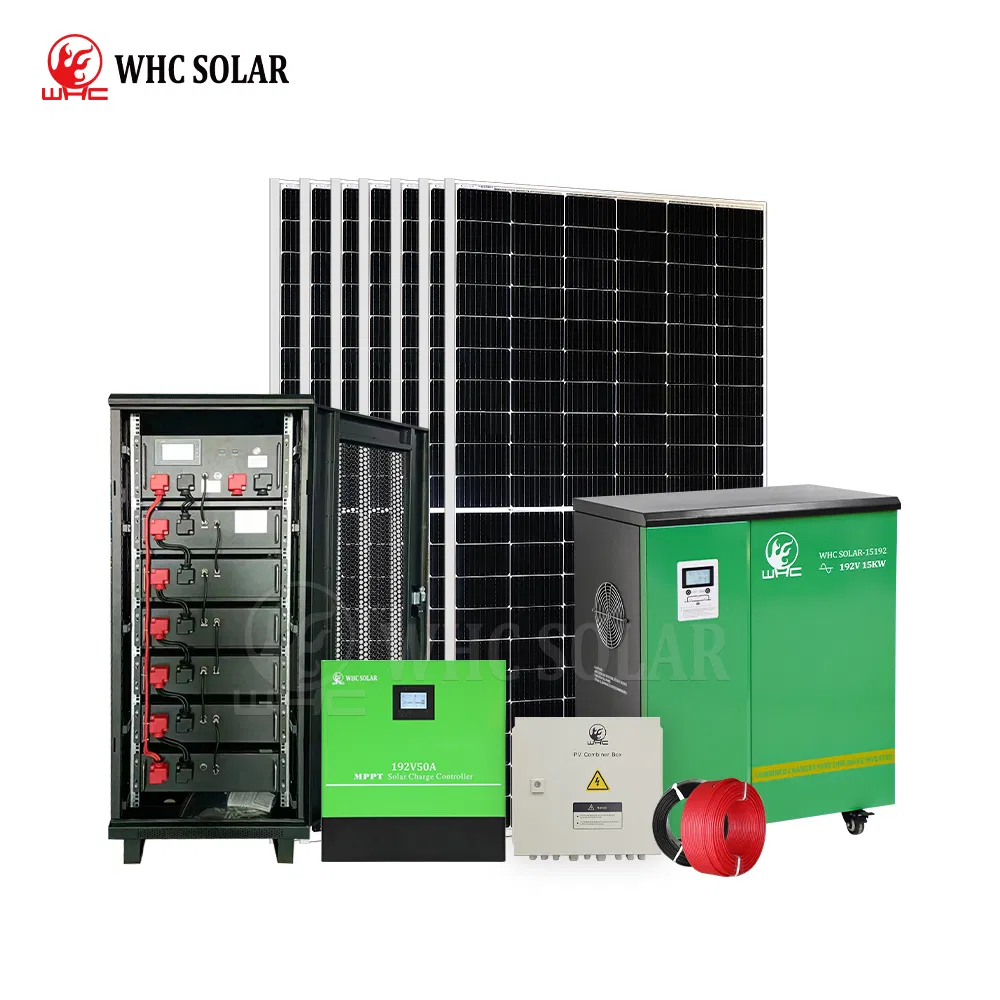

Model: WHC15KW-Li-20KWH | Product Name: Offgrid Solar Power System Home
WHC Solar Power System also known as off-grid solar system is the most costeffective typefor solar system.It is a complete solar setup that comes with highly efficientsolar panels.off-grid solar inverter, Grade A+ lithium iron phosphate battery and other standard solaraccessories.This system willnot only provides you continious electricity but will alsoreduce your heavy electricity bills.
Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System
Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System
Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System
Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System
Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System
WHC15KW-Li-20KWH
Item Description Quantity
Solar Lithium Battery 192V100AH LiFePO4 Lithium Battery 1 Pieces
Solar Panel 450W Solar Mono Panel 18 Pieces
Solar Controller 192V 50A MPPT Controller 1 Pieces
Solar Inverter 192V 15KW Solar Inveter 1 Pieces
PV Combiner Box SixInput + Two Output 1 Pieces
PV Cable Single-core 6mm2 PV cable 100m 2 Pieces
PV Mounting Support Hot Galvanizing Ground Mounting Support 1 Set
Connector MC4 Connector 30 Pieces

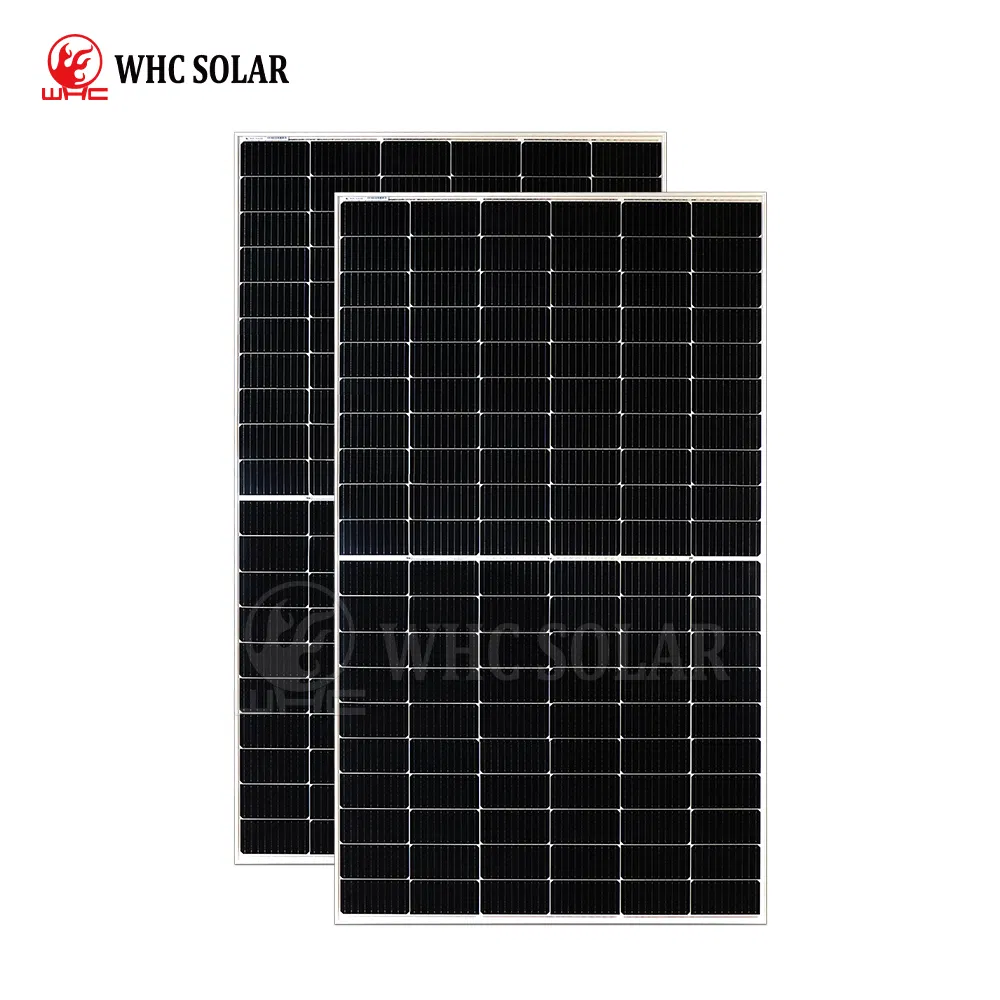

Mono Solar Panel

Mono Solar Panel

  • Model: WHC-450M-120
  • Max Power Voltage: 34.67V
  • Max Power Current: 12.98A
  • Open Circuit Voltage: 41.25V
  • Short Circuit Current: 13.89A
  • Dimensions: 1909*1134*35mm

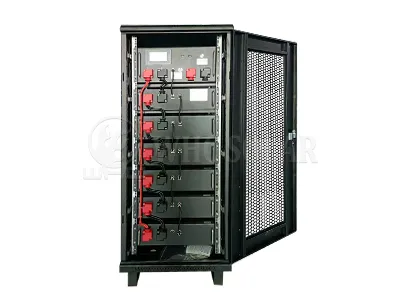

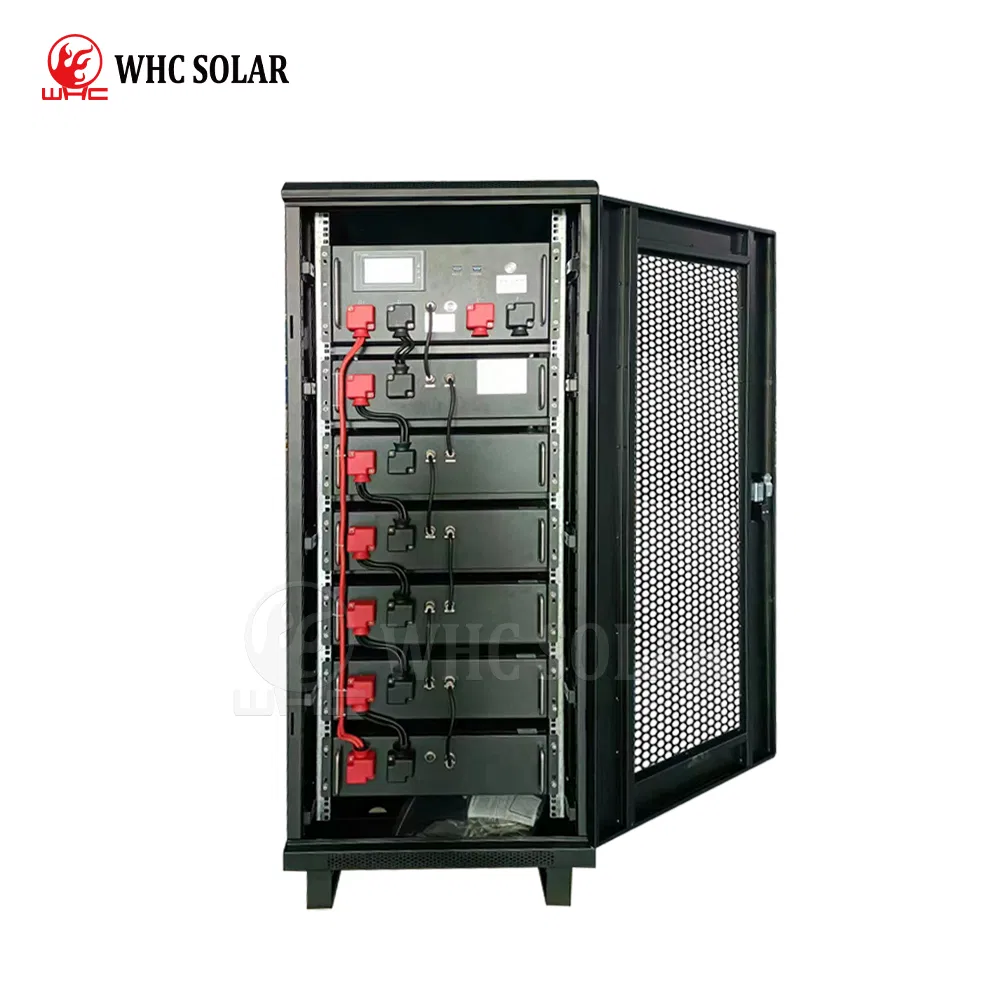

LiFePO4 Lithium Battery

LiFePO4 Lithium Battery

  • Model: WHC192V100AH
  • Type: LiFePO4 Lithium Battery
  • Nominal Voltage: 204.8V
  • Capacity: 20480WH
  • Lifespan: 10 Years
  • BMS Max Discharging Current: 100A

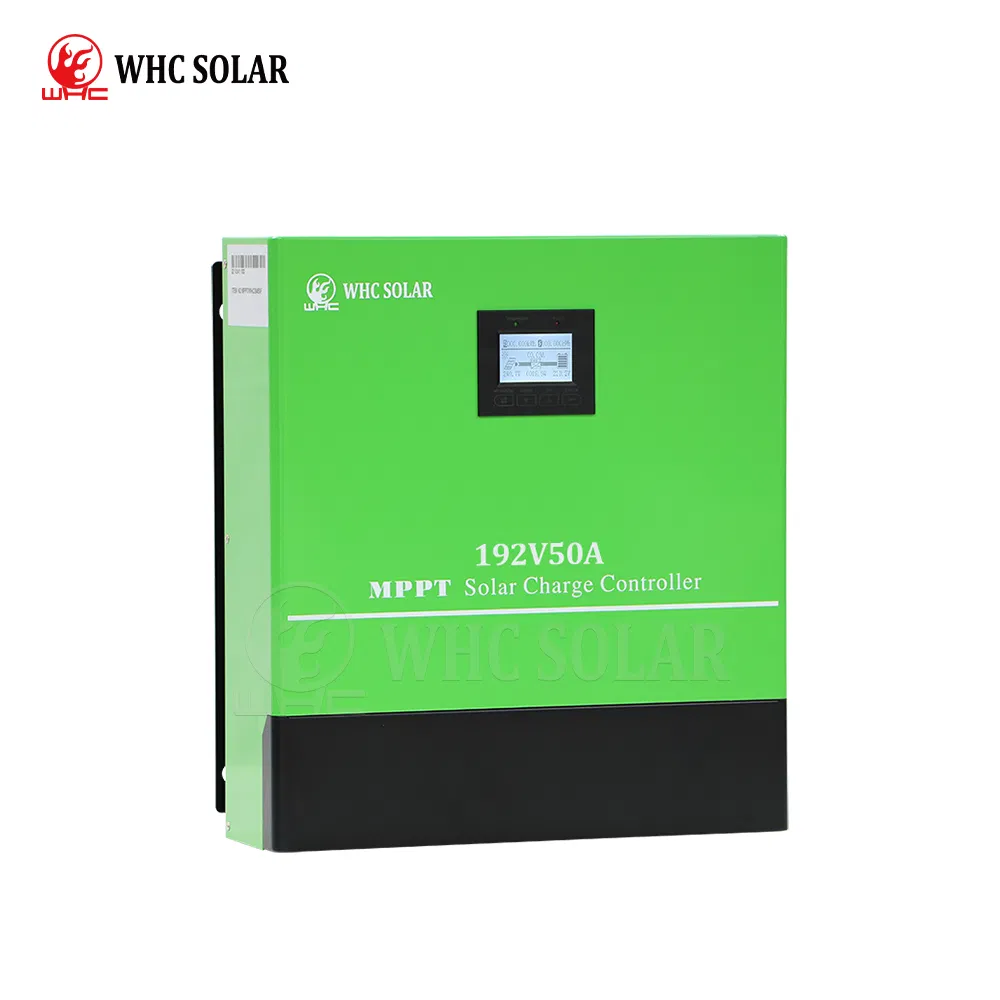

Solar Controller

Solar Controller

  • Model: MPPT/WHC19250F
  • Type: Heatsink Cooling
  • Max. Charging Current: 50A
  • Max. PV Open Circuit Voltage: 430V
  • DC Input Voltage: 192V
  • MPPT Efficiency: 99%
Solar Inverter

Solar Inverter

  • Model: WHC192V 15KW Inverter
  • Type: Low Frequency IGBT Pure Sine Wave Inverter with Big Transformer
  • DC Input Voltage: 192V
  • AC Input Voltage: 220V 50/60HZ
  • Recharging Current: 10A
  • AC Output Voltage: 220V 50/60HZ

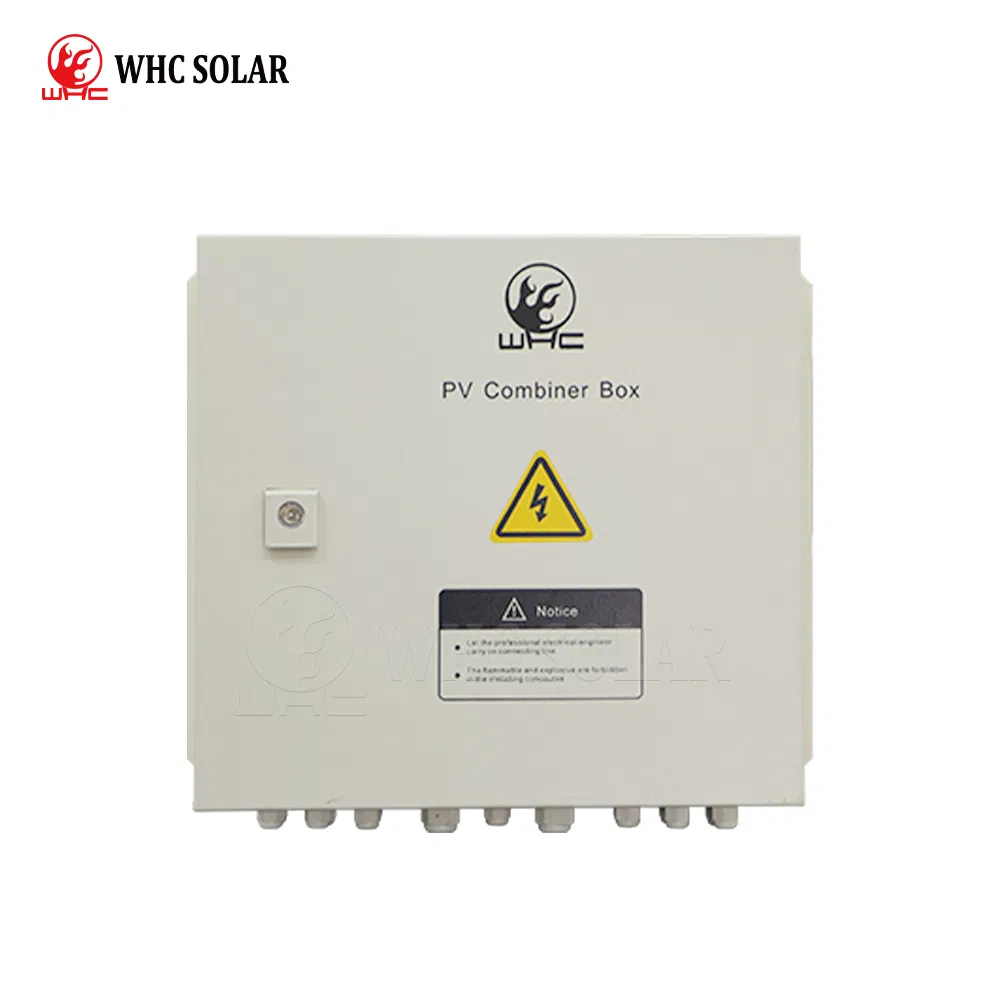

PV Combiner Box

PV Combiner Box

  • Model: Combiner Box: N6 Plus
  • Waterproof Rating: IP65
  • Max Output Voltage: 1000V
  • DC Output Circuit Breaker: Yes
  • Lightning Protection: Yes
Mounting Support

Mounting Support

  • Support Type: Solar Panel Bracket
  • Wind Load Rating: 55m/s
  • Material Structure: Anodized Aluminum Stainless Steel
  • Adjustable Angle: Yes
PV Cable

PV Cable

  • Length: Solar Cable 100m
  • Type: RVV 1*6mm2
  • Core Material: Pure Copper
  • Temperature Rating: -40°C to 120°C (Lifespan more than 25 Years)
MC4 Connector

MC4 Connector

  • Type: MC4 Solar Connector
  • Waterproof Rating: IP68
  • Build Quality: Safe Protection, Quick Operation, Copper Core MC4 Connector
Whc Commercial Solar Energy System 10kw 15kw 20kw Solar Panel System
Company Overview & Capability

Company Profile

Company Profile Details

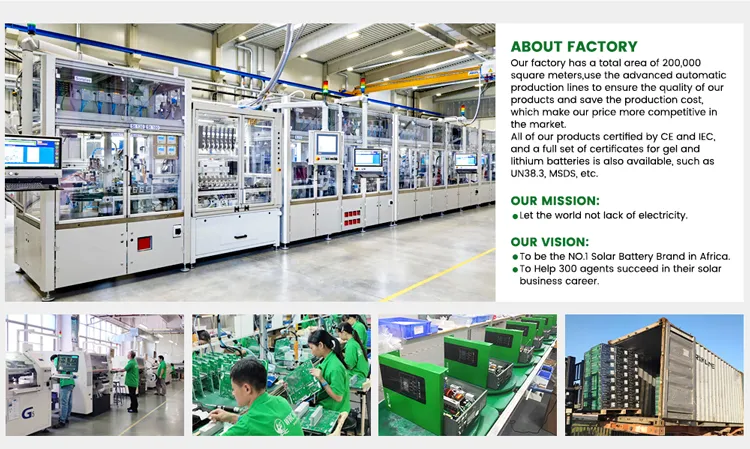

Factory Strength

Factory Operations Strength

Certificate Display

Product Certificates and Patents

Packing & Delivery

Packing and Delivery Procedures
Frequently Asked Questions
Are you a factory or trading company?
We are a professional factory.
Can you print my logo on the product cover?
Yes, OEM service is available. We can print your logo on the battery case, and you can provide your logo design.
What kind of certificates do you have?
We have obtained multiple national patents and passed CE, RoHS, and ISO9001:2008 quality management system certifications.
What is your standard delivery time?
Normally 14-20 days. The precise delivery timeline depends on the specific product configuration and ordered quantity.
Where is your primary target market?
Our main target markets include Africa, South America, the Middle East, and Occident countries.
What payment methods do you accept?
We accept MoneyGram, Western Union, T/T, and other mutually agreeable payment options.
