Package in Carton or According to Your Requirement
Specification
WHC20KW Li-20KWH
Production Capacity
10000pieces/Month
Product Description
System Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage
Model: WHC15KW-Li-20KWH
Product Name: Offgrid Solar Power System Home
Our Solar Power System, also known as an off-grid solar system, is one of the most cost-effective types of solar system setups. It is a complete solar solution that comes with highly efficient solar panels, an off-grid solar inverter, Grade A+ lithium iron phosphate battery, and other standard solar accessories. This system not only provides continuous electricity but also helps significantly reduce heavy electricity bills.

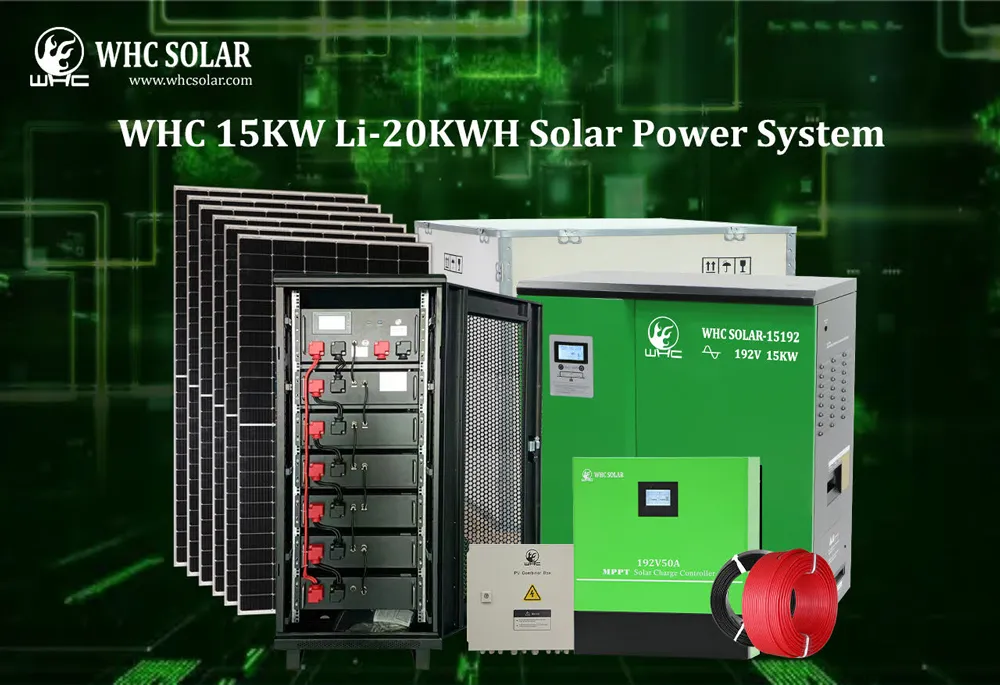

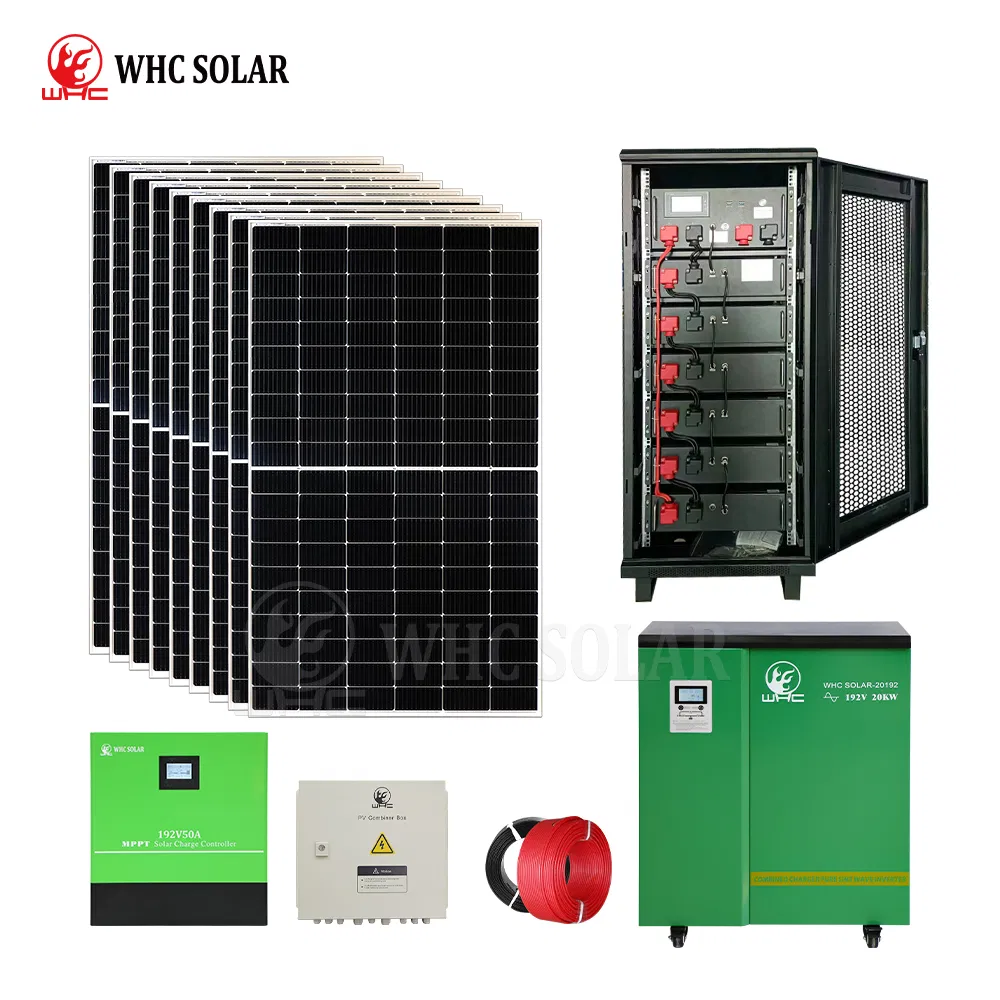

System Configuration (WHC15KW-Li-20KWH)
Item
Description
Quantity
Solar Lithium Battery
192V100AH LiFePO4 Lithium Battery
1 Piece
Solar Panel
450W Solar Mono Panel
18 Pieces
Solar Controller
192V 50A MPPT Controller
1 Piece
Solar Inverter
192V 15KW Solar Inverter
1 Piece
PV Combiner Box
Six Input + Two Output
1 Piece
PV Cable
Single-core 6mm2 PV cable 100m
2 Pieces
PV Mounting Support
Hot Galvanizing Ground Mounting Support
1 Set
Connector
MC4 Connector
30 Pieces
System Core Components Detail
Mono Solar Panel
Model: WHC-450M-120
Max Power Voltage: 34.67V
Max Power Current: 12.98A
Open Circuit Voltage: 41.25V
Short Circuit Current: 13.89A
Dimensions: 1909*1134*35mm

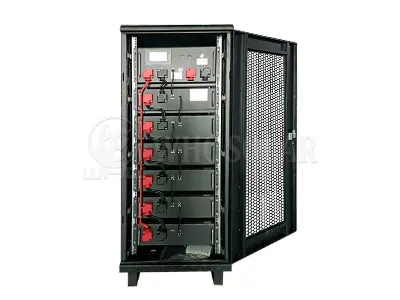

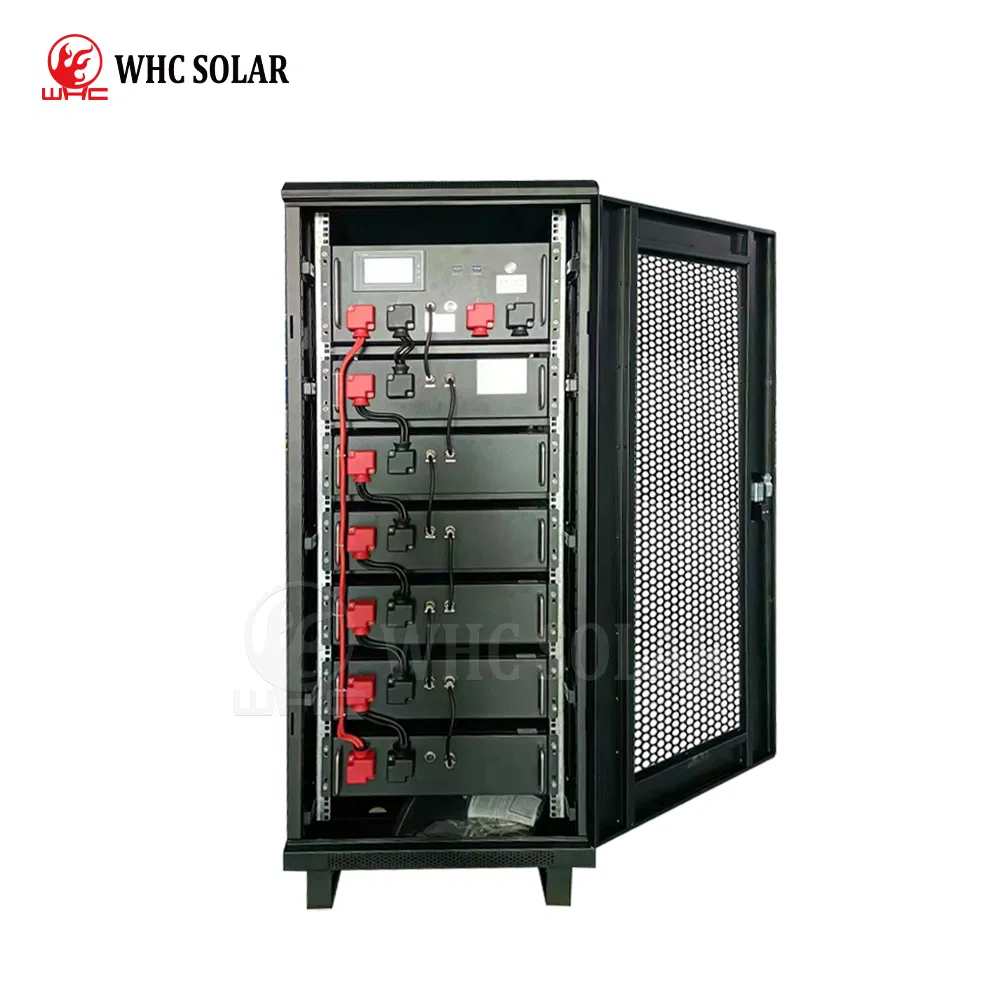

LiFePO4 Lithium Battery
Model: WHC192V100AH
Type: LiFePO4 Lithium Battery
Nominal Voltage: 204.8V
Capacity: 20480WH
Lifespan: 10 Years
BMS Max Discharging: 100A

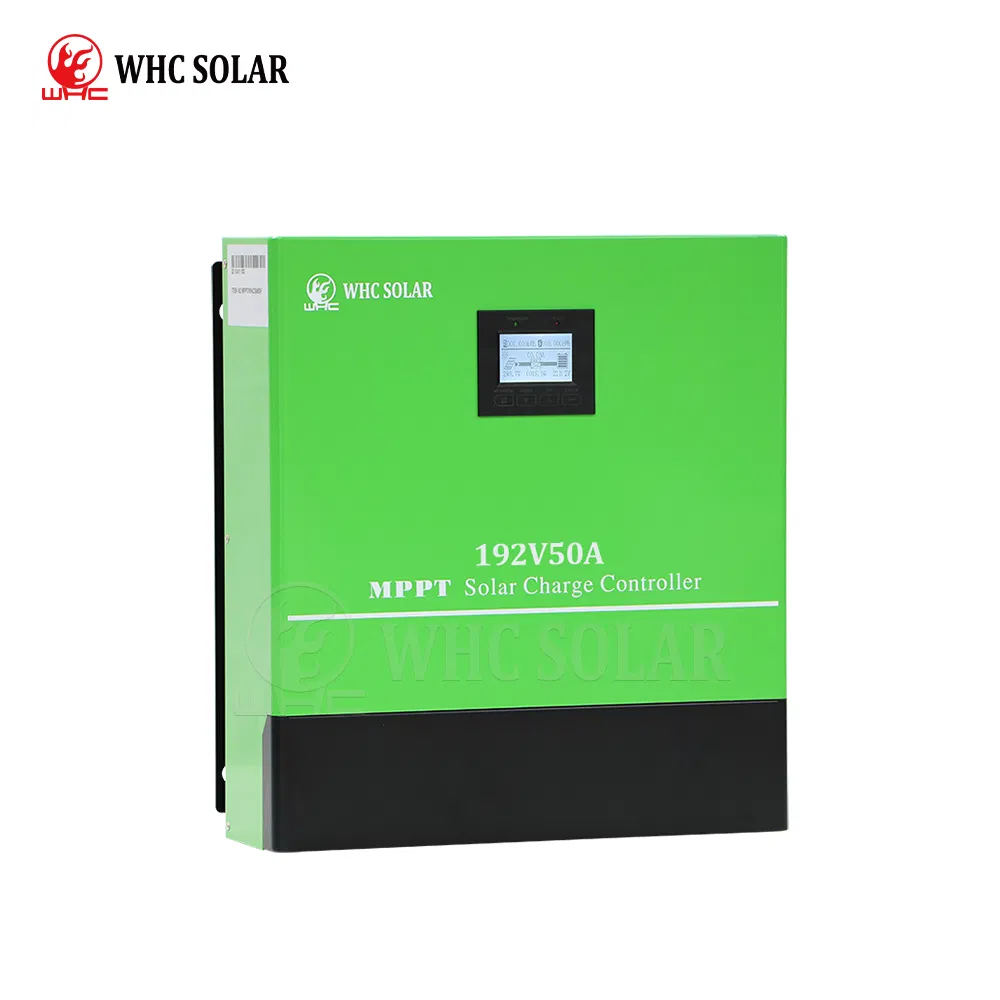

Solar Controller
Model: MPPT/WHC19250F
Type: Heatsink Cooling
Max Charging Current: 50A
Max PV Open Voltage: 430V
DC Input Voltage: 192V
MPPT Efficiency: 99%
Solar Inverter
Model: WHC192V 15KW Inverter
Type: Low Freq IGBT Pure Sine Wave
DC Input Voltage: 192V
AC Input Voltage: 220V 50/60HZ
Recharging Current: 10A
AC Output Voltage: 220V 50/60HZ
PV Combiner Box
Combiner Box: N6 Plus
Waterproof Level: IP65
Max Output Voltage: 1000V
DC Output Breaker: Yes
Lightning Protection: Yes
Mounting Support
Type: Solar Panel Bracket
Wind Load Resistance: 55m/s
Structure Material: Anodized Aluminum
Details: Stainless Steel, Angle Adjustable
PV Cable
Cable Specification: Solar Cable 100m
Type: RVV 1*6mm2
Material: Pure Copper
Temperature Rating: -40°C to 120°C
Lifespan: More than 25 Years

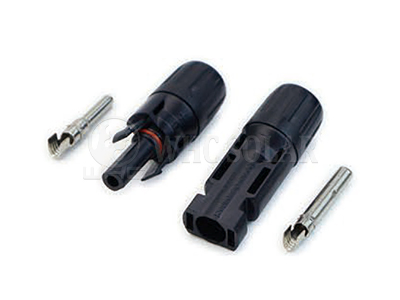

MC4 Connector
Type: MC4 Solar Connector
Waterproof Level: IP68
Features: Copper Material
Benefits: Safe Protection, Quick Operation
Profile & Strength
Company Profile

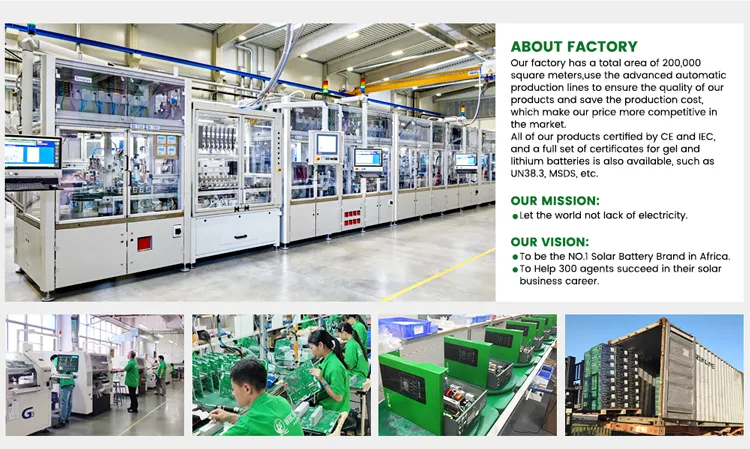

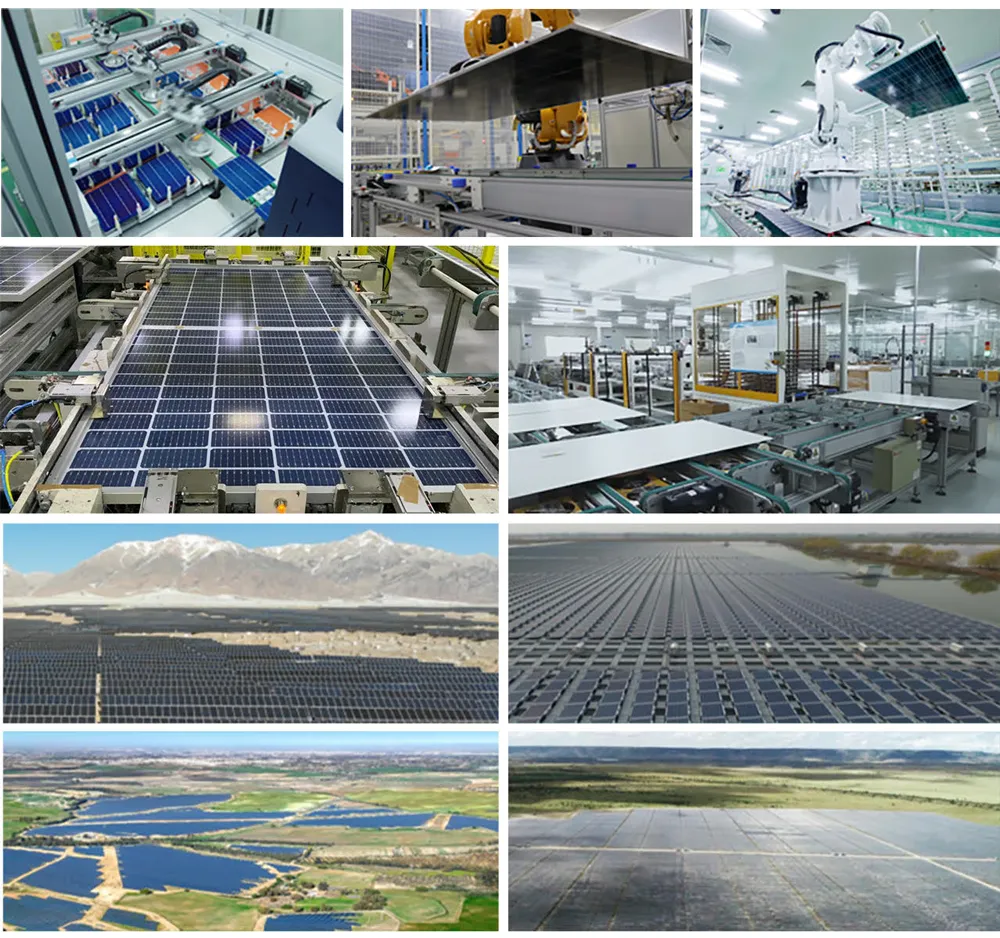

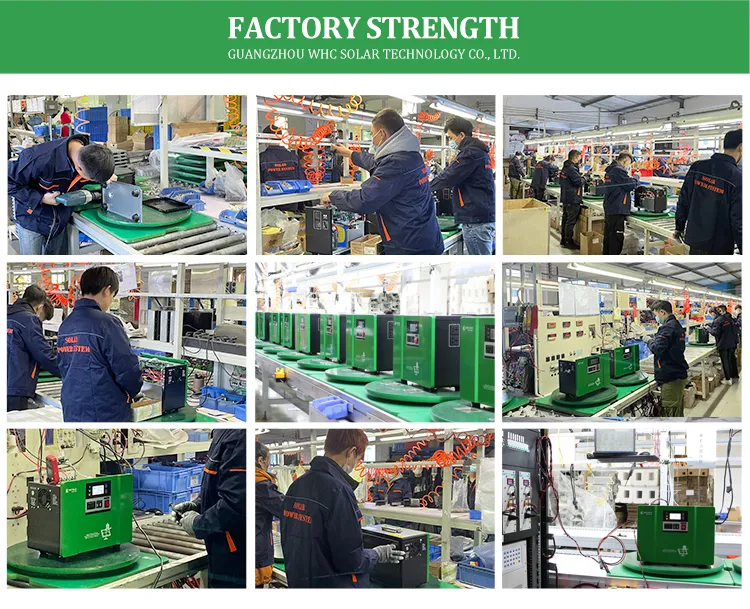

Factory Strength
Certificate Display
Packing & Delivery
Frequently Asked Questions
Are you a factory or a trading company?
We are a factory with advanced manufacturing capabilities for solar energy products.
Can you print my custom logo on the product cover?
Yes, OEM is available. We can print your logo on the product enclosure based on your design.
What kind of certificates do you have?
Our products hold multiple national patents and have passed CE, RoHS, and ISO9001:2008 quality management system certifications.
What is your delivery time?
Usually 14 to 20 days. The delivery schedule varies depending on the specific product requirements and batch quantity.
Where is your main market?
Our primary global markets span across Africa, South America, the Middle East, and Western countries.
How can I pay for the product?
We accept secure methods including T/T (Bank Transfer), Western Union, Money Gram, and other globally verified payments.
