Whc Factory Price Inverter Solar Power System 5kw 8kw 10kw 12kw 15kw Hybrid 48V Solar Energy Panel System

Customization:	Available
Type:	Lithium-Ion Batteries
Usage:	Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Home

Basic Info.

Model NO.

15KW-Li-20KWH

Nominal Voltage

AC220V

Discharge Rate

High Discharge Rate

Shape

Square Battery

Electrolyte

Li-ion

Installation

Packaged

Rechargeable

Chargeable

Product Name

Offgrid Solar Power System Home

Model

15kw-Li-20kwh

Power

15kw

Solar Panel Type

Half Cell Solar Panel

Battery Type

LiFePO4 Lithium Battery

Inverter

Pure Sine Wave Inverter

Controller

MPPT Solar Charge Controller

Solar Panel Bracket

Aluminum Alloy

Mounting Support

Pitched / Flat Roof / Ground

System Type

off-Grid Solar Power System

Battery Cell

3.2V 100ah LiFePO4 Cell

Transport Package

Package in Carton or According to Your Requirement

Specification

20KW Li-20KWH

Origin

Guangdong, China (Mainland)

Production Capacity

10000pieces/Month

Product Description

Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage

Model: 15KW-Li-20KWH
Product Name: Offgrid Solar Power System Home

Inverter Solar Power System Hybrid Solar Energy Panel System

Solar Power System also known as off-grid solar system is the most cost-effective type for solar system. It is a complete solar setup that comes with highly efficient solar panels, off-grid solar inverter, Grade A+ lithium iron phosphate battery and other standard solar accessories. This system will not only provide you continuous electricity but will also reduce your heavy electricity bills.

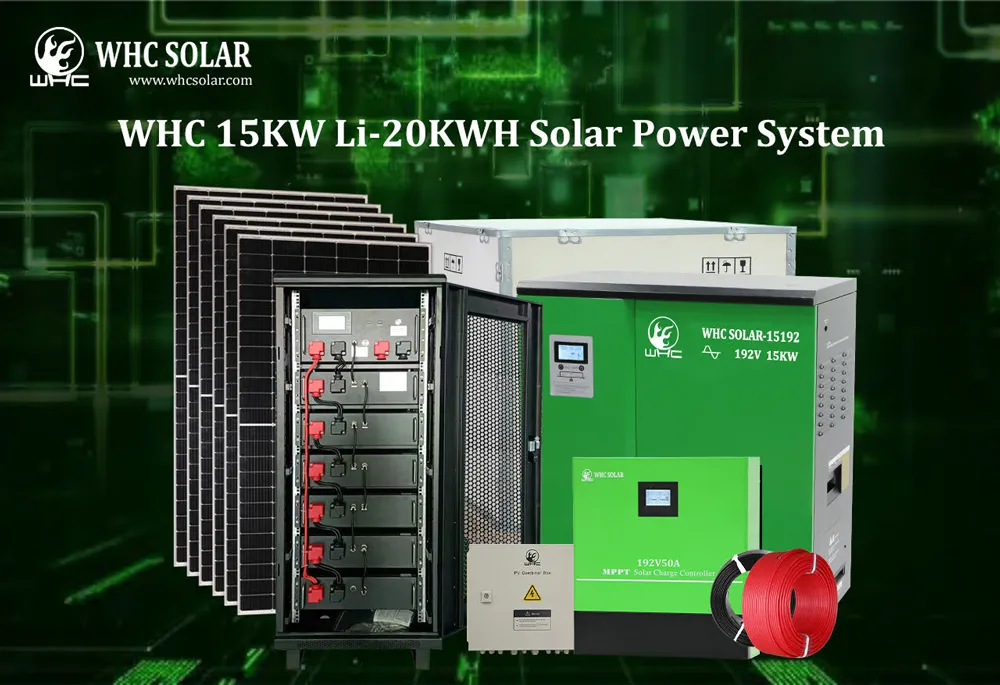

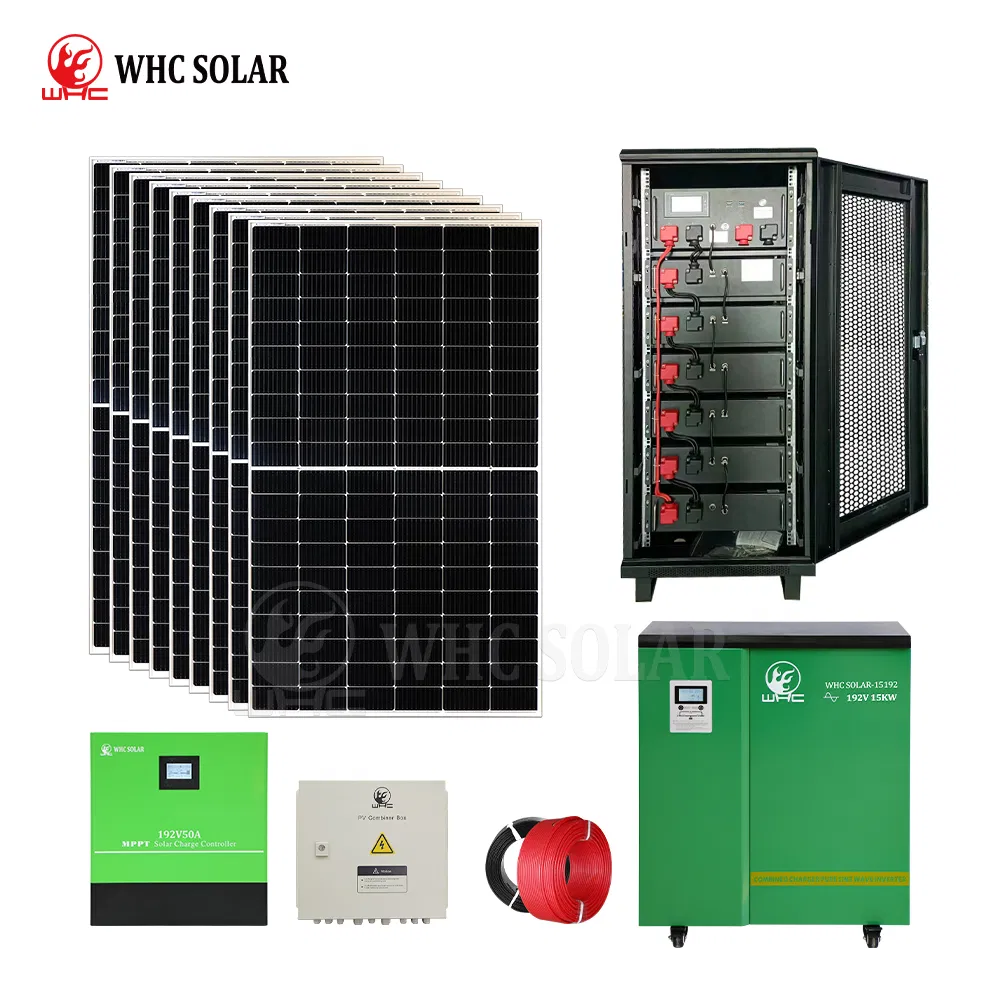

15KW-Li-20KWH Specification List
Item	Description	Quantity
Solar Lithium Battery	192V100AH LiFePO4 Lithium Battery	1 Pieces
Solar Panel	450W Solar Mono Panel	18 Pieces
Solar Controller	192V 50A MPPT Controller	1 Pieces
Solar Inverter	192V 15KW Solar Inverter	1 Pieces
PV Combiner Box	Six Input + Two Output	1 Pieces
PV Cable	Single-core 6mm2 PV cable 100m	2 Pieces
PV Mounting Support	Hot Galvanizing Ground Mounting Support	1 Set
Connector	MC4 Connector	30 Pieces

System Components Details

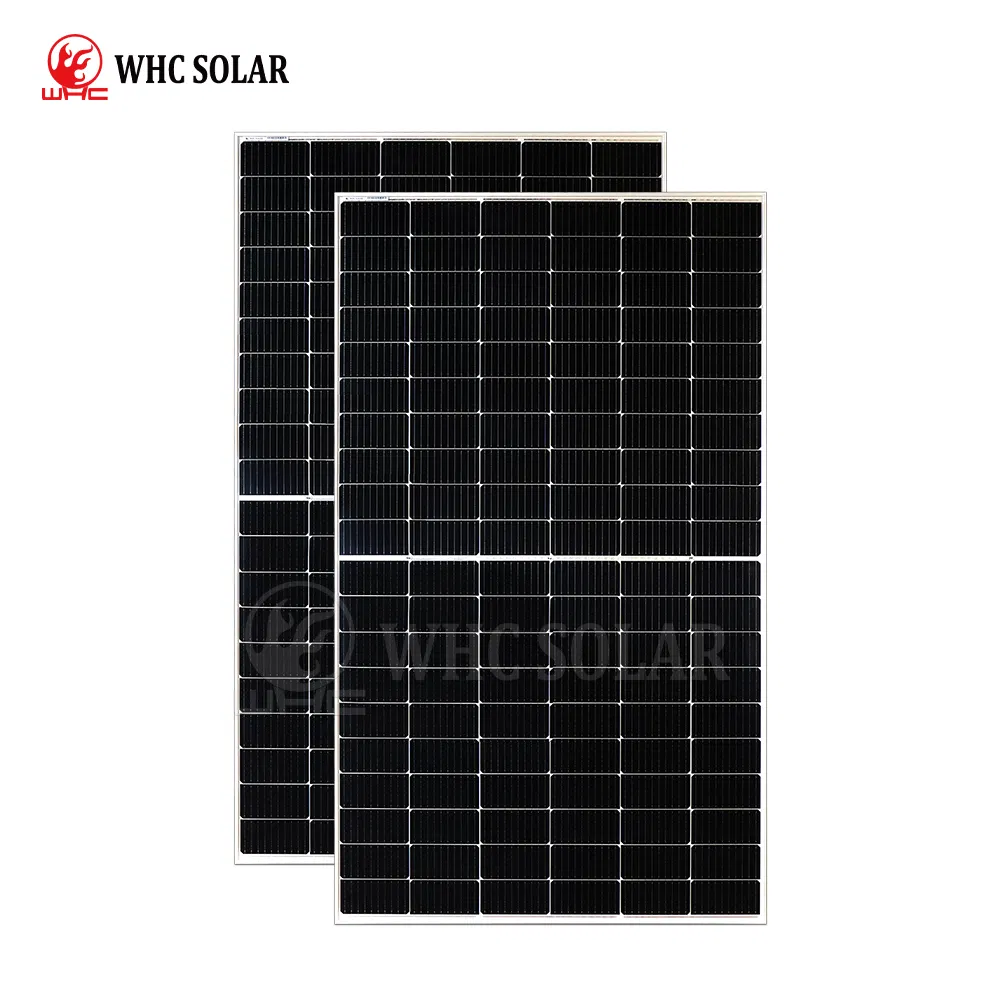

Mono Solar Panel

Model: WHC-450M-120
Max Power Voltage: 34.67V
Max Power Current: 12.98A
Open Circuit Voltage: 41.25V
Short Circuit Current: 13.89A
Dimensions: 1909*1134*35mm

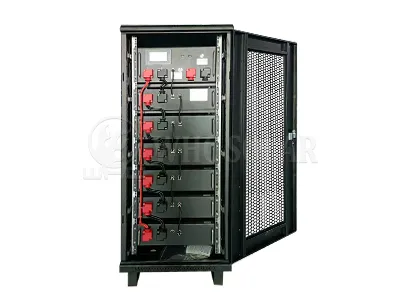

LiFePO4 Lithium Battery

Model: 192V100AH
Type: LiFePO4 Lithium Battery
Nominal Voltage: 204.8V
Capacity: 20480WH
Lifespan: 10 Years
BMS Max Discharging Current: 100A

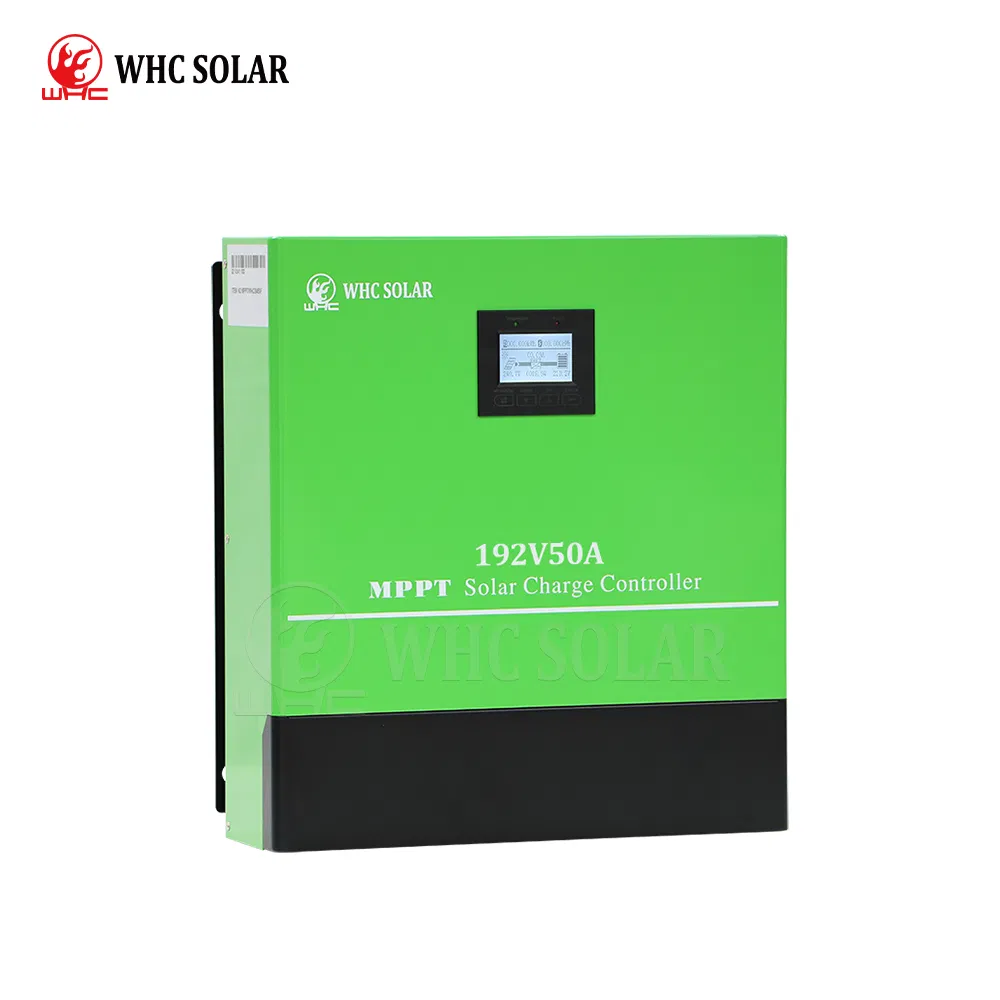

Solar Controller

Model: MPPT/19250F
Type: Heatsink Cooling
Max. Charging Current: 50A
Max. PV Open Circuit Voltage: 430V
DC Input Voltage: 192V
MPPT Efficiency: 99%

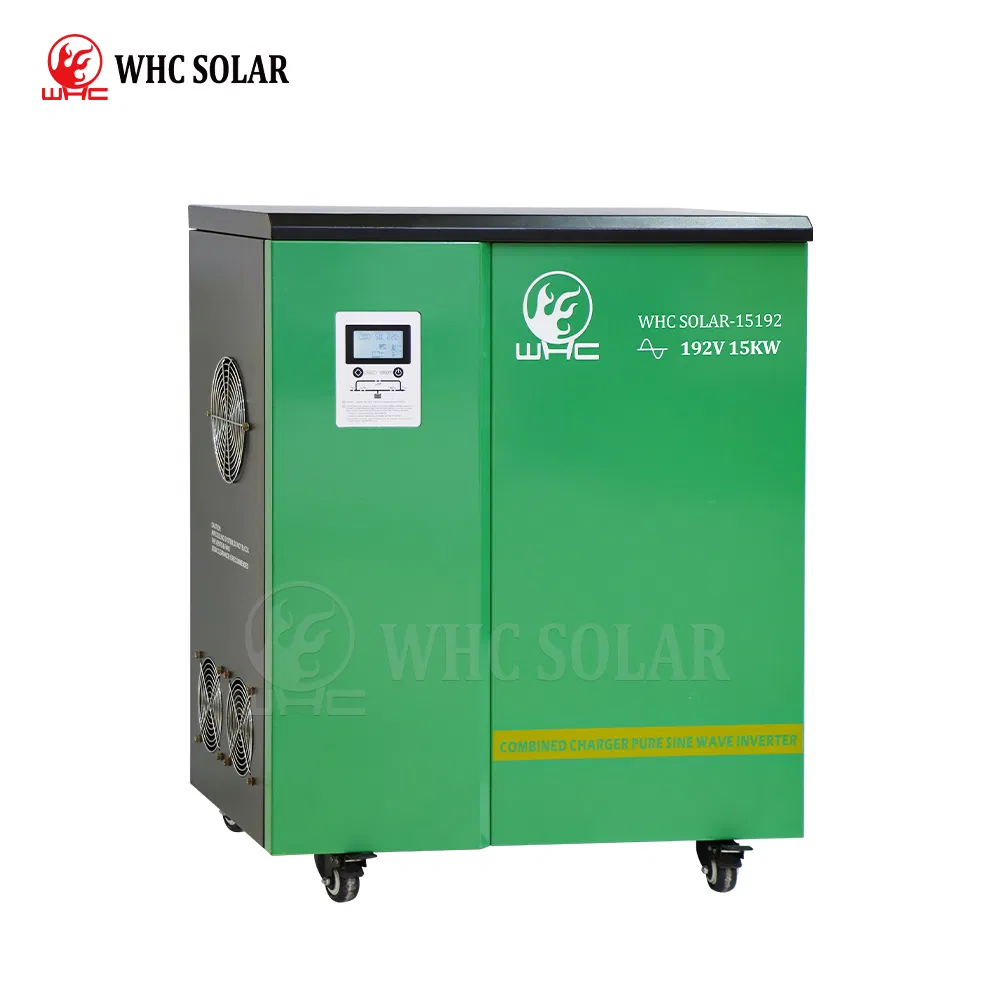

Solar Inverter

Model: 192V 15KW Inverter
Type: Low Frequency IGBT Pure Sine Wave Inverter with Big Transformer
DC Input Voltage: 192V
AC Input Voltage: 220V 50/60HZ
Recharging Current: 10A
AC Output Voltage: 220V 50/60HZ

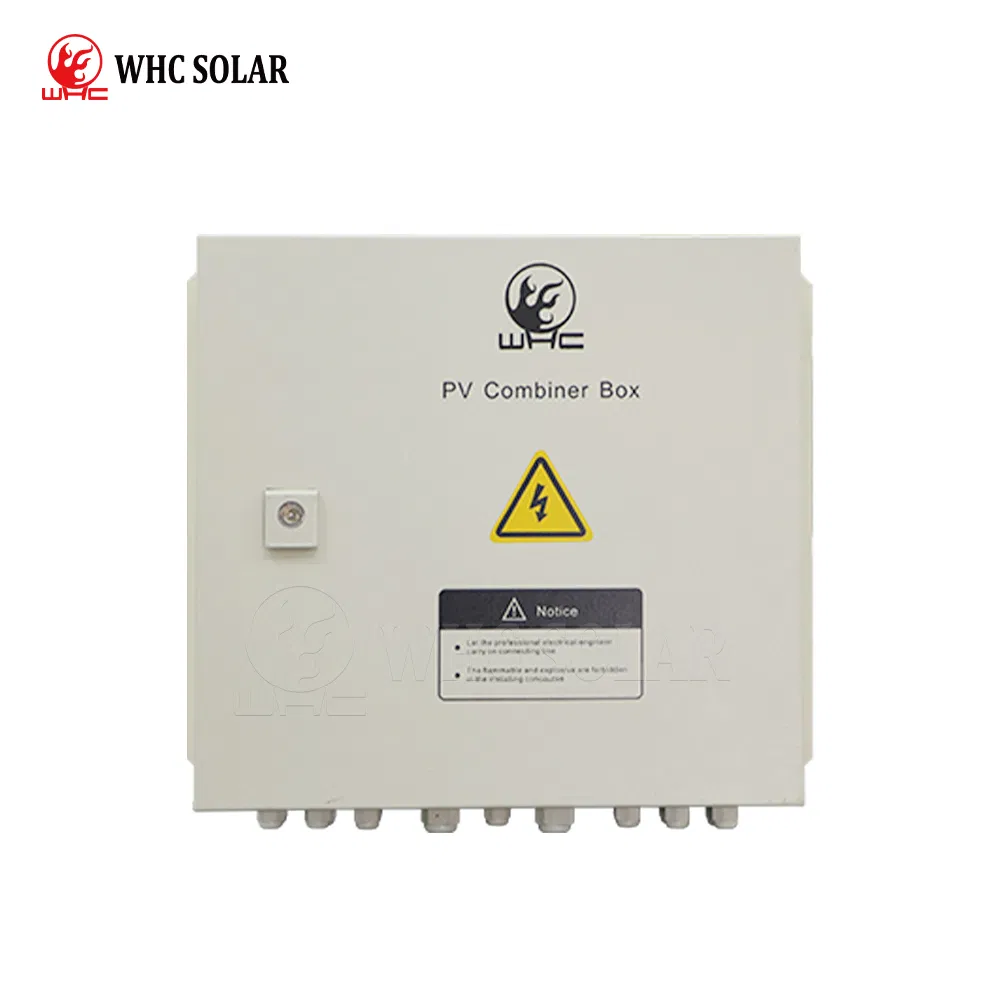

PV Combiner Box

Combiner Box: N6 Plus
Waterproof Rating: IP65
Max Output Voltage: 1000V
DC Output Circuit Breaker: Yes
Lightning Protection: Yes

Mounting Support

Solar Panel Bracket
Wind Load: 55m/s
Structure: Anodized Aluminum / Stainless Steel
Angle Adjustable: Yes

PV Cable

Solar Cable 100m
Type: RVV 1*6mm2
Material: Pure Copper
Temperature Rating: -40°C to 120°C (More than 25 Years Lifespan)

MC4 Connector

Type: MC4 Solar Connector
Waterproof Rating: IP68
Features: High Quality, Safe Protection, Quick Operation
Material: Copper Core

Manufacturing & Quality

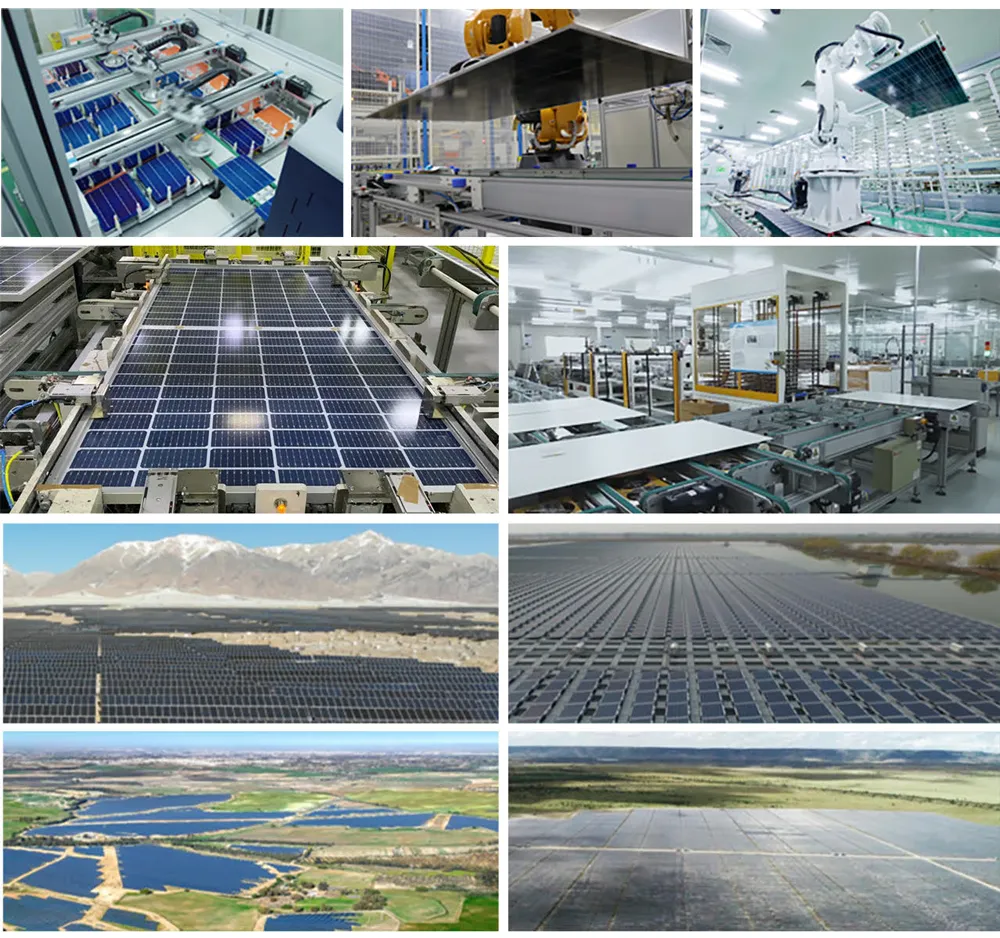

PRODUCTION FACILITIES

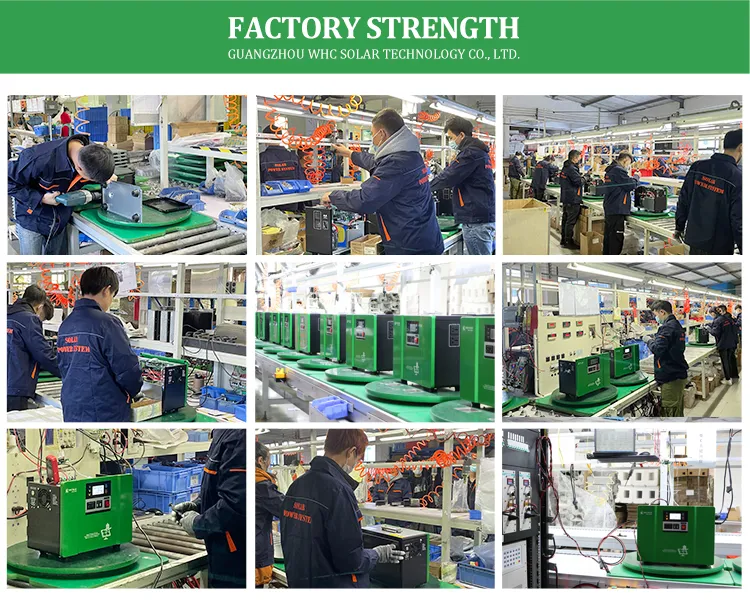

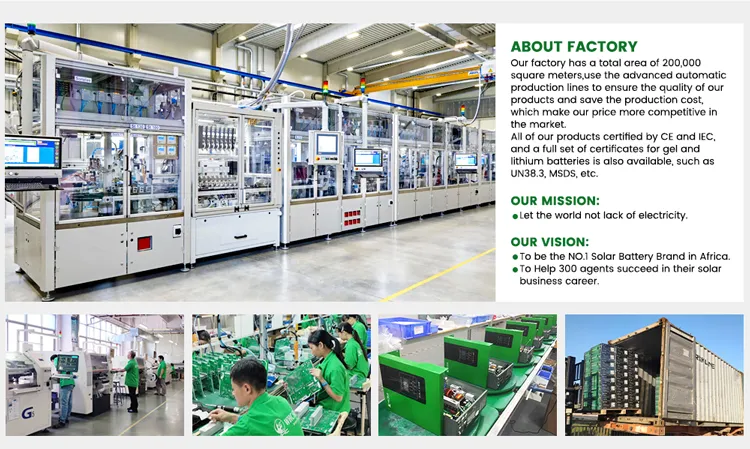

FACTORY STRENGTH

CERTIFICATE DISPLAY

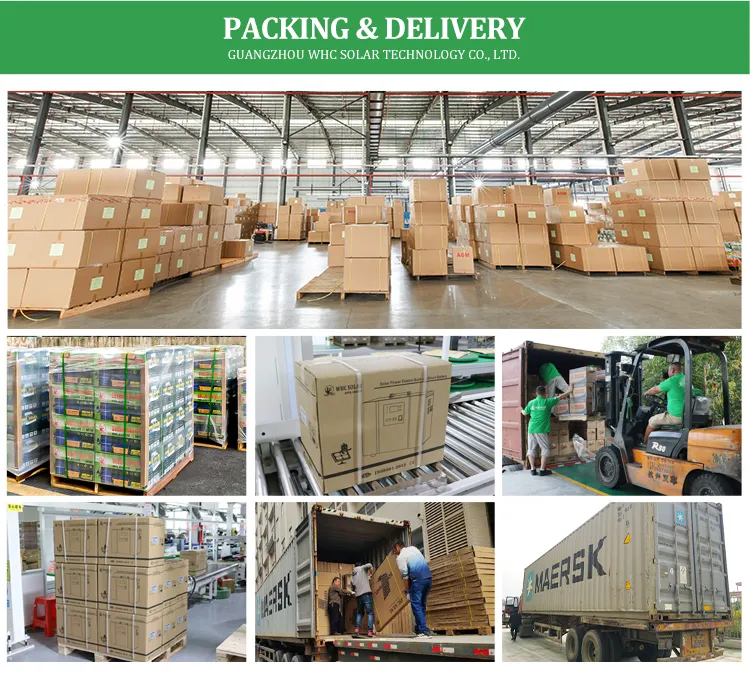

PACKING & DELIVERY

Safe Packaging and Export Shipping Preparations

Frequently Asked Questions

Are you a factory or a trading company?

We are a professional manufacturer specializing in solar power systems, solar components, and lithium energy storage products.

Can you print custom branding or logos on the product covers?

Yes, OEM/ODM services are fully supported. We can display your custom logo on the product chassis or battery casing upon request.

What types of quality and production certificates do you have?

We hold multiple national patents and have passed international compliance standards including CE, RoHS, and ISO9001:2008 Quality Management System certifications.

What is your typical delivery lead time?

Generally, the lead time is between 14 to 20 days. The specific delivery window depends directly on the model configurations and order volume.

Where are your primary export markets located?

Our major global markets span across Africa, South America, the Middle East, Western countries, and other regions worldwide.

What payment methods do you accept for orders?

We accept standard payment methods including T/T (Bank Transfer), Western Union, and MoneyGram. Other verified payment terms can also be arranged.
