Whc Complete Residential off Grid Hybrid Solar Power System 5kw 10kw 15kw 20kw 25kw 30kw Solar Energy Storage Systems
Customization:
Available
Type:
Lithium-Ion Batteries
Usage:
Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle
Package in Carton or According to Your Requirement
Specification
20KW Li-20KWH
Production Capacity
10000pieces/Month
Product Description

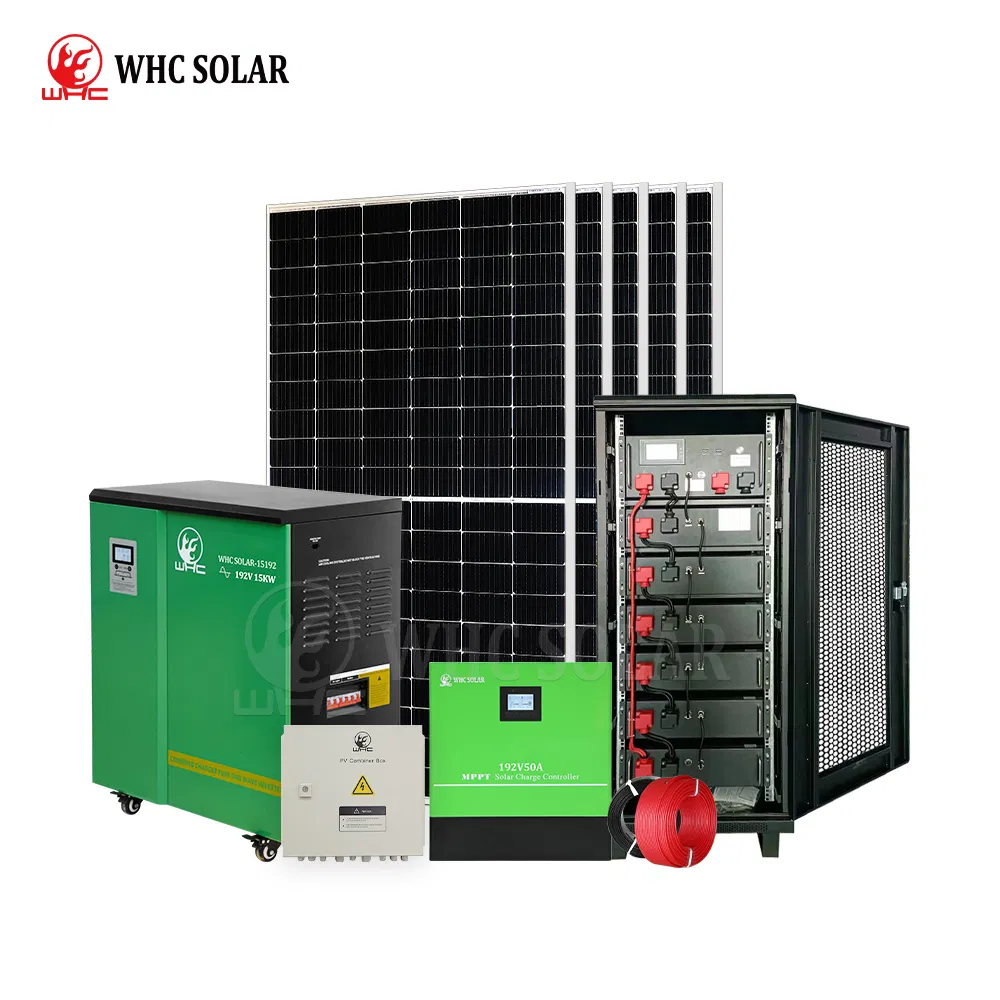

System Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage

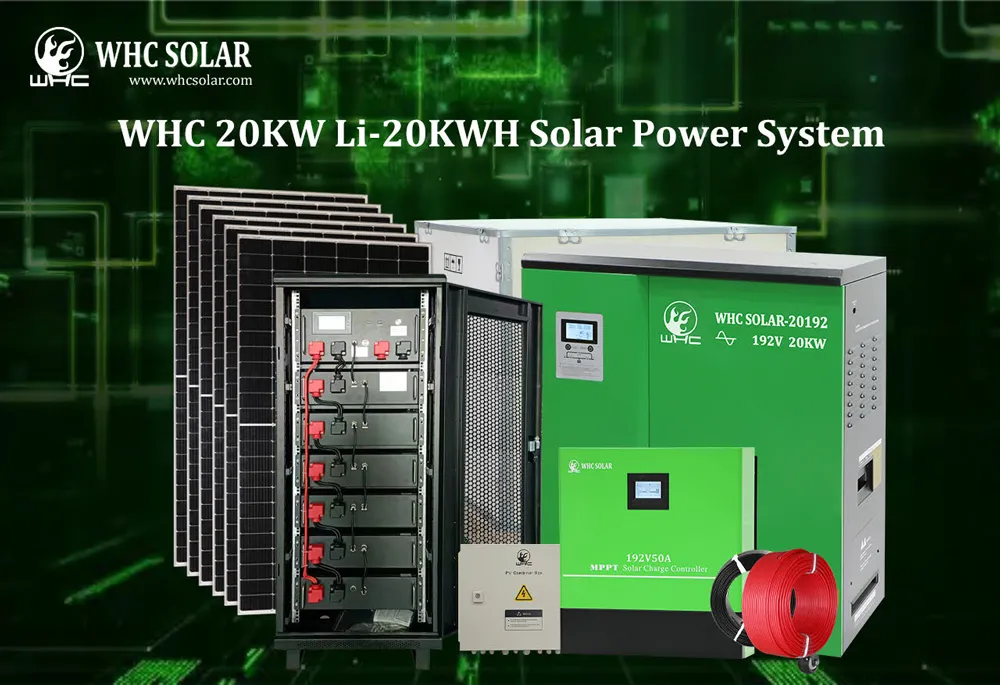

Model: 20KW Li-20KWH | Product Name: Offgrid Solar Power System Home
The Solar Power System also known as off-grid solar system is the most cost-effective type for solar system. It is a complete solar setup that comes with highly efficient solar panels, off-grid solar inverter, Grade A+ lithium iron phosphate battery and other standard solar accessories. This system will not only provide you continuous electricity but will also reduce your heavy electricity bills.
System Configuration List (10KW-Li-10KWH Example)
Item
Description
Quantity
Solar Lithium Battery
192V100AH LiFePO4 Lithium Battery
1 Piece
Solar Panel
450W Solar Mono Panel
450W Solar Mono Panel
Solar Controller
192V 50A MPPT Controller
1 Piece
Solar Inverter
192V 20KW Solar Inverter
1 Piece

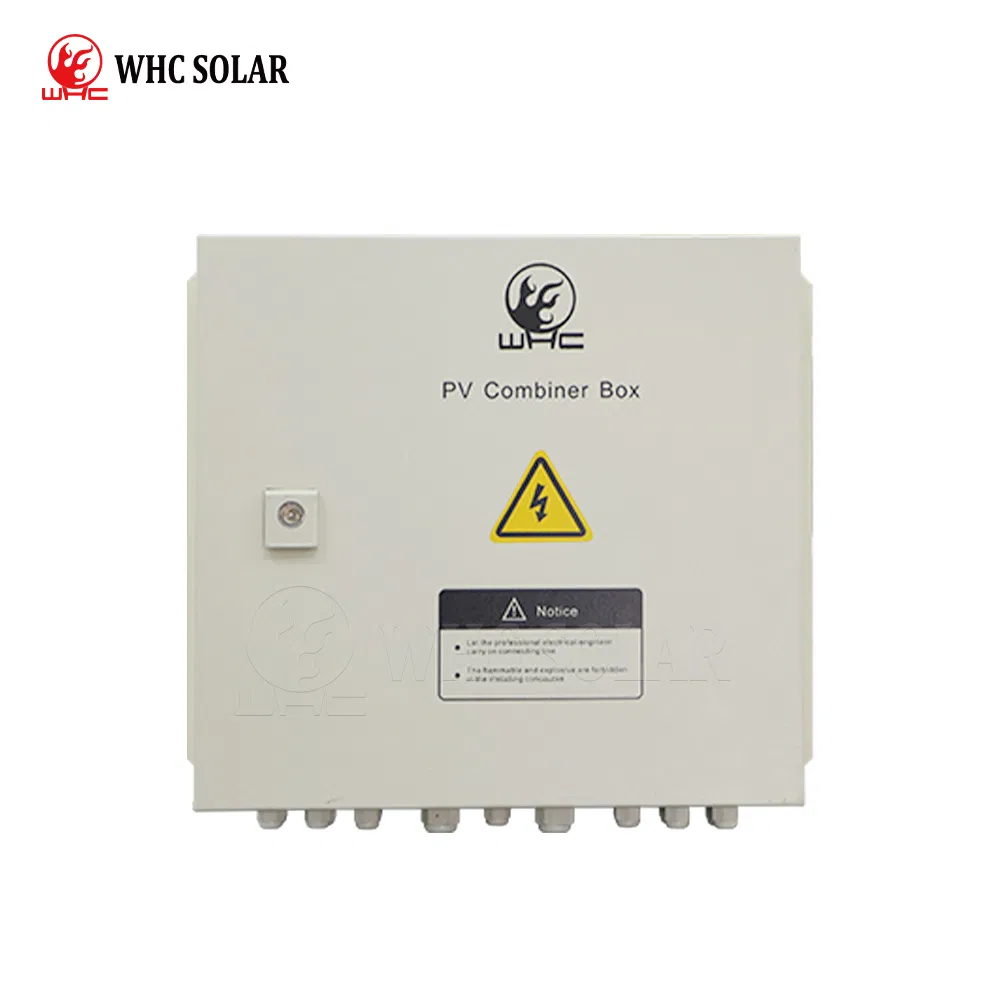

PV Combiner Box
Six Input + Two Output
1 Piece
PV Cable
Single-core 6mm² PV cable 100m
2 Pieces
PV Mounting Support
Hot Galvanizing Ground Mounting Support
1 Set
Connector
MC4 Connector
30 Pieces
System Component Details

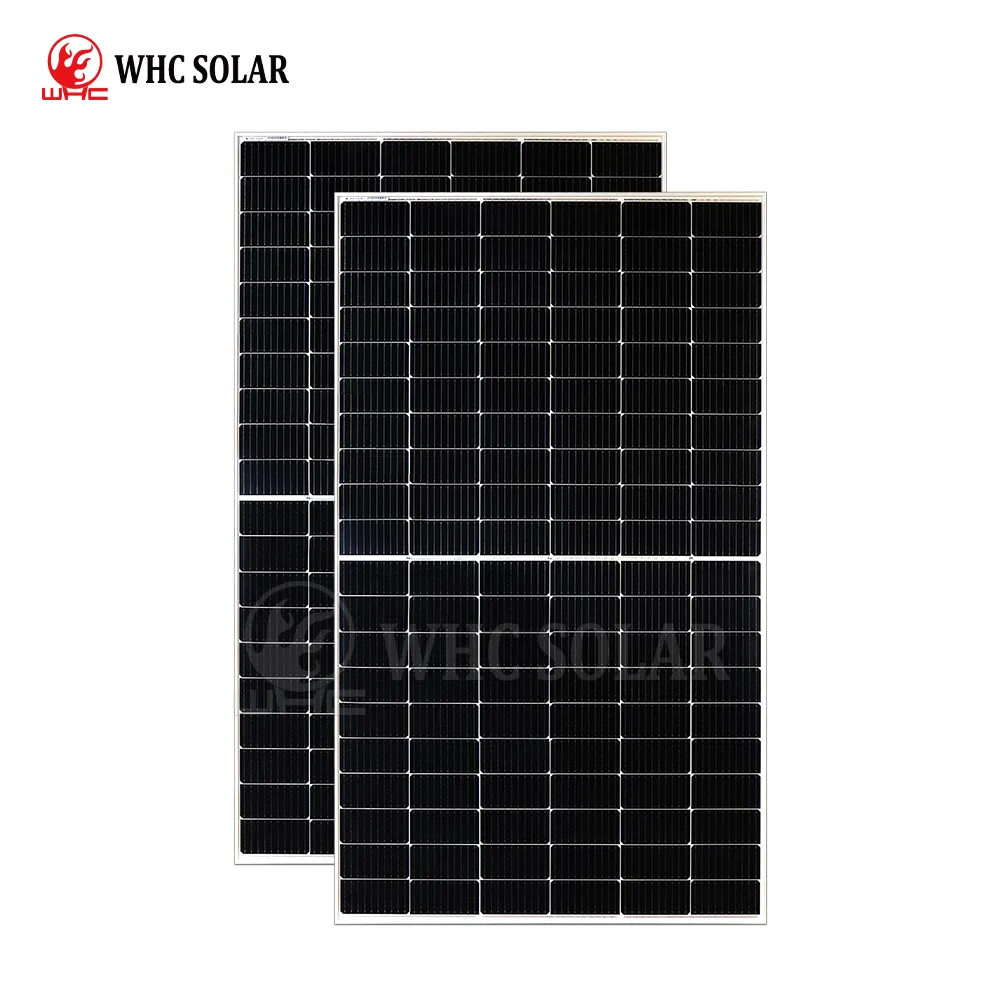

Mono Solar Panel
Model: 450M-120
Max Power Voltage: 34.67V
Max Power Current: 12.98A
Open Circuit Voltage: 41.25V
Short Circuit Current: 13.89A
Dimensions: 1909*1134*35mm

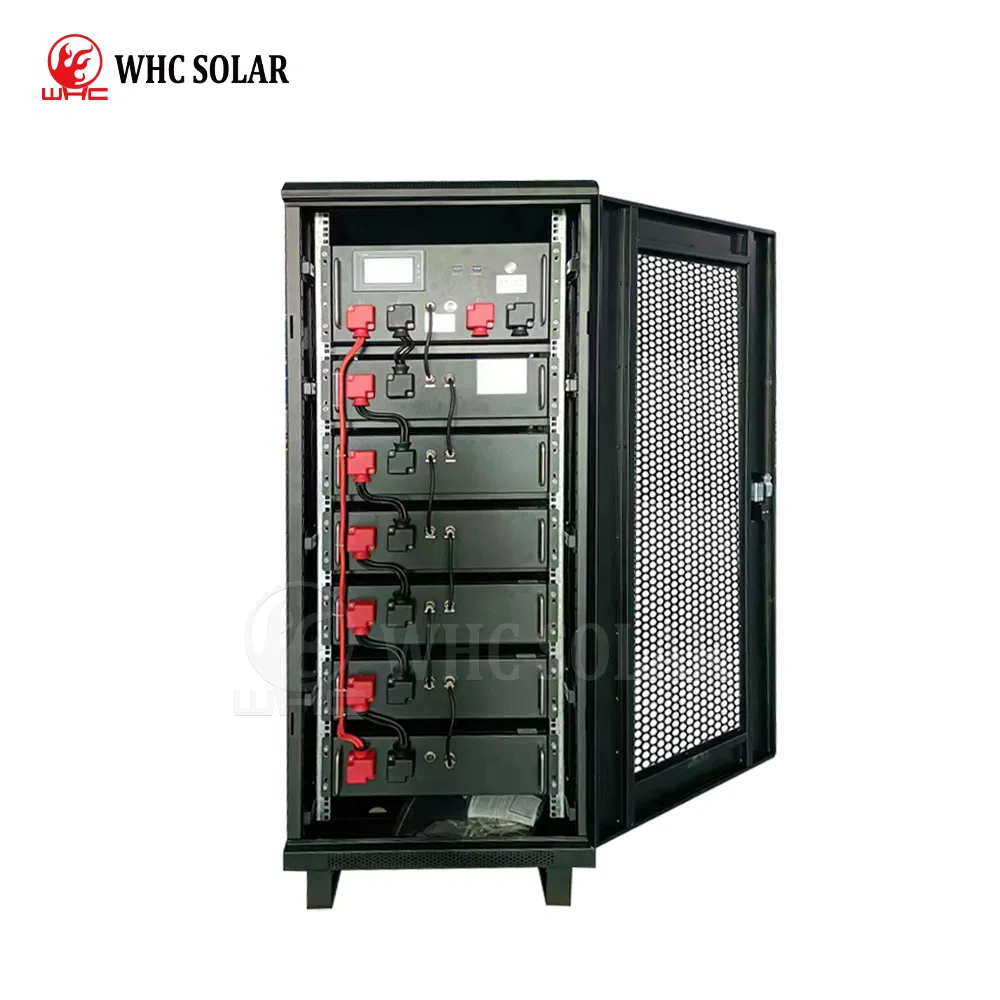

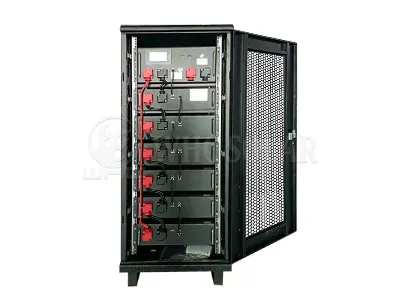

LiFePO4 Lithium Battery
Model: 192V100AH
Type: LiFePO4 Lithium Battery
Nominal Voltage: 204.8V
Capacity: 20480WH
Lifespan: 10 Years
BMS Max Discharging Current: 100A

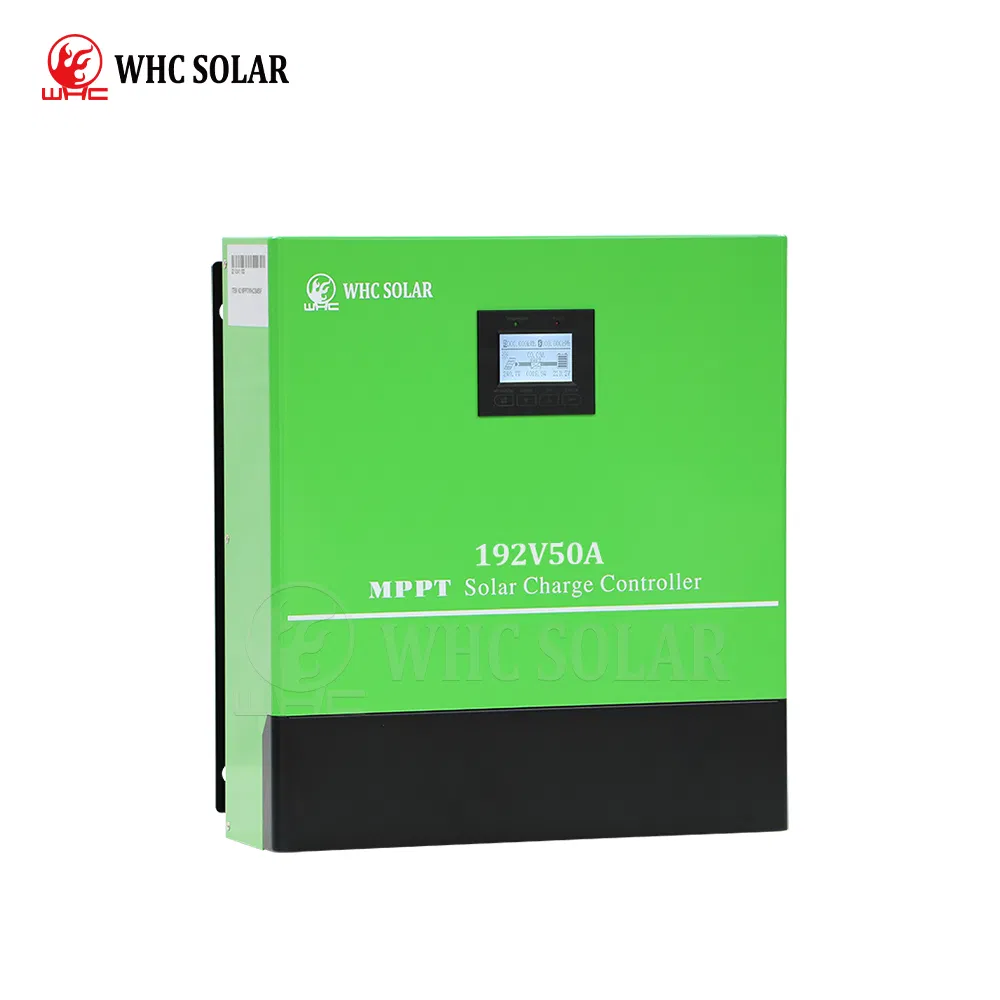

Solar Controller
Model: MPPT/19250F
Type: Heatsink Cooling
Max Charging Current: 50A
Max PV Open Circuit Voltage: 430V
DC Input Voltage: 192V
MPPT Efficiency: 99%
Solar Inverter
Model: 192V 20KW Inverter
Type: Low Frequency IGBT Pure Sine Wave Inverter with Big Transformer
