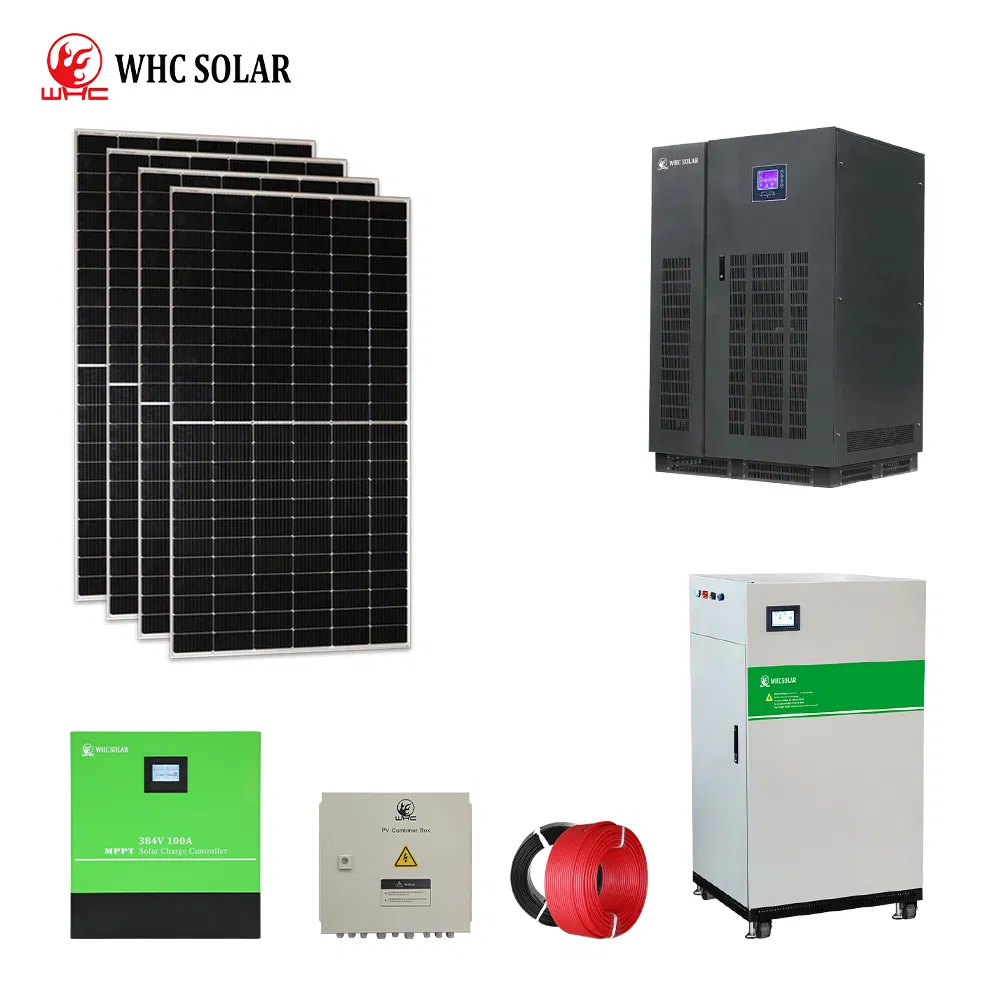

Whc Solarthon Hybrid Solar Power Inverter 100kw 150kw 200kw on off-Grid Home Energy Storage Solar System

Customization: Available
Type: Lithium-Ion Batteries
Usage: Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Home

Product Description

Basic Info.

Model NO. 150KW Li-229KWH Solar Power System
Nominal Voltage 384V
Discharge Rate High Discharge Rate
Shape Square Battery
Electrolyte Li-ion
Installation Packaged
Rechargeable Chargeable
Product Name Offgrid Solar Power System Home
Model 150kw Li-229kwh
Power 150kw Li-229kwh
Solar Panel Type Half Cell Solar Panel
Battery Type LiFePO4 Lithium Battery
Inverter Pure Sine Wave Inverter
Controller MPPT Solar Charge Controller
Solar Panel Bracket Aluminum Alloy
Mounting Support Pitched / Flat Roof / Ground
System Type off-Grid Solar Power System
Battery Cell 3.2V 100ah LiFePO4 Cell
Transport Package Package in Carton or According to Your Requirement
Specification 150KW Li-229KWH
Production Capacity 10000pieces/Month

Packaging & Delivery

Package Size 113.80cm * 79.50cm * 172.50cm
Package Gross Weight 1320.000kg

Product Description

System Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage

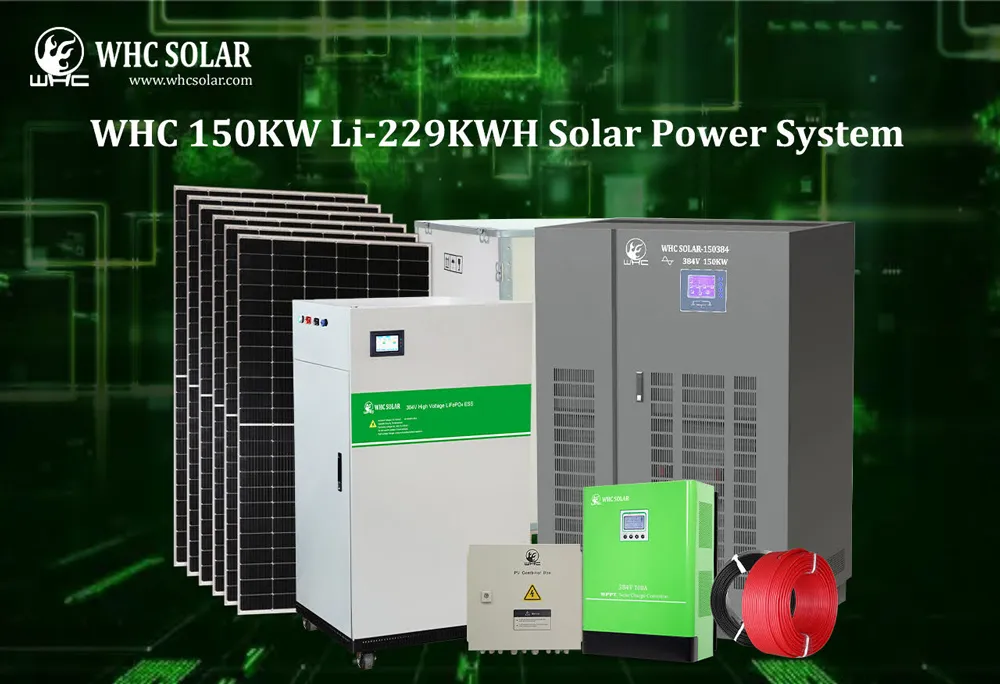

Model: 150KW Li-229KWH
Product Name: Offgrid Solar Power System Home
Solar Power System
Hybrid Solar Power Inverter
Energy Storage Solar System
Off-Grid Home Energy Storage
Solar Panel Inverter System

Solar Power System also known as off-grid solar system is the most costeffective type for solar system. It is a complete solar setup that comes with highly efficient solar panels, off-grid solar inverter, Grade A+ lithium iron phosphate battery and other standard solar accessories. This system will not only provides you continuous electricity but will also reduce your heavy electricity bills.

150KW Li-229KWH System Components
Item Description Quantity
Solar Lithium Battery 192V 100AH LiFePO4 Lithium Battery 2 Pieces
Solar Panel 450W Solar Mono Panel 450W Solar Mono Panel
Solar Controller 192V 50A MPPT Controller 2 Pieces
Solar Inverter 192V 20KW Solar Inverter 1 Pieces
PV Combiner Box Six Input + Two Output 2 Pieces
PV Cable Single-core 6mm2 PV cable 100m 4 Pieces
PV Mounting Support Hot Galvanizing Ground Mounting Support 1 Set
Connector MC4 Connector 30 Pieces

Detailed Component Specifications

Mono Solar Panel
  • Model: 450M-120
  • Max Power Voltage: 34.67V
  • Max Power Current: 12.98A
  • Open Circuit Voltage: 41.25V
  • Short Circuit Current: 13.89A
  • Dimensions: 1909*1134*35mm
Mono Solar Panel

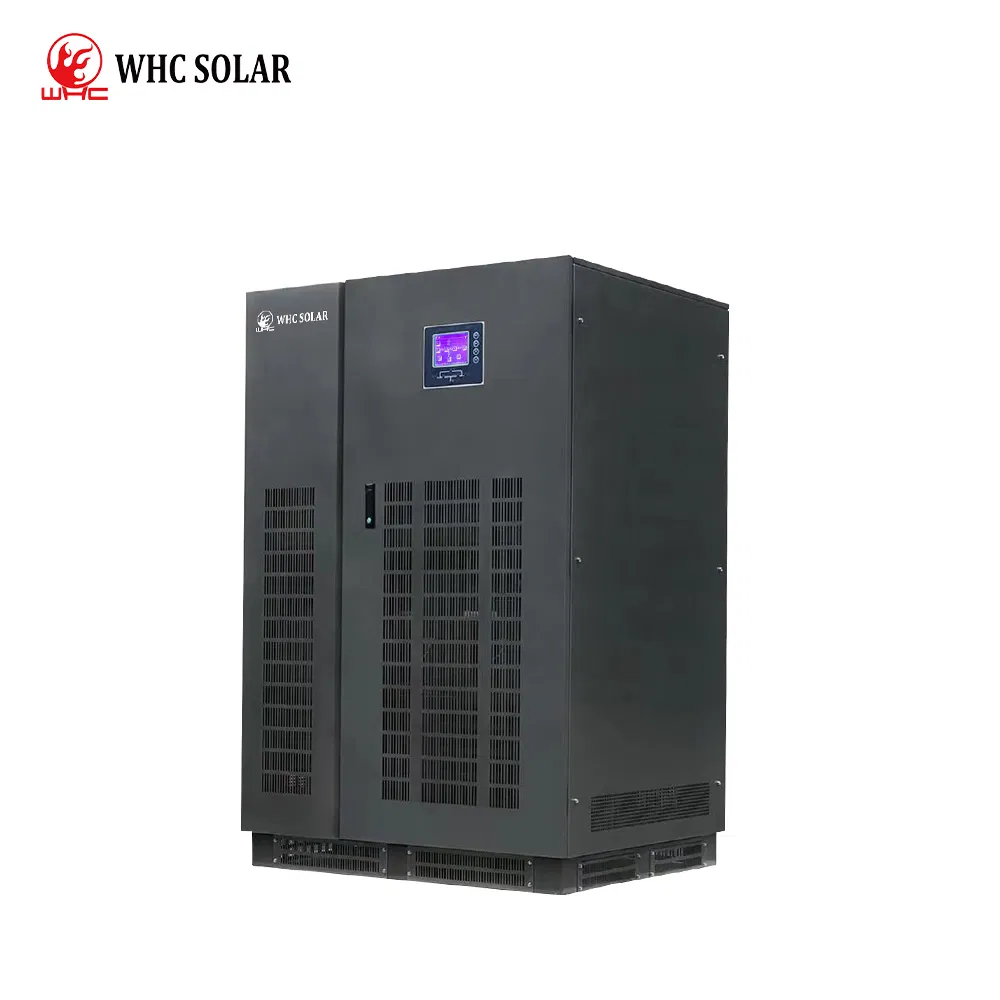

384V 150KW Inverter
  • Type: Low Frequency IGBT
  • Pure Sine Wave Inverter with Big Transformer
  • DC Input Voltage: 384V
  • AC Input Voltage: 380V/220V
  • AC Output Voltage: 380V/220V
  • Frequency: 50/60HZ
Solar Inverter

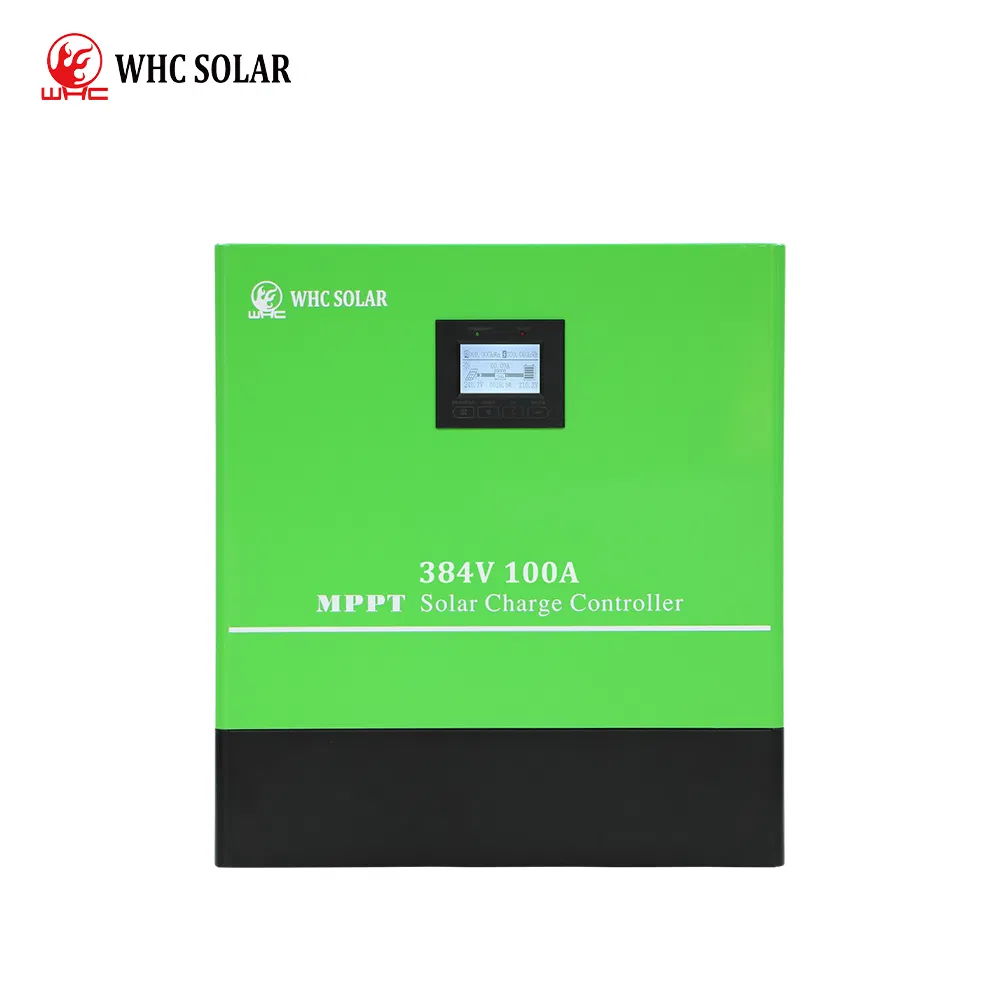

Solar Controller
  • Model: 384V 100A
  • Type: Heatsink Cooling
  • Max. Charging Current: 100A
  • Max. PV Open Circuit Voltage: 800V
  • DC Input Voltage: 384V
  • MPPT Efficiency: 98%
Solar Controller

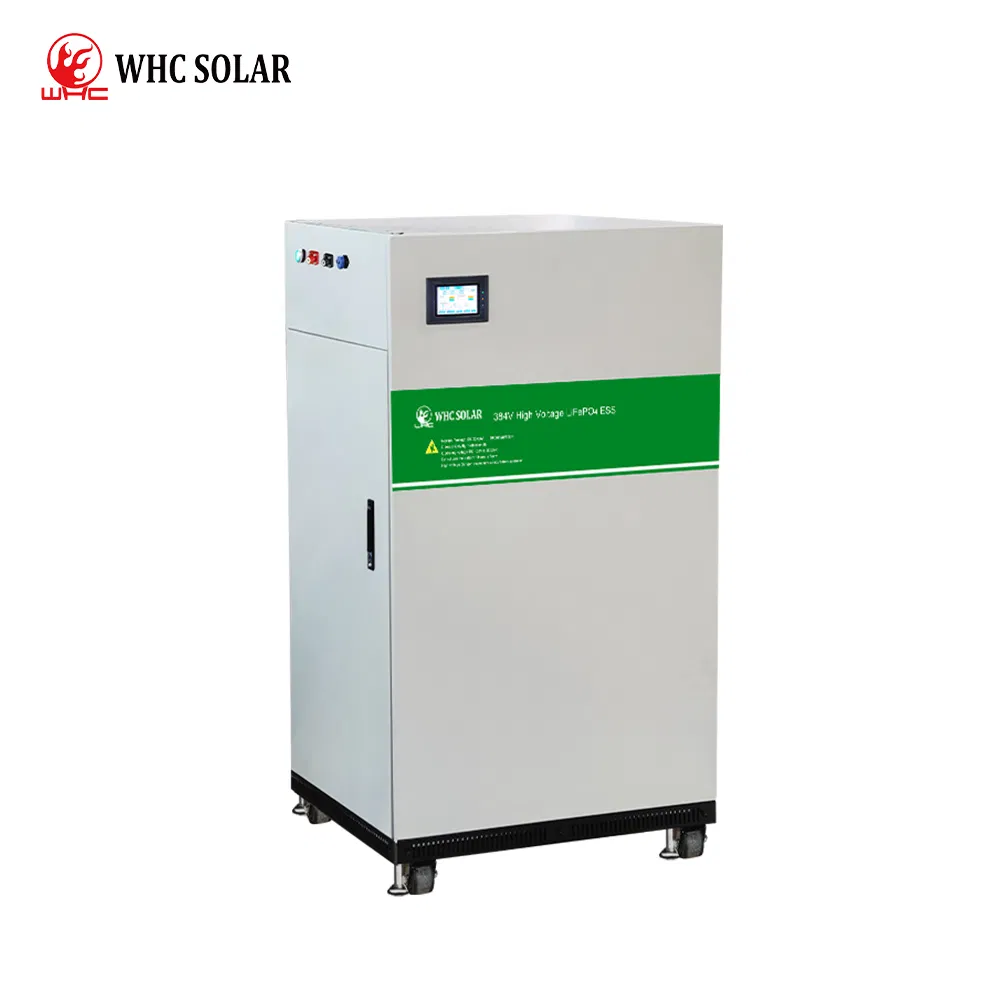

LiFePO4 Lithium Battery
  • Model: 384V 280Ah
  • Nominal Voltage: 409.6V
  • Capacity: 114688Wh
  • Max Charging Voltage: 467.2V
  • Lifespan: 10 Years
  • BMS Max Discharging Current: 200A
LiFePO4 Lithium Battery

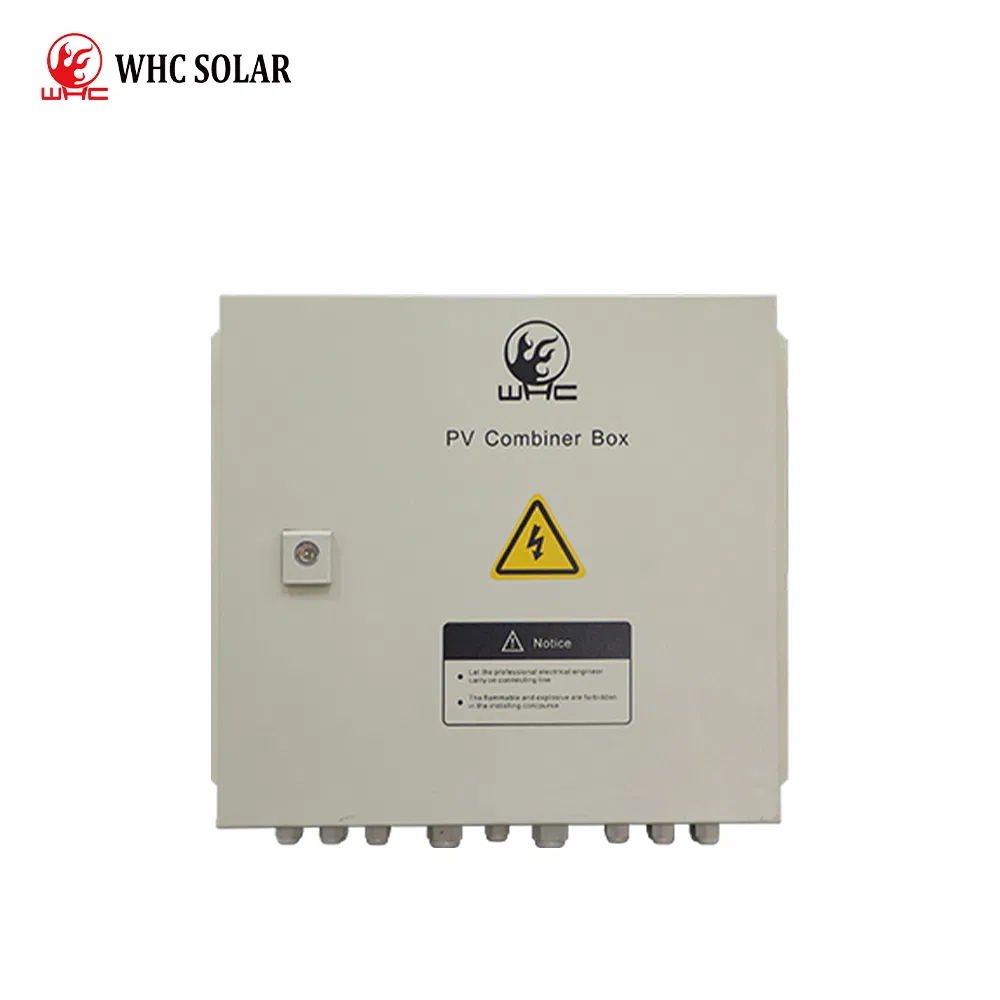

PV Combiner Box
  • Combiner Box: N6 Plus
  • Waterproof Grade: IP65
  • Max Output Voltage: 1000V
  • DC Output Circuit Breaker: Yes
  • Lightning Protection: Yes
PV Combiner Box
Mounting Support
  • Solar Panel Bracket
  • Wind Load: 55m/s
  • Structure: Anodized Aluminum Stainless Steel
  • Angle Adjustable
Mounting Support
PV Cable
  • Solar Cable: 100m
  • Type: RVV 1*6mm2
  • Material: Pure Copper
  • Temperature Rating: -40°C to 120°C (Lifespan > 25 Years)
PV Cable
MC4 Connector
  • Type: MC4 Solar Cable Connector
  • Rated Current: 30A
  • Rated Voltage: 1000VDC
  • Waterproof Protection: IP67
MC4 Connector
Solar System Overview Diagram

Company Profile

Company Profile

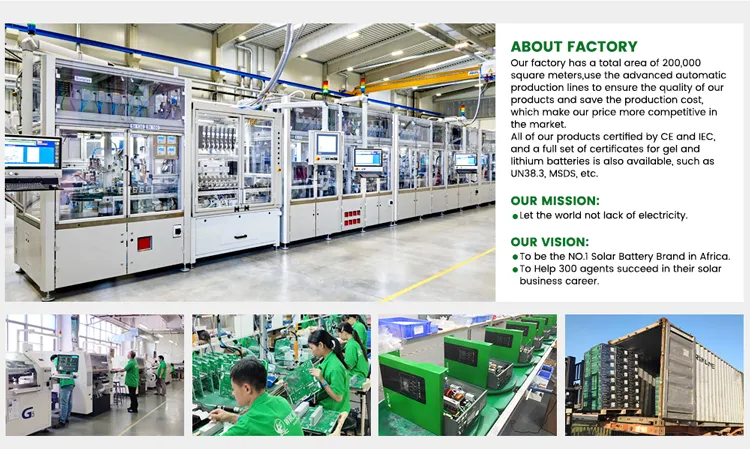

Factory Strength

Factory Strength

Certificates Display

Certificates Display

Packing & Delivery

Packing and Delivery

Frequently Asked Questions (FAQ)

Q Are you a factory or trading company?
We are a direct factory with advanced manufacturing lines for solar equipment.
Q Can you print my logo on the product cover?
Yes, OEM is fully available. We can print your custom logo on the battery case, provided you supply the design files.
Q What kind of certificates do you have?
Our products have won numerous national patents and have passed CE, RoHS, and ISO9001:2008 quality management system certifications.
Q What is your delivery time?
Usually it takes 14-20 days. The delivery schedule varies depending on the specific product type and total order volume.
Q Where is your main market?
Our main markets cover Africa, South America, the Middle East, Occident, and other global regions.
Q How to pay for products?
We accept payments through Money Gram, Western Union, T/T, and other mutually convenient payment methods.
