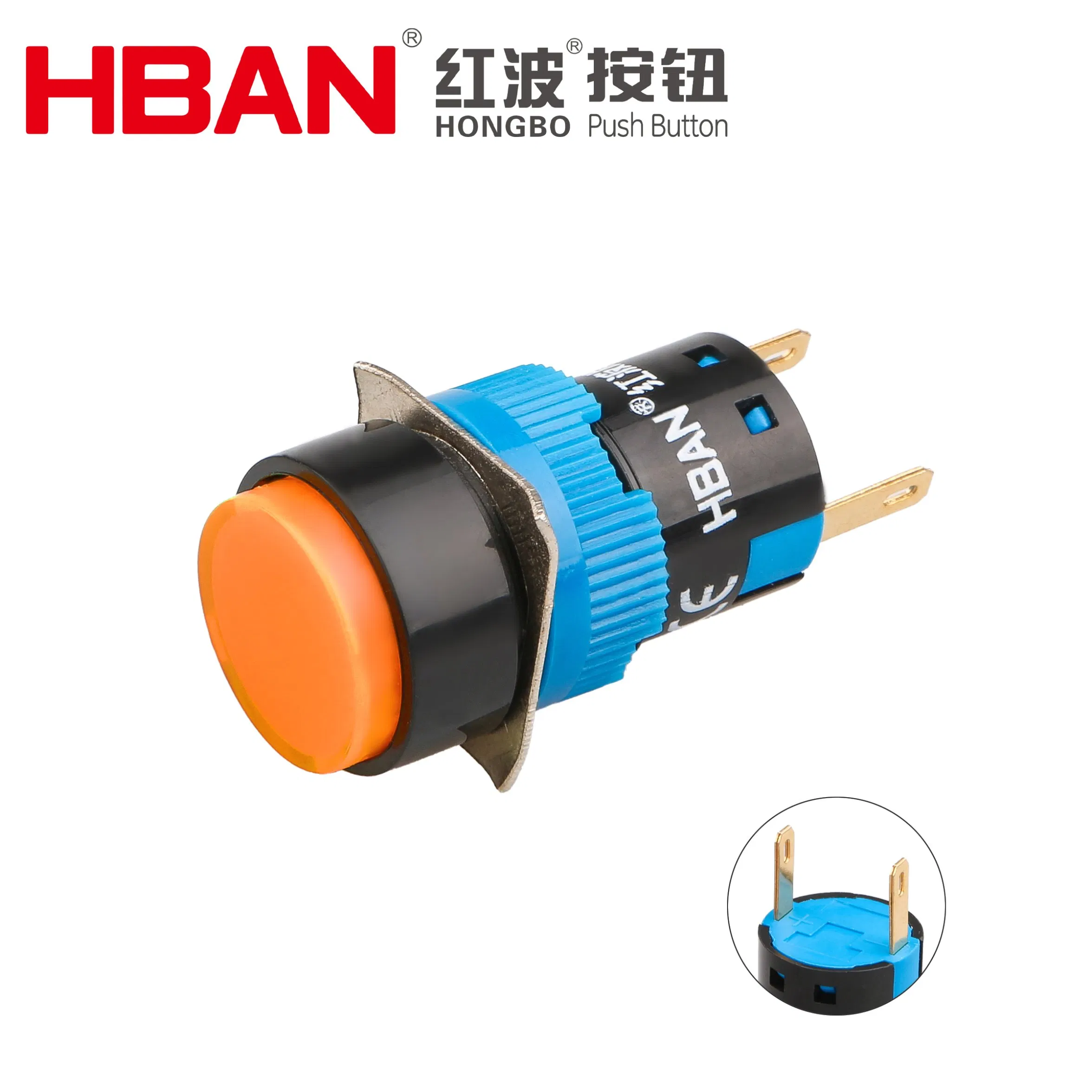

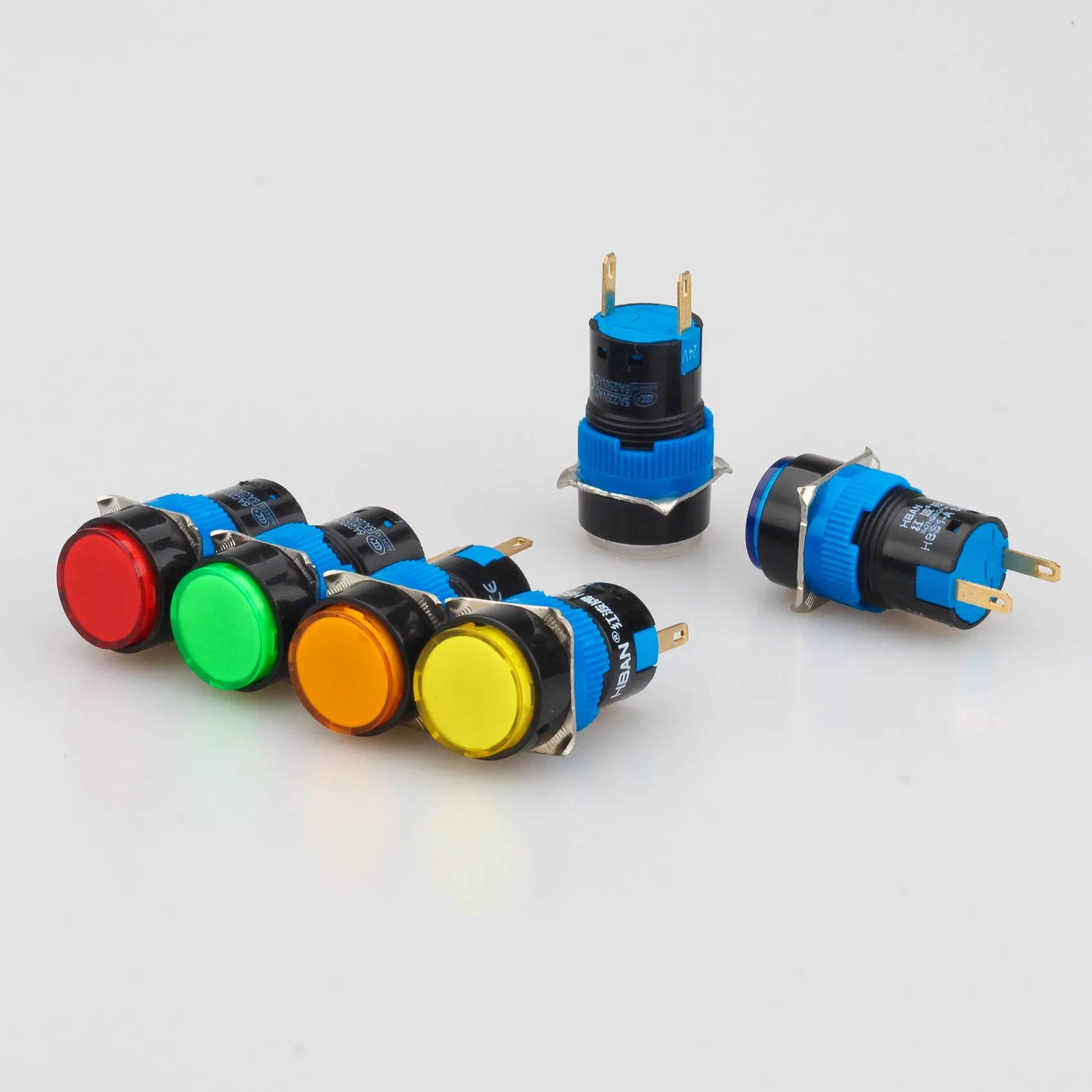

16mm Round Headed Plastic Material Easy to Clean Oil Resistant IP65 Level Signal Light

💡Product Overview

Material Characteristics

Plastic features a much lower density than metal, significantly reducing overall weight for easy installation, transport, or hanging. Ideal for temporary engineering, traffic diversion, and mobile devices requiring frequent movement.

Chemical Corrosion Resistance

Strong resistance to corrosive substances such as acid, alkali, and salt. Perfectly suited for chemical industries and coastal high humidity environments.

Electrical Safety

Non-conductive plastic casing eliminates electrical shock hazards, making it safer for power facilities, substations, and high-voltage areas.

Low Maintenance & Reliability

Requires no rust prevention treatment and is easy to clean. High-quality engineering plastics provide superior impact resistance compared to glass, reducing accidental breakage.

Energy-Efficient LED

Features multiple high-brightness LED configurations to match various styles and voltages. Low heat dissipation reduces energy consumption, making it ideal for solar-powered outdoor setups.

⚙️Product Specifications

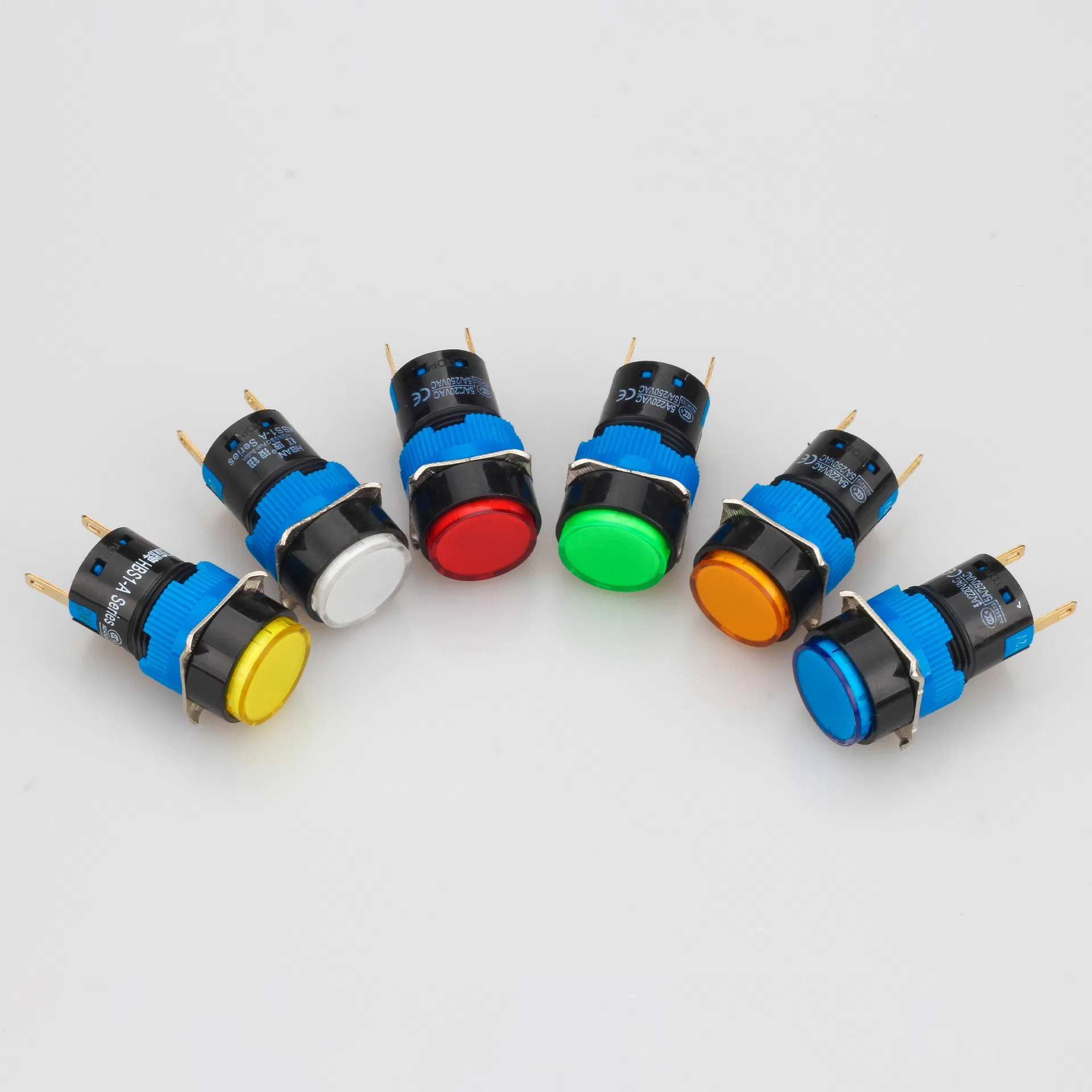

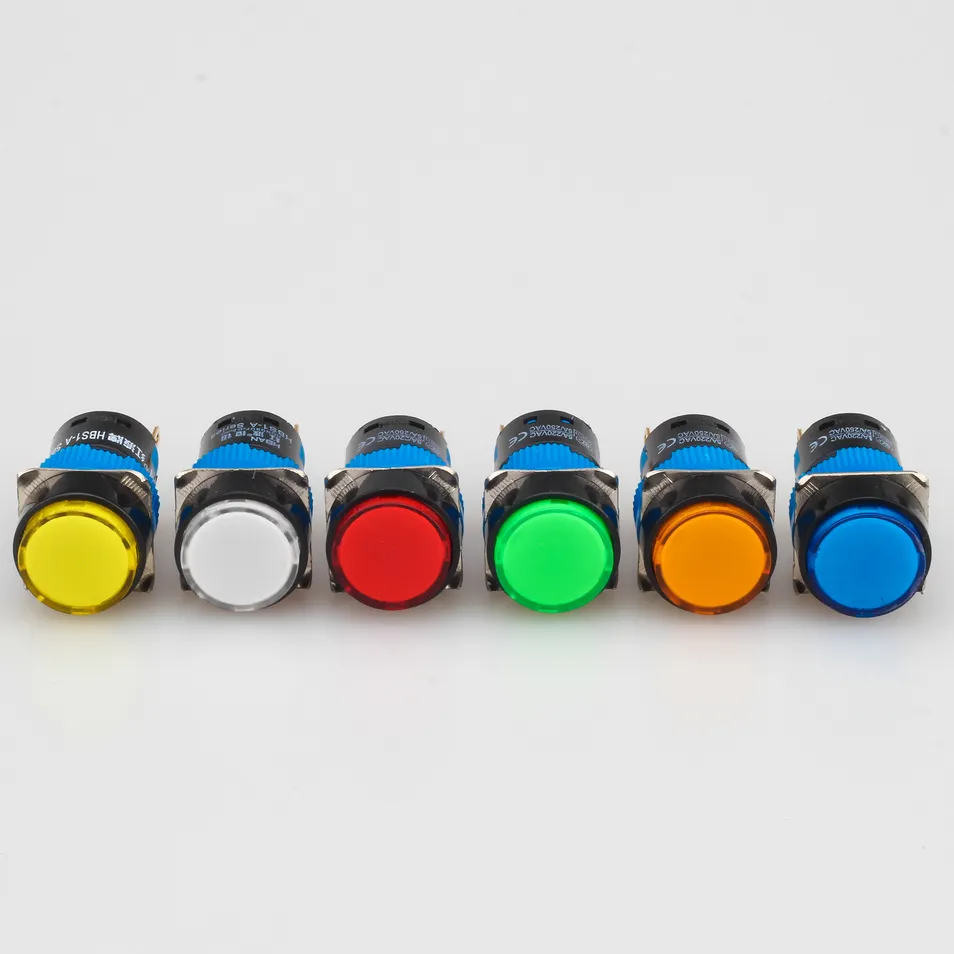

Supports Multi-Color Head Options

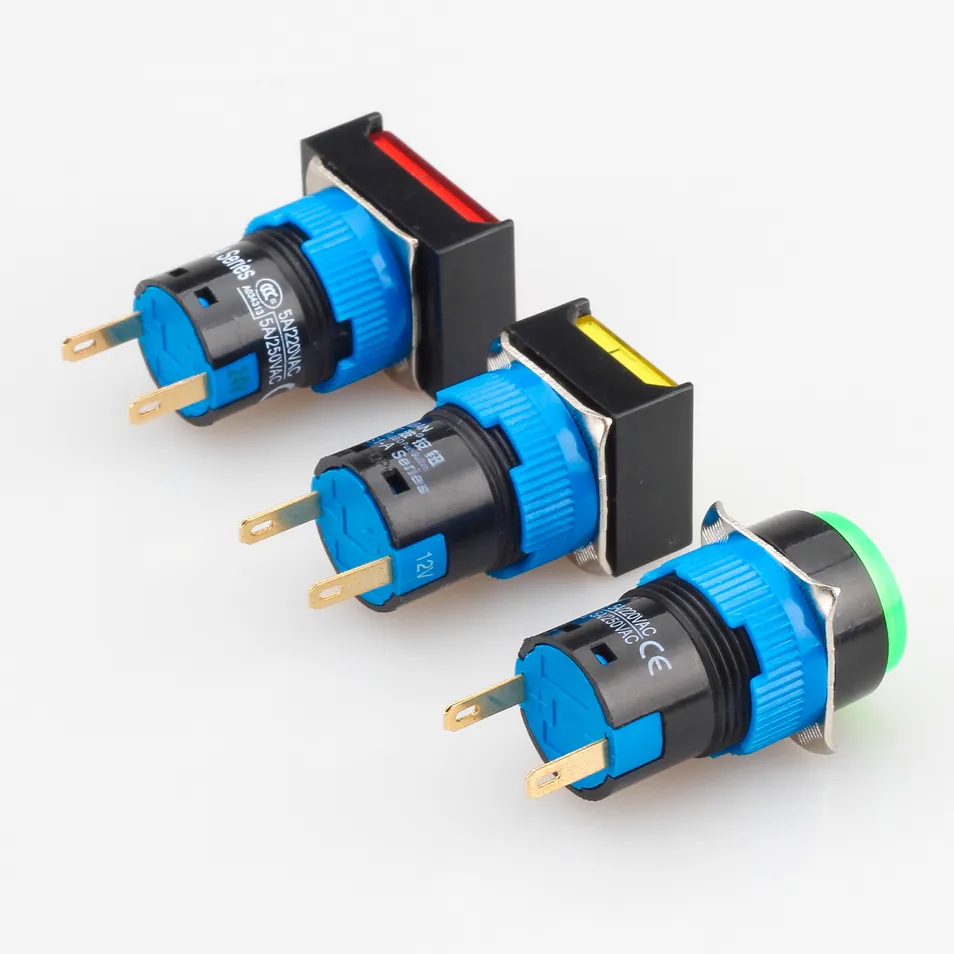

Easy Panel Installation

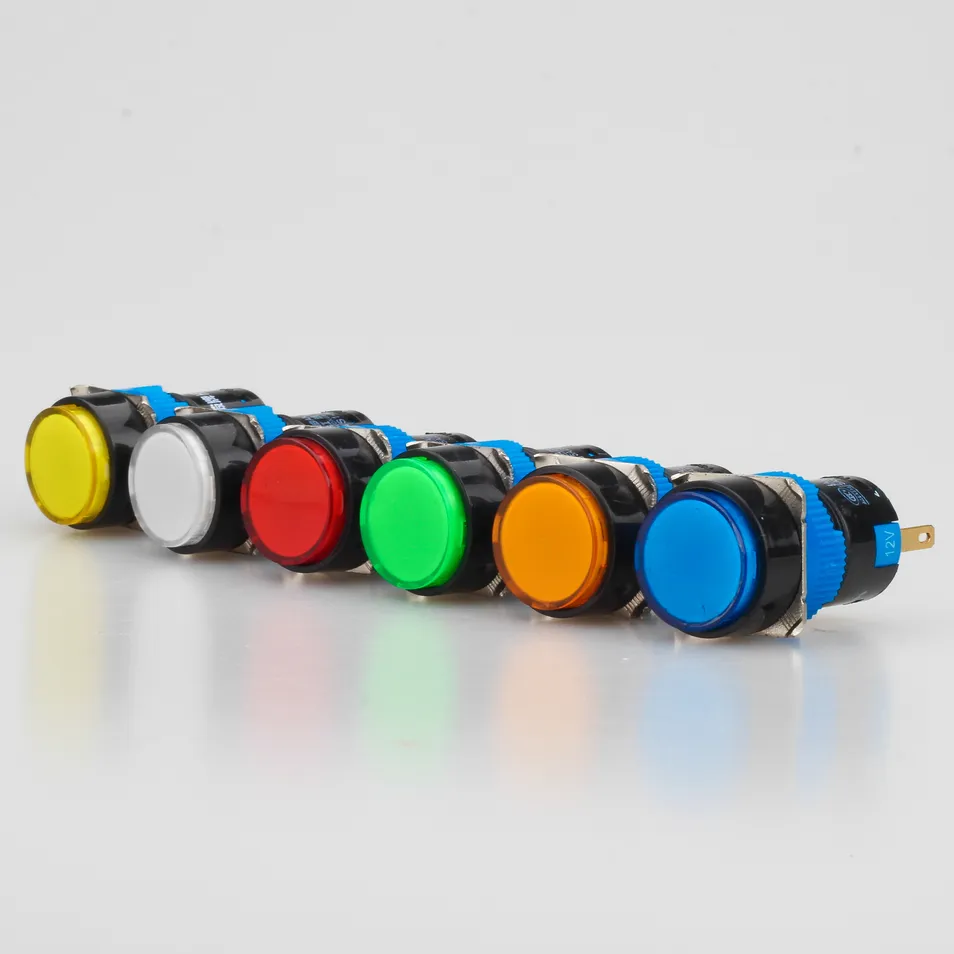

Color Selection & Customization

Available Head Colors: Red / Green / Blue / Yellow / White

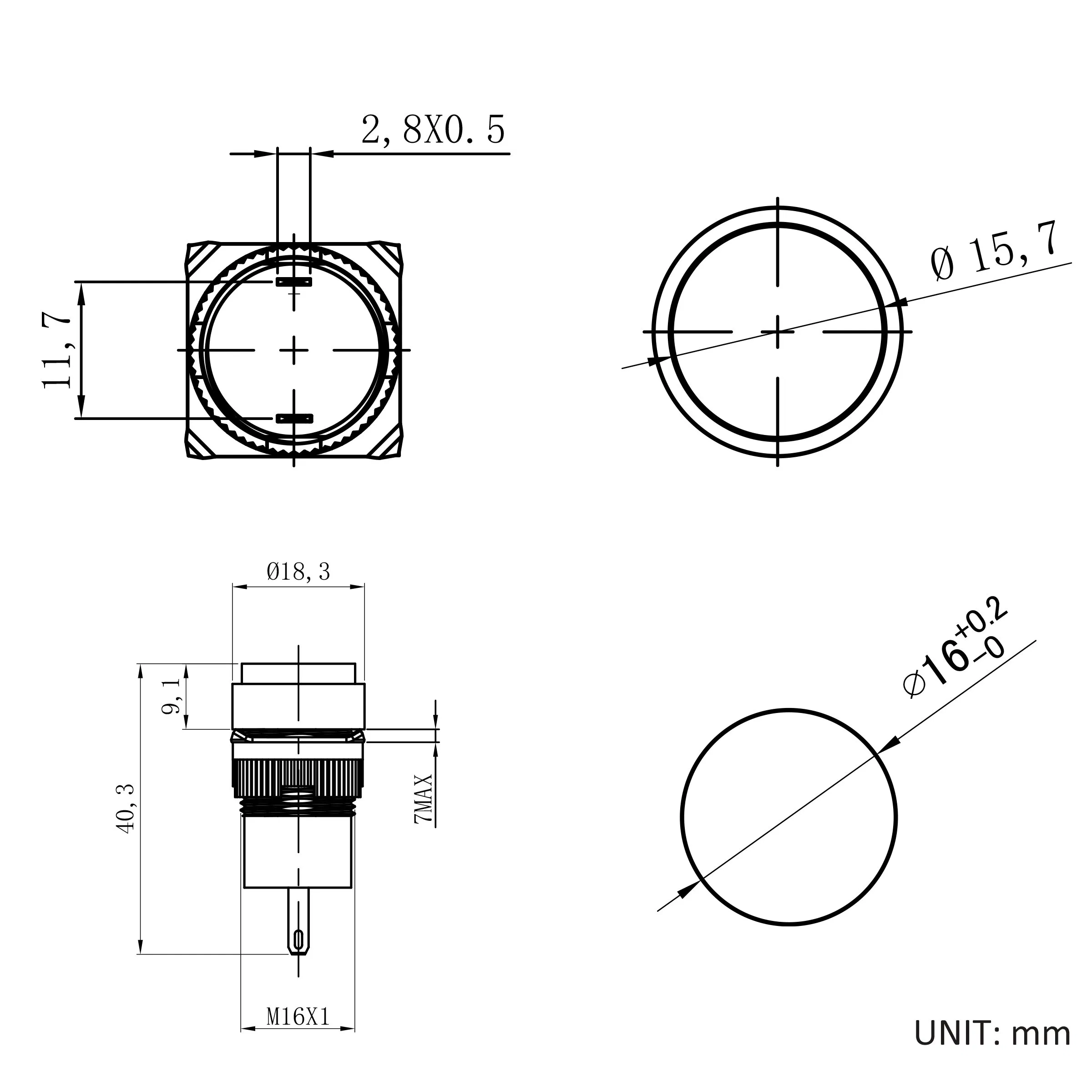

Installation Details

Mounting Hole Size: 16mm / 0.625in
Included Structure: Matching O-ring + Nuts
Panel Thickness: 7mm MAX
Tightening Torque: About 0.4Nm

🛡️Performance & Protection

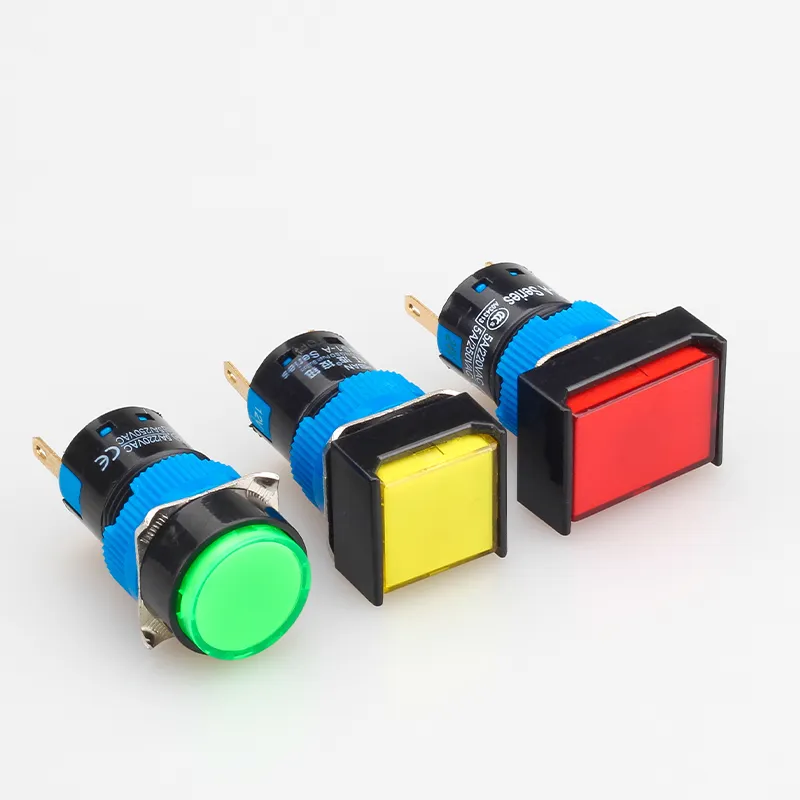

IP65 Waterproof Protection

Long Operational Lifespan

IP65 Waterproof Rating

Solids Protection (1st Digit): 6 (Dust-tight protection)
Liquids Protection (2nd Digit): 5 (Protected against low-pressure water jets)
Test Standard: Resistant to water jets from a 6.3mm nozzle at 12.5L/min from any direction for at least 3 minutes

Electrical Lifespan Specs

Rated Voltage Options: 6V / 12V / 24V; 110V / 220V
Rated Current: ≤ 20mA
LED Lamp Bead Lifespan: 50,000 Hours

📋Model Configuration Guide

Series Number: HB16 (Product configuration options shown below)
Neck Mounting Dimensions	8: Ø8mm \| 10: Ø10mm \| 12: Ø12mm \| 16: Ø16mm \| 22: Ø22mm \| 30: Ø30mm	-

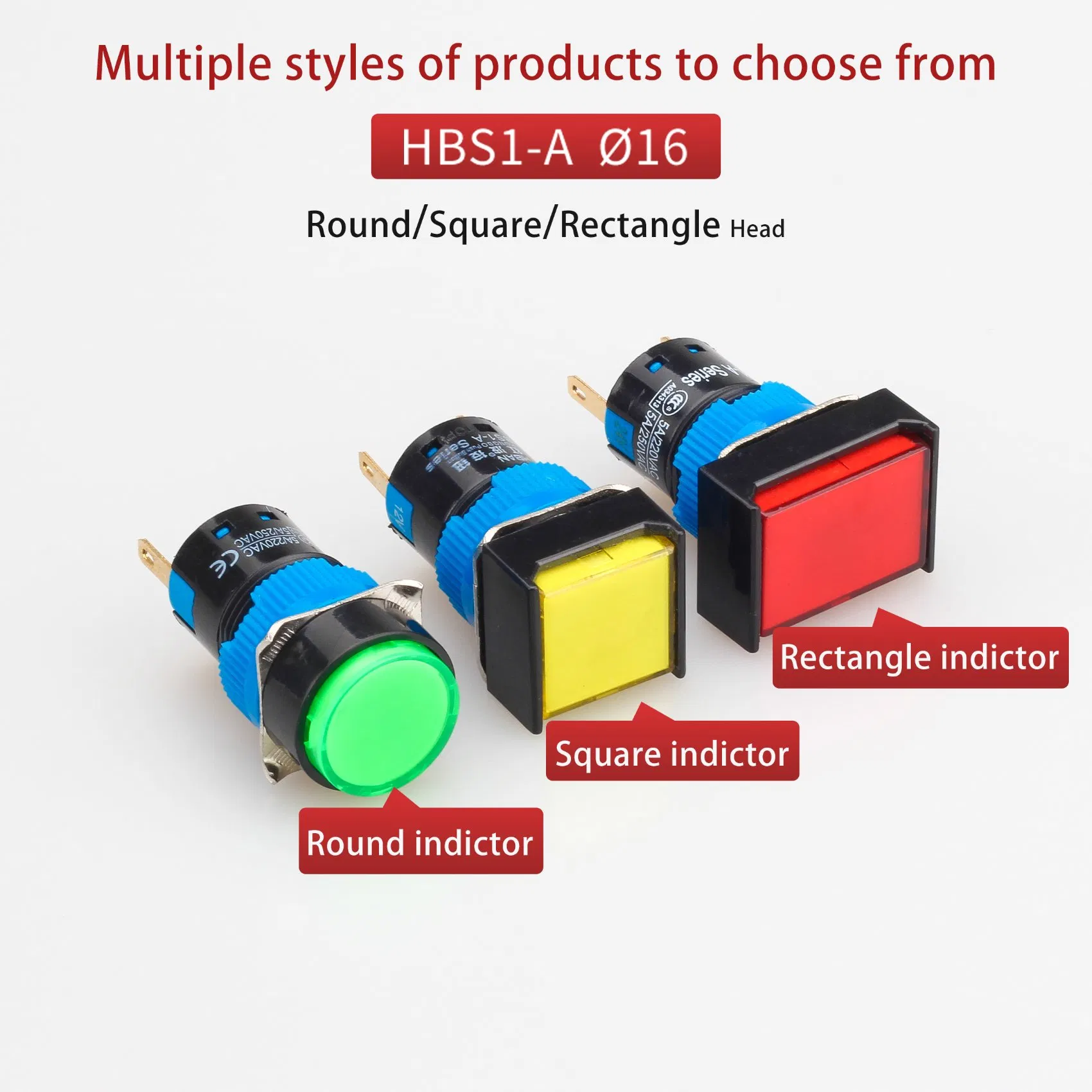

Head Shape	Y: Round head \| F: Square head \| J: Rectangle head	-

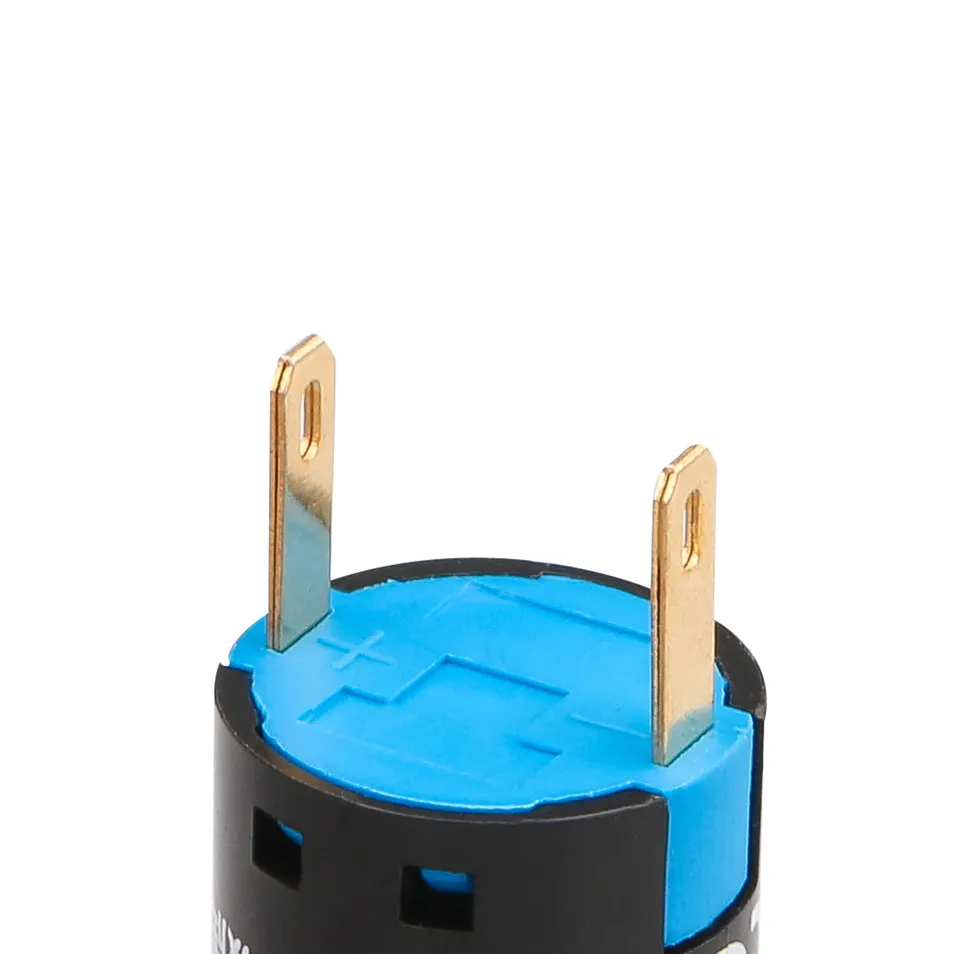

Terminal Type	A: Pin terminal \| D: Screw terminal	-
Form of Structure	No letters: Standard structure \| S: Ultra-short structure	-
LED Voltage	6V / 12V / 24V / 36V; 110V / 220V	Other voltages can be customized
LED Color	R: Red \| G: Green \| Y: Yellow \| O: Orange \| B: Blue \| W: White	-

🔌Wiring Diagram

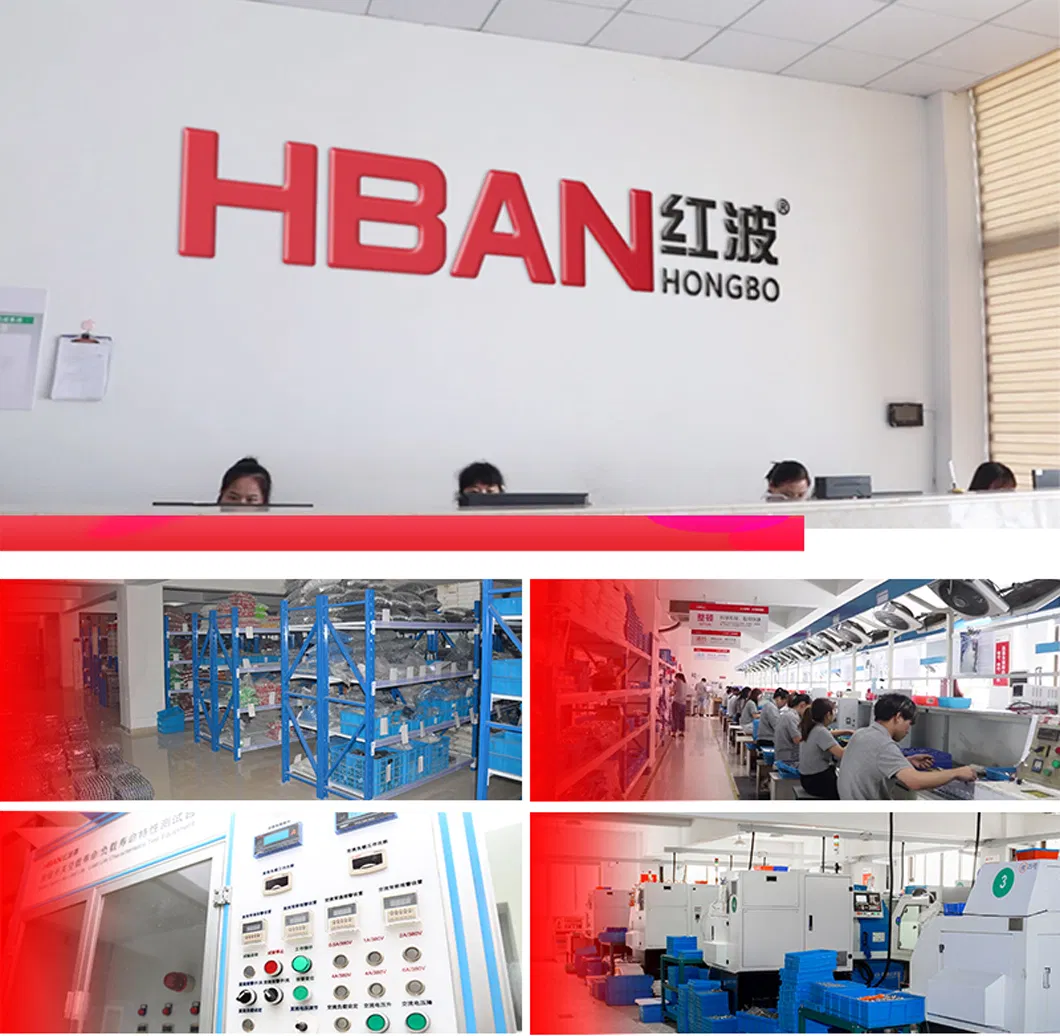

🏢Production Facility

🚀Wide Application Fields

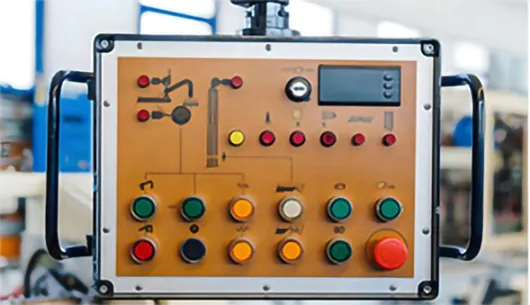

Industrial Automation

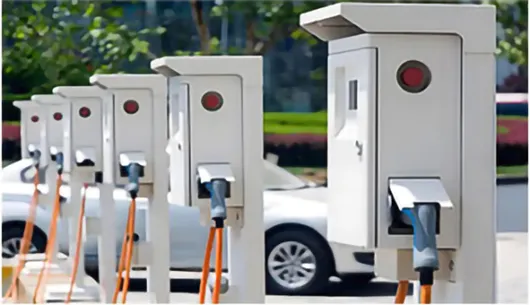

EV Charging Stations

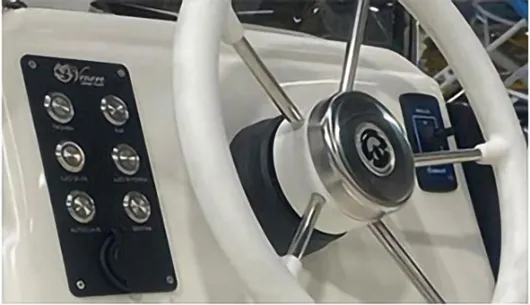

Marine Engineering

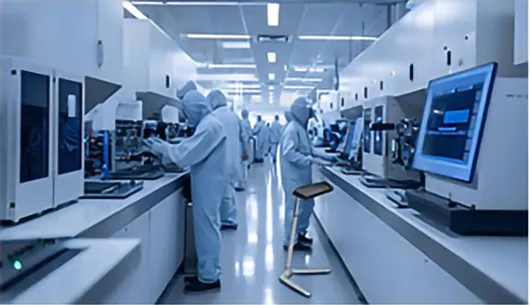

Lab & Testing Equipment

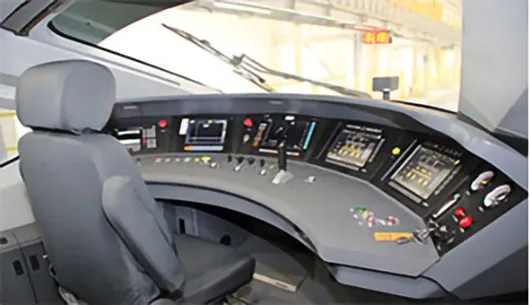

Rail Transit Systems

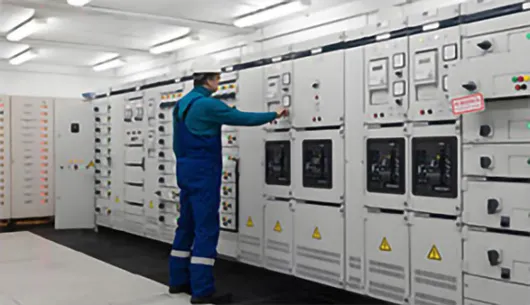

Power Control Cabinets

🤝Exhibitions & Quality Standards

Our manufacturing operations are carried out under a national high-tech classification specializing in the research, development, and manufacturing of premium quality push button switches and indicators. Adhering strictly to a customer-first philosophy, our production range covers metal waterproof push buttons, plastic indicators, E-stop switches, micro travel switches, piezoelectric switches, and audible buzzers. With a professional team of engineers and highly competitive product offerings, we deliver trusted controls and signaling components worldwide.

📦Packing & Delivery Details

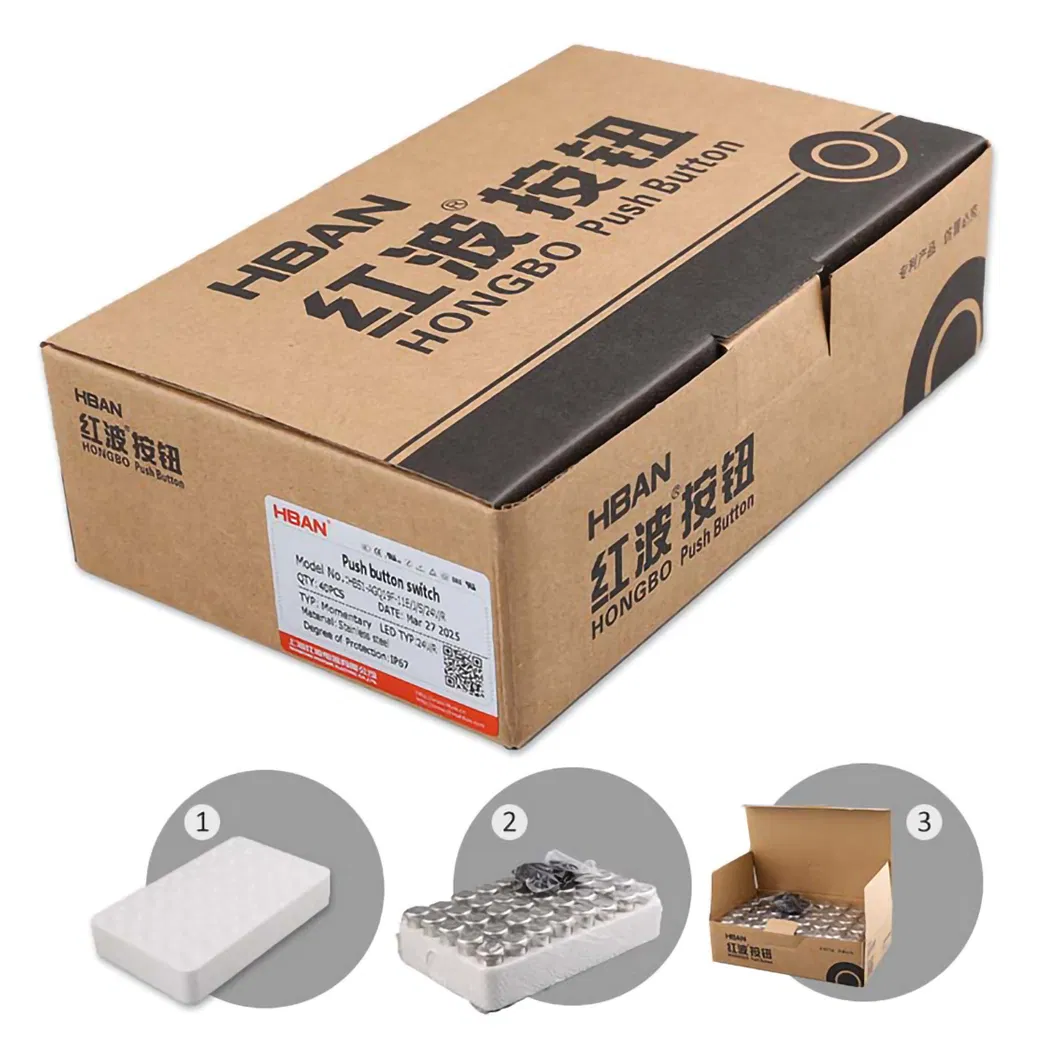

Standard Protective Packaging

Quantity: 40pcs/box (Including 40pcs O-ring)
1. Products are secured in individual foam partitions to prevent scratches.
2. Foam trays are boxed together with matching black sealing O-rings.
3. Thick corrugated boxes are reinforced with robust strapping tape for transit.

Global Shipping & Logistics

1. Reliable shipping options available worldwide.
2. Standard dispatch lead time: 3 to 7 business days upon receiving payment.
3. Typical transit duration: 3 to 8 business days depending on destination logistics.

❓Frequently Asked Questions

Are the materials used eco-friendly?

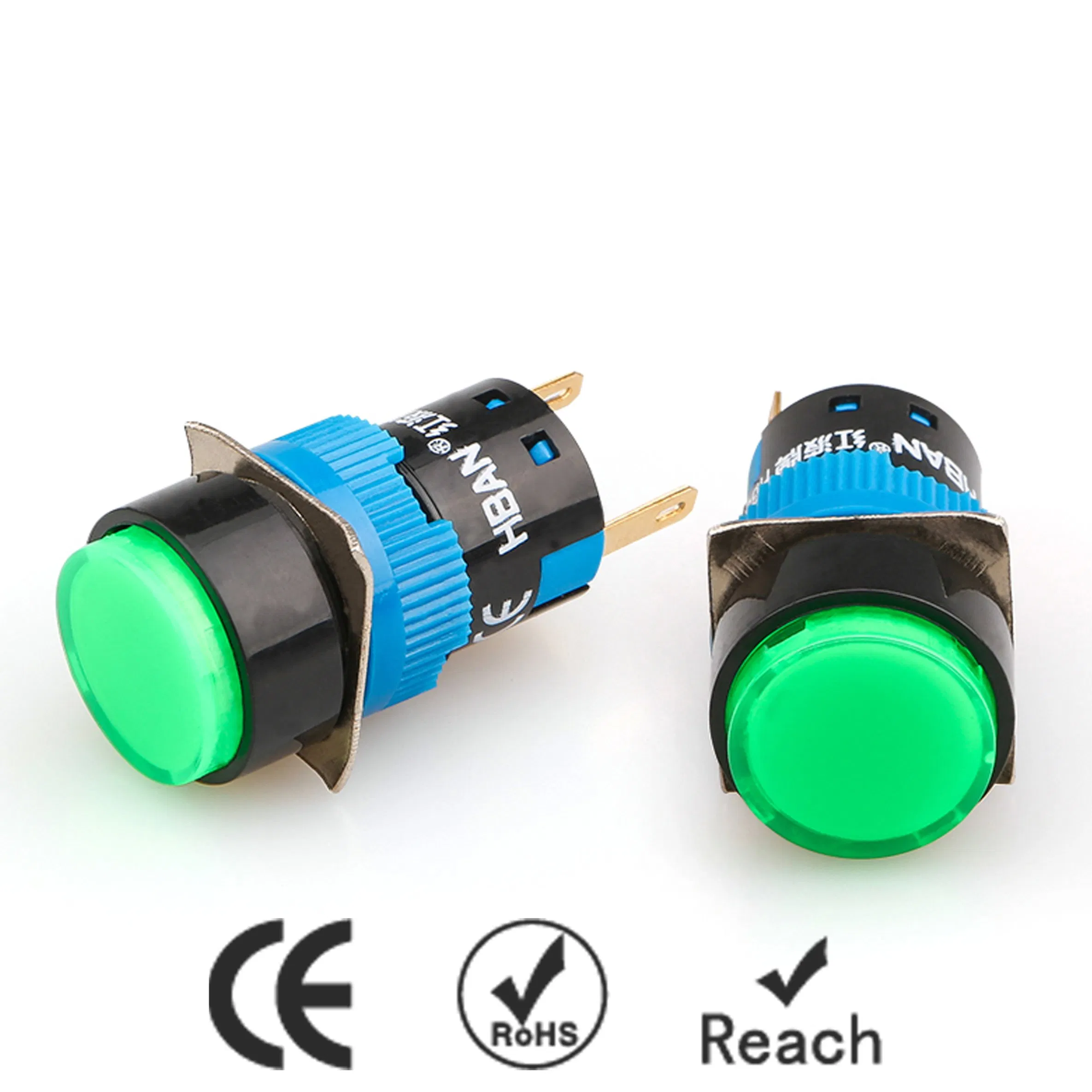

Yes. All our products are manufactured using environmentally safe materials and comply with ROHS and REACH certifications.

Can you provide product wiring diagrams or CAD files?

Yes, our support staff can supply product specification diagrams and CAD file downloads within 24 hours of request.

Do you support OEM or ODM services?

Yes, we support complete OEM/ODM customization options including custom logos and unique shell colors. Minimum order quantities apply depending on complexity.

What payment methods are supported?

We accept T/T (Bank wire transfer), Major Credit Cards, and PayPal. Please make sure that the final payment amount aligns with your pro forma invoice.

How do you prevent product damage during international shipping?

We partner with premier express carriers (DHL, UPS, FedEx) for both air and sea freight. Products are individually boxed in custom shock-absorbing foam molds, packed inside corrugated outer cases, and secured tightly with high-tensile strapping.

What is the warranty period for your products?

All of our standard signal lights and push buttons are backed by a comprehensive 1-year product warranty.
