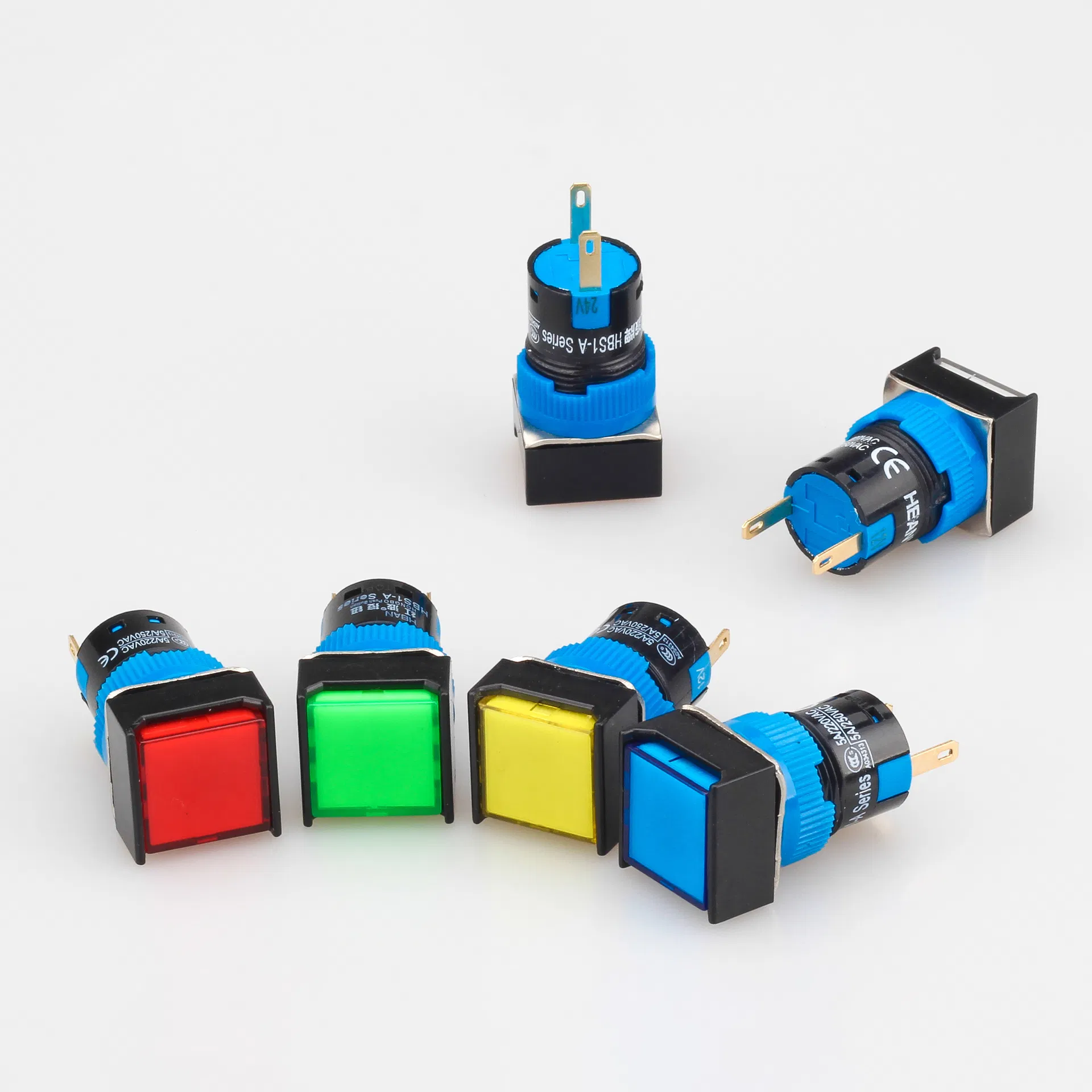

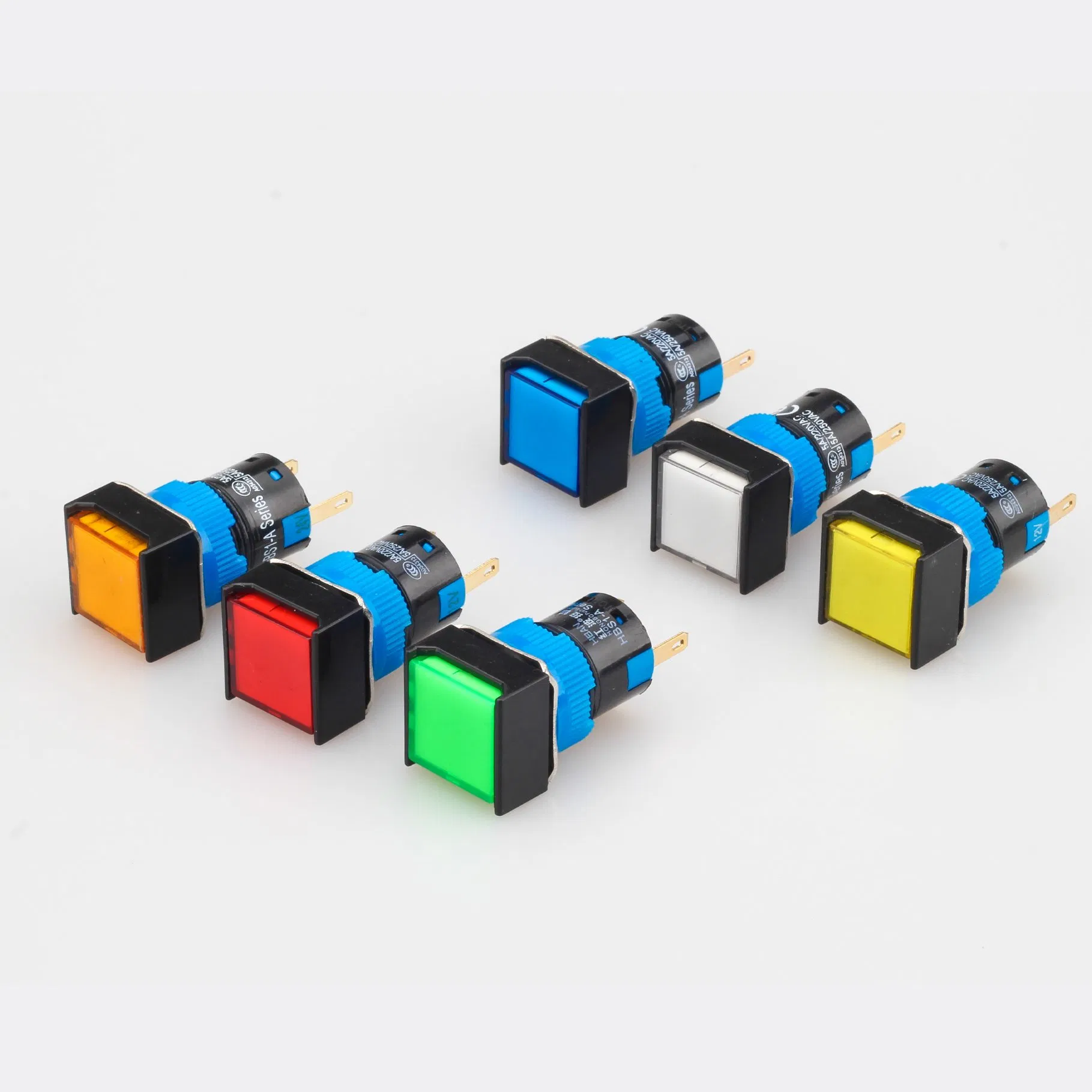

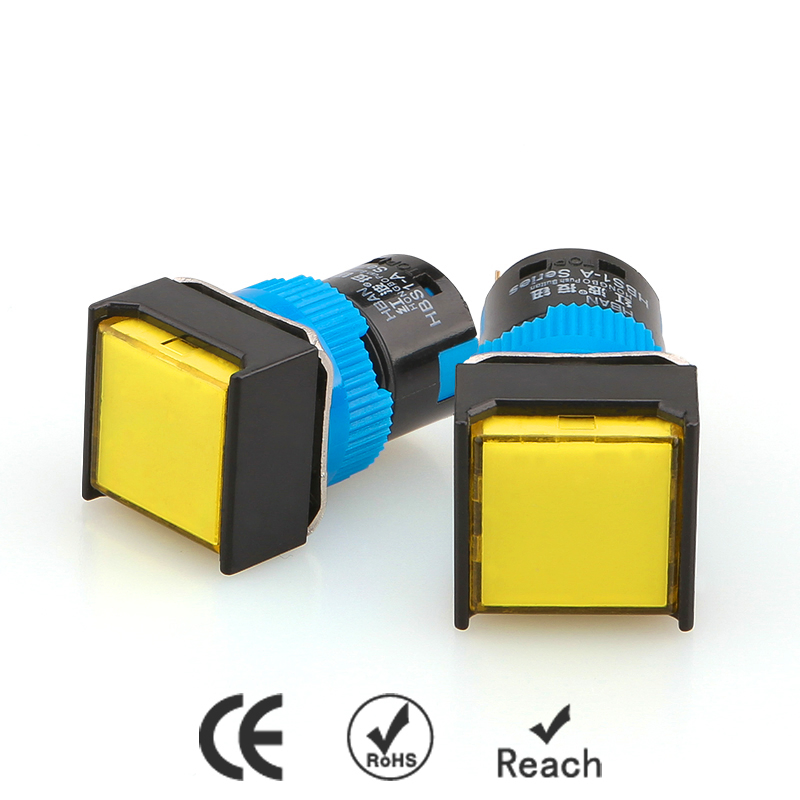

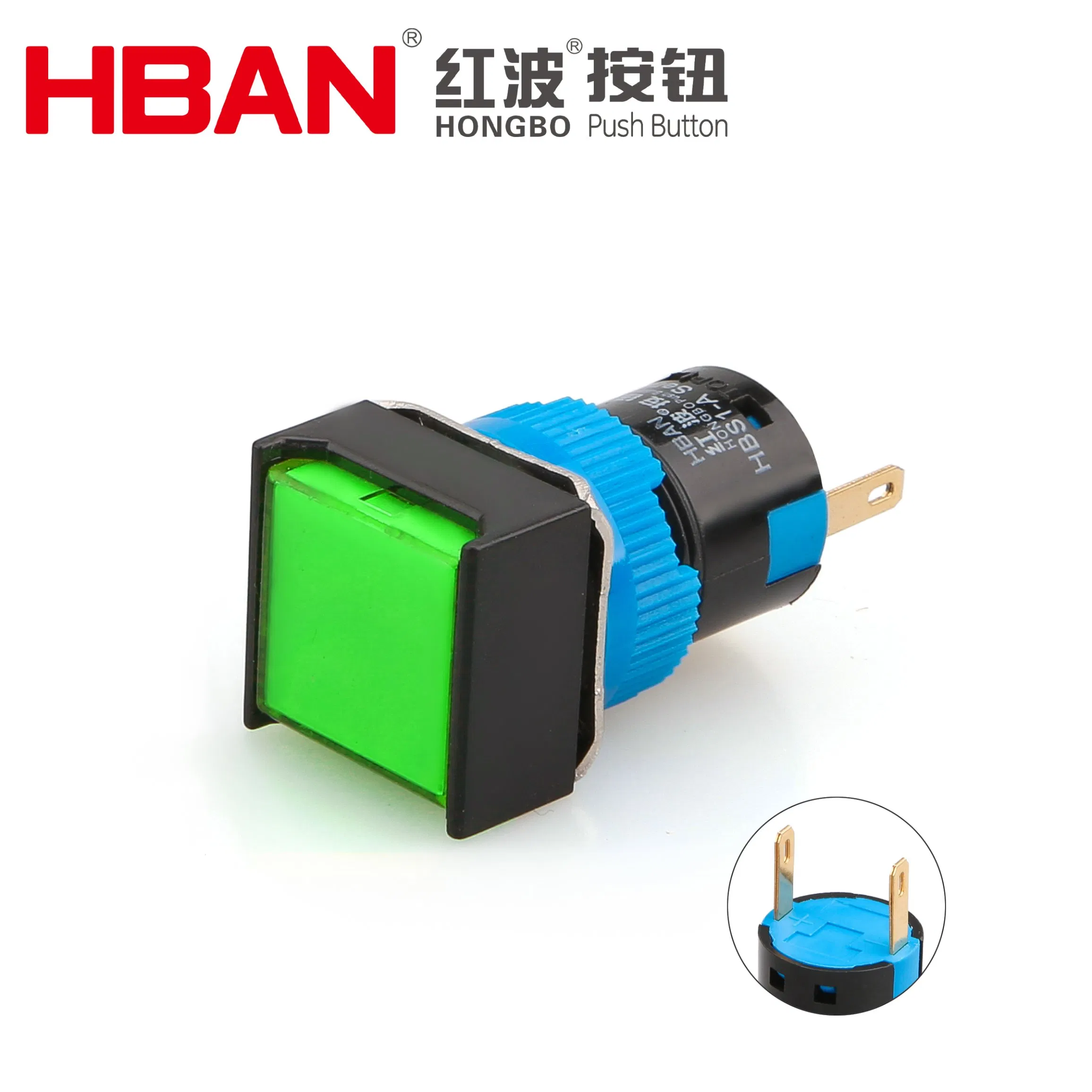

Hban 16mm Plastic Charging Status Indicator Light Greed LED for Electric Vehicle Charging Stations

1 / 5

Hban 16mm Plastic Charging Status Indicator Light Greed LED for Electric Vehicle Charging Stations

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview
Model Specification
Wiring Example
Applications
Packing & Delivery
FAQ

Basic Info

Model NO.HBS1-AF-D/LED Voltage/G

IP RatingIP40 / IP65

Color TemperatureWarm White

Lamp Body MaterialPC

CertificationCCC, CE, ISO

Protection GradeIP65

CertificateCE RoHS Reach

Production Time3-5 Working Days

Mounting Hole Size16mm

Head ShapeRound/Square/Rectangle

Terminal TypePin Terminal

Crust MaterialPlastic

Head ColorGreen

Battery TypeLED

MaterialPlastic

Emergency Time24 Hours

Installation ModePanel Mount

Operation ModeMaintained

UsageElectricify

Transport Package40PCS/Box

SpecificationCE, ROHS, ISO9001

HS Code8531809000

Production Capacity200,000 PCS/Month

Product Description

16mm Plastic Charging Status Indicator Light Green LED for Electric Vehicle Charging Stations

✓ Material characteristics: Plastic has a much lower density than metal, significantly reducing overall weight and making it easy to install, transport, or hang for use. Suitable for temporary engineering, traffic diversion, mobile devices and other scenarios that require frequent movement.

✓ Chemical corrosion resistance: Strong resistance to corrosive substances such as acid, alkali, salt, etc., suitable for chemical industry or coastal high humidity environment.

✓ Electric shock risk: Plastic is non-conductive and safer in places with electric shock hazards such as power facilities and substations.

✓ Low maintenance cost: No need for rust prevention treatment, easy cleaning, high cost-effectiveness for long-term use. High quality engineering plastics have better impact resistance than glass, are less prone to breakage, and are more reliable in vibration or accidental collisions.

✓ Multiple LED lights are available, with high brightness to meet different styles and voltages. Plastic casing has lower heat dissipation requirements and can reduce energy consumption. Long term use can significantly reduce electricity costs, especially suitable for outdoor scenes powered by solar energy.

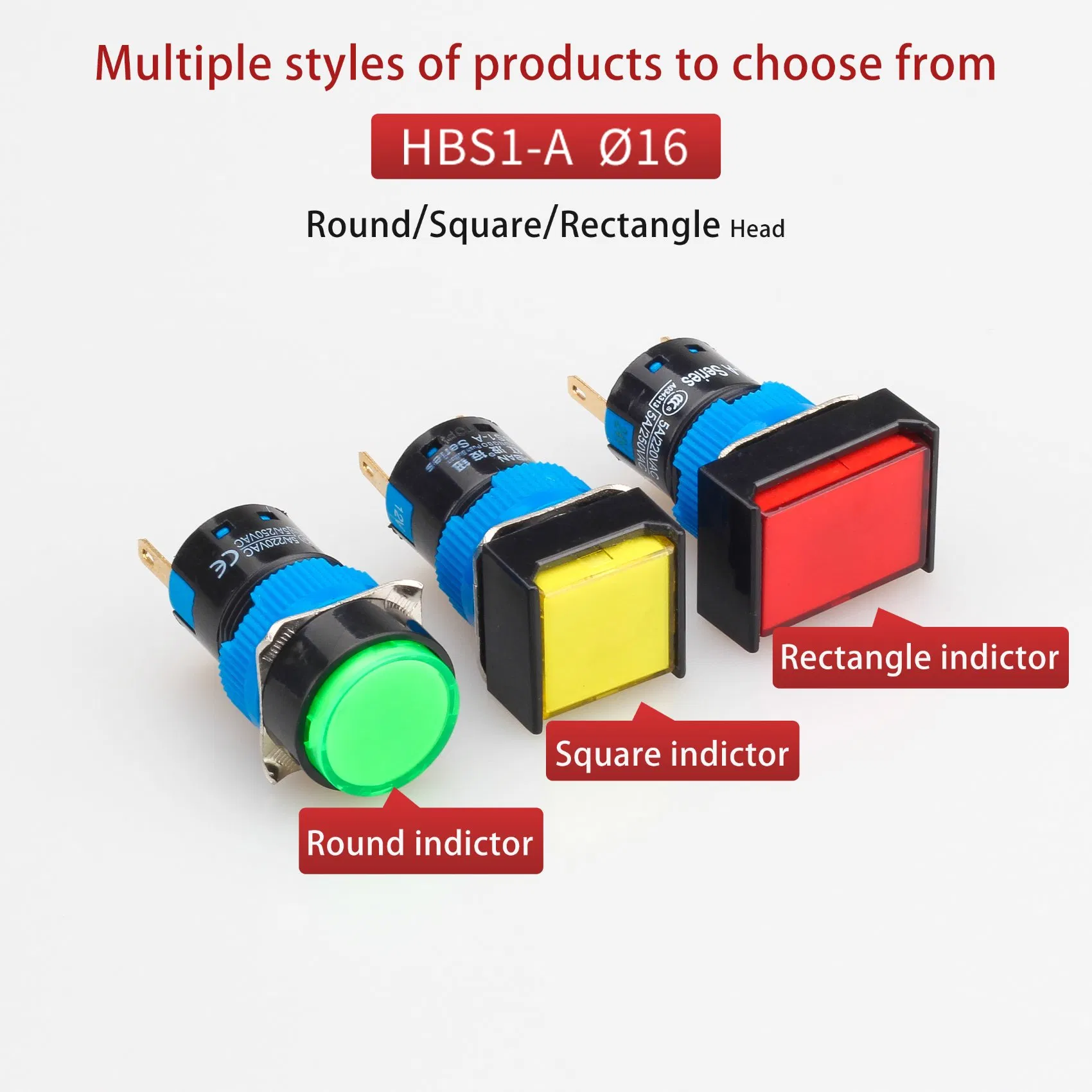

Supports making multi-color head:
Head color selection: Red/Green/Blue/Yellow/White

Installation Specification:
Mounting hole size: 16mm/0.625in
Introduction to the structure: Matching O-ring + Nuts
Panel thickness: 7mm MAX
Tightening torque: About 0.4Nm

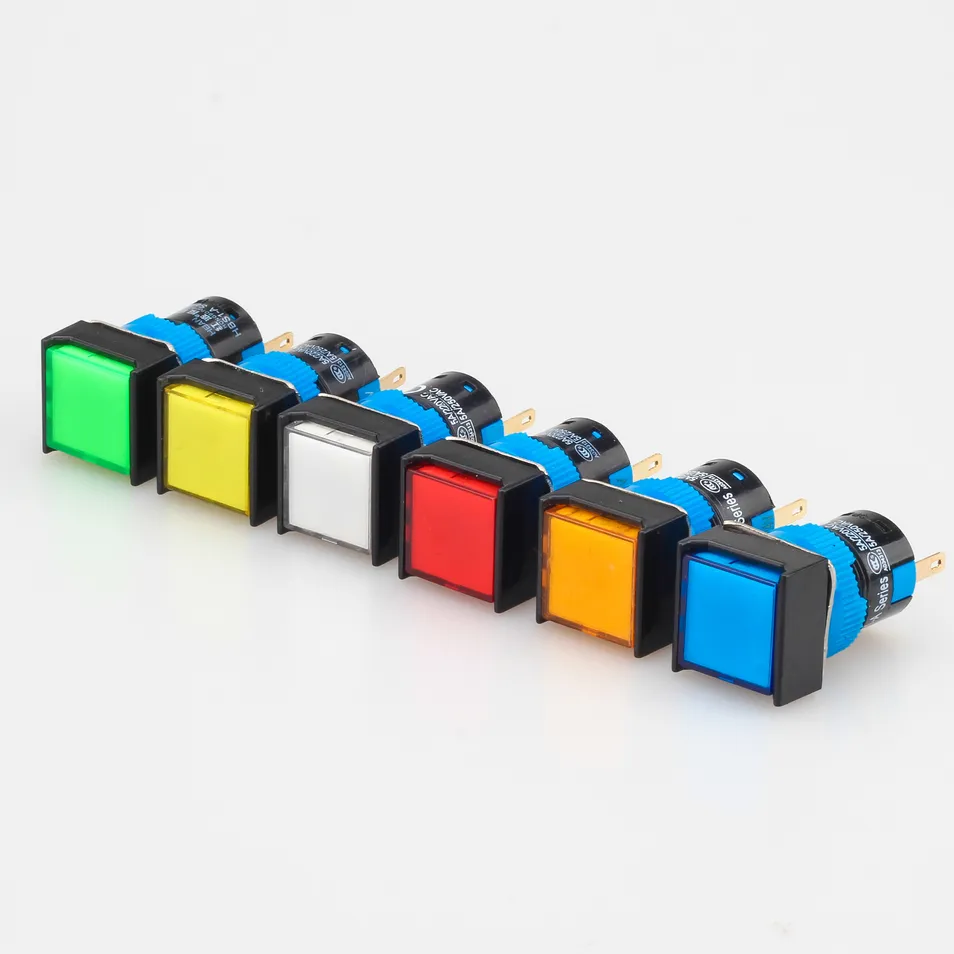

Multi-color Head Indicator Lights Options

Multi-color Head Customization

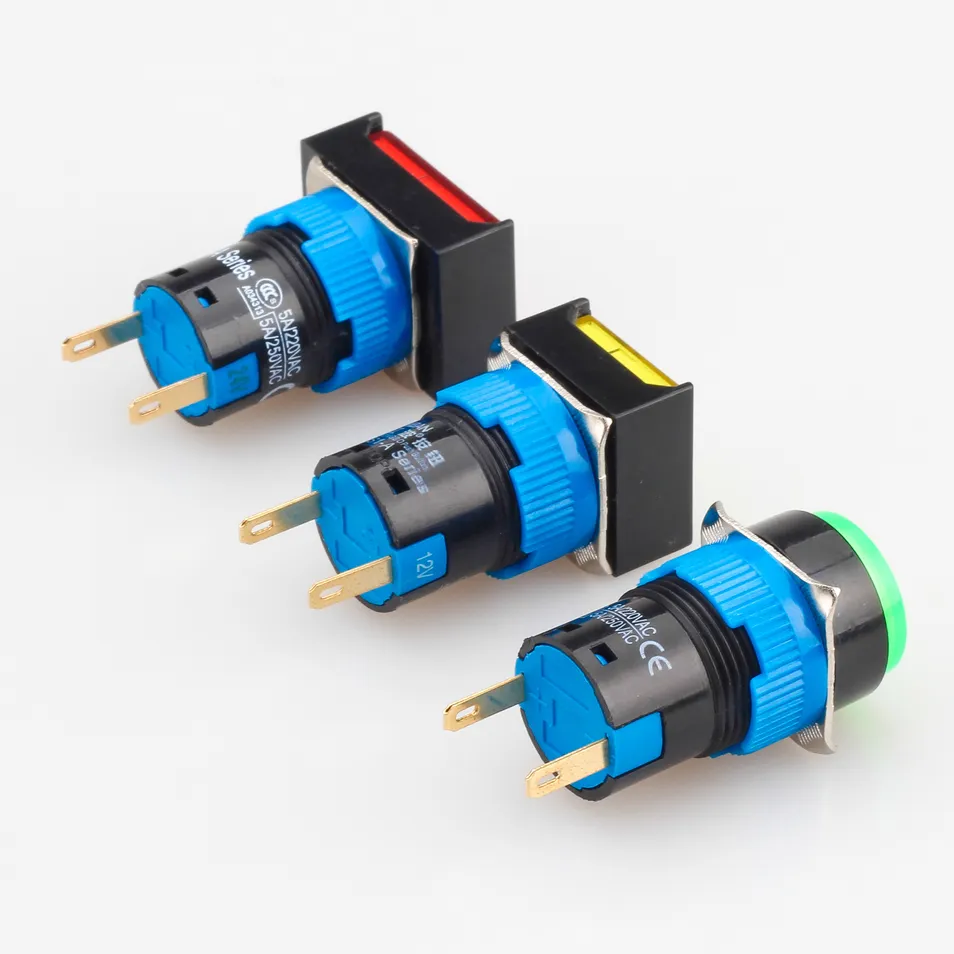

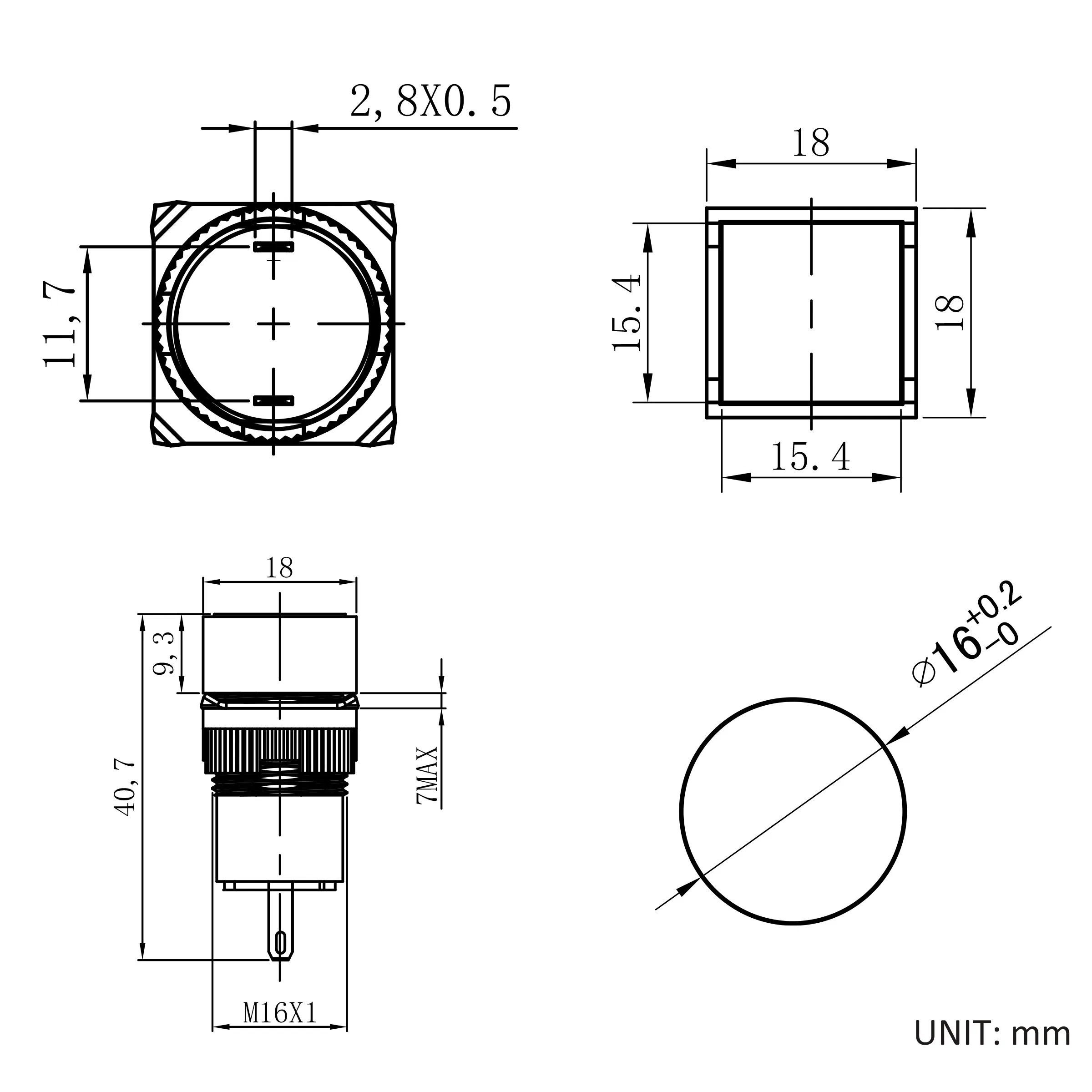

Installation and Dimensions of Plastic Indicator Light

16mm Mounting Structure

IP65 Waterproof Rating:
First Digit (Solids): 6 (Dust-tight)
Second Digit (Liquids): 5 (Low-pressure water jets)
Protection Level: Protected against dust and water jets (6.3mm nozzle, 12.5L/min from any direction for no less than 3 minutes).

Long Work Life:
Rated voltage: 6V/12V/24V; 110V/220V
Rated current: ≤20mA
Lamp bead life: 50,000 hours

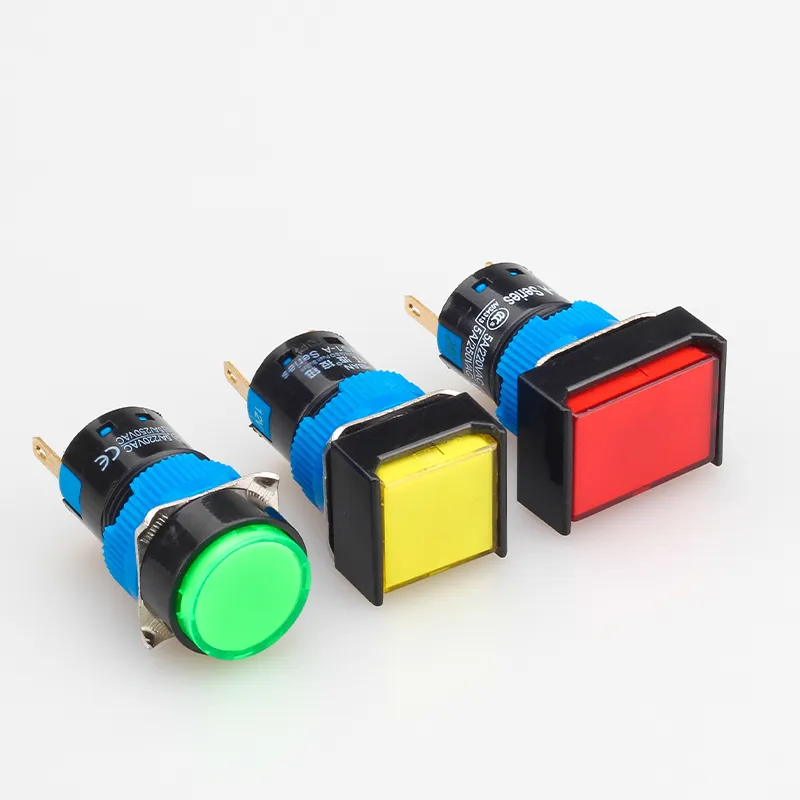

IP65 Waterproof Plastic Indicator Light Test

IP65 Waterproof Performance

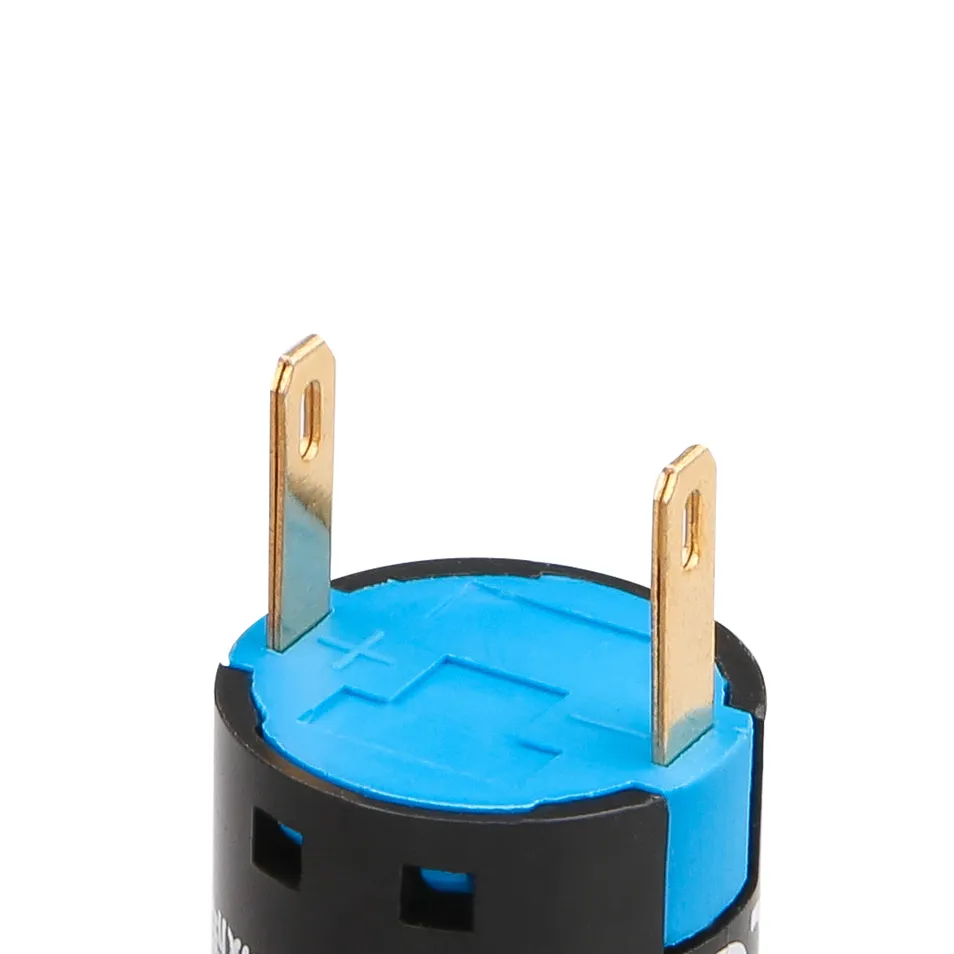

Long Life LED Indicator Light Shell View

Durable Material & Components

Model Specification

Series Number: HB16 (This product is marked in green)
Neck Mounting Dimensions	8: Ø8mm 10: Ø10mm 12: Ø12mm 16: Ø16mm 22: Ø22mm 30: Ø30mm	-
Head shape	Y: Round head F: Square head J: Rectangle head	-
Terminal Type	A: Pin terminal D: Screw terminal	-
Form of Structure	No letters: Standard structure S: Ultra-short structure	-
LED Voltage	6V/12V/24V/36V; 110V/220V	Other voltages can be customized
LED Color	R: Red G: Green Y: Yellow O: Orange B: Blue W: White	-

Wiring Example

Facility & Applications

Product Applications:

Industrial Automation Equipment

New Energy EV Charging Stations

Marine & Offshore Engineering

Lab & Testing Equipment

Rail Transit Systems

Power Control Cabinets & Distribution Systems

Our factory is a high-tech enterprise specializing in the development and manufacturing of push button switches and indicators, adhering to the concept of "Customer First and Quality First".

The manufacturing plant mainly produces metal waterproof push button switches, plastic push button switches, E-stop switches, micro travel switches, Piezoelectric switches, indicators, and buzzers.

We have independently developed high-current push button switches and touch switches, and also upgraded the XB2 series push button switches. Backed by professional engineers, a high-efficiency sales team, and competitive pricing structures, we attract customers from all over the world.

Packing & Delivery

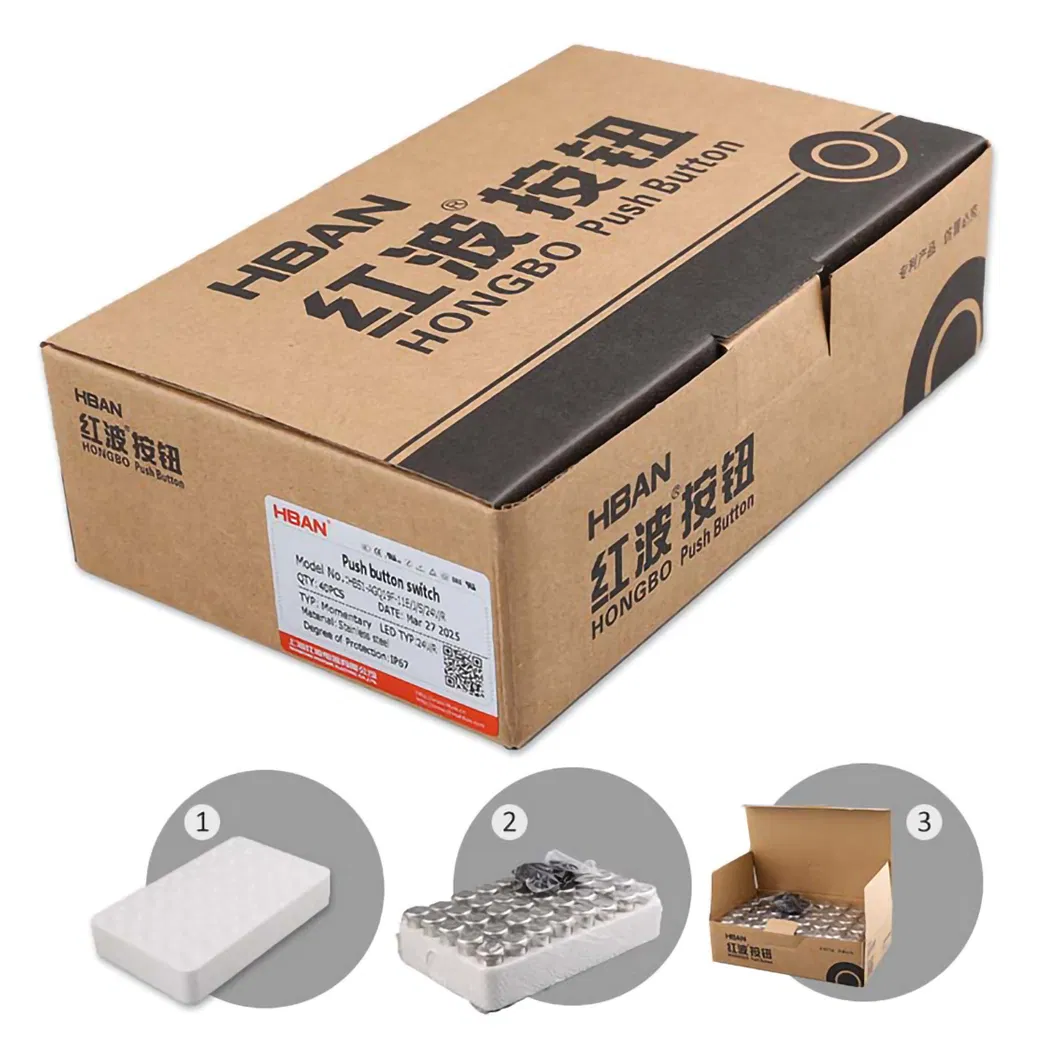

Packaging method of plastic indicator lights

Foam Box Protection Details

Corrugated Outer Carton Packaging

Packaging details • 40pcs/box (Including 40pcs O-ring)
• Products are placed into separate foam boxes to prevent collision.
• Foam boxes are placed into final packaging boxes along with black O-rings.
• Corrugated paper boxes are sealed and reinforced with strapping tape.

Shipping details • We ship worldwide.
• Generally, items are shipped within 3-7 business days upon payment receipt.
• Delivery time depends on destination and carrier services, typically taking 3-8 business days.

Frequently Asked Questions

Is the material eco-friendly?

Yes, our products are made of environmentally friendly materials and have passed ROHS and REACH certifications.

Can you provide wiring diagrams or CAD files?

Yes, please contact our support staff and they will provide the requested documents within 24 hours.

Can you provide OEM/ODM services (custom logos/colors)?

Yes, we support OEM/ODM services. These services have a minimum order quantity (MOQ). Please contact our customer support team for specific details.

What payment methods are supported?

We support T/T (Wire transfer), Credit Card, and Paypal. (Please ensure that the received payment amount matches the pro forma invoice amount).

How do you ensure that the products are not damaged or defective during transportation?

We cooperate with top express delivery companies, including DHL, UPS, and FedEx (supporting both air and sea transportation). To prevent collision, we put the products into separate foam boxes inside reinforced corrugated outer cartons secured with strapping tape.

Is there a warranty?

Yes, the product warranty period is 1 year.
