| Model NO. | HBGQ16T-D/J/S/LED Voltage/R |
| IP Rating | IP67 |
| Color Temperature | Warm White |
| Certification | CCC, CE, Reach, RoHS, ISO |
| Switch Rating | 20mA/24V |

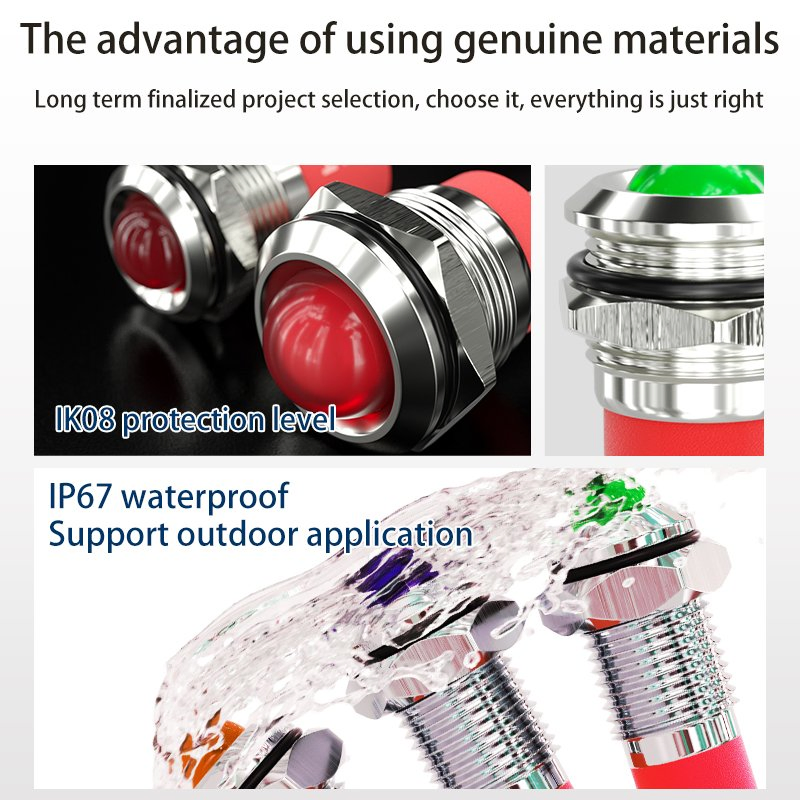

| Protection Degree | IP67, Ik08 |
| Certificate | CE UL RoHS Reach |
| Production Time | 3-5 Working Days |

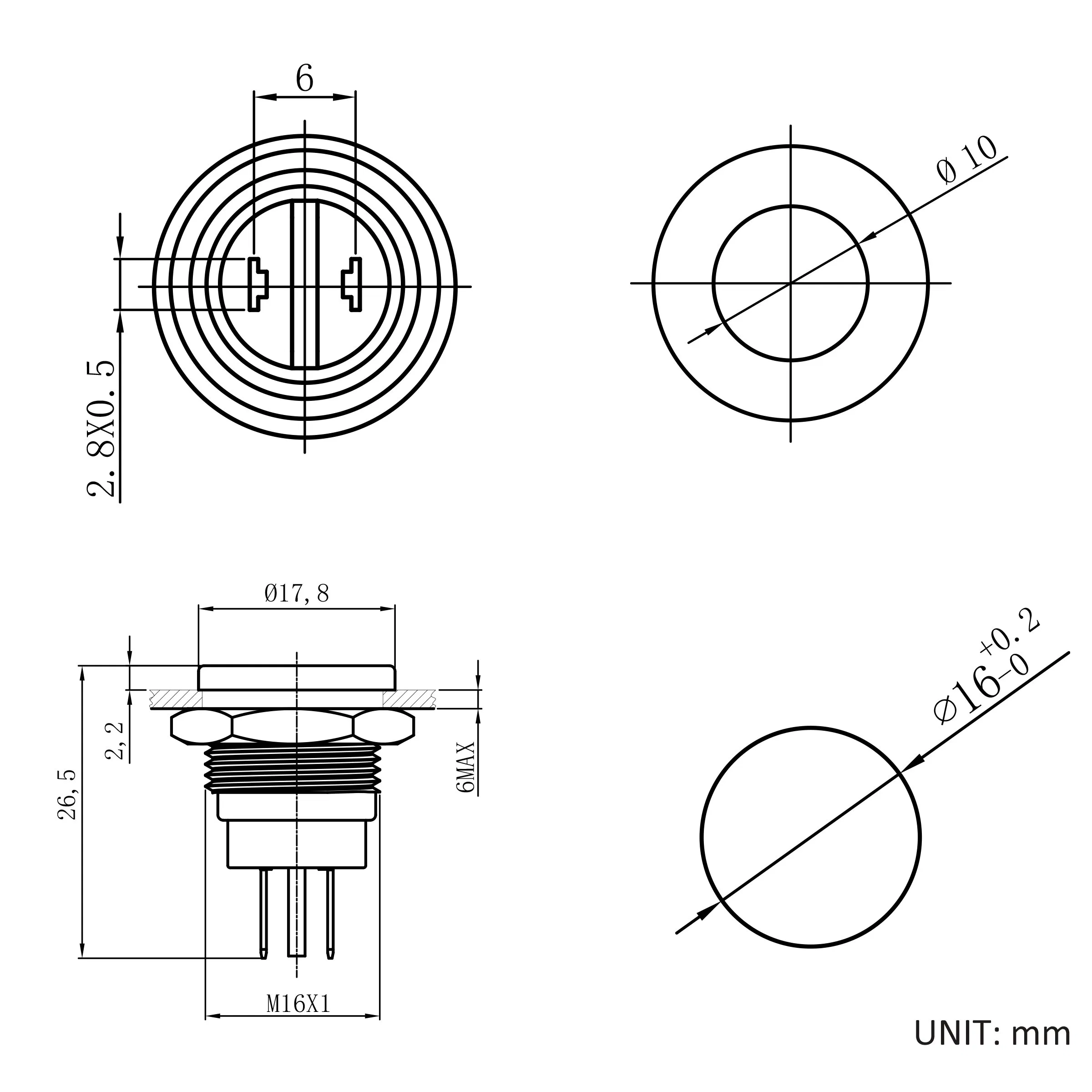

| Mounting Hole Size | 16mm |
| Voltage | 2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Terminal | Pin Terminal |
| Crust Material | Stainless Steel |
| Operation Temperature | -25°C~+65°C |
| Transport Package | 50 PCS/ Box, 1000 PCS/Carton |
| HS Code | 8531809000 |
| Production Capacity | 200, 000 PCS/ Month |
| Package Size | 21.00cm * 13.00cm * 6.00cm |
| Package Gross Weight | 5.000kg |
Impact Resistance and Wear Resistance: The metal housing can withstand accidental impacts, knocks, and friction during installation, use, and daily maintenance, effectively protecting the internal core LED and circuitry. This makes it particularly suitable for applications with strong vibrations and potential impacts, such as mining machinery and heavy equipment.
Outstanding Temperature Resistance and Heat Dissipation:
- Adaptation to a Wider Temperature Range: Metals (such as aluminum alloy, stainless steel) can withstand higher ambient temperatures than engineering plastics, and are not prone to softening, deforming, or aging due to heat.
- Natural Heat Sink: Metal is a good conductor of heat, enabling it to rapidly conduct and dissipate the heat generated by the LED chip during operation into the external environment. This effectively extends the LED's service life and prevents light decay.

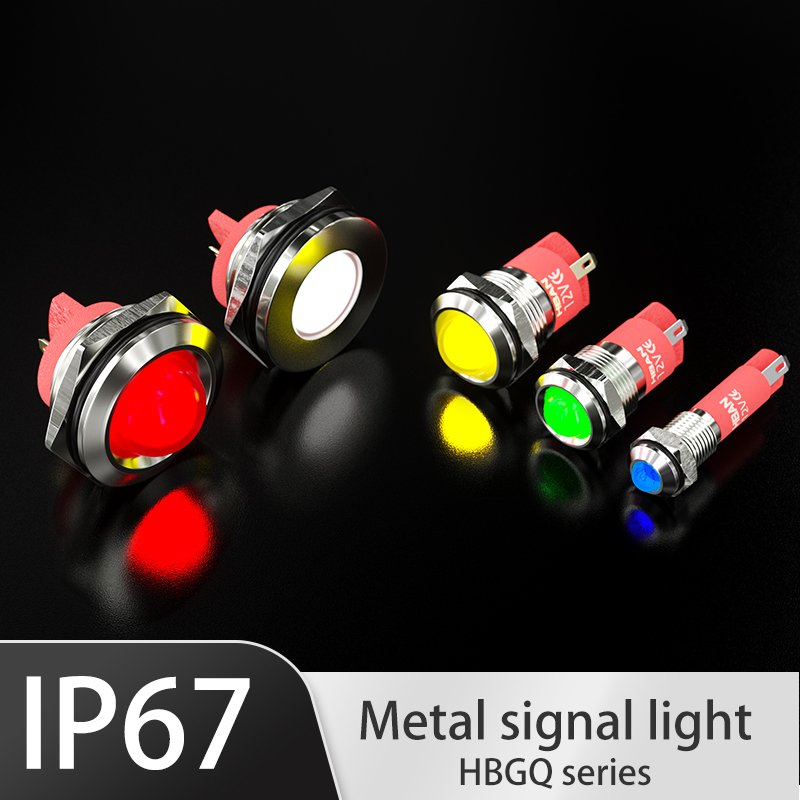

| Series Number: HBGQ (This product is marked in green) | ||
|---|---|---|
| Neck Mounting Dimensions | 16: Ø16mm | 6: Ø6mm | 8: Ø8mm | 10: Ø10mm | 12: Ø12mm | 14: Ø14mm | 19: 19mm | 22: Ø22mm | 25: Ø25mm | |

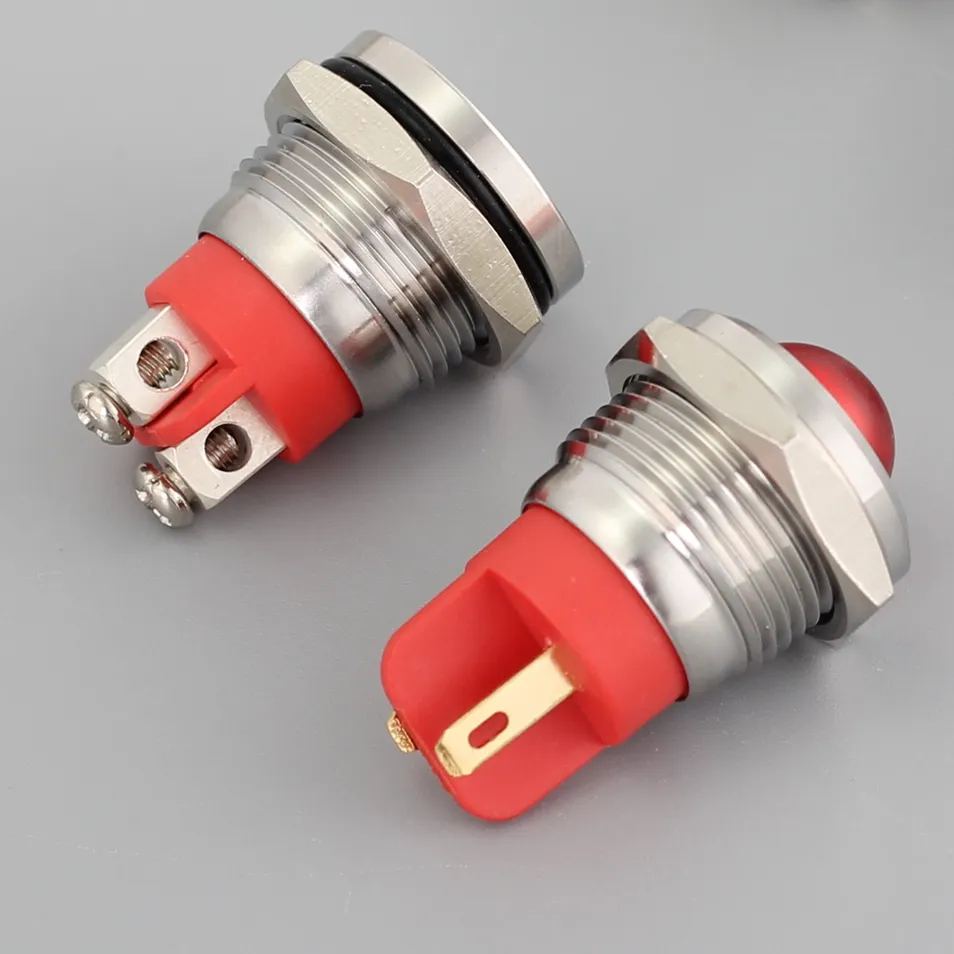

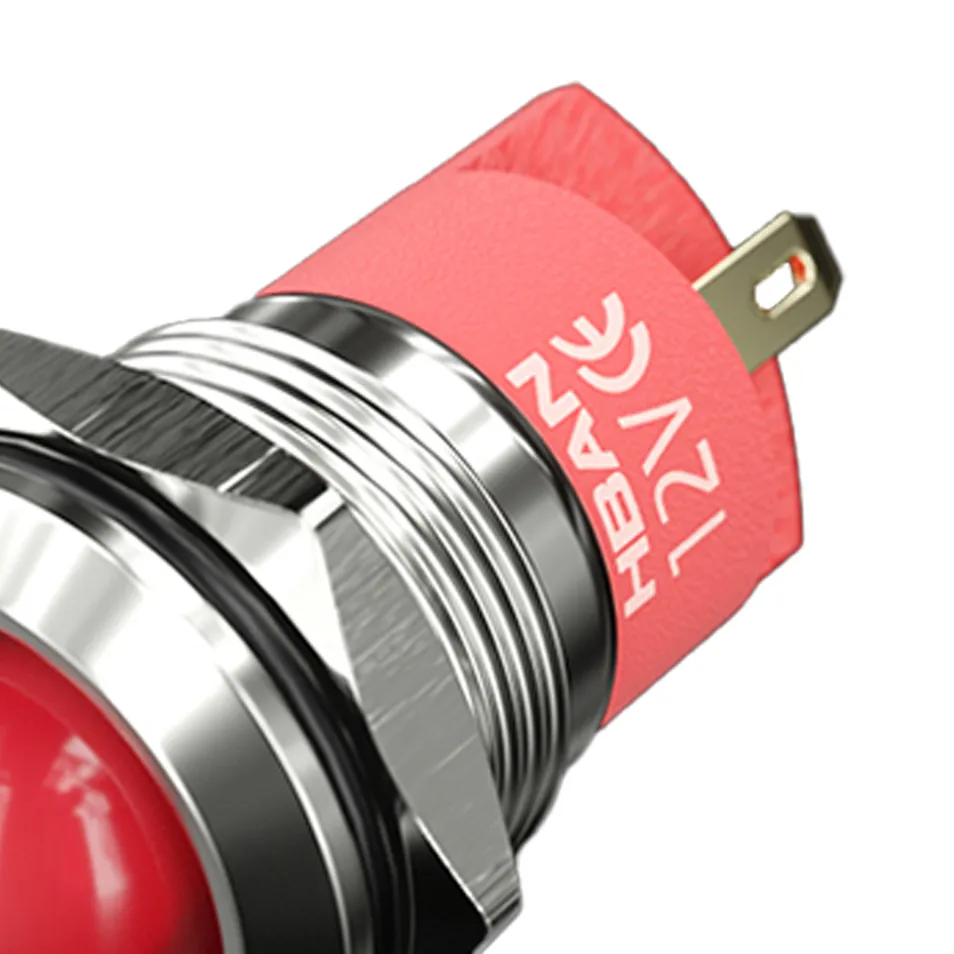

| Terminal Type | J: Pin terminal L: Screw terminal Y: Lead wire |
|

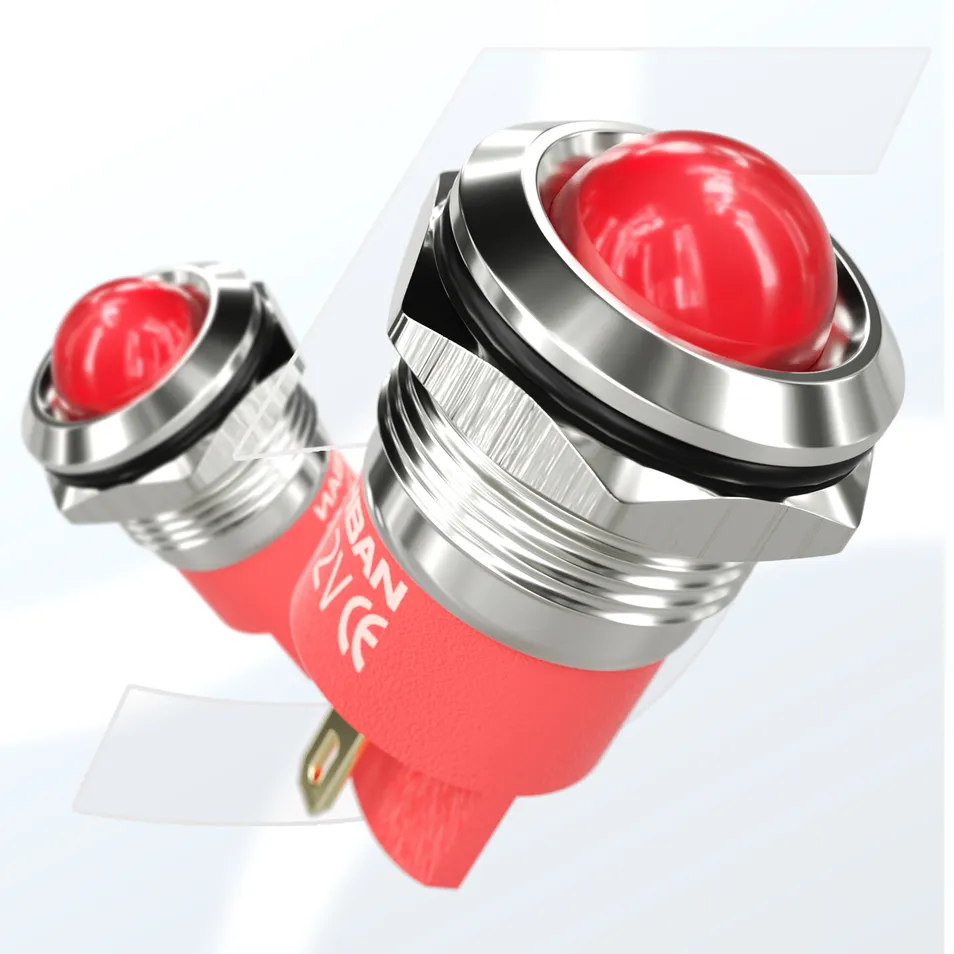

| Head shape | T: Flat shape G: Spherical shape F: Flat circular shape DT: Large flat shape DG: Large spherical shape M: Flash signal light |
|
| LED Voltage | 6V/12V/24V/36V; 110V/220V | Other voltages can be customized |
| Lamp type | D: Dot LED E: Ring LED P: Plastic cover SP: Spray painted plastic cover |
|
| Housing material | N: Nickel plated brass S: Stainless steel T: Aluminum alloy |
|

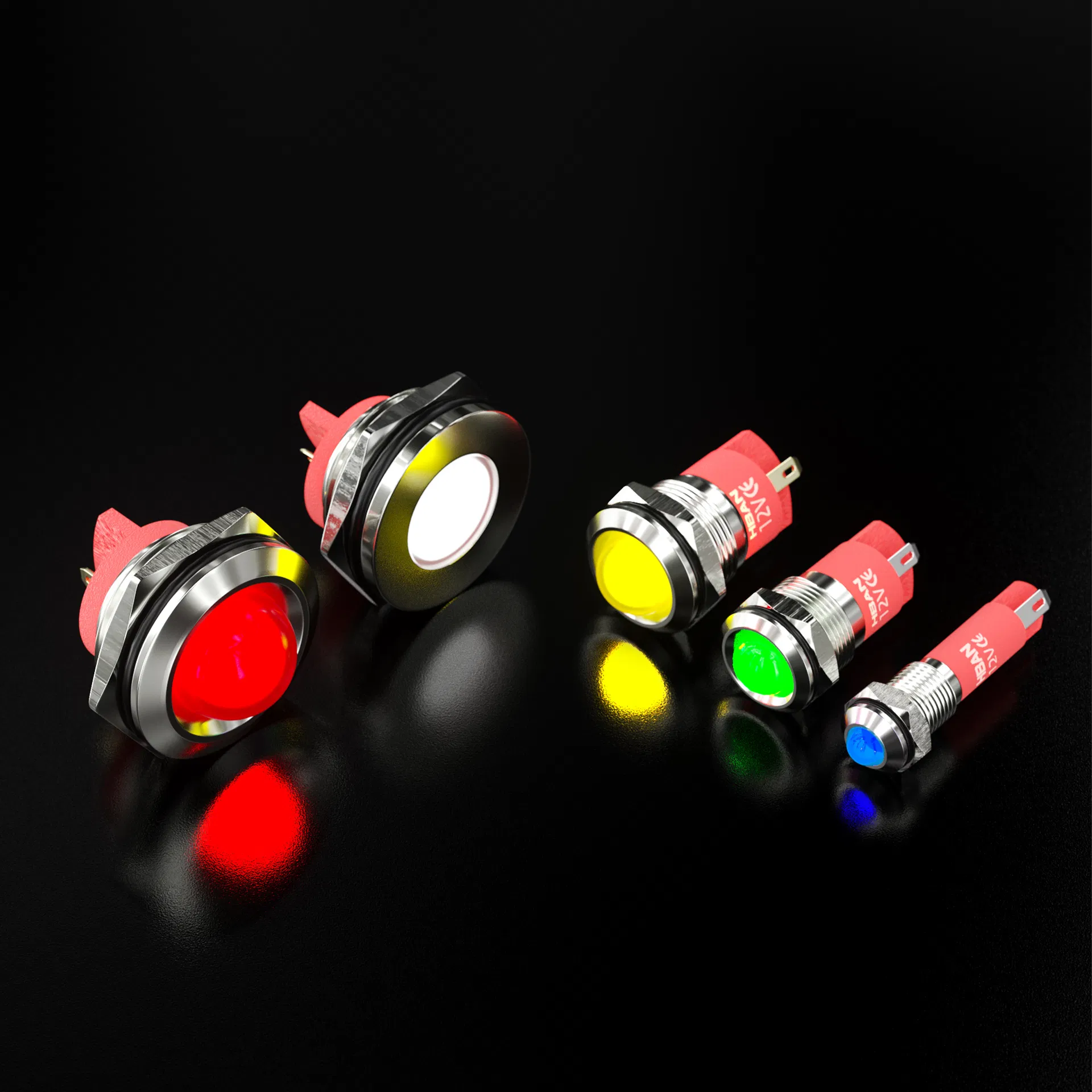

| LED Color | R: Red | G: Green | Y: Yellow | O: Orange | B: Blue | W: White | |
1. When powered on, it lights up without distinguishing between positive and negative poles.

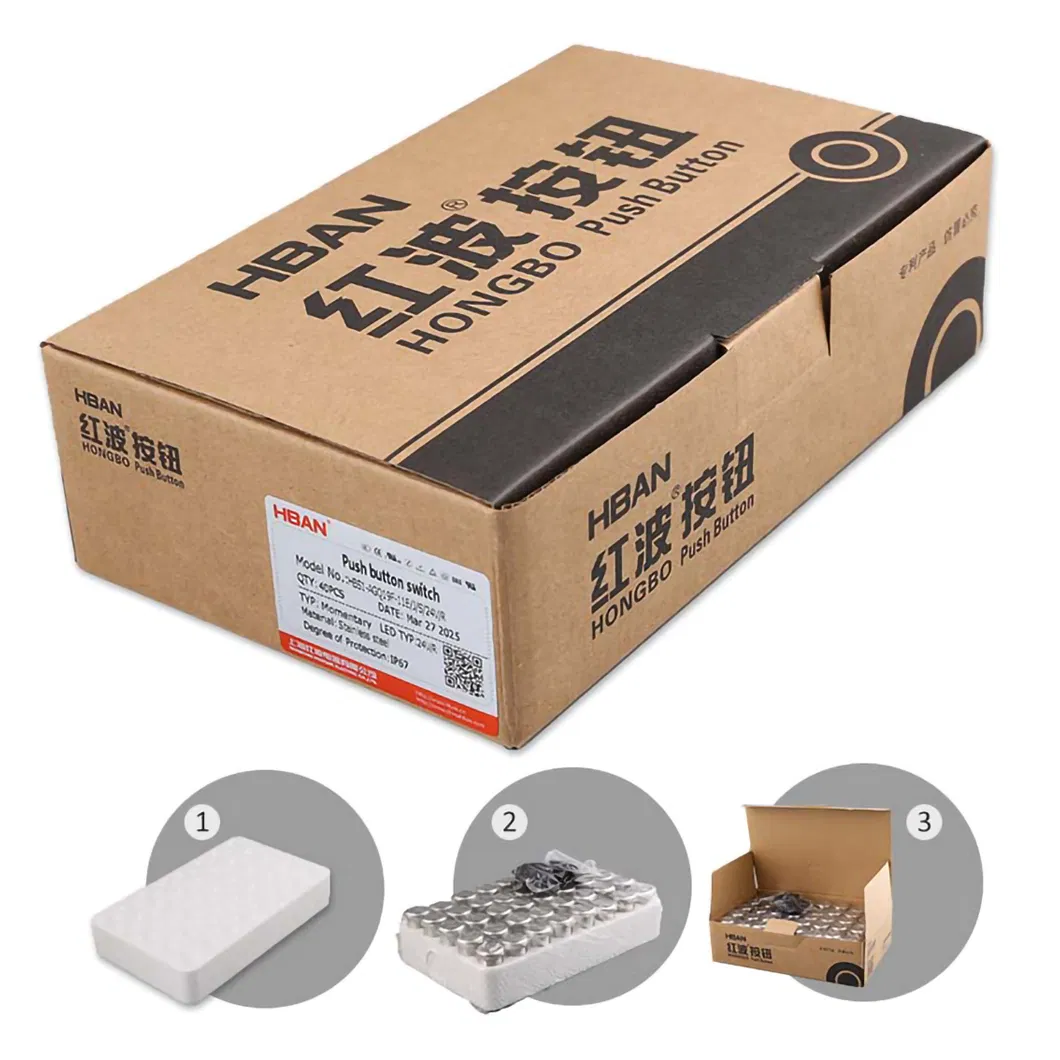

Standard Packaging Details:
- 40pcs/box (Including 40pcs O-ring)
- Products are put into separate foam boxes to prevent collision.
- Place the foam box into the outer packaging box and include the black O-rings.
- We use corrugated paper boxes and secure them with strapping tape for reinforcement.
Shipping Details:
1. We ship worldwide.
2. Generally, items will be shipped within 3-7 business days upon receipt of payment.
3. Delivery time depends on destination and other transit factors, typically taking 3-8 business days.

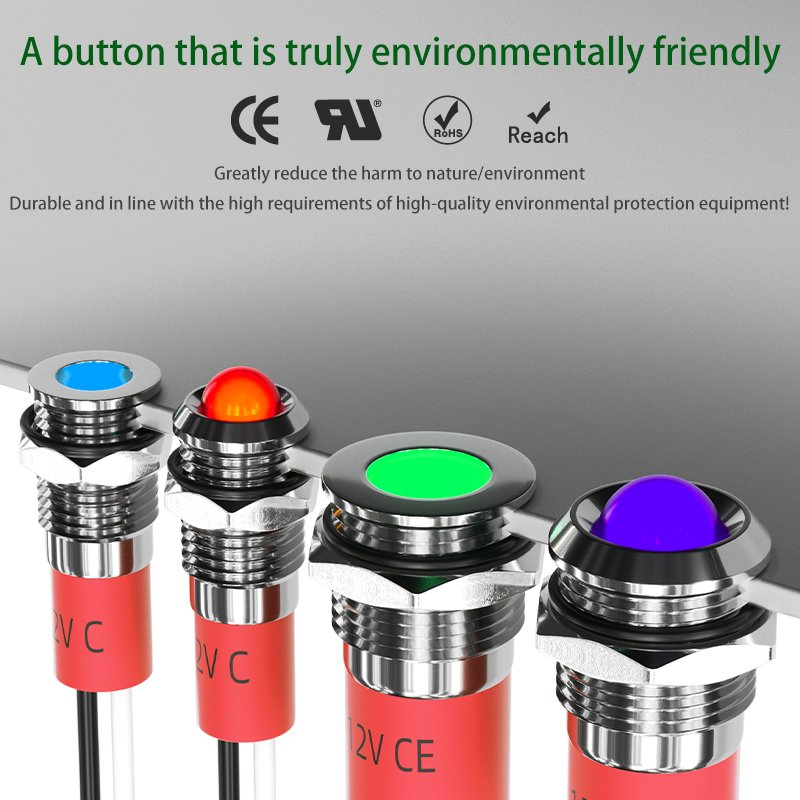

A: Yes, our products are made of environmentally friendly materials and have passed ROHS and REACH certifications.
A: Yes, contact our customer service staff and they will provide the documents within 24 hours.
A: Yes, we support OEM/ODM services. There is a minimum order quantity. Please contact our customer service staff for details.
A: We support T/T (Wire transfer), Credit card, and PayPal. (Please ensure that the amount received is consistent with the pro forma invoice amount.)
A: We cooperate with reliable express delivery companies: DHL, UPS, and FedEx (supporting both air and sea transportation). To prevent collision damage, products are placed in separate foam boxes, which are then packed inside sturdy corrugated paper boxes reinforced with strapping tape.
A: Yes, the standard warranty period is 1 year.
