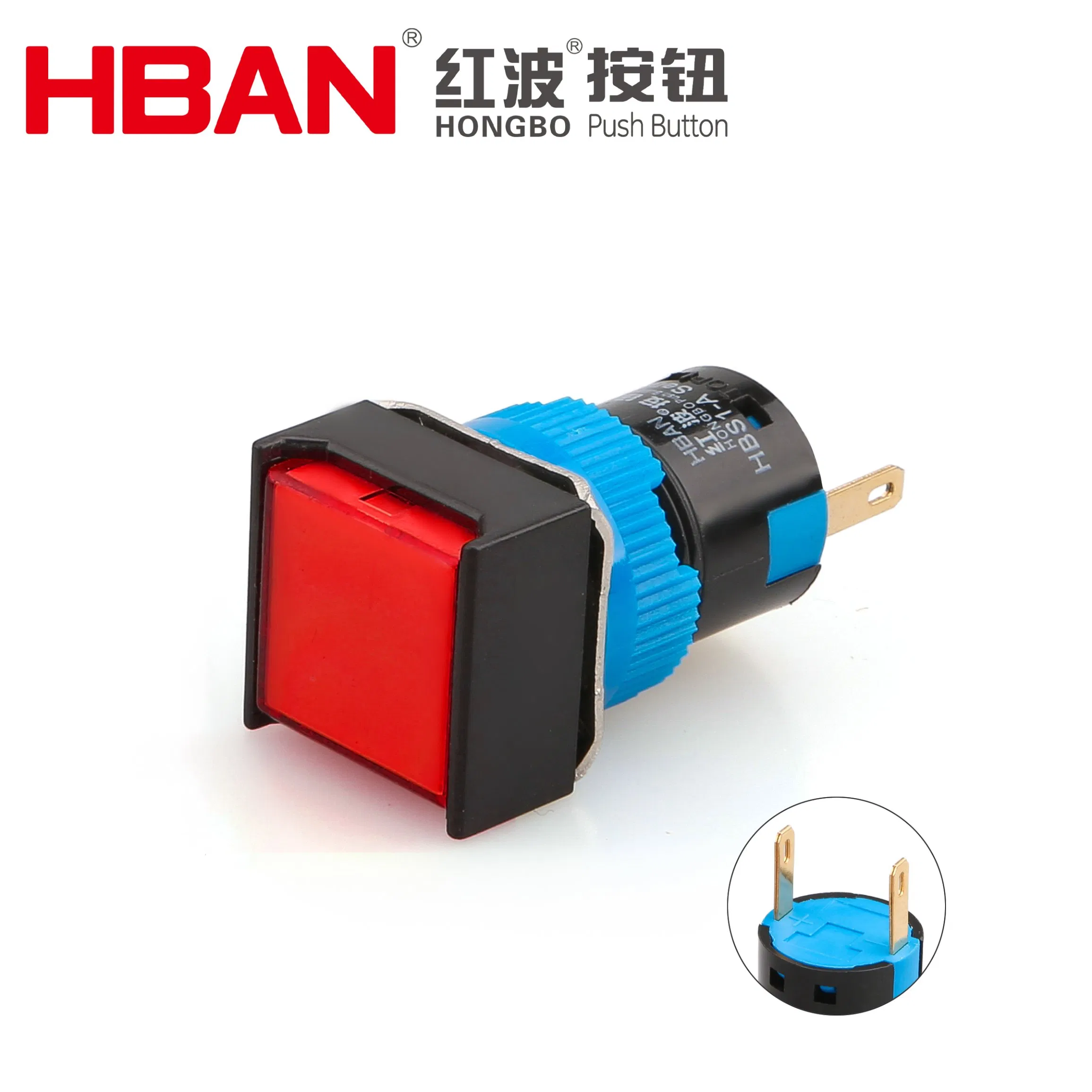

Hban 16mm Square Head Plastic High Brightness Multi-Color LED Signal Light

Still deciding? Get samples of $ !
Order Sample

Product Description

📋Overview - Basic Info

Model NO. HBS1-AF-D/LED Voltage/R
IP Rating IP40, IP65
Color Temperature Warm White
Lamp Body Material PC
Certification CCC, CE, ISO
Protection Grade IP65

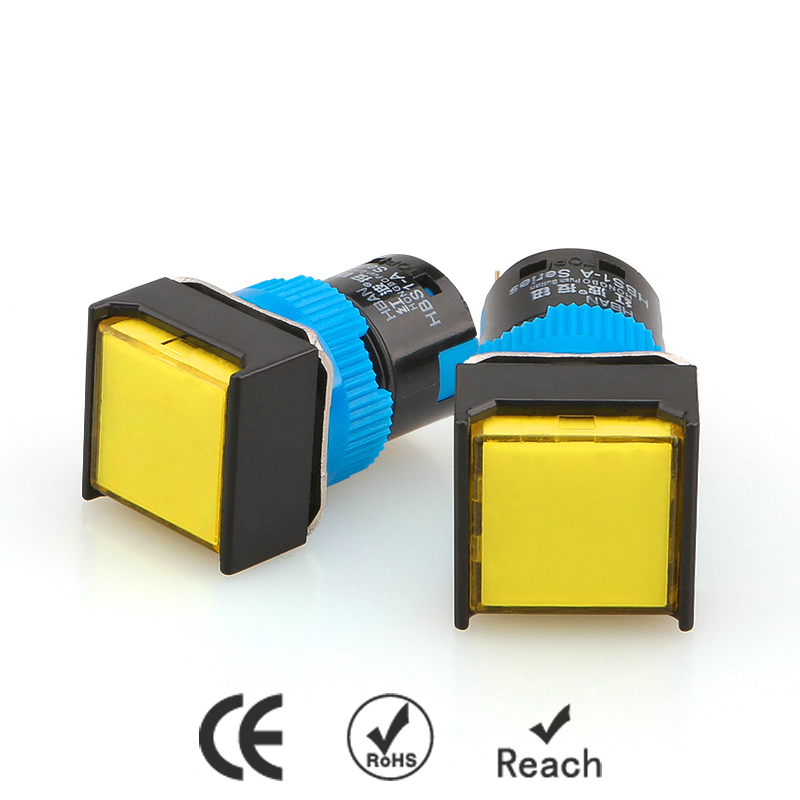

Certificate CE, RoHS, Reach
Production Time 3-5 Working Days
Mounting Hole Size 16mm
Head Shape Round/Square/Rectangle
Terminal Type Pin Terminal
Crust Material Plastic
Head Color Green
Battery Type LED
Material Plastic
Emergency Time 24 Hours
Installation Mode Panel Mount
Operation Mode Maintained
Usage Electricity
Transport Package 40PCS/Box
Specification CE, ROHS, ISO9001
HS Code 8531809000
Production Capacity 200,000 PCS/Month

📦Packaging & Delivery Info

Package Size 21.00cm * 13.00cm * 6.00cm
Package Gross Weight 0.100kg

💡Product Description

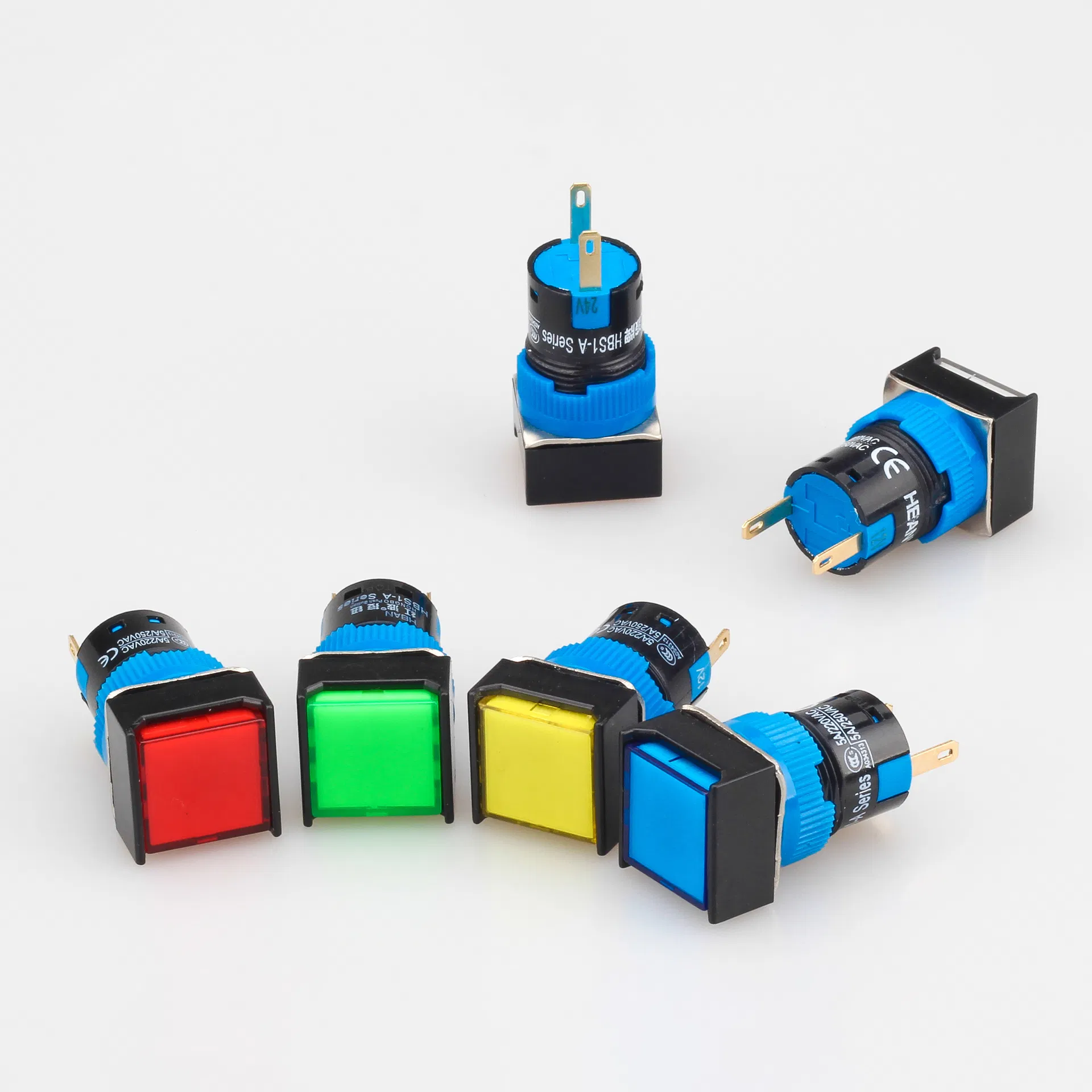

Square Head Plastic High Brightness Multi-Color LED Signal Light
Square Head LED Signal Light Features
Material Characteristics Plastic has a much lower density than metal, significantly reducing overall weight and making it easy to install, transport, or hang for use. Suitable for temporary engineering, traffic diversion, mobile devices and other scenarios that require frequent movement.
Chemical Corrosion Resistance Strong resistance to corrosive substances such as acid, alkali, salt, etc., suitable for chemical industry or coastal high humidity environments.
Electric Shock Risk Prevention Plastic is non-conductive and safer in places with electric shock hazards such as power facilities and substations.
Low Maintenance Cost No need for rust prevention treatment, easy cleaning, high cost-effectiveness for long-term use. High quality engineering plastics have better impact resistance than glass, are less prone to breakage, and are more reliable in vibration or accidental collisions.
LED Features Multiple LED lights are available, with high brightness to meet different styles and voltages. Plastic casing has lower heat dissipation requirements and can reduce energy consumption. Long term use can significantly reduce electricity costs, especially suitable for outdoor scenes powered by solar energy.

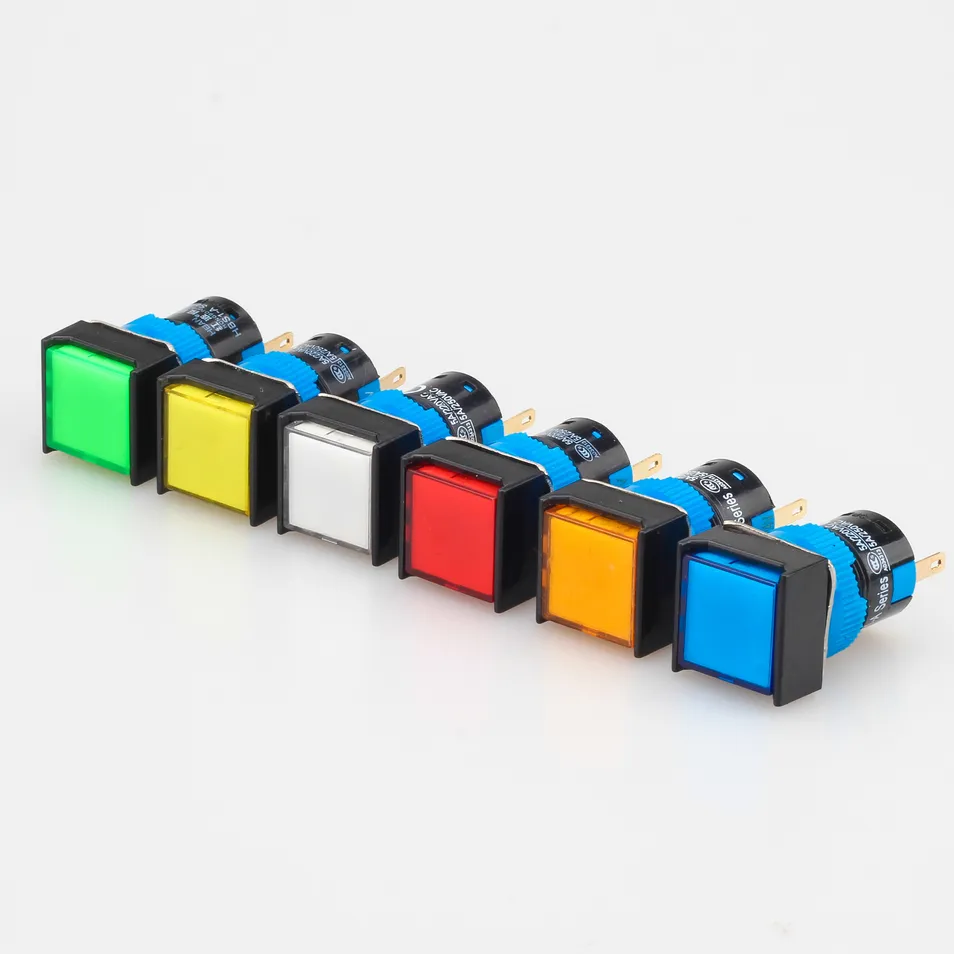

🔧Multi-Color Support & Installation

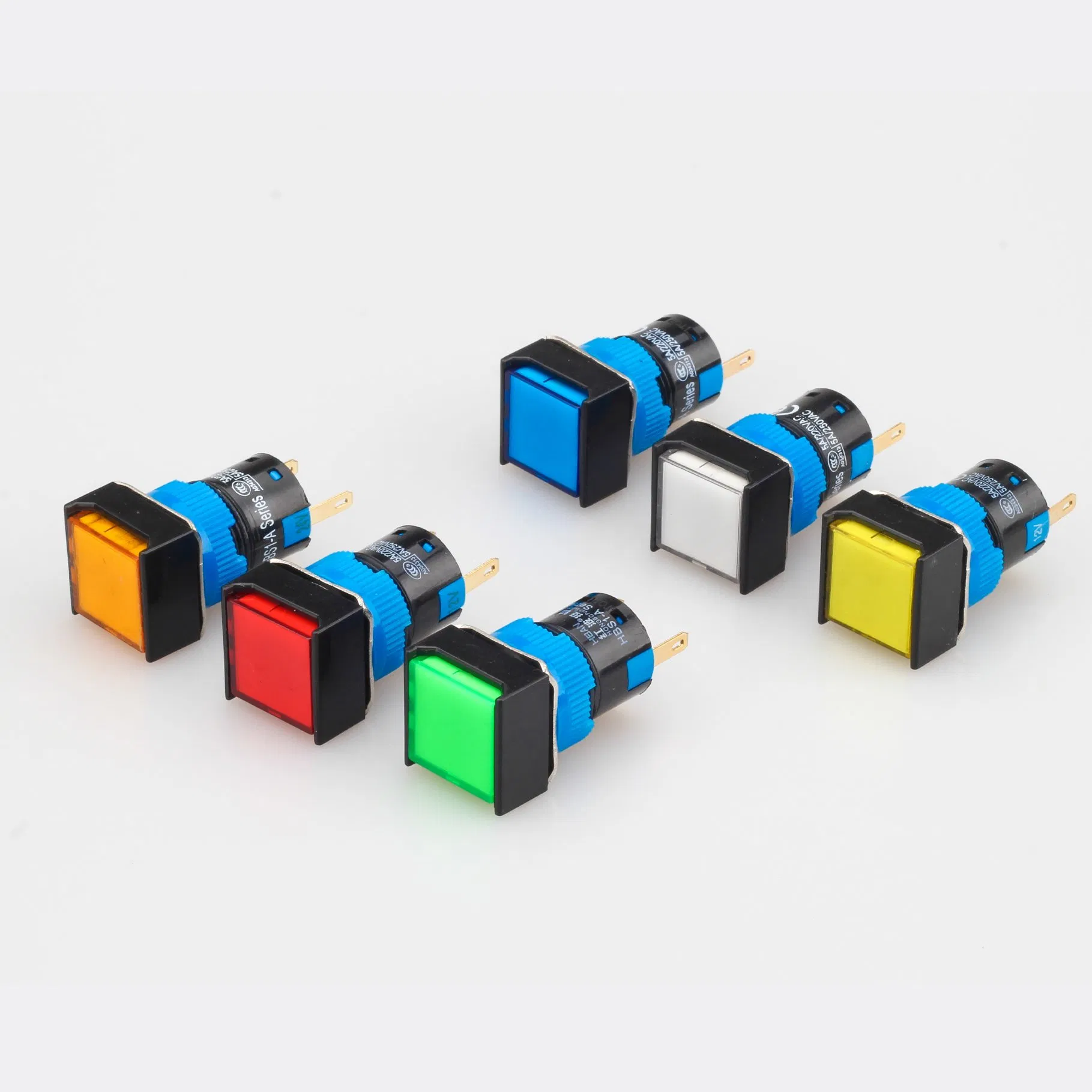

Head Color Selection Red / Green / Blue / Yellow / White options to meet various indicator requirements.

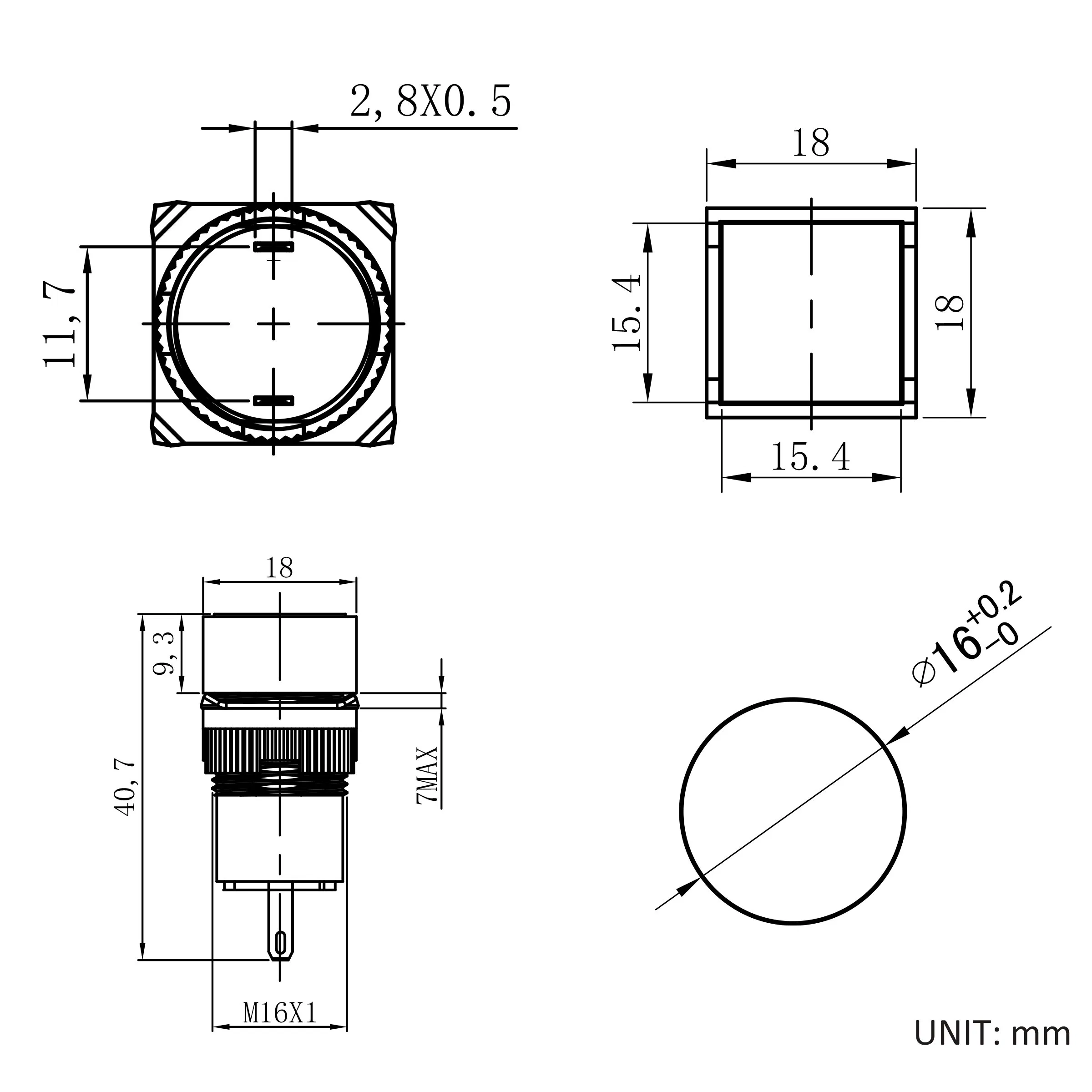

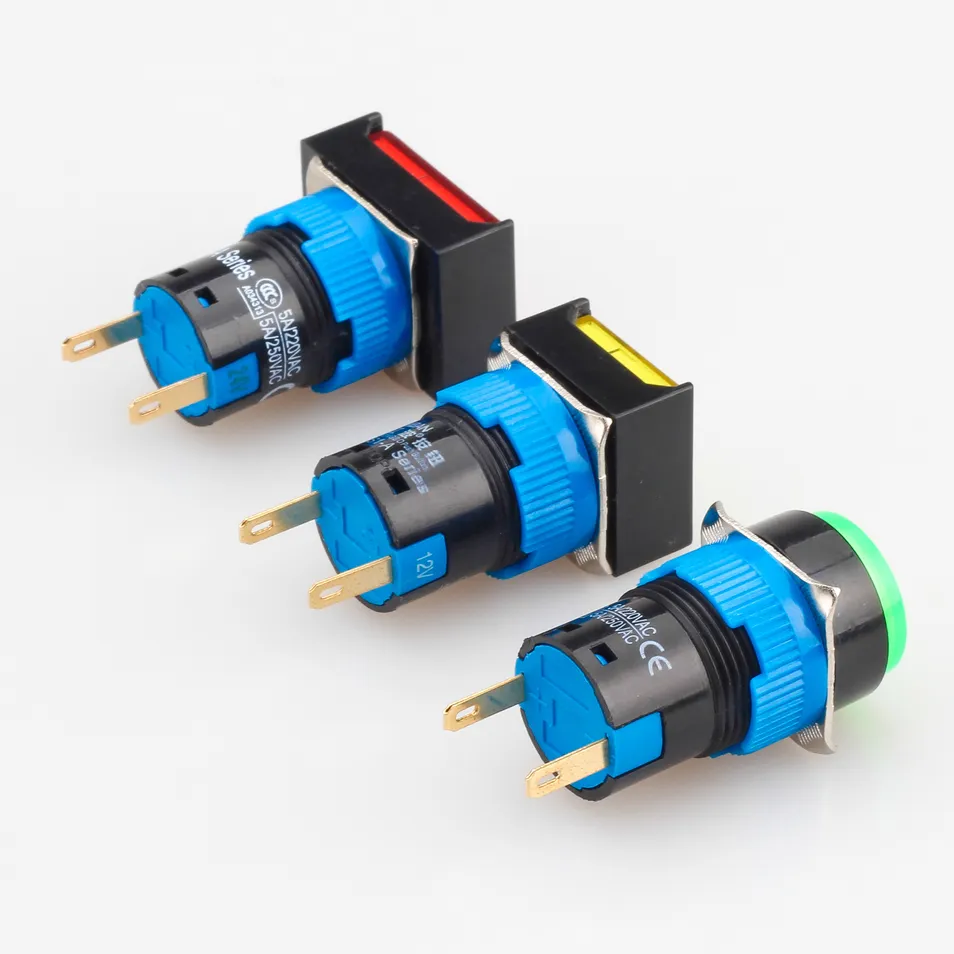

Installation Specifications
  • Mounting hole size: 16mm / 0.625in
  • Structure introduction: Matching O-ring + Nuts
  • Panel thickness: 7mm MAX
  • Tightening torque: About 0.4Nm

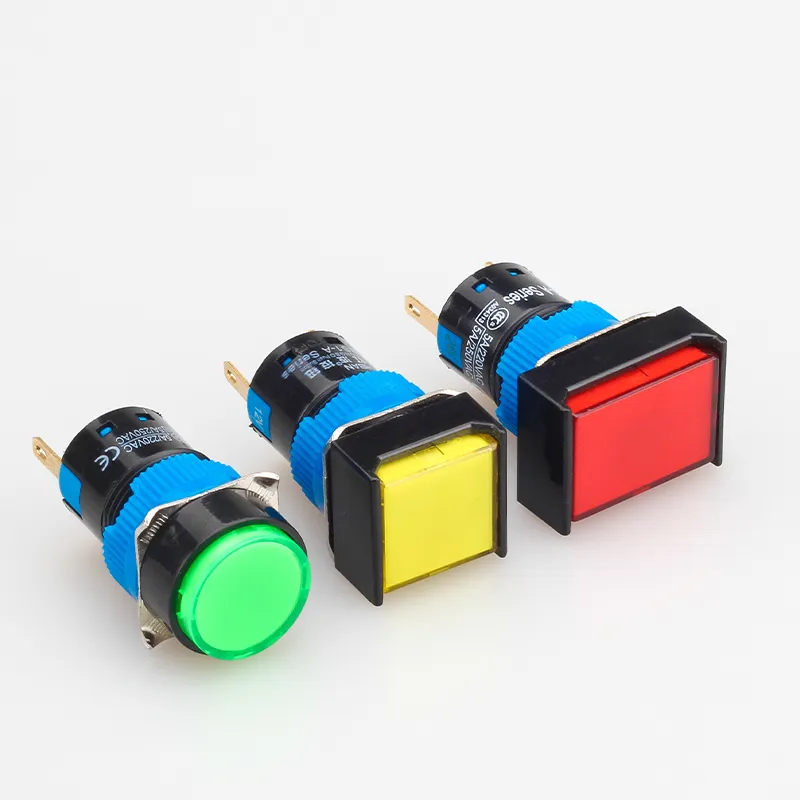

🛡️IP65 Waterproof & Durability

IP65 Waterproof First Digit (Solids): 6 (Dust-tight). Second Digit (Liquids): 5 (Low-pressure water jets). Protected against dust and water jets (6.3mm nozzle, 12.5L/min from any direction for no less than 3 minutes).
Electrical Performance
  • Rated voltage: 6V/12V/24V; 110V/220V
  • Rated current: ≤20mA
  • Lamp bead life: 50,000 hours

📝Model Specification

Series Number: HB16 This product is marked in green
Neck Mounting Dimensions 8: Ø8mm | 10: Ø10mm | 12: Ø12mm | 16: Ø16mm | 22: Ø22mm | 30: Ø30mm Standard layout size options

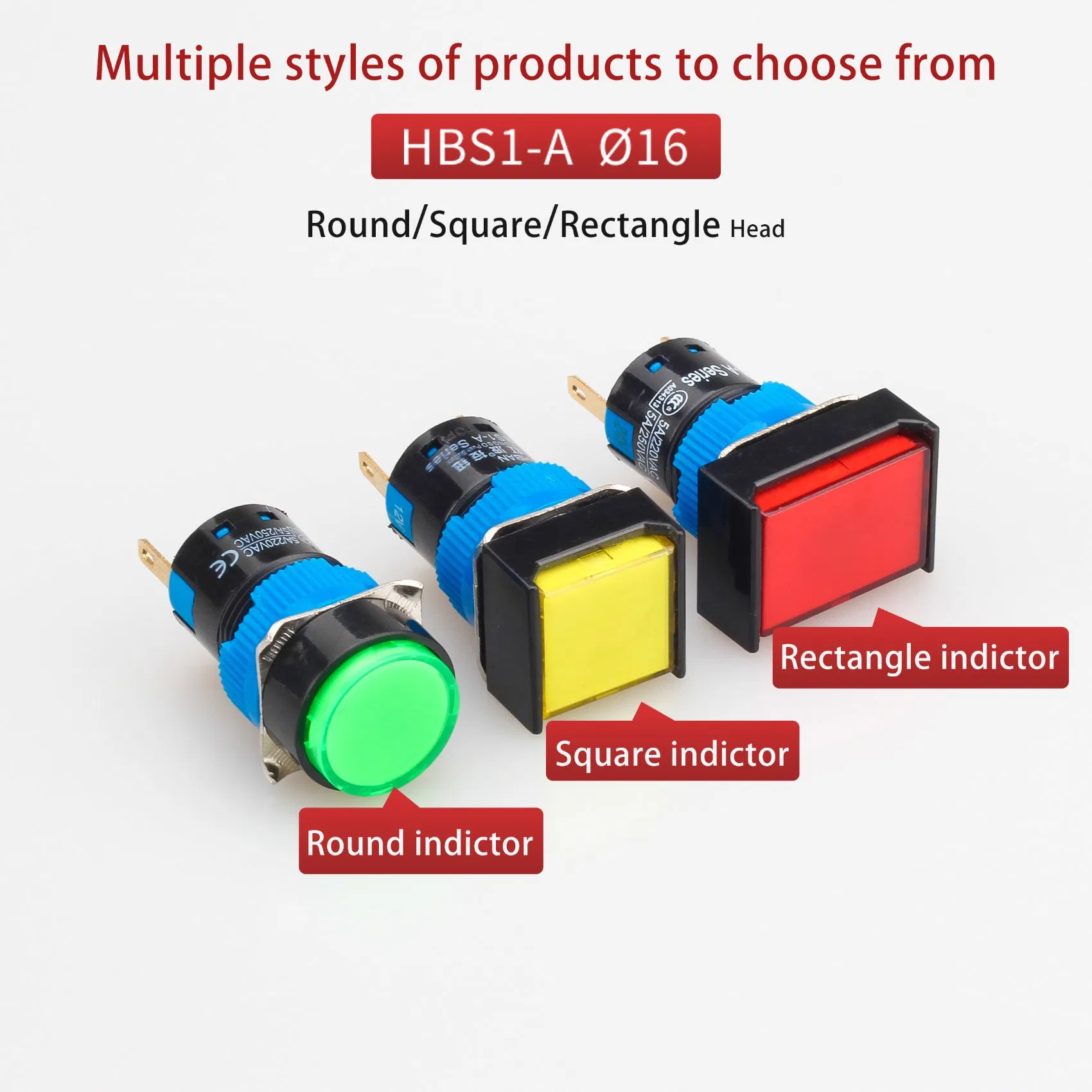

Head Shape Y: Round head | F: Square head | J: Rectangle head Diverse visual designs

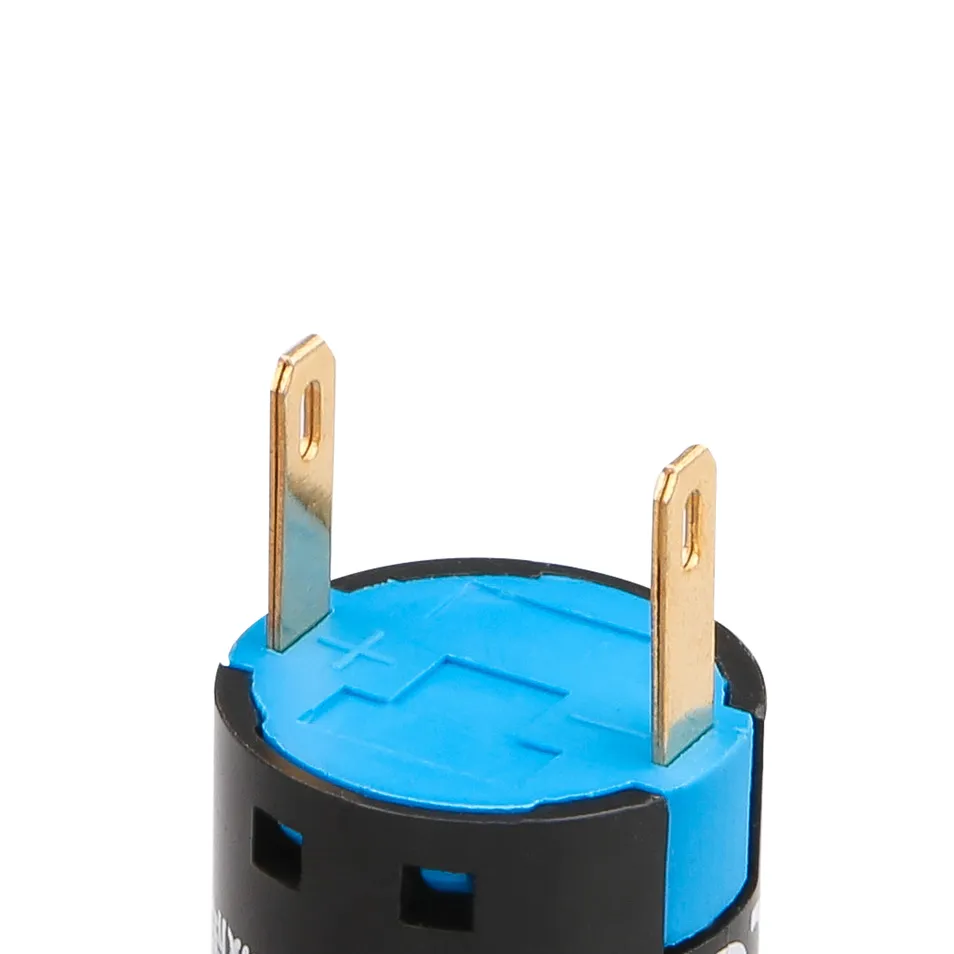

Terminal Type A: Pin terminal | D: Screw terminal Wiring connection style
Form of Structure No letters: Standard structure | S: Ultra-short structure Space-saving selection
LED Voltage 6V / 12V / 24V / 36V; 110V / 220V Other voltages can be customized
LED Color R: Red | G: Green | Y: Yellow | O: Orange | B: Blue | W: White High visibility display colors

Wiring Example

LED Signal Light Wiring Example Diagram

🏭Facility & Applications

Advanced Manufacturing Facility

Broad Industry Applications

Exhibition Presence

🚚Packing & Delivery Details

Standard Packaging Details • 40pcs/box (Including 40pcs O-ring)
• Products are placed in separate foam boxes to prevent collision.
• Foam boxes are housed in corrugated paper boxes reinforced with strapping tape.
Shipping Information • Worldwide shipping availability.
• Standard orders dispatch within 3-7 business days upon receipt of payment.
• Delivery time varies by destination, typically taking 3-8 business days.

Frequently Asked Questions

Q:Is the material eco-friendly?
A: Yes, our products are made of environmentally friendly materials and have passed ROHS and REACH certifications.
Q:Can you provide wiring diagrams or CAD files?
A: Yes, technical documents and CAD files can be provided within 24 hours upon request.
Q:Can you provide OEM/ODM services?
A: Yes, we support custom logos, colors, and other OEM/ODM services. Minimum order quantities apply.
Q:What payment methods are supported?
A: We support T/T (Wire Transfer), Credit Card, and PayPal.
Q:How to ensure that products are not damaged during transportation?
A: Products are secured in individual foam compartments, placed in thick corrugated paper boxes, and reinforced with strapping tape to prevent shifting or damage. We cooperate with reliable express delivery companies, including DHL, UPS, and FedEx.
Q:Is there a warranty?
A: Yes, all products come with a 1-year warranty period.
