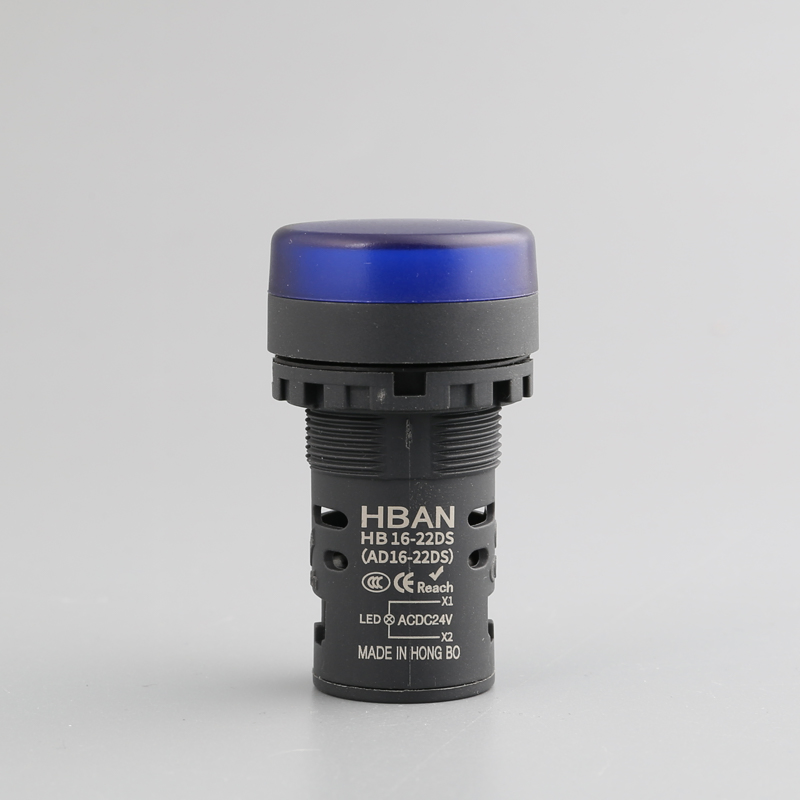

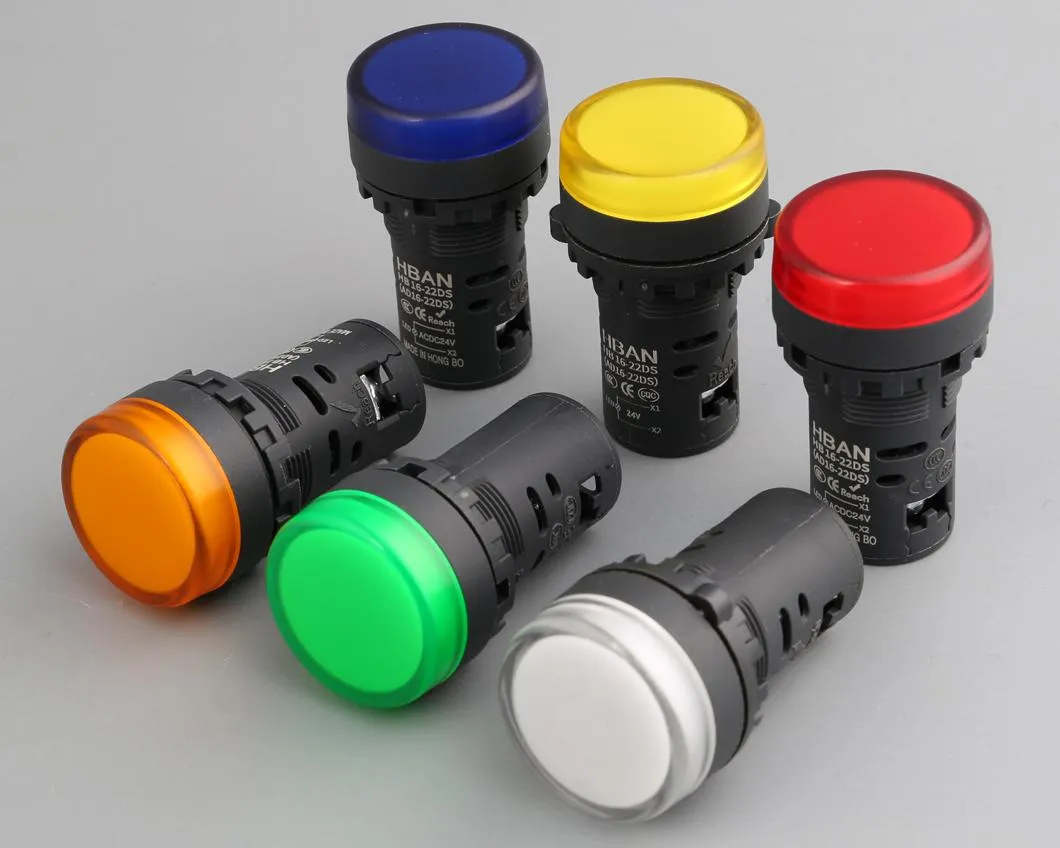

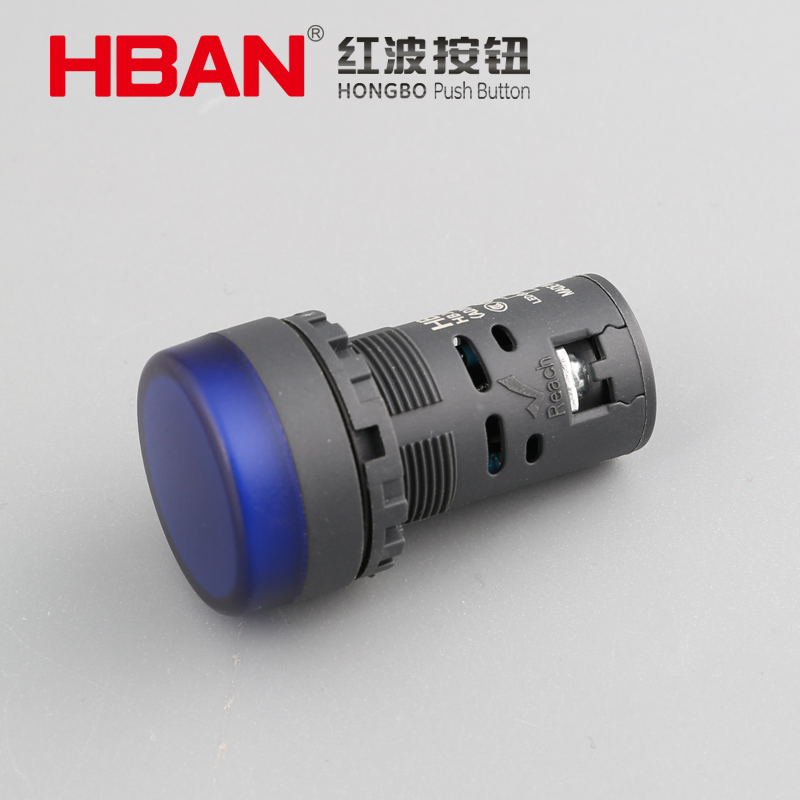

Hban 22mm High Brightness Plastic LED Signal Indicator Light for Industrial Panels

📊Basic Product Information

Model Number HB16-22DS/24V/B

Crust Material High-Quality Plastic

Working Temperature -25℃ ~ +65℃

HS Code 8531801090

Delivery Time At least 3 Working Days

Production Capacity 500,000 Units per Month

💡Product Key Features

✔ Plastic material offers low density and lightweight design, reducing installation load.

✔ Insulating properties eliminate electric leakage risks, complying with safety standards.

✔ Engineering plastic resists oil, weak acids, and humid environments.

✔ High energy efficiency: LED power consumption ≤ 1W with low heat generation.

✔ Wide temperature stability from -25 ℃ to +65 ℃ without brittleness.

🔧Specifications & Installation

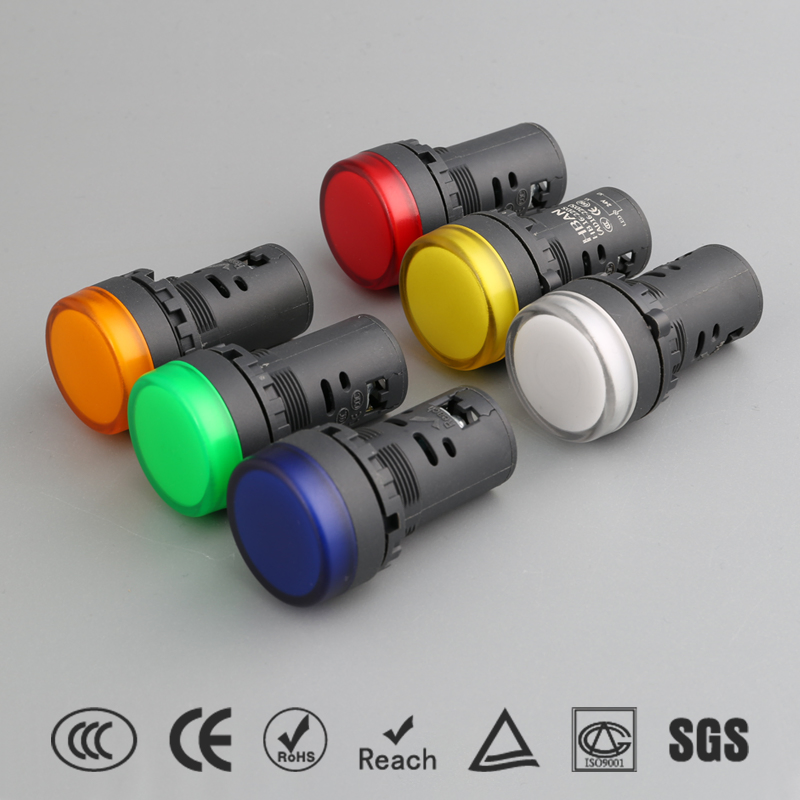

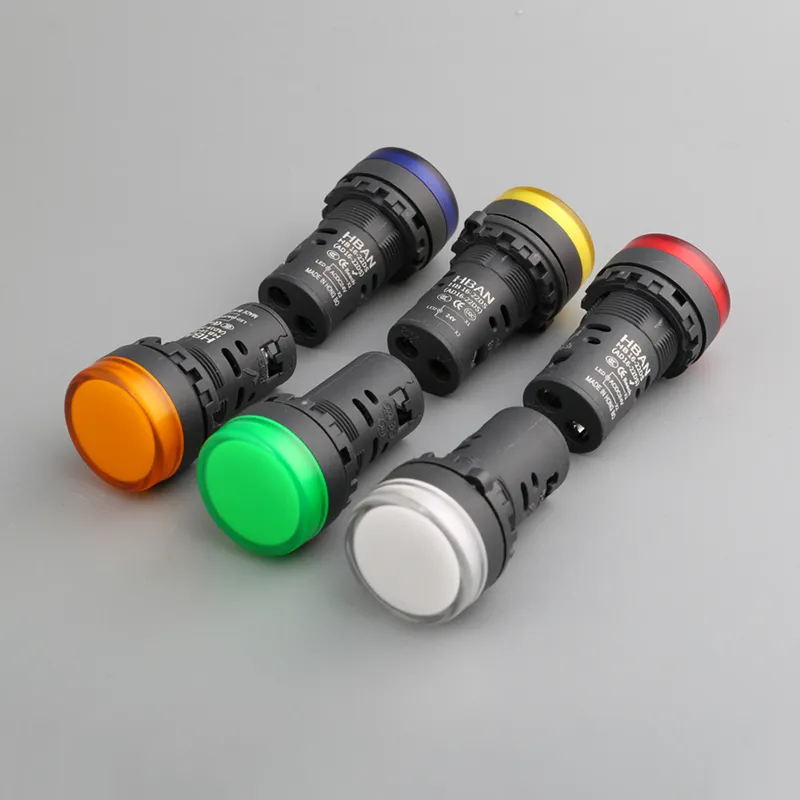

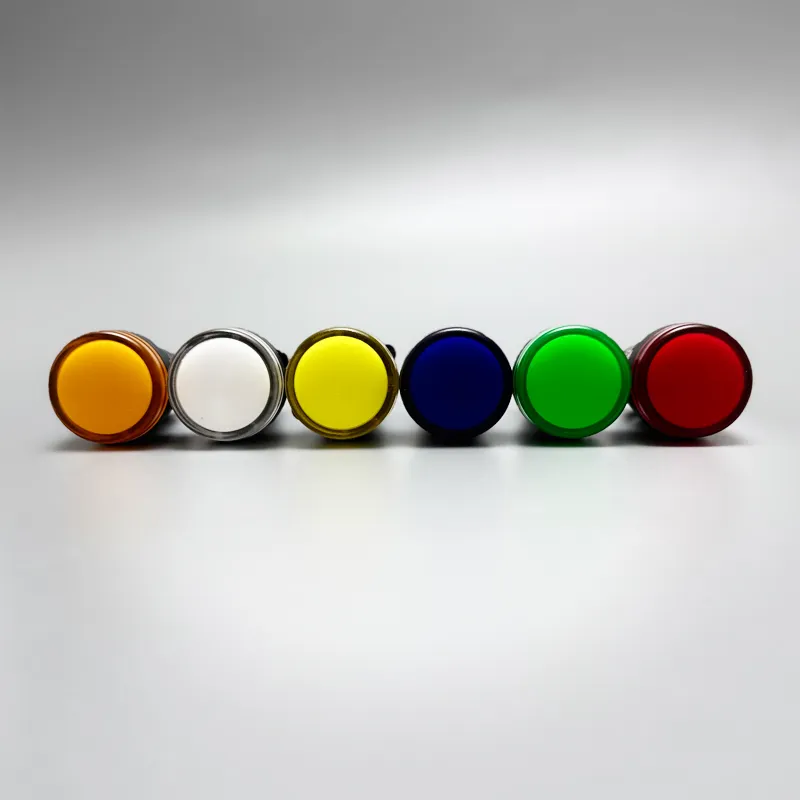

Head Colors: Red, Green, Blue, Yellow, White, Orange.

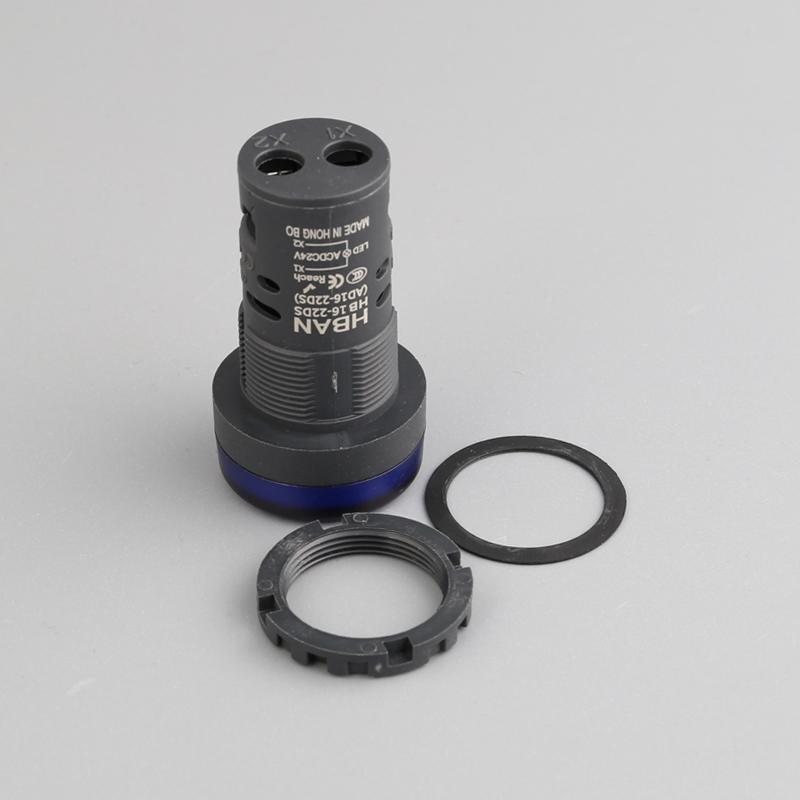

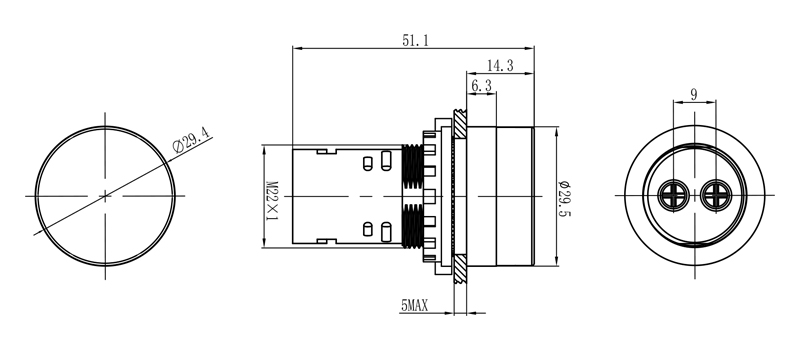

Mounting: 22mm (0.866in) hole size with matching O-ring and Nuts.
Panel Thickness: 3.5mm Max | Tightening Torque: Approx. 0.6mm.

🛡️Protection & Performance

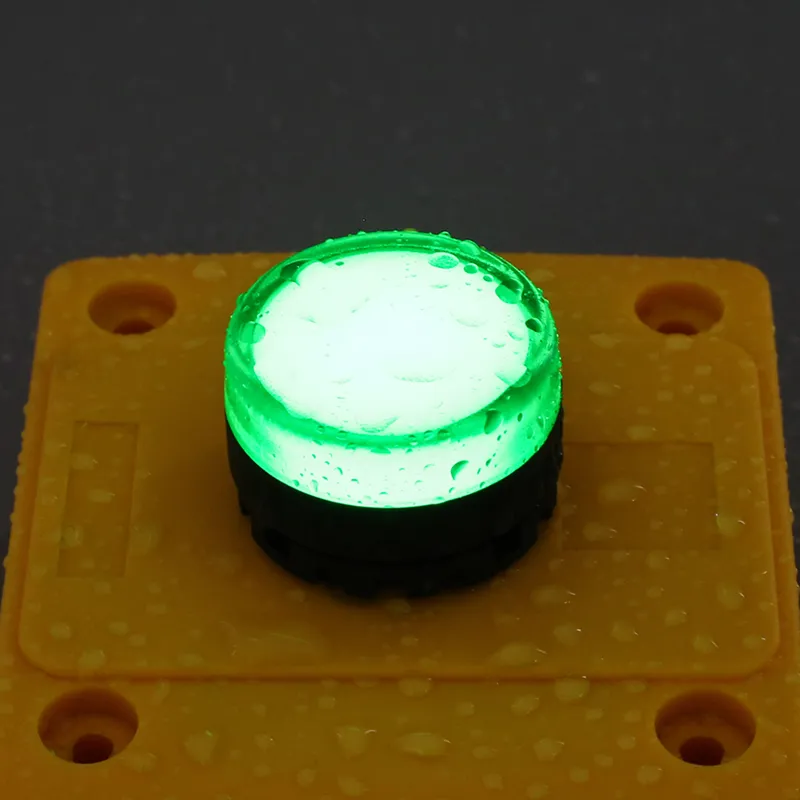

Waterproof Rating IP40 - Effective protection against solid objects (>1mm) and head waterproofing.

Working Life Lamp bead life up to 50,000 hours.

Rated Current ≤ 20mA

📋Model Specification (HB16 Series)

Category	Code & Description	Notes
Mounting Dimensions	8mm, 10mm, 12mm, 16mm, 22mm, 30mm	22mm is standard for this model
Auxiliary Code	A: Pin \| D: Screw \| SM: Flashing \| D/B: Bi-colour	Screw terminal (D) available
Structure	Standard or S: Ultra-short structure	-
LED Voltage	6V, 12V, 24V, 36V, 110V, 220V	Customization supported
LED Color	Red (R), Green (G), Yellow (Y), Blue (B), White (W)	Multi-color available

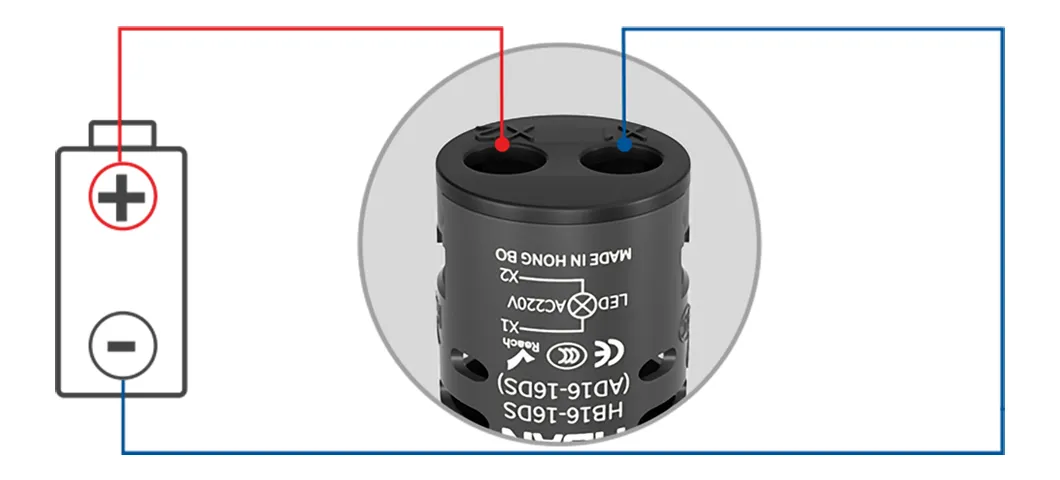

⚡Wiring Example

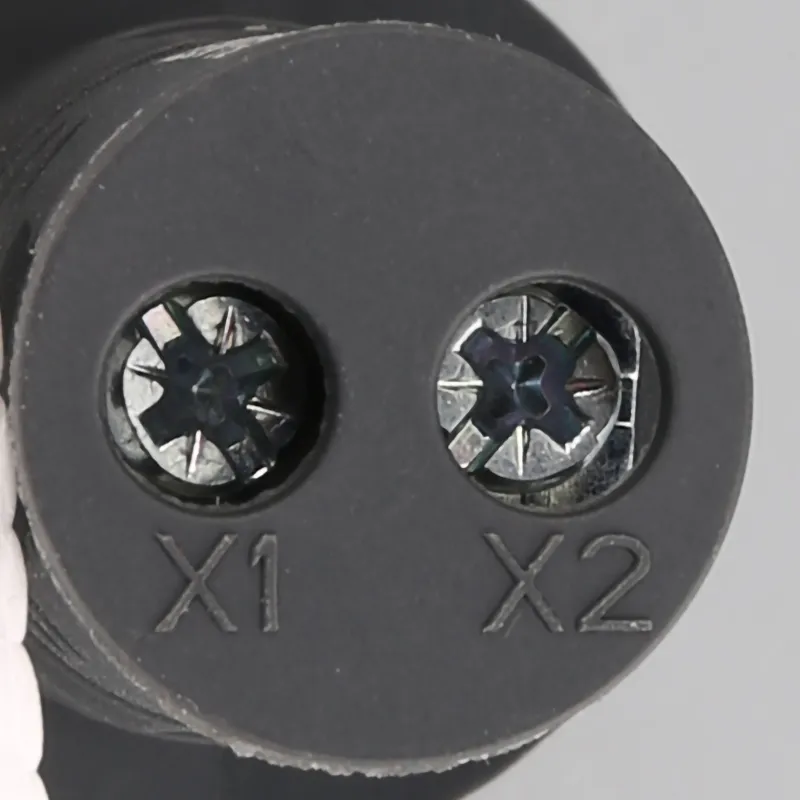

Non-polar design: Lights up upon power-on regardless of positive/negative pole orientation.

🏭Application Areas

📦Packaging & Logistics

Standard Package: 20pcs per box (including O-rings).

Protection:

Separate foam compartments to prevent collision.
High-quality corrugated paper boxes.
Strapping tape reinforcement for safe transport.

Shipping takes 3-7 business days globally via DHL, UPS, or FedEx.

❓Frequently Asked Questions

Q: Is the material eco-friendly? A: Yes, our products are made of environmentally friendly materials and have passed ROHS and REACH certifications.

Q: Can you provide wiring diagrams or CAD files? A: Yes, technical documents can be provided within 24 hours upon request.

Q: Do you support OEM/ODM services? A: Yes, we support custom logos and colors with a minimum order quantity requirement.

Q: What payment methods are supported? A: We support T/T (Wire transfer), Credit card, and Paypal.

Q: How do you prevent damage during transportation? A: Products are secured in separate foam boxes within reinforced corrugated outer cartons and strapped for maximum protection.

Q: What is the warranty period? A: The standard warranty period for this product is 1 year.
