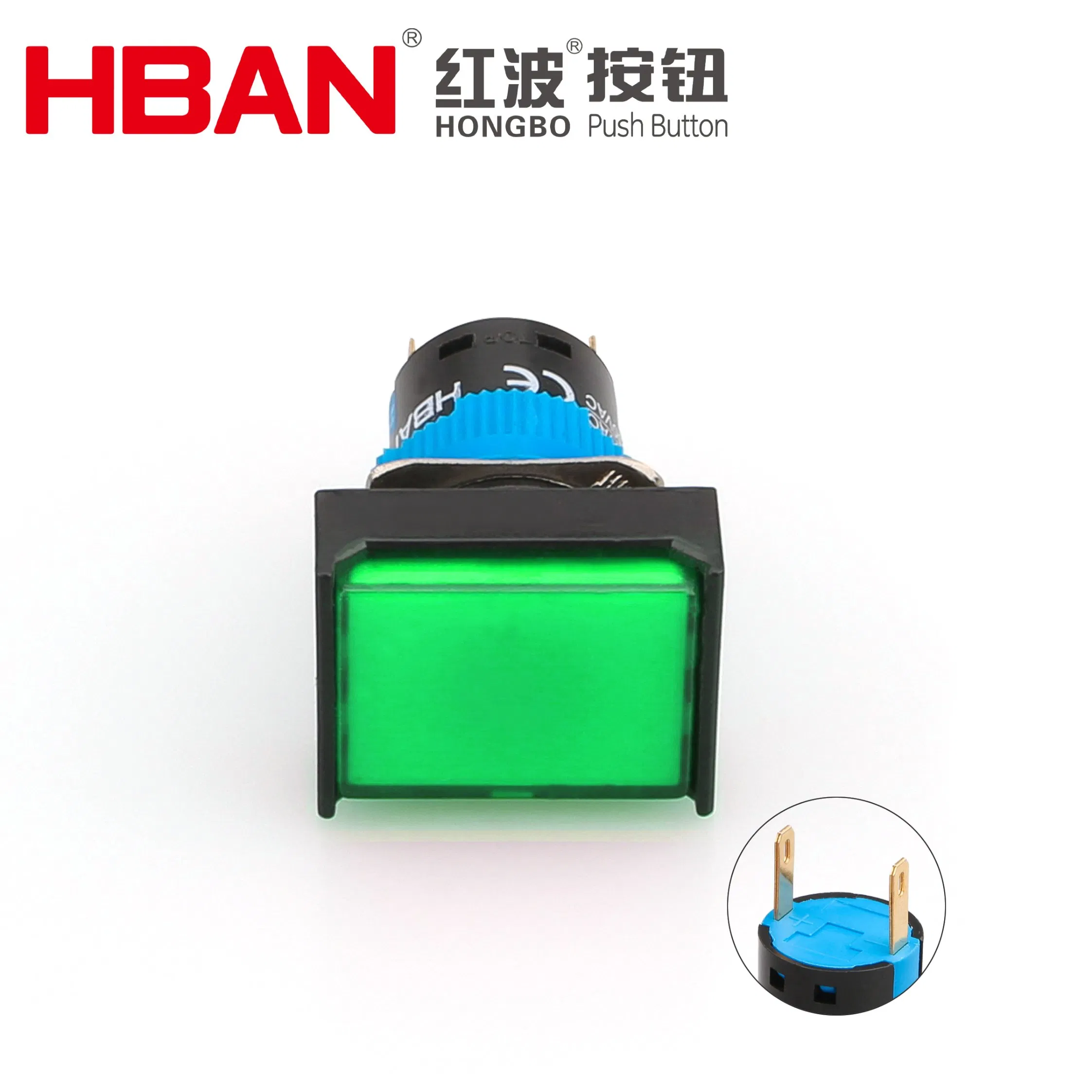

Hban 16mm Plastic Square Rectangular Circular Head Pin Terminal Signal Light

Overview & Basic Info

Model NO.	HBS1-AJ-D/LED Voltage/G
IP Rating	IP40 / IP65
Color Temperature	Warm White
Lamp Body Material	PC
Certification	CCC, CE, ISO
Protection Grade	IP65

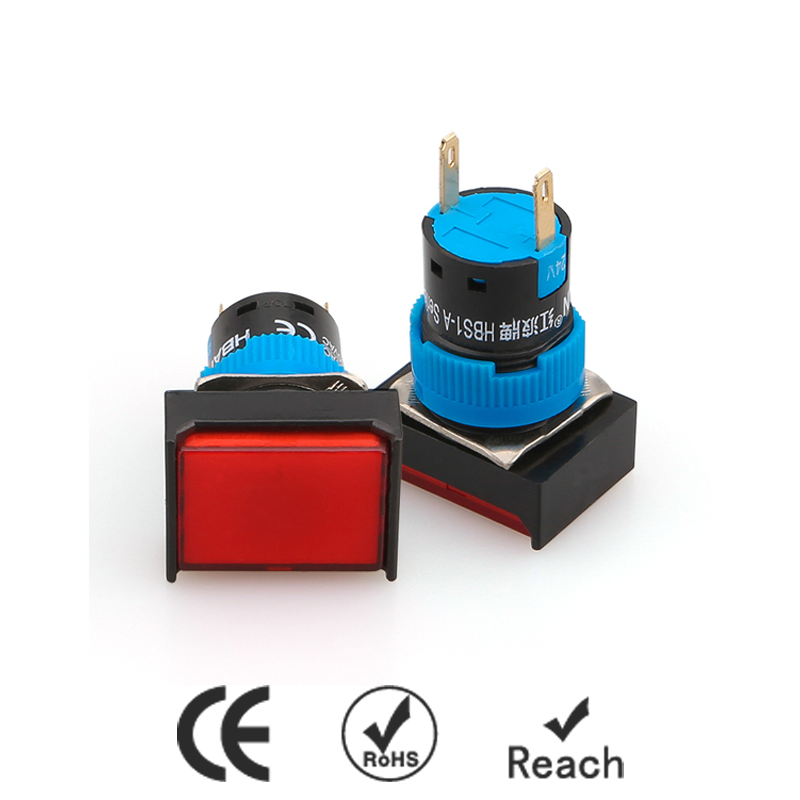

Certificate	CE, RoHS, Reach
Production Time	3-5 Working Days
Mounting Hole Size	16mm

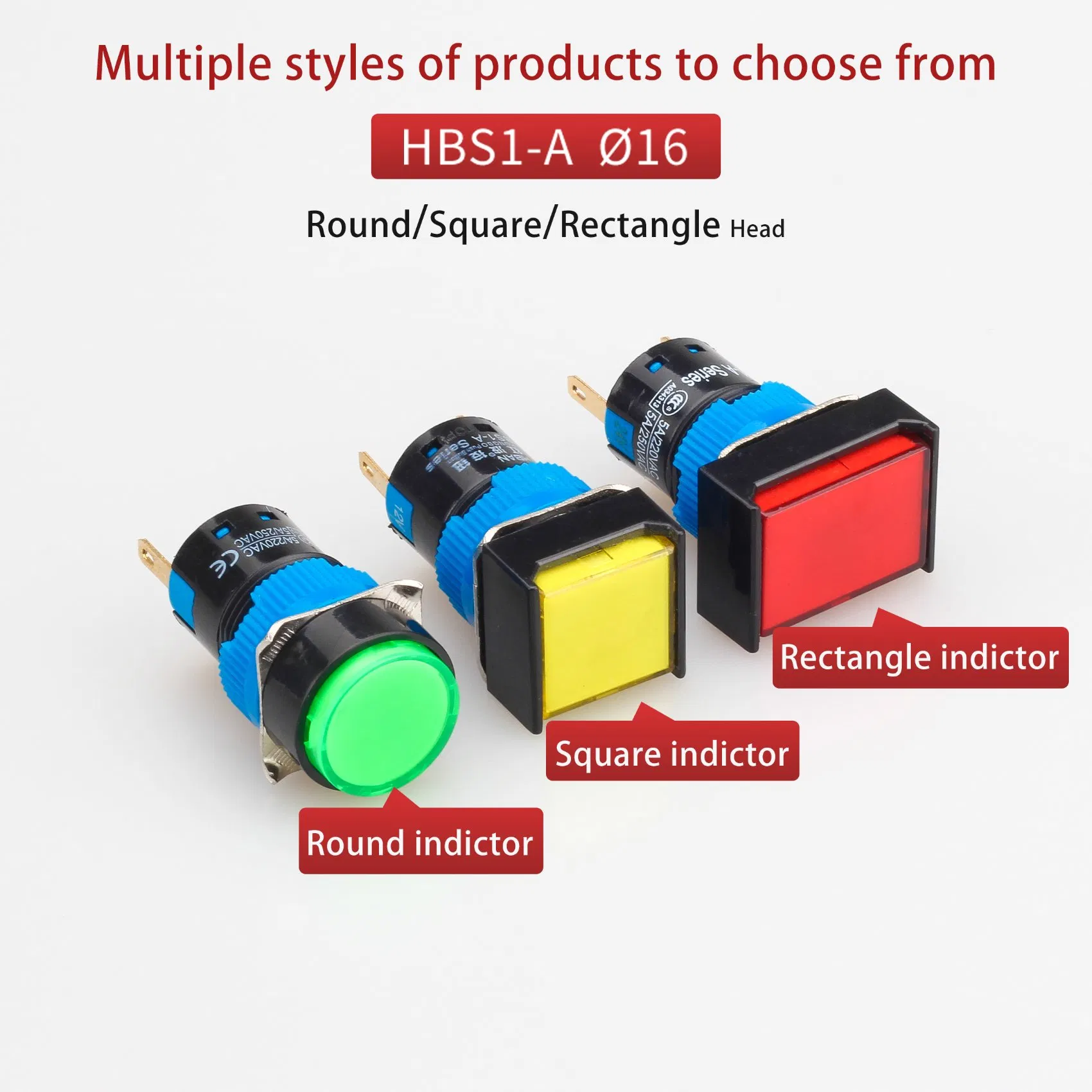

Head Shape	Round / Square / Rectangle
Terminal Type	Pin Terminal
Crust Material	Plastic

Head Color	Green
Battery Type	LED
Material	Plastic
Emergency Time	24 Hours
Installation Mode	Panel Mount
Operation Mode	Maintained
Usage	Electrify
Transport Package	40PCS/Box
Specification	CE, ROHS, ISO9001
Origin	Zhejiang, China
HS Code	8531809000
Production Capacity	200,000 PCS/Month

Packaging & Delivery Specifications

Package Size	21.00cm * 13.00cm * 6.00cm
Package Gross Weight	0.100kg

Product Description

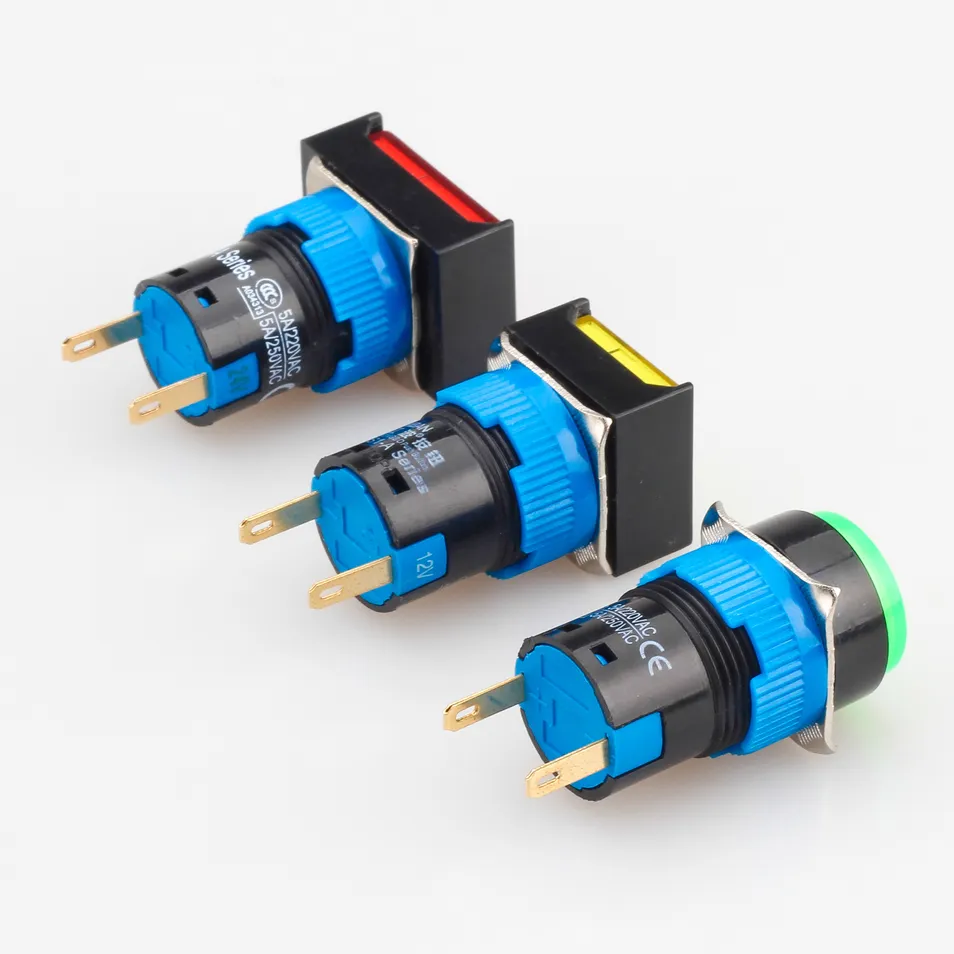

16mm Plastic Square Rectangular Circular Head Pin Terminal Signal Light

■

Material Characteristics: Plastic has a much lower density than metal, significantly reducing overall weight. Easy to install, transport, or hang for use. Suitable for temporary engineering, traffic diversion, mobile devices, and scenarios requiring frequent movement.

■

Chemical Corrosion Resistance: Strong resistance to corrosive substances such as acid, alkali, and salt. Ideal for chemical industries and coastal high humidity environments.

■

Electric Shock Risk Prevention: Non-conductive plastic shell provides enhanced safety in electric shock hazard locations like power facilities and substations.

■

Low Maintenance & Durability: No rust prevention treatment needed, easy to clean, and highly cost-effective. High-quality engineering plastics exhibit superb impact resistance.

■

High Brightness LEDs: Offers high brightness to meet different styles and voltages. The plastic casing has lower heat dissipation requirements, reducing energy consumption and electricity costs.

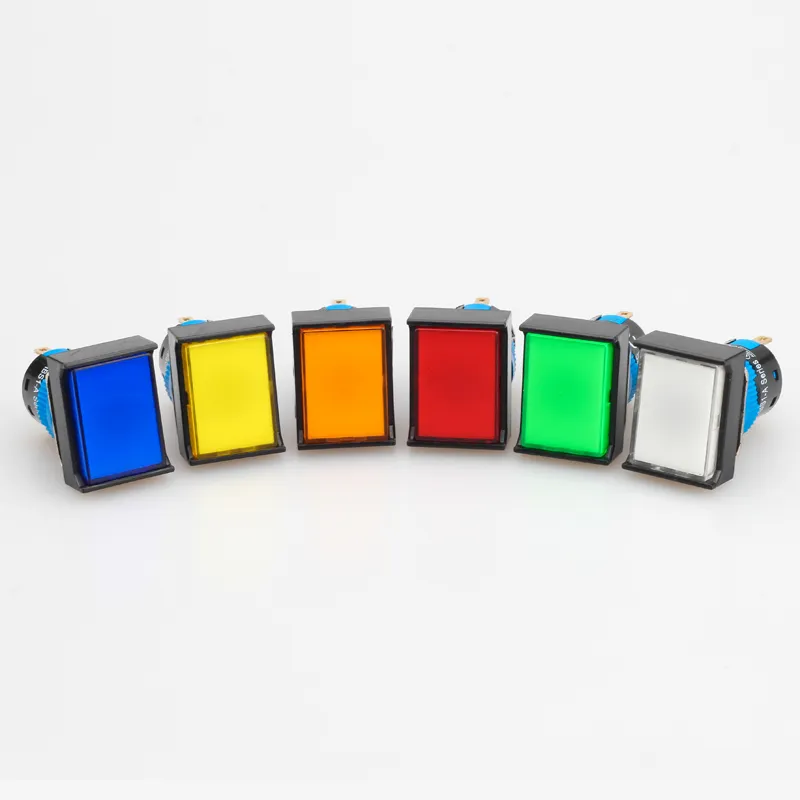

Supports Multi-Color Head Customization

Easy Mounting Installation

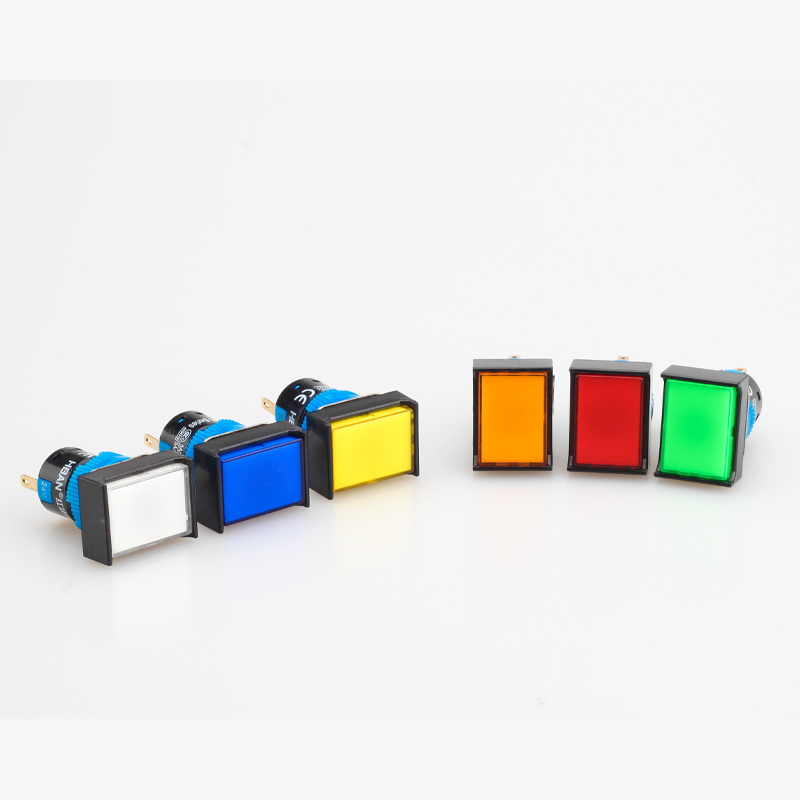

Head Color Selection

Red / Green / Blue / Yellow / White

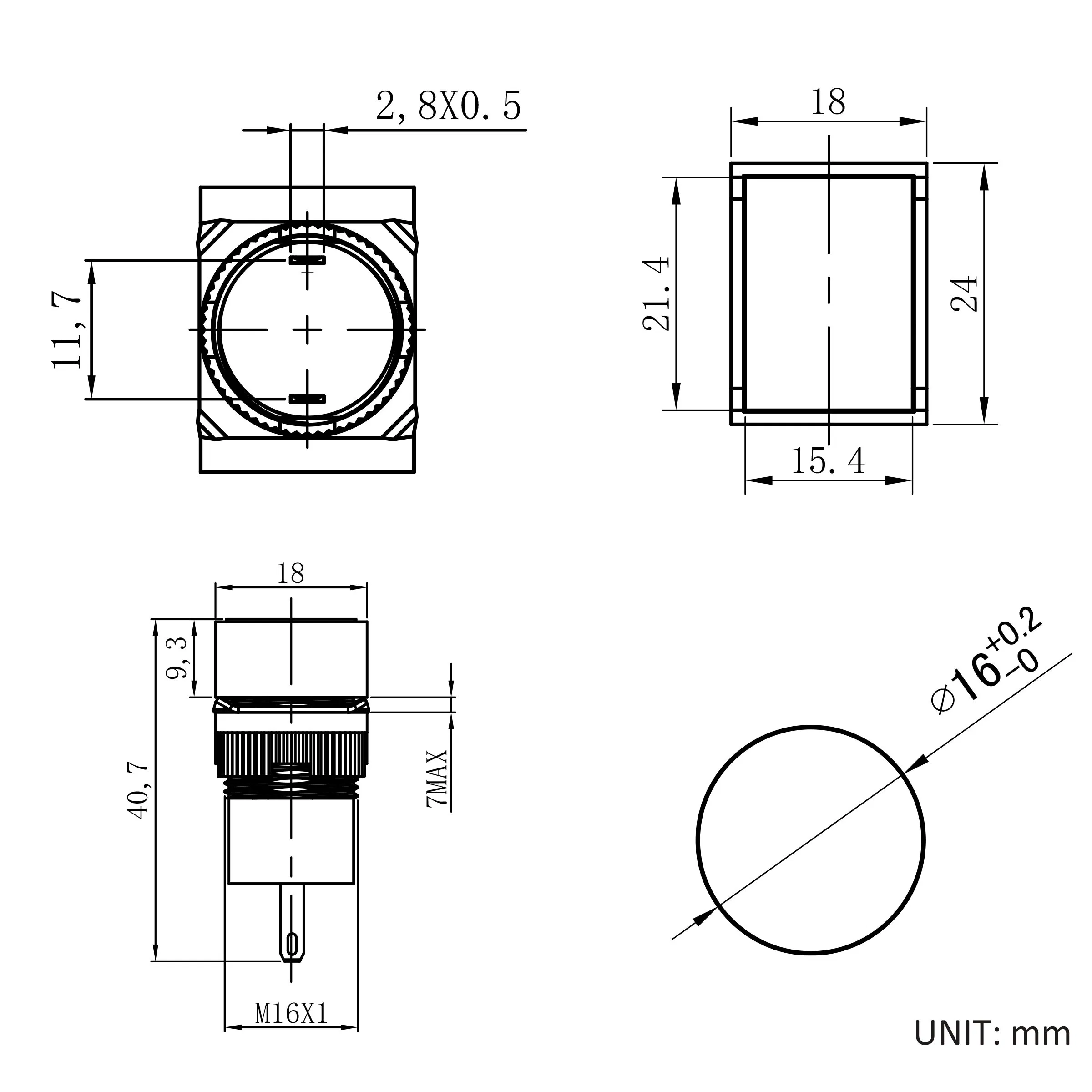

Installation Specifications

Mounting Hole Size: 16mm / 0.625in
Structure: Matching O-ring + Nuts
Panel Thickness: Max 7mm
Tightening Torque: About 0.4Nm

IP65 Dustproof & Waterproof

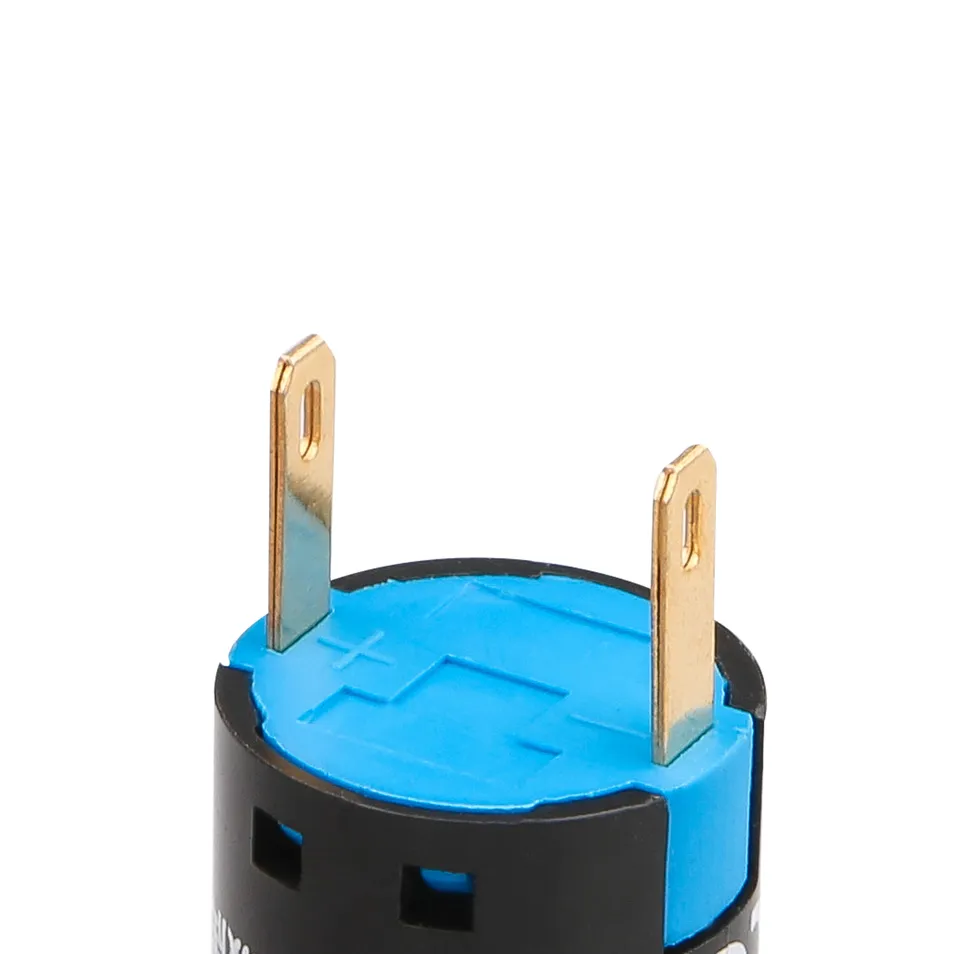

Long Working Lifetime

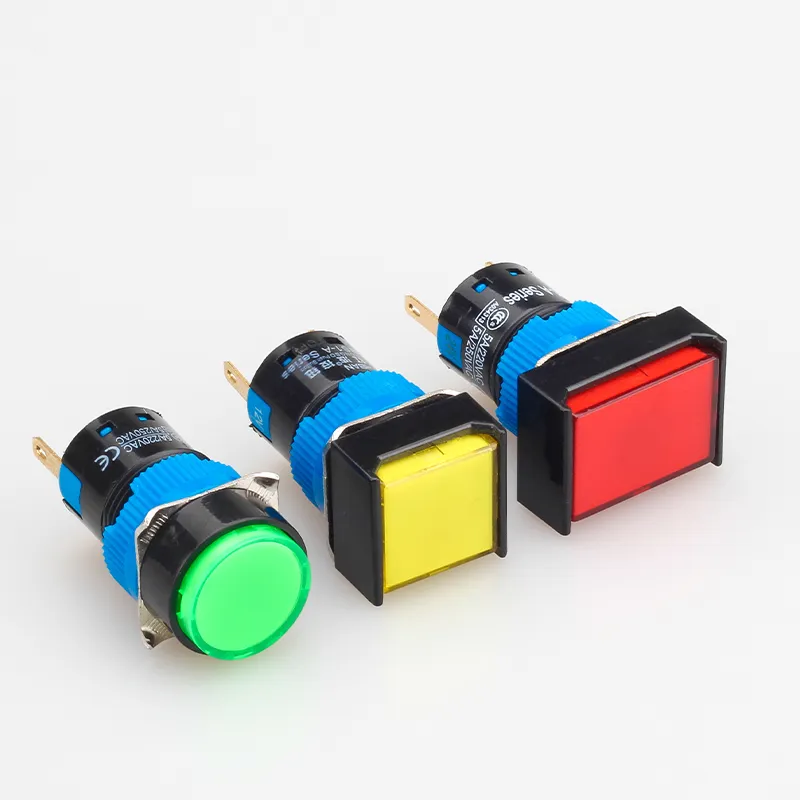

IP65 Waterproof Performance

Solids Protection: level 6 (Dust-tight)
Liquids Protection: level 5 (Low-pressure water jets from any direction)
Testing Duration: No less than 3 minutes using a 6.3mm nozzle at 12.5L/min

Electrical Specifications

Rated Voltage: 6V/12V/24V; 110V/220V
Rated Current: ≤20mA
Lamp Bead Lifetime: 50,000 Hours

Model Specification Matrix

Series Number: HB16 Highlighted attributes correspond to this product model

Specification Type	Standard Options	Remarks
Neck Mounting Dimensions	Ø8mm / Ø10mm / Ø12mm / Ø16mm / Ø22mm / Ø30mm	Standard mounting sizes
Head Shape	Round head (Y) / Square head (F) / Rectangle head (J)	Geometric configurations
Terminal Type	Pin Terminal (A) / Screw Terminal (D)	Connection interfaces
Form of Structure	Standard Structure (No letters) / Ultra-short Structure (S)	Depth spacing variants
LED Voltage	6V / 12V / 24V / 36V / 110V / 220V	Other custom voltages available on request
LED Color	Red (R) / Green (G) / Yellow (Y) / Orange (O) / Blue (B) / White (W)	Emission indicator colors

Wiring Diagram & Terminal Layout

Product Applications

Industrial Automation Equipment

New Energy EV Charging Stations

Marine & Offshore Engineering

Lab & Testing Equipment

Rail Transit Systems

Power Control Cabinets & Distribution Systems

Packaging & Shipping Details

Standard Box Details

Package Configuration: 40 pcs/box (Includes 40 pcs O-rings)

1.

Separate foam slot partitions safeguard every unit from scratches or collision impact during transport.

2.

Foam partitions are placed securely inside rigid inner cartons, with O-rings packaged together.

3.

Thick corrugated paperboard boxes are used for outer boxing, reinforced with strapping tapes.

Global Delivery

Deliveries are managed worldwide to support quick site installations:

✓

Global shipping routes via standard courier services.

✓

Regular shipping fulfillment within 3-7 business days upon receiving payment.

✓

Estimated express arrival time to destinations: 3-8 business days.

Shipping methods and logistics distribution

Frequently Asked Questions (FAQ)

Is the material eco-friendly?

Yes, our products are made of environmentally friendly materials and have passed ROHS and REACH certifications.

Can you provide wiring diagrams or CAD files?

Yes, please contact our support representatives, and they will provide the requested documents within 24 hours.

Can you provide OEM/ODM services?

Yes, we support OEM/ODM services, including custom logos and color modifications. Minimum order quantity (MOQ) requirements apply.

What payment methods are supported?

We support standard payment systems including Bank Wire Transfer (T/T), Credit Cards, and Paypal.

How are products protected against transit damage?

Products are nestled in individual protective foam slot boxes, boxed in heavy-duty corrugated cartons, and strapped tightly for optimal shock prevention.

Do the products come with a warranty?

Yes, all standard product units carry a product quality warranty period of 1 year.
