EV Light
1 / 5

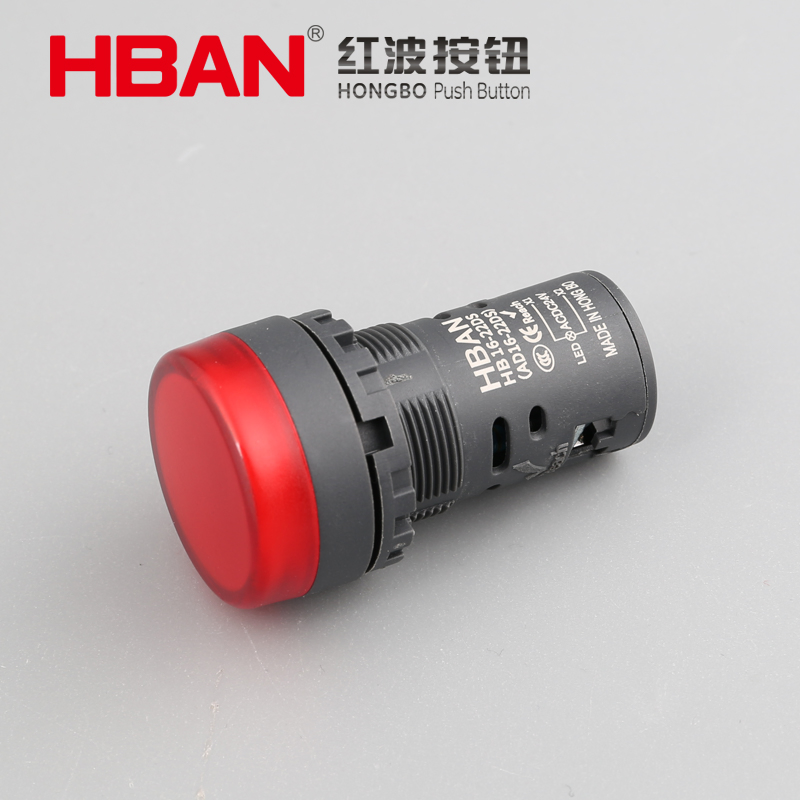

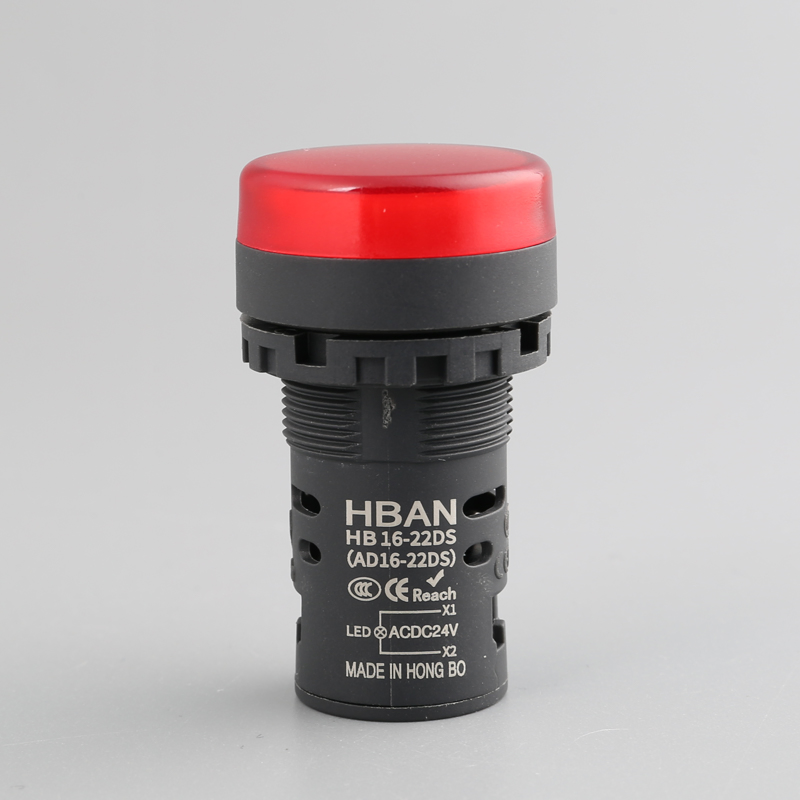

| Model NO. | HB16-22DS/24V/R |
|---|---|
| Delivery | at Least 3 Working Days |
| The Crust Material | Plastic |
| Working Environment Temperature | -25℃~+65℃ |
| Manufacturer | Yes |
|---|---|
| HS Code | 8531801090 |
| Production Capacity | 500000/Month |
| Package Size | 21.00cm * 13.00cm * 6.00cm | Package Gross Weight | 1.000kg |
|---|

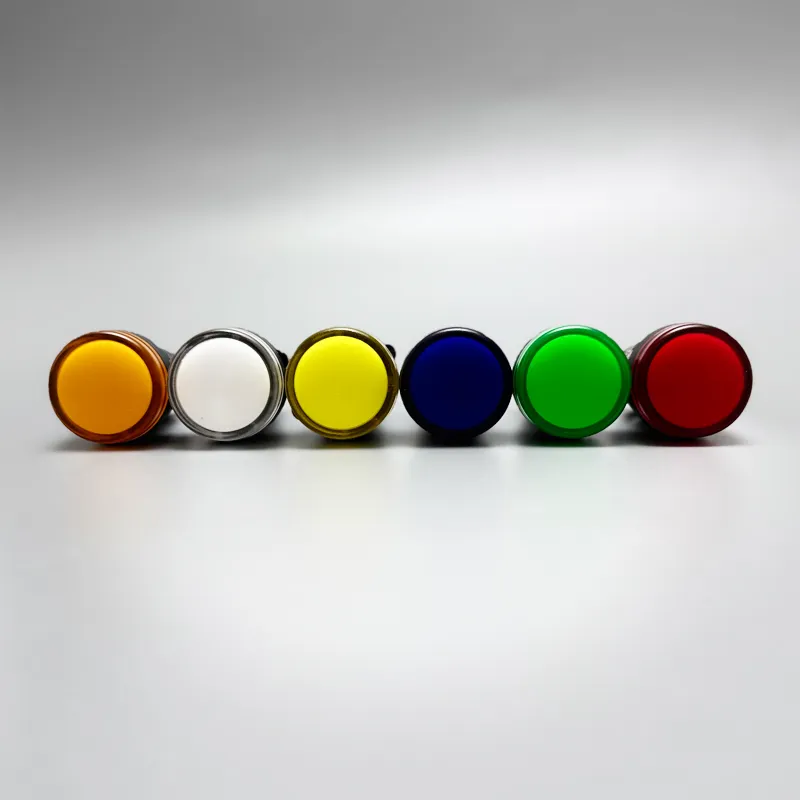

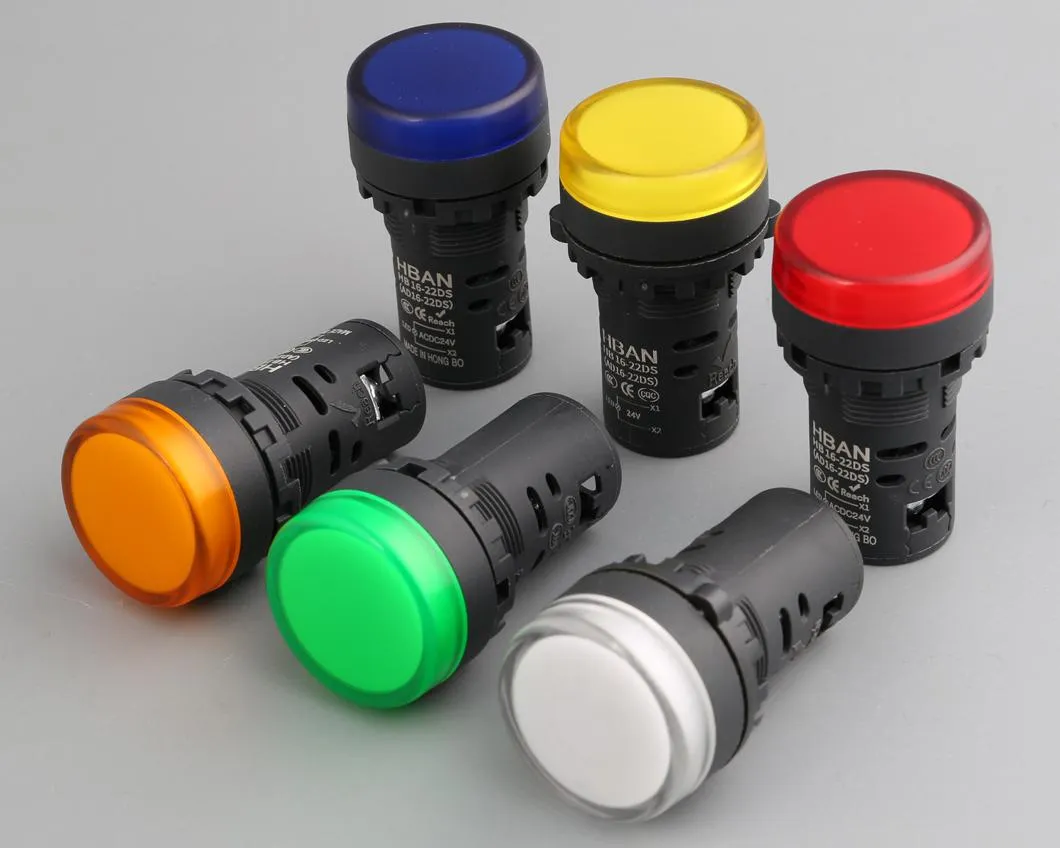

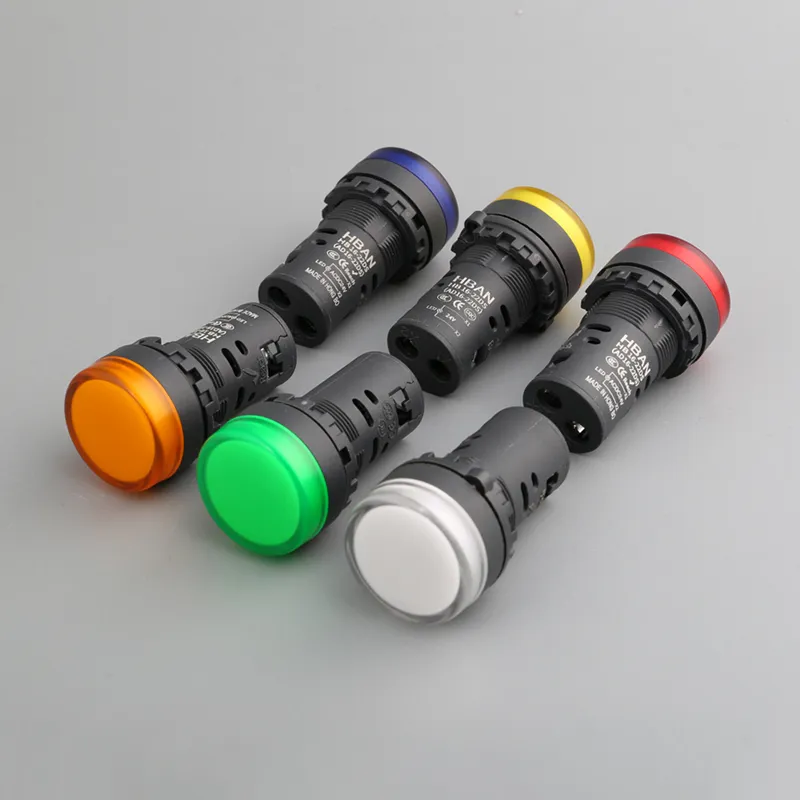

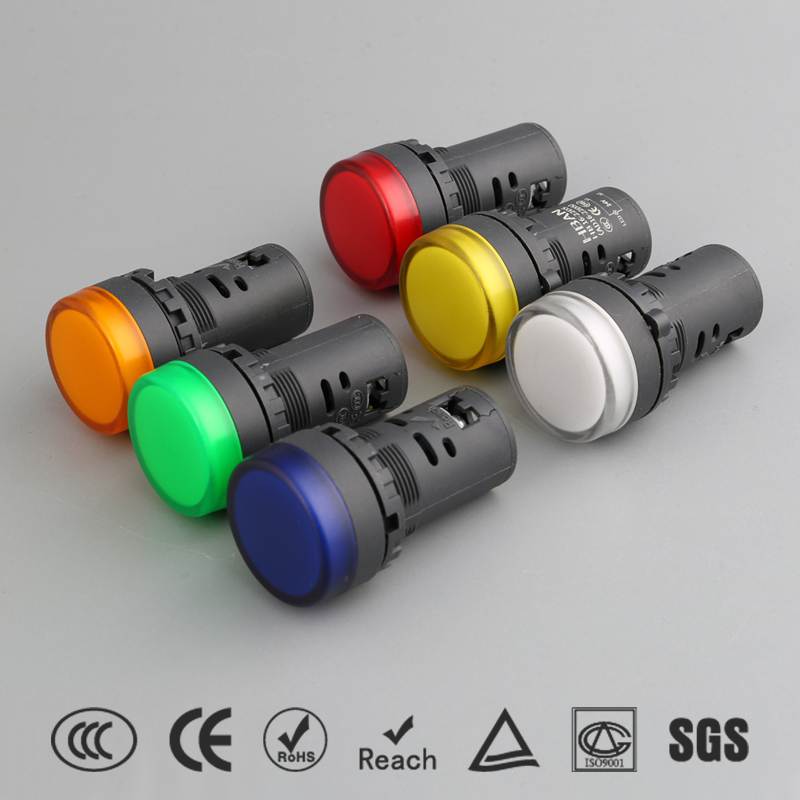

Head color selection: Red / Green / Blue / Yellow / White / Orange

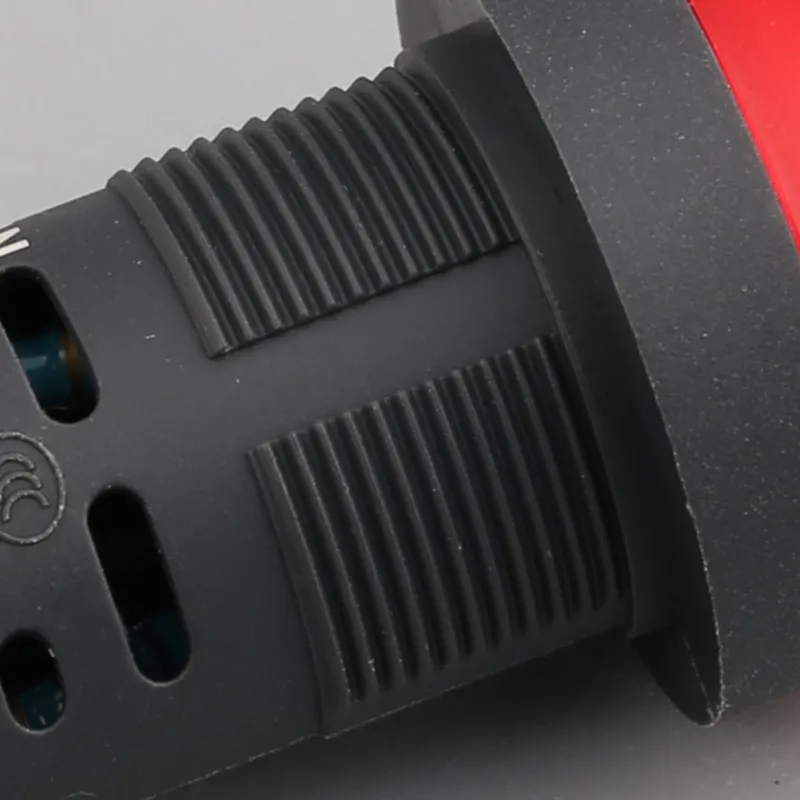

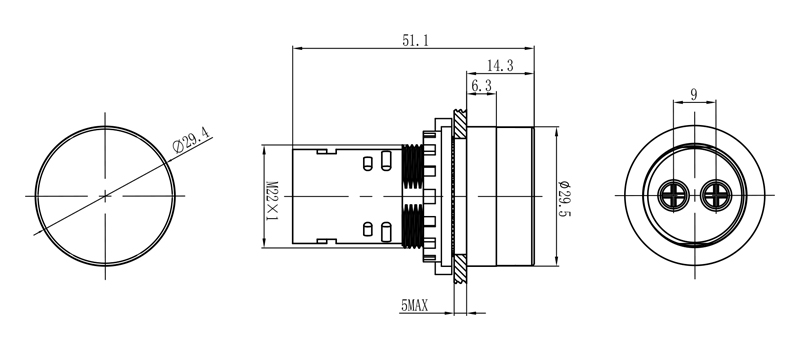

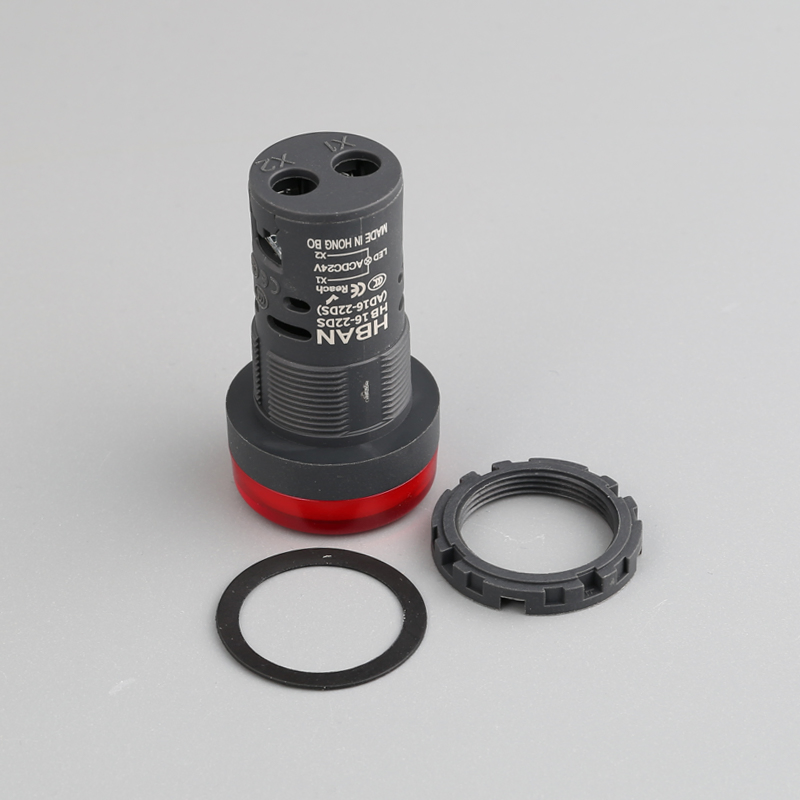

22mm / 0.866in mounting hole size. Matching O-ring + Nuts.
Panel thickness: 3.5mm MAX.
Tightening torque: About 0.6mm.

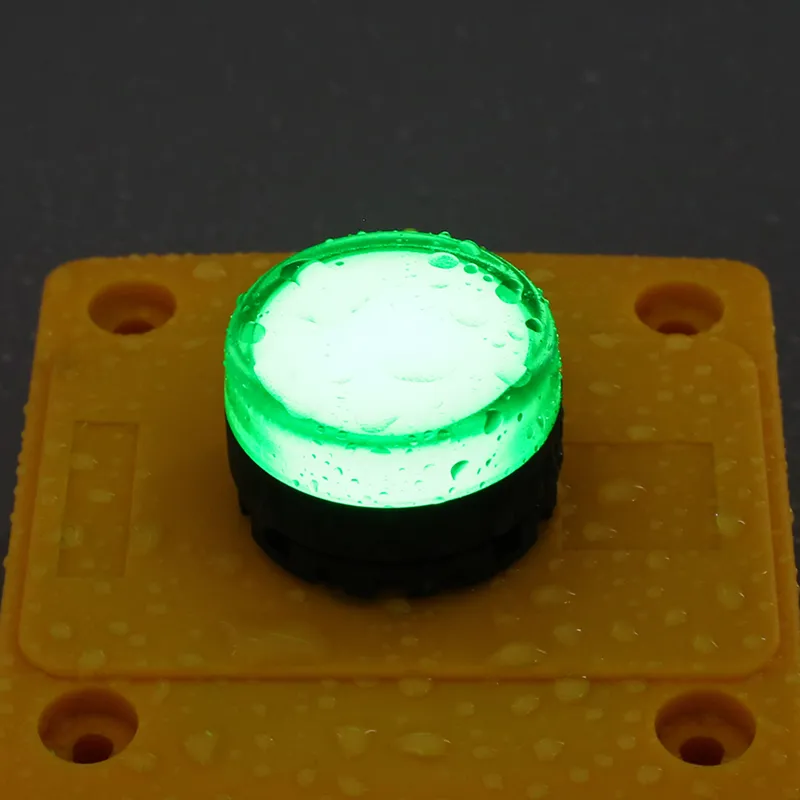

Prevent solid foreign objects with a diameter greater than 1mm from entering the interior of the equipment. The head is effectively waterproof.
Rated voltage: 6V/12V/24V; 110V/220V
Rated current: ≤20mA
Lamp bead life: 50000 hours
| Series Number: HB16 | ||
|---|---|---|
| Neck Mounting Dimensions | 8: Ø8mm | 10: Ø10mm | 12: Ø12mm | 16: Ø16mm | 22: Ø22mm | 30: Ø30mm | Standard configurations |
| Auxiliary Code | A: Pin terminal | D: Screw terminal | SM: Flashing indicator | D/B: Bi-colour LED | Varying connection styles |
| Form of Structure | No letters: Standard structure | S: Ultra-short structure | Dimension options |
| LED Voltage | 6V / 12V / 24V / 36V; 110V / 220V | Other voltages can be customized |
| LED Color | R: Red | G: Green | Y: Yellow | O: Orange | B: Blue | W: White | Color selections |

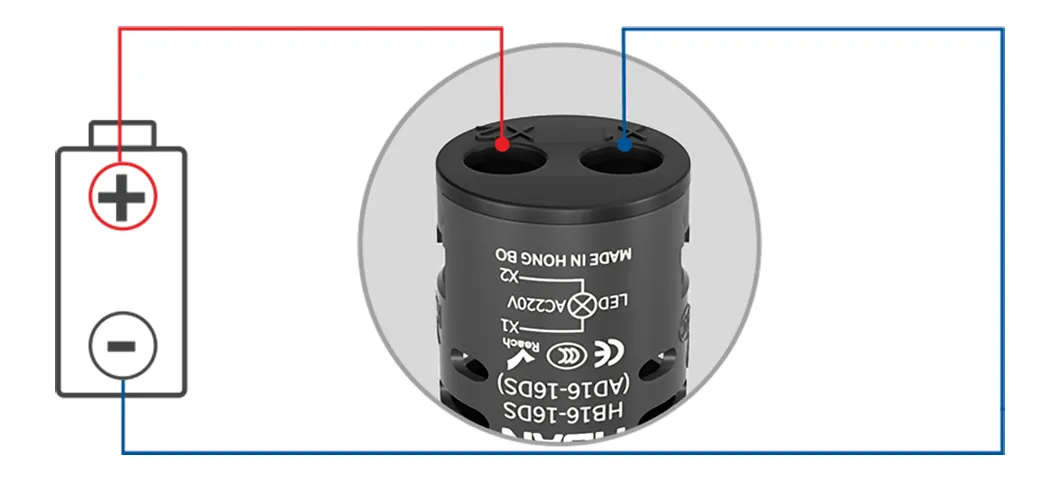

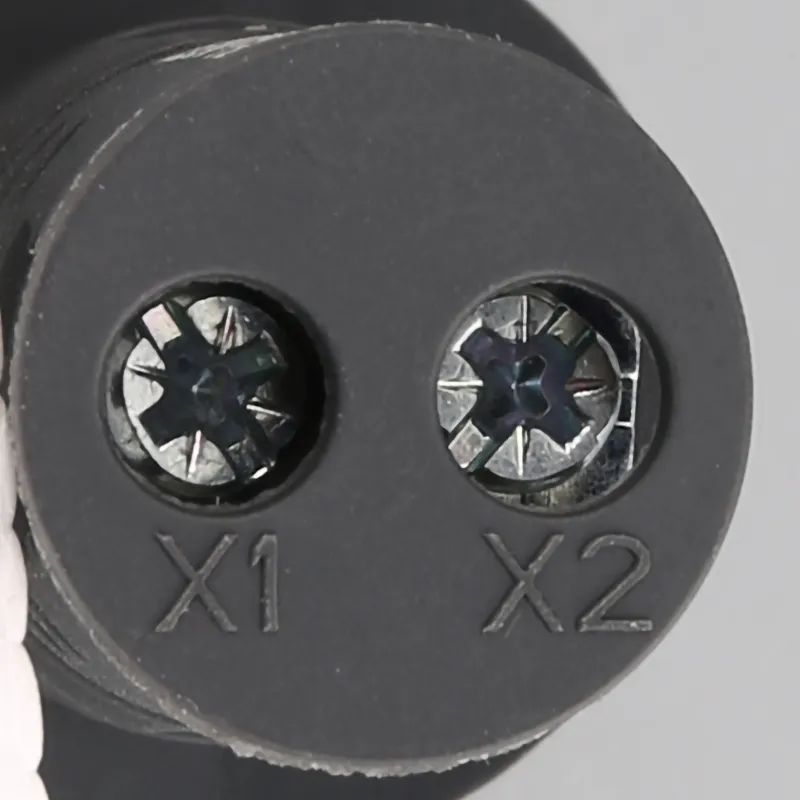

1. When powered on, it lights up without distinguishing between positive and negative poles.

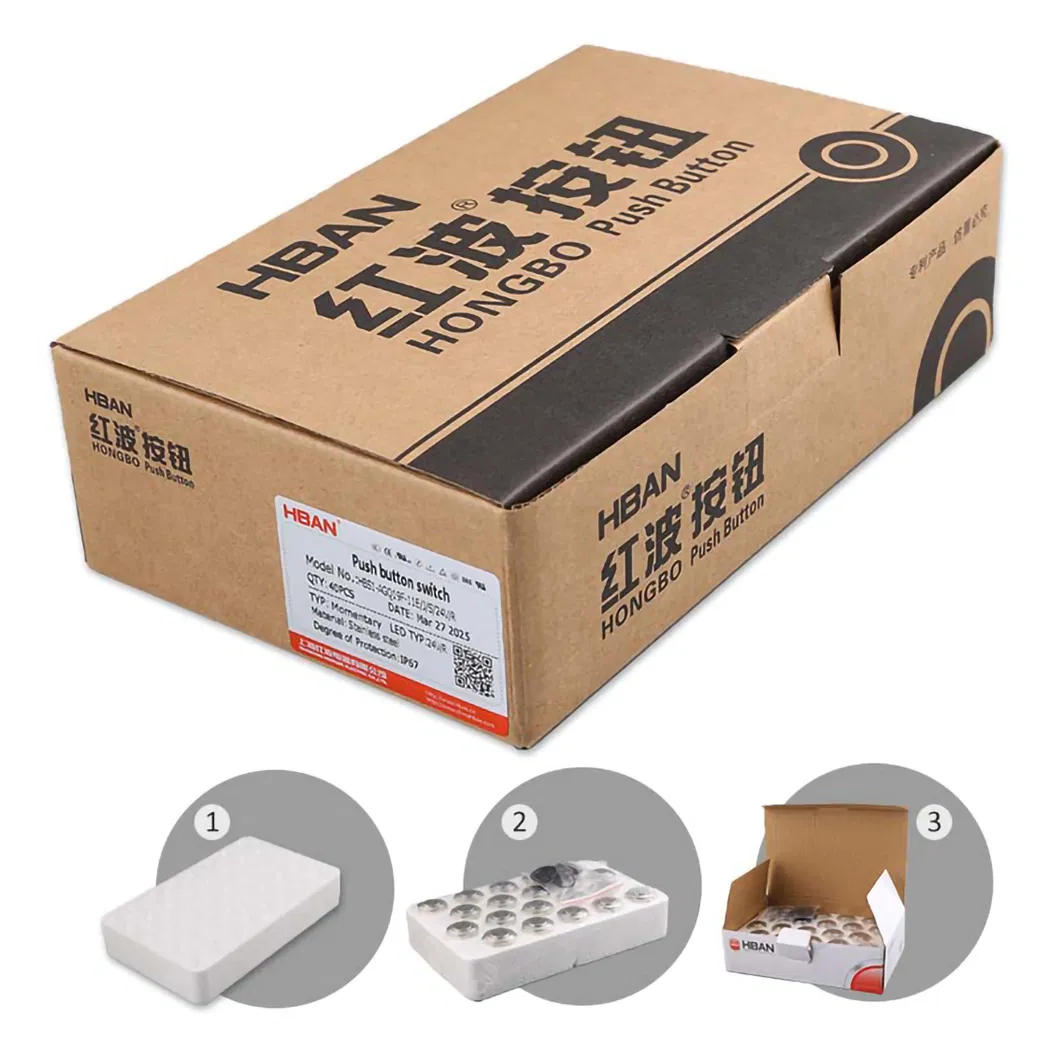

20pcs/box (Including 20pcs O-ring)
1 & 2: The products are placed into separate foam boxes to prevent collision.
3: The foam box is placed into the packaging box along with the black O-ring. Corrugated paper boxes are used and reinforced with strapping tape.
1. Shipping available worldwide.
2. Items are generally shipped within 3-7 business days upon receipt of payment.
3. Delivery time depends on the destination and other variables, typically taking 3-8 business days.
