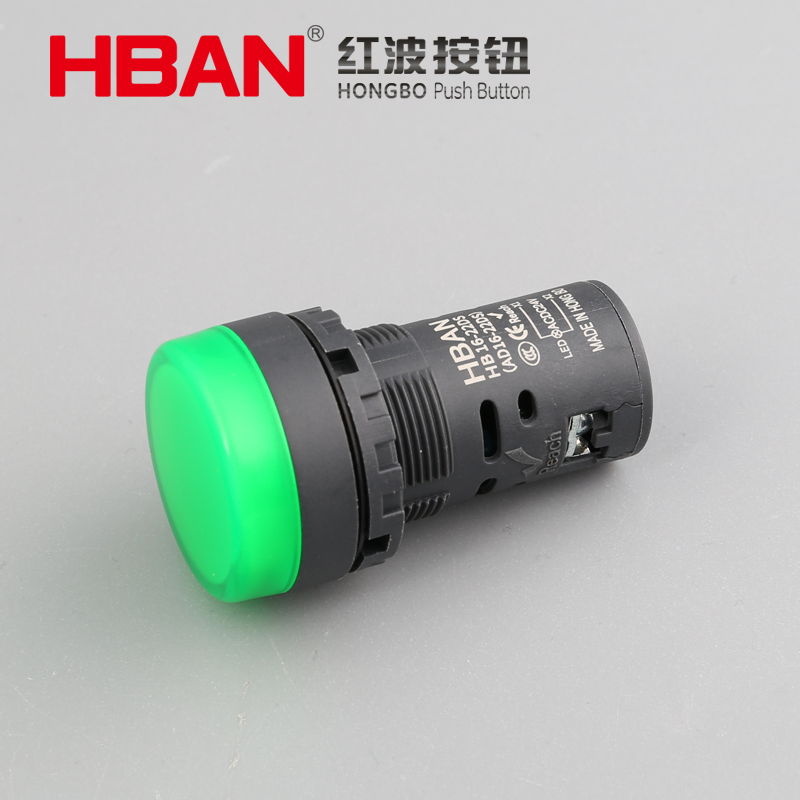

EV Light
1 / 5

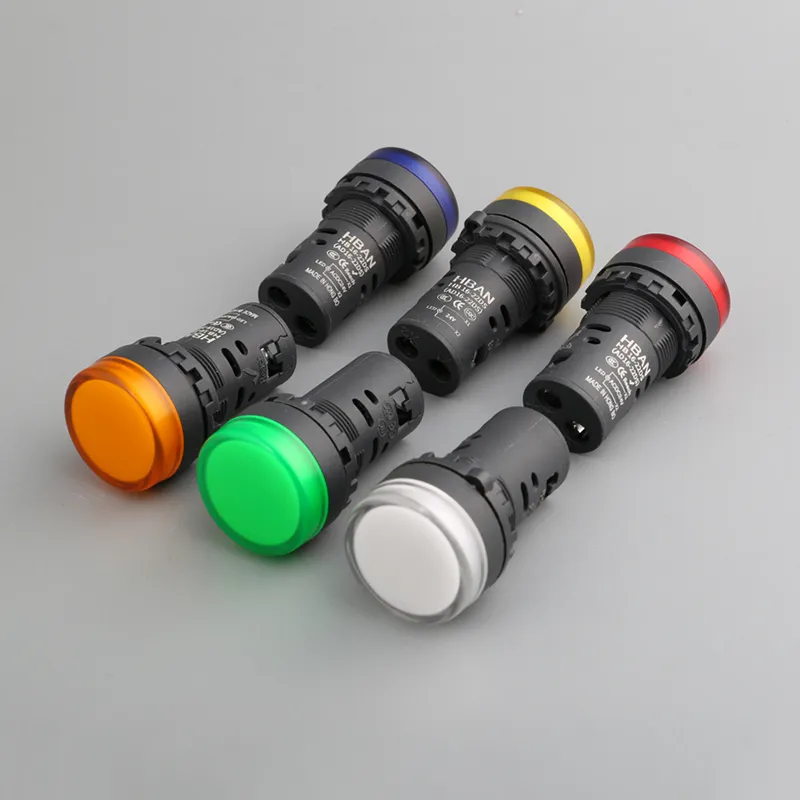

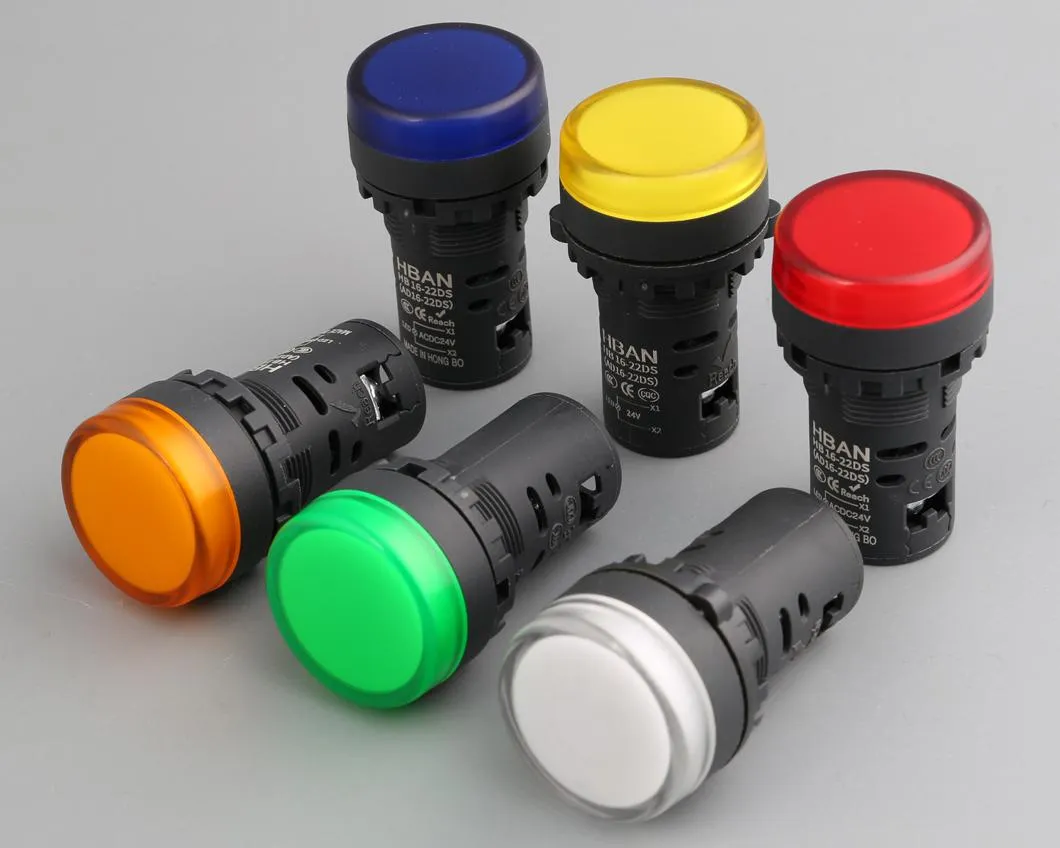

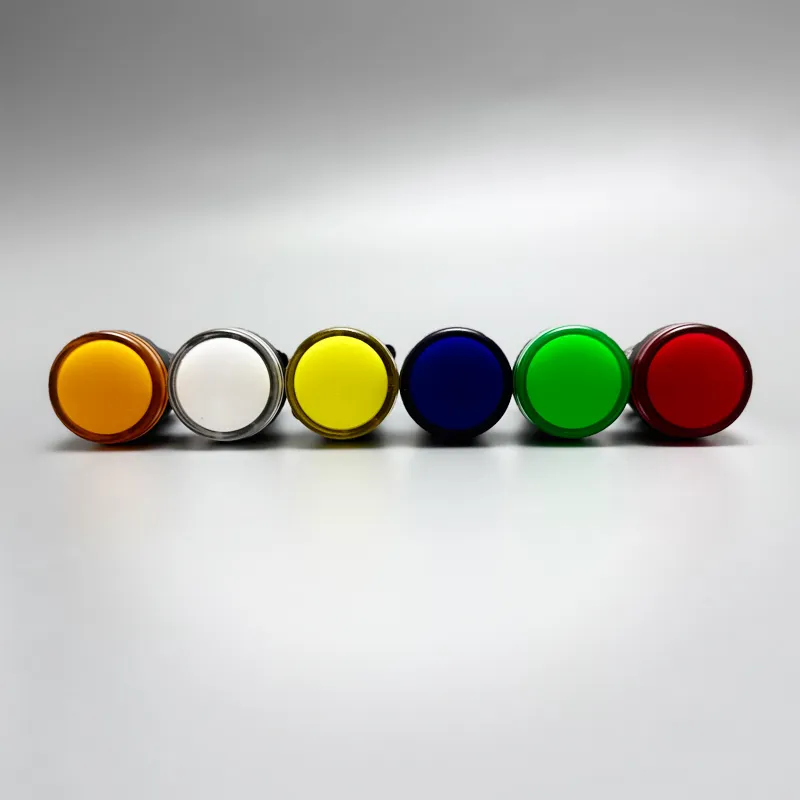

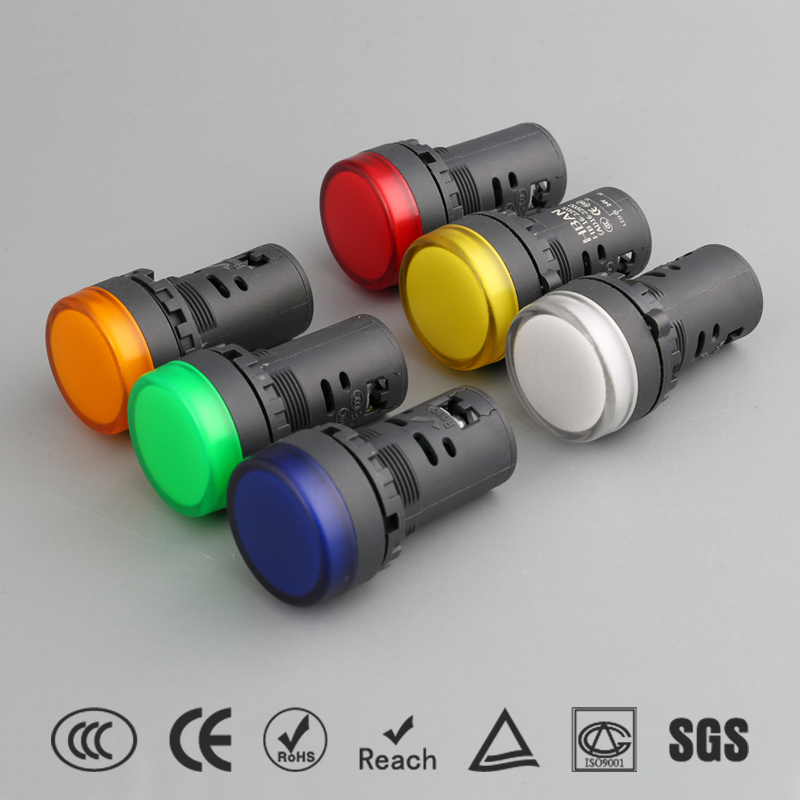

Head color selection: Red / Green / Blue / Yellow / White / Orange

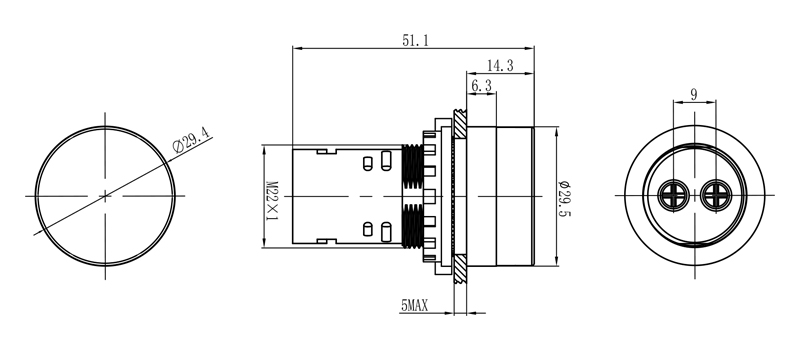

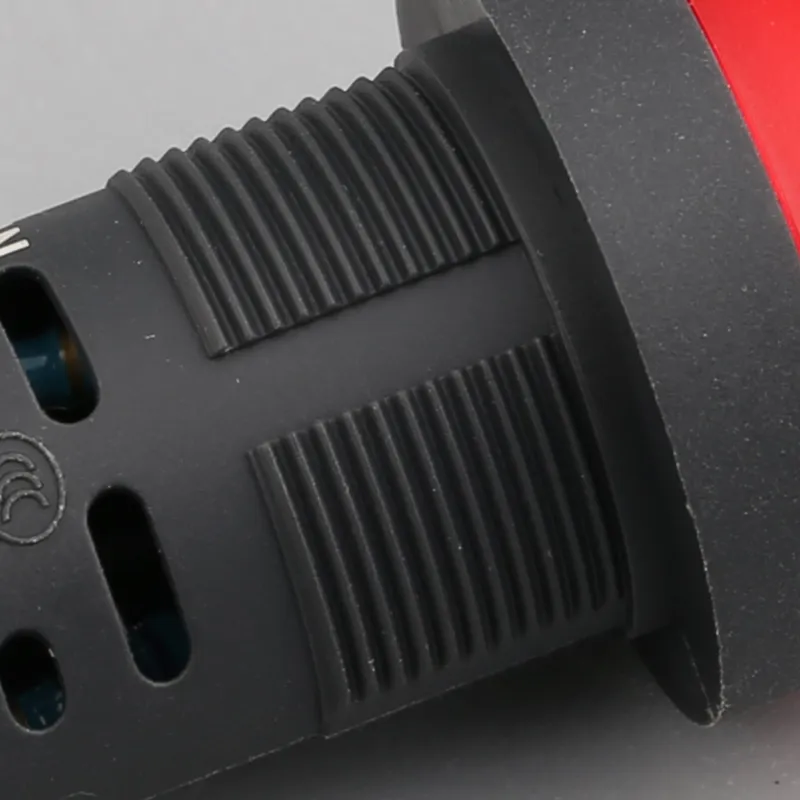

Mounting hole size: 22mm / 0.866in

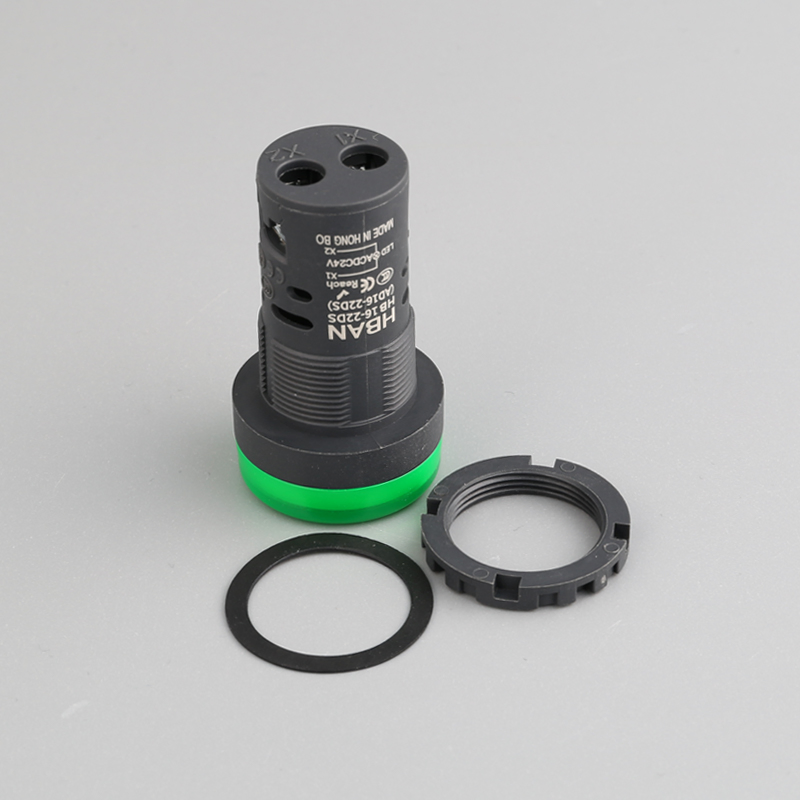

Accessories: Matching O-ring + Nuts
Panel thickness: 3.5mm MAX
Tightening torque: About 0.6mm

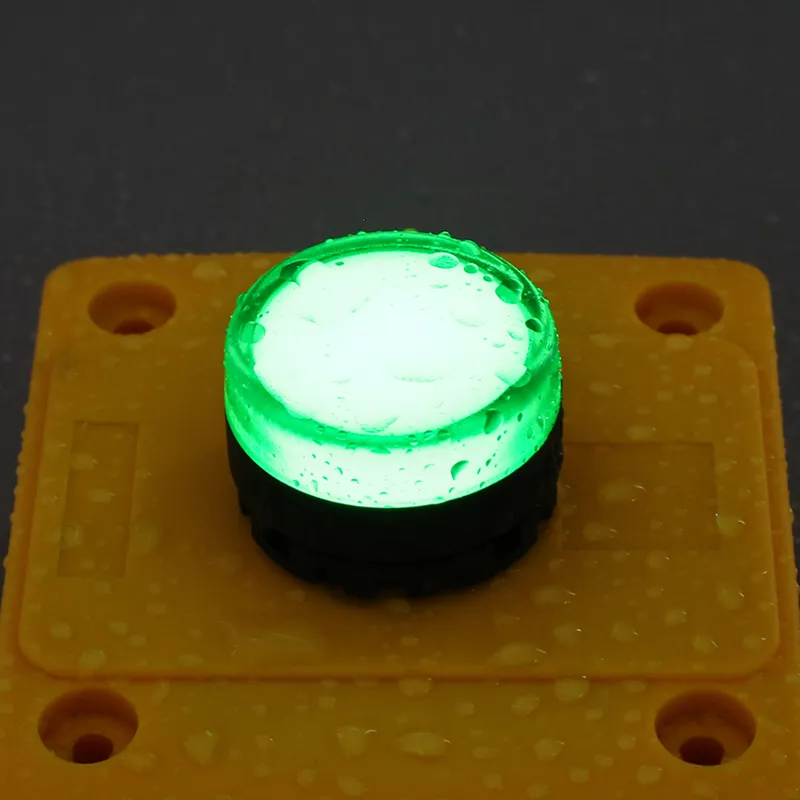

Prevent solid foreign objects with a diameter greater than 1mm from entering the interior of the equipment. The head is effectively waterproof.
Rated voltage: 6V / 12V / 24V; 110V / 220V
Rated current: ≤20mA
Lamp bead life: 50,000 hours

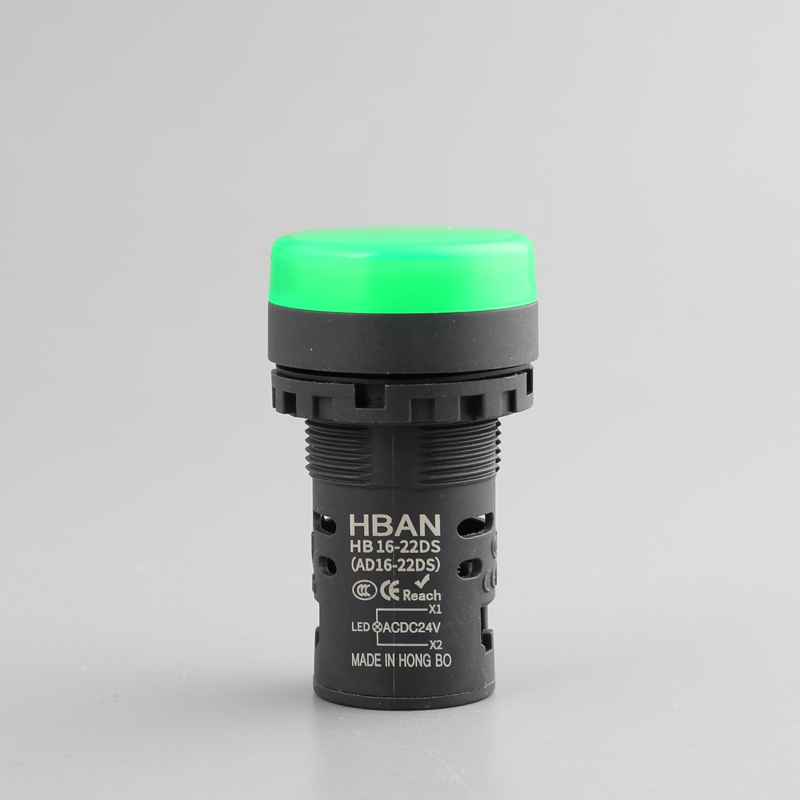

| Series Number: HB16 (This product is marked in green) | ||
|---|---|---|
| Neck Mounting Dimensions | 8: Ø8mm 10: Ø10mm 12: Ø12mm 16: Ø16mm 22: Ø22mm 30: Ø30mm |
- |

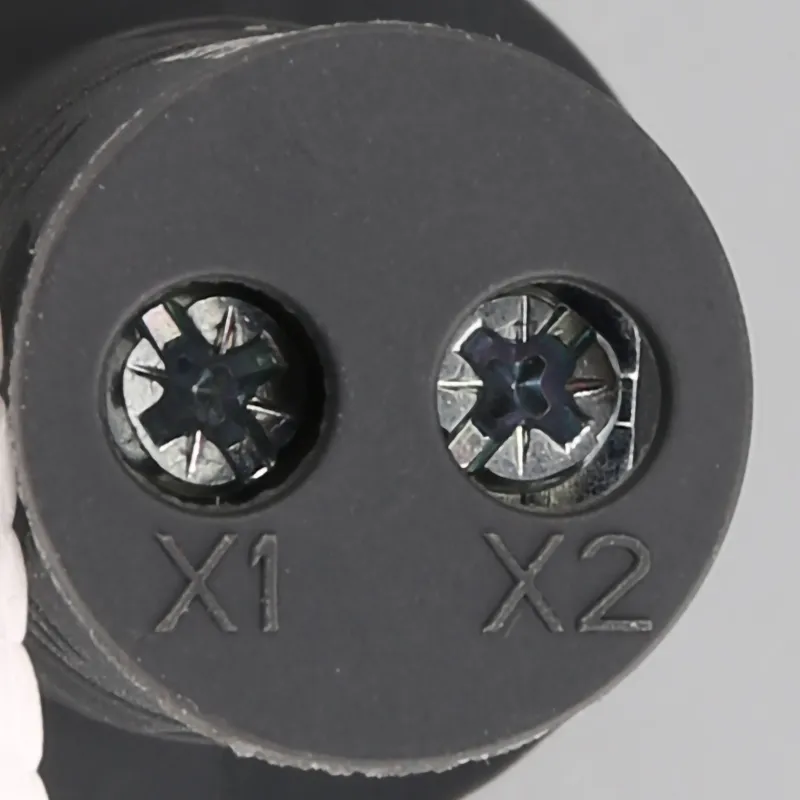

| Auxiliary Code | A: Pin terminal D: Screw terminal SM: Flashing indicator D/B: Bi-colour LED |
- |
| Form of Structure | No letters: Standard structure S: Ultra-short structure |
- |
| LED Voltage | 6V / 12V / 24V / 36V; 110V / 220V | Other voltages can be customized |
| LED Color | R: Red G: Green Y: Yellow O: Orange B: Blue W: White |
- |

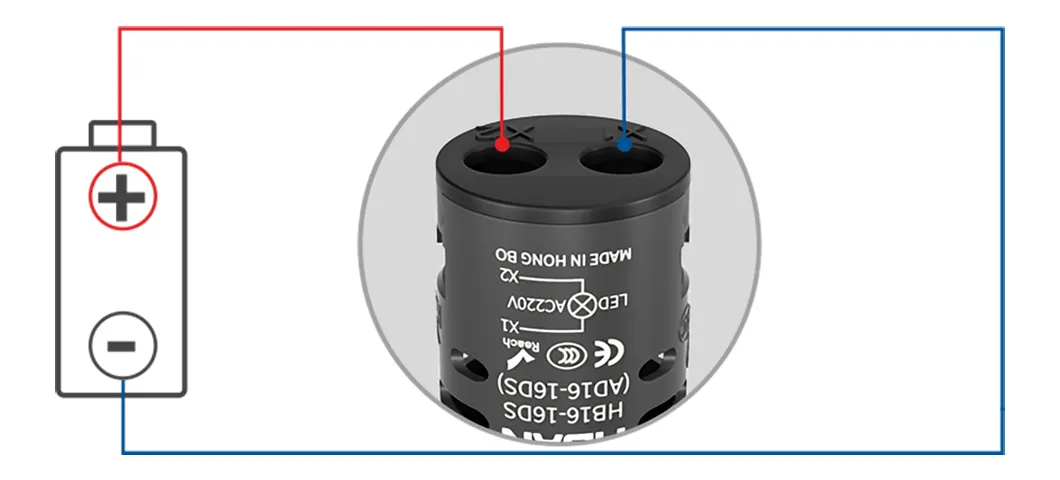

1. When powered on, it lights up without distinguishing between positive and negative poles.
Standard Packaging: 20pcs/box (Including 20pcs O-ring)
1. Products are placed into separate foam boxes to prevent collision during transit.
2. The foam box is inserted into the outer packaging box along with the black O-ring.
3. Heavy corrugated paper boxes are used for external protection and reinforced with strapping tape.
1. We offer worldwide shipping options.
2. Generally, standard products are shipped within 3-7 business days upon payment receipt.
3. Shipping delivery times vary depending on the destination, typical transit takes between 3-8 business days.
