| Model NO. | HBGQ22DT-D/Y/S/LED Voltage/R |
| IP Rating | IP67 |
| Color Temperature | Warm White |
| Certification | CCC, CE, Reach, RoHS, ISO |
| Switch Rating | 20mA/24V |
| Protection Degree | IP67, Ik08 |
| Certificate | CE UL RoHS Reach |
| Production Time | 3-5 Working Days |
| Mounting Hole Size | 22mm |
| Voltage | 2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl | Lead Wire |
| Crust Material | Stainless Steel |
| Operation Temperature | -25°C~+65°C |
| Transport Package | 50 PCS/ Box, 1000 PCS/Carton |
| Origin | Zhejiang, China |
| HS Code | 8531809000 |
| Production Capacity | 200, 000 PCS/ Month |
| Package Size | 21.00cm * 13.00cm * 6.00cm |
| Package Gross Weight | 5.000kg |

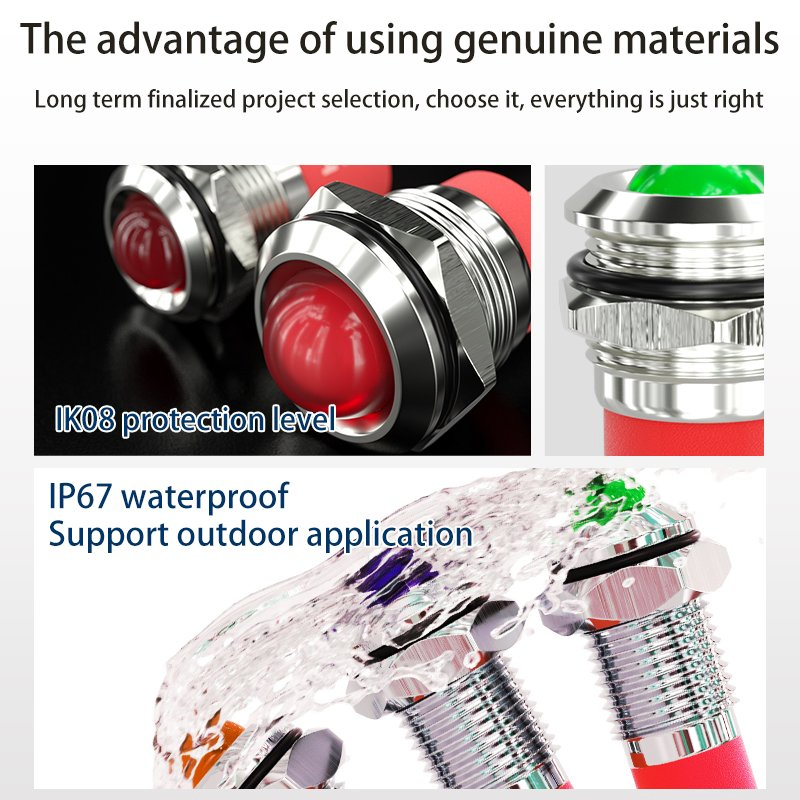

Impact Resistance and Wear Resistance: The metal housing can withstand accidental impacts, knocks, and friction during installation, use, and daily maintenance, effectively protecting the internal core LED and circuitry. This makes it particularly suitable for applications with strong vibrations and potential impacts, such as mining machinery and heavy equipment.
Outstanding Temperature Resistance and Heat Dissipation:
Adaptation to a Wider Temperature Range: Metals (such as aluminum alloy, stainless steel) can withstand higher ambient temperatures than engineering plastics, and are not prone to softening, deforming, or aging due to heat.
Natural Heat Sink: Metal is a good conductor of heat, enabling it to rapidly conduct and dissipate the heat generated by the LED chip during operation into the external environment. This effectively extends the LED's service life and prevents light decay.

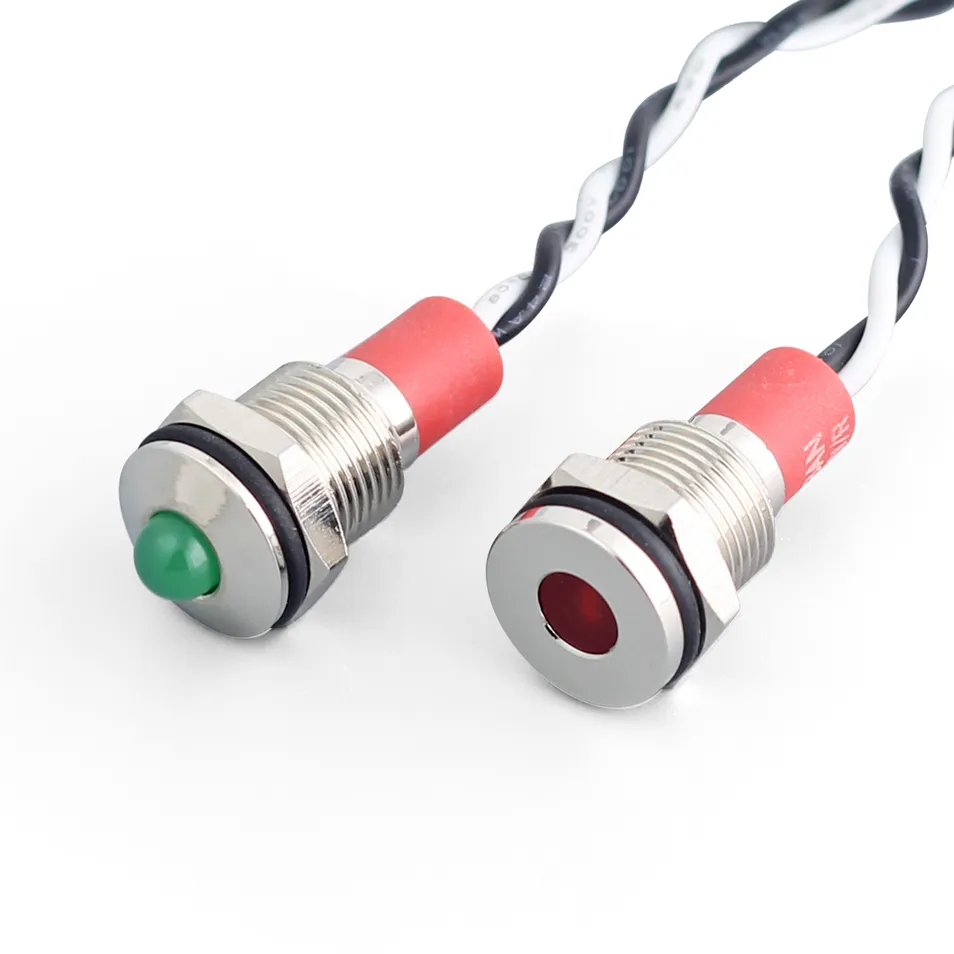

Two different types of heads
T: Flat shape
G: Spherical shape

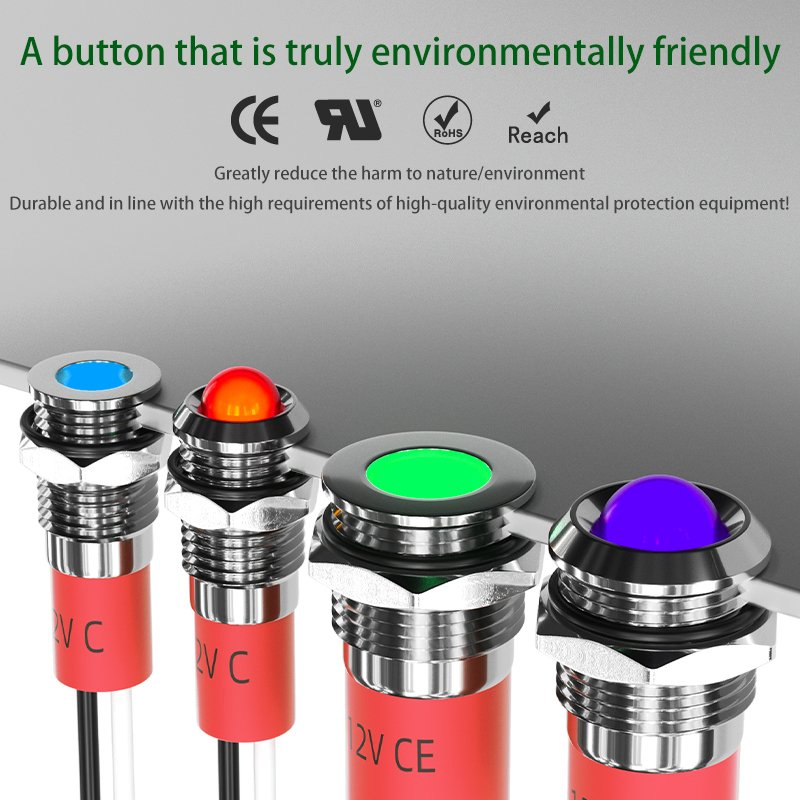

LED Color: Red/Orange/Yellow/Green/Blue/White

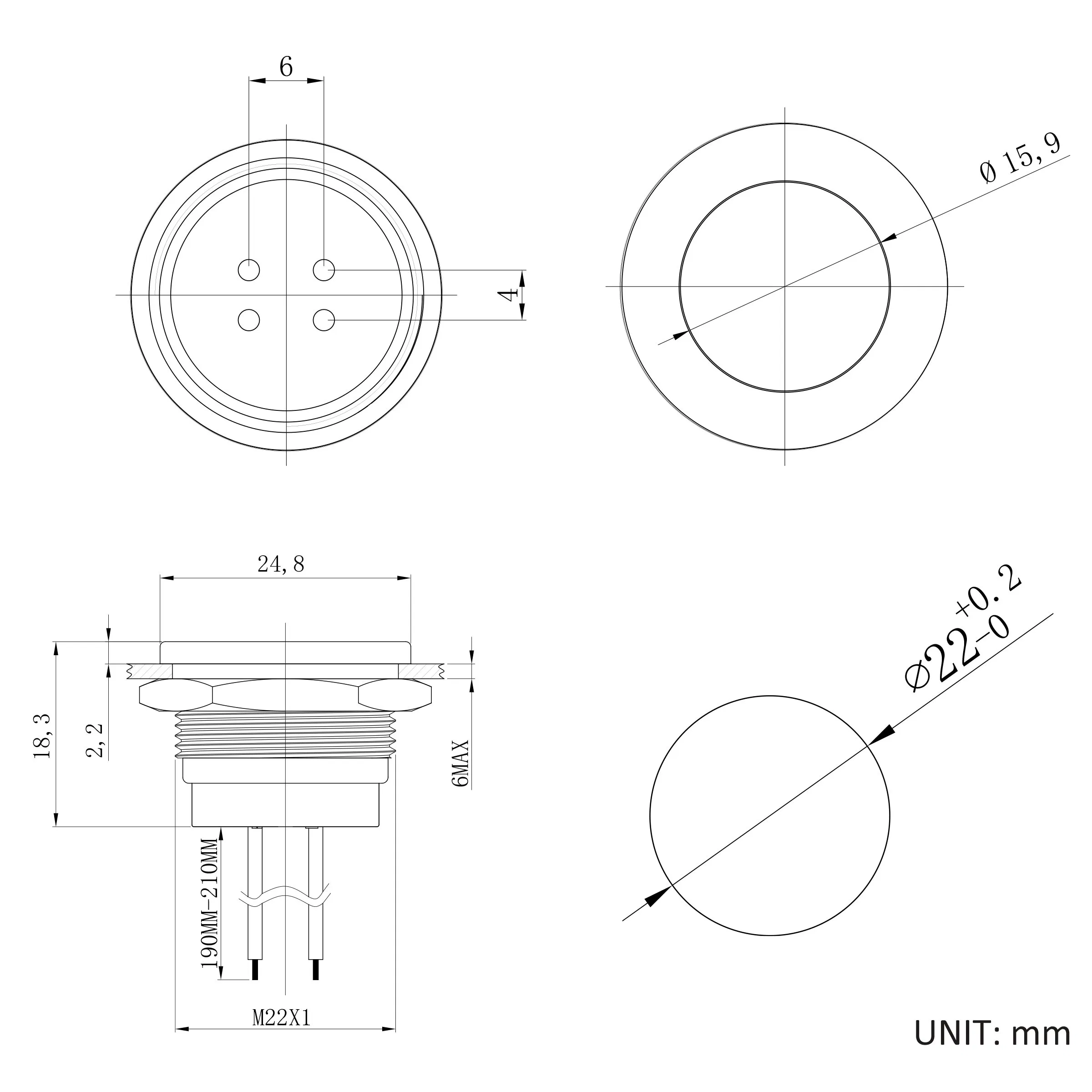

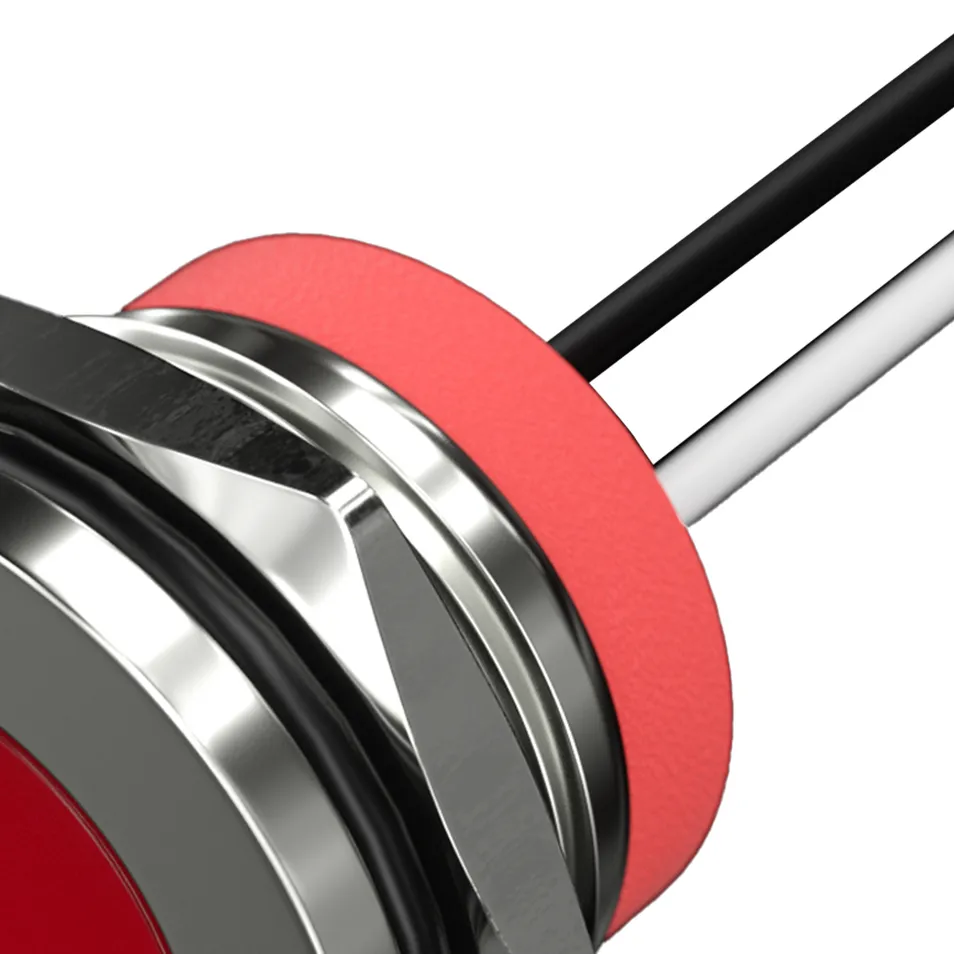

Installation
Mounting hole size: 22mm
Introduction to the structure: Matching O-ring + Nuts
Panel thickness: 8mm MAX

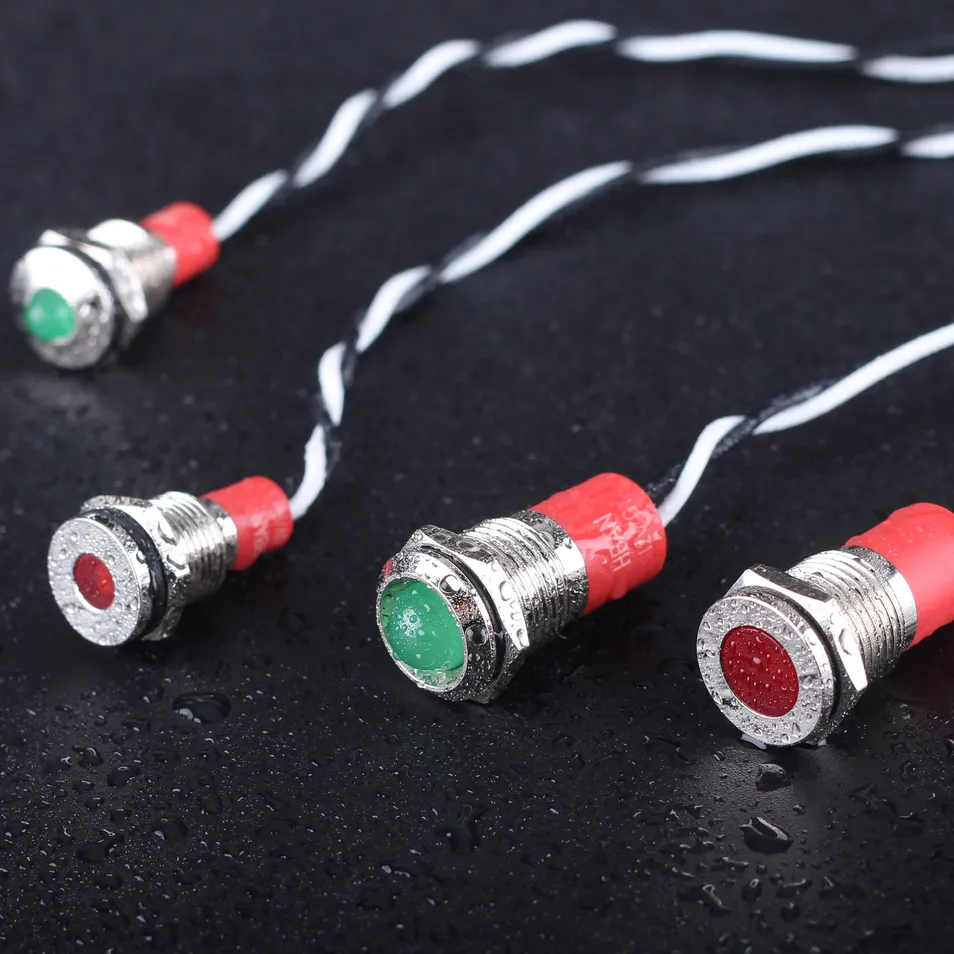

IP67 waterproof
Rating: IP67, First Digit (Solids): 6 (Dust-tight), Second Digit (Liquids): 7 (Immersion up to 1m).
Protection Level: Dust-tight and can withstand temporary immersion (30 minutes at 1m depth).

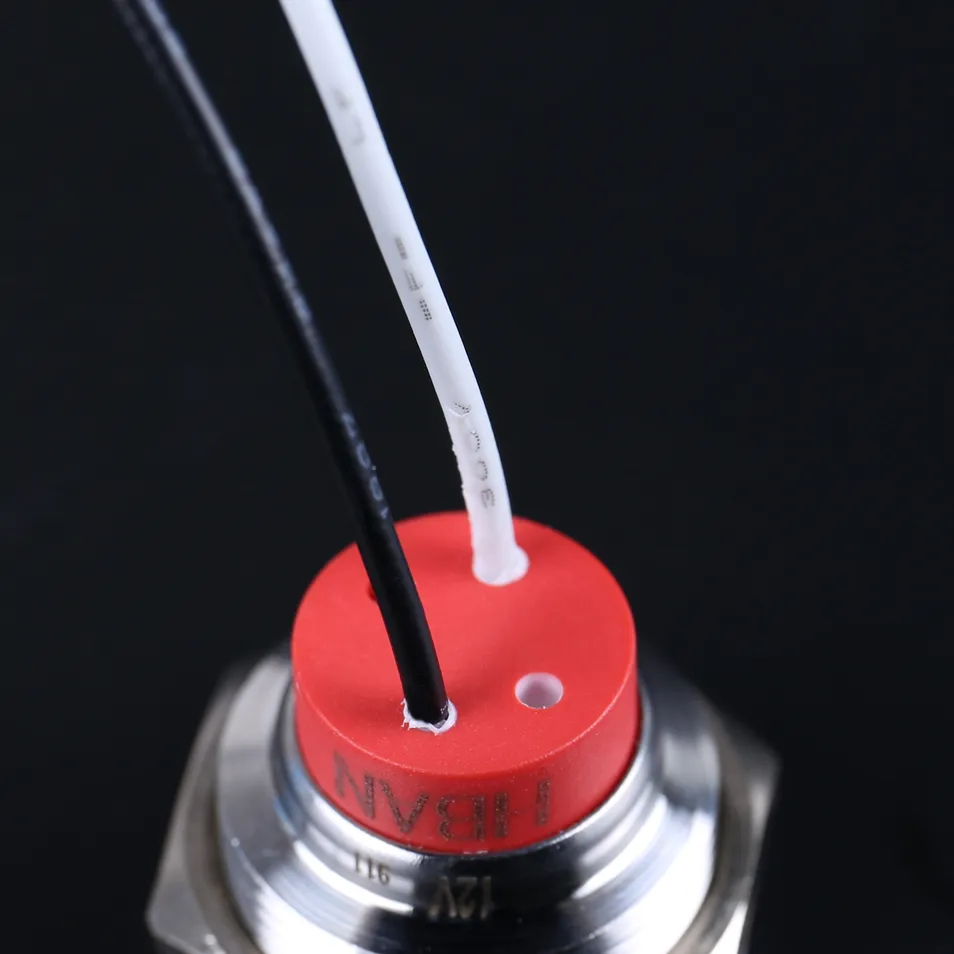

Long Work Life
Rated current: ≤20mA
Rated voltage: 3V/6V/12V/24V/36V; 110V/220V
Lamp bead life: 50000 hours
| Series Number: HBGQ (This product is marked in green) | ||
| Neck Mounting Dimensions | Ø6mm, Ø8mm, Ø10mm, Ø12mm, Ø14mm, Ø16mm, 19mm, Ø22mm, Ø25mm | |
| Terminal Type | J: Pin terminal L: Screw terminal Y: Lead wire |
|
| Head shape | T: Flat shape G: Spherical shape F: Flat circular shape DT: Large flat shape DG: Large spherical shape M: Flash signal light |
|
| LED Voltage | 6V/12V/24V/36V; 110V/220V | Other voltages can be customized |
| Lamp type | D: Dot LED E: Ring LED P: Plastic cover SP: Spray painted plastic cover |
|
| Housing material | N: Nickel plated brass S: Stainless steel T: Aluminum alloy |
|
| LED Color | R: Red, G: Green, Y: Yellow, O: Orange, B: Blue, W: White | |
1. When powered on, it lights up without distinguishing between positive and negative poles.
Industrial Automation Equipment
New Energy EV Charging Stations
Marine & Offshore Engineering
Lab & Testing Equipment
Rail Transit Systems
Power Control Cabinets & Distribution Systems

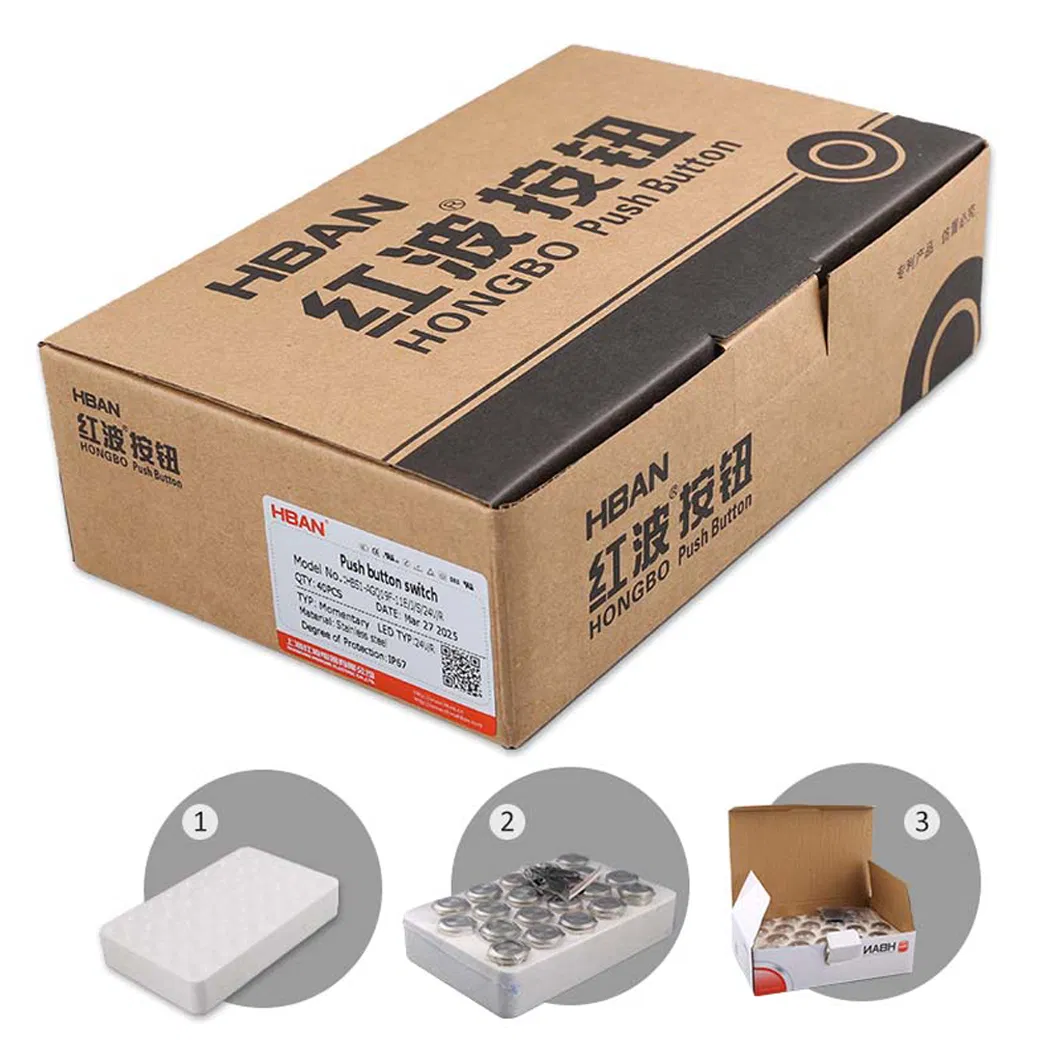

Packaging Details:
20pcs/box (Including 20pcs O-ring)
1 & 2: We will put the products into separate foam boxes to prevent collision.
3: Put the foam box into the packaging box and put in the black O-ring.
We use corrugated paper boxes for box packaging, and after packaging, we will use strapping tape for reinforcement.
Shipping Details:
1. We ship to worldwide.
2. Generally, items will be shipped within 3-7 business days on payment received.
3. Delivery time depends on destination and other factors, it may take up to 3-8 business days.
