Hban 22mm LED Signal Light with UV Resistance and High Temperature Resistance IP67

1 / 5

Hban 22mm LED Signal Light with UV Resistance and High Temperature Resistance IP67

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview
Model Specification
Wiring Example
Facility & Application
Packaging & Shipping
FAQ

Basic Info.

Model NO.	HB16-22DT/LED Voltage/B
Delivery	3-5 Working Days
The Crust Material	Plastic
Working Environment Temperature	-25ºC~+65ºC
HS Code	8531801090
Production Capacity	500000/Month

Packaging & Delivery

Package Size	21.00cm * 13.00cm * 6.00cm
Package Gross Weight	1.000kg

Product Description

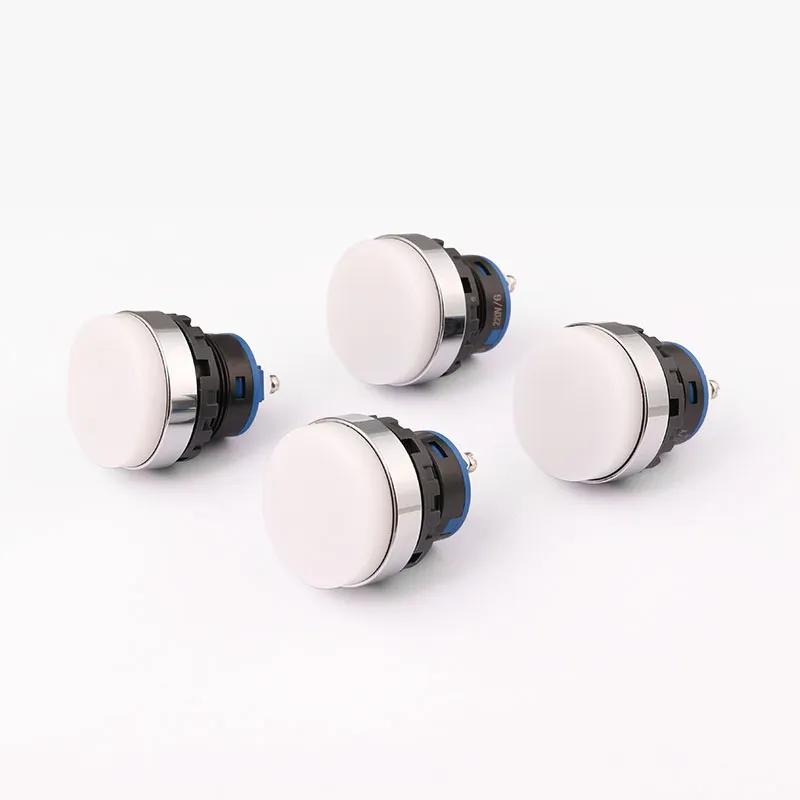

22mm LED Signal Light with UV Resistance and High Temperature Resistance IP67

Material characteristics: Plastic has a much lower density than metal, significantly reducing overall weight and making it easy to install, transport, or hang for use. Suitable for temporary engineering, traffic diversion, mobile devices and other scenarios that require frequent movement.
Chemical corrosion resistance: Strong resistance to corrosive substances such as acid, alkali, salt, etc., suitable for chemical industry and coastal high humidity environments.
Electric shock risk: Plastic is non-conductive and safer in places with electric shock hazards such as power facilities and substations.
Low maintenance cost: No need for rust prevention treatment, easy cleaning, high cost-effectiveness for long-term use. High quality engineering plastics have better impact resistance than glass, are less prone to breakage, and are more reliable in vibration or accidental collisions.
Multiple LED lights are available: Features large ball heads and high brightness to meet different styles and voltages. Plastic casing has lower heat dissipation requirements and can reduce energy consumption. Long term use can significantly reduce electricity costs, especially suitable for outdoor scenes powered by solar energy.

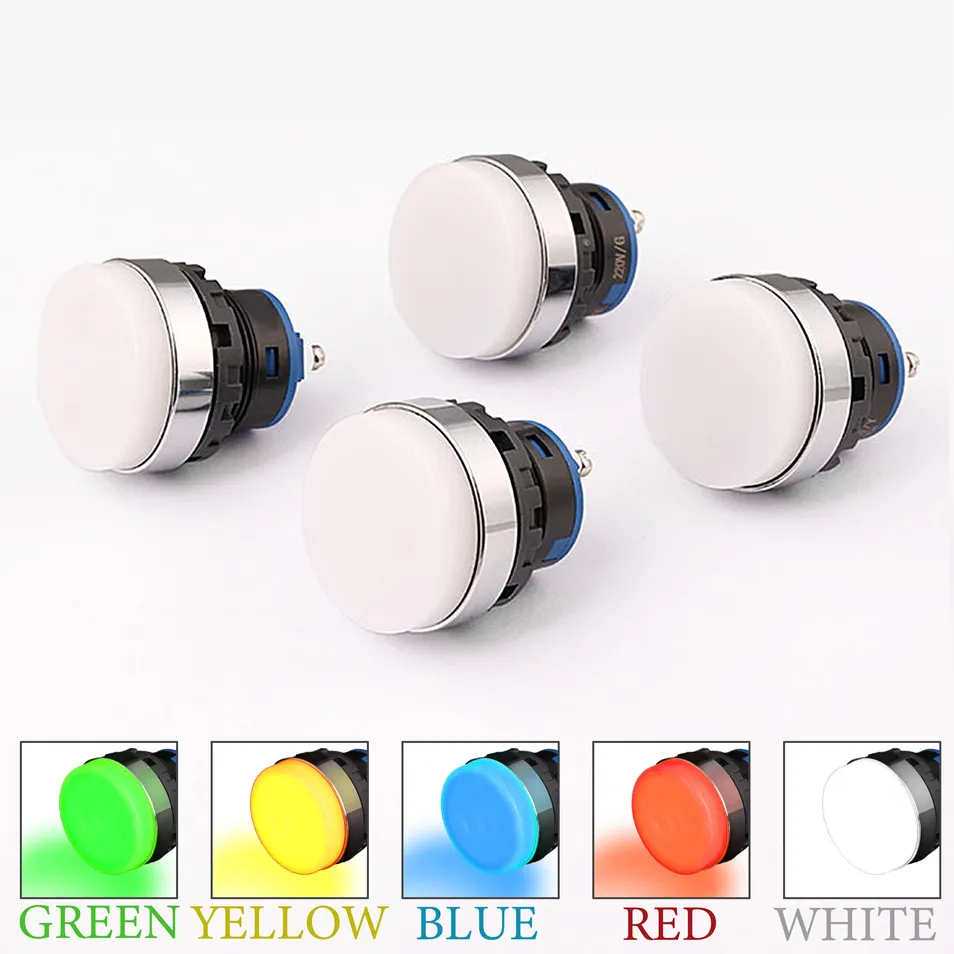

Supports making multi-color head

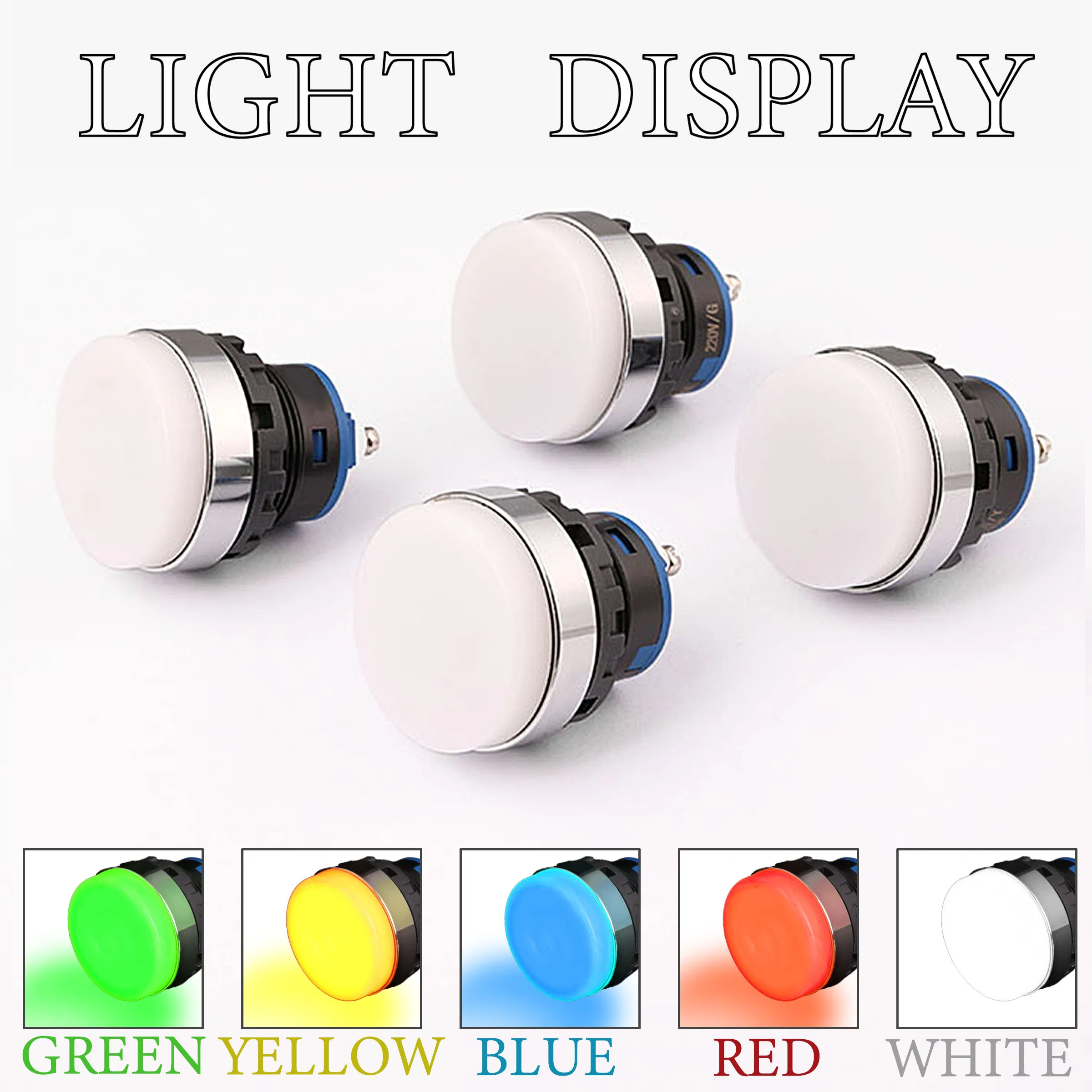

Head color selection: Red/Green/Blue/Yellow/White

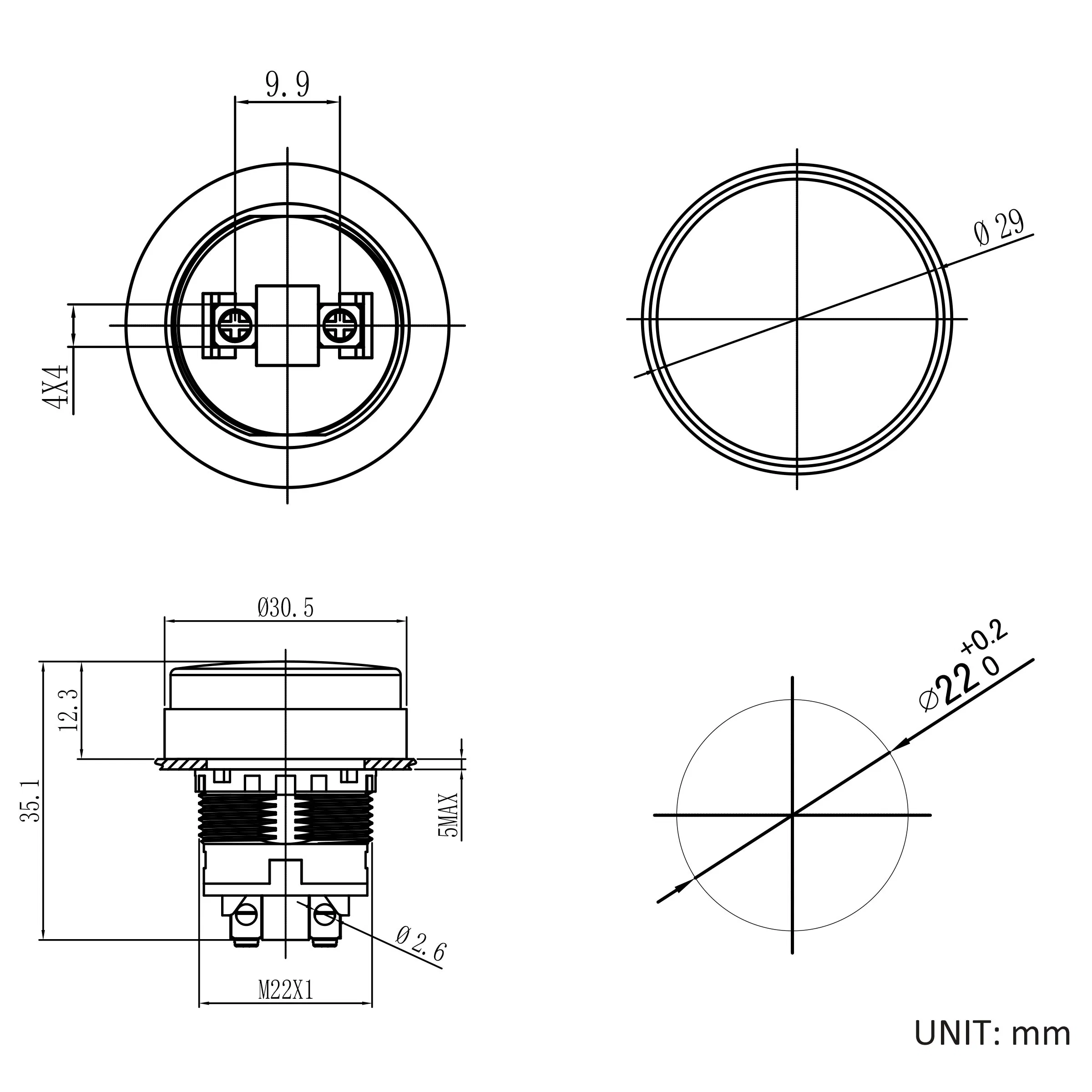

Installation
Mounting hole size: 22mm/0.866in mounting hole size.

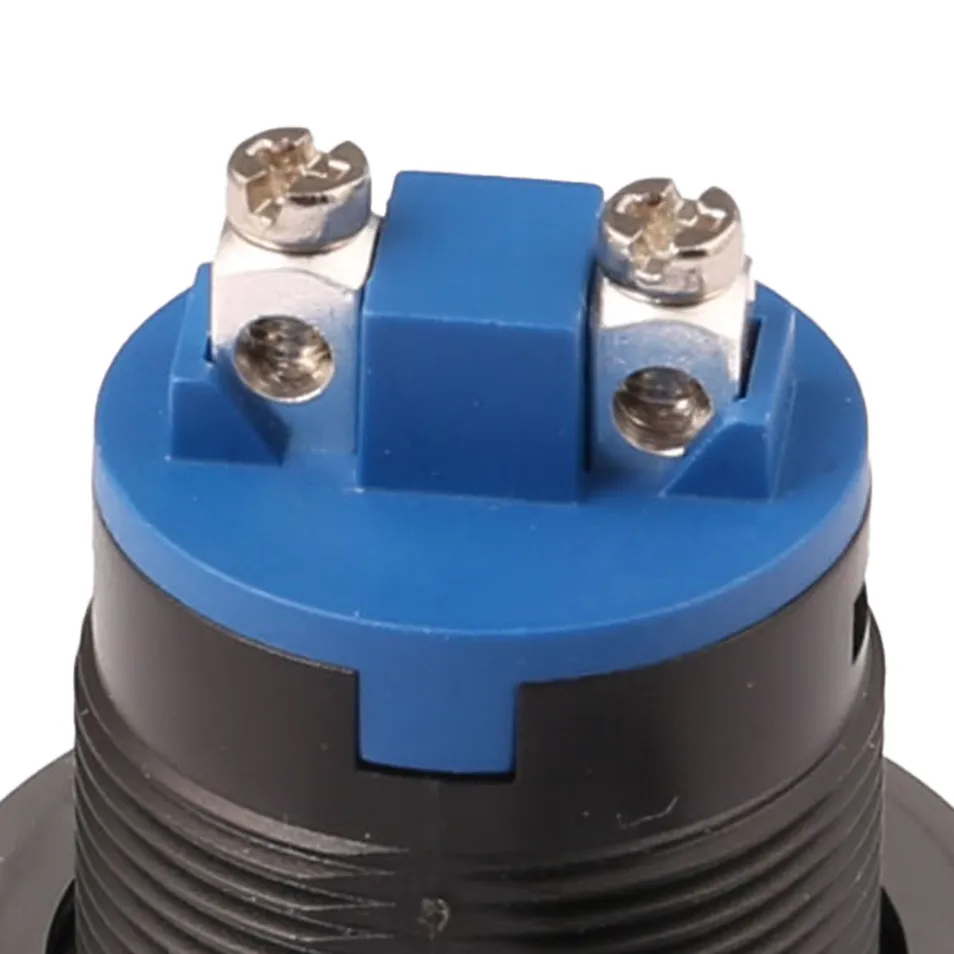

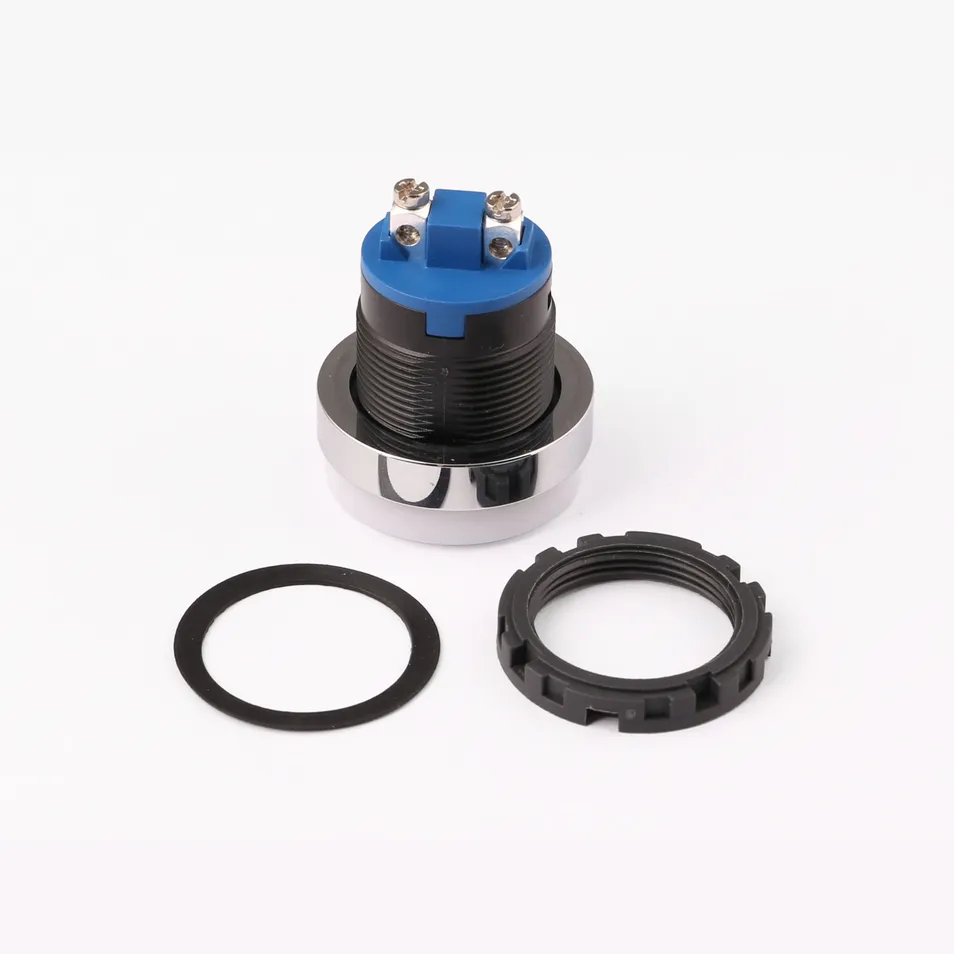

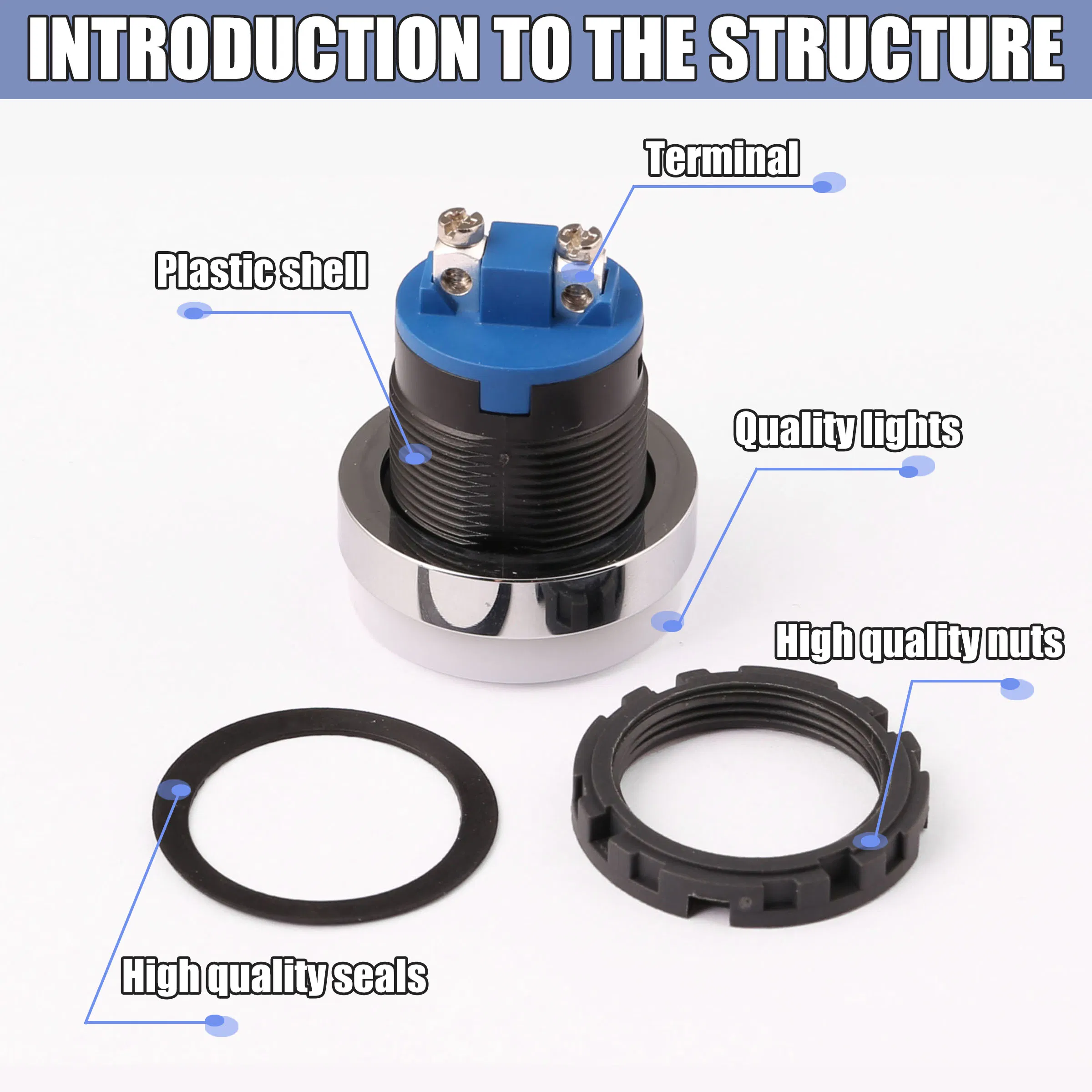

Introduction to the structure: Matching O-ring + Nuts.
Panel thickness: 5mm MAX.
Tightening torque: About 0.6mm

IP65 waterproof
Rating: IP65, First Digit (Solids): 6 (Dust-tight), Second Digit (Liquids): 5 (Low-pressure water jets).
Protection Level: Protected against dust and water jets (6.3mm nozzle, 12.5L/min from any direction). No less than 3 minutes.
Long Work Life
Rated voltage: 6V/12V/24V; 110V/220V
Rated current: ≤20mA
Lamp bead life: 50000 hours

Model Specification

Series Number: HB16 (This product is marked in green)
Neck Mounting Dimensions	8: Ø8mm 10: Ø10mm 12: Ø12mm 16: Ø16mm 22: Ø22mm 30: Ø30mm
Auxiliary Code	A: Pin terminal D: Screw terminal DG: Big domed SM: Flashing indicator D/B: Bi-colour LED
Form of Structure	No letters: Standard structure S: Ultra-short structure
LED Voltage	6V/12V/24V/36V; 110V/220V	Other voltages can be customized
LED Color	R: Red G: Green Y: Yellow O: Orange B: Blue W: White

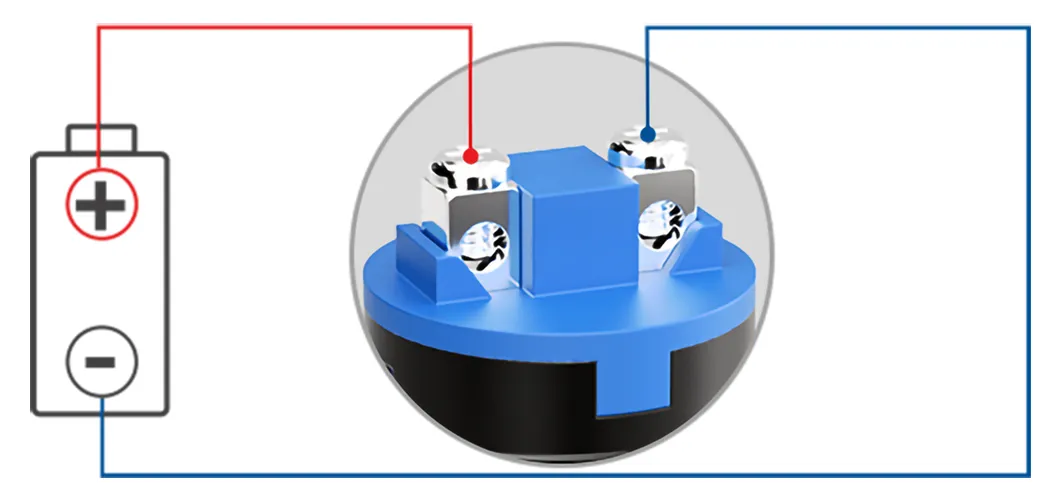

Wiring Example

1. When powered on, it lights up without distinguishing between positive and negative poles.

Facility

Application

Industrial Automation Equipment

New Energy EV Charging Stations

Marine & Offshore Engineering

Lab & Testing Equipment

Rail Transit Systems

Power Control Cabinets & Distribution Systems

Exhibition

Packaging

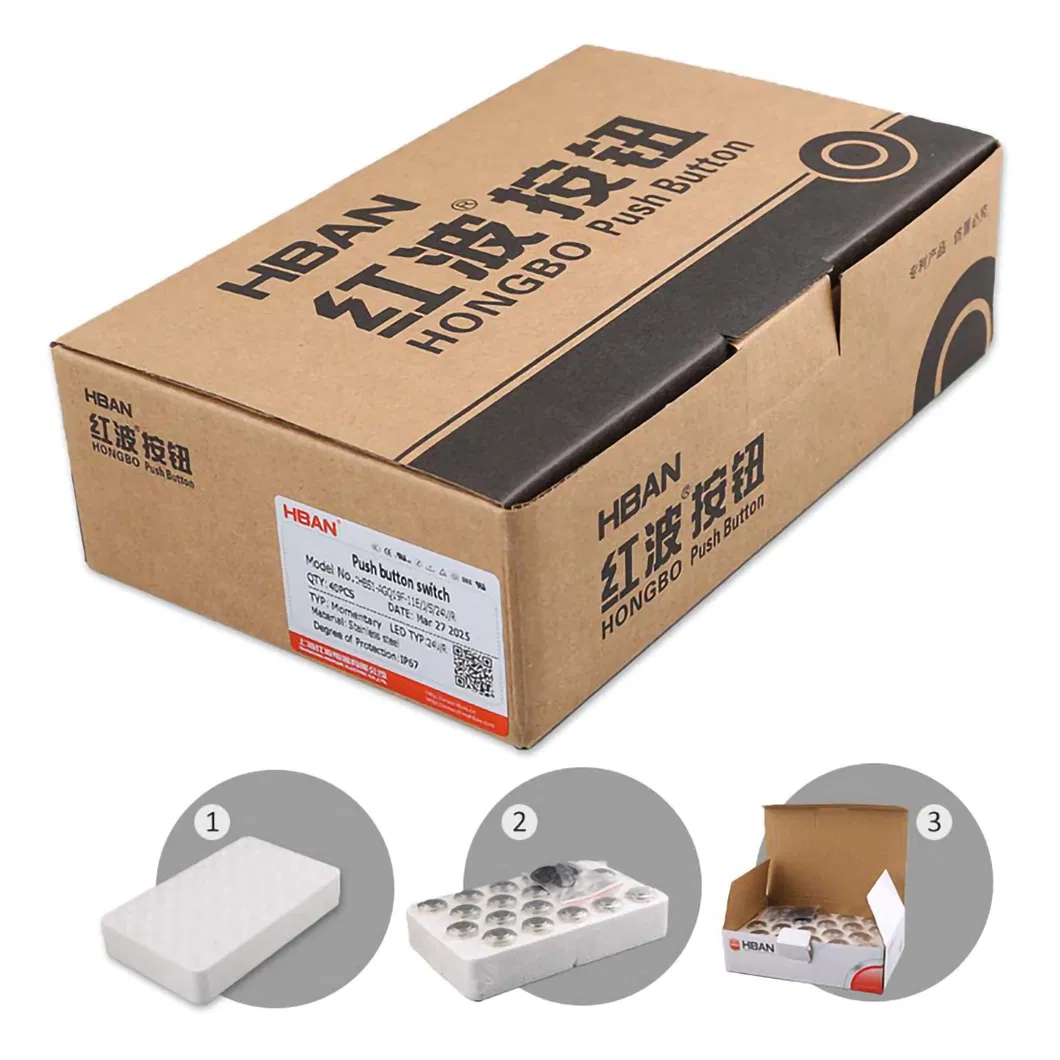

Packaging Specifications:

20pcs/box (Including 20pcs O-ring)
Products are placed into separate foam boxes to prevent collision.
Foam boxes are placed into the main packaging box along with the black O-ring.
Corrugated paper boxes are used for outer packaging, reinforced with strapping tape.

Shipping

Shipping Policy:

Worldwide shipping is available.
Generally, items will be shipped within 3-7 business days upon receipt of payment.
Delivery time depends on destination and other logistics factors, taking approximately 3-8 business days.

Frequently Asked Questions

QIs the material eco-friendly?

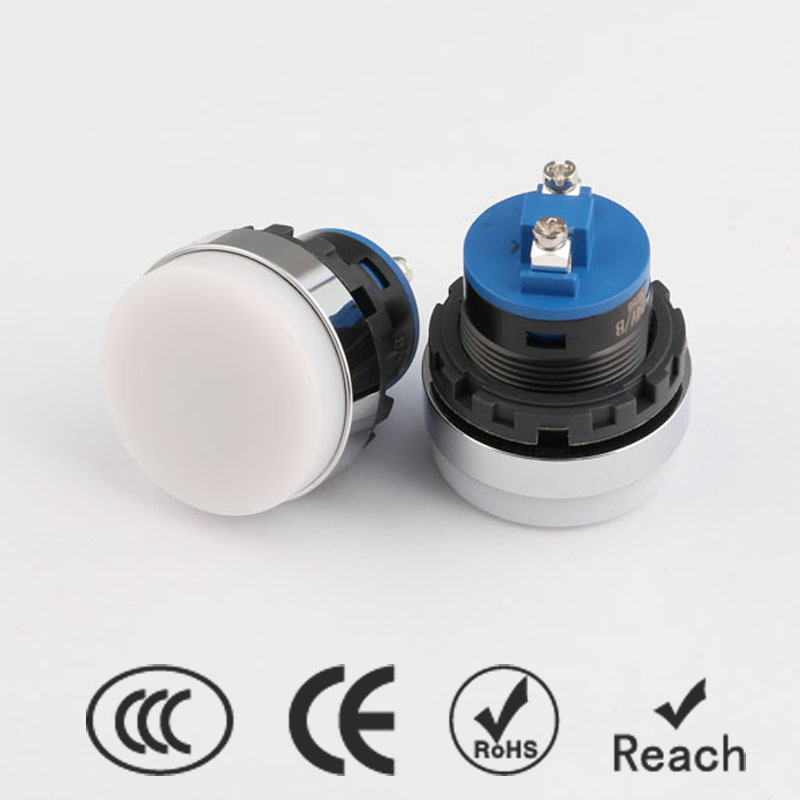

Yes, our products are made of environmentally friendly materials and have successfully passed ROHS and REACH certifications.

QCan you provide wiring diagrams or CAD files?

Yes, please contact our support staff and they will provide the necessary documents within 24 hours.

QCan you provide OEM/ODM services (custom logos/colors)?

Yes, we support complete OEM/ODM services. Minimum order quantities apply. Please contact our support team for more details.

QWhat payment methods are supported?

We support T/T (Wire transfer), Credit Card, and Paypal. (Please ensure that the amount received is consistent with the pro forma invoice amount).

QHow do you ensure that the products are not damaged during transportation?

We partner with premier express delivery companies including DHL, UPS, and FedEx (supporting both air and sea transportation). For packaging, we place products into individual foam compartments to prevent impact, which are then packed inside durable corrugated boxes reinforced with strapping tape.

QIs there a warranty?

Yes, the standard warranty period for our products is 1 year.
