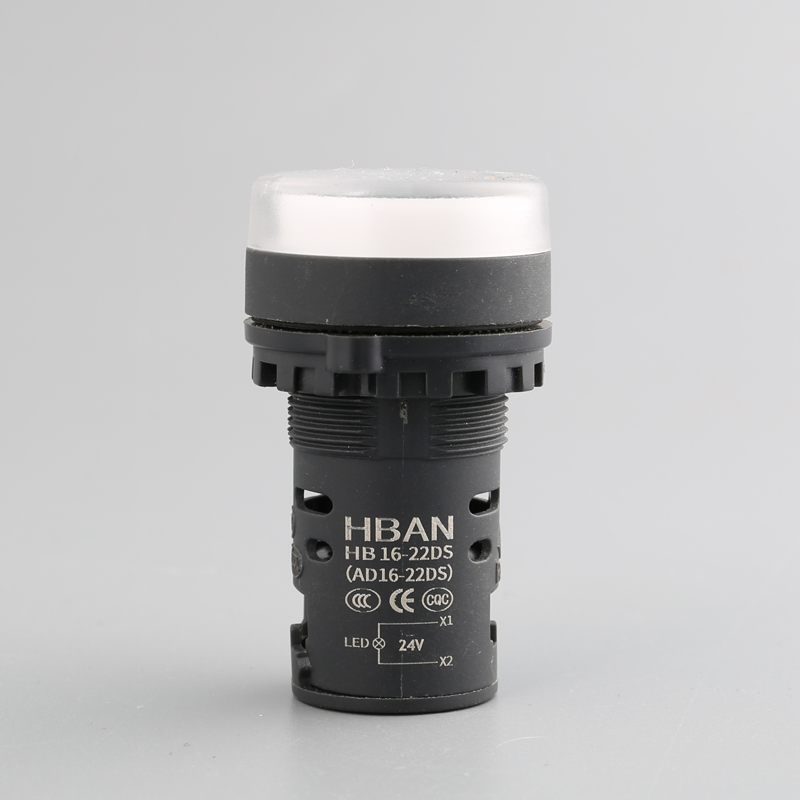

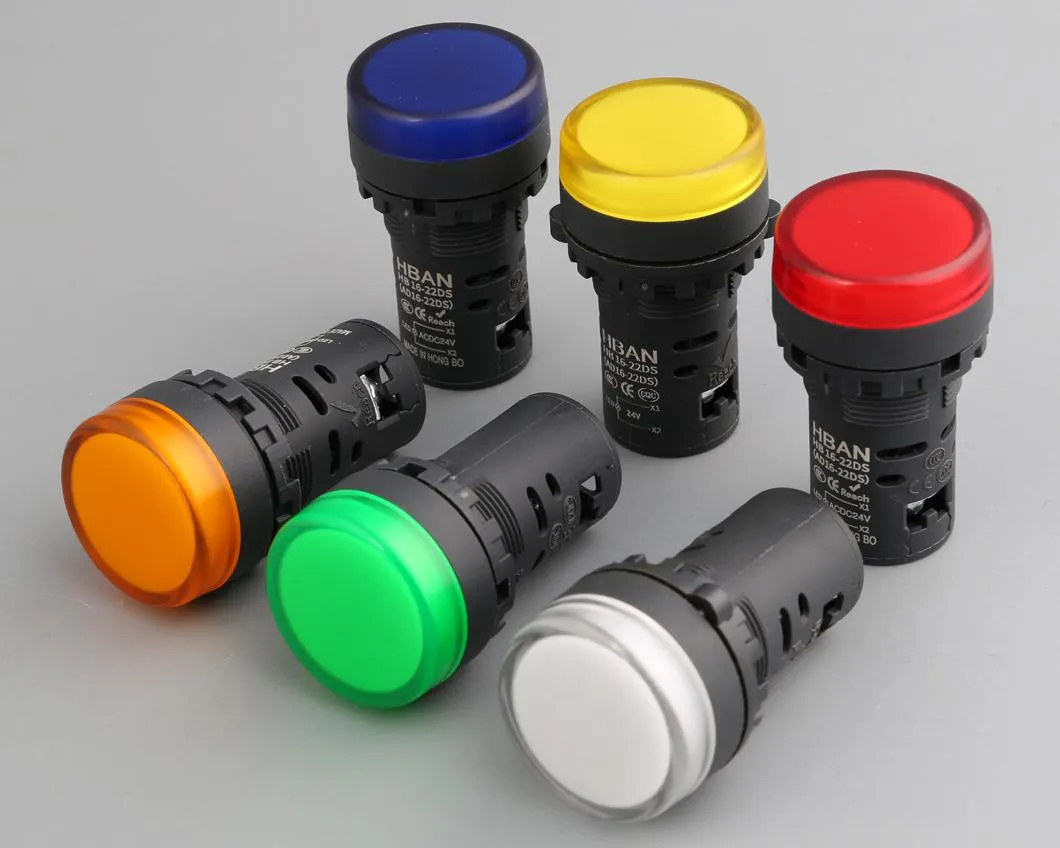

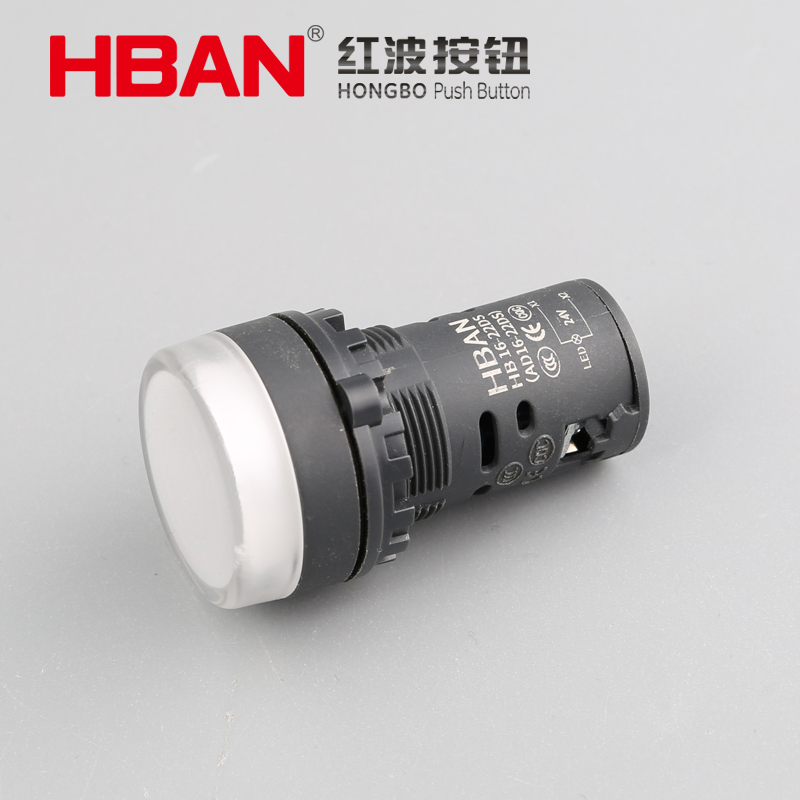

Hban 22mm White Plastic LED Lamp Signal Indicator Light for Fire Alarms

Product Overview

Basic Specifications

Model NO.	HB16-22DS/24V/W
Delivery	at Least 3 Working Days
The Crust Material	Plastic
Working Temp	-25℃ ~ +65℃
HS Code	8531801090
Production Capacity	500,000 / Month

Packaging & Delivery Details

Package Size	21.00cm * 13.00cm * 6.00cm
Package Gross Weight	1.000kg

Key Features & Benefits

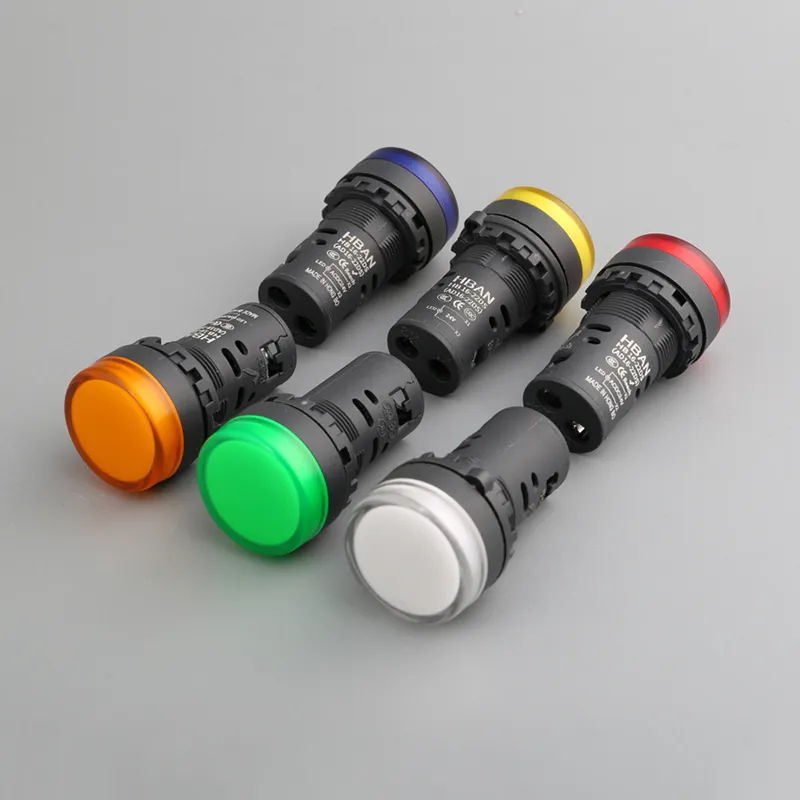

Plastic LED Lamp Signal Indicator Light Features

✓

Lightweight Design: High-quality plastic material has low density, reducing the load-bearing pressure of structures.

✓

Electrical Insulation: Insulating properties eliminate the risk of electric leakage, complying with industrial safety standards.

✓

Chemical & Corrosion Resistance: Resists oil stains, weak acids, bases, and humid gases. Longer service life in harsh environments.

✓

Energy-Saving LED: Low power consumption of ≤ 1W with minimal heat generation.

✓

Temperature Resilience: Maintains stable performance from -25℃ to +65℃.

Technical & Performance Details

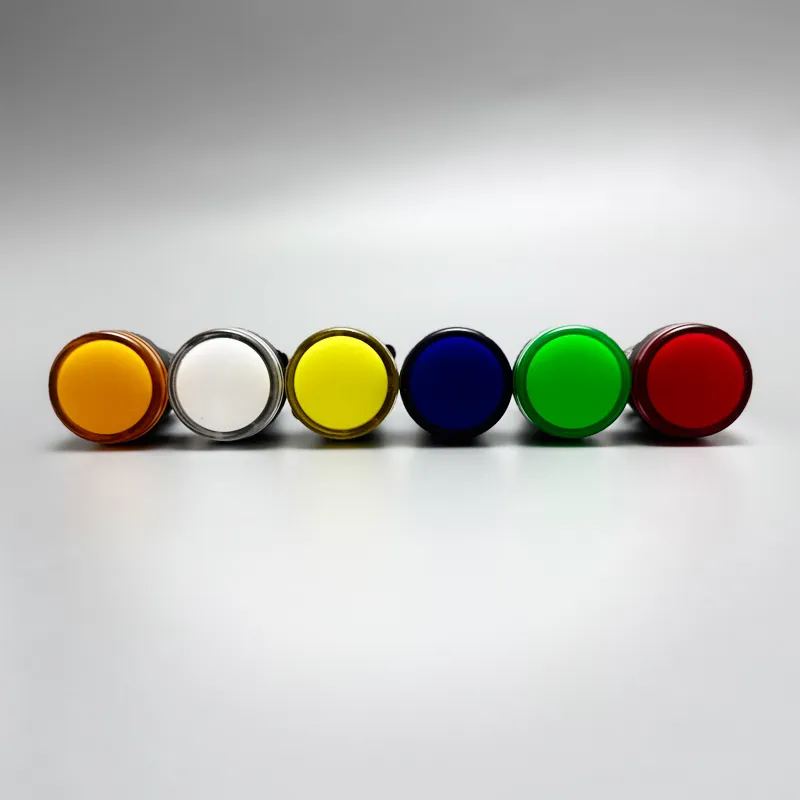

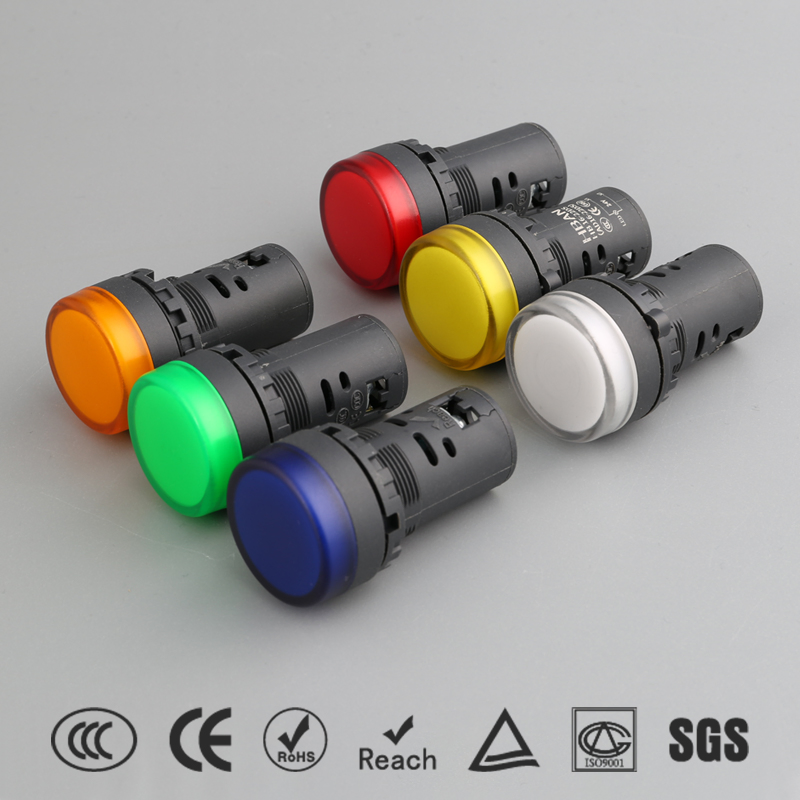

Supports Multi-Color Head Styles

Colors available: Red, Green, Blue, Yellow, White, Orange.

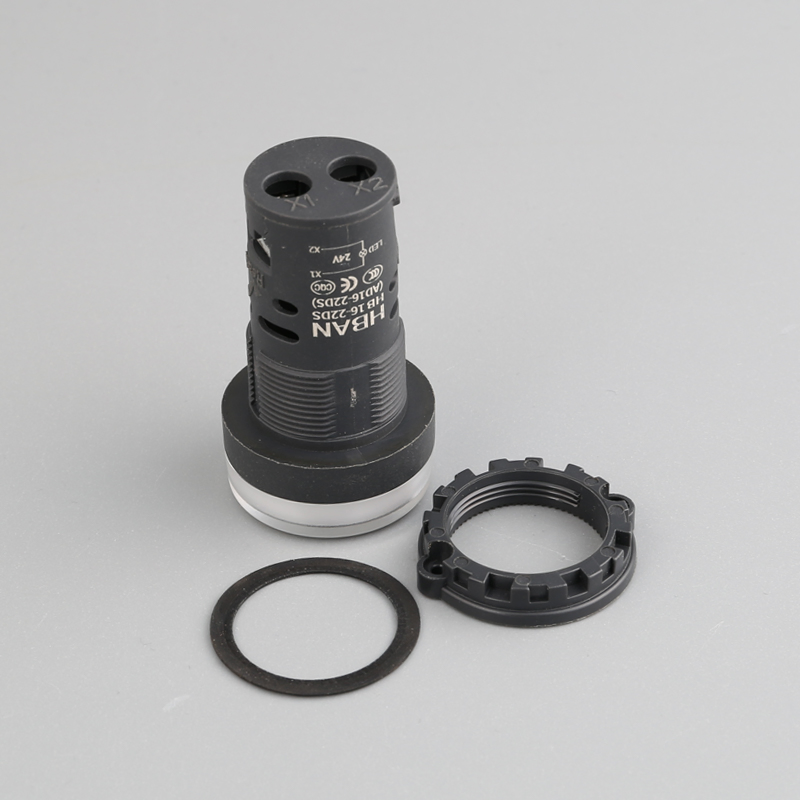

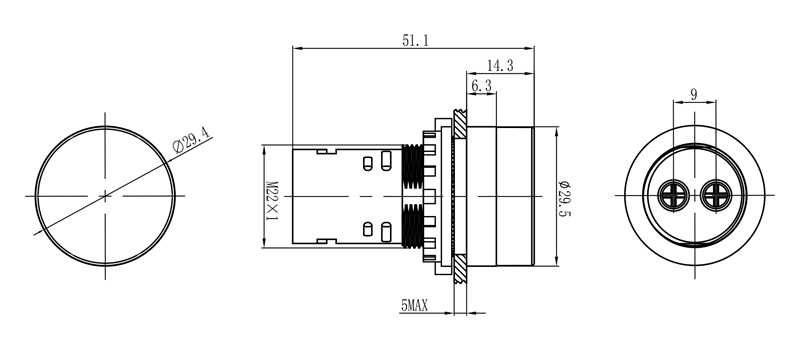

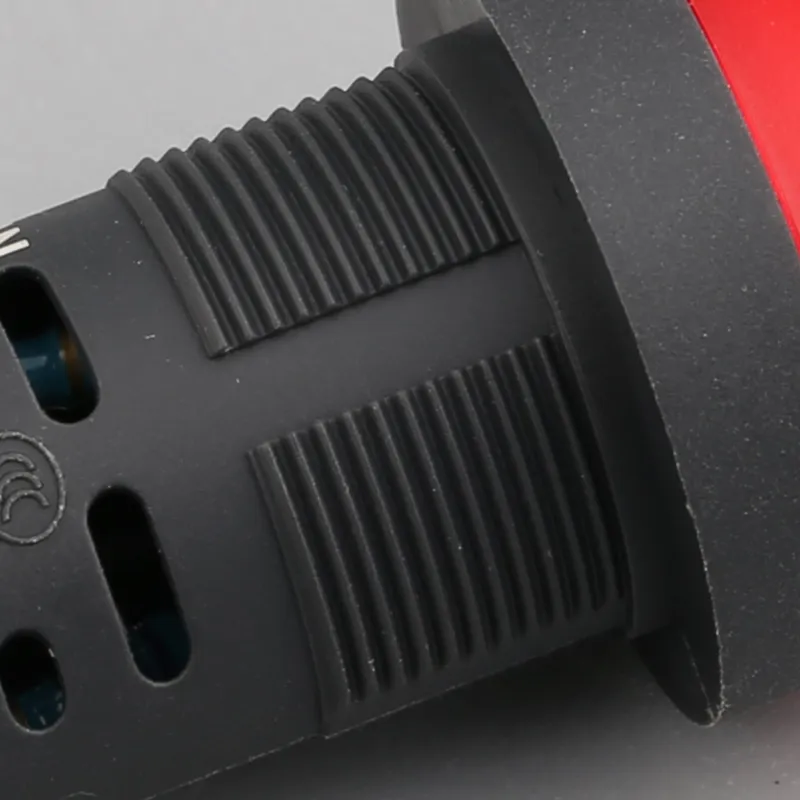

Installation: 22mm / 0.866in mounting hole size, complete with matching O-ring and nuts. Panel thickness: 3.5mm Max. Tightening torque: About 0.6mm.

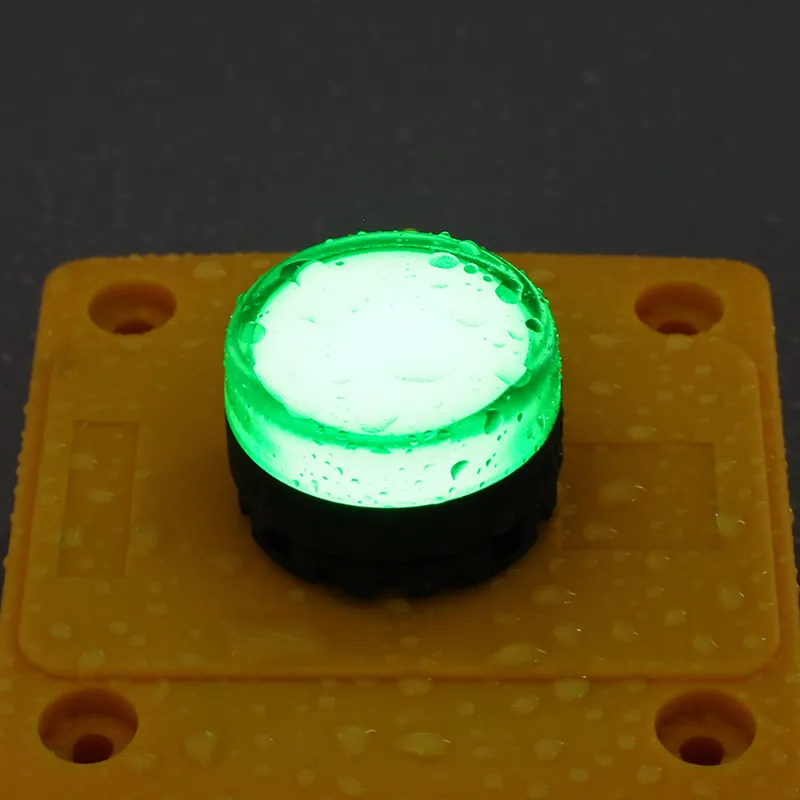

IP40 Protection & Long Lifespan

Prevents solid foreign objects with a diameter greater than 1mm from entering the equipment interior. Effective head protection.

Rated Voltage: 6V/12V/24V; 110V/220V

Rated Current: ≤20mA | Lamp Bead Life: 50,000 hours

Model Specifications

Series Number: HB16
Neck Mounting Dimensions	8: Ø8mm \| 10: Ø10mm \| 12: Ø12mm 16: Ø16mm \| 22: Ø22mm \| 30: Ø30mm	Indicated sizes available
Auxiliary Code	A: Pin terminal D: Screw terminal SM: Flashing indicator D/B: Bi-colour LED
Form of Structure	No letters: Standard structure S: Ultra-short structure
LED Voltage	6V/12V/24V/36V; 110V/220V	Other voltages can be customized
LED Color	R: Red \| G: Green \| Y: Yellow O: Orange \| B: Blue \| W: White

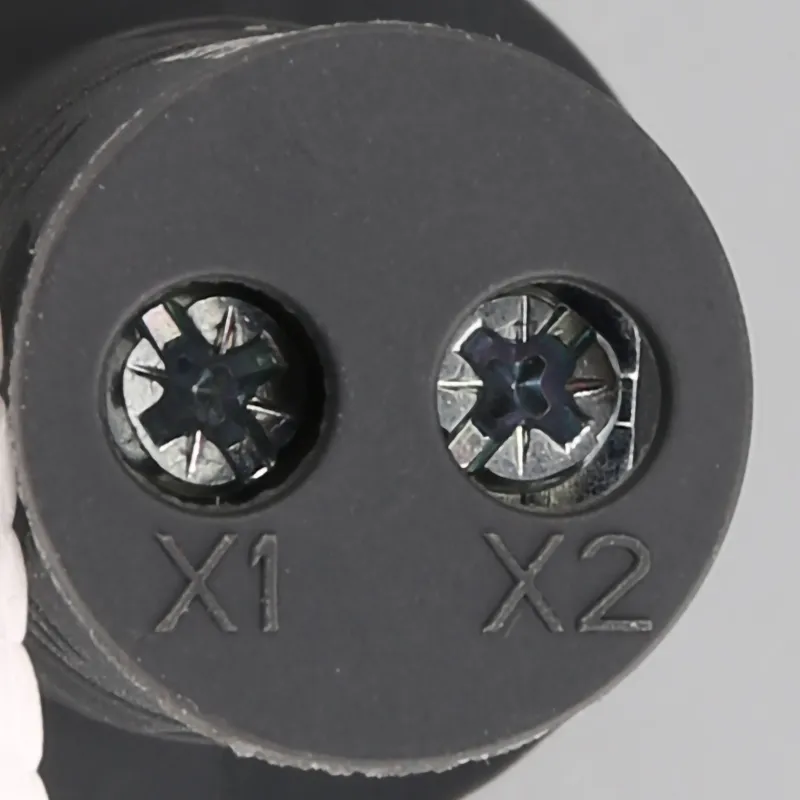

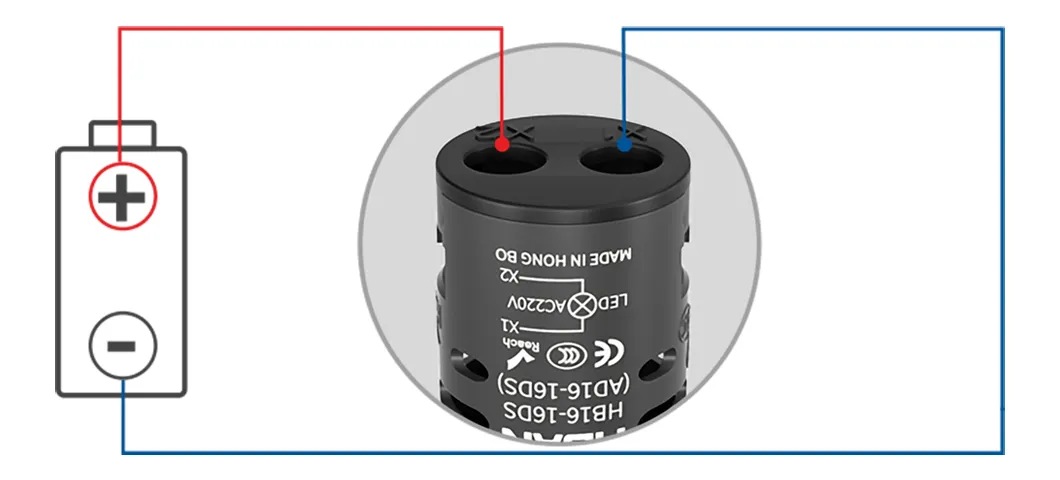

Wiring Example

1. When powered on, it lights up without distinguishing between positive and negative poles.

Manufacturing Facility

Manufacturing workshop and production floor

Applications

Industrial Automation Equipment

New Energy EV Charging Stations

Marine & Offshore Engineering

Lab & Testing Equipment

Rail Transit Systems

Power Control Cabinets & Distribution

Product Exhibition

Exhibition booth showcasing push buttons and indicator lights

Packaging & Shipping

Packaging Details

20pcs/box (Includes 20pcs O-rings)
Items are secured in separate foam boxes to prevent collision during transit.
The foam box is placed into the outer corrugated paper box reinforced with strapping tape.

Shipping Policy

Global shipping options available.
Standard items ship within 3-7 business days upon receipt of payment.
Typical transit time ranges from 3-8 business days depending on the destination.

Frequently Asked Questions

Is the material eco-friendly?

Yes, our products are made of environmentally friendly materials and have passed ROHS and REACH certifications.

Can you provide wiring diagrams or CAD files?

Yes, please reach out to our service team, and we will provide the required documents within 24 hours.

Can you provide OEM/ODM services (custom logos/colors)?

Yes, we support OEM/ODM services. Minimum order quantities apply depending on the customization scope.

What payment methods are supported?

We support T/T (Wire transfer), Credit card, and Paypal. (Please ensure the received amount aligns with the pro forma invoice).

How is packaging handled to prevent damage during transport?

We cooperate with global express carriers like DHL, UPS, and FedEx. Products are placed into individual compartments within a protective foam box before being packed into reinforced corrugated cardboard boxes with heavy-duty strapping.

What is the warranty period?

All products are covered by a standard warranty period of 1 year.
